Pre-wire Momentary Button Switches for Street Eagle System 1

(1)

North Eastern Rescue Vehicles North Eastern Rescue Vehicles, Inc.

10 Dwight Park Drive Bob Reilly

Syracuse, NY 13209 10 Dwight Park Drive

Syracuse, NY 13209

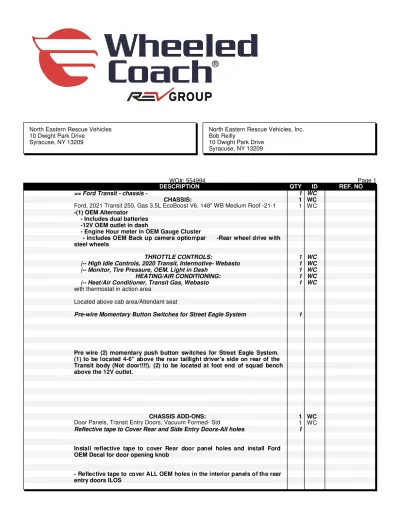

WO#: 554994 Page 1

DESCRIPTION QTY ID REF. NO

== Ford Transit - chassis - 1 WC

CHASSIS: 1 WC

Ford, 2021 Transit 250, Gas 3.5L EcoBoost V6, 148" WB Medium Roof -21-1 1 WC -(1) OEM Alternator

- Includes dual batteries -12V OEM outlet in dash

- Engine Hour meter in OEM Gauge Cluster

- includes OEM Back up camera option\par -Rear wheel drive with steel wheels

THROTTLE CONTROLS: 1 WC

|-- High Idle Controls, 2020 Transit, Intermotive- Webasto 1 WC |-- Monitor, Tire Pressure, OEM. Light in Dash 1 WC

HEATING/AIR CONDITIONING: 1 WC

|-- Heat/Air Conditioner, Transit Gas, Webasto 1 WC with thermostat in action area

Located above cab area/Attendant seat

Pre-wire Momentary Button Switches for Street Eagle System 1

Pre wire (2) momentary push button switches for Street Eagle System. (1) to be located 4-6" above the rear taillight driver's side on rear of the Transit body (Not door!!!!). (2) to be located at foot end of squad bench above the 12V outlet.

CHASSIS ADD-ONS: 1 WC

Door Panels, Transit Entry Doors, Vacuum Formed- Std 1 WC Reflective tape to Cover Rear and Side Entry Doors-All holes 1

Install reflective tape to cover Rear door panel holes and install Ford OEM Decal for door opening knob

(2)

DESCRIPTION QTY ID REF. NO - 24/7 to install (2) "SLIDE TO OPEN" decals to right rear inside release

door.

Whelen ULF44 LED Flasher 1

TO BE USED FOR:

Amber Valance lights and Amber ION lights

Note: To always flash when in use

GRILLE LIGHTS AND INTERSECTION LIGHTS, TRANSIT ONLY 1 WC

Light, Whelen, LIN3, LED-Red, RSRO2ZCR 2 WC

as intersection lights

Light, Whelen, Micron, Red w/chrome Flange, Internal Flasher 2 WC - (2) in grille; wired thru external flasher, standard.

install in Chrome flange.

Light, Whelen, Micron, Red W/Chrome Flange Internal Flasher IATS-Mounted in lowe

2

Mounted in the lower grille

(2) in grille; Internal Flasher IATS-Mounted in lower section of Grille Surface Mount, Red, Chrome Flange IATS

Light, Whelen,LIN3, LED Red, RSRO2ZCR IATS 4

Install (2) Whelen LIN3 Red LEDs with clear lenses one each side of chassis forward of OEM rear Brake lights.

These lights are to be located at the same height as FRONT INTERSECTIONS and 12" from front edge of taillights to center of Whelen LIN3 LED. Wired on w/Emergency lights primary only.

Install (2) Whelen LIN3 Red LEDs with clear lenses rear of unit mounted one each side just above rear Brake lights (See provided photos for locations). Wired on w/Emergency lights primary only.

Whelen #RSR02ZCR LIN3, Red with #RFLANGEC chrome flange

== Type 2 Transit Medium Roof - 1 WC

This unit built in accordance with KKK-A1822-F CN 10 cabinetry Requirements 1 WC This unit as specified meets all requirements of KKK-A1822-F Change notice

10.

All cabinets shall be labeled as to their capacity Rating.

CRUSADER PLUS VAN 1 WC

(3)

WO#: 554994 Page 3

- Install anti-slip decal with Wheeled Coach logo on curbside and rear stainless steel thresholds, STD INCLUDES THE FOLLOWING, STANDARD

- (1) Antenna pre-wire located behind Driver's Seat, run to roof antenna plate

-12V protection Blade style breakers with Manual reset - Static air intake and Power exhaust

- Back up alarm without cutoff switch - R-11 Reflective insulation Insulation

- Street side and Curbside Perco I.V. Hooks with Velcro straps

- 60 square inches of Red/White reflective material on each door. SHIP LOOSE (1) 5 lb ABC Fire Extinguisher

Harness, Transit, RelayPlex System 1 WC

Mid-roof- Circuit board behind action area wall..

Warning light Flash Pattern Quad Flash 75 - per KKK Pri/Sec

Top, Medium Roof Transit OEM 1 WC

|-- Housings, Cast, Rear Door Warning Lts,LH & RH, Medium Roof Transit Only

1 WC To Be Installed On Upper Rear Doors- 3x7 lights side by side

Drivers Side - LH37241-1 Passengers Side - LH37242-1

|-- Light Valance, Rear, Interior, for 500 Series lights, Std. Transit 1 WC - will contain (2) red, (1) amber, (2) load lights R-C-A-C-R

|-- Light, 5L, Scene, #50C000ZR, w/Flange, Valance Only 2 WC

- (2) mounted on ABS housing inside rear doors

|-- Light, Whelen, TIR6, LED, RED, w/flg, Valance Only 2 WC

- Mounted outboard on ABS Housing inside rear doors - Primary/Secondary, when rear doors are opened, Sprinter

flash pattern, per Engineering

|-- Light, Whelen, TIR6, LED, Amber, w/flg, Valance Only 1 WC

- Mounted on center of ABS Housing inside rear doors - Primary/Secondary, when rear doors are opened, Sprinter

flash pattern, per Engineering

|-- Driver's side Light on Rear 1 WC

(4)

DESCRIPTION QTY ID REF. NO |-- Front Upper, Driver outboard position #1 1 WC

|-- Light, 7L, Super LED, Whelen, Red, Clear Lens, ILOS,70R02SCR 1 WC |-- Front Upper, Driver inboard position #2 1 WC |-- Light, 7L, Super LED, Whelen, Red, Clear Lens, ILOS,70R02SCR 1 WC |-- Front Upper, Driver Center position #3 1 WC |-- Light, 7L, Super LED, Clear, Std, 70C02SCR 1 WC |-- Front Upper, Passenger Center position #4 1 WC |-- Light, 7L, Super LED, Clear, Std, 70C02SCR 1 WC |-- Front Upper, Passenger inboard position #5 1 WC |-- Light, 7L, Super LED, Whelen, Red, Clear Lens, ILOS,70R02SCR 1 WC |-- Front Upper, Passenger outboard position #6 1 WC |-- Light, 7L, Super LED, Whelen, Red, Clear Lens, ILOS,70R02SCR 1 WC |-- Housings, Cast, Side Warning/Scene Lights, Medium Roof Transit Only 1 WC (1) 7x3 Warning Light & (1) 7 Series Scene Light will

fit in each housing.

Drivers Side Front - LH37245-1 Drivers Side Rear-LH37247-1 Passengers Side Front-LH37246-1 Passengers Side Rear-LH37248-1

|-- Front Light on Driver's side 1 WC

|-- Light, 7L, Scene, #70C0ELZR, LED, (1) 1 WC |-- Light, 7L, Super LED, Whelen, Red, Clear Lens, ILOS,70R02SCR 1 WC

|-- Rear Light on Driver's side 1 WC

|-- Front Light on Passenger's side 1 WC

|-- Rear Light on Passenger's side 1 WC

Third (3rd) Brakelight, Transit OEM on roof 1 WC

HEATING/AIR CONDITIONING: 1 WC

Espar Heater System - NONE Required 1 WC

REAR BUMPER: 1 WC

Bumper, Rear, Diamondplate with Gripstrut insert 1 WC Running Boards, 1/2 Length Driver, 2/3 Length Passenger, Transit 1 WC Running boards cover the stepping area for both cab doors and the slliding

door but do not extend to rear wheels on Passenger side.

RUNNING BOARDS: 1 WC

Mud Flaps, Front & Rear, Transit, Molded (no Logo) 1 WC Rocker Trim, Passenger Side, Install False Trim 1

SWITCH PANELS 1 WC

Front Switch Panel, Transit, Eaton CAN Switches in OEM Console 1 WC Action Area Switch Panel, Transit, Eaton CAN Switches, Relocated CS 1 WC Curbside head of Squad Bench

(5)

WO#: 554994 Page 5

Paint, Belt, None 1 WC

INVERTERS/CHARGERS: 1 WC

Inverter/Charger, Vanner 20-1050CUL-DC 1 WC

125VAC SHORELINE: 1 WC

Shoreline, Twistlock, 20A, 1 WC

- driver's side, standard location

- (2) outlets std, (1) in A/A, (1) upper RF cabinet

|-- Outlet, 125VAC, Duplex, (1), Additional 1 WC

- STATE LOCATION : In the action area for total of 2

2nd Shoreline - None Required 1 WC

BATTERY SWITCH: 1 WC

Auto Shut Down Timer (Kill Circuit) Ten (10) Minute ILOS 1 WC

12VDC POWER SOURCES: 1 WC

Outlet, Cigar, Lighter, ( 2 ), STD, in A/A 1 WC

- (2) in Action Area

Power Source, 12VDC, 20A, Battery Switch/Ignition Hot 1 WC RADIO Power #1

|-- Location -Behind Driver's seat 1 WC

Power Source, 12VDC, 20A, Battery Switch/Ignition Hot 1 WC RADIO Power #2

|-- Location -Behind Driver's seat 1 WC

Outlet, Kussmaul, USB Dual Port, 5VDC, 4.8A output, 091-219-5 switch panel, 1 WC Located in the cab switch panel per Electrical Engineering

SIREN SPEAKERS: 1 WC

Speakers, Cast, Black Powder coat,

SAP3825-20Transit-6BW,SAD3826-20Transit-6BW

1 WC

SIREN: 1 WC

Siren, Whelen, WS-295-SLSA1 1 WC

CONSOLES: 1 WC

Console, Cab, Transit, Aluminum, 2020, CN 11 1 WC

- Black Rubber coated Aluminum. - Angled Area: Switches

- Flat Area: Siren and Radio area

METERS: 1 WC

Smart Voltmeter with Low Voltage Alarm, Audio/Visual 1 WC Light and Buzzer in cab console.

HAND HELD SPOTLIGHT: 1 WC

Spotlight, Hand Held, NONE Required 1 WC

Camera, Patient Compartment 1

Hanscom kit HK 7211.

Mount monitor to the left of the steering wheel.

In the patient compartment mount the camera on therear headliner next to the StreetSide cabinets facing the cot.Trigger camera display on with Master Switch.

Light, Action Area, Grote LED Strip- STD. Transit 1 WC

INTERIOR LIGHTS: 1 WC

(6)

PART NO S DESCRIPTION QTY ID REF. NO

(3) Street side (3) Curbside - Transit

CS stepwell Light- NONE 1 WC

Dome Lights, Streetside Activate on Opening of Entry Doors 1 WC The street side dome lights shall automatically light on their "low" setting

when the cab, CS or rear entry doors are opened. they shall be tied to the OEM dome light circuit.

HEADLIGHT FLASHER: 1 WC

Flasher, Headlight, NONE Required 1 WC

FLASHERS: 1 WC

Lights, Pair, Whelen, Wide Angle ION Amber LED, Chrome Housing 1 WC These lights are to be on with drive and if emergency

lights are on in park.

(1) INLINE FROM THE TOP OF THE Rear Driver side Red 7L light. Left side of the light

(1) INLINE FROM THE TOP OF THE Rear Passenger side Red 7L light . Right side of the light

SWITCHING OPTIONS FOR LIGHTING: 1 WC

Auxilliary (Fog/Driving) Lights- NONE Required 1 WC

OVERHEAD GRAB RAIL: 1 WC

Grabrail,Overhead,72",Handicap Style,Anti-Microbial Yellow, Footless 1 WC - Yellow Powder Coat Finish

REFLECTORS: 1 WC

Reflective Material, rear patient Comp. Doors, Std, Sprinter/Transit 1 WC - Rear doors to have 60 sq inches of 3M reflective material,

6" red

OXYGEN SYSTEM: 1 WC

O2 System, Storage in Rear Vertical Cabt, (2) A/A, (1) Liner 1 WC - Ohio Style

- (2) O2 Outlet in A/A

- (1) O2 Outlet in C/S Liner @ Head of S/B

Wrench, O2, Tether in Rear O2 cabinet 1 WC

Regulator, Oxygen Cylinder, Preset 50PSI, Installed 1 WC

SUCTION PUMP: 1 WC

Suction Pump, Electric, STD 1 WC

SUCTION CONTAINERS: 1 WC

Suction Holder/Regulator, SSCOR 22000,w/Canister Clip-CN 10 Compliant 1 WC Conforms to J3043 requirements

ABS Glove Box Dispenser- None Required 1 WC

Grabhandles, (1) 12" Yellow Wall Mounted ILOS 1

(1) Curbside Rear wall by rear doors

STANDARD CABINETS: 1 WC

(7)

WO#: 554994 Page 7

|-- Cabinet,Transit, Alum, Squad Bench, Drop in Biowaste at head 1 WC - Sharps and trash under separate lid at head of Bench with access holes

- Single squad bench Lid,

- with 60# Gas Strut Style Hold Open (ECN1816)

Must use M1 latches on doors and drawers for CN 10 certification

XX-19-000S |-- Lids, Hinged, Red Engraved Sharps and Trash 1 WC

5.25" x 8.375"- Waste 4.5" x 4.5" -Sharps

SEAT BELTING SQUAD BENCH: 1 WC

|-- Seatbelt, Assy, (4 Point), Per4Max, Yellow, Squad Bench, (2) Each -

CN-8 1 WC

Two above the squad bench lid mounted seat belts - No lap belts

|-- Squad bench Latches, Transit, Trimark handles, (2) 1 WC |-- Painted Aluminum Cabinets, MultiSpec White/White #99-6285 1 WC

RIGHT FRONT CABINET 1 WC

|-- Cabinet, MR Transit, Right Front, CS Rear O2 Cabinet, No BB, Version "B"

1 WC L1- Open with one adjustable shelf

L2 - Enclosed cabinet- 15.25" H x 23.75" W x 14.50" D With Drop down door facing rear.

L3 - to accommodate (2) Portable O2 bottles

L4 - 10.875"H x 22.25" W Open slot for Stair chair storage

|-- Holder, Cylinder, Single, Cast Products, Strapless Duramount "D" System- CN 10

2 WC In the lower portion of the RF Cabinet for Portable O2 storage.

|-- Latch, Lever, With Key, Black - CN 10 Certified 5 Lb. 3 WC Inverter access, cabinet M drug box and L2

BASEWALL CABINET 1 WC

|-- Cabinet, Aluminum Basewall, Transit, Med Roof 1 WC - Three Glove storage at rear, Rear hinged Lexan access

-Backboard storage slot accessed from rear access doors under "D1" and "D2"

- Cabinet "A" - 19.75" H x 28.5" W x 9" D. Sliding Polycarbonate Doors. - Cabinet "B" - 19.75" H x 28.5" W x 9" D. Sliding Polycarbonate Doors. - Cabinet "C" - 19.75" H x 28.5" W x 9" D. Sliding Polycarbonate Doors. - Cabinet "D1" - 19.75" H x 28.5" W x 11.5" D. Sliding Polycarbonate Doors.

- Cabinet "D2" - 19.75" H x 28.5" W x 11.5" D. Sliding Polycarbonate Doors.

- Cabinet "M" Drug box -10.75" H x 11.5" W x 8" D with hinged Solid Door

Must use M1 latches on doors and drawers for CN 10 certification |-- Cabinet, MR Transit, Vertical O2, Foot of Squad Bench,,Zico Rack, M cylinder

1 WC Vertical storage & Zico QRMV O2 cylinder rack at foot of squad bench

(8)

BULKHEAD CABINET 1 WC

|-- Cabinet, MR Transit, Bulk Head Wall, Pass-thru Only 1 WC - Front bulk head will be a solid wall with a window (pass

through) approximately 17"H x 10.5" wide off center toward driver's side.

ATTENDANT SEAT: 1 WC

Seat, Attendant, EVS 1860 Fold up w/child seat on CBPED (R) Base, Black 1 WC Yellow 3 Point seat belt

FLOORING : 1 WC

Flooring, Lonplate II, Black #163, ILOS 1 WC

UPHOLSTERY: 1 WC

Upholstery, Black Seamless 1 WC

POLYCARBONATE COLOR 1 WC

Polycarbonate, Gray 1 WC

1/4" polycarbonate

|-- Sliding doors with latching handles 5 WC 1/4" polycarbonate sliding doors with Spring loaded latching handles

CABINET ADD-ONS: 1 WC

Safety Net, Yellow, Head of Squad Bench,Transit 1 WC

Strap, Two Inch Seatbelt style 2 WC

(1) across Backboard slot opening (1) across Stair chair storage opening

COT MOUNTS INSTALLED: 1 WC

Cot Mount, Stryker 6392 Performance Load with Floor Plate 1 WC

SHIP LOOSE: 1 WC

Fire Extinguisher, (1), 5 lb. ABC, Ship Loose 1 WC HD Amerex Bracket #861H with Amerex 5LB fire extinguisher.

WARRANTIES 1 WC

Warranty, Conversion, 12 Month 1 WC

Warranty, Limited Electrical 1 WC

Warranty, Cabinet Construction 1 WC

1 WC
