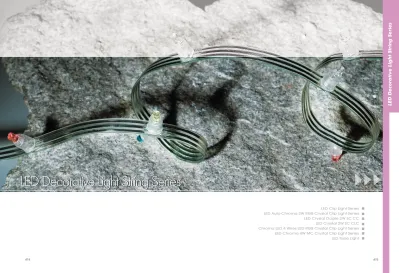

LED Decorative Light String Series

(1)

LED Decorative Light String Series

LED Clip Light Series

LED Auto-Chroma 2W RGB Crystal Clip Light Series

LED Crystal Dazzle 2W SC CC

LED Crystal 2W SC CLC

Chroma LED 4 Wires LED RGB Crystal Clip Light Series

LED Chroma 4W MC Crystal Clip Light Series

LED Tape Light

LED Decorative Light String Series

LE

D

ec

o

ra

ti

ve

L

ig

h

t

St

ri

n

g

S

er

(2)

LED Clip Light is a popular commercial holiday decorative light string specially

designed for application on trees and structures where little visible trace of cabling

is desired. LED Clip Light Series are low voltage, single color or multi-color, LED

based, energy saving products. LED Clip Light Series is a modern energy saving

direct replacement to high energy consuming incandescent clip lights.

Each RGB LED has a built in Smart Chip that con-trols the auto 7 color changing RGB Effect.

Features and Benefi ts

Operating Temperature -20˚C~60˚C Input Power 12V RGB LED

Built-in IC with each LED for RGB color changing effect Easy installation

Cut at any length

Item No.

Light Source Type R,G,B 3 in 1 R,G,B 3 in 1 R,G,B 3 in 1 Qty. of LEDs 150 150 150

LED Spacing 7.5cm 10cm 15cm

Cut Length 11.25m 15m 22.5m

Available Colors RGB LED RGB LED RGB LED Max. Watts 36W 36W 36W

Specifi cations

LED-CMLP-7.5-12V-M LED-CMLP-10-12V-M LED-CMLP-15-12V-M

Item No.

Light Source Type ø5 LED ø5 LED ø5 LED Qty. of LEDs 200 200 200

LED Spacing 5cm 7.5cm 10cm

Cut Length 10m 15m 20m

Available Colors R, Y, YG, G, B, O, W

Max. Watts 48W 24W 48W 24W 48W 24W

Specifi cations

LED-LP-5-12V

LED-LP-5-6V

LED-LP-7.5-12V

LED-LP-7.5-6V

LED-LP-10-12V

LED-LP-10-6V

LED Clip Light is a popular commercial holiday decorative light string specially

LED Auto-Chroma

2W RGB Crystal

Clip Light Series

(2-Wire)(RGB Color Changing)(Outdoor)

LED Clip Light

Series

(3)

LED Crystal 2W SC

CLC

(2-Wire) (Single Color)

(Clear Cap) (Outdoor)

2 Wire LED Crystal Dazzle 2W SC CC incorporates single color removable Super Bright LEDs with matching color cap (clear cap optional), with built in IC, and clear transparent covered wire to produce a random strobing illumination effect.

2 Wire LED Crystal 2W SC CLC incorporates single color removable Super Bright LEDs with clear cap and clear transparent covered wire to produce a constant on illumination effect.

Features and Advantages

1. Operating temperature: -20˚C~60˚C 2. Input power: 12V

3. Low voltage 4. Easy installation 5. Bent to any shape 6. Long life

7. Maximum 200 bulbs

LED Crystal Dazzle

2W SC CC

(2-Wire)(Single Color)

(Color Cap)(Outdoor)

Item No.

Light Source Type ø5 LED ø5 LED ø5 LED Qty. of LEDs 200 200 200 LED Spacing 5cm 7.5cm 10cm Cut Length 10m 15m 20m Available Colors R, Y, YG, G, B, O, W

Max. Watts 48W

Specifi cations

BO-LED-5-12V BO-LED-7.5-12V BO-LED-10-12V

Features and Benefi ts

Operating Temperature: -20˚C~60˚C Input Power: 12V

Single Color (WLED White, Red, Green, Blue, Yellow) Color Cap is clear

Removable LED Clear Wire Cover Flexible Easy installation Cut at any length

Item No.

Light Source Type ø5 LED ø5 LED ø5 LED Qty. of LEDs 200 200 200 LED Spacing 5cm 7.5cm 10cm Cut Length 10m 15m 20m Available Colors R, Y, YG, G, B, O, W

Max. Watts 48W

Specifi cations

LED-CMLP-5-12V LED-CMLP-7.5-12V LED-CMLP-10-12V

(4)

LED Chroma 4W MC

Crystal Clip Light Series

(4-Wire) (Multi-color Color Chasing)

(Non-Direct DMX) (Outdoor)

LED Chroma 4W RGB Clip Light Series produces 7-color changing random effects via the IC built into each LED node. Add the SRC-401M for simple external control of pre-programmed effects. Add the SRC-181 for non-direct DMX-512 user program-mable control.

LED Chroma 4W MC Clip Light Series produces multicolor chasing effects via the single color LEDs and IC built into each LED node. Add the SRC-401M for simple external control of pre-programmed ef-fects. Add the SRC-181 for non-direct DMX-512 user programmable control.

Features and Benefits

3 in 1 Super Bright single color LEDs

Single Colors (WLED White, Red, Green, Yellow/Green. Blue, Orange, Purple) Built-in IC with each LED automatic stand-alone multi-color changing effect Diffusing Anti-UV Replaceable Cap (Standard Cap Design)

Externally controllable via SL-410 Page# P502-507 DMX-512 Controllable via SRC-181 Page# P502-507 Easy installation

Cut at any length

Wires LED RGB

Crystal Clip Light

Series

Features and Benefits

3 in 1 Super Bright RGB LEDs

Built-in IC with each LED for 7 color RGB color changing effect Diffusing Anti-UV Replaceable Cap (Standard Cap Design) Externally controllable via SL-410 Page# P502-507 DMX-512 Controllable via SRC-181 Page# P502-507 Easy installation

Cut at any length

Item No.

Light Source Type R,G,B 3 in 1 R,G,B 3 in 1 R,G,B 3 in 1 Qty. of LEDs 150 150 150

Available Colors R, G, B LED Max. Watts 36W

Specifications

RGB LED-CMLP-4W-7.5-12V RGB LED-CMLP-4W-10-12V RGB LED-CMLP-4W-10-12V

Item No. _{Light Source Type ø5 LED ø5 LED ø5 LED}

Qty. of LEDs 150 150 150

Available Colors R, Y, YG, G, B, O, W Max. Watts 36W

Control Mode External SL-410, DMX-512 Controllable Via SRC-181

Specifications

LED-CMLP-4W-7.5-12V LED-CMLP-4W-10-12V LED-CMLP-4W-10-12V

Replaceable Caps Styles are universal for RGB and MC. Specify removable cap type at time of order. Dimensional Diagram

(5)

ø5 LED 15cm 100m 666 R,Y,YG,O 6/12pcs 0.24/0.48w

LED Tape Light

LED Tape Light is a single color, LED based, energy saving, low voltage 12/24V,

outdoor, ﬂ exible, and linear, commercial decorative lighting product. Constructed of

a thin proﬁ le 4 wire, PVC encapsulated wire each LED provides Super Bright LED

il-lumination, and extreme long life. LED Tape Light is easy to install and can be cut to

any desired length and is populated with Super Bright single color LED’s. LED Tape

light can be applied both indoors and outdoors.

LED Tape Light was developed to be an energy saving, and long life direct

replace-ment to high energy consuming incandescent tape light.

ø5 LED 5cm 100m 1998/1992 R,Y,YG,O 6/12pcs 0.24/0.48w Item No.

Light Source Type LED Spacing Max. Length LED Qty. Available Colors LED Qty. per unit Max. Watts

LED-CL-23-50-12V

LED-CL-23-50-24V

1998 B,G,W 3/6pcs ø5 LED 7cm 100m 1332 R,Y,YG,O 6/12pcs 0.24/0.48w B,G,W 3/6pcs ø5 LED 10cm 100m 996 R,Y,YG,O 6/12pcs 0.24/0.48w B,G,W 3/6pcs B,G,W 3/6pcs ø5 LED 20cm 100m 498/492 R,Y,YG,O 6/12pcs 0.24/0.48w 498 B,G,W 3/6pcs

Specifi cations

LED-CL-23-70-12V

LED-CL-23-70-24V

LED-CL-23-100-12V

LED-CL-23-100-24V

LED-CL-23-150-12V

LED-CL-23-150-24V

LED-CL-23-200-12V

LED-CL-23-200-24V

Cut to any desired length. Apply any standard 12V or 24V PSU accordingly for a maximum single length of 50M@ 12V and 100M @ 24V. See Page P496-499 for power Supply Options
