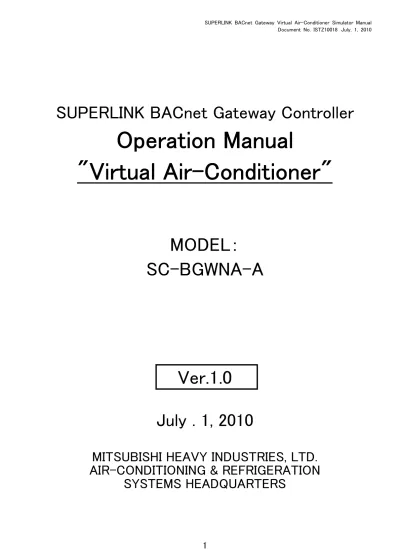

Operation Manual "Virtual Air-Conditioner"

(1)

SUPERLINK BACnet Gateway Controller

Operation Manual

"Virtual Air

"Virtual Air-

--

-Conditioner"

Conditioner"

MODEL：

SC-BGWNA-A

Ver.1.0

July . 1, 2010

MITSUBISHI HEAVY INDUSTRIES, LTD.

AIR-CONDITIONING & REFRIGERATION

(2)

[1] INTRODUCTION

(1.1) Purpos

(1.1) Purpose of this document:

e of this document:

This document describes how to use "Virtual Air-Conditioner" simulation software for Mitsubishi Heavy Industries' "SUPERLINK BACnet Gateway Controller".

(1.2) What is "SUPERLINK BACnet Gateway Controller"

The product, SUPERLINK BACnet Gateway Controller, controls and monitors the operation of indoor units of Mitsubishi Heavy Industries' distributed type building air-conditioners. Although the product name includes a word gateway, this product is a type of Application Specific Controller that has various BACnet objects for control and monitor the air-conditioners.

(1.3) What is "Virtual Air

(1.3) What is "Virtual Air-

--

-Conditioner"

Conditioner"

The "Virtual Air-Conditioner" is simulation software for functionality of Mitsubishi Heavy Industries' building packaged air-conditioners. This software is used for testing and configuration of SUPERLINK BACnet Gateway Controller without using actual air-conditioners. The Virtual Air-Conditioner software is included in the SUPERLINK BACnet Gateway Controller. The software can be activated through the Virtual Air-Conditioner web server from an Internet Explorer on a client PC.

From an Internet Explorer on a client PC, each function state of each indoor unit of the Virtual Air-Conditioner Web server can be manipulated as if the actual Function State of the indoor units is changed.

This is simulated behavior of change of state, for example, user's manipulation of air-conditioners.

Air-conditioners can be designated by the number of an indoor unit or the number of an Air-Con Cell, which is a logical group of indoor units. On the contrary, a change of function state of an indoor unit after writing to the corresponding output object can be confirmed.

[2] SETTING

(2.1) Client PC with Web Browser

The requirements for the Web browser for the Virtual Air-Conditioner Web server is as follows: Internet Explorer IE6 or IE7 on the Windows XP or Vista

No plug-ins is necessary

No particular requirements for PC hardware

(2.1) Connection of a client PC with Web Browser

(3)

[3] LOGIN

(3.1) Activation of the Virtual Air

(3.1) Activation of the Virtual Air-

--

-Conditioner

Conditioner

To activate Virtual Air-Conditioner, access the Virtual Air-Conditioner Web Server on the SUPERLINK BACnet Gateway Controller using the following URL.

http://[Gateway IP Address]/vp/ http://[Gateway IP Address]/vp/ http://[Gateway IP Address]/vp/ http://[Gateway IP Address]/vp/ (For example, http://192.168.0.110/vp/)

The activate screen will appear as shown in Fig.1. Enter following UserID and Password, and press “ACTIVATE” button. UserID : Admin UserID : Admin UserID : Admin UserID : Admin Password : 123456 Password : 123456 Password : 123456 Password : 123456

This will reboot the OS of the SUPERLINK BACnet Gateway Controller automatically to go into the Virtual Air-Conditioner mode.

Fig.1 Activate Screen

Note:

If the SUPERLINK BACnet Gateway Controller is turned off when it runs in VIRTUAL mode, it comes up in VIRTUAL mode again on the next power-on. To exit from VIRTUAL mode (turn off VIRTUAL mode), see Section 5.

(4)

(3.2

(3.2)

)

) Login to Virtual Air

Login to Virtual Air

Login to Virtual Air-

--

-Conditioner

Conditioner

After activating the Virtual Air-Conditioner simulation software on the BACnet Gateway SC-BGWN-A, access the Virtual Air-Conditioner Server of the Gateway using the following URL.

http://[Gateway IP Address]/vp/ http://[Gateway IP Address]/vp/ http://[Gateway IP Address]/vp/

http://[Gateway IP Address]/vp/ (For example. http://192.168.0.110/vp/)

The login screen for the Virtual Air-Conditioner will appear as shown in Fig.2. Enter the following UserID and Password, and press the “Login” button.

UserID : Admin UserID : Admin UserID : Admin UserID : Admin Password : 123456 Password : 123456 Password : 123456 Password : 123456 Note:

If it is shown “Current Mode: NORMAL”, Virtual Air-Conditioner has not activated yet. Activate Virtual Air-Conditioner as mentioned in the section 3.1.

(5)

[4] OPERATION

4.1 Manipulate by Cell (1) Manipulate

“Manipulate by Cell” screen will appear after login. Fig.3 shows the screen. The current status of Virtual Air-Conditioners are shown as default. It is NOT updated automatically, so press the “Reload Status” button to see the latest status. To manipulate Virtual Air-Conditioner, select and fill in the fields to be changed and press the “Set Data” button.

Fig.3 “Manipulate by Cell” Screen

(2) Select Cell

To select a Cell to be shown, select the link “Select Cell to Show” on the top of the screen. Fig.4 shows “Select Cell to Show” screen. Check cells to be shown and press the “Set & Show” button.

(6)

4.2 Manipulate by SL-Address (1) Manipulate

To manipulate Virtual Air-Conditioner by SL-Address, select the link “Manipulate by SL-Address” on the top of each screen. Fig.5 shows “Manipulate by SL-Address” screen. The current states of Virtual Air-Conditioners are shown as default. It is NOT updated automatically, so press the “Reload Status” button to see the latest status. To manipulate Virtual Air-Conditioner, select and fill in the fields to be changed and press the “Set Data” button.

Fig.5 “Manipulate by SL-Address” Screen

(2) Select SL-Address

To select a SL-Address to be shown, select the link “Select SL-Address to Show” on the top of the screen. Fig.6 shows “Select SL-Address to Show” screen. Check SL-Address to be shown and press the “Set & Show” button.

(7)

[5] EXIT

Fig.7 shows “Exit from Virtual Air-Conditioner” screen. To come to the screen, select the link “Exit” on the top of each screen. Press “EXIT” button to exit. The Gateway reboots the OS automatically to exit from Virtual Air-Conditioner.

Fig.7 “Exit from Virtual Air-Conditioner” Screen End of the document
