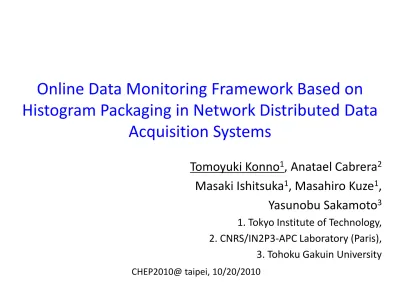

Online Data Monitoring Framework Based on

Histogram Packaging in Network Distributed Data

Acquisition Systems

Tomoyuki Konno1_{, Anatael Cabrera}2

Masaki Ishitsuka1_{, Masahiro Kuze}1_,

Yasunobu Sakamoto3

1. Tokyo Institute of Technology, 2. CNRS/IN2P3-APC Laboratory (Paris),

3. Tohoku Gakuin University

Network-distributed data acquisition system

• DAQ subsystems and monitoring information are distributed in local network

•

Requirements for

1. A lot of connections to DAQ sub-systems must be handled

2. Monitoring information must be available from outside of firewall

D A Q su b -s ys te ms

Local area network

off site persons firewall

Online monitor framework

•

General software framework for online data monitoring

– Collects information from network distributed systems

– All information are handled as collections of histograms

• ”HistogramPackage” : Common interface via network

– Displays to shifters far from experimental sites via internet

•

DAQ sub-systems

– Create and update HistogramPackages

•

Monitor Server

– Collects HistogramPackages from DAQ sub-systems

•

Monitor Viewer

– Connect to Monitor Server and create graphical plots

HistogramPackage

•

Common interface via network

– DAQ sub-systems to Monitor Server

– Monitor Server to Monitor Viewers

•

Collections of histograms

– Package name (String) : used for identification

– Update serial ID (Integer) : used for checking updates

– Array of Monitored Objects

• Histograms (1-D and 2-D)

• Graphs (normal graph and timed graph)

•

Updates all histograms at the same time

Overview of Online Monitor framework

Local area network

www HTTP XML Monitor Server Available from everywhere via Internet web version of Monitor Viewer

Monitor Server

• Several DAQ sub-systems can communicate in parallel

• Monitor Viewer gets all HistogramPackages with one connection

Monitor

Skelton ProviderMonitor

Monitor Server shared memory Monitor Viewers DAQ sub-systems thread process

Data transition to Viewers

•

DAQ sub-systems have triggers to start updating data

Monitor

Skelton _ProviderMonitor

Monitor Server shared memory Monitor Viewer DAQ sub-systems notify updates via condition variables wait for updates of the packages

always wait for updates of the

packages always wait for

updates of the package

Monitor Viewer

•

Available from everywhere via Internet

– Independent to platform (Windows, Mac OS, Linux)

– Free from additional plug-ins or libraries

•

Technologies

– Java : Swing with Java “web start” technologies

– web : Google web toolkit, Ajax, Canvas (HTML5)

•

Create graphical plots on viewer sides

– Dynamic control of plots (zooming , changing colors, …)

•

GUI layouts are automatically generated by XML files

– Panels, tables ,tabs, scroll bars etc..

– Specifics of objects (colors, width, font, draw options, …)

Data stream to Viewer

XML XML

XML

Monitor Server Java Viewer

TCP binary Web browser Viewer XML XML XML web Server XML XML XML HTTP / Ajax Monitor Server Proxy High performance Easy to access

Screen shots of

Monitor Viewer

dummy data

dummy data _{Java version}

Web browser version on Google Chrome

GUI generation (Tabbed panels)

<package title=“Dummy">

<tabbedPanel> <tab title=“Main">

<tabbedPanel>

<tab title=“Readout"> …

</tab>

<tab title="Disk">

… </tab>

<tab title="Dead channels"> …

</tab>

</tabbedPanel> </tab>

<tab title=“Module"> …

</tab>

</tabbedPanel>

GUI generation (Tables)

<package title=“Dummy">

<tabbedPanel> <tab title=“Main">

<tabbedPanel>

<tab title=“Readout">

<table col=“2” row=“1”>

<table col=“2” row=“2”> <canvas …/> <canvas …/> <canvas …/> <canvas …/> </table> <canvas …/> </table> </tab> … </tab> </tabbedPanel> </package> first table second table

<canvas name="c_disk" title="Disk usage">

<histo name="g_disk_available" maximum="600" minimum="0“ line-color="black"

fill-color="light_gray” draw-option="AL"/>

<histo name="g_disk_used" line-color="red" fill-color="pink“ linked-axis="a_used" draw-option="AL"/>

<graph name="g_disk_full" draw="0, 500: 60, 500“ line-color="green" draw-option="AL" />

<y2-axis name="a_used" direct="Y" pos="right" title="Data rate [GB]“ minimum="0" maximum="10" line- color="red" line-width="1“ font-color="red" label-font-color="red" />

<legend list="g_disk_available, g_disk_used" />

dummy data

Additional line for reference

extra y-axis

Legend of objects

Draw Option : AL

Control of

dummy data

<canvas name="c_module_state">

<histo name="histo_2d" draw-option="AL" maximum="4" minimum="0" line-color="white" line-width=“4”/> <color-axis color-pattern="blue,green,yellow,red" label="OFF,STABLE,WARNING,ERROR;0.5,1.5,2.5,3.5” label-font-size="0.9" line-color="none" /> </canvas>

Control of

graphical objects

Summary

•

Developed general software framework for online

monitoring

– Network-distributed systems create “HistogramPackage”s

– Monitor Server collects the packages

– Monitor Viewer makes graphical plots from the packages

•

Two types of Monitor Viewer were developed

– Available from everywhere via Internet

– The GUI layouts are controlled by XML files

•

Developed for the Double Chooz experiment

Technologies for Monitor Viewer

•

Java version

– Swing

– Java web start

•

web browser version

– HTML technologies (Ajax + Canvas) • Google Web Toolkit

– compiler from Java to HTML + java script

– GUI components

– GUI event handlers

• Ajax : Unsynchronized communication to web servers
