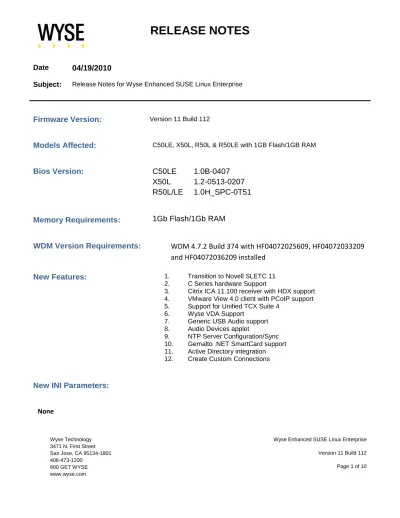

Date
04/19/2010
Subject:
Release Notes for Wyse Enhanced SUSE Linux EnterpriseFirmware Version:
Version 11 Build 112Models Affected:
C50LE, X50L, R50L & R50LE with 1GB Flash/1GB RAMBios Version:
C50LE
X50L
R50L/LE
1.0B-0407
1.2-0513-0207
1.0H_SPC-0T51
Memory Requirements:
1Gb Flash/1Gb RAM
WDM Version Requirements:
WDM 4.7.2 Build 374 with HF04072025609, HF04072033209
and HF04072036209 installed
New Features:
1. Transition to Novell SLETC 112. C Series hardware Support
3. Citrix ICA 11.100 receiver with HDX support 4. VMware View 4.0 client with PCoIP support 5. Support for Unified TCX Suite 4
6. Wyse VDA Support
7. Generic USB Audio support 8. Audio Devices applet
9. NTP Server Configuration/Sync 10. Gemalto .NET SmartCard support 11. Active Directory integration 12. Create Custom Connections
New INI Parameters:
What’s New in This Release:
1.
Update to SUSE Linux Enterprise Desktop 11 base
a. Improved boot-up speedb. Updated look and feel
c. New Network Manager for advanced control of Wired and Wireless networks
d. New Display Settings tool for more flexible control of dual monitors (note: screen rotation is not supported in this release)
e. Support for newer kernel and libraries ensures compatibility with latest protocol enhancements (Citrix HDX, VMware PCOIP, etc.) from Virtualization vendors
2.
Support for new platform: C-class
a.
Small form-factor with best-in-class performance and hardware options (Dual Monitor, Gigabit Ethernet, Internal wireless option, .etc.)3.
Citrix ICA 11.100 client with HDX Support
4.
VMware View 4.0 client with PCOIP Support
5.
Support for Unified Wyse TCX Suite 4
a. Multimedia Redirection b. USB Virtualization c. Rich Sound d. Multi-Display e. Flash Acceleration
Note: When using TCX Suite 4, licensing is handled on the server side. This means there is no need for a client side license
6.
Support for Wyse Virtual Desktop Accelerator
7.
Other
•
Generic USB Audio support•
Audio Devices applet: used to select between Analog and USB audio devices•
NTP Server Configuration/Sync: used to synchronize client time with NTP server•
Gemalto .NET smartcard support•
Active Directory integration (add-on)•
Create custom connections (add-on)Default Passwords:
The default credentials for administrator are: Username: admin
Password: admin
BUILD DETAILS:
Platform(s) C50LE
Version 1.4.1115
Build number 11.0.112 Build File Name 6c60_Merlin.zip Size(Bytes) 272485303 bytes
Platform(s) R50L & R50LE
Version 1.4.1115
Build number 11.0.112 Build File Name 6R60.i2d
Size(Bytes) 1026034839 bytes
Platform(s) R50L & R50LE
Version 1.4.1115
Build number 11.0.112 Build File Name 6r60_Merlin.zip Size(Bytes) 781719261 bytes
Platform(s) X50L
Version 1.4.1115
Build number 11.0.112 Build File Name 6X62.i2d
Size(Bytes) 1026034838 bytes
Platform(s) X50L
Version 1.4.1115
Build number 11.0.112 Build File Name 6x62_merlin.zip Size(Bytes) 712337828 bytes
BIOS Details:
Platform C50LE
Version 1.0B-0407
Build number NA
File Name C50LE-1.0B.zip
Platform R50L and R50LE
Version 1.0H_SPC-0T51
Build number NA
File Name 1.0H_SPC.zip
Platform X50L
Version 1.2E-0513-0207
Build number NA
File Name X50L-1.2E.zip
Note: Upgrading the BIOS on existing R50L’s with SLED10 is recommended when upgrading base image to SLED11 to ensure all functionality is working as expected (i.e. WDM integration, etc.).
Using the I2D/Merlin files with WSI or WDM to upgrade base image will also upgrade the BIOS. Alternatively, the BIOS can be upgraded manually (see below)
Steps to update the Bios manually
1. Take a bootable pen drive.2. Unzip the BIOS file and copy the extracted folder onto the pen drive.
3. Boot the device through pen drive. (Can also use “P” key while booting for R and C-Class) 4. Change directory to the respective Bios folder.
5. Run f.bat file and reboot the device when completed.
6. Enter CMOS setup again and hit F9 to Load default configurations. 7. Hit F10 to save changes and Exit.
Details of Image Files
File Name Imaging
Option Version Build
Size in bytes upgrade-11.0.112.zip Upgrade(ftp/h ttp/https) 1.4.1115 11.0.112 263643882 bytes addons-11.0.112.zip Add-ons 1.4.1115 11.0.112 122572524 bytes
WDM Compatibility
Verified with WDM server version 4.7.2 Build: 374 with hot fixes: HF04072036209, HF04072033209 and HF04072025609
Note: For Merlin imaging, we need to create a directory and a sub-directory with same name.
Known Issues with WDM Imaging (to be addressed in a later release)
1. After pulling of image certificate is not retaining.2. (Http/Https) After changing Network information or Pushing device configuration Error message comes like: “panel has encountered a problem while loading “OAFID:GNOME_MainMenu”. Do you want to delete the applet from your configuration?”
3. If we Refresh device information, WDM register two check-ins for Linux clients. 4. Https: Sometimes installing a package returns an error but will complete properly.
Image Upgrade/Downgrade:
1. Extract image pxe-upgrade-Ver11.0.112.zip file to Image upgrade server(ftp/http/https)
2. Upgrade can be done via FTP/HTTP(s) protocols. At the client side, the image server details need to be configured either through DHCP scope options or using the INI and Upgrade settings applet.
Upgrade sever Manual configuration.
a. Computer->Control Center->INI and Upgrade Settings->“image upgrade settings” or
b. Novell add-on Manager-> server settings. c. This will pop-up, “Thin Client Settings” window. d. Configure image upgrade details.
FTP upgrade and downgrade option available are: a) No update
b) Add-on only c) Image only
d) Base Image and add-on only.
For more information on different modes of imaging/upgrade mechanism supported in SLETC11, please refer admin guide.
WYSE TCX suite 4.0 support
Steps to follow to use Analog/USB Headsets locally:
1. Disable TCX USB Virtualizer from control center->TCX USB Virtualizer Configuration utility (or only disable audio devices).
2. Connect the USB headset to the client. 3. Open control center -> Audio devices applet.
4. Select the appropriate USB/Analog Headset and click on OK 5. Establish a connection and try playing a media file.
Note:-
1. Scanner and USB Web cam work only if internal wireless is disabled for R-Class.
Wireless Support
Wireless Security Key Type Authentication Inner Authentication Connection Status Smart Roaming Booting with Wireless Hidden SSID NoSecurity NA NA NA Pass Pass Pass Pass
WEP
Open NA NA Pass Pass Pass Pass
Shared NA NA Pass Pass Pass Pass
WPA
Personal TKIP NA NA Pass Pass Pass
Not Supported WPA2
Personal CCMP NA NA Pass Pass Pass Pass
WPA
Enterprise TKIP
EAP MSCHAPV2 Pass Pass Pass Pass
PEAP MSCHAPV2 Pass Pass Pass Pass
TLS User Cert
CA Cert Pass Pass Pass
Not Supported
WPA2
Enterprise AES
EAP MSCHAPV2 Pass Pass Pass Pass
PEAP MSCHAPV2 Pass Pass Pass Pass
TLS User Cert
CA Cert Pass Pass Pass Pass
Note: To convert Certificates from pfx format to pem format, follow the instructions given below: Install Opensll-0.9.7c-bin.exe on windows 2003 server (Can install any latest version)
Go to C:\Program Files\GnuWin32\bin
Copy the pfx file to this folder and run openssl.exe Enter the following command
openssl pkcs12 -in tme2.pfx -out tme2.pem
1. !--- The command to be given, -in <inputfilename>.
2. Enter Import Password:
3. !--- Enter the password given previously.
4. MAC verified OK
5. Enter PEM pass phrase:
Here we give a new pass phrase 6. !--- Enter a phrase.
Verifying - Enter PEM pass phrase:
Note: WPA2-AES / PEAP / MSCHAPv2, we need to make sure PEAP Version is set to “Version 0”
Local USB Printers
SL# Connection Type Model #
1 USB to Serial Printing Epson LX 300+ (USB to Serial) 2 Parallel to Parallel Printing HP LaserJet 1320
EPSON LX-300+ 3 USB Printer HP Business Inkjet 1000. HP Color LaserJet 2605dtn HP LaserJet 1320 HP DeskJet 1280 4 CUPS/Network Printers HP LaserJet 1320
EPSON LX-300+ 5 SMB Printer HP Business Inkjet 1000
HP LaserJet 1320 6 USB to Parallel EPSON LX-300+
Steps to enable local printing
1. Open Wyse TCX Virtualizer applet in Control Center. 2. In Configuration tab uncheck printers.
3. Reboot the device.
Other Devices Supported
Smart card readers and the connection types tested are as attached:
No Smart Card Reader
1 ActivCard USB Reader V 3.0
2 Omnikey 3121 3 Omnikey 3021
4 Cherry GmbH Smart Terminal XX44 5 Axalto Reflex USB V 3
6 SCR 3310 USB
7 Gemplus USB
Smartcards Tested
1. ActivCard
2. Gemalto, .net solution,
The middle ware used for testing active card is ActivCard Gold utility. The card reader used is ActivCard USB reader V3.0.
List of qualified add-ons
Base Image Add-ons1.
addon_support-1.0.1-1.7.i586.rpm
2.
device_settings-1.0.1-01.09.i586.rpm
3.
diagnostics-1.0.1-01.01.i586.rpm
4.
ericom_powerterm-8.2.0-04.06.i586.rpm
5.
ericom_webconnect-1.03.03-00.03.i586.rpm
6.
ethtool-6-78.21+1.i586.rpm
7.
factory_reset-1.0.1-01.21.i586.rpm
8.
firefox-3.0.6-03.04.i586.rpm
9.
flash-player-lite-10.0.42.34-0.3.1+1.i586.rpm
10.
gst_mmr_basic_plugin-3.1.1-1.i586.rpm
11.
gst_mmr_plugin-3.1.1-16.05.i586.rpm
12.
gstreamer-lite-0.10.21-3.20+1.i586.rpm
13.
hagent-4.2.0-02.23.i586.rpm
14.
ica-11.100-01.09.i586.rpm
15.
import_certs-2.0.0-01.01.i586.rpm
16.
ini_upgrade_settings-1.0.1-03.18.i586.rpm
17.
jre-1.6.0_18-01.01.i586.rpm
18.
kernel-thin-2.6.27.42-0.1.1.i586.rpm
19.
MozillaFirefox-lite-1.9.0.6-1.14+1.i586.rpm
20.
nss_ini-1.00.01-02.01.i586.rpm
21.
openssh-client-5.1p1-41.24+1.i586.rpm
22.
openssh-server-5.1p1-41.24+1.i586.rpm
23.
password-1.0.1-02.02.i586.rpm
24.
perl-modules-0.13-70.7+1.i586.rpm
25.
ralink-rt3070-2.3.0.1-1.i586.rpm
26.
rdesktop-1.6.0-05.16.i586.rpm
27.
ssh-5.1.0-04.03.i586.rpm
28.
tcx_aur-1.3.0-0.1.i586.rpm
29.
tcx_licensing-1.0.0-1.5.i586.rpm
30.
tcx_usb-2.0.1-02.11.i586.rpm
31.
tightvnc-viewer-1.3.9-81.9+1.i586.rpm
32.
unclutter-8-1044.20+1.i586.rpm
33.
vmware_viewclient-4.0.0-01.14.i586.rpm
34.
vnc-server-2.24.1-1.34+1.i586.rpm
35.
vnc_viewer-1.2.9-01.04.i586.rpm
36.
wifi-firmware-8-68.8+1.i586.rpm
37.
wyse_init-1.0.1-05.121.i586.rpm
38.
wyse_pam-1.0.1-02.11.i586.rpm
39.
wyseconmgr-1.0.11-02.37.i586.rpm
40.
wysesysinfo-1.0.1-01.08.i586.rpm
41.
xdmcp-6.9.0-02.14.i586.rpm
42.
xterm-lite-238-1.16+1.i586.rpm
43.
Xnest-7.4-26.6.2+1.i586.rpm
Support for Self-signed certificates
Self-signed certificates can be imported to client by the administrator for different applications like Firefox, ICA and WDM Agent and for INI download (wlx.ini and user.ini) etc.
The administrator can use the 'Import Certificates' applet to import certificates. To import
