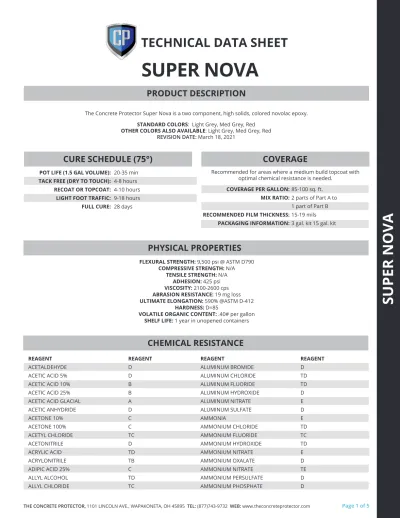

TECHNICAL DATA SHEET
SUPER NOVA
PRODUCT DESCRIPTION
The Concrete Protector Super Nova is a two component, high solids, colored novolac epoxy.
CURE SCHEDULE (75°) COVERAGE
POT LIFE (1.5 GAL VOLUME):
TACK FREE (DRY TO TOUCH):
RECOAT OR TOPCOAT:
LIGHT FOOT TRAFFIC:
FULL CURE:
20-35 min 4-8 hours 4-10 hours 9-18 hours 28 days
FLEXURAL STRENGTH: 9,500 psi @ ASTM D790 COMPRESSIVE STRENGTH: N/A
TENSILE STRENGTH: N/A ADHESION: 425 psi VISCOSITY: 2100-2600 cps ABRASION RESISTANCE: 19 mg loss ULTIMATE ELONGATION: 590% @ASTM D-412
HARDNESS: D=85
VOLATILE ORGANIC CONTENT: .40# per gallon SHELF LIFE: 1 year in unopened containers
SUPER NOVA
COVERAGE PER GALLON:
MIX RATIO:
RECOMMENDED FILM THICKNESS:
PACKAGING INFORMATION:
85-100 sq. ft.
2 parts of Part A to 1 part of Part B 15-19 mils 3 gal. kit 15 gal. kit
PHYSICAL PROPERTIES
Recommended for areas where a medium build topcoat with optimal chemical resistance is needed.
STANDARD COLORS: Light Grey, Med Grey, Red OTHER COLORS ALSO AVAILABLE: Light Grey, Med Grey, Red
REVISION DATE: March 18, 2021
CHEMICAL RESISTANCE
REAGENT REAGENT
ACETALDEHYDE D
ACETIC ACID 5% D
ACETIC ACID 10% B
ACETIC ACID 25% B
ACETIC ACID GLACIAL A
ACETIC ANHYDRIDE D
ACETONE 10% C
ACETONE 100% C
ACETYL CHLORIDE TC
ACETONITRILE D
ACRYLIC ACID TD
ACRYLONITRILE TB
ADIPIC ACID 25% C
ALLYL ALCOHOL TD
ALLYL CHLORIDE TC
REAGENT REAGENT
ALUMINUM BROMIDE D
ALUMINUM CHLORIDE TD
ALUMINUM FLUORIDE TD
ALUMINUM HYDROXIDE D
ALUMINUM NITRATE E
ALUMINUM SULFATE D
AMMONIA E
AMMONIUM CHLORIDE TD
AMMONIUM FLUORIDE TC
AMMONIUM HYDROXIDE TD
AMMONIUM NITRATE E
AMMONIUM OXALATE D
AMMONIUM NITRATE TE
AMMONIUM PERSULFATE D
AMMONIUM PHOSPHATE D
TECHNICAL DATA SHEET
SUPER NOVA
SUPER NOVA
REAGENT REAGENT
AMMONIUM SULFATE D
AMMONIUM SULFIDE E
AMMONIUM SULFITE E
AMYL ACETATE TD
AMYL ALCOHOL D
ANILINE C
ANILINE HYDROCHLORIDE C
ANTIMONY CHLORIDE TC
AQUA REGIA A
ARSENOUS ACID TC
BARIUM ACETATE D
BARIUM BROMIDE D
BARIUM CARBONATE D
BARIUM CHLORIDE D
BARIUM HYDROXIDE TD
BARIUM SULFATE D
BARIUM SULFIDE C
BENZYL CHLORIDE TC
BENZOIC ACID C
BENZALDEHYDE TC
BENZENE TC
BENZYL ALCOHOL E
BLACK LIQUOR (PAPER) TD
BLOOD SUGAR TD
BORAX D
BORIC ACID C
BRINE E
BROMINE LIQUID A
BUTANOL E
BUTYL ACETATE D
BUTYL ACRYLATE TC
BUTYL AMINE TC
BUTYL CARBITOL TD
BUTYL CELLOSOLVE C
BUTYL ETHER D
BUTYRIC ACID B
CALCIUM BISULFITE E
CALCIUM BROMIDE TD
CALCIUM CARBONATE D
CALCIUM CHLORATE D
CALCIUM CHLORIDE E
CALCIUM HYDROXIDE E
CALCIUM HYPOCHLORITE TC
CALCIUM NITRATE E
CALCIUM SULFATE C
CALCIUM SULFITE C
CALCIUM DISULFIDE B
REAGENT REAGENT
CARBON TETRACHLORIDE D
CASTOR OIL D
CELLOSOLVE TD
CELLOSOLVE ACETATE C
CHLOROACETIC ACID 25% C CHLOROACETIC ACID 50% A
CHLOROBENZENE D
CHLOROFORM TC
CHLOROPHENOL A
CHLOROSULFONIC ACID A
CHLOROTOLUENE TC
CHROMIC ACID 10% B
CHROMIC ACID 40% B
CHROMIC CHLORIDE B
CITRIC ACID E
COPPER ACETATE E
COPPER CHLORIDE D
COPPER CYANIDE TD
COPPER NITRATE TD
COPPER SULFATE D
CORN OIL D
CORN STARCH SLURRY E
CORN SUGAR E
COTTONSEED OIL D
CREOSOTE D
CRESYLIC ACID TC
CUMENE D
CUTTING OIL D
CYCLOHEXANE E
CYCLOHEXANONE D
CYMENE TD
DETERGENTS ORGANIC TD
DETERGENTS SULFONATED TD
DEXTROSE E
DIBUTYL PHTHALATE E
DICHLORACETIC ACID TB
DICHLOROBENZENE D
DICHLOROETHANE C
DIESEL FUEL D
DIETHANOLAMINE TD
DIETHYL BENZENE TD
DIETHYL KETONE TD
DIETHYLENE GLYCOL E
DIETHYL ETHER D
DIMETHYL ANILINE TC
DIMETHYL FORMAMIDE A
DIMETHYL SULFOXIDE B
TECHNICAL DATA SHEET
SUPER NOVA
SUPER NOVA
REAGENT REAGENT
DINITRO BENZENE TC
DINITRO TOLUENE TC
EPICHLOROHYDRIN C
ETHANOL C
ETHANOLAMINE D
ETHYL ACETATE C
ETHYL ACRYLATE C
ETHYLAMINE TC
ETHYL BENZENE TD
ETHYL BROMIDE B
ETHYL CHLORIDE B
ETHYL DICHLORIDE TB
ETHYLENE GLYCOL E
ETHYL SULFATE TD
FATTY ACIDS TD
FERRIC CHLORIDE E
FERRIC SULFATE E
FERROUS NITRATE E
FERROUS CHLORIDE TD
FERROUS SULFATE TE
FLUOSILICIC ACID 10-25% A
FORMALDEHYDE D
FORMIC ACID 10% D
FORMIC ACID 50% B
FUEL OIL E
FURFURAL ALCOHOL TC
GASOLINE AVIATION D
GASOLINE DIESEL D
GASOLINE JET FUEL D
GASOLINE UNLEADED E
GLUCOSE E
GLYCERINE TE
GLYCOLIC ACID 70% TB
GREEN LIQUOR (PAPER) E
HEPTANE E HEXANE E
HYDRAULIC FLUID E
HYDRAZINE 35% TC
HYDRIODIC ACID 20% D
HYDROBROMIC ACID 18% C
HYDROBROMIC ACID 40% TB HYDROBROMIC ACID 60% TB HYDROCHLORIC ACID 10% D HYDROCHLORIC ACID 36% D
HYDROFLUORIC ACID A
HYDROGEN PEROXIDE 10% C HYDROGEN PEROXIDE 50% A
HYDROGEN SULFIDE 5% D
REAGENT REAGENT
HYDROGEN SULFIDE 100% TD
HYPOCHLOROUS ACID A
IODINE CRYSTALS/VAPOR TD
ISOPHORONE E
ISOPROPYL ACETATE E
ISOPROPYL ALCOHOL E
JET FUEL (JP-4) D KEROSENE D
LACTIC ACID 10-20% D
LACTIC ACID 50% C
LACTIC ACID 85% A
LAURIC ACID TD
LEAD ACETATE TE
LEVULINIC ACID TD
LINSEED OIL D
LITHIUM BROMIDE TD
LITHIUM CHLORIDE SAT’D D
LITHIUM HYDROXIDE TC
MAGNESIUM BISULFITE D
MAGNESIUM CARBONATE D
MAGNESIUM CHLORIDE TC
MAGNESIUM HYDROXIDE C
MAGNESIUM NITRATE TD
MAGNESIUM SULFATE TD
MALEIC ACID C
MANGANESE CHLORIDE TD
MANGANESE SULFATE TD
MERCURIC CHLORIDE TE
MERCUROUS CHLORIDE TE
METHANOL C
METHYL ACETATE C
METHYLAMYL ALCOHOL TD
METHYL BENZOATE D
METHYL CHLORIDE B
METHYLENE CHLORIDE A
METHYL ETHYL KETONE C
METHYL ISOBUTYL KETONE D
MILK E MOLASSES E
MINERAL OILS TE
MINERAL SPIRITS D
MOTOR OIL D
M-PYROL A
NAPHTHA ALIPHATIC E
NAPHTHA AROMATIC D
NICKEL CHLORIDE TC
NICKEL NITRATE D
NICKEL SULFATE TD
NITRIC ACID 5% E
TECHNICAL DATA SHEET
SUPER NOVA
SUPER NOVA
REAGENT REAGENT
NITRIC ACID 30% C
NITRIC ACID 60% A
NITROBENZENE TC
OIL SOUR CRUDE E
OIL SWEET CRUDE TE
OLEIC ACID D
OLEUM B
OXALIC ACID D
PERCHLORIC ACID C
PERCHLOROETHYLENE D
PHENOL 5% C
PHENOL 85% A
PHOSPHORIC ACID 40% D
PHOSPHORIC ACID 85% B
PICRIC ACID 10% TD
POTASSIUM ACETATE E
POTASSIUM BROMIDE E
POTASSIUM CARBONATE E
POTASSIUM CHLORIDE D
POTASSIUM HYDROXIDE 10% E POTASSIUM HYDROXIDE 50% D
POTASSIUM IODIDE TD
POTASSIUM NITRATE E
POTASSIUM PERMANGANATE TD POTASSIUM PERSULFATE D
POTASSIUM SULFATE E
PROPIONIC ACID C
PROPYLENE GLYCOL E PYRIDINE A
SALICYLIC ACID TD
SALT BRINE E
SILVER NITRATE TD
SKYDROL C
SODIUM ACETATE E
SODIUM BENZOATE E
SODIUM BICARBONATE E
SODIUM BISULFITE TE
SODIUM BISULFATE E
SODIUM CARBONATE E
SODIUM CHLORATE 50% TD
SODIUM CHLORIDE E
SODIUM CHLORITE D
REAGENT REAGENT
SODIUM CHROMATE D
SODIUM DICHROMATE D
SODIUM FERROCYANIDE TD
SODIUM FLUORIDE TB
SODIUM HYDROXIDE 10% E SODIUM HYDROXIDE 50% E SODIUM HYPOCHLORITE 3% D SODIUM HYPOCHLORITE 5-15% A
SODIUM OXALATE E
SODIUM PEROXIDE E
SODIUM PHOSPHATE 10% E
SODIUM SILICATE TD
SODIUM SULFATE E
SODIUM SULFIDE E
SODIUM SULFITE E
SODIUM TARTRATE E
SODIUM THIOSULFATE E
STEARIC ACID D STYRENE D
SULFAMIC ACID 25% TC
SULFURIC ACID 10% E
SULFURIC ACID 30% D
SULFURIC ACID 98% C
TALL OIL E
TARTARIC ACID TD
TETROCHLOROETHANE D
TETRAHYDROFURAN A
THIONYL CHLORIDE A
TOLUENE D
TOLUENE SULFONIC ACID D
TOLUIDENE D
TRICHLOROACETIC ACID 20% B
TRICHLOROETHANE C
TRICHLOROETHYLENE TC
TRICESYL PHOSPHATE TD
TRISODIUM PHOSPHATE E
TURPENTINE D
UREA SOLUTIONS TE
WHITE LIQUOR (PAPER) TD XYLENE D ZINC CHLORATE TD
ZINC SULFATE E
RAITING KEY: A - NOT RECOMMENDED, B - 2 HOUR TERM SPLASH SPILL, C - 8 HOUR TERM SPLASH SPILL, D -72 HOUR IMMERSION, E - LONG TERM IMMERSION, T - NO SERVICE DATA, BUT SUITABLE FOR EXPOSURE.
NOTE: EXTENSIVE CHEMICAL RESISTANCE INFORMATION IS AVAILABLE THROUGH YOUR SALES REPRESENTATIVE.
TECHNICAL DATA SHEET
SUPER NOVA
NOTICE TO BUYER: DISCLAIMER OF WARRANTIES AND LIMITATIONS ON OUR LIABILITY:
The Concrete Protector (Division of Incredible Products, LLC), warrants that all products are assembled under rigorous quality assurance specifications and that all information supplied is exact. All information supplied is not to be taken as a warranty, but for you to conduct your own test to determine if the given product is suitable for your distinct purpose. The following list of properties should not be interpreted as specifications. CONVEYED OR SUGGESTED, NO WARRANTY IS BUILT UPON ANY DISCOVERED RESULTS OR INFORMATION YOU WILL OBTAIN DURING USE. CONVEYED OR SUGGESTED NO WARRANTY IS BUILT THAT THE GIVEN PRODUCT SHALL BE MARKETABLE OR THAT THE GIVEN PRODUCT WILL BE FIT FOR ANY DISTINCT PURPOSE. NO WARRANT IS BUILT UPON SAID INFORMATION OR THAT THE GIVEN PRODUCT WILL NOT INFRINGE UPON ANY PATENT. The Concrete Protector is NOT liable for, direct or indirect, inadvertent or consequential damages. The Concrete Protector’s liability is and will only be limited to the net selling price of our products or, at our discretion, the replacement of our products. Upon delivery of our products, your acceptance means that you accept all terms of this warranty even if other documents and or purchase orders astray from the terms of this warranty. No representative, on our behalf, is permitted to make any representation, warranty, or assume liability with any sale of our products. OUR PRODUCTS CONTAIN CHEMICALS THAT CAN CAUSE SERIOUS PHYSICAL INJURY. BEFORE THE USE OF OUR PRODUCTS, READ ALL MATERIAL AND FOLLOW ALL LISTED PRECAUTIONS TO AVOID ANY BODILY HARM
