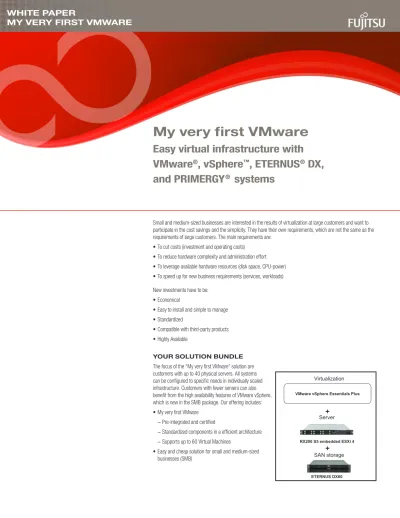

My very first VMware

(1)

My very first VMware

Easy virtual infrastructure with

VMware

®

_{, vSphere}

™

_{, ETERNUS}

®

_DX,

and PRIMERGY

®

_systems

Small and medium-sized businesses are interested in the results of virtualization at large customers and want to participate in the cost savings and the simplicity. They have their own requirements, which are not the same as the requirements of large customers. The main requirements are:

• To cut costs (investment and operating costs) • To reduce hardware complexity and administration effort • To leverage available hardware resources (disk space, CPU-power) • To speed up for new business requirements (services, workloads) New investments have to be:

• Economical

• Easy to install and simple to manage • Standardized

• Compatible with third-party products • Highly Available

YOUR SOLUTION BUNDLE

The focus of the “My very first VMware” solution are customers with up to 40 physical servers. All systems can be configured to specific needs in individually scaled infrastructure. Customers with fewer servers can also benefit from the high availability features of VMware vSphere, which is new in the SMB package. Our offering includes: • My very first VMware

−Pre-integrated and certified

−Standardized components in a efficient architecture

−Supports up to 60 Virtual Machines

• Easy and cheap solution for small and medium-sized businesses (SMB)

WHITE PAPER

MY VERY FIRST VMWARE

RX200 S5 embedded ESXi 4 ETERNUS DX60

+

Server SAN storage Virtualization

(2)

WHY IS VMWARE VSPHERE SO POWERFUL WHY DOES IT WORK SO WELL SO WELL WITH PRIMERY S5 SERVERS?

VMware vSphere 4 includes many new features and improvements. One of the most important improvements is the full implementation of virtualization technology delivered by hardware. Intel’s new processor family (Xeon 5500, called Nehalem) used in PRIMERGY S5 servers, offers the 2nd generation of virtualization support in CPU, chip-set and PCI-cards. Main tasks for memory management, interrupt management and I/O handling are allocated by the hypervisor, which allows performance improvements and higher workloads per server. Compared to the predecessor 3.x version or other virtualization products, VMware offers the most effective hypervisor.

PACKAGING:

VMware designed their new vSphere product in scalable editions (Standard, Advanced, Enterprise and EnterprisePlus) for large customers and in an “All in One” edition (Essentials and Essentials Plus), specially developed for the SMB market. Two flavors of the “All in One” packages are available:

Essentials Essentials Plus

4-way vSMP Vmware ESXi or ESX vCenter Server for Essentials

(up to 3 servers) Update Manager

VC Agent

4-way vSMP Vmware ESXi or ESX vCenter Server for Essentials

(up to 3 servers) Update Manager

VC Agent Data Recovery High Availability

WHAT ARE THE KEY COMPONENTS OF

VMWARE VSPHERE ESSENTIALS (PLUS) EDITION?

• VMware vSphere 4 delivers high performance through implementation of the 2nd generation of virtualization support by Intel virtualization technology. • VMware ESX and VMware ESXi provide a robust, production proven, high performance virtualization layer that allows multiple virtual machines to share the

computing, networking and storage resources of a single physical server.

• VMware vCenter™_{Server for Essentials provides rapid provisioning, centralized management and performance monitoring, with physical-to-virtual (P2V)}

machine conversion, wizard-based deployment and a host of other features.

• VMware vCenter Update Manager provides automated patch and update management for VMware ESX hosts, as well as for virtual machines running select versions of Windows and Linux.

• VMware High Availability (HA) provides hardware-independent failover for virtual machines on VMware ESX hosts without the cost or complexity of traditional solutions for physical systems.

(3)

The Essentials and the Essentials Plus edition are attractively priced. In comparison to other offerings, the VMware vSphere Essential Plus edition has the unique Data Recovery feature and the important High Availability feature. In the preceding VMware version, called Foundation, the HA feature was included, only in the higher Standard edition. So customers can now take advantage of higher availability levels. Data Recovery is a new interesting feature in vSphere 4, which provides what is needed to backup virtual machines. These are the reasons why we recommend VMware vSphere Essentials Plus edition.

WHAT IS POSSIBLE WITH ESSENTIALS PLUS?

The “All in One Bundle” includes the licenses for 6 processors in up to 3 servers, a vCenter Server for management, and the Data Recovery and High Availability features. Minimum a SNS support of 1 year is required, which can be expanded later on.

This edition supports up to 6 cores per processor and up to 256 GB memory per ESX host. Virtual machines support up to 64 GM memory and 4 virtual CPUs. To configure the right parameter of memory per server, we recommend 2.5 GB memory for each virtual machine. A two socket PRIMERGY RX200S5 server with 2x Intel®_Xeon®_{Processor 5520 can handle 10-14 workloads, conservatively calculated. 20 workloads, depending on the usage of resources, are}

possible.

WHY USE AN EMBEDDED HYPERVISOR?

An embedded hypervisor helps customers to reduce time for installation because no internal disks are required in the server system. The customer only has to switch the server on and to insert the password and the IP-address. With an embedded hypervisor, an ESX server starts faster and consumes less power at better MTBF time. Embedded hypervisors are available for all certified PRIMERGY servers.

2

3

4

MONITORING AND HIGH AVAILABILITY

A new VM Monitoring page has been added to Cluster Settings dialog box in the vCenter console to allow customers to control their virtual machines. When Enable VM Monitoring is selected, HA uses VMware Tools to evaluate whether each virtual machine in the cluster is running by checking for regular heartbeats of the guest operating system. If the VM monitoring service does not receive heartbeats, the service determines whether the virtual machine has failed and, if it has failed, restarts the virtual machine to restore service.

To help diagnostic issues, VM Monitoring captures a screenshot of the console before restarting the virtual machine. By default VM Monitoring captures up to 10 screenshots and saves them in the same directory as the configuration file of the virtual machine.

When VM Monitoring is disabled, HA continues to monitor the heartbeat of virtual machines and vCenter alarms are still enabled. However, if there is a loss of heartbeat, HA does not automatically reboot the virtual machine.

(4)

Monitoring sensitivity allows you to customize how quickly failures are detected. To avoid restarting virtual machines repeatedly for non-transient errors, HA restarts virtual machines only three times during a certain configurable time interval. After virtual machines have been restarted three times, VMware HA makes no further attempts to restart the virtual machines before any subsequent failures until the specified time has elapsed. HA provides three default settings: High, Medium, and Low. Customers can also customize the intervals by choosing the Custom option shown here.

Under Virtual Machine Settings you can override the default monitoring sensitivity level so certain virtual machines are more or less aggressively monitored. Specific custom values can also be set using advanced options.

Enable automatic restart due to failure of guest operating system

Determine how quickly failures are detected

Set monitoring sensitivity for individual virtual machines

In case of a problem with the ESX host, the virtual machines from this host can be restarted automatically on another ESX host by the HA feature of the license. This is possible because of a cluster like file system of VMware.

Resource Pool

VMware HA

VMware HA is being broadly deployed with VI3

Used in production by 40%+ of customers Enhanced ESX host health monitoring Full support for Individual VM health monitoring Customizable admission control and cluster-level defaults

HA Maintenance Mode

X

Ability to suspend host monitoring Choice of three admission control strategies

HOW TO BACKUP UP VIRTUAL MACHINES

All customers should backup their data. Normally this requires backup software, designed to backup virtual machines. In addition, backup agents have to be installed on each virtual machine. Customers also need to know if the agent supports all operating systems which are in use. A support agreement for this additional software must be contracted. A separate management instance and additional costs and efforts are the result.

VMware Data Recovery is a new backup and recovery product from VMware for up to 100VM’s. It is managed via a vCenter Server plug-in and uses the vStorage APIs for Data Protection. It is designed for small- to medium-sized businesses, which currently do not have a backup solution or are looking for a backup solution that it optimized for virtualization.

When Data Recovery is opened in the vSphere Client for the first time, Data Recovery provides a simple interface to perform basic configuration, such as defining network parameters. After that, wizard interfaces allows the user to create, configure and schedule backup jobs quickly.

(5)

Data Recovery is an agentless, disk-based solution, allowing faster restores than solutions which write to backup tape. Customers can restore individual files or entire images. Multiple restore points for each virtual machine are displayed to easily select a copy to restore from a specific point in time. 8 jobs can be run at the same time.

Data Recovery utilizes built in data de-duplication technology to save significant disk space. De-duplication eliminates duplicate storage blocks as backup data is streamed to disk. Therefore, you can maintain multiple point-in-time copies of virtual machines using only a fraction of the storage. To efficiently utilize the backup window and available resources, the de-duplication operation occurs as the virtual machine backup is stored to disk. Fujitsu recommends saving the backup data on separate Nearline disks on the ETERNUS DX60/DX80, while SAS disks are used for production data.

The Fujitsu PRIMERGY RX200 S5 server, delivered with 2 Sockets, is the overall highest 8-core result on VMware VMmark* virtualization benchmark in the class of 1U servers. Results referenced are current as of August 12th, 2009. All results can be found at http://vmware.com/products/vmmark/results.html. *VMmark is a free tool, developed by VMware. Hardware vendors, virtualization software vendors and other organizations can use it to measure the performance and scalability of applications running in virtualized environments.

Storage Servers VMware ESX/ESXi

Virtual Machines vCenter Server _RecoveryData

vCenter Plug-in

With vSphere Client plug-in, allows configuration and management of backup/recovery appliance Wizard driven backup and restore job creation Storage of backup configuration in vCenter Server database and awareness of HA/VMotion/DRS

VMware ESX/ESXi

Provides VSS support

Change block tracking functionality allows backups to be more efficient

Storage

Any VMFS storage: DAS, iSCSI or Fibre Channel storage plus NFS and CIFS shares as target All backed up virtual machines are stored on disk in a de - duplicated data store

Backup and Recovery Appliance

OVF appliance

Leverages vStorage APIs for Data Protection to discover, manage backup and restore

Infrastructure virtual appliance built on top of vStorage APIs for Data Protection Utilizes vCenter as the central management console

Disk based storage as target De-Duplikation

Change block tracking and de-duplication for efficient backup processing and data storage

VM or file level restores

vCenter Data Recovery is for VMware Infrastructure users looking for a simple and integrated virtual machine data protection solution

(6)

Fujitsu America, Inc.

1250 East Arques Avenue Sunnyvale, CA 94085-3470, U.S.A. Telephone: 800 831 3183 or 408 746 6000 Fax: 408 764 5060

Web: us.fujitsu.com/solutions Email: [email protected]

Fujitsu, ETERNUS, and the Fujitsu logo are trademarks or registered trademarks of Fujitsu Limited. PRIMERGY is a trademark or registered trademark of Fujitsu Technology Solutions in the United States and other countries. VMware, vSphere, and vCenter are trademarks or registered trademarks of Vmware, Inc. Intel and Xeon are registered trademarks or trademarks of Intel Corporation or its subsidiaries in the United States and other countries. Windows Server is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries. All other trademarks and product names are the property of their respective owners. The information in this document may be superseded by subsequent documents. For details regarding delivery of specific products, features, and services, contact your local Fujitsu representative. © 2009 Fujitsu America, Inc.

A complete sample configuration with two PRIMERGY RX200 S5 servers directly attached at fast 4 Gbit/s speed to one ETERNUS DX60 disk storage system (equals RapidStructure configuration “S”) could be configured as follows:

Order number Description / Label Qnty Picture

S26361-K826-V102 PRIMECENTER Rack 24HE, 1000mm deep 1

S26361-F2262-E40 Power outlets 1x 10 systems + mounting 2 S26361-F2293-E801 Console switch KVM S2-0801, 1U 2 S26361-K1329-V100 RC24 17" TFT 1HE D/US Deutsch/US English 1 S26361-F2293-E501 Console switch cable KVM S2 CAT5customized 2 S26361-F2293-E202 Console switch KVM S2 adaptor USB-VGA 2 S26361-F2735-E10 Carrier PC/DC-Rack, up to 50Kg 1 S26361-F2735-E131 Blind plastic bezel, 2U + mounting 8 S26361-F2735-E130 Blind plastic bezel, 1U + mounting 6

S26361-K1272-V101 PY RX200S5 2

Additional required PRIMERGY components, per system

S26361-F3279-E226 Intel®_Xeon®_{DP E5520 2.26 GHz 8MB 5.86GT} ₂

S26361-F3285-E514 4GB DDR3-1333 PC3-10600 rg d ECC 6 S26361-F3269-E2 DVD-RW supermulti slimline SATA 1 S26361-F3317-E600 6x 2.5" HDD + ODD Option 1 S26361-F3306-E202 FC Ctrl 2x4GBit/s LPe11002 MMF LC LP 1 S26113-F539-E1 Power Supply 770W Upgrade for RX200S5 1 S26361-F3228-E201 Eth Ctrl 2x1Gbit PCIe PRO/1000PT Cu lp 1 S26361-F2735-E101 RMK-F1_1-2U Server (neu) 1 S26361-F2735-E8 1U Cable Management. 1 S26361-F1790-E241 iRMC S2 advanced pack 1 S26361-F2341-E431 VMware ESXi 4.0 Embedded UFM Device 1

VS4-ESSL-PL-BUN-C-1 VMware vSphere 4 Essentials Plus Bundle for 3 hosts (Max 2 CPUs per host and 6 cores per _{CPU), Requires 1 year SnS} 1 VMVSEP-S048121-0NA VMware vSphere 4 Essentials Plus Bundle for 3 hosts, PLATINUM 24 X 7 Phone Support _{Support and Subscription, 1 year} 1 S26361-F2565-E310 Windows Server® 2008 Standard w/5CAL (One required per server) 1

ETERDX6N-ET06F22AU-91632 ETERNUS DX Base Unit (FC4Gbps, 4ports), plus 300GB/15KRPM SAS disk drives (set of 4) RAID 5 (ETLSA3PAU) 1

Additional Components required for each ETERNUS

ETDX6N_W059360-AAC ETDX60 Standard Warranty (36 months) 1 61-343827-003 LC/LC Fibre Channel Cable _{Multimode-50/125um;Riser Rated- 3 M.} 4

Optional Assembly

VM1-350745-001 My First VM Factory Assembly and Test 1
