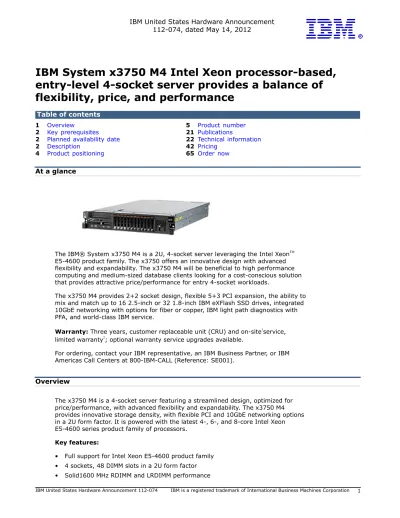

IBM United States Hardware Announcement

112-074, dated May 14, 2012

IBM System x3750 M4 Intel Xeon processor-based,

entry-level 4-socket server provides a balance of

flexibility, price, and performance

At a glance

The IBM® System x3750 M4 is a 2U, 4-socket server leveraging the Intel XeonTM

E5-4600 product family. The x3750 offers an innovative design with advanced flexibility and expandability. The x3750 M4 will be beneficial to high performance computing and medium-sized database clients looking for a cost-conscious solution that provides attractive price/performance for entry 4-socket workloads.

The x3750 M4 provides 2+2 socket design, flexible 5+3 PCI expansion, the ability to mix and match up to 16 2.5-inch or 32 1.8-inch IBM eXFlash SSD drives, integrated 10GbE networking with options for fiber or copper, IBM light path diagnostics with PFA, and world-class IBM service.

Warranty: Three years, customer replaceable unit (CRU) and on-site1_service,

limited warranty2_{; optional warranty service upgrades available.}

For ordering, contact your IBM representative, an IBM Business Partner, or IBM Americas Call Centers at 800-IBM-CALL (Reference: SE001).

Overview

The x3750 M4 is a 4-socket server featuring a streamlined design, optimized for price/performance, with advanced flexibility and expandability. The x3750 M4 provides innovative storage density, with flexible PCI and 10GbE networking options in a 2U form factor. It is powered with the latest 4-, 6-, and 8-core Intel Xeon E5-4600 series product family of processors.

Key features:

• Full support for Intel Xeon E5-4600 product family • 4 sockets, 48 DIMM slots in a 2U form factor • Solid1600 MHz RDIMM and LRDIMM performance

(2)

• 2+2 socket design for pay-as-you-grow expandability

• Mix-and-match internal storage with up to 16 HDD or 32 eXFlash drives • Integrated 10GbE networking with a mezzanine option for fiber or copper

interface

• Up to 8 PCIe I/O slots with a 5+3 design

Benefits and differentiators:

1. Pay-as-you-grow 2+2 design that allows you to consolidate existing 2-socket workloads and add additional processing resources as your business needs grow 2. Expandable PCIe 5+3 capability that gives you the option to increase PCIe slots

through a 3 PCIe slot expansion riser

3. Storage density and IOP performance with up to 32 1.8-inch IBM eXFlash SSDs or 16 2.5-inch SAS/SATA HDDs

4. Integrated 10GbE with the option to select SFP+ fiber or 10BASE-T copper ports, allowing you to cost-effectively upgrade your 1GbE networking to 10GbE

5. A dense 2U form factor that efficiently uses less rack space and data center resources to reduce infrastructure costs

6. IBM light path diagnostics and PFA support

7. World-class IBM service, support, and financing options

1_{IBM sends a technician after attempting to diagnose and resolve the problem}

remotely.

2_{For information on the IBM Statement of Limited Warranty, visit} http://www.ibm.com/servers/support/machine_warranties/

Alternatively, this information is also available by contacting your IBM representative or reseller. Copies are available upon request.

Key prerequisites

Refer to the Hardware requirements section for details.

Planned availability date

July 12, 2012

Description

Processors

• 4-socket SMP with Xeon EP 4S (E5-4600) – 2 sockets on the base planar

– 2 sockets on the mezzanine card

• Xeon EP 4S - 4-, 6-, or 8-core processors supporting – 32nm architecture

– Socket-R - 2011 pin LGA – EM64T

– HyperThreading – Turbo Mode

– Up to 20 MB L3 cache – 2 QPI links at up to 8 GT/s

(3)

– Up to 40 PCIe Gen3 lanes per processor

IntelTM_{Patsburg Southbridge}

• x4 DMI - Connection to processor 1 or 2 • 6 USB 2.0 ports

• SATA DVD ROM

• x1 PCIe Gen2 - Connection to IMM v2

Memory

• PC3-12800, registered, ECC, 240 pins up to 1600 Mb/s • PC3-10600, registered, ECC, 240 pins up to 1333 Mb/s • 4 GB, 8 GB, and 16 GB standard RDIMMs

• 16 GB and 32 GB LR-DIMMs

• Support for memory mirroring, memory sparing, and Chipkill (x4)

• Single DIMM isolation on uncorrectable error (Independent Channel Mode) • 24 DIMM slots on the base planar

• 24 DIMM slots on the mezzanine card

I/O

• 5 x8 low-profile PCIe Gen3 slots • 3 x8 FH/HL PCIe Gen3 slots on a riser • x16 mechanical connectors

• Front and rear video

• Integrated Emulex BE3 that provides embedded dual-port 1Gb-T and dual-port 10Gb option, two SFP+ or two 10Gb-T

• Dedicated gigabit management port • Serial port

• Integrated LSI 2208 SAS RAID with optional cache card socket

• Up to sixteen 2.5-inch drives, SAS/SATA/SSD or up to thirty-two 1.8-inch SSD drives

• x8 PCIe Gen3 connectivity

Powerand packaging

• 2U rack model

• One 1400W power supply connected to the main planar – Nonredundant

• One additional 1400W power supply connected through the mezzanine card or power interposer card

– Provides redundancy for "sweet spot" system configurations – Fully loaded system will experience power capping / throttling • Six redundant counter-rotating hot-swap fans

• Up to 32 1.8-inch SSD drives

• Up to 16 2.5-inch SAS/SATA/SSD drives • Pull-out light path diagnostics panel

IBM System x3750 M4 model configurations

System SEO HDD Power number Processor Cache Memory iface HDD supply 8722-A2x 1 x 2.00 GHz 10 MB 1x8 GB Open Open bay 1x1400W

(4)

Xeon E5-4603 4 core 95w

8722-A1x 2 x 2.90 GHz 15 MB 2x8 GB SAS/SATAx4 Open bay 1x1400W Xeon E5-4617 with CPU-Memory Expansion Mezzanine 6 core 130w

8722-A3x 2 x 2.20 GHz 12 MB 2x8 GB SAS/SATAx4 Open bay 1x1400W Xeon E7-4607 with CPU-Memory Expansion Mezzanine 6 core 95w

8722-B1x 2 x 2.40 GHz 15 MB 2x8 GB SAS/SATAx4 Open bay 1x1400W Xeon E5-4610 with CPU-Memory Expansion Mezzanine 6 core 95w

8722-B2x 2 x 2.20 GHz 16 MB 2x8 GB SAS/SATAx4 Open bay 1x1400W Xeon E5-4620 with CPU-Memory Expansion Mezzanine 8 core 95w

8722-C1x 2 x 2.40 GHz 20 MB 2x8 GB SAS/SATAx4 Open bay 1x1400W Xeon E5-4640 with CPU-Memory Expansion Mezzanine 8 core 95w

8722-C2x 2 x 2.70 GHz 20 MB 2x8 GB SAS/SATAx4 Open bay 1x1400W Xeon E5-4650 with CPU-Memory Expansion Mezzanine 8 core 130w

8722-D1x 4 x 2.40 GHz 15 MB 24x8 GB Two SSDx4 16x200GB 1x1400W Xeon E5-4610 1.8" SSD 6 core 95w with CPU-Memory Expansion Mezzanine 12x8 GB on Riser

8722-D2x 4 x 2.70 GHz 20 MB 24x16 GB Four SSDx4 32x200GB 1x1400W Xeon E5-4650 1.8" SSD 8 core 130w with CPU-Memory Expansion Mezzanine 12x16 GB on Riser

Product positioning

These new IBM System x3750 M4 models enhance the server line by providing new levels of performance and price/performance.

The IBM System x3750 M4 servers provide excellent scalable processing capability supporting high-speed memory, PCIe bus architecture, and 4-, 6-, and 8-core Intel Xeon processors.

This makes the IBM System x3750 M4 servers an excellent fit for current and future enterprise on-demand applications.

These high-density, Intel Xeon-based servers are designed to handle complex applications requiring high-speed computing power, advanced high-availability functions, and a minimum amount of rack space.

Applications include: • On-demand business • Business intelligence • Transaction processing • Enterprise resource planning

• Collaboration applications ( MicrosoftTM_{Exchange and Lotus Notes® )}

• Server consolidation and virtualization • Internet or intranet front-end serving • Web content serving

• Database storage as a SAN solution • In-memory databases

(5)

Reference information

For information on ServicePacs, refer to Services Announcement 606-013, dated August 07, 2006 , and Hardware Announcement 106-670, dated September 19, 2006 .

Product number

The following are newly announced features on the specified models of the IBM xSeries® 5374 machine type:

Description MT Model Feature ServeRAID C105 for IBM System x® 5374 CM1 A382 ServeRAID M5110 SAS/SATA 5374 CM1 A38Z

The following are newly announced features on the specified models of the IBM xSeries 8722 machine type:

Description MT Model Feature 8722-AC1 8722 AC1

8722-MC1 8722 MC1

QLogic 10Gb CNA for IBM System x 8722 AC1 5751 MC1

NetXtreme II 1000 Express Quad Port Ethernet Intel Ethernet Dual Port Server Adapter I340-T2

for IBM System x 8722 AC1 5767 MC1

Intel Ethernet Quad Port Server Adapter I340-T4

8GB (1x8GB, 2Rx4, 1.35V) PC3L-10600 CL9 ECC DDR3

1333MHz LP RDIMM 8722 AC1 8923 MC1

Controller 01 8722 AC1 A2JX MC1

Controller 02 8722 AC1 A2JY MC1

Controller 03 8722 AC1 A2JZ MC1

Controller 04 8722 AC1 A2K0 MC1

Primary Array - RAID 1E 8722 AC1 A2K8 MC1

Tertiary Array - RAID 1E 8722 AC1 A2KS MC1

ServeRAID M5110 SAS/SATA Controller Placement 8722 AC1 A2KZ MC1

ServeRAID M5120 SAS/SATA Controller Placement 8722 AC1 A2L0 MC1

ServeRAID M5100 Series 512MB Cache/RAID 5 Upgrade

Placement 8722 AC1 A2L1 MC1

ServeRAID M5100 Series Battery Kit Placement 8722 AC1 A2L2 MC1

(6)

Placement 8722 AC1 A2L3 ServeRAID M5100 Series 1GB Flash/RAID 5 Upgrade

ServeRAID H1110 SAS/SATA Controller Placement 8722 AC1 A2L6 MC1

IBM 6Gb Performance Optimized HBA Placement 8722 AC1 A2L7 MC1

ServeRAID C100 Placement 8722 AC1 A2L8 MC1

ServeRAID M5110e SAS/SATA Controller Placement 8722 AC1 A2L9 MC1

Enable selection of Solid State Drives 8722 AC1 2498 for Secondary Array MC1

Enable selection of Solid State Drives 8722 AC1 2499 for Primary Array MC1

QLogic 10Gb SFP+ SR Optical Transceiver 8722 AC1 0064 MC1

Brocade 10Gb SFP+ SR Optical Transceiver 8722 AC1 0069 MC1

IBM 160GB High IOPS SS Class SSD PCIe Adapter 8722 AC1 0096 MC1

IBM 320GB High IOPS SD Class SSD PCIe Adapter 8722 AC1 0097 MC1

Brocade 10Gb CNA for IBM System x 8722 AC1 1637 MC1

IBM 320GB High IOPS MS Class SSD PCIe Adapter 8722 AC1 1649 MC1

Emulex 4Gb FC Single-Port PCI-E HBA for IBM System

x 8722 AC1 1698 MC1

Emulex 4Gb FC Dual-Port PCI-E HBA for IBM System x 8722 AC1 1699 MC1

Capacity Scheduling Service 8722 AC1 1772 MC1

Custom SLA Scheduling Service 8722 AC1 1796 MC1

2U Bracket for NetXtreme II 1000 Express® Quad Port

Custom Asset Tagging - Standard 8722 AC1 2200 MC1

Custom Asset Tagging - Enhanced 8722 AC1 2201 MC1

Custom Image Load - Server 8722 AC1 2204 MC1

Custom Media Shipgroup 8722 AC1 2206 MC1

Request for Global Trade Number (UPC or EAN) 8722 AC1 2207 MC1

Custom Software/Firmware Setting - Standard 8722 AC1 2208 MC1

Custom Software/Firmware Setting - Enhanced 8722 AC1 2209 MC1

Custom RAID Configuration 8722 AC1 2212 MC1

Custom Labeling 8722 AC1 2220 MC1

Custom Palletization 8722 AC1 2221 MC1

Request for a new Vendor Logo Hardware 8722 AC1 2247 MC1

Request for an existing IBM Feature 8722 AC1 2248 MC1

Request for an existing Public RPQ 8722 AC1 2249 MC1

RAID Configuration 8722 AC1 2302 MC1

Rack Installation >1U Component 8722 AC1 2306 MC1

Department of Defense UID Label 8722 AC1 2320 MC1

Primary Array 12 HDDs 8722 AC1 2400 MC1

(7)

Secondary Array 9 HDDs 8722 AC1 2405 MC1

Tertiary Array 2 HDDs 8722 AC1 2411 MC1

2U Bracket for Brocade 10Gb CNA for IBM System x 8722 AC1 2492 MC1

Optical Blank Filler 8722 AC1 2496 MC1

4 pack 2.5" HDD Filler 8722 AC1 2504 MC1 Rack 01 8722 AC1 3101 MC1 Rack 02 8722 AC1 3102 MC1 Rack 03 8722 AC1 3103 MC1 Rack 04 8722 AC1 3104 MC1 Rack 05 8722 AC1 3105 MC1 Rack 06 8722 AC1 3106 MC1 Rack 07 8722 AC1 3107 MC1 Rack 08 8722 AC1 3108 MC1 Rack 09 8722 AC1 3109 MC1 Rack 10 8722 AC1 3110 MC1 Rack 11 8722 AC1 3111 MC1 Rack 12 8722 AC1 3112 MC1 Rack 13 8722 AC1 3113 MC1 Rack 14 8722 AC1 3114 MC1 Rack 15 8722 AC1 3115 MC1 Rack 16 8722 AC1 3116 MC1 Rack 17 8722 AC1 3117 MC1

(8)

Rack 18 8722 AC1 3118 MC1 Rack 19 8722 AC1 3119 MC1 Rack 20 8722 AC1 3120 MC1 Rack 21 8722 AC1 3121 MC1 Rack 22 8722 AC1 3122 MC1 Rack 23 8722 AC1 3123 MC1 Rack 24 8722 AC1 3124 MC1 Rack 25 8722 AC1 3125 MC1 Rack 26 8722 AC1 3126 MC1 Rack 27 8722 AC1 3127 MC1 Rack 28 8722 AC1 3128 MC1 Rack 29 8722 AC1 3129 MC1 Rack 30 8722 AC1 3130 MC1 Rack 31 8722 AC1 3131 MC1 Rack 32 8722 AC1 3132 MC1 Rack 33 8722 AC1 3133 MC1 Rack 34 8722 AC1 3134 MC1 Rack 35 8722 AC1 3135 MC1 Rack 36 8722 AC1 3136 MC1 Rack 37 8722 AC1 3137 MC1 Rack 38 8722 AC1 3138 MC1 Rack 39 8722 AC1 3139 MC1 Rack 40 8722 AC1 3140 MC1 Rack 41 8722 AC1 3141 MC1 Rack 42 8722 AC1 3142 MC1 Rack 43 8722 AC1 3143 MC1 Rack 44 8722 AC1 3144 MC1 Rack 45 8722 AC1 3145 MC1 Rack 46 8722 AC1 3146 MC1 Rack 47 8722 AC1 3147 MC1 Rack 48 8722 AC1 3148 MC1 Rack 49 8722 AC1 3149 MC1 Rack 50 8722 AC1 3150 MC1 Rack 51 8722 AC1 3151 MC1 Rack 52 8722 AC1 3152 MC1 Rack 53 8722 AC1 3153 MC1 Rack 54 8722 AC1 3154 MC1

(9)

Rack 55 8722 AC1 3155 MC1 Rack 56 8722 AC1 3156 MC1 Rack 57 8722 AC1 3157 MC1 Rack 58 8722 AC1 3158 MC1 Rack 59 8722 AC1 3159 MC1 Rack 60 8722 AC1 3160 MC1 Rack 61 8722 AC1 3161 MC1 Rack 62 8722 AC1 3162 MC1 Rack 63 8722 AC1 3163 MC1 Rack 64 8722 AC1 3164 MC1

Rack location U01 8722 AC1 3201 MC1

(10)

No RAID - Secondary Array set up by customer 8722 AC1 3271 MC1

No RAID - Tertiary Array set up by customer 8722 AC1 3272 MC1

QLogic 4Gb FC Single-Port PCIe HBA for IBM System

x 8722 AC1 3567 MC1

QLogic 4Gb FC Dual-Port PCIe HBA for IBM System x 8722 AC1 3568 MC1

QLogic 8Gb FC Single-port HBA for IBM System x 8722 AC1 3578 MC1

QLogic 8Gb FC Dual-port HBA for IBM System x 8722 AC1 3579 MC1

Emulex 8Gb FC Single-port HBA for IBM System x 8722 AC1 3580 MC1

Emulex 8Gb FC Dual-port HBA for IBM System x 8722 AC1 3581 MC1

Brocade 8Gb FC Single-port HBA for IBM System x 8722 AC1 3589 MC1

Brocade 8Gb FC Dual-port HBA for IBM System x 8722 AC1 3591 MC1

1m LC-LC Fiber Cable (networking) 8722 AC1 3700 5m LC-LC Fiber Cable (networking) 8722 AC1 3701 25m LC-LC Fiber Cable (networking) 8722 AC1 3702 IBM 1m SAS Cable 8722 AC1 3714 MC1

IBM 3m SAS Cable 8722 AC1 3716 MC1

0.6m Yellow Cat5e Cable 8722 AC1 3791 1.5m Yellow Cat5e Cable 8722 AC1 3792 3m Yellow Cat5e Cable 8722 AC1 3793 10m Yellow Cat5e Cable 8722 AC1 3794 25m Yellow Cat5e Cable 8722 AC1 3795 0.6m Green Cat5e Cable 8722 AC1 3796 1.5m Green Cat5e Cable 8722 AC1 3797 3m Green Cat5e Cable 8722 AC1 3798 10m Green Cat5e Cable 8722 AC1 3799 25m Green Cat5e Cable 8722 AC1 3800 0.6m Blue Cat5e Cable 8722 AC1 3801 1.5m Blue Cat5e Cable 8722 AC1 3802 3m Blue Cat5e Cable 8722 AC1 3803 10m Blue Cat5e Cable 8722 AC1 3804 25m Blue Cat5e Cable 8722 AC1 3805 IBM 6Gb Performance Optimized HBA 8722 AC1 3876

(11)

MC1

Brocade 4Gb FC Single-port HBA for IBM System x 8722 AC1 3885 MC1

Brocade 4Gb FC Dual-port HBA for IBM System x 8722 AC1 3886 MC1

2U bracket for Emulex 8Gb FC Single-port HBA for

System x 8722 AC1 4047 MC1

2U bracket for QLogic 8Gb FC Single-port HBA for

2.5" HDD Filler Bezel 8722 AC1 4069 MC1

IBM UltraSlim Enhanced SATA Multi-Burner 8722 AC1 4163 MC1

IBM 200GB SATA 1.8" MLC SSD 8722 AC1 5420 MC1

IBM 50GB SATA 1.8" MLC SSD 8722 AC1 5428 MC1

2U Bracket for QLogic 10Gb CNA for IBM System x 8722 AC1 5787 MC1

HDD Backplane Filler 8722 AC1 5792 MC1

Select Storage devices - no IBM-configured RAID

required 8722 AC1 5977 MC1

Select Storage devices - IBM-configured RAID 8722 AC1 5978 MC1

IBM 6Gb SAS HBA 8722 AC1 5982 MC1

640GB High IOPS MLC Duo Adapter for IBM System x 8722 AC1 5985 MC1

1.8" SAS Storage Support 8722 AC1 6138 MC1

SF Instruction 8722 AC1 6139 MC1

1.5m, 10A/100-250V, C13 to IEC 320-C14 Rack Power

Cable 8722 AC1 6201 MC1

Cable 8722 AC1 6204 MC1

Cable 8722 AC1 6263 MC1

Cable 8722 AC1 6311 MC1

Drive ID label sheet 8722 AC1 6456 MC1

IBM CMA for Ball Bearing and Universal Slides 8722 AC1 6473 MC1

IBM System x 2U Cable Management Arm 8722 AC1 6474 MC1

(12)

MC1

2U Bracket for High IOPS SSD PCIe Adapters 8722 AC1 7466 MC1

2U Bracket for IBM 6Gb SAS HBA 8722 AC1 7478 MC1

2U bracket for QLogic 8Gb FC Dual-port HBA for

2U Bracket for Brocade 8Gb FC Single-port HBA for

IBM System x 8722 AC1 7594 MC1

2U Bracket for Brocade 8Gb FC Dual-port HBA for

Grouped Product 8722 AC1 7830 MC1

Customer Solution Center Services 8722 AC1 7831 MC1

No HDD Selected 8722 AC1 8026 MC1

Consolidate Shipment 8722 AC1 8031 MC1

TAA Compliant Order 8722 AC1 8067 MC1

General Racking Solution 8722 AC1 8072 MC1

No SATA HDD Selected 8722 AC1 8080 MC1

No 2.5" SAS HDD Selected 8722 AC1 8081 MC1

No Publications Selected 8722 AC1 8086 MC1

1333MHz LP RDIMM 8722 AC1 8941 MC1

Integrate in manufacturing 8722 AC1 8971 MC1

Ship Uninstalled (Safety) 8722 AC1 8972 MC1

Hot Spare 8722 AC1 9013 MC1

Memory Sparing 8722 AC1 9016 MC1

Enable Memory Mirroring 8722 AC1 9017 MC1

Preload Specify 8722 AC1 9200 MC1

Windows Specify 8722 MC1 9201 Red Hat Specify 8722 AC1 9202 SuSE Specify 8722 AC1 9203 Drop-in-the-Box Specify 8722 AC1 9205 MC1

No Preload Specify 8722 AC1 9206 MC1

VMware Specify 8722 AC1 9207 MC1

(13)

Preload by Hardware Feature Specify 8722 AC1 9220 MC1

IBM eXFlash 8x 1.8" HS SAS SSD Backplane 8722 AC1 9281 MC1

2U Bracket for Emulex 10GbE Virtual Fabric Adapter

Software Application (Not Preinstalled) Specify 8722 AC1 A0UF MC1

Advanced Grouping 8722 AC1 A102 MC1

Broadcom NetXtreme II Dual Port 10GBaseT Adapter

for IBM System x 8722 AC1 A18Y MC1

2U Bracket for Broadcom NetXtreme II Dual Port

10GBaseT Adapter 8722 AC1 A190 MC1

IBM 1TB 7.2K 6Gbps NL SATA 2.5" SFF HS HDD 8722 AC1 A1AV MC1

for IBM System x 8722 AC1 A1J3 MC1

ServeRAID M5100 Series 512MB Flash/RAID 5 Upgrade

for IBM System x 8722 AC1 A1J4 MC1

Lightpath Upgrade kit 8722 AC1 A1LE MC1

ServeRAID M1115 SAS/SATA Controller for IBM System

x 8722 AC1 A1MZ MC1

1.28TB HIGH IOPS MLC DUO ADAPTER FOR IBM SYSTEM X 8722 AC1 A1NB MC1

640GB HIGH IOPS MLC ADAPTER FOR IBM SYSTEM X 8722 AC1 A1NC MC1

640GB HIGH IOPS SLC DUO ADAPTER FOR IBM SYSTEM X 8722 AC1 A1ND MC1

320GB HIGH IOPS SLC ADAPTER FOR IBM SYSTEM X 8722 AC1 A1NE MC1

IBM 250GB 7.2K 6Gbps NL SATA 2.5" SFF HS HDD 8722 AC1 A1NX MC1

IBM 500GB 7.2K 6Gbps NL SATA 2.5" SFF HS HDD 8722 AC1 A1NZ MC1

IBM 1TB 7.2K 6Gbps NL SAS 2.5" SFF HS HDD 8722 AC1 A1P3 MC1

1333MHz LP RDIMM 8722 AC1 A1QT MC1

ServeRAID M5120 SAS/SATA Controller for IBM System

x 8722 AC1 A1WX MC1

ServeRAID M5100 Series 1GB Flash/RAID 5 Upgrade

for IBM System x 8722 AC1 A1WY MC1

ServeRAID M1100 Series Zero Cache/RAID 5 Upgrade

for IBM System x 8722 AC1 A1X1 MC1

ServeRAID M5100 Series Zero Cache/RAID 5 Upgrade

for IBM System x 8722 AC1 A1X2 MC1

ServeRAID M5100 Series RAID 6 Upgrade for IBM

System x 8722 AC1 A1X3 MC1

3U bracket for low profile-internal-storage

adapters 8722 AC1 A1X6 MC1

IBM System x Gen-III Slides Kit 8722 AC1 A228 MC1

IBM System x Gen-III CMA 8722 AC1 A229 MC1

(14)

IBM System x Gen-III Large Capacity CMA 8722 AC1 A22A MC1

IBM System x Universal Slides Kit 8722 AC1 A22B MC1

Super Cap Cable 875MM 8722 AC1 A22C MC1

ServeRAID M5100 Series Battery Kit for IBM System

x 8722 AC1 A22E MC1

950MM Cable for ServeRAID M5100 Series Battery Kit 8722 AC1 A22G MC1

2U Bracket for ServeRAID M5120 SAS/SATA Controller 8722 AC1 A22L MC1

IBM 900GB 10K 6Gbps SAS 2.5" SFF HS HDD 8722 AC1 A282 MC1

IBM 300GB 15K 6Gbps SAS 2.5" SFF HS HDD 8722 AC1 A283 MC1

4GB (1x4GB, 1Rx4, 1.5V) PC3-12800 CL11 ECC DDR3

1600MHz LP RDIMM 8722 AC1 A28Z MC1

1333MHz LP LRDIMM 8722 AC1 A290 MC1

1333MHz LP LRDIMM 8722 AC1 A291 MC1

1600MHz LP RDIMM 8722 AC1 A292 MC1

x3750 M4 Base 8722 AC1 A293 MC1

IBM Dual port 10Gb-T Ethernet Adapter Card 8722 AC1 A294 MC1

IBM Dual port 10Gb SFP+ Ethernet Adapter Card 8722 AC1 A295 MC1

x3750 M4 Bezel 8722 AC1 A296 MC1

Power Supply Blank Filler 8722 AC1 A298 MC1

CPU-Mem Card Filler 8722 AC1 A299 MC1

PCIe Riser Rear Bulkhead Filler 8722 AC1 A29A MC1

Mfg Code 8722 AC1 A29B MC1

Labels GBM 8722 AC1 A29C MC1

Rating label for 1400W PS 8722 AC1 A29D MC1

Short SAS cable to planar 8722 AC1 A29E MC1

Long SAS cable to planar 8722 AC1 A29F MC1

Short SAS cable to PCIe controller 8722 AC1 A29G MC1

Long SAS cable to PCIe controller 8722 AC1 A29H MC1

System Documentation and Software-US English 8722 AC1 A29X MC1

x3750 M4 CPU Planar 8722 AC1 A29Y MC1

IBM x3750 M4 2-CPU socket, 24 DIMM Memory

Expansion 8722 AC1 A29Z MC1

IBM Power Interposer for Redundant Power Supply 8722 AC1 A2A0 MC1

IBM x3750 M4 PCIe 3 x8 riser 8722 AC1 A2A1 MC1

IBM 8x 2.5" HS SAS/SATA/SSD HDD Backplane with

controller expansion 8722 AC1 A2A2 MC1

(15)

IBM 4x 2.5" HS SAS/SATA/SSD HDD Backplane 8722 AC1 A2A3 MC1

IBM 8x 2.5" HS SAS/SATA/SSD HDD Backplane 8722 AC1 A2A4 MC1

System Packaging - WW 8722 AC1 A2A5 MC1

IBM 1400W HE Redundant Power Supply 8722 AC1 A2A6 MC1

IBM 900W Power Supply 8722 AC1 A2A7 MC1

Intel Xeon Processor E5-4650 8C 2.7GHz 20MB Cache

1600MHz 130W 8722 AC1 A2A8 MC1

1333MHz 95W 8722 AC1 A2AA MC1

1333MHz 95W 8722 AC1 A2AC MC1

1066MHz 95W 8722 AC1 A2AE MC1

1600MHz 95W 8722 AC1 A2AG MC1

1600MHz 130W 8722 AC1 A2AJ MC1

1066MHz 95W 8722 AC1 A2AL MC1

Intel Xeon Processor E5-4650L 8C 2.6GHz 20MB Cache

1600MHz 115W 8722 AC1 A2AQ MC1

Label KC 8722 AC1 A2CM MC1

Intel x520 Dual Port 10GbE SFP+ Adapter for IBM

System x 8722 AC1 A2EC MC1

IBM 200GB SATA 2.5" MLC HS SSD 8722 AC1 A2FN MC1

Configuration ID 01 8722 AC1 A2HP MC1

Configuration ID 02 8722 AC1 A2HQ MC1

Configuration ID 03 8722 AC1 A2HR MC1

Configuration ID 04 8722 AC1 A2HS MC1

Configuration ID 05 8722 AC1 A2HT MC1

Configuration ID 06 8722 AC1 A2HU MC1

Configuration ID 07 8722 AC1 A2HV MC1

Configuration ID 08 8722 AC1 A2HW MC1

Configuration ID 09 8722 AC1 A2HX MC1

Configuration ID 10 8722 AC1 A2HY MC1

Configuration ID 11 8722 AC1 A2HZ MC1

Configuration ID 12 8722 AC1 A2J0 MC1

(16)

MC1

Configuration ID 22 8722 AC1 A2JA MC1

Configuration ID 23 8722 AC1 A2JB MC1

Configuration ID 24 8722 AC1 A2JC MC1

Configuration ID 25 8722 AC1 A2JD MC1

Configuration ID 26 8722 AC1 A2JE MC1

Configuration ID 27 8722 AC1 A2JF MC1

Configuration ID 28 8722 AC1 A2JG MC1

Configuration ID 29 8722 AC1 A2JH MC1

Configuration ID 30 8722 AC1 A2JJ MC1

Configuration ID 31 8722 AC1 A2JK MC1

Configuration ID 32 8722 AC1 A2JL MC1

Configuration ID 33 8722 AC1 A2JM MC1

Configuration ID 34 8722 AC1 A2JN MC1

Configuration ID 35 8722 AC1 A2JP MC1

Configuration ID 36 8722 AC1 A2JQ MC1

Configuration ID 37 8722 AC1 A2JR MC1

Configuration ID 38 8722 AC1 A2JS MC1

Configuration ID 39 8722 AC1 A2JT MC1

Configuration ID 40 8722 AC1 A2JU MC1

Configuration ID 41 8722 AC1 A2JV MC1

Configuration ID 42 8722 AC1 A2JW MC1

Controller 01 8722 AC1 A2JX MC1

Controller 02 8722 AC1 A2JY MC1

Controller 03 8722 AC1 A2JZ MC1

Primary Array - RAID 0 8722 AC1 A2K6 MC1

(17)

MC1

Primary Array - RAID 6 8722 AC1 A2KA MC1

Primary Array - RAID 10 8722 AC1 A2KB MC1

Secondary Array - RAID 0 8722 AC1 A2KF MC1

Secondary Array - RAID 1 8722 AC1 A2KG MC1

Secondary Array - RAID 1E 8722 AC1 A2KH MC1

Secondary Array - RAID 5 8722 AC1 A2KJ MC1

Secondary Array - RAID 6 8722 AC1 A2KK MC1

Secondary Array - RAID 10 8722 AC1 A2KL MC1

Tertiary Array - RAID 0 8722 AC1 A2KQ MC1

Tertiary Array - RAID 1 8722 AC1 A2KR MC1

Tertiary Array - RAID 1E 8722 AC1 A2KS MC1

Tertiary Array - RAID 5 8722 AC1 A2KT MC1

Tertiary Array - RAID 6 8722 AC1 A2KU MC1

Tertiary Array - RAID 10 8722 AC1 A2KV MC1

ServeRAID M5110 SAS/SATA Controller Placement 8722 AC1 A2KZ MC1

ServeRAID M5100 Series Battery Kit Placement 8722 AC1 A2L2 MC1

ServeRAID M5100 Series 512MB Flash/RAID 5 Upgrade

ServeRAID M5100 Series 1GB Flash/RAID 5 Upgrade

ServeRAID H1110 SAS/SATA Controller Placement 8722 AC1 A2L6 MC1

IBM 6Gb Performance Optimized HBA Placement 8722 AC1 A2L7 MC1

ServeRAID C100 Placement 8722 AC1 A2L8 MC1

ServeRAID M5110e SAS/SATA Controller Placement 8722 AC1 A2L9 MC1

Configure the same as Controller 3 8722 AC1 A2LA MC1

Rating label for 900W PS 8722 AC1 A2MB MC1

ServeRAID M5100 Series SSD Performance Key for IBM

System x 8722 AC1 A2MC MC1

ServeRAID M5100 Series SSD Caching Key for IBM

System x 8722 AC1 A2MD MC1

ServeRAID M5110e SAS/SATA Controller for IBM

System x 8722 AC1 A2N2 MC1

IBM Virtual Fabric Advanced Software Upgrade (LOM) 8722 AC1 A2TD MC1

Emulex Dual Port 10GbE SFP+ VFA III for IBM System

x 8722 AC1 A2U1 MC1

(18)

Emulex VFA III FCoE/iSCSI License for IBM System x

(FoD) 8722 AC1 A2U2 MC1

IBM 256GB SATA 2.5" MLC HS Entry SSD 8722 AC1 A2U3 MC1

IBM 128GB SATA 2.5" MLC HS Entry SSD 8722 AC1 A2U4 MC1

1600MHz LP RDIMM 8722 AC1 A2U5 MC1

Broadcom NetXtreme I Quad Port GbE Adapter for IBM

System x 8722 AC1 A2V3 MC1

Broadcom NetXtreme I Dual Port GbE Adapter for IBM

System x 8722 AC1 A2V4 MC1

IBM USB Memory Key for VMware ESXi 5.0 8722 AC1 A2VC MC1

Broadcom NetXtreme I Quad Port GbE Adapter - 2U

Bracket 8722 AC1 A2VX MC1

Broadcom NetXtreme I Dual Port GbE Adapter - 2U

Bracket 8722 AC1 A2VY MC1

2U bracket for Emulex 16Gb FC Single-port HBA for

System x 8722 AC1 A2W1 MC1

2U bracket for Emulex 16Gb FC Dual-port HBA for

System x 8722 AC1 A2W2 MC1

CPU Baffle Installed 8722 AC1 A2W3 MC1

CPU Baffle Packaged 8722 AC1 A2W4 MC1

Emulex 16Gb FC Single-port HBA for IBM System x 8722 AC1 A2W5 MC1

Emulex 16Gb FC Dual-port HBA for IBM System x 8722 AC1 A2W6 MC1

IBM 146GB 15K 6Gbps SAS 2.5" SFF G2HS HDD 8722 AC1 A2XB MC1

IBM 300GB 10K 6Gbps SAS 2.5" SFF G2HS HDD 8722 AC1 A2XC MC1

IBM 600GB 10K 6Gbps SAS 2.5" SFF G2HS HDD 8722 AC1 A2XD MC1

IBM 500GB 7.2K 6Gbps NL SAS 2.5" SFF G2HS HDD 8722 AC1 A2XE MC1

IBM 300GB 10K 6Gbps SAS 2.5" SFF G2HS SED 8722 AC1 A2XF MC1

IBM System x 8722 AC1 A2XS MC1

IBM System x 8722 AC1 A2XT MC1

Brocade 16Gb FC Single-port HBA for IBM System x 8722 AC1 A2XU MC1

Brocade 16Gb FC Dual-port HBA for IBM System x 8722 AC1 A2XV MC1

The following are features already announced for the 8722 machine type:

Description MT Model Feature 8722-AC1 8722 AC1

8722-MC1 8722 MC1 Addl Intel Xeon Processor E5-4650 8C 2.7GHz 20MB

Cache 1600MHz 130W 8722 AC1 A2A9 MC1

Addl Intel Xeon Processor E5-4620 8C 2.2GHz 16MB

Cache 1333MHz 95W 8722 AC1 A2AB MC1

(19)

MC1 Addl Intel Xeon Processor E5-4607 6C 2.2GHz 12MB

Cache 1066MHz 95W 8722 AC1 A2AF MC1

Cache 1600MHz 95W 8722 AC1 A2AH MC1

Cache 1600MHz 130W 8722 AC1 A2AK MC1

Cache 1066MHz 95W 8722 AC1 A2AM MC1

Addl Intel Xeon Processor E5-4650L 8C 2.6GHz 20MB

Cache 1600MHz 115W 8722 AC1 A2AR MC1

IBM 146GB 15K 6Gbps SAS 2.5" SFF G2HS SED

8722 AC1 A2ZK MC1

ServeRAID M5110 SAS/SATA Controller for IBM System x

8722 AC1 A347 MC1

2.8m, 10A/230V, C13 to CEE7-VII (Europe)

8722 AC1 6212 MC1

China Warranty

8722 AC1 7599 MC1

The following are newly announced features on the specified models of the IBM xSeries 7143 machine type:

Description MT Model Feature 4U Slides Kit for Threaded Hole Rack and CMA

7143 AC1 A384 MC1

The following are features already announced for the 3331 machine type:

Description MT Model Feature Addl Intel Xeon Processor E5-4650 8C 2.7GHz 20MB

Cache 1600MHz 130W 3331 HC1 A2A9 Addl Intel Xeon Processor E5-4620 8C 2.2GHz 16MB

Cache 1333MHz 95W 3331 HC1 A2AB Addl Intel Xeon Processor E5-4610 6C 2.4GHz 15MB

Cache 1333MHz 95W 3331 HC1 A2AD Addl Intel Xeon Processor E5-4607 6C 2.2GHz 12MB

Cache 1066MHz 95W 3331 HC1 A2AF Addl Intel Xeon Processor E5-4640 8C 2.4GHz 20MB

Cache 1600MHz 95W 3331 HC1 A2AH Addl Intel Xeon Processor E5-4617 6C 2.9GHz 15MB

Cache 1600MHz 130W 3331 HC1 A2AK Addl Intel Xeon Processor E5-4603 4C 2.0GHz 10MB

Cache 1066MHz 95W 3331 HC1 A2AM Addl Intel Xeon Processor E5-4650L 8C 2.6GHz 20MB

Cache 1600MHz 115W 3331 HC1 A2AR IBM eXFlash 8x 1.8" HS SAS SSD Backplane 3331 HC1 A2XR IBM x3750 M4 Dual port 10GB-T Ethernet Adapter 3331 HC1 A294 Card

IBM x3750 M4 Dual port 10GB SFP+ Ethernet Adapter 3331 HC1 A295 Card

IBM eXFlash 8x 1.8" HS SAS SSD Backplane 3331 HC1 A2XR IBM x3750 M4 2-CPU socket, 24 DIMM Memory 3331 HC1 A29Z Expansion

IBM Power Interposer for Redundant Power Supply 3331 HC1 A2A0 IBM x3750 M4 PCIe 3 x8 riser 3331 HC1 A2A1 IBM 8x 2.5" HS SAS HDD Backplane with RAID 3331 HC1 A2A2 expansion

IBM 4x 2.5" HS SAS HDD Backplane 3331 HC1 A2A3 IBM 8x 2.5" HS SAS HDD Backplane 3331 HC1 A2A4 IBM 1400W HE Redundant Power Supply 3331 HC1 A2A6

(20)

IBM 900W Power Supply 3331 HC1 A2A7 4U Slides Kit for Threaded Hole Rack and CMA 3331 HC1 A384

The Single Entity Offerings (SEO)

SEO Description number IBM System x3750 M4 8722A1U 8722A2U 8722A3U 8722B1U 8722B2U 8722C1U 8722C2U 8722D1U 8722D2U Options SEOs SEO Description number

CPU-Memory Expansion Mezzanine (2-CPU / 24-DIMM) 88Y7365 Power Interposer 88Y7367 (3x8) PCIe Expansion Riser 88Y7371 Dual Port 10GB-T Ethernet Daughter Card 88Y7427 Dual Port 10GB SPF+ Ethernet Daughter Card 88Y7429 1400W Power Supply 88Y7373 900W Power Supply 88Y7431 IBM 4x 2.5" HS SAS/SATA/SSD HDD Backplane 88Y7418 IBM 8x 2.5" HS SAS/SATA/SSD HDD Backplane 88Y7419 IBM 8x 2.5" HS SAS/SATA/SSD HDD Backplane with 88Y7421 controller expansion

1.8" 16 SSD Backplane 88Y7422 4U Slides Kit for Threaded Hole Rack and CMA 88Y5872 Intel Xeon Processor E5-4650 8C 2.7GHz 20MB Cache 88Y7324 1600MHz 130W

Intel Xeon Processor E5-4620 8C 2.2GHz 16MB Cache 88Y7330 1333MHz 95W

Intel Xeon Processor E5-4650L 8C 2.6GHz 20MB Cache 88Y7458 1600MHz 115W

The following feature numbers are automatically added to the 5372-SWX HIPO order whenever one of the hardware system units is configured in an order.

HIPO feature

number Description

4273 8722-AC1 Routing Code 4274 8722-MC1 Routing Code

Business Partner information

If you are a Direct Reseller - System Reseller acquiring products from IBM , you may link directly to Business Partner information for this announcement. A PartnerWorld® ID and password are required (use IBM ID).

(21)

Publications

The IBM System x3750 M4 Types 8722 and 8733 Installation and Service Guide, in US English, is available from

http://www.ibm.com/systems/support

It contains an introduction to the computer, installation and setup, installing options, reference information, and problem determination. The installation guide has easy-to-use text and illustrations to enable you to quickly set up your x3750 M4 servers. IBM Systems Director systems-management software is included.

Note: Software versions, features, and functions shipped with these systems may

change as new releases become available or may be discontinued at any time.

IBM Publications Center Portal

http://www.ibm.com/shop/publications/order

The Publications Center is a worldwide central repository for IBM product publications and marketing material with a catalog of 70,000 items. Extensive search facilities are provided, as well as payment options via credit card. A large number of publications are available online in various file formats, which can currently be downloaded free of charge.

Services

Global Technology Services

IBM services include business consulting, outsourcing, hosting services, applications, and other technology management.

These services help you learn about, plan, install, manage, or optimize your IT infrastructure to be an on-demand business. They can help you integrate your high-speed networks, storage systems, application servers, wireless protocols, and an array of platforms, middleware, and communications software for IBM and many non-IBM offerings. IBM is your one-stop shop for IT support needs.

For details on available services, contact your IBM representative or visit

http://www.ibm.com/services/

For details on available IBM Business Continuity and Recovery Services, contact your IBM representative or visit

http://www.ibm.com/services/continuity

For details on education offerings related to specific products, visit

http://www.ibm.com/services/learning/index.html

Select your country, and then select the product as the category.

System x and BladeCenter support services

Recommended core technical support

When you buy IBM System x technology, include the support services you need --to help keep both your hardware and software working for you, day after day, at peak performance. It's your first step toward helping to protect your investment and sustain high levels of system availability. We offer service-level and response-time

(22)

options to fit your business needs. And we'll help you get started with a core support package that includes:

• Continuous system monitoring

Electronic monitoring that helps speed up problem-solving with automated, early detection of potential problems and system errors.

• Hardware maintenance

World-class remote and on-site hardware problem determination and repair services.

• Software technical support

Access to help line calls for fast, accurate answers to your questions during installation and throughout ongoing operations.

For more information, visit

http://www.ibm.com/servers/eserver/xseries/services.html

Technical information

Specified operating environment

Physical specifications

x3750 M4

8722A2x

Processor Xeon E5-4603 Four-core 95w

Internal speed 2.0 GHz Memory bus speed 1066 MHz Number standard 1 Maximum 2 Interconnect speed 6.4 GT/s L3 cache total 10 MB Memory 8 GB ECC DIMMs 1 x 8 GB RDIMM DIMM sockets maximum 24

Capacity 1536 GB 3

Memory / Processor expansion card Number standard 0 Maximum 1 Processors standard 0 Processor sockets maximum 2 DIMMs 0 DIMM sockets maximum 24 Video SVGA Memory 16 MB SAS controller Ports 8 Connector internal 2 Connector external 0 HDD standard 0

Bays available 16 - 2.5-inch or 32 1.8-inch Standard 2.5-inch slim 16 Optional

1.8-inch eXFlash SSD 32 Optional Hot-swap Standard Internal capacity 16 TB 4

PCIe sockets 5 Standard Management processor IMM Standard RAID 0/1 Standard RAID 5 (cacheless) Optional RAID 5 (512MB Cache)

(23)

RAID 5 (512MB Flash) Optional RAID 5 (1 GB Flash) Optional PCIe 3 slot expansion riser Optional 10GB SFP+ Mezzanine Card Optional 10GBaseT Mezzanine Card Optional SSD Performance Key Optional 1U Cable Management Arm Standard 2U Cable Management Arm Optional 2.5" HDD PCIe Controller Optional 1.8" SSD PCIe Controller Optional Dual 1 GigE (Onboard) Standard VMware ESXi Hypervisor USB Key Optional Fusion I/O Duo (320 GB) Optional Power supply 1400 W Number standard 1 Maximum 2 Hot-swap Yes Redundant power Optional Auto-restart Yes Hot-swap Yes 8722A1x

Processor Xeon E5-4617 Six-core 130W

Internal speed 2.90 GHz Memory bus speed 1600 MHz Number standard 2 Maximum 2 Interconnect speed 7.2 GT/s L3 cache total 15 MB

Memory 16 GB ECC RDIMM DIMMs 2 x 8 GB

DIMM sockets maximum 24 Capacity 1536 GB 3

Bays available 16 - 2.5-inch or 32 1.8-inch Standard 2.5-inch slim 4 Standard

+ battery Optional RAID 5 (512MB Flash) Optional RAID 5 (1 GB Flash) Optional PCIe 3 slot expansion riser Optional 10GB SFP+ Mezzanine Card Optional 10GBaseT Mezzanine Card Optional SSD Performance Key Optional 1U Cable Management Arm Optional 2U Cable Management Arm Standard 2.5" HDD PCIe Controller Optional 1.8" SSD PCIe Controller Optional Dual 1 GigE (Onboard) Standard VMware ESXi Hypervisor USB Key Optional Fusion I/O Duo (320 GB) Optional

(24)

Power supply 1400 W Number standard 1 Maximum 2 Hot-swap Yes Redundant power Optional Auto-restart Yes Hot-swap Yes 8722A3x

Internal speed 2.20 GHz Memory bus speed 1066 MHz Number standard 2 Maximum 2 Interconnect speed 6.4 GT/s L3 cache total 12 MB

Memory 16 GB ECC RDIMM DIMMs 2 x 8 GB

DIMM sockets maximum 24 Capacity 1536 GB 3

+ battery Optional RAID 5 (512MB Flash) Optional RAID 5 (1 GB Flash) Optional PCIe 3 slot expansion riser Optional 10GB SFP+ Mezzanine Card Optional 10GBaseT Mezzanine Card Optional SSD Performance Key Optional 1U Cable Management Arm Optional 2U Cable Management Arm Standard 2.5" HDD PCIe Controller Optional 1.8" SSD PCIe Controller Optional Dual 1 GigE (Onboard) Standard VMware ESXi Hypervisor USB Key Optional Fusion I/O Duo (320 GB) Optional Power supply 1400 W Number standard 1 Maximum 2 Hot-swap Yes Redundant power Optional Auto-restart Yes Hot-swap Yes 8722B1x

(25)

Memory bus speed 1333 MHz Number standard 2 Maximum 2 Interconnect speed 7.2 GT/s L3 cache total 15 MB Memory 16 GB ECC DIMMs 2 x 8 GB RDIMM DIMM sockets maximum 24

Capacity 1536 GB 3

+ battery Optional RAID 5 (512MB Flash) Optional RAID 5 (1 GB Flash) Optional PCIe 3 slot expansion riser Optional 10GB SFP+ Mezzanine Card Optional 10GBaseT Mezzanine Card Optional SSD Performance Key Optional 1U Cable Management Arm Optional 2U Cable Management Arm Standard 2.5" HDD PCIe Controller Optional 1.8" SSD PCIe Controller Optional Dual 1 GigE (Onboard) Standard VMware ESXi Hypervisor USB Key Optional Fusion I/O Duo (320 GB) Optional Power supply 1400 W Number standard 1 Maximum 2 Hot-swap Yes Redundant power Optional Auto-restart Yes Hot-swap Yes 8722B2x

Processor Xeon E5-4620 Eight-core 95W

Capacity 1536 GB 3

Memory / Processor expansion card Number standard 1 Maximum 1 Processors standard 0

(26)

Processor sockets maximum 2 DIMMs 0 DIMM sockets maximum 24 Video SVGA Memory 16 MB SAS controller Ports 8 Connector internal 2 Connector external 0 HDD standard 0

1.8-inch eXFlash SSD 8 Standard Hot-swap Standard Internal capacity 16 TB 4

PCIe sockets 8 Standard PCIe 3 slot expansion riser Standard Management processor IMM Standard RAID 0/1 Standard RAID 5 (cacheless) Optional RAID 5 (512MB Cache)

+ battery Optional RAID 5 (512MB Flash) Optional RAID 5 (1 GB Flash) Optional 10GB SFP+ Mezzanine Card Optional 10GBaseT Mezzanine Card Optional SSD Performance Key Optional 1U Cable Management Arm Optional 2U Cable Management Arm Standard 2.5" HDD PCIe Controller Optional 1.8" SSD PCIe Controller Optional Dual 1 GigE (Onboard) Standard VMware ESXi Hypervisor USB Key Optional Fusion I/O Duo (320 GB) Optional Power supply 1400 W Number standard 1 Maximum 2 Hot-swap Yes Redundant power Optional Auto-restart Yes Hot-swap Yes 8722C1x

Capacity 1536 GB 3

(27)

Hot-swap Standard Internal capacity 16 TB 4

+ battery Optional RAID 5 (512MB Flash) Optional RAID 5 (1 GB Flash) Standard 10GB SFP+ Mezzanine Card Optional 10GBaseT Mezzanine Card Optional SSD Performance Key Optional 1U Cable Management Arm Optional 2U Cable Management Arm Standard 2.5" HDD PCIe Controller Optional 1.8" SSD PCIe Controller Optional Dual 1 GigE (Onboard) Standard VMware ESXi Hypervisor USB Key Optional Fusion I/O Duo (320 GB) Optional Power supply 1400 W Number standard 1 Maximum 2 Hot-swap Yes Redundant power Optional Auto-restart Yes Hot-swap Yes 8722C2x

Capacity 1536 GB 3

+ battery Optional RAID 5 (512MB Flash) Optional RAID 5 (1 GB Flash) Standard 10GB SFP+ Mezzanine Card Optional 10GBaseT Mezzanine Card Optional

(28)

SSD Performance Key Optional 1U Cable Management Arm Optional 2U Cable Management Arm Standard 2.5" HDD PCIe Controller Optional 1.8" SSD PCIe Controller Optional Dual 1 GigE (Onboard) Standard VMware ESXi Hypervisor USB Key Optional Fusion I/O Duo (320 GB) Optional Power supply 1400 W Number standard 1 Maximum 2 Hot-swap Yes Redundant power Optional Auto-restart Yes Hot-swap Yes 8722D1x

Capacity 1536 GB 3

Memory / Processor expansion card Number standard 1 Maximum 1 Processors standard 2 Processor sockets maximum 2

DIMMs 12 x 8 GB RDIMM DIMM sockets maximum 24

Video SVGA Memory 16 MB SAS controller Ports 8 Connector internal 2 Connector external 0 HDD standard 0 SSD standard 16 Capacity 200 GB

1.8-inch eXFlash SSD 16 Standard Hot-swap Standard Internal capacity 16 TB 4

+ battery Optional RAID 5 (512MB Flash) Optional RAID 5 (1 GB Flash) Optional 10GB SFP+ Mezzanine Card Optional 10GBaseT Mezzanine Card Optional SSD Performance Key Standard 1U Cable Management Arm Optional 2U Cable Management Arm Standard 2.5" HDD PCIe Controller Optional 1.8" SSD PCIe Controller Optional Dual 1 GigE (Onboard) Standard VMware ESXi Hypervisor USB Key Optional Fusion I/O Duo (320 GB) Optional Power supply 1400 W Number standard 2 Maximum 2

(29)

Hot-swap Yes Redundant power Standard Auto-restart Yes Hot-swap Yes 8722D2x

Internal speed 2.70 GHz Memory bus speed 1600 MHz Number standard 2 Maximum 2 Interconnect speed 8.0 GT/s L3 cache total 20 MB Memory 384 GB ECC DIMMs 12 x 16 GB LRDIMM DIMM sockets maximum 24

Capacity 1536 GB 3

Memory / Processor expansion card Number standard 1 Maximum 1 Processors standard 0 Processor sockets maximum 2

DIMMs 12 x 16 GB LRDIMM DIMM sockets maximum 24

Video SVGA Memory 16 MB SAS controller Ports 8 Connector internal 2 Connector external 0 HDD standard 0 SSD standard 32 Capacity 200 GB

Bays available 16 - 2.5-inch or 32 1.8-inch Standard 1.8-inch eXFlash SSD 32 Standard

Hot-swap Standard Internal capacity 16 TB 4

+ battery Optional RAID 5 (512MB Flash) Optional RAID 5 (1 GB Flash) Optional 10GB SFP+ Mezzanine Card Optional 10GBaseT Mezzanine Card Optional SSD Performance Key Standard 1U Cable Management Arm Optional 2U Cable Management Arm Standard 2.5" HDD PCIe Controller Optional 1.8" SSD PCIe Controller Optional Dual 1 GigE (Onboard) Standard VMware ESXi Hypervisor USB Key Optional Fusion I/O Duo (320 GB) Optional Power supply 1400 W Number standard 2 Maximum 2 Hot-swap Yes Redundant power Standard Auto-restart Yes Hot-swap Yes

3_{Capacities are based on installation of the riser card and twenty-four 32 GB DIMMs}

installed on the card.

4_{Capacities are based on installation of sixteen 1 TB 2.5-inch SFF SATA HDDs. For}

the latest information on supported HDD options, visit

(30)

The IMM video resolutions on System x3750 M4 are:

Maximum refresh Resolution rate supported bpp 640 x 400 60, 72, 75, 85 8, 16, 32 800 x 600 60, 72, 75, 85 8, 16, 32 1024 x 768 60, 72, 75, 85 8, 16, 32 1280 x 1024 60, 75 8, 16, 32 1440 x 900 60, 60, RB 8, 16, 32 1600 x 1200 60, 75 8, 16, 32 1680 x 1050 60, 60, RB 8, 16, 32

Note: Each resolution supports both CRT and flat panel monitors. For monitors,

each resolution complies with CRT ISO 9241.3.

• 1440 x 900 and 1680 x 1050 are typically wide screen flat panel (non-CRT) settings so they are available only at 60 Hz.

• 1440 x 900 and 1680 x 1050 are available at 60 Hz with support for 60 Hz Reduced Blanking Mode.

Dimensions Rack drawer • Width: 445.6 mm (17.54 in.) System Chassis • Depth: 734.1 mm (28.90 in.) • Height: 86.5 mm (3.41 in.)

• Depth - Back of EIA Flange to Rear of System: 702.5 mm (27.66 in.) • Approximate Weight - Fully Configured: 31.07 kg (68.5 lb)

Electrical

• 100 to 127 (nominal) V ac; 50 Hz or 60 Hz; System 20A (10A/PS) • 200 to 208 (nominal) V ac; 50 Hz or 60 Hz; System 10A

• 200 to 240 (nominal) V ac; 50 Hz or 60 Hz; System 9A – Minimum configuration: 0.20 kVA (one power supply) – Minimum configuration: 0.26 kVA (two power supplies) – Typical configuration: 1.12 kVA (two power supplies) – Maximum configuration: 2.16 kVA (two power supplies) • Btu output:

– Ship configuration (1PS): 648 Btu/hr (190 watts) – Ship configuration (2PS): 802 Btu/hr (235 watts) – Typical configuration: 3,753 Btu/hr (1100 watts) – Full configuration: 7,336 Btu/hr (2150 watts) • Noise level horizontal position: 6.3 bels

Note: The noise emission level stated is the declared (upper limit) sound power

level, in bels, for a random sample of machines. All measurements made in accordance with ISO 7779 and reported in conformance with ISO 9296.

Standards

x3750 M4 servers are intended for use as rack-drawer servers and are tested and designed to operate in a horizontal position.

These systems support or comply with the following standards: • Multiprocessor Specification (MPS) 1.4

(31)

• Hardware-enabled to meet ISO 9241, Part 3

In addition to the above standards, they are compatible with the PCIe specification.

Equipment approvals and safety

• FCC - Verified to comply with Part 15 of the FCC Rules, Class A • Canada ICES-003, issue 4, Class A

• IEC/UL 60950-1, 2nd Edition

• CAN/CSA - C22.2 No. 60950-1-07 2nd Edition • NOM-0195

5_{These servers are certified by the respective UL and NOM agencies.}

Operating environment • Temperature: – 10.0° to 35.0°C (50° to 95°F) at 0 to 914 m (0 to 3,000 ft) – 10.0° to 32.0°C (50° to 90°F) at 914 to 2,133 m (3,000 to 7,000 ft) • Relative humidity: 8% to 80% Hardware requirements

For attended installation of an operating system, this server requires a compatible: • Keyboard

• Mouse • Display

Unattended or remote installation may be performed without requiring some or all of these components. Review your unattended software installation program information for specific hardware configuration requirements.

For service, the servers require a compatible: • Keyboard

• Mouse • Display

When having the unit serviced, plan to have these components attached to your server either directly or indirectly via a console switch.

Software requirements

The following network operating systems have been tested for compatibility with the x3750 M4 server.

(32)

Clustering OS

• Microsoft WindowsTM_{HPC Server 2008 R2} Network operating systems

• Microsoft

– Windows Server 2008 R2 x64

– Windows Server 2008 Datacenter x64 – Windows Server 2008 Enterprise x64 – Windows HPC Server 2008

– Windows Server 2008 Standard x64 – Windows Web Server 2008 x64 – Windows SBS 2008 PE x64 – Windows SBS 2008 SE x64 • LinuxTM

– Red Hat Enterprise Linux 5 Server x64 Edition

– Red Hat Enterprise Linux 5 Server with Xen x64 Edition – Red Hat Enterprise Linux 6 Server x64 Edition

– SUSE Linux Enterprise Server 10 for AMD64/EM64T

– SUSE Linux Enterprise Server 10 with Xen for AMD64/EM64T – SUSE Linux Enterprise Server 11 for AMD64/EM64T

– SUSE Linux Enterprise Server 11 with Xen for AMD64/EM64T • Other

– VMware ESX 4.1 – VMware ESXi 4.1 – VMware vSphere 5

– VMware vSphere Hypervisor 4.1 U1

Note: For information on additional support, certification, and versions of network

operating systems, visit

http://www.ibm.com/servers/eserver/serverproven/compat/us/

IBM makes no representation or warranty regarding third-party products, including those designated as ServerProven® .

Compatibility

The IBM System x3750 M4 servers contain licensed system programs that include set configuration, set features, and test programs. IBM system BIOS is loaded from a "flash" EEPROM into system memory. This BIOS provides instructions and interfaces designed to support the standard features of the IBM System x3750 M4 servers and to maintain compatibility with many current software programs. For detailed information about IBM and non-IBM devices, adapters, software, and network operating systems supported with IBM System x3550 M4 servers, visit

http://www-03.ibm.com/servers/eserver/serverproven/compat/us/indexsp.html

Contact your IBM representative or IBM Business Partner, or refer to the IBM

Sales Manual for information on the compatibility of hardware and software for IBM

System x3750 M4 servers. The Sales Manual is updated periodically as new features and options are announced that support these servers.

IBM System x3750 M4 Intel Xeon processor-based, entry-level 4-socket server provides a balance of flexibility, price, and performance

IBM United States Hardware Announcement

112-074, dated May 14, 2012
