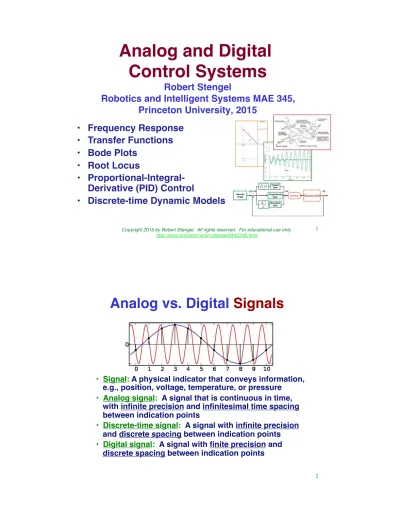

Analog and Digital Control Systems!

Analog and Digital

Control Systems

Robert Stengel!

Robotics and Intelligent Systems MAE 345, Princeton University, 2015

Copyright 2015 by Robert Stengel. All rights reserved. For educational use only. http://www.princeton.edu/~stengel/MAE345.html •! Frequency Response •! Transfer Functions •! Bode Plots •! Root Locus •! Proportional-Integral-Derivative (PID) Control

•! Discrete-time Dynamic Models

1

Analog vs. Digital Signals

•! Signal: A physical indicator that conveys information, e.g., position, voltage, temperature, or pressure

•! Analog signal: A signal that is continuous in time, with infinite precision and infinitesimal time spacing between indication points

•! Discrete-time signal: A signal with infinite precision and discrete spacing between indication points

•! Digital signal: A signal with finite precision and discrete spacing between indication points

•! System: Assemblage of parts with structure, connectivity, and behavior that responds to input signals and produces output signals

Analog vs. Digital Systems

•! Analog system: A system that operates continuously, with infinite precision and infinitesimal time spacing between signaling points

•! Discrete-time system: A system that operates continuously, with infinite precision and discrete spacing between signaling points

•! Digital system: A system that operates continuously, with finite precision and discrete spacing between signaling points

3

Frequency Response of a Continuous-Time Dynamic System

•! Sinusoidal command input (i.e., Desired rotational angle)

•! Long-term output of the dynamic system: –! Sinusoid with same frequency as input

–! Output/input amplitude ratio dependent on input frequency –! Output/input phase shift dependent on input frequency

•! Bandwidth: Input frequency below which output amplitude and phase angle variations are negligibly small

! <!_n ! =!_n ! >!_n

!: Input frequency, rad/s

!n: Natural frequency of the system, rad/s Output Angle, deg Input Angle, deg Output Rate, deg/s

Hz : Hertz, frequency in cycles per sec

!( )Hz =!(rad / s) 2"

Amplitude-Ratio and Phase-Angle

Frequency Response of a 2nd_{-Order System}

20log AR and ! vs.log"

Output Angle, deg Output Rate, deg/s 5 Straight-line asymptotes at high

and low frequency

Straight-line asymptotes at high

and low frequency

Asymptotes of Frequency Response Amplitude Ratio

Natural Frequency

•!Logarithm of transfer function –! Amplitude ratio and phase

angle are orthogonal

–! Decibels (dB): 20 log AR

–! Decade: power of 10

20log10HCLi(j!) =

20 log10( )!n has slope of

20n dB/decade on Bode plot

6

=20 log#$ 10ARi+log10ej!i(" )%&

=20log10ARi+j!i(") 20log( 10e) =20log10#$ARi(!) ej"i(! )%&

Fourier Transform of a Scalar Variable F[ ]x(t) = x( j!) = x(t)e"j!t "# # $ dt, ! = frequency, rad / s x(t) x( j!) = a(!) + jb(!) x(t):real variable x( j!):complex variable =a(!)+ jb(!) =_A(!)ej"(! ) A :amplitude !:phase angle 7 j ! i ! !1 Laplace Transforms of Scalar Variables

•! Laplace transform of a scalar variable is a complex number

•! s is the Laplace operator, a complex variable L[ ]x(t) = x(s) = x(t)e!st_dt

0 "

# , s =$ + j%

Sum of Laplace transforms

L x[ 1(t)+ x2(t)]= x1(s)+ x2(s) Multiplication by a constant L a x(t)[ ]= a x(s) x(t):real variable x(s):complex variable =_a(!)+ jb(!) =_A(!)ej"(! )

Laplace Transforms of Vectors and Matrices

Laplace transform of a vector variable L[ ]x(t) =x(s) = x1(s) x2(s) ... ! " # # # $ % & & & Laplace transform of a matrix variable L[A(t)]=A(s) = a11(s) a12(s) ... a21(s) a22(s) ... ... ... ... ! " # # # $ % & & & Laplace transform of a derivative w.r.t. time

L dx(t) dt ! "# $ %&= sx(s)' x(0)

Laplace transform of an integral over time

L#"x(! )d! $ % & ' ( = x(s)_s 9 ! x(t) = Fx(t)+ Gu(t) y(t) = Hxx(t)+ Huu(t)

Time-Domain System Equations

Laplace Transforms of System Equations sx(s)! x(0) = Fx(s)+ Gu(s)

y(s) = Hxx(s)+ Huu(s)

Laplace Transforms of the System Equations Dynamic Equation Output Equation Dynamic Equation Output Equation 10

DC Motor Equations

Laplace Transforms of Motor Equations

Example of System Transformation Dynamic Equation Output Equation Dynamic Equation Output Equation ! x1(t) ! x2(t) ! " # # $ % & &= 0 10 0 ! " # $ % & _xx1(t) 2(t) ! " # # $ % & &+ 0 1/ J ! " # $ % &u(t) y1(t) y2(t) ! " # # $ % & &= 1 00 1 ! " # $ % & _xx1(t) 2(t) ! " # # $ % & &+ 00 ! " # $ % &u(t) = _xx1(t) 2(t) ! " # # $ % & & sx1(s)! x1(0) sx2(s)! x2(0) " # $ $ % & ' '= 0 10 0 " # $ % & ' x_x1(s) 2(s) " # $ $ % & ' '+ 0 1/ J " # $ % & 'u(s) y1(s) y2(s) " # $ $ % & ' '= 1 00 1 " # $ % & ' x_x1(s) 2(s) " # $ $ % & ' '+ 00 " # $ % & 'u(s) = _xx1(s) 2(s) " # $ $ % & ' ' 11

Laplace Transform of State Response to Initial Condition and Control

Rearrange sx(s)! Fx(s) = x(0)+ Gu(s) sI ! F [ ]x(s) = x(0)+ Gu(s) x(s) =[sI ! F]!1[x(0)+ Gu(s)] sI ! F [ ]!1 = Adj sI ! F( ) sI ! F (n x n) Matrix inverse

Adj sI ! F( ): Adjoint matrix (n " n): Transpose of matrix of cofactors sI ! F = det sI ! F( ): Determinant (1"1)

Characteristic Polynomial of a Dynamic System Characteristic polynomial sI ! F = det sI ! F

(

)

Eigenvalues (or Roots) of the Dynamic System

!

_{(s) = s}

₊

_a

n"1

s

+

...+ a

s + a

=

0

=

(

_{s "}

#

)

(

_{s "}

#

)

( )

_...

(

_{s "}

#

)

=

₀

Characteristic equation

!_i are eigenvalues of F or roots of the characteristic polynomial, "( )s

2 x 2 Eigenvalue Example sI ! F ( )= (s ! f11) !f12 !f21 (s ! f22) " # $ $ % & ' ' sI ! F = (s ! f11) !f12 !f₂₁ (s ! f₂₂) =(s ! f11)(s ! f22)! f12f21 = s2 _{! f} 11+ f22 ( )s + f( ₁₁f₂₂ ! f₁₂f₂₁)

Determinant of characteristic matrix Characteristic matrix 15 Factors of the 2nd -Degree Characteristic Equation s Plane !=cos"1# !_{(s) = s "}( #₁)(s "#₂)= ₀

•!Solutions of the equation are eigenvalues of the system, either

–! 2 real roots, or –! Complex-conjugate pair !₁ = "₁ + j#₁, !₂ ="₁ $ j#₁ !₁ = "₁, !₂ ="₂ !( )s =s2_{" f} 12+ f21 ( )s + f( 11f22" f12f21) =0 !( )_s = _s2 _{+2"# s +#}2 x x x x 16

Eigenvalues Determine the Stability of the LTI System

s Plane

Positive real part

represents instability Envelope of time response _{converges or diverges}

x x

Same criterion for real roots

!x(t) =eat_!x(0)

!x1(t) =e"#$ntcos&_'$n 1"#2t +%1(_{) !x}1(0)

17

Numerator of the Matrix Inverse

sI ! F

[ ]!1

= Adj sI ! F( )

sI ! F (n x n)

Adjoint matrix is the transpose of the matrix of cofactors*

Matrix Inverse Adj sI ! F( )=CT (n x n) 2 x 2 example Adj sI ! F( )= (s ! f22) f21 f12 (s ! f11) " # $ $ % & ' ' T = (s ! f22) f12 f₂₁ (s ! f₁₁) " # $ $ % & ' ' sI ! F ( )= (s ! f11) !f12 !f₂₁ (s ! f₂₂) " # $ $ % & ' '

Analog Control!

19

Transfer Function Matrix

Transfer Function Matrix

H

H

(s) !

H

(

sI ! F

)

!1

G (r x m)

from control input to system output (neglect initial condition, and H_u = 0)

y(s) = Hxx(s) = Hx

(

)

!1

Open-Loop Dynamic

Equation of Direct-Current

Motor with Load Inertia, J

! x₁(t) ! x₂(t) ! " # # $ % & & = 0 10 0 ! " # $ % & _xx1(t) 2(t) ! " # # $ % & & + 0 1 / J ! " # $ % &u(t) 21 Same as simplified pitching dynamics for quadcopter, with J = Iyy

Open-Loop Transfer Function Matrix for DC Motor sI ! FOL [ ]!1 = Adj sI ! F( OL) sI ! FOL = s !1 0 s " # $ % & ' !1 = s 1 0 s " # $ % & ' s2 = 1 / s 1 / s 2 0 1 / s " # $ % & ' HHOL(s)=Hx[sI ! FOL] !1_{G (r x m)}

Transfer Function Matrix

Matrix Inverse FOL= 0 1_{0 0} ! " # $ % &; sI ' F[ OL]= s '1_{0 s} ! " # $ % & Hx= 1 0_{0 1} ! " # $ % & = I2; G = 0 1_J ! " # # $ % & & where 22

Open-Loop Transfer Function Matrix for DC Motor H HOL(s) = Hx[sI ! FOL] !1_{G = H} x Adj sI ! F_{sI ! F}( OL) OL G = 1 0 0 1 " # $ % & '" 1/ s 1/ s_{0 1/ s}2 # $ % & '" _{1/ J}0 # $ % & ' =" 1 0_{0 1} # $ % & ' 1/ Js" _{1/ Js}2 # $ % & ' Dimension = 2 x 1 = 1 Js2 1 Js ! " # # # # $ % & & & & = y1(s) u(s) y2(s) u(s) ! " # # # # # $ % & & & & &

Angle = Double integral of input torque, u(s) Angular rate = Integral of input torque, u(s)

23

Closed-Loop System

Closed-loop dynamic equation

! x1(t) ! x2(t) ! " # # $ % & &= 0 1 '_{c1 / J 'c2 / J} ! " # # $ % & & x1(t) x2(t) ! " # # $ % & &+ 0 c1/ J ! " # # $ % & &yC !x(t) = FCLx(t) + Gu(t)

Closed-Loop Transfer Function Matrix H HCL(s) = Hx[sI ! FCL]!1G = Hx Adj sI ! F_{sI ! F}( CL) CL G = s + c2 J ( ) 1 !c1 J s " # $ $ % & ' ' s2_{+ c}2 J s + cJ1 ( )* + ,-0 c1/ J " # $ $ % & ' ' Dimension = 2 x 1 y1(s) yC(s) y₂(s) yC(s) ! " # # # # # $ % & & & & & = c1 J c1 J ( )s ! " # # $ % & & s2 _{+ c}2 J s + cJ1 ' () *+, = n1( )s n2( )s ! " # # $ % & & -( )s Closed-loop transfer functions

Scalar components differ only in numerators

25

Frequency Response Functions

Output Angle Commanded Angle = y1( j !) yC( j!) = c1 J j! ( )2_{+ c} 2 J ( )( )j! +c1 J = !n2 "!2_+2#! n( )j! +!n2 !a₁(!)+ jb1(!)$AR1(!) ej%1(! )

Substitute s = j! in transfer functions

Output Rate Commanded Angle = yyC2( j!)( j!) = ( )j! c1 J j! ( )2₊ c2 J ( )( )j! +c1 J = ( )j! !n2 "!2_+2#! n( )j! +!n2 $ AR2(!) ej%2(! ) 26 Natural Frequency: !n = c1 J Damping Ratio: ! =(c2 J) 2"n =(c2 J) 2 c1 J

Bode Plot Depicts

Frequency Response

% Frequency Response of DC Motor Angle Control F1 = [0 1;-1 0]; G1 = [0;1]; F1a = [0 1;-1 -1.414]; F1b = [0 1;-1 -2.828]; Hx = [1 0;0 1]; Sys1 = ss(F1,G1,Hx,0); Sys2 = ss(F1a,G1,Hx,0); Sys3 = ss(F1b,G1,Hx,0); w = logspace(-2,2,1000); bode(Sys1,Sys2,Sys3,w), grid

20log AR and!vs.log"

Hendrick Bode

27

Root (Eigenvalue) Locus

% Root Locus of DC Motor Angle Control F = [0 1;-1 -1.414];

G = [0;1];

Hx1 = [1 0]; % Angle Output Hx2 = [0 1]; % Angular Rate Output Sys1 = ss(F,G,Hx1,0); Sys2 = ss(F,G,Hx2,0); rlocus(Sys1), grid figure rlocus(Sys2), grid

•! Variation of roots as scalar gain, k, goes from 0 to "

•! With nominal gains, c₁ and c₂, !_n= c1 J =1rad / s, " = c22!J_n =0.707 y1(s) yC(s) y2(s) yC(s) ! " # # # # # $ % & & & & & = c1 J c1 J ( )s ! " # # $ % & & s2_{+ c}2 J s + cJ1 ' () *+, = -n2 -_n2_s ! " # # $ % & & s2₊₂ .-ns +-n2 ( )= 1 s ! " # $ % & s2_+1.414 -ns +1 ( )

Root (Eigenvalue) Locus

Increase Angle Feedback Gain Increase Rate Feedback Gain

Initial Root Initial Root Initial Root Initial Root Zero 29

Classical Control System Design Criteria

Step Response

Frequency Response

Eigenvalue Location

Single-Axis Angular Control of Non-Spinning Spacecraft

Pitching motion (about the y axis) is to be controlled

Identical to the DC Motor control problem

! !(t) ! q(t) " # $ $ % & ' '= 0 1 0 0 " # $ % & ' !_q(t)(t) " # $ $ % & ' '+ 0 1 / Iyy " # $ $ % & ' 'My(t) !(t) q(t) " # $ $ % & ' '= Pitch Angle Pitch Rate " # $ $ % & ' ' 31 Proportional-Integral-Derivative (PID) Controller

e(s) = !C(s)"!(s)

u(s) = cPe(s)+ cI e(s)_s +cDse(s)

u(s)

e(s) = cPs + cI

+_cDs2

s

•! Proportional term weights control error directly

•! Integratorcompensates for persistent (bias) disturbance •! Differentiator produces rate term for damping

Control Law Transfer Function

(w/common denominator)

Control Error Control Command

Proportional-Integral-Derivative (PID) Controller

Forward-Loop Angle Transfer Function gA = Actuator Gain !(s) e(s) = cI +c_Ps + c_Ds2 s " # $ % & ' _IgA yys2 " # $ $ % & ' ' 33

Closed-Loop Spacecraft Control Transfer Function w/PID Control

!(s) !_c(s)= !_(s) e(s) 1+!_e(s)(s) = cI+cPs + cDs2 Iyys3 gA " # $ % & ' 1+ cI+cPs + cDs2 Iyys3 gA " # $ % & ' = cDs2+cPs + cI Iyys3 gA+cDs2+cPs + cI Closed-Loop Angle Transfer Function

Ziegler-Nichols PID Tuning Method

http://en.wikipedia.org/wiki/Ziegler– Nichols_method

Closed-Loop Frequency Response w/PID Control

!( j") !_c( j") # c

I

cI

=1 Steady-state output = desired steady-state input !(s) !_c(s) = cI +cPs + cDs2 cI +cPs + cDs2 + Iyys3 gA !_{( j")} !_c( j")# $cD "2 $jIyy"3gA = cD jIyy" gA = $ jcD Iyy" gA AR # cD Iyy" gA; % # $90 deg High-frequency response

_{rolls off} and lags input Let s = j!. As ! " 0

As ! " #

35

Digital Control!

Stengel, Optimal Control and Estimation, 1994, pp. 79-84, E-Reserve

From Continuous- to Discrete-Time Systems

•! Continuous-time systems are described by differential equations, e.g.,

•! Discrete-time systems are described by difference equations, e.g.,

!!x(t) = F!x(t) + G!u(t)

!x(t_k+1) = ""!x(t_k) + ##!u(t_k) •! Discrete-time systems that are meant to

describe continuous-time systems are called

sampled-data systems ! ! = fcn F( ); "" = fcn F,G( ) 37 Sampled-Data (Digital) Feedback Control Digital-to-Analog

Conversion Analog-to-DigitalConversion

Integration of Linear, Time-Invariant (LTI) Systems !!x(t) = F!x(t) + G!u(t) !x(t) = !x(0)+ !!x("_)d" 0 t

#

#

Homogeneous solution (no input), #u = 0

!_{x(t) = !x(0)+ F!x(" )}

[

]

#

( )

!( )t,0 =eF(t"0) _{= e}Ft _{=State transition matrix from 0 to t}

39

Example demonstrates

stability (green) and instability

(red), defined by sign of a

! x(t) = ax(t), x(0) given x(t) = x(0)+ !x(t)dt 0 t

!

Choose small time interval, #t

Propagate state to time, t + n"t

Equivalence of 1st_{-Order Continuous-}

x0 = x(0) x1 = x(!t) = ea!tx0 ="(!t)x0 x2 = x(2!t) = e2a!tx0 = ea!tx1 ="(!t)x1 ... xk = x(k!t) = eka!tx0 = ea!txk#1 ="(!t)xk#1 ... xn = x(n!t) = x(t) = ena!tx0 ="(!t)xn#1 Equivalence of 1st_-Order Continuous- and Discrete-Time Systems 41

Initial Condition Response of

Continuous-and Discrete-Time Models

Identical response at the sampling instants

!_{x(tk+1) = !x(tk)+ F!x(t)dt} tk tk+1 " = _eF t(k+1#tk)!t!x(t k) = $$ !( )t !x(tk) 42

Input Response of LTI System Inhomogeneous (forced) solution

!_{x(t) == e}Ft_{!x(0)+ e$%} F(t"# )_G!u

( )

(

(

)

(

)

(

)

( )

)

(Stepwise application of prior results)

Assume (tk – tk+1) = #t = constant ! !

(

)

( )

)

Assume #u = constant from tk to tk+1

!_{x(tk+1) == "}" !( )_t !_{x(tk)+ "}" !( )_{t I # "}"##11( )_!t

$% &'F#1_{G!u t}

k

( )

( "" !( )_t !_{x(tk)+ )) !t}( )!_{u t}( )_k Evaluate the integral

Digital Flight Control

•! Historical notes:

–! NASA Fly-By-Wire F-8C (Apollo GNC system, 1972)

•! 1st _{conventional aircraft with digital flight control}

•! NASA Dryden Research Center

–! Princeton's Variable-Response Research Aircraft (Z-80 microprocessor, 1978)

•! 2nd _{conventional aircraft with digital flight control}

•! Princeton University

s Flight Research Laboratory

http://www.princeton.edu/~stengel/FRL.pdf

45
