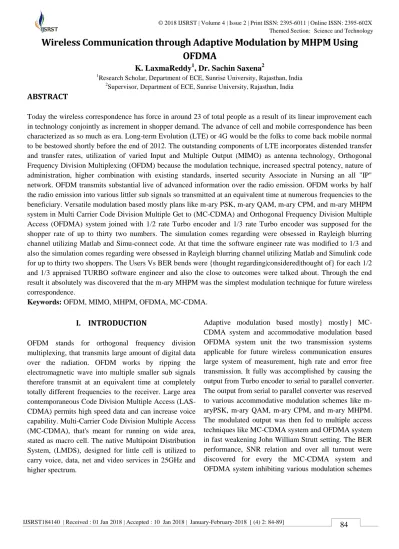

Wireless Communication through Adaptive Modulation by MHPM Using OFDMA

(1)

Wireless Communication through Adaptive Modulation by MHPM Using

OFDMA

K. LaxmaReddy

1

, Dr. Sachin Saxena

2

1

Research Scholar, Department of ECE, Sunrise University, Rajasthan, India

2

Supervisor, Department of ECE, Sunrise University, Rajasthan, India

ABSTRACT

Today the wireless correspondence has force in around 23 of total people as a result of its linear improvement each in technology conjointly as increment in shopper demand. The advance of cell and mobile correspondence has been characterized as so much as era. Long-term Evolution (LTE) or 4G would be the folks to come back mobile normal to be bestowed shortly before the end of 2012. The outstanding components of LTE incorporates distended transfer and transfer rates, utilization of varied Input and Multiple Output (MIMO) as antenna technology, Orthogonal Frequency Division Multiplexing (OFDM) because the modulation technique, increased spectral potency, nature of administration, higher combination with existing standards, inserted security Associate in Nursing an all "IP" network. OFDM transmits substantial live of advanced information over the radio emission. OFDM works by half the radio emission into various littler sub signals so transmitted at an equivalent time at numerous frequencies to the beneficiary. Versatile modulation based mostly plans like m-ary PSK, m-ary QAM, m-ary CPM, and m-ary MHPM system in Multi Carrier Code Division Multiple Get to (MC-CDMA) and Orthogonal Frequency Division Multiple Access (OFDMA) system joined with 1/2 rate Turbo encoder and 1/3 rate Turbo encoder was supposed for the shopper rate of up to thirty two numbers. The simulation comes regarding were obsessed in Rayleigh blurring channel utilizing Matlab and Simu-connect code. At that time the software engineer rate was modified to 1/3 and also the simulation comes regarding were obsessed in Rayleigh blurring channel utilizing Matlab and Simulink code for up to thirty two shoppers. The Users Vs BER bends were {thought regarding|considered|thought of} for each 1/2 and 1/3 appraised TURBO software engineer and also the close to outcomes were talked about. Through the end result it absolutely was discovered that the m-ary MHPM was the simplest modulation technique for future wireless correspondence.

Keywords: OFDM, MIMO, MHPM, OFDMA, MC-CDMA.

I. INTRODUCTION

OFDM stands for orthogonal frequency division multiplexing, that transmits large amount of digital data over the radiation. OFDM works by ripping the electromagnetic wave into multiple smaller sub signals therefore transmit at an equivalent time at completely totally different frequencies to the receiver. Large area contemporaneous Code Division Multiple Access (LAS-CDMA) permits high speed data and can increase voice capability. Multi-Carrier Code Division Multiple Access (MC-CDMA), that's meant for running on wide area, stated as macro cell. The native Multipoint Distribution System, (LMDS), designed for little cell is utilized to carry voice, data, net and video services in 25GHz and higher spectrum.

(2)

and additionally the corresponding simulation lands up in Matlab and Simulink software were planned.

II. OFDMA AND MC-CDMA SYSTEM WITH

m-ary MODULATION TECHNIQUES

The interest for increment in rate and information measure, impediment of spectrum and its allocation, impotency to wander between varied administrations, to gift a superior modulation system and multiple access system with lessened value, seamless end-to-end transport.

LTE is associate all IP-based system. The weather of LTE may well be condensed with single word referred to as integration. The LTE system seamlessly coordinates numerous technologies to fulfill out

increasing consumer request. LTE technology

consolidates numerous current existing and future wireless system technologies to ensure flexibility of development and seamless meander beginning with one technology then onto ensuing. It offers transmission applications to a mobile consumer by varied technologies through constant and best association. LTE organize incorporates with center system and some radios access networks. the middle interface is employed for communication with the middle system and radio access networks, and a gathering of radio interfaces area unit utilized for communication with the radio access networks and mobile shoppers.

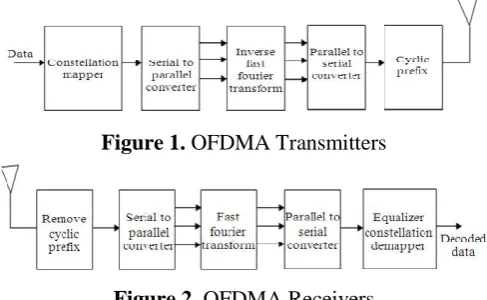

Figure 1. OFDMA Transmitters

Figure 2. OFDMA Receivers

Features of Adaptive Modulation

To assess and separate between all totally different microwave systems and interface execution, some of key elements of RF power output. Propagation and antennas lost sight of, parameters, as Associate in Nursing

example, receiver limit, modulation kind and RF power level unit the foremost necessary variables to be thought-about. Accommodative Modulation plans and Automatic Transmit Power management (ATPC) provide point-to-point microwave systems with a high level of ability, guarantees higher efficiency beneath dynamical climate conditions. RF output power was controlled powerfully thus on make sure the foremost elevated power efficiency beneath all totally different forms of evolving modulations.

Multi-h phase coded modulation (MHPM)

Was a information measure effective modulation plot that offers significant writing increase over ancient digital modulations? Here the new plan of MHPM with uneven modulation indices about the bipolar knowledge +1 and - one was thought of and numerical consequences of the minimum euclidian distances for binary 3-h and 4-h plans and power spectra for 3-h plans got. It absolutely was incontestable that the performance upgrades on the error chance were redoubled over customary MHPM with primarily no information measure development.

Working Procedure of Proposed System

Figure 3. Proposed System

(3)

back to serial information. The monitor interim was given between the images to dodge lay to rest symbol Interference. The signal was once more impressed by utilizing RF signal and sent for transmission. The transmitter and receiver plans of OFDMA and MC-CDMA transmission plans varies simply in sub carrier allocation, enlargement and detection of segments of MC-CDMA transmission plot. {The information|the knowledge|the information} bit stream of alphabetic character dynamic shoppers were mapped to advanced honored data symbols. Within the subcarrier allocation, Nd symbols per shopper were masterminded each transmission conspire. Within the event of MC-CDMA the Kth information image was increased by Walsh hadamard spreading succession and provides chips. The spreading length shifts in like manner with most extreme no of dynamic shoppers i.e. L = alphabetic character (max).

Figure 4. Design of User Circuit

Figure 5. m-aryPSK (Users Vs BER) for 640ksymbols/s

Figure 6. m- ary QAM (Users Vs BER) for 640ksymbols/s

Figure 7. m-ary CPM (Users Vs BER) for 640ksymbols/s

Figure 8. m-aryMHPM (Users Vs BER) for 640ksymbols/s

III. DESIGN OF ADAPTIVE MODULATION

SYSTEM BY USING 1/3 RATE TURBO CODER

(User Vs BER)

(4)

massive metric, high rate and error free transmission was smart by inflicting the output from 1/3 appraised Turbo encoder to serial to parallel device. The output from serial to parallel device was reserved to completely totally different adaptational modulation plans like m-aryPSK, m-aryQAM, m-aryCPM, and m-aryMHPM system. The balanced output was then impressed to multiple access techniques like MC-CDMA system and OFDMA system in quick weakening man of science setting. The User Vs BER performance was watched for every the MC-CDMA system and OFDMA system inhibiting completely totally different modulation plans and conjointly the relating simulation comes relating to were planned in Matlab and Simulink computer code package. The solid charts were drawn for every MC-CDMA system and OFDMA system and results were planned.

Figure 9. Parallel concatenation of two RSC codes (1/3 code)

Table 1. System Design Parameters

Implementation Procedure

Figure 10. Proposed system

The Developed (NEW) system was designed for thirty two purchasers. The OFDMA/MC-CDMA transmission was selected the created system. The digital modulation techniques like m-aryPSK, m-aryQAM, m-aryCPM and m-aryMHPM were pent-up for the created system. The

Turbo engineer designed for image rate of

640ksymbols/s and 1/3 rate was joined within the System .The Simulation was performed for the recently created system utilizing Matlab and Simulink software package.

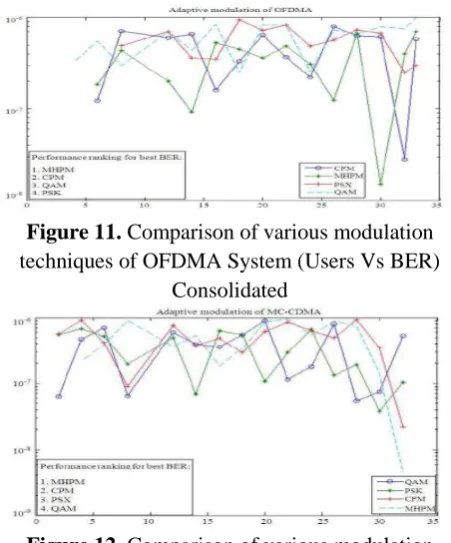

Figure 11. Comparison of various modulation techniques of OFDMA System (Users Vs BER)

Consolidated

Figure 12. Comparison of various modulation techniques of MC-CDMA System (Users Vs BER)

Consolidated

(5)

IV. RESULT

The No. of purchasers Vs BER bends were premeditated for ary PSK, mary QAM, and aryCPM and m-aryMHPM modulation techniques of OFDMA system and MC-CDMA system. The No of purchasers Vs BER bends were premeditated for m-ary PSK (from10-6 to 10-6.8), m-ary QAM (from 10-6 to 10-6.8), m-ary CPM (from 10-6 to 10-6.9) and m-ary MHPM (from 10-6.3 to 10-6.9) modulation techniques of OFDMA system. From the graphical investigation, clearly the m-ary CPM and m-ary MHPM modulation techniques m-ary CPM( from 10-6 to 10-6.9) and mother MHPM (from 10-6.3 to 10-6.9) have given higher aftereffect of BER and a minimum of up to 10-8 once contrasted with m-ary PSK and m-m-ary QAM m-m-ary PSK( from6 to 10-6.8), m-ary QAM( from 10-6 to 10-6.8) that provides a BER of simply up to 10-5. henceforward M-ary MHPM

was thought-about because the best adaptive

modulation system took once by m-ary CPM, m-ary QAM and m-ary PSK for OFDMA system. The No. of purchasers Vs BER bends were premeditated for m-aryPSK (from5.8 to 6.5), m-aryQAM (from 10-5.8 to 10-6.6), m-aryCPM (from 10-6.3 to 10-6.5) and m-aryMHPM (from 10-6.3 to 10-7.0) modulation techniques of MC-CDMA system.

From the graphical investigation, plainly the m-ary CPM and m-ary MHPM modulation techniques i.e. m-ary CPM( from 10-6.3 to 10-6.5) and m-ary MHPM( from 6.3 to 7.0) have given minimum BER of up to 10-8 once contrasted with m-aryPSK (from10-5.10-8to10-6.5) and m-aryQAM from 10-5.8 to 10-6.6) which provides a minimum BER of simply up to 10-6.8. henceforward m-ary MHPM was thought-about because the best adaptive modulation system taken once by m-ary CPM,m-ary QAM and m-ary PSK for MC-CDMA system. Since the m-ary MHPM records the low BER once contrasted with different m-ary modulation techniques, m-ary MHPM

was thought-about because the best adaptive

modulation strategy for each OFDMA system and MC-CDMA system.

V. CONCLUSION

In lightweight of the prediction of the conventional channel conditions for next vacancy, the modulation plot was chosen by the transmitter. The receiver was to be insinuated properly regarding the set of First State

modulator parameters to be chosen by it for correct obtaining of the signal i.e. through correct sign. It absolutely was reasoned that ACM potency might be expanded in future if the RSC was expanded with the abatement of image rate and later the system switches to next cluster to alleviate the autumn of image, during this manner the speed of symbols increments and also the different manner around. The opposite selecting specialist was the detoriation of channel. On the off likelihood that the channel detoriation builds, the rot issue increments and eventually the image reductions then the modulation switches to next exhibit naturally to take care of the smallest amount BER. Therefore it absolutely was chosen that the ACM was associate extreme substitute for information detoriation and implementation of ACM strategy can improve the Wireless electronic communication.

VI. REFERENCES

[1].Chatterjee1, 2.W.A.C. Fernando, 3.M.K. Wasantha, "Adaptive Modulation based MC-CDMA Systems for 4G Wireless Consumer Applications" IEEE Transactions on Consumer Electronics, Vol. 49, No. 4, pp.995-1003. November, 2003

[2].Shanthi, K.R. Prof. Shrivastava, V.K., Senthil Kumaran, G. Engg. Albert Butare, 2003" Goals of True Broad band wireless", IEEE, 07803-7904-3/03, pp. 2317-2321, 2003.

[3].Amit Kumar,Dr Yunfie Liu, Dr.Jyotsna Senguptha and Divya"Evolution of Mobile Wireless Communication Networks: 1G to 4G"International

Journal oj Electronics and Communication

Technology,Vol1,Issue1,December2010.

[4].Anon Friedmann, Software Manager, Texas

Instruments Inc, "Understanding OFDMA, the interface for 4G wireless" By eetindia.com EE Times-India, pp.1-10, Nov.2006

[5].Theodore S. Rappaport, A.Annamalai, R.M.Buehrer and William H. Tranter, Virginia tech, "Invited article wireless communications: past events and a future perspective" IEEE Communications

Magazine 50th Anniversary Commemorative

Issue/May, 2002.

(6)

Virtual Carriers",IEEE Transactions on Wireless Communications, Vol.2,No.1,January 2003.

[7].Faezah1 J. and Sabira K. Adaptive Modulation for

OFDM Systems International Journal of

Communication Networks and Information Security (IJCNIS) Vol. 1, No. 2, August 2009.

[8].Frieder Sanzi,Sven Jelting,and Joachim

Speidel,Member, IEEE,"A Comparitive study of Iterative Channel Estimators for Mobile OFDM Systems" IEEE Transactions on Wireless Communication,Vol2,No.5,September 2003.
