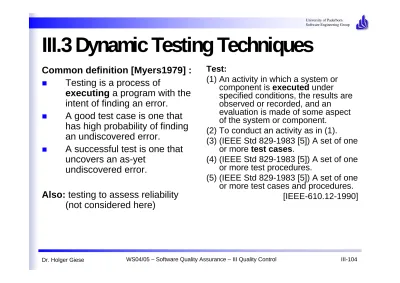

III.3 Dynamic Testing Techniques

III.3 Dynamic Testing Techniques

Common definition [Myers1979] :

„

Testing is a process of

executing

a program with the

intent of finding an error.

„

A good test case is one that

has high probability of finding

an undiscovered error.

„

A successful test is one that

uncovers an as-yet

undiscovered error.

Also:

testing to assess reliability

(not considered here)

Test:

(1) An activity in which a system or

component is

executed

under

specified conditions, the results are

observed or recorded, and an

evaluation is made of some aspect

of the system or component.

(2) To conduct an activity as in (1).

(3) (IEEE Std 829-1983 [5]) A set of one

or more

test cases

.

(4) (IEEE Std 829-1983 [5]) A set of one

or more test procedures.

(5) (IEEE Std 829-1983 [5]) A set of one

or more test cases and procedures.

Objectives

„

Design tests that

systematically uncover defects

†

Maximize bug count: uncover as many defects (or bugs) as possible

†

Using the minimum cost and efforts, within the limits budgetary/scheduling

†

Guide correction such that an acceptable level of quality is reached

„

Help managers

make ship / no-ship decisions

†

Assess quality (depends on the nature of the product)

†

Block premature product releases; Minimize technical support costs

†

It is impossible to verify correctness of the product by testing, but you can

prove that the product is not correct or you can demonstrate that you didn’t

find any errors in a give time period.

„

Minimize risks

(especially safety-related lawsuit risk):

†

Assess conformance to specification

†

Conform to regulations

„

Find safe

scenarios for use

(find ways to get it to work, in spite of the bugs)

Indirect objectives

„

To compile a

record of software defects

for use in error prevention

(by corrective and preventive actions)

Testing Fundamentals

„

Software Testing is a

critical

element of Software Quality

Assurance

†

It represents the ultimate review of the requirements specification,

the design, and the code.

†

It is the most widely used method to insure software quality.

†

Many organizations spend 40-50% of development time in testing.

„

Testing is the one step in software engineering process that

could be viewed as destructive rather than constructive.

†

“A successful test is one that breaks the software.” [McConnell 1993]

†

A successful test is one that uncovers an as yet undiscovered

defect.

†

Testing can not show the absence of defects, it can only show that

software defects are present.

†

For most software exhaustive testing is not possible.

Test Cases & Set of Test Cases

„

Describe how to test a

system/module/function

„

Description must identify

†

system state before

executing the test

†

system/module/function

to be tested

†

parameter values for the

test

†

expected outcome of

the test

Should enable automation!

“Adequate” Set of Test Cases?

Objective:

„

to uncover as many defects as

possible

Test set criteria:

„

does the set cover the system in

a

complete/sufficient

manner

Constraints:

„

with a

minimum/appropriate

of

effort and time

I

e

Input test data

O

_e

Output test results

System

Inputs causing

anomalous

behaviour

Outputs which reveal

the presence of

defects

Model of Testing (1/2)

The

environment

The

program

Nature and

psychology

Environment

model

Program

model

Bug

model

Tests

Unexpected

outcome

Expected

outcome

Testing Approaches

Black box testing

1.

Testing that ignores the internal mechanism of the

system or component and focuses solely on the outputs in

response to selected inputs and execution conditions

2.

Testing conducted to evaluate the compliance of a system

or component with specified functional requirements

(sometimes named functional testing)

White box testing

Testing that takes into account the internal mechanism of

a system or component

(sometimes named structural testing)

III.3.2 Black Box Testing Techniques

„

An approach to testing

where the program is

considered as a

“black-box”

requirements

input

events

output

Black box testing:

(1)

Function testing

(2)

Domain testing

(3)

Specification-based testing

(4)

Risk-based testing

(5)

Stress testing

(6)

Regression testing

(7)

User testing

(8)

Scenario testing

(9)

State-model based testing

(10)

High volume automated testing

(11)

Exploratory testing

(1)

Function Testing

„

Test each function / feature / variable in isolation.

„

Usually start with fairly

simple

function testing

†

focuses on a single function and tests it with

middle-of-the-road values

†

don’t expect the program to fail

†

but if it fails the algorithm is fundamentally wrong, the

build is broken, or …

„

_{Later switch to a different style which often involves}

the

interaction of several functions

„

These tests are highly credible and easy to

evaluate but not particularly powerful

(2)

Domain Testing

„

Essence: sampling

„

Equivalence class testing:

†

Look at each variable domains (including invalid values)

†

reduce a massive set of possible tests (domain) into a small group

by partitioning

†

picking one or two representatives from each subset.

†

look for "best representative“: a value that is at least as likely to

expose an error as any other

„

Boundary value analysis:

†

A good test set for a numeric variable hits every boundary value

†

because boundary / extreme-value errors are common

†

use the minimum, the maximum, a value barely below the minimum,

and a value barely above the maximum

†

bugs are sometimes dismissed, especially when you test extreme

values of several variables at the same time (corner cases)

Equivalence Partitioning

„

Input data and output

results often fall into

different classes

„

Each of these classes

is an

equivalence

partition

where the

program behaves in an

“equivalent” way

Ö

Test cases should be

chosen from each

partition

System

Outputs

Equivalence Partitioning

„

an approach that divides the input domain of a program into

classes of data from which test cases can be derived.

Example:

Suppose a program computes the value of the

function.

This function defines the following

valid and invalid equivalence classes:

X < = -2

valid

-2 < X < 1

invalid

X >= 1

valid

„

Test cases would be selected from each equivalence class.

)

2

(

)

1

(

X

−

∗

X

+

[SWENE]

Boundary Value Analysis (1/2)

„

a testing technique where test cases are

designed to test the boundary of an input

domain.

„

Boundary value analysis complements and can

be used in conjunction with equivalence

partitioning.

Example (cont.):

boundary values of the three

ranges have to be included in the test data.

That is, we might choose the following test

cases:

X <= -2

MIN, -100, -2.1, -2

-2 < X < 1

-1.9, -1, 0, 0.9

X >= 1

1, 1.1,100, MAX

[SWENE]

“Bugs lurk in corners

and congregate at

boundaries…”

Boundary Value Analysis (2/2)

„

If an input condition specifies a range [a, b]:

Example: [-3, 10],

Ö

test values:

0 (interior point); 0 is always good candidate!

Ö

test values:

-3, 10 (extreme points)

Ö

test values:

-2, 9 (boundary points)

Ö

test values:

-4, 11 (off points)

„

If an input condition specifies a number values:

Ö

minimum and maximum

Ö

values just above and below minimum and maximum

„

Also for more complex data (data structures):

†

array

Ö

input condition: empty, single element, full element, out-of-boundary

Ö

search for element: element is inside array or not

(3)

Specification-Based Testing

„

Check the program against a reference document

†

design specification, a requirements list, a user interface description, a

model, or a user manual.

„

Rational:

†

the specification might be part of a contract

†

products must conform to their advertisements

†

safety-critical products must conform to any safety-related specification.

„

Observation

†

Specification-driven tests are often weak, not particularly powerful

representatives of the class of possible tests

„

Different approaches:

†

focus on the specification: the set of test cases should include an

unambiguous and relevant test for each claim made in the spec.

†

look further, for problems in the specification: explore ambiguities in the

spec. or examine aspects of the product that were not well-specified

(4) Risk-Based Testing

„

Process

(1)

Imagine a way the program could fail (cf. error guessing)

(2)

design one or more tests to check for it

„

a good risk-based test = a powerful representative that

address a given risk.

„

“complete”: a list of every way the program could fail.

„

If tests tie back to

†

significant failures in the field or

†

well known failures in a competitor’s product

Ö

failure will be highly credible and highly motivating

„

However, many risk-based tests are dismissed as

academic (unlikely to occur in real use).

„

Test for possible problem

Ö

carry high information value

(We learn a lot whether the program passes the test or not)

(5)

Stress Testing

„

Different definitions of stress testing:

†

Hit the program with a peak burst of activity and see it fail.

†

Testing conducted to evaluate a system or component at or beyond the

limits of its specified requirements with the goal of causing the system to

fail. [IEEE Standard 610.12-1990]

†

Driving the program to failure in order to watch how the program fails.

„

Keep increasing the size or rate of input until either the program finally fails or

you become convinced that further increases won’t yield a failure.

„

Look at the failure and ask what vulnerabilities have been exposed and which of

them might be triggered under less extreme circumstances.

„

Discussion:

†

stress test results as not representative of customer use

†

One problem with stress testing is that a failure may not be easily analyzed

(must includes enough diagnostic support)

†

stress-like tests can expose failures that are hard to see if the system is not

running with a high load (e.g., many concurrent tasks)

(6)

Regression Testing

„

Process

(1)

design tests with the intent of regularly reusing them

(2)

repeat the tests after making changes to the program.

„

A good regression test is designed for

reuse

.

†

adequately documented and maintainable

†

designed to be likely to fail if changes induce errors in the

addressed part of the program

„

Discussion:

†

First run of the tests may have been powerful, but after passed

many times detecting defects is not very likely (unless there have

been major changes or changes in part of the code directly

involved with this test.)

Ö

Usually carries little information value

Regression Testing Process

Requirements changes

„

Affect design, coding, and

testing document update

Design changes

„

Affect coding, tests, associated

components, system architecture,

related component interactions

Implementation changes

„

Affect test cases, test data, test scripts,

test specification (see also code change impact)

Test changes

„

Affect other tests and test documentation

Document changes

„

Affect other document

Software Change

Analysis

Software Change

Impact Analysis

Define Regression

Testing Strategy

Build Regression

Test Suite

Report Retest

Results

Run Regression

Regression Testing Strategies

„

Random

: The test cases are randomly selected from the

existing test suite.

„

Retest-all

: Run all the tests in the existing suite.

„

Safe

: The test selection algorithm excludes no test from the

original test suite that if executed would reveal faults in the

modified program.

†

Based on modifications

: Place an emphasis on selecting existing

test cases to cover modified program components and those that

may be affected by the modifications.

†

Dataflow/coverage based

: Select tests that exercise data

interactions that have been affected by modifications.

Remark ([Juriso+2004]):

„

For small programs and set of test cases is small, then retest-all.

„

Use safe techniques for large programs and programs with a large

number of test cases

.

(7)

User Testing

„

The testing done by real users (Not testers pretending to be users)

„

User tests might be designed by

†

the users,

†

the testers, or

†

other people (sometimes even by lawyers; acceptance tests in a contract)

„

Continuum:

†

tests can be designed in such detail that the user merely executes them

„ reports whether the program passed or failed

„ a carefully scripted demonstration, without much opportunity to detect defects

†

Leave the user some freedom to

„ cognitive activity while providing enough structure to ensure effective reports (in a way that helps readers understand and troubleshoot the problem)

„

detect problems a user will encounter in real use is much more difficult

„

Failures found in user testing are typically credible

Beta tests:

„

often described as cheap, effective user tests

„

but in practice they can be quite expensive to administer

„

you may not yield much information.

„

automation required!

Beta tests:

„

often described as cheap, effective user tests

„

but in practice they can be quite expensive to administer

„

you may not yield much information.

(8)

Scenario Testing

„

Check how the program copes with a scenario

„

Good scenario test should be

†

credible,

†

motivating,

†

easy to evaluate, and

†

complex.

„

How often run a given scenario test?

†

Some create a pool of scenario tests as regression tests

†

Others run a scenario once or a small number of times and then design

another scenario rather than sticking with the ones they’ve used before

„

Scenarios help to develop insight into the product

†

Early in testing (understand the product at all) or

†

Late in testing (understand advanced uses of a stabilized product)

(9)

State-Model-Based Testing

„

Model the visible behavior of the program as a state machine

„

Checking for conformance with the state machine model

„

Approach is credible, motivating and easy to troubleshoot

„

Tradeoffs:

†

state-based testing often involves simplification and if the model is

oversimplified, failures exposed by the model can be false negatives and

difficult to troubleshoot

†

more detailed models find more bugs, but can be much harder to read and

maintain

„

Experiences shows that much of the bug-finding happens while

modeling the state models rather than testing

„

coverage criteria / stopping rule (cf. [Al-Ghafees&Whittaker2002])

State-Model-Based Testing

Uncovers the following issues:

„

Wrong number of states.

„

Wrong transition for a given state-input combination.

„

Wrong output for a given transition.

„

States or sets of states that have become dead.

„

States or sets of states that have become unreachable.

Test sequence:

„

Define a set of covering input sequences that

†

starting from the initial state and

†

get back to the initial state

„

For each step in the input sequence, defines the expected

†

next state, the expected transition, and the expected output code

Remarks:

„

Completeness: transitions and outputs for every combination of input and states

„

Instrument the transitions to also capture the sequence of states (not just the outputs)

Variant: Syntax Testing

„

Test model: BNF-based syntax instead of state machine

„

E.g., for testing command-driven software

„

Dirty syntax testing:

a) to exercise a good sample of single syntactic errors in all commands in an attempt to break the software.

b) to force every diagnostic message appropriate to that command to be executed.

Example test cases:

correct ones

1.54683e5,

1.6548

incorrect without loops:

.05

1.

1.1e

incorrect with loops:

123456.78901.1

1.12345e6789D-123

<digital>

.

<digital>

<digital>

E

e

D

d

+

-Syntax Graph for <real_number>:

(10)

High-Volume Automated Testing

„

Massive numbers of tests, comparing the results against a partial

oracles.

†

The simplest partial oracle: crashing

†

State-model-based testing

(if the stopping rule is not based on a coverage

criterion) or also more general notion of

stochastic state-based testing

[Whittaker1997].

†

Randomly corrupt input data

†

Repeatedly feeds random data to the application under test and a reference

oracle in parallel [Kaner2000] (back-to-back testing)

†

Run arbitrarily long random sequence

of regression tests to let memory

leaks, stack corruption, wild pointers or other garbage that cumulates over

time finally causes failures. Probes (tests built into the program) can be

used to expose problems. [Kaner2000]

„

An almost

complete automation

for the testing is required

„

The low power of individual tests is make up for with

massive numbers

(11) Exploratory Testing

„

any testing which uses information gained while testing to better test [Bach2003a].

„

continuum between

†

purely scripted (the tester does precisely what the script specifies and nothing else) to

†

purely exploratory (no pre-specified activities, not documentation beyond bug reports is required)

„

prototypic case/ “freestyle exploratory testing”

†

exploratory testers continually learn about the software, the context, the ways it could fail, its

weaknesses, and the best ways to test the software.

†

At the same time they are also test the software and report the problems

†

Test cases are good to the extent that they advance the tester’s knowledge (goal-driven)

†

as the tester gains new knowledge the goals may also change quickly

†

which type of testing: what is most likely to reveal the information the tester is looking for

„

Not purely spontaneous:

†

studying competitive products,

†

review failure histories of this and analogous products

†

interviewing programmers and users,

†

reading specifications, and

†

working with the product.

Further Reading

[Al-Ghafees&Whittaker2002] Al-Ghafees, Mohammed; & Whittaker, James (2002) “Markov Chain-based Test Data Adequacy Criteria: A Complete Family”, Informing Science & IT Education Conference, Cork, Ireland,

http://ecommerce.lebow.drexel.edu/eli/2002Proceedings/papers/AlGha180Marko.pdf

[Bach2003a] James Bach (2003a), “Exploratory Testing Explained”, www.satisfice.com/articles/et-article.pdf [Berger2001] Berger, Bernie (2001) "The dangers of use cases employed as test cases," STAR West

conference, San Jose, CA. www.testassured.com/docs/Dangers.htm.

[El-Far1995] El-Far, Ibrahim K. (1995) Automated Construction of Software Behavior Models, M.Sc. Thesis, Florida Tech, www.geocities.com/model_based_testing/elfar_thesis.pdf

[El-Far2001] El-Far, Ibrahim K. (2001) “Enjoying the Perks of Model-Based Testing”, STAR West conference, San Jose, CA. www.geocities.com/model_based_testing/perks_paper.pdf

[El-Far+2001] El-Far, Ibrahim, K; Thompson, Herbert; & Mottay, Florence (2001) “Experiences in Testing Pocket PC Applications,” International Software Quality Week Europe,

www.geocities.com/model_based_testing/pocketpc_paper.pdf

[Kaner2000] Kaner, Cem (2000), “Architectures of Test Automation,” STAR West conference, San Jose, CA, www.kaner.com/testarch.html

[Kaner2002] Kaner, Cem (2002) A Course in Black Box Software Testing (Professional Version), www.testingeducation.org/coursenotes/kaner_cem/cm_200204_blackboxtesting/

[Kaner2003] Cem Kaner, "What is a good test case?" Software Testing Analysis & Review Conference (STAR) East, Orlando, FL, May 12-16, 2003.

[Nyman 1998] Nyman, N. (1998), “Application Testing with Dumb Monkeys”, STAR West conference, San Jose, CA.

[Pettichord2002] Pettichord, Bret (2002) “Design for Testability” Pacific Northwest Software Quality Conference, October 2002, www.io.com/~wazmo/papers/design_for_testability_PNSQC.pdf

[Whittaker1997] Whittaker, James (1997) “Stochastic Software Testing,” Annals of Software Engineering Vol. 4, 115-131.

III.3.3 White Box Testing Techniques

„

Black box testing:

†

Requirements fulfilled

†

Interfaces available

and working

„

But can we also exploit

†

the internal structure

of a component,

†

interactions between

objects?

Ö

white box testing

White box testing:

(1)

Control flow testing

(2)

Data flow testing

(1)

Control Flow Testing: Example

procedure XYZ is

A,B,C: INTEGER;

begin

1.

GET(A); GET(B); GET(C);

2.

if (A > 15 and C > 20) then

3.

if B < 10 then

4.

B := A + 5;

5.

else

6.

B := A - 5;

7.

end if

8.

else

9.

A := B + 5;

10. end if;

end XYZ;

[SWENE]

1

3

9

10

4

6

2

7

Control Flow Testing

a)

Statement coverage

: The test cases are

generated so that all the program statements are

executed at least once.

b)

Decision coverage

(branch coverage): The test

cases are generated so that the program

decisions take the value true or false.

c)

Condition coverage

: The test cases are

generated so that all the program conditions

(predicates) that form the logical expression of the

decision take the value true or false.

d)

Path coverage

: Test cases are generated to

a)

Statement Coverage

„

Statement

coverage

:

The test

cases are

generated so

that all the

program

statements

are executed

at least once.

1

3

9

10

4

6

2

7

b)

Decision / Branch Coverage

„

Decision

coverage

(branch

coverage): The

test cases are

generated so

that the program

decisions take

the value true or

false.

1

3

9

10

4

6

2

7

c)

Condition Coverage (1/2)

„

Condition

coverage

: The

test cases are

generated so

that all the

program

conditions

(predicates) that

form the logical

expression of

the decision

take the value

true or false.

1

3

9

10

4

6

2

7

Simple Condition Coverage

„

Composed condition

:

((A and B) or C)

Test cases must cover all

the values true or false for

each conditions (predicates)

of the logical expression

combinatorial explosion

Ö

only coverage for

simple

condition coverage

„

Simple condition

:

(A)

degenerates to decision

coverage but simple

condition coverage does not

ensure decision coverage

Remarks:

„

complete condition evaluation

assumed

„

Otherwise compiler dependent

execution semantics

A

B

C

(A and B) or C

TRUE

TRUE

TRUE

TRUE

TRUE

TRUE

FALSE

TRUE

TRUE

FALSE

TRUE

TRUE

TRUE

FALSE FALSE

FALSE

FALSE

TRUE

TRUE

TRUE

FALSE

TRUE

FALSE

FALSE

FALSE FALSE

TRUE

TRUE

Other Condition Coverage Types

„

Simple condition coverage:

require that the tests must

cover both true and false for each conditions (predicates) of

the logical expression.

„

Condition/decision coverage:

require in addition that the

coverage w.r.t. the decision is also complete.

„

Minimal multiple condition coverage

: also cover all sub

expressions of the Boolean formula

„

Modified condition/decision coverage:

requires that

every atomic condition can influence the overall output

(required for level A equipment by RTCA DO-178 B).

„

Multiple condition coverage:

test all combinations of the

atomic conditions.

d)

Path Coverage

„

Path coverage

: Test

cases are generated to

execute all/some program

paths.

Why path coverage?

„

logic errors and incorrect

assumptions are inversely

proportional to a path’s

execution probability

„

we often

believe

that a

path is not likely to be

executed; in fact, reality is

often counter intuitive

„

it’s likely that untested

paths will contain some

undetected defects

1

3

9

10

4

6

2

7

Exhaustive Testing Not Possible

There are 10

14

possible paths!

If we execute one

test per millisecond,

it would take 3.170

years to test this

program!!

Ö

Out of question

Basic Path Testing

„

Terminology

:

†

execution path:

a path that connects a start node and a

terminal node.

†

Two paths are

independent

if they have disjoint node or

edge sets

„

Steps

:

†

convert the unit into a “flow graph”

†

compute a measure of the unit's logical complexity

†

use the measure to derive a “basic” set of independent

execution paths for which test cases are determined

Remark

: Path coverage set is not unique!

Cyclomatic Complexity

„

Cyclomatic complexity

(McCabe complexity) is a metric, V(G), that

describes the logical complexity of a flow graph, G.

„

V(G) = E - N + 2 where E = #edges in G and N = #nodes in G

„

Studies have shown:

†

V(G) is directly related to the number of errors in source code

†

V(G) = 10 is a practical upper limit for testing

[SWENE]

modules

V(G)

modules in this range are

more error prone

Path Coverage Testing

1

2

4

7

8

3

6

5

Next, we derive the independent

paths:

Since V(G) = 4, we have 4 paths

Path 1:

1,2,3,6,7,8

Path 2:

1,2,3,5,7,8

Path 3:

1,2,4,7,8

Path 4:

1,2,4,7,2,4…7,8

Finally, we derive test cases to

exercise these paths, i.e. choose

inputs that lead to traversing the

paths

Testing Loops

simple loop

nested

loops

concatenated

loops

unstructured

loops

Loop Testing: Simple Loops

Minimum conditions - simple loops

1. skip the loop entirely

2. only one pass through the loop

(boundary)

3. two passes through the loop

(interior)

4. m passes through the loop m < n

5. (n-1), n, and (n+1) passes through the loop

Testing Nested Loops

„

Just extending simple loop testing:

Ö

number of tests explodes

„

Reduce the number of tests:

†

start at the innermost loop; set all other

loops to minimum values

†

conduct simple loop test; add out of range

or excluded values

†

work outwards while keeping inner nested

loops to typical values

Comparison: Control Flow Testing

a)

Statement coverage

: The

test cases are generated so

that all the program

statements are executed at

least once.

b)

Decision coverage

(branch

coverage): The test cases are

generated so that the

program decisions take the

value true or false.

c)

Condition coverage

: The

test cases are generated so

that all the program

conditions (predicates) that

form the logical expression of

the decision take the value

true or false.

d)

Path coverage

: Test cases

are generated to execute

all/some program paths.

b)

Decision

coverage

Simple condition

coverage

Condition/decision

coverage

Minimal multiple

condition coverage

Modified

condition/decision

coverage

Multiple condition

coverage

a)

Statement

coverage

Path

coverage

c)

Basic

path

coverage

d)

(2)

Data Flow Testing

Basic Definitions:

V

= the set of variables.

N

= the set of nodes

E

= the set of edges

Definition/write

on variables (nodes):

def(i)

= { x in V

| x has a global

def in block I }

Computational-use

of variables (nodes):

c-use(i) = { x in V

| x has a global

c-use in block i }

Predicate-use

of variables (edges):

p-use(i,j)

= { x in V | x has a p-use

in edge (i,j) }

read(x,y)

i:=1;

writeln(“hello”);

i:= i+1;

i>2

i<=2

y>=0

y<0

writeln(x);

def (2) = {i}

c-use(2) = {x,y}

p-use(3,5) = {i}

p-use(3,4) = {i}

def (4) = {i}

c-use(4) = {i}

p-use(6,8) = {y}

p-use(6,7) = {y}

c-use(8) = {x}

Idea of Data Flow Testing

„

Idea:

coverage of the a def-clear

path between definition and

usage

Examples:

„

One path per def

(all-defs

)

„

One path per def to all c-uses

(

all-c-uses)

„

One path per def to all p-uses

(

all-p-uses)

„

One path per def to all p-uses or

c-uses (

all-uses)

„

All path (without loops) from defs

to all p-uses or c-uses (

all

du-paths)

read(x,y)

i:=1;

writeln(“hello”);

i:= i+1;

i>2

i<=2

y>=0

y<0

writeln(x);

def (2) = {i}

c-use(2) = {x,y}

p-use(3,5) = {i}

p-use(3,4) = {i}

def (4) = {i}

c-use(4) = {i}

p-use(6,8) = {y}

p-use(6,7) = {y}

c-use(8) = {x}

Data Flow Testing

All node with an effective path from a def to a c-use

for variable x:

dcu(x, j)

=

{ j in N

| x in c-use(j) and

there is a def-clear path wrt

x from i to j }

All edges with an effective path from a def to a

p-use for variable x:

dpu(x, j)

=

{(j,k) in E

| x in p-use(j,k) and

there is a def-clear path wrt x

from i to (j,k) }

All effective path from a def to use without loops:

du-c(x,i,j)

=

{ i,…,k,j in N*

| x in def(i), x in

c-use(j), the path is def-clear wrt x,

and no node is visit twice}

du-p(x,i,j) =

{ i,…,k,j in N*

| x in def(i) , x in

p-use(k,j), and the path i,…,k is

def-clear wrt x, and no node i,…,k

is visit twice}

du(x,i,j)

=

du-c(x,i,j)

∪

du-c(x,i,j)

1 2 3 4 5 6 7 8 9 10

read(x,y)

i:=1;

writeln(“hello”);

i:= i+1;

i>2

i<=2

y>=0

y<0

writeln(x);

def (2) = {i,x,y}

c-use(2) = {}

p-use(3,5) = {i}

p-use(3,4) = {i}

def (4) = {i}

c-use(4) = {i}

p-use(6,8) = {y}

p-use(6,7) = {y}

c-use(8) = {x}

Types of Data Flow Testing

„

All-defs

: Test cases are generated to cover

each definition of each variable for at least

one use of the variable.

„

All c-uses

: Test cases are generated so that

there is at least one path of each variable

definition to each c-use of the variable.

„

All p-uses

: Test cases are generated so that

there is at least one path of each variable

definition to each p-use of the variable.

Comparison

:

Data Flow Testing

If time is an issue:

„

All p-uses should be

used instead of all-uses

„

All-uses should be used

instead of all-du-paths

„

to generate fewer tests:

†

use the test cases

covered by the (stronger)

criteria.

„

All-du-paths is usable in

practice.

[Juriso+2004]

All-Paths

All-DU-Paths

All-Uses

All-C-Uses/Some-P-Uses

All-P-Uses/Some-C-Uses

All-C-Uses

All-DEFS

All-P-Uses

decision

coverage

statement

(3) Mutation Testing

„

Strong (standard) mutation

: Test cases are

generated to cover all the mutants generated by

applying all the mutation operators defined for the

programming language in question.

„

Selective (or constrained) mutation

: Test cases

are generated to cover all of the mutants generated

by applying some of the mutation operators defined

for the programming language in questions.

„

Weak mutation

: Test cases are generated to

cover a given percentage of mutants generated by

applying all the mutation operators defined for the

programming language in question.

III.3.4 Comparison

Black box tests:

„

tester has no access to

information about the

system implementation

Characteristics:

„

Good for independence of

tester

„

But not good for formative

tests

„

Hard to test individual

modules...

White box tests:

„

tester can access

information about the

system implementation

Characteristics:

„

Simplifies diagnosis of

results

„

Can compromise

independence

„

How much do they need to

know?

III.4 Testing Process & Activities

Beforehand:

„

Requirement analysis

„

design analysis

Testing Process & Activities

(1)

Unit test

(2)

Integration test

(3)

Function test

(4)

Performance test

(5)

Acceptance test

(6)

Installation test

System test

Testing Activities

Unit

test

Unit

test

Unit

test

Integration

test

Function

test

Performance

test

Acceptance

test

Installation

test

Unit code

Unit code

Unit code

.

.

.

Integrated

modules

Functioning

system

Verified,

validated

software

Accepted

system

SYSTEM

IN USE!

Design

specifications

functional

System

requirements

Other

software

requirements

Customer

requirements

specification

User

environment

[Pfleeger 2001]

[SWENE]

III.4.1 Unit Testing

„

Individual components are tested independently to ensure their quality.

The focus is to uncover errors in design and implementation, including

†

data structure in a component

†

program logic and program structure in a component

†

component interface

†

functions and operations of a component

„

There is some debate about what constitutes a “unit”. Some common

definitions:

†

the smallest chunk that can be compiled by itself

†

a stand alone procedure of function

†

something so small that it would be developed by a single person

Unit testers:

Example: Test GCD Algorithm

„

_{Testing a unit designed to compute the “greatest}

common divisor” (GCS) of a pair of integers (not

both zero).

†

GCD(a,b) = c where

„

c is a positive integer

„

c is a common divisor of a and b (e.g., c divides a and c divides

b)

„

c is greater than all other common divisors of a and b.

†

For example

GCD(45, 27) = 9

GCD (7,13) = 1

GCD(-12, 15) = 3

GCD(13, 0) = 13

GCD(0, 0) undefined

[SWENE]

Test Planning

„

How do we proceed to determine the tests cases?

1.

Determine appropriate equivalence classes for the

input data.

2.

Determine the boundaries of the equivalence classes.

3.

Design an algorithm for the GCD function.

4.

Analyze the algorithm using basic path analysis.

5.

Then, choose tests cases that include the basic path

set, data form each equivalence class, and data at and

near the boundaries.

GCD Algorithm

note: Based on Euclid’s algorithm

1.

function gcd (int a, int b) {

int temp, value;

3.

a := abs(a);

b := abs(b);

if (a = 0) then

value := b; // b is the GCD

else if (b = 0) then

raise exception;

else

loop

temp := b;

b := a mod b;

a := temp;

until (b = 0)

value := a;

end if;

return value;

end gcd

1

5

10

9

17

7

6

18

[SWENE]

Example: GCD Test Planning

„

Equivalence Classes

†

Although the the GCD algorithm should accept any

integers as input, one could consider 0, positive

integers and negative integers as “special” values.

This yields the following classes:

„

a < 0 and b < 0, a < 0 and b > 0, a > 0 and b < 0

„

a > 0 and b > 0, a = 0 and b < 0, a = 0 and b > 0

„

a > 0 and b = 0, a > 0 and b = 0, a = 0 and b = 0

„

Boundary Values

†

a = -2

_{, -1, 0, 1, 2}

_{-1 and b = -2}

_{, -1, 0, 1, 2}

_-1

„

Basic Path Set

†

V(G) = 4

†

(1,5,6,17,18), (1,5,7,18), (1,5,7,9,10,17,18),

(1,5,7,9,10,9,10,17,18)

Example GCD Test Plan

Test Description / Data Expected Results Test Experience / Actual Results

Basic Path Set

path (1,5,6,17,18) Î (0, 15) 15 path (1,5,7,18) Î (15, 0) 15 path (1,5,7,9,10,17,18) Î (30, 15) 15 path (1,5,7,9,10,9,10,17,18) Î (15, 30) 15 Equivalence Classes a < 0 and b < 0 Î (-27, -45) 9 a < 0 and b > 0 Î (-72, 100) 4 a > 0 and b < 0 Î (121, -45) 1 a > 0 and b > 0 Î (420, 252) 28 a = 0 and b < 0 Î (0, -45) 45 a = 0 and b > 0 Î (0 , 45) 45 a > 0 and b = 0 Î (-27, 0) 27 a > 0 and b = 0 Î (27, 0) 27 a = 0 and b = 0 Î (0 , 0) exception raised

Boundary Points

(1 , 0) 1

(-1 , 0) 1

(0 , 1) 1

(0 , -1) 1

(0 , 0) (redundant) exception raised

(1, 1) 1

(1, -1) 1

(-1, 1) 1

(-1, -1) 1

Test Implementation

„

Once one has determined the testing strategy, and

the units to tested, and completed the unit test

plans, the next concern is how to carry on the tests.

†

If you are testing a single, simple unit that does not

interact with other units (like the GCD unit), then one can

write a program that runs the test cases in the test plan.

†

However, if you are testing a unit that must interact with

other units, then it can be difficult to test it in isolation.

†

The next slide defines some terms that are used in

implementing and running test plan.

Test Implementation Terms

„

Test Driver

†

a class or utility program that applies test cases to a

component being tested.

„

Test Stub

†

a temporary, minimal implementation of a component to

increase controllability and observability in testing.

†

When testing a unit that references another unit, the unit

must either be complete (and tested) or stubs must be

created that can be used when executing a test case

referencing the other unit.

„

Test Harness

†

A system of test drivers, stubs and other tools to support

test execution

Test Implementation Steps

Here is a suggested sequence of steps for testing a unit:

1.

Once the

design

for the unit is complete, carry out

†

Complete a test plan for a unit.

†

create stubs for not yet completed referenced other units

†

Create a driver (or set of drivers) for the unit

†

construction of test case data (from the test plan)

2.

Once the

implementation

is complete, carry out

†

Use the driver (or set of drivers) to test the unit

†

execution of the unit, using the test case data

†

provision for the results of the test case execution to be printed or

logged as appropriate

Testing Tools

„

There are a number of tools that have been

developed to support the testing of a unit or

system.

†

googling “Software Testing Tools” will yield

thousands of results.

„

JUnit testing (

http://www.junit.org/index.htm

) is

a popular tool/technique that can be integrated

into the development process for a unit coded

in Java.

Further Reading

[Beck 2004]

Beck, K., and Gamma, E.

Test Infected: Programmers

Love Writing Tests

,

http://members.pingnet.ch/gamma/junit.htm

[Binder 1999]

Binder, R.V.,

Testing Object-Oriented Systems

,

Addison-Wesley, 1999.

[Humphrey 1995] Humphrey, Watts S.,

A Discipline for Software

Engineering

, Addison Wesley, 1995.

[McConnell 1993] McConnell, Steve,

Code Complete, A Practical

Handbook of Software Construction

, Microsoft Press,

1993.

[Jorgensen 2002] Jorgensen, Paul C.,

Software Testing: A Craftsman’s

Approach

, 2

_{edition, CRC Press, 2002.}

[Pfleeger 2001] Pfleeger,

S.,

Software Engineering Theory and

Practice

, 2

_{Edition, Prentice-Hall, 2001.}

[Pressman 2005] Pressman, R.S.,

Software Engineering: A Practitioner’s

Approach

, 6

_{edition, McGraw-Hill, 2005.}

III.4.2 Integration Testing

„

A group of dependent components are tested together to ensure their

the quality of their integration unit.

„

The focus is to uncover errors in:

†

Design and construction of software architecture

†

Integrated functions or operations at sub-system level

†

Interfaces and interactions between them

†

Resource integration and/or environment integration

Integration testers:

„

either developers and/or test engineers.

Tests complete systems or subsystems composed of integrated components

„

Integration testing should be black-box testing with tests derived from the

specification

„

Main difficulty is localising errors

Integration Testing Strategies

Incremental testing strategies:

„

Bottom-up testing:

Integrate individual components in

levels until the complete system is created

„

Top-down testing:

Start with high-level system and

integrate from the top-down replacing individual components

by stubs where appropriate

„

Outside-in integration:

Do bottom-up and top-down testing

at the same time such that the final integration step occurs

in a middle layer

Non incremental testing strategies:

„

Big bang testing:

put all together and test it

Remark:

In practice, most integration involves a combination

of these strategies

Big Bang Integration Testing

„

combine (or integrate) all parts at once.

Advantages:

„

simple

Disadvantages:

„

hard to debugging, not easy to isolate errors

„

not easy to validate test results

Bottom Up Integration Testing

Idea:

„

Modules at the lowest levels are integrated at first, then by moving

upward through the control structure.

Integration process (five steps):

1.

Low-level modules are combined into clusters that perform a specific

software sub-function

2.

A driver is written to coordinate test case input and output

3.

Test cluster is tested

4.

Drivers are removed and clusters are combined moving upward in the

program structure

Pros and cons of bottom-up integration:

„

no stubs cost

„

need test drivers

M9

M8

M1

M2

M3

M4

M5

M6

M7

M10

M11

Integration A

Integration B

Integration c

Stage 2

Stage 4

Stage 3

Stage 1

Top Down Integration Testing

Idea:

„

Modules are integrated by moving downward through the control structure.

„

Modules subordinate to the main control module are incorporated into the

system in either a depth-first or breadth-first manner.

Integration process (five steps):

1.

the main control module is used as a test driver, and the stubs are substituted

for all modules directly subordinate to the main control module.

2.

subordinate stubs are replaced one at a time with actual modules

3.

tests are conducted as each module is integrated

4.

On completion of each set of tests, another stub is replaced with the real

module

5.

regression testing may conducted

Pros and cons top-down integration:

„

stub construction cost

M9

M8

M1

M2

M3

M4

M5

M6

M7

M10

M11

Integration C

Integration A

Integration B

Stage 3

Stage 1

Stage 2

Stage 5

Integration D

Stage 4

Stage 6

Top-down testing of module M8

Bottom-up testing of module M8

Module

on test

M9

Stub

of M2

Stub

of M1

M8

Module

_{on test}

Drive

of M9

M2

M1

M8

Module

tested in an

earlier

stage

Modules

tested in an

earlier

stage

Regression Testing & Integration

„

A module firewall:

closure of all possible

affected modules and

related integration links

in a program based on a

control-flow graph.

Ö

Reduction of the

software regression

testing to a smaller

scope (the firewall)

This implies that:

„

re-test of the changed

module and its affected

modules

„

re-integration for all of

related integration links

Main

M1

M2

M3

M7

M6

M5

M4

M8

A module firewall:

- M5, M1, and Main

Re-testing at the unit level: M5

Re-integration steps: 2, 3, 4

1

2

3

4

Comparison of the Approaches

Problems of non-incremental integration:

„

hard to debugging, hard to isolate errors

„

not easy to validate test results

„

impossible to form an integrated system

Pros and cons top-down integration:

„

stub construction cost

„

major control function is tested early

Pros and cons of bottom-up integration:

„

no stubs cost

„

need test drivers

„

no controllable system until the last step

Pros and cons outside-in integration:

„

stub construction cost

„

major control function is tested early

„

need test drivers

Architectural validation

„

Top-down/Outside-in integration testing

is better at discovering errors in the

system architecture

System demonstration

„

Top-down/Outside-in integration testing

allows a limited demonstration at an

early stage in the development

Test implementation

„

Often easier with bottom-up integration

testing

Test observation

„

Problems with all approaches. Extra

code may be required to observe tests

III.4.3 Function Testing

„

The integrated software is tested based on requirements to ensure that

we have a right product (validate

functional requirements

).

The focus is to uncover errors in:

„

System input/output

„

System functions and information data

„

System interfaces with external parts

„

User interfaces

„

System behavior

Function testers:

„

test engineers or SQA people.

System

(Operations &

Functions

& Behavior)

User

interface

User

External interfaces

III.4.4 Performance Testing

„

Performance testing is designed to test

run-time performance of software within

the context of an integrated system

(validate

non-functional requirements

).

The focus areas are:

„

Confirm and validate the specified system

performance requirements.

„

Check the current product capacity to

answer the questions from customers and

marketing people.

„

Identify performance issues and

performance degradation in a given

system

„

System behavior in the special load

conditions

Performance testers:

„

test engineers or SQA people.

Relevant attributes:

„

System

process speed

(Max./Min./Average)

„

System

throughput

(Max./Min./Average)

„

System

latency

(Max./Min./Average)

„

System

utilization

(Max./Min./Average)

„

System

availability

(component-level/system-level)

„

System

reliability

(component-level/system-level)

„

System

scalability

(component-level/system-level)

III.4.5 Acceptance Testing

„

The system software is tested as a whole. It verifies all elements mesh

properly to make sure that all system functions and performance are

achieved in the target environment.

The focus areas are:

„

System functions and performance

„

System reliability and recoverability (recovery test)

„

System behavior in the special conditions (stress)

„

System user operations (acceptance test/alpha test)

„

Hardware and software integration and collaboration

„

Integration of external software and the system

System testers:

III.4.6 Installation Testing

„

The installation testing is designed to test the installation

procedure and its supported software.

The focus areas are:

„

Hardware and software integration and collaboration

„

Integration of external software and the system

Installation testers:
