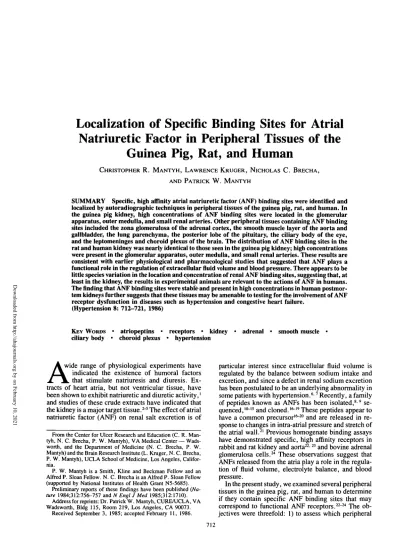

Localization of Specific Binding Sites for Atrial
Natriuretic Factor in Peripheral Tissues of the
Guinea Pig, Rat, and Human
CHRISTOPHER R. MANTYH, LAWRENCE KRUGER, NICHOLAS C. BRECHA, AND PATRICK W. MANTYH
SUMMARY Specific, high affinity atrial natriuretic factor (ANF) binding sites were identified and localized by autoradiographic techniques in peripheral tissues of the guinea pig, rat, and human. In the guinea pig kidney, high concentrations of ANF binding sites were located in the glomerular apparatus, outer medulla, and small renal arteries. Other peripheral tissues containing ANF binding sites included the zona glomerulosa of the adrenal cortex, the smooth muscle layer of the aorta and gallbladder, the lung parenchyma, the posterior lobe of the pituitary, the ciliary body of the eye, and the leptomeninges and choroid plexus of the brain. The distribution of ANF binding sites in the rat and human kidney was nearly identical to those seen in the guinea pig kidney; high concentrations were present in the glomerular apparatus, outer medulla, and small renal arteries. These results are consistent with earlier physiological and pharmacological studies that suggested that ANF plays a functional role in the regulation of extracellular fluid volume and blood pressure. There appears to be little species variation in the location and concentration of renal ANF binding sites, suggesting that, at least in the kidney, the results in experimental animals are relevant to the actions of ANF in humans. The finding that ANF binding sites were stable and present in high concentrations in human postmor-tem kidneys further suggests that these tissues may be amenable to testing for the involvement of ANF receptor dysfunction in diseases such as hypertension and congestive heart failure.
(Hypertension 8: 712-721, 1986) KEY WORDS ciliary body atriopeptins • choroid plexus receptors • kidney
* hypertension adrenal smooth muscle
A wide range of physiological experiments have / \ indicated the existence of humoral factors A. \ . that stimulate natriuresis and diuresis. Ex-tracts of heart atria, but not ventricular tissue, have been shown to exhibit natriuretic and diuretic activity,1 and studies of these crude extracts have indicated that the kidney is a major target tissue.2"5 The effect of atrial natriuretic factor (ANF) on renal salt excretion is of
From the Center for Ulcer Research and Education (C. R. Man-tyh, N. C. Brecha, P. W. Mantyh), VA Medical Center — Wads-worth, and the Department of Medicine (N. C. Brecha, P. W. Mantyh) and the Brain Research Institute (L. Kruger, N. C. Brecha, P. W. Mantyh), UCLA School of Medicine, Los Angeles, Califor-nia.
P. W. Mantyh is a Smith, Kline and Beckman Fellow and an Alfred P. Sloan Fellow. N. C. Brecha is an Alfred P. Sloan Fellow (supported by National Institutes of Health Grant N5-5685).
Preliminary reports of these findings have been published
{Na-ture 1984;312:756-757 and N Engl J Med 1985;312:1710).
Address for reprints: Dr. Patrick W. Mantyh, CURE/UCLA, VA Wadsworth, Bldg 115, Room 219, Los Angeles, CA 90073.
Received September 3, 1985; accepted February 11, 1986.
particular interest since extracellular fluid volume is regulated by the balance between sodium intake and excretion, and since a defect in renal sodium excretion has been postulated to be an underlying abnormality in some patients with hypertension.6'7 Recently, a family of peptides known as ANFs has been isolated,8'9 se-quenced,10"15 and cloned.16"19 These peptides appear to have a common precursor16"20 and are released in re-sponse to changes in intra-atrial pressure and stretch of the atrial wall.21 Previous homogenate binding assays have demonstrated specific, high affinity receptors in rabbit and rat kidney and aorta22'23 and bovine adrenal glomerulosa cells.24 These observations suggest that ANFs released from the atria play a role in the regula-tion of fluid volume, electrolyte balance, and blood pressure.
In the present study, we examined several peripheral tissues in the guinea pig, rat, and human to determine if they contain specific ANF binding sites that may correspond to functional ANF receptors.22"24 The ob-jectives were threefold: 1) to assess which peripheral
712
organs express specific ANF binding sites and thus are possible target tissues for circulating ANF; 2) to define whether the distribution and concentration of ANF binding sites in experimental animals are similar to those in humans; and 3) to determine the stability of the ANF binding sites in human postmortem material.
Materials and Methods
The quantitative autoradiographic receptor binding technique25"27 was used to identify the specific ANF binding sites. The incubation conditions used are a modification of a previous homogenate receptor bind-ing study.22 Male guinea pigs (weight, 500 g; Simon-sen Labs, Gilroy, CA, USA) and Sprague-Dawley rats (weight, 200 g; Simonsen Labs) were decapitated, and the peripheral tissues were removed, embedded in cryoform, serially sectioned at 30 /xm on a cryostat at — 20 °C, thaw-mounted on gelatin-coated microscope slides, and stored at — 20°C until use. For analysis of the human material, postmortem kidneys were ob-tained from a 57-year-old man who died of myocardial infarct, a 61-year-old man who died of cerebral aneu-rysm, and a 27-year-old man who died of head injury. The human tissue was obtained 12, 60, and 65 hours after death, respectively, and processed as described. In initial experiments, we determined the optimal incubation conditions for ANF receptor binding in the guinea pig kidney in order to maximize the specific/ nonspecific binding ratios. To measure the specific/ nonspecific binding ratios, guinea pig kidney sections were scraped from the slide with a razor blade and placed in a counting tube and the radioactivity was determined using a gamma counter. Nonspecific ANF binding was defined as that l23I-labeled ANF that was not displaced by an excess (1 /xM) of cold ANF. After extensive trial and error, it was determined that the following incubation conditions consistently resulted in the highest specific/nonspecific binding ratios while retaining optimal optical resolution of the binding sites.
The slide-mounted tissue sections were first placed in a preincubation bath at 25°C containing 0.005% (vol/vol) polyethylenimine (Sigma Chemical, St. Louis, MO, USA) and 50 raMN-2-hydroxyethylpiper-azine-W-2-ethanesulfonic acid (HEPES) buffer for 10 minutes. They were then incubated in 50 mM HEPES, 5 mM MgCl2,0.3% bovine serum albumin, 0.1%
baci-tracin, and 150 pM I23I-ANF at 25°C for 45 minutes. For rat and guinea pig tissue, l23I-rat ANF (Amer-sham, Chicago, IL, USA) was the radioligand, and for the human tissue we used l25I-human ANF (Amer-sham). The slide-mounted tissue sections were then washed three times (5 minutes each) at 4°C in 50 mM HEPES, 5 mM MgCl2, 0.3% bovine serum albumin,
and 0.1% bacitracin. Finally, the slides were rinsed twice for 5 seconds at 4°C in distilled water. Control slides were incubated similarly except for the second step, where either 1 /xM of cold rat ANF (1-28) (Ba-chem, Torrance, CA, USA), cold human ANF (1-28) (Bachem), or an unrelated peptide (substance P,
so-matostatin 1-14, sulfated cholecystokinin-8, or thyro-tropin releasing hormone; all from Bachem) was add-ed. The slides were placed in apposition to LKB Ultrofilm (Bromma, Sweden) for 1 week and then developed in Kodak D-19.
The autoradiograms in the figures are enlargements of the LKB Ultrofilm negatives. To identify the cellu-lar location of the binding sites, the sections were stained with hematoxylin and eosin and coverslipped with Permount. After development and fixation as just described, the optical densities of the autoradiograms were determined by projecting the autoradiograms at 20 x on a white, horizontal surface and quantifying the density of the projected image with a photocell con-nected to a digital voltmeter, as described by Rainbow et al.27 This densitometer consisted of a Sharp BS-500A silicon blue photodiode (Paramus, NJ, USA) connected to a Radio Shack voltage amplifier (Los Angeles, CA, USA). At 20 x , the resolution of the device corresponded to a region 50 /xm in diameter on the projected sections. Previous experiments had es-tablished that the LKB film does not respond linearly to a linear increase in radioactivity.27 We therefore constructed a series of standards, exposed these to the LKB film, developed and fixed the firm, measured this film densitometrically, and used these values with the Texas Instruments (Lubbock, TX, USA) automatic curve-fitting program (Hewlett-Packard, Palo Alto, CA, USA) to obtain an equation that described the firm's characteristics. Mean raw density values for the concentration of ANF binding sites were then obtained from a minimum of five separate readings and placed in this equation to correct for the nonlinearity of the LKB film. Thus, all values listed in Table 1 are cor-rected optical densities such that a doubling of density values in this table corresponds to a doubling in the concentration of ANF binding sites in the peripheral tissues.
Results
Specific, high affinity ANF binding sites were dem-onstrated in rat, guinea pig, and human peripheral tis-sues using the autoradiographic technique and 125I-rat ANF (1-28) for rat and guinea pig tissue, and l23 I-hu-man ANF (1-28) for the huI-hu-man tissue (Table 1). Initial scrape-off experiments in the guinea pig kidney re-vealed that greater than 75% of the total binding was specific. No inhibition of specific binding was ob-served in adjacent sections where 1 /iM of unrelated peptide including substance P, somatostatin 1-14, cholecystokinin-8, or thyrotropin releasing hormone was added to the incubation medium. These observa-tions are consistent with previous membrane homog-enate studies2224 and indicate that the two techniques probably are identifying the same specific, high affin-ity ANF binding sites that appear to correspond to the ANF receptor.22-24
In the guinea pig urogenital system, a high concen-tration of specific ANF binding sites was present in the glomerular apparatus (GA) of the kidney (Figure 1).
714 HYPERTENSION VOL 8, No 8, AUGUST 1986
TABLE 1. Concentration* of Atrial Natriuretic Factor Binding
Sites in Peripheral Tissues of Humans, Rats, and Guinea Pigs
Optical Density Tissue Urogenital system Kidney Glomerular apparatus Renal arteries (smooth muscle) Outer medulla Endocrine system Pituitary gland (posterior lobe) Adrenal gland (zona
glomerulosa) Respiratory system Lung (parenchyma) Cardiovascular system Aorta (smooth muscle) Eye Ciliary body (epithelial layer) Choriocapillaris Gastrointestinal system Colon (smooth muscle) Other systems Gallbladder (smooth muscle) Choroid plexus Leptomeninges Guinea pig 81.9±5.7 52.0±4.0 53.1±2.3 66.7±3.1 54.2±1.8 51.7±1.3 42.1 ±0.5 100.0+1.6 45.8±1.1 13.2±1.7 43.1 ±2.5 30.8±0.7 38.2±1.2 Rat 80.2±1.7 40.5 ±0.8 45.2 + 0.7 — 64.6 ±0.6 — — — — — — 33.4±0.9 41.6±1.5 Humant 74.1 ±1.3 62.7±2.3 39.2±2.0 — — — — — — — — — — Values are corrected optical densities ± SEM of at least five determinations throughout the area under examination. A dash indi-cates no data; negligible levels were found for all regions of the following guinea pig organs: heart, tongue, salivary glands, esoph-agus, stomach, small intestine, pancreas, liver, spleen, larynx, trachea, urinary bladder, testes, vas deferens, fallopian tubes, uterus, nose, and skin.
*The concentration is expressed as the corrected optical density of LKB Ultrofilm exposed to guinea pig, rat, and human tissue sections after incubation with either '"I-rat ANF (guinea pig and rat) or l23I-human ANF. Background labeling on the film has an optical density of 0.0, while the epithelial layer ciliary body of the guinea pig eye is defined as the highest optical value of 100.0.
tThe values for me human are those of a 27-year-old man with a postmortem autopsy time of 65 hours.
Comparison of the location and density of ANF bind-ing sites indicates that of the several thousand GA specimens we have examined, all have a similar high concentration of ANF binding sites. The smooth
mus-cle layer of the small renal arteries also had a high concentration of ANF binding sites (see Figure 1). The other region of the kidney with a high concentration of ANF binding sites was the outer medulla, which corre-sponds to the location of the cortical collecting tubules (see Figure 1). Other areas of the urogenital system examined displayed a negligible level of ANF binding sites, including all layers of the bladder, testes, vas deferens, seminal vesicles, uterus, and fallopian tubes. In rat (Figure 2) and human (Figure 3) kidney, the distribution of specific ANF binding sites was almost identical to that seen in guinea pig kidney. High con-centrations of ANF binding sites were present in the GA, outer medulla, and renal arteries. As with the guinea pig, of the several thousand GA specimens examined in either the rat or human, all displayed a high concentration of ANF binding sites.
In the guinea pig endocrine system, both the adrenal gland and the posterior pituitary revealed a substantial concentration of ANF binding sites. In the adrenals, ANF binding sites were confined to the zona glomeru-losa of the adrenal cortex (see Figure 1). All other layers of the cortex and medulla showed a negligible concentration of ANF binding sites. In the pituitary, only the ventral aspect of the pars nervosa (posterior pituitary) contained a significant concentration of binding sites in contrast to the negligible concentration in the dorsal aspect of the pars nervosa, pars distalis, and pars intermedia (Figure 4). The rat adrenals dis-played a distribution of binding sites confined to the zona glomerulosa (see Figure 2) that was nearly iden-tical to that found in the guinea pig adrenals (see Fig-ure 1).
In the guinea pig cardiovascular system, a moderate concentration of binding sites was seen predominantly in the smooth muscle layer of the aorta (Figure 5). The ANF binding sites were also present in the lung paren-chyma (Figure 6), with no apparent proximal-distal concentration gradient. Negligible concentrations of binding sites were present in all other layers of the aorta, all areas of the right and left atrium and ventri-cles, pulmonary arteries and veins, trachea, bronchi, bronchioles, and larynx.
In the guinea pig gastrointestinal system, only the longitudinal muscle layer of the distal colon had a measurable level of ANF binding sites. All other areas of the gastrointestinal tract examined, including all layers of the esophagus, stomach, duodenum, ileum, jejunum, cecum, proximal colon, and rectum, had negligible concentrations of binding sites. The only other component associated with the digestive appara-tus that contained a high concentration of ANF binding sites was the smooth muscle layer of the gallbladder (Figure 7). Negligible levels of binding sites were present in all other layers of the gallbladder, spleen, liver, pancreas, tongue, and salivary glands.
The ciliary body in the eye of the guinea pig dis-played the highest concentration of ANF binding sites of all the tissues examined in guinea pig, rat, or human (Figure 8). These binding sites were clearly concen-trated in the epithelium of the ciliary body; the other aspects of the ciliary body displayed negligible levels.
The choriocapillaris also contained a moderate con-centration of binding sites. Of the intrinsic muscles of the eye, only the longitudinal muscle contained a sig-nificant concentration of binding sites (see Figure 8). All other layers of the eye, including the retina, sclera, lens, iris, and cornea, possessed a negligible concen-tration of ANF binding sites.
Other tissues in the guinea pig containing a distinc-tive concentration of specific ANF binding sites in-cluded the choroid plexus epithelium and the lepto-meninges (i.e., pia and arachnoid) of the brain, as reported in a previous study.28 The concentration of ANF binding sites appeared to vary within the different regions of the choroid plexus; consistently high levels were present in the fourth ventricle, whereas markedly diminished or patchy concentrations were present in the lateral cerebral ventricles (Figure 9). Additional tissues examined that contained negligible concentra-tions of binding sites included all layers of the thyroid and the skin of the nose, hindpaw, and forepaw.
Examination of the concentration of ANF binding sites in the three human postmortem kidneys revealed no significant differences in either concentration or location based on the subject's age (27, 57, and 61 years) or time of autopsy (12, 60, and 65 hours after death).
Discussion
The distribution of ANF binding sites in the periph-eral tissues examined in the present study appears con-sistent with the functional role generally ascribed to ANF in regulating fluid volume, electrolyte balance, and blood pressure. Previous studies have suggested that ANF acts directly on the kidney, because injection of ANF produces a marked increase in urine volume and an accompanying increase in sodium, potassium, and chloride excretion.1"5 This effect is consistent with the reports that specific ANF binding sites are found in tissue homogenates of rabbit and rat kidney22'M and aorta, as well as in bovine adrenal glomerulosa cells.24
FIGURE 1. Dark-field photomicrographs ofLKBfilm autoradiograms of a guinea pig kidney and adrenal section
(a), incubated in the presence of 150 pM l25I-atrial natriuretic factor (ANF), and its serial pair (b), incubated in 150 pM I251-ANF plus 1 fiM ANF. In these and the following dark-field photomicrographs, ml-ANF binding appears as white silver grains. Since nonspecific binding is defined as that I251-ANF binding that remains in the presence of 1 (JLM ANF, Panel b is an image of the nonspecific binding. Thus, the specific binding in Panel a is obtained by subtracting the nonspecific binding in Panel b. A high concentration of receptors is present in the glomerular apparatus (GA), renal arteries (RA), and outer medulla (OM) of the kidney. The zona glomerulosa (ZG) is clearly outlined in the adrenal cortex. (Line bar = 7.5 mm.)
716 HYPERTENSION VOL 8, No 8, AUGUST 1986
ANF
1
ANF
+
1uM ANF
' - • ' ' • ; h
FIGURE 2. Dark-field photomicrograph showing the localization ofatrial natriuretic factor (ANF) binding sites
in a coronal section of the rat kidney and adrenal. Note the high concentration of ANF binding sites in the glomerular apparatus (GA), renal arteries (RA), outer medulla (OM), and zona glomerulosa (ZG). See Figure 1 for explanation. (Line bar = 1.5 mm.)
In the present study, guinea pig, rat, and human kidney revealed a very high concentration of specific binding sites localized to the GA, renal arteries, and outer medulla. The high concentration of ANF binding sites in the GA and outer medulla (corresponding to the location of the cortical collecting tubules) suggests that these regions are primary sites of ANF's natriuretic and diuretic actions on the kidney. The localization of high concentrations of specific ANF binding sites on renal arteries and moderate levels in the muscularis layer of the aorta suggests a direct action on vascular smooth muscle, accounting for ANF's effects on vas-cular resistance.2'N'30 Recent studies suggest that ANF acts directly on the adrenals since ANFs inhibit basal aldosterone release as well as block the release of al-dosterone from isolated adrenal glomerulosa cells stimulated by adrenocorticotropic hormone and angio-tensin II.31-33 The present report directly supports this view by demonstrating high concentrations of specific ANF binding sites in the zona glomerulosa of the ad-renal cortex, the region where aldosterone is principal-ly synthesized and secreted. Moderate concentrations of ANF binding sites in the posterior pituitary may account for the reported ANF stimulation of vasopres-sin release from the isolated posterior pituitary gland,36 but the significance of its presence in only a sector of
this endocrine organ remains obscure and deserves further study.
The kidney, the ciliary body of the eye, and the choroid plexus of the brain are all involved in plasma filtration and in specialized active transport. The cili-ary body is involved in the production of the vitreous fluid, and the choroid plexus is involved in the secre-tion of cerebrospinal fluid. The present finding of a distinctly localized, high concentration of ANF bind-ing sites in these structures suggests that ANF also may be involved in regulating the environment and pressure of interocular and intracranial fluids.
In other peripheral tissues, however, it is not clear whether the ANF binding sites are generally involved in the regulation of fluid and electrolyte balance or whether they are involved in specific active transport functions. Thus, binding sites in the colon and gall-bladder might be implicated in regulating the degree of water reabsorption by influencing the transit time of the meal and bile, respectively. In the lung, the high concentration of ANF binding sites might be related most logically to regulation of water reabsorption. In-terestingly, the BIO 14.6 hamster, which is known to experience congestive heart failure, has a marked defi-ciency in the atrial content of its ANF.37 Coupled with the present finding, this observation may indicate that
FIGURE 3. Dark-field photomicrograph showing the autoradiographic localization of atrial natriuretic factor
(ANF) binding sites in a coronal section of human kidney obtained from a 2 7-year-old man (autopsy time, 65 hours after death). Note the high concentration of binding sites in the glomerular apparatus (GA), renal arteries (RA), and outer medulla (OM). See Figure 1 for explanation. (Line bar = 1.7 mm.)
H & E
FIGURE 4. Light-field photomicrograph of a guinea pig pituitary stained with hematoxylin and eosin (H & E; a),
and dark-field photomicrographs ofLKB autoradiograms of the same section (b) and its serial pair (c). See Figure Ifor explanation. A moderate concentration of'25l-atrial natriuretic factor (ANF) binding sites can be seen in the pars nervosa (PN), while a negligible concentration of binding sites can be seen in the pars distalis (PD) and pars
intermedia (PI). (Line bar = 0.6 mm.)
HYPERTENSION VOL 8, No 8, AUGUST 1986
H&E
H&ETM
ANF
125
1 ANF + 1>uM ANF
FIGURE 5. Light-field photomicrograph of a guinea pig aorta
stained with hematoxylin and eosin (H & E; a), and dark-field photomicrographs of LKB film autoradiograms of the same section (b) and its serial pair (c). See Figure 1 for explanation. A moderate concentration of atrial natriwetic factor (ANF) binding sites can be seen in the tunica media (TM; smooth muscle layer), while a negligible concentration can be seen in the tunica intermedia (Tl). (Line bar = 0.7 mm.)
FIGURE 6. Light-field photomicrograph of a guinea pig lung
stained with hematoxylin and eosin (H & E; a), and dark-field photomicrographs of LKB film autoradiograms of the same section (b) and its serial pair (c). See Figure 1 for explanation. Note the heavy concentration of binding sites in the parenchyma (P), while no specific binding can be seen in the bronchus (Br) or the blood vessels (BV). (Line bar = 1.5 mm.)
the dysfunction in the BIO 14.6 hamster is due not only to the lack of ANF stimulation of natriuretic and di-uretic response in the kidney but also to the lack of ANF-induced water reabsorption by the alveoli.
The demonstration of comparable ANF binding sites in human, guinea pig, and rat kidney suggests
H&
H & ECjEp
FIGURE 7. Light-field photomicrograph of a guinea pig
gall-bladder and liver stained with hematoxylin and eosin (H & E; a), and dark-field photomicrographs of LKB film autoradio-grams of the same section (b) and its serial pair (c). See Figure 1 for explanation. A high concentration of specific binding sites can be seen on the muscularis layer (Mus) but not on the mucosa (Muc) or the liver (L). (Line bar = 0.8 mm.)
that, at least in the kidney, the physiological actions of ANF in experimental animals are similar to those seen in humans.38'" The unexpected stability of ANF bind-ing sites in the postmortem human kidney also sug-gests that human kidneys could be assessed for ANF receptor dysfunction in disease states such as hyperten-sion and congestive heart failure. The high concentra-tion and postmortem stability of ANF binding sites found in the human kidney indicate that this tissue should prove an excellent source for the extraction,
FIGURE 8. Light-field photomicrograph of a guinea pig eye
stained with hematoxylin and eosin (H & E; a), and dark-field photomicrographs of LKB film autoradiograms of the same section (b) and its serial pair (c). See Figure 1 for explanation. Note the high concentration of specific atrial natriuretic factor (ANF) binding sites in the ciliary body epithelium (Ep) and a moderate concentration in the choriocapillaris (Ch) and the longitudinal muscle (LM). No specific binding can be observed in the circular muscle (CM), conjunctival epithelium (CjEp), sclera (S), or retina (R). (Line bar = 0.9 mm.)
720 HYPERTENSION VOL 8, No 8, AUGUST 1986
FIGURE 9. Dark-field photomicrograph of a horizontal
sec-tion of the rat brain showing specific atrial natriuretic factor (ANF) binding sites in the olfactory bulb (OB), fasciculus retro-flexus (fr), pia-arachnoid (p/a), and choroid plexus (cp). Spe-cific binding sites were not observed in the cerebellum (Cb), caudate-putamen (CPu), or the hippocampus (H). (Line bar = 1.6 mm.)
purification, and sequence analysis of the human ANF receptor.40
While the present study provides information con-cerning the location and possible target tissues for ANF, it cannot indicate whether these tissues are occu-pied by circulating ANF or by locally synthesized ANF. Immunohistochemical data have revealed that in addition to the atrium, the salivary glands41 and several areas of the brain42'43 display cells containing ANF-like immunoreactivity. However, recent RNA blot hy-bridization experiments44 have suggested that the atri-um is the only tissue examined that displays high levels (> 0.5%) of the total messenger RNA (mRNA) coding for ANF. These histochemical and biochemical ex-periments are not necessarily in disagreement, since the RNA blot technique only detects very high levels of ANF mRNA. Therefore, tissues that synthesize rel-atively small amounts of ANF mRNA could very well be below the limits of detection with this technique but detectable with immunohistochemical techniques.
It is not clear whether all the binding sites identified in the present study correspond to functional ANF re-ceptors. Previous experiments strongly suggest that several of these binding sites have the proper physio-logical location (i.e., kidney, adrenals, and aorta) and pharmacological characteristics to be considered ANF receptors. Before many of the tissues we have shown to express ANF binding sites (i.e., lung, gallbladder, ciliary body, choroid plexus) can be properly consid-ered to express a functional ANF receptor, however, activation of these binding sites must be shown to produce a relevant physiological response.
Acknowledgments
We thank Martin Harris, Tony Hill, Kevin McFarthing, and Linda Zimnicki of the Amersham Corporation for the gift of rat and human '"I-ANF.
References
1. DeBold AJ, Borenstein HB, Veress AT, Sonnenberg H. A rapid and potent natriuretic response to intravenous injection of atrial myocardial extract in rats. Life Sci 1981;28:89-94 2. Briggs JP, Steipe B, Schubert G, Schermann J. Micropuncture
studies of the renal effects of atrial natriuretic substance. Pflugers Arch 1982;395:271-276
3. Keeler R. Atrial natriuretic factor has a direct prostaglandin-independent action on kidneys. Can J Physiol Pharmacol 1982;60:1078-1082
4. Sonnenberg H, Cupples WA, DeBold AJ, Veress AT. Intra-renal localization of the natriuretic effect of cardiac atrial ex-tract. Can J Physiol Pharmacol 1984;60:l 149-1152 5. Caraargo MJF, Kleinert HD, Atlas SA, Sealey JH, Maack T.
Ca-dependent hemodynamic and natriuretic effects of atria! extract in isolated rat kidney. Am J Physiol 1983;246: F447-F456
6. deWardener HE, MacGregor GA. The relation of a circulating sodium transport inhibitor (the natriuretic hormone?) to hyper-tension. Medicine (Baltimore) 1983;62:310-326
7. Coleman TG, Hall JE, Norman RA. Regulation of arterial blood pressure. In: Brenner BM, Stein JH, eds. Hypertension: contemporary issues in nephrology. New York: Churchill Liv-ingstone, 1981:285-312
8. DeBold AJ, Flynn TG. Cardioatrin I: a novel heart peptide with potent diuretic and natriuretic properties. Life Sci 1983; 33:297-302
9. Crammer RT, Fukumi H, Inagami T, Misono KS. Rat atrial natriuretic factor purification and vasorelaxant activity. Bio-chem Biophys Res Commun 1983;116:696-703
10. Flynn TG, DeBold ML, DeBold AJ. The amino acid sequence of an atrial peptide with potent diuretic and natriuretic proper-ties. Biochem Biophys Res Commun 1983;117:859-865 11. Thibault G, Garcia R, Seidah NGM, et al. Purification of three
atrial natriuretic factors and their amino acid composition. FEBS Lett 1984;167:352-356
12. Seidah NG, Lazure C, Chretien M, et al. Amino acid sequence of homologous rat atrial pep tides: natriuretic activity of native and synthetic forms. Proc Natl Acad Sci USA 1984;81: 2640-2644
13. Kangawa K, Matsuo H. Purification and complete amino acid sequence of human atrial natriuretic polypeptide (alpha-hANP). Biochem Biophys Res Commun 1984;118:131-139 14. Atlas SA, Kleinert HD, Camargo MJ, et al. Purification,
se-quencing and synthesis of natriuretic and vasoactive rat atrial peptide. Nature 1984;309:717-719
15. Currie MG, Geller DM, Cole BR, et al. Purification and se-quence analysis of bioactive atria! peptides (atriopeptins). Sci-ence 1984;223:67-69
16. Seidman CE, Duby AD, Choi E, et al. The structure of rat preproatrial natriuretic factor as defined by a complementary DNA clone. Science 1984^225:324-326
17. Yamanaka M, Greenberg BD, Johnson L, et al. Cloning and sequence analysis of the cDNA for rat atrial natriuretic factor precursor. Nature 1984;3O9:719-722
18. Zivin RA, Condra JH, Dixon RAF, et al. Molecular cloning and characterization of DNA sequences encoding rat and hu-man atrial natriuretic factors. Proc Natl Acad Sci USA 1984; 81:6325-6329
19. Nayayama K, Ohkubo H, Hirose T, Inayama S, Nakanishei S. mRNA sequence for human cardiodilatin-atrial natriuretic fac-tor precursor and regulation of precursor mRNA in rat atria. Nature 1984;310:699-701
20. Greenberg BD, Bencen GH, Seilhamer JJ, Lewicki JA, Fid-dles JC. Nucleotide sequence of the gene encoding human atrial natriuretic factor precursor. Nature 1984;312:656-658 21. Dietz JR. Release of natriuretic factor from heart-lung
prepara-tion by atrial distenprepara-tion. Am J Physiol 1984;247:R1093-R1096 22. Napier MA, Vandlen RL, Albers-Schonberg G, et al. Specific membrane receptors for atrial natriuretic factor in renal and vascular tissues. Proc Natl Acad Sci USA 1984;81:5946-5950 23. Hirata Y, Tomita M, Yoshimi H, Ikeda M. Specific receptors for atrial natriuretic factor (ANF) in cultured vascular smooth muscle cells of the rat aorta. Biochem Biophys Res Commun 1984; 125:562-568
24. DeLean A, Gutkowska J, McNicoll N, Schiller PW, Cantin M, Genest J. Characterization of specific receptors for atrial na-triuretic factor in bovine adrenal zone glomerulosa. Life Sci
1984;35:2311-2318
25. Young WS III, Kuhar MJ. A new method for receptor autora-diography: 3H-opioid receptors in rat brain. Brain Res 1979;179:255-270
26. Palacios JM, Niehoff DL, Kuhar MJ. Receptor autoradiog-raphy with tritium sensitive film: potential for computerized densitometry. Neurosci Lett 1981;25:101-105
27. Rainbow TC, Biegon A, Berck DJ. Quantitative receptor au-toradiography with tritium-labeled ligands: comparison of bio-chemical and densitometric measurements. J Neurosci Meth-ods 1985;11:231-241
28. Quirion R, Dalpe M, DeLean A, Gutkowska J, Cantin MM, Genest J. Atrial natriuretic factor (ANF) binding sites in brain and related structures. Peptides 1984;5:1167-1172
29. Needleman P, Adams SP, Cole BR, et al. Atriopeptins as cardiac hormones. Hypertension 1985;7:469-482
30. Currie MG, Geller DM, Cole BR, et al. Bioactive cardiac substances: potent vasorelaxant activity in mammalian atria. Science 1983;221:71-73
31. Chartier L, Schiffrin E, Thibault G. Effect of atrial natriuretic factor (ANF)-related peptides on aldosterone secretion by ad-renal glomerulosa cells: critical role of the intramolecular di-sulphide bond. Biochem Biophys Res Commun 1984;122:
171-174
32. DeLean A, Racz K, Gutkowska J, Nguyen TT, Cantin M, Genest J. Specific receptor-mediated inhibition by synthetic atrial natriuretic factor of hormone-stimulated steroidogenesis in cultured bovine adrenal cells. Endocrinology 1984; 115: 1636-1638
33. Atrashi K, Mulrow PJ, Franco-Saenz R, Snajdar R, Rapp J. Inhibition of aldosterone production by atrial extract. Science 1984;224:992-993
34. Kudo T, Baird A. Inhibition of aldosterone production in the adrenal glomerulosa by atrial natriuretic factor. Nature 1984; 312:756-757
35. Goodfriend TL, Elliott ME, Atlas SA. Actions of synthetic atrial natriuretic factor on bovine adrenal glomerulosa. Life Sci 1984;35:1675-1682
36. Januszewicz P, Gutkowska J, DeLean A, et al. Synthetic atrial natriuretic factor induces release (possibly receptor-mediated) of vasopressin from rat posterior pituitary. Proc Soc Exp Biol Med 1985;178:321-325
37. Chimoskey JE, Spielman WS, Brandt MA, Heidemann SR. Cardiac atria of BIO 14.6 hamsters are deficient in natriuretic factor. Science 1984;223:820-822
38. Mantyh CR, Brecha NC, Maggio JE, Mantyh PW. Localiza-tion of specific binding sites for atrial natriuretic factor in the guinea pig periphery and central nervous system [Abstract]. Presented at the fifth International Washington Spring Sympo-sium, Neural and Endocrine Peptides and Receptors, Washing-ton, DC, 1985:99
39. Mantyh CR, Brecha NC, Kruger L, Mantyh PW. Autoradio-graphic localization of atrial natriuretic factor binding sites in the periphery and central nervous system of the rat and guinea pig [Abstract]. Neurosci Abstr 1985;11:189
40. Mantyh CR, Brecha NC, Soon-Shiong P, Mantyh PW. Specif-ic binding sites for atrial natriuretSpecif-ic factor in human kidney [Letter]. N Engl J Med 1985;312:1710
41. Cantin M, Gutkowska J, Thibault G, et al. Immunocytochemi-cal loImmunocytochemi-calization of atrial natriuretic factor in the heart and sali-vary glands. Histochemistry 1984;80:l 13-127
42. Jacobowitz DM, Skofitsch G, Keiser HR, Eskay RL, Zamir N. Evidence for the existence of atrial natriuretic factor-contain-ing neurons in the rat brain. Neuroendocrinology 1985;40: 92-94
43. Saper CB, Standaert DB, Currie MG, Schwartz D, Geller DM, Needleman P. Atriopeptin-immunoreactive neurons in the brain: presence in cardiovascular regulatory areas. Science
1985;227:1047-1049
44. Seidman CE, Bloch KD, Zisfein J, et al. Molecular studies of the atrial natriuretic factor gene. Hypertension 1985;7(suppl I):I-31-1-34
