TA = 25 C unless otherwise noted. Symbol Parameter Value Units

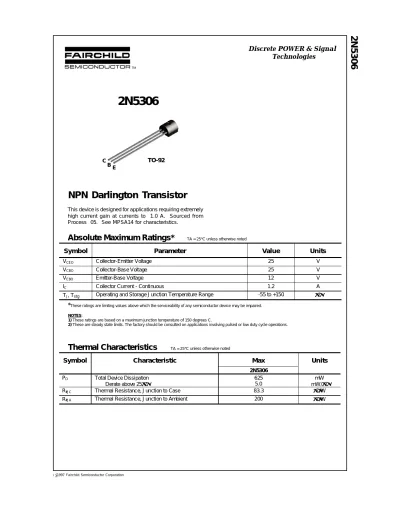

2N5306

Discrete POWER & Signal Technologies

NPN Darlington Transistor

2N5306

This device is designed for applications requiring extremely high current gain at currents to 1.0 A. Sourced from Process 05. See MPSA14 for characteristics.

Absolute Maximum Ratings*

*

NOTES:

1) These ratings are based on a maximum junction temperature of 150 degrees C.

2) These are steady state limits. The factory should be consulted on applications involving pulsed or low duty cycle operations.

Thermal Characteristics

Symbol Parameter Value Units

VCEO Collector-Emitter Voltage 25 V

VCBO Collector-Base Voltage 25 V

VEBO Emitter-Base Voltage 12 V

IC Collector Current - Continuous 1.2 A

TJ, Tstg Operating and Storage Junction Temperature Range -55 to +150 °C

Symbol Characteristic Max Units

2N5306 PD Total Device Dissipation

Derate above 25°C

625 5.0

mW mW/°C

R_θJC Thermal Resistance, Junction to Case 83.3 °C/W

RθJA Thermal Resistance, Junction to Ambient 200 °C/W

CBE

TO-92

 1997 Fairchild Semiconductor Corporation

2N5306

NPN Darlington Transistor

(continued)

Electrical Characteristics

OFF CHARACTERISTICS

Symbol Parameter Test Conditions Min Max Units

V(BR)CEO Collector-Emitter Breakdown Voltage* IC =10 mA, IB = 0 25 V

V(BR)CBO Collector-Base Breakdown Voltage IC = 0.1 µA, IE= 0 25 V

V(BR)EBO Emitter-Base Breakdown Voltage IE = 0.1 µA, IC = 0 12 V

ICBO Collector Cutoff Current VCB = 25 V, IE = 0

VCB = 25 V, IE = 0, TA = 100 °C 0.1 20

µAµA

IEBO Emitter Cutoff Current VEB = 12 V, IC = 0 0.1 µA

ON CHARACTERISTICS*

hFE DC Current Gain VCE = 5.0 V, IC = 2.0 mA VCE = 5.0 V, IC = 100 mA

7,000 20,000

70,000 VCE(sat) Collector-Emitter Saturation Voltage IC = 200 mA, IB = 0.2 mA 1.4 V VBE(sat) Base-Emitter Saturation Voltage IC = 200 mA, IB = 0.2 mA 1.6 V

VBE(on) Base-Emitter On Voltage IC = 200 mA, VCE = 5.0 V 1.5 V

SMALL SIGNAL CHARACTERISTICS

Ccb Collector-Base Capacitance VCB = 10 V, f = 1.0 MHz 10 pF

hfe Small-Signal Current Gain IC =2.0 mA, VCE = 5.0 V, f = 1.0 kHz

IC =2.0 mA, VCE = 5.0 V, f = 10 MHz

7,000 6.0

*

TO-92 Tape and Reel Data

March 2001, Rev. B1

©2001 Fairchild Semiconductor Corporation TO-92 Packaging

Configuration: Figure 1.0

AMMO PACK OPTION See Fig 3.0 for 2 Ammo

Pack Options

2000 units per EO70 box for std option

FSCINT Label

530mm x 130mm x83mm Intermediate box

10,000 units maximum perintermediate box

for std option FSCINT Label

114mm x 102mm x 51mm Immediate Box Anti-static Bubble Sheets (TO-92) BULK PACKING INFORMATION

EOL

CODE DESCRIPTION LEADCLIP

DIMENSION QUANTITY

J18Z TO-18 OPTION STD NO LEAD CLIP 2.0 K / BOX

J05Z TO-5 OPTION STD NO LEAD CLIP 1.5 K / BOX NO EOL

CODE

TO-92 STANDARD

STRAIGHT FOR: PKG 92, NO LEADCLIP 2.0 K / BOX

BULK OPTION See Bulk Packing Information table

375mm x 267mm x 375mm Intermediate Box

FSCINT Label

Customized Label

333mm x 231mm x 183mm Intermediate Box

FSCINT Label

Customized Label TO-92 TNR/AMMO PACKING INFROMATION

Packing Style Quantity EOL code

Reel A 2,000 D26Z

E 2,000 D27Z

Ammo M 2,000 D74Z

P 2,000 D75Z

Unit weight = 0.22 gm Reel weight with components = 1.04 kg Ammo weight with components = 1.02 kg Max quantity per intermediate box = 10,000 units

F63TNR Label

5 Ammo boxes per Intermediate Box

Customized Label

327mm x 158mm x 135mm Immediate Box

LOT: CBVK741B019

NSID: PN2222N

D/C1: D9842 SPEC REV: B2 SPEC:

QTY: 10000

QA REV:

FAIRCHILD SEMICONDUCTOR CORPORATION HTB:B

(FSCINT)

F63TNR Label Customized Label

5 Reels per Intermediate Box TAPE and REEL OPTION

See Fig 2.0 for various Reeling Styles

LOT: CBVK741B019 FSID: PN222N

D/C1: D9842 QTY1: SPEC REV:

SPEC:

QTY: 2000

D/C2: QTY2: CPN:

N/F: F (F63TNR)3 F63TNR Label sample

FSCINT Label sample

C

5 EO70 boxes per intermediate Box

ustomized Label

94 (NON PROELECTRON SERIES), 96 L34Z TO-92 STANDARD

STRAIGHT FOR: PKG 94 NO LEADCLIP 2.0 K / BOX (PROELECTRON SERIES

BCXXX, BFXXX, BSRXXX), 97, 98

TO-92 Tape and Reel Data, continued

September 1999, Rev. B TO-92 Reeling Style

Configuration: Figure 2.0

Style “A”, D26Z, D70Z (s/h) Machine Option “A” (H)

Style “E”, D27Z, D71Z (s/h) Machine Option “E” (J)

FIRST WIRE OFF IS EMITTER ADHESIVE TAPE IS ON THE TOP SIDE FLAT OF TRANSISTOR IS ON BOTTOM

ORDER STYLE D75Z (P) FIRST WIRE OFF IS COLLECTOR

ADHESIVE TAPE IS ON THE TOP SIDE FLAT OF TRANSISTOR IS ON TOP

ORDER STYLE D74Z (M)

TO-92 Radial Ammo Packaging Configuration: Figure 3.0

FIRST WIRE OFF IS EMITTER (ON PKG. 92) ADHESIVE TAPE IS ON BOTTOM SIDE FLAT OF TRANSISTOR IS ON BOTTOM

FIRST WIRE OFF IS COLLECTOR (ON PKG. 92) ADHESIVE TAPE IS ON BOTTOM SIDE FLAT OF TRANSISTOR IS ON TOP

ITEM DESCRIPTION

Base of Package to Lead Bend Component Height Lead Clinch Height Component Base Height Component Alignment ( side/side ) Component Alignment ( front/back ) Component Pitch

Feed Hole Pitch Hole Center to First Lead Hole Center to Component Center Lead Spread

Lead Thickness Cut Lead Length Taped Lead Length Taped Lead Thickness Carrier Tape Thickness Carrier Tape Width Hold - down Tape Width Hold - down Tape position Feed Hole Position Sprocket Hole Diameter Lead Spring Out

SYMBOL

b Ha HO H1 Pd Hd P PO P1 P2 F1/F2 d L L1 t t1 W WO W1 W2 DO S

DIMENSION

0.098 (max) 0.928 (+/- 0.025) 0.630 (+/- 0.020) 0.748 (+/- 0.020) 0.040 (max) 0.031 (max) 0.500 (+/- 0.020) 0.500 (+/- 0.008) 0.150 (+0.009, -0.010) 0.247 (+/- 0.007) 0.104 (+/- 0 .010) 0.018 (+0.002, -0.003) 0.429 (max) 0.209 (+0.051, -0.052) 0.032 (+/- 0.006) 0.021 (+/- 0.006) 0.708 (+0.020, -0.019) 0.236 (+/- 0.012) 0.035 (max) 0.360 (+/- 0.025) 0.157 (+0.008, -0.007) 0.004 (max)

Note : All dimensions are in inches.

ITEM DESCRIPTION SYSMBOL MINIMUM MAXIMUM

Reel Diameter D1 13.975 14.025

Arbor Hole Diameter (Standard) D2 1.160 1.200

(Small Hole) D2 0.650 0.700

Core Diameter D3 3.100 3.300

Hub Recess Inner Diameter D4 2.700 3.100

Hub Recess Depth W1 0.370 0.570

Flange to Flange Inner Width W2 1.630 1.690

Hub to Hub Center Width W3 2.090

Note: All dimensions are inches

TO-92 Tape and Reel Taping Dimension Configuration: Figure 4.0

Ha

H1 HO

PO P2 P1 F1

DO

P Pd

b

d

L1

L S

WO W2

W t

t1 Hd

W1

TO-92 Reel

Configuration: Figure 5.0

User Direction of Feed

SEN SI TIVE D EVICES ELECT ROSTATIC

D1

D3 Customized Label

W2

W1 W3 F63TNR Label

D4

D2

TO-92 Tape and Reel Data, continued

July 1999, Rev. A

TO-92 (FS PKG Code 92, 94, 96)

TO-92 Package Dimensions

January 2000, Rev. B

1:1

Scale 1:1 on letter size paper Dimensions shown below are in:

inches [millimeters]

Part Weight per unit (gram): 0.1977

©2000 Fairchild Semiconductor International
