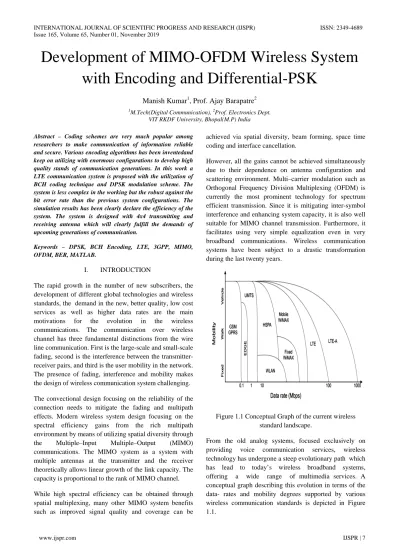

Development of MIMO-OFDM Wireless System with Encoding and Differential-PSK
Manish Kumar1, Prof. Ajay Barapatre2
1M.Tech(Digital Communication), 2Prof. Electronics Dept.
VIT RKDF University, Bhopal(M.P) India
Abstract – Coding schemes are very much popular among researchers to make communication of information reliable and secure. Various encoding algorithms has been inventedand keep on utilizing with enormous configurations to develop high quality stands of communication generations. In this work a LTE communication system is proposed with the utilization of BCH coding technique and DPSK modulation scheme. The system is less complex in the working but the robust against the bit error rate than the previous system configurations. The simulation results has been clearly declare the efficiency of the system. The system is designed with 4x4 transmitting and receiving antenna which will clearly fulfill the demands of upcoming generations of communication.
Keywords – DPSK, BCH Encoding, LTE, 3GPP, MIMO, OFDM, BER, MATLAB.
I. INTRODUCTION
The rapid growth in the number of new subscribers, the development of different global technologies and wireless standards, the demand in the new, better quality, low cost services as well as higher data rates are the main motivations for the evolution in the wireless communications. The communication over wireless channel has three fundamental distinctions from the wire line communication. First is the large-scale and small-scale fading, second is the interference between the transmitter- receiver pairs, and third is the user mobility in the network.
The presence of fading, interference and mobility makes the design of wireless communication system challenging.
The convectional design focusing on the reliability of the connection needs to mitigate the fading and multipath effects. Modern wireless system design focusing on the spectral efficiency gains from the rich multipath environment by means of utilizing spatial diversity through the Multiple–Input Multiple–Output (MIMO) communications. The MIMO system as a system with multiple antennas at the transmitter and the receiver theoretically allows linear growth of the link capacity. The capacity is proportional to the rank of MIMO channel.
While high spectral efficiency can be obtained through spatial multiplexing, many other MIMO system benefits such as improved signal quality and coverage can be
achieved via spatial diversity, beam forming, space time coding and interface cancellation.
However, all the gains cannot be achieved simultaneously due to their dependence on antenna configuration and scattering environment. Multi–carrier modulation such as Orthogonal Frequency Division Multiplexing (OFDM) is currently the most prominent technology for spectrum efficient transmission. Since it is mitigating inter-symbol interference and enhancing system capacity, it is also well suitable for MIMO channel transmission. Furthermore, it facilitates using very simple equalization even in very broadband communications. Wireless communication systems have been subject to a drastic transformation during the last twenty years.
Figure 1.1 Conceptual Graph of the current wireless standard landscape.
From the old analog systems, focused exclusively on providing voice communication services, wireless technology has undergone a steep evolutionary path which has lead to today’s wireless broadband systems, offering a wide range of multimedia services. A conceptual graph describing this evolution in terms of the data- rates and mobility degrees supported by various wireless communication standards is depicted in Figure 1.1.
The Long Term Evolution Advanced (LTE-A) system, at 100 Mbps for users moving at vehicular speeds and 1 Gbps for low-mobility users.
To obtain a higher data rate, MIMO techniques are widely used in most current wire- less communication systems.
There are three significant advantages of multi- antenna systems: (1) energy efficiency. The signal to noise ratio (SNR) is improved; (2) diversity gain. The fading effect can be compensated for the replica of signals over different uncorrelated channels; (3) multiplexing gain. The data rate can be increased by transmitting independent data streams through multiple transmit antennas. The theoretical research on MIMO which describes that the capacity for single user communication in fading channels can significantly increases using multiple antennas. Although the theoretical analysis on the capacity of MIMO channels has been established, the more practical algorithms to achieve the capacity are still waiting for further study.
II. RECURSIVE MIMO-OFDM
In time division multiple accesses (TDMA), the users are given orthogonal time slots, and each user occupies the entire frequency band over the assigned time slot. The GSM networks are based on TDMA. The users are separated by orthogonal codes in code division multiple access (CDMA). The spectrum sharing of the UMTS system is based on CDMA. Spectral sharing among the users, also referred to as multiple accesses, is carried out by dividing the signaling dimensions along the time, code, and/or frequency domains.
In frequency division multiple access (FDMA), the total system bandwidth is divided into orthogonal frequency channels. Orthogonal frequency division multiple accesses (OFDMA) combine orthogonal frequency division multiplexing (OFDM) and FDMA and are one of the multiple access candidates for beyond 3G systems.
Multiple-input multiple-output (MIMO) processing exploits multiple antenna elements at the transmitting end as well as at the receiving end.
Fig MIMO-OFDM scheme.
The main idea in MIMO systems is space-time signal processing, where time and space domain signals are jointly processed. MIMO systems can be seen as an extension of conventional smart antenna systems. Those systems employ multiple antenna elements at only the transmitter or the receiver for beamforming or spatial diversity. Beamforming increases the average SNR by focusing the energy in the desired directions using correlated antenna elements. On the other hand, the correlation of antenna elements should be minimized when link reliability is improved by spatial diversity schemes.
The capacity of MIMO channels cannot be achieved without using an outer channel code (providing redundancy for better protection of the information bits in the presence of burst fading, interference, or a strong noise) concatenated to a space-time mapped acting as an inner code. In such a system, the optimal joint detector/decoder is computationally infeasible, even with reasonable block lengths.
The turbo principle, originally invented for the decoding of concatenated codes, can be used computationally efficiently to approximate the joint detection/decoding.
This so called turbo equalization or iterative detection and decoding was first proposed and was further studied. The MIMO technology provides many advantages in wireless communication systems, such as: spatial diversity, high spectral efficiency, high data rates, improved reliability and coverage. These advantages make the MIMO technology very attractive for the deployment in wireless communication systems. The advances in MIMO technology resulted in its implementation in current commercialized wireless communications standards.
The early research on MIMO concentrated on fundamental spatial diversity to decrease the degradation in the execution brought about by multipath propagation. Future wireless communication systems will require high data rate transmission with high reliability and receivers with low complexity. The mix of MIMO and OFDM innovations can give the vast majority of these necessities.
Nonetheless, the computational complexity of MIMO OFDM receivers can be high. A MIMO receiver with an ideal data detector that limits the probability of errors in location choices and utilizations a thorough pursuit over all conceivable transmitted data symbols can give a high identification execution. However, the ideal MIMO discovery is confounded, particularly in huge MIMO systems. Another choice would be the utilization of problematic straight recognition plots that have lower complexity, for example, the Zero-Forcing (ZF) discovery and Minimum Mean Square Error (MMSE) location.
Despite the fact that these recognition plans have lower
complexity, they can in a degraded execution. These detectors treat the channel gauges utilized in the location as flawless, which isn't the situation by and by. There-fore, such detectors are called confounded detectors.
III. PROPOSED METHODOLOGY
In this proposed work a LTE communication system is proposed with the utilization of BCH coding technique and DPSK modulation scheme. To exhibit a coded MIMO- OFDM system is considered with Encode data and BCH encoding. Further we additionally shown system with Encode data subcarriers. To proposed OFDM system to adjust the data for ary-DPSK encoding, it will demonstrate channel limit. MIMO-OFDM system builds connect dependability, channel limit and phantom efficiency of multiuser wireless communication.
Fig Flow Chart of Proposed system.
The range sign required to get satisfactory aftereffect of reproduction is first picked dependent on the information data and the balance plan utilized, (for example, Differential DPSK, BCH). Amplitudes and periods of the transporter sign is determined dependent on the picked
plan of modulation. The Transmitting data before transmission is first allocated to every transporter that will be created and further it is balanced. The BER execution assessment of different tweak systems, for example, DPSK and BCH regulation plans for BCH and Convolution partner coded system over AWGN channel is shown in this work. The exhibition of various modulation techniques is analyzed regarding BER.
BCH Coding: A standout amongst the most significant and ground-breaking classes of direct square codes are BCH codes, and it contains the accompanying parameters:
During code configuration, there is an exact power over the quantity of symbol error correctable by the code. It remedies multiple piece blunders and can be effectively decoded utilizing disorder interpreting. BCH codes are the arbitrary blunder remedying codes and these are adaptable while picking the code parameters like square length and code rate.
The significant utilization of Convolution codes is that they are utilized to improve the presentation of wireless connections and are utilized in a large portion of most recent versatile networks. A Convolution encoder is called so in light of the fact that it plays out a convolution of the input stream with the encoder's drive reactions.
Fundamentally used to accomplish a solid data move, these are more dominant for error redress than square codes.
Iterative Decoding
On the algorithmic side, best in class MIMO decoders utilize non-straight MIMO identification plans dependent on sphere decoding (SD). In addition, such decoders frequently perform iterative MIMO recognition and channel interpreting, which is known as iterative MIMO deciphering. In iterative recognition and translating, an a posteriori likelihood (Application) MIMO calculation is the ideal method to compute the probabilistic delicate data of the internal coded bits communicated with log- likelihood ratio (LLR) values. The logarithmic area is utilized to rearrange the number juggling tasks. The probabilistic delicate data is then additionally prepared in the external channel decoder dependent on, for instance, the most extreme a posteriori likelihood (Guide) disentangling and bolstered back to the inward locator.
Channel Models
Proposed methodology can be implemented using modern wireless channel models like Stanford University Intrim (SUI), Extended Urban Model (ETU) and ITU channels etc. The benefits of using these models are considerations of high density microwave environment.
Start
Declare System Variables
Declare objects for channel, Encoding & modulations
Generate data for transmission
Encode Data with BCH Encoder
Modulate data with m-ary DPSK
Transmit Through MIMO-OFDM Channel with 4*4
Demodulate with m-ary DPSK at Reviever
Decode Data with BCH Decoder
Calculate Bit Error Rate
Compare & Display Results
End
The multiple antennas are thus used to increase data rates through multiplexing or to improve performance through diversity. MIMO channelProposed block diagram is shown in Fig.2.
Coherent hard-output MIMO detection algorithms compute estimates of the transmitted symbol vector.
Estimates of the transmitted bits are obtained by remapping the computed symbol-vector estimate to its corresponding bit-labels.Table 3.1 shows the simulation parameters and its value for used for the proposed work.
Figure1 Proposed block diagram MIMO-OFDM.
Table 3.1: Simulation Parameters
Parameters Values
SNR Range 0 to 14 dB
Coding Method BCH Coding
MIMO Configuration 4 x 4 Modulation Technique M-ary DPSK
Packet Length 500
Channel and Noise Model AWGN
IV. SIMULATION RESULTS
This works analyses the bit error rate performance of BCH code in AWGN channel using DPSK, as change plans. The BCH encoder square makes a BCH code with impediment length. Here a coded OFDM system with subcarriers and the amount of SNR range are 0 to 14 db. The figure exhibits the BER Versus SNR for different systems using various modification plans. It is even seen from assume that BER continues enhancing utilizing BCH coding for DPSK, separately. A cascade like unexpected drop of the bit mistake rate (BER) can be ordinarily seen at low-to- direct motion toward commotion proportion's (SNR). The proposed system accomplishes both coding and diversity gain, conspire improved with encoder, and the proposed BCH encoder accomplishes better mistake remedying performance.
In this MIMO-OFDM system that has sufficiently not examined is the impact of utilizing various blends of encoders and interleaves for the systems performance.
BCH coding plans, the cross antenna coding with per antenna interleaving plan has the best BER performance.
The objective is to accomplish least memory use, while keeping up BER performance. The (BCH) square incorporates encoding, puncturing and interleaving Error Recognition and Remedy utilizing the BCH Code. In the above utilized plans, the input data is first encoded utilizing BCH encoder pursued by puncturing. The subsequent stage included is interleaving utilizing an
arbitrary interleaver. The figure 4.1 4.2 and 4.3 are demonstrates the BER Versus SNR for various utilizing modulation plans.
To demonstrate proposed System, Bit error rate iscalculated as presented in figure 4.1 for BCH Coding with 2-DPSK and 4x4 antenna configuration compared with Previous Turbo Encoding modulation respectively.
Fig. 4.1 BER vs SNR(db) for BCH Coding with 2-DPSK and 4x4 antenna configuration compared with Previous
Turbo Encoding
Fig. BER vs SNR(db) for BCH Coding with 4-DPSK and 4x4 antenna configuration compared with Previous Turbo
Encoding
BCH Encoder
M-ary DPSk Modulation
MIMO OFDM Channel
4*4
M-ary DPSK Demodulation
BCH Decoder I/P
Data
O/P
Data
0 1 2 3 4 5 6 7 8 9
SNR (dB) 10-5
10-4 10-3 10-2 10-1 100
Bit Error Rate
BCH Encoding (Our) with M=2, Nt=4 Turbo Encoding (Prev.)
0 1 2 3 4 5 6 7 8 9
SNR (dB) 10-6
10-5 10-4 10-3 10-2 10-1 100
Bit Error Rate
BCH Encoding (Our) with M=4, Nt=4 Turbo Encoding (Prev.)
Figure 4.2 presents, comparison of BER for M-ary DPSK modulation itis observed that, BER of 10-1 is achieved at SNR under the BCH Coding with 4-DPSK and 4x4 antenna configurationsrespectively.
From figure 4.3 (observed that BER of 10-1 isachieved at SNR for BCH Coding with 8-DPSK and 4x4 antenna configurationenvironments for BCH and DPSK respectively.
Fig. BER vs SNR(db) for BCH Coding with 8-DPSK and 4x4 antenna configuration compared with Previous Turbo
Encoding
The table 4.1 Shown that the Various Performance of Previous and proposed work.
Table 4.1: BER Comparison
SNR Bit Error Rate (BER)
Previous [1] Proposed [Our]
0 3.50x10-1 9.41x10-2
1 3.25x10-1 6.93x10-2
2 3.10x10-1 2.95x10-2
3 2.75x10-1 8.61x10-3
4 1.60x10-1 3.79x10-3
5 7.50x10-2 9.95x10-4
6 2.15x10-2 2.10x10-4
7 4.30x10-3 4.10x10-5
8 5.20x10-4 3.01x10-6
9 3.70x10-5 -
V. CONCLUSION AND FUTURE SCOPE During the last decade, many wired communication systems are being supplanted by comparing wireless administrations. With the expanding profit capacity of versatile PCs and individual digital associates, for instance, wireless administrations have moved from voice-based to sight and sound situated applications. Such administrations
regularly will in general require considerably higher data rates. In this works demonstrate the correlation of BER and SNR performances of BCH and DPSK modulation procedures over the AWGN channel. In view of the reproduction results it is inferred that by utilizing DPSK plan better SNR performance for same estimation of BER is gotten when contrasted with the past work. Overall BER performance of the system and the base required SNR to fulfill both high quality and low quality of data are obtained in this work.
Potential points of future research incorporate more accurate estimation of the conveyance for the viable SINR since the established asymptotic appropriation isn't down to earth for the little parcel transmission situations.
Because of the advancement of the 3GPP norms the potential future research subjects incorporate the expansion of the inferred systems for multi-client MIMO–
OFDM transmission in 3GPP LTE network.
REFERENCES
[1] T. Cui, F. Gao, A. Nallanathan, H. Lin and C. Tellambura,
"Iterative Demodulation and Decoding Algorithm for 3GPP/LTE-A MIMO-OFDM Using Distribution Approximation," in IEEE Transactions on Wireless Communications, vol. 17, no. 2, pp. 1331-1342, Feb. 2018.
[2] A. Akbarpour-Kasgari and M. Ardebilipour, "Mimo-OFDM Compressed Channel Estimation Using Forward-Backward Pursuit," Electrical Engineering (ICEE), Iranian Conference on, Mashhad, 2018, pp. 670-673.
[3] C. Mei and W. Huang, "Low-complexity zero-forcing detector for large-scale MIMO-OFDM systems," 2017 Asia- Pacific Signal and Information Processing Association Annual Summit and Conference (APSIPA ASC), Kuala Lumpur, 2017, pp. 838-841.
[4] K. P. J. Sherin and E. Abhitha, "ICI mitigation in MIMO- OFDM by iterative equalization using OPT in time varying channels," 2017 International Conference on Intelligent Computing and Control (I2C2), Coimbatore, 2017, pp. 1-6.
[5] Wenjie Zhang, Hui Li and Bin Li, "Iterative decision- directed channel estimation for MIMO-OFDM system,"
2016 2nd IEEE International Conference on Computer and Communications (ICCC), Chengdu, 2016, pp. 1678-1682.
[6] V. S. Jadhav and P. Sawant, "Performance scrutiny and optimization of LDPC coded MIMO OFDM systems," 2016 International Conference on Inventive Computation Technologies (ICICT), Coimbatore, 2016, pp. 1-4.
[7] F. Ghavimi and H. Chen, "M2M Communications in 3GPP LTE/LTE-A Networks: Architectures, Service Requirements, Challenges, and Applications," in IEEE Communications Surveys & Tutorials, vol. 17, no. 2, pp.
525-549, Secondquarter 2015.
0 2 4 6 8 10 12
SNR (dB) 10-6
10-5 10-4 10-3 10-2 10-1 100
Bit Error Rate
BCH Encoding (Our) with M=8, Nt=4 Turbo Encoding (Prev.)
[8] Q. Guo, D. Huang, S. Nordholm, J. Xi, and L. Ping, “Soft-in soft-out detection using partial Gaussian approximation,”
IEEE Access, vol. 2, pp. 427–436, 2014.
[9] M. Cˇ irkic´, D. Persson, E. G. Larsson, and J.-Å.
Larsson, “Gaussian approximation of the LLR distribution for the ML and partial marginalization MIMO detectors,” in Proc. IEEE ICASSP, May 2011, pp.
3232–3235.
[10] F. Gao, T. Cui, and A. Nallanathan, “On channel estimation and optimal training design for amplify and forward relay networks,” IEEE Trans. Wireless Commun., vol. 7, no. 5, pp. 1907–1916, May 2008.
[11] T. Cui, F. Gao, T. Ho, and A. Nallanathan, “Distributed space–time coding for two-way wireless relay networks,”
IEEE Trans. Signal Process., vol. 57, no. 2, pp. 658–671, Feb. 2009.
[12] F. Gao, R. Zhang, and Y.-C. Liang, “Optimal channel estimation and training design for two-way relay networks,”
IEEE Trans. Commun., vol. 57, no. 10, pp. 3024–3033, Oct.
2009.
[13] F. Gao, R. Zhang, and Y. C. Liang, “Channel estimation for OFDM modulated two-way relay networks,” IEEE Trans.
Signal Process., vol. 57, no. 11, pp. 4443–4455, Nov.
2009.
