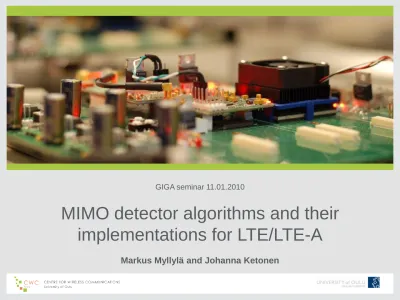

MIMO detector algorithms and their implementations for LTE/LTE-A

(1)

MIMO detector algorithms and their implementations for LTE/LTE-A

Markus Myllylä and Johanna Ketonen

(2)

© Centre for Wireless Communications, University of Oulu

Outline

• Introduction

• System model

• Detection in a MIMO-OFDM system

• SIC and K-best LSD implementation

• MMF – LSD Implementation

• Summary and Conclusions

(3)

Introduction

•

Orthogonal frequency division multiplexing (OFDM), which simplifies the receiver design, has become a widely used technique for broadband wireless systems

• Multiple-input multiple-output (MIMO) channels offer improved capacity and potential for improved reliability compared to single- input single-output (SISO) channels

• MIMO technique in combination with OFDM (MIMO-OFDM) has been identified as a promising approach for high spectral

efficiency wideband systems

• 3GPP LTE, WiMax

(4)

A MIMO-OFDM system

 OFDM based multiple antenna system with N_T transmit and N_R receive antennas

 Received signal y=Hx+h

where H is the channel matrix,

x is the transmitted symbol vector, h is a noise vector.

Figure: A MIMO-OFDM system model

Encoder QAM Int

S/P Mod IFFT

FFT SISO

detector DeInt SISO

decoder Channel

x

y LD1 LA2 LD2

+LE1

-

Int +

LA1 LE2

b

(5)

Detection for MIMO-OFDM

CWC | Centre For Wireless Communications 5

 Detection means that the detector calculates an estimate of the transmitted signal vector x as an output of the detector

 Transmitted signal vector x includes N_T different symbols

 The OFDM technique simplifies the receiver structure by decoupling

frequency selective MIMO channel into a set of parallel flat fading channels

 Different data is sent in different subcarriers

 However, the reception of the signal has to be done seperately for each subcarrier

 E.g. in 3GPP LTE standard 512 subcarriers (300 used) with 5MHz bandwidth (BW) and the the interval of OFDM symbol is 71s

 Thus, detector must calculate an estimate of 300 x N_T symbols in 71s

(6)

 The use of maximum a posteriori (MAP) detector is the optimal solution for soft output detection

 In practice coded systems are used, i.e., soft output detection is applied

 The calculation of maximum likelihood (ML) and MAP solutions with conventional exhaustive search algorithms is not feasible with large constellation and high number of transmit antennas

 Suboptimal linear minimum mean square error (LMMSE) and zero forcing (ZF) criterion based detectors feasible with reduced

performance

 The LMMSE performance can be improved by performing successive interference cancellation (SIC) between the MIMO streams, i.e., detecting the strongest signal first and cancelling its interference from each received signal.

(7)

 Sphere detectors (SD) calculate ML solution with reduced complexity

 List sphere detector (LSD) is an enhancement of SD that can be used to approximate the MAP detector

 Sphere detectors more complex compared to linear detectors

 Linear detectors calculate a weight matrix W which can be possibly be used for multiple subcarriers and OFDM symbols

 Depending on the channel coherence time and frequency

 SD and LSD execute a tree search always separately for each subcarrier and OFDM symbol

 List sphere detector executes a tree search

 Gives a list L of candidate symbol vectors as an output, which is used to approximate the soft output information L_D(b_k)

 The list size |L| affects the quality of the approximation and depending on the list size, the LSD provides a tradeoff between the performance and the computational complexity

(8)

Tree search algorithms

• The tree search algorithms are often divided according to their search strategy into different categories:

– Breadth first (BF)

• Fixed complexity can be easily determined – Depth search (DF)

• More efficient than BF in terms of visited nodes and variable complexity – Metric-first (MF)

• Optimal in the sense of visited search tree nodes and variable complexity

• Visited nodes should be maintained in metric order to ensure the optimality -> requires the nodes to be stored in memory

LSD algorithm

LLR calculation

H

Q, R

y

L_D1(b_k)

Preprocessing L

~

Figure: A high level architecture of LSD

(9)

9

The K-best LSD algorithm

Root layer

layer 4

layer 3

• The K-best LSD is a breadth-first search algorithm

2

1 2 transmit antennas, 4 quadrature amplitude modulation (QAM), real valued

1 -1

1 -1 1 -1

2

4 4 , 4

4

r x

y -

2

3 3 , 3

3

r x r x

y -

^3,4 ⁴

-

2

4 4 , 1 3

, 2

,

1

r x r x r x r x

y -

^1,1 ¹

-

¹ ²

-

¹ ³

-

(10)

Soft successive interference cancellation (SIC)

10

H 1 2

H

)

( H H I H

W   

_M ^

} 7 , 5 , 3 , 1 {

|, ) tanh(log

| ) sgn(log

ˆ  P S P

^ ²

S 

x

^re ⁱ ⁱ

P log

1. stream 2. stream

xˆ

(11)

• The LSD receiver outperforms the SIC receiver and LMMSE receivers.

• In an uncorrelated channel, the SIC receiver performs better.

11

(12)

Implementation results

– Mentor Graphics Catapult C tool used for RTL generation

• VHDL generated from C code

– A field programmable gate array (FPGA) implementation

• Xilinx Virtex-4 chip

• Synthesis with Precision RTL

– An application specific intrated circuit (ASIC) implementation

• 0.18um CMOS technology

• Synthesis with Design Compiler

(13)

Complexity comparison in a 2x2 system

• 2x2 16-QAM results for complexity in equivalent gates, power consumption and maximum decoding rate

• 140 Mb/s is the required decoding rate of coded bits in LTE for a 20 MHz bandwidth for 2x2 16-QAM.

• The goodput is the detection rate times (1-FER) at the given SNR.

13

Receiver Complexity Power Decoding rate

Goodput 16 dB

LMMSE 66 k ge 59 mW 140 Mb/s 0 Mb/s 45 Mb/s

SIC 85 k ge 83 mW 140 Mb/s 5.3 Mb/s 84 Mb/s

8-best LSD 197 k ge 175 mW 140 Mb/s 21.4 Mb/s 128 Mb/s 8-best, 2 it. 236 k ge 251 mW 140 Mb/s 63.3 Mb/s 139.6 Mb/s

(14)

Complexity comparison in a 4x4 system

• 4x4 16-QAM

• Decoding rate was set to meet the LTE requirements for a 20 MHz bandwidth

• The iterative K-best gives the highest goodput at low SNRs

14

Receiver Complexity Power Decoding rate

LMMSE 480 k ge 376 mW 280 Mb/s 0 Mb/s 101 Mb/s

SIC 540 k ge 449 mW 280 Mb/s 0 Mb/s 246 Mb/s

8-best LSD 582 k ge 568 mW 280 Mb/s 14 Mb/s 280 Mb/s 8-best, 2 it. 634 k ge 700 mW 280 Mb/s 68 Mb/s 280 Mb/s

(15)

• Modified metric first (MMF) - LSD

• The architecture includes four different units

• Tree pruning unit

• Final candidate memory

• Partial candidate memory

• Control logic unit

• Architecture operates in a sequential fashion

• Two tree nodes calculated in one iteration

MMF-LSD architecture design

Figure: The MMF-LSD algorithm architecture

(16)

Implementation trade-offs

10 11 12 13 14 15 16 17 18 19 20 21 22 23 24

10^-2 10^-1 10⁰

SNR (dB)

FER

4x4 MIMO, LSD with list 15, Winner B1, 60kmph

MMF,logMAP,D_max= MMF,maxlog,D_max= MMF,maxlog,D_max=120/300it MMF,maxlog,D_max=100/150it MMF,maxlog,D_max=80/100it maxlog, ML

LMMSE

DF,maxlog,D_max=750it 16-QAM

64-QAM

Figure: FER vs. SNR: Performance of the real LSD based receivers in a 4x4 antenna system

(17)

• MMF-LSD synthesis results

– Architecture units

• SEE-LSD synthesis results

– Depth first comparison

• LLR calculation

– Max-log-MAP solution

• 4x4 system with 16-QAM

(18)

(19)

Summary

Successive interference cancellation (SIC)

– Improves the LMMSE performance with cancellation step – Simple implementation

K-best List Sphere Detector (LSD) – Parallel tree search algorithm

– Implementation can be parallel and easy to pipeline Modified Metric First (MMF) – LSD

– Dijkstra’s algorithm – Metric first search

– Modified to be feasible for implementation

(20)

Conclusions

In a 2x2 system

– SIC performs well with low complexity

– For high data rates at low SNRs, a more complex LSD receiver can be used

In a 4x4 system

– The K-best LSD gives goodput at low SNRs

– In better channel conditions, SIC also performs well

Implementation of MMF-LSD presented

– 4x4 MIMO system with 16-QAM – FPGA synthesis results

– ASIC synthesis results

 LSD feasible for practical systems

 Design comparable to the state-of-the-art
