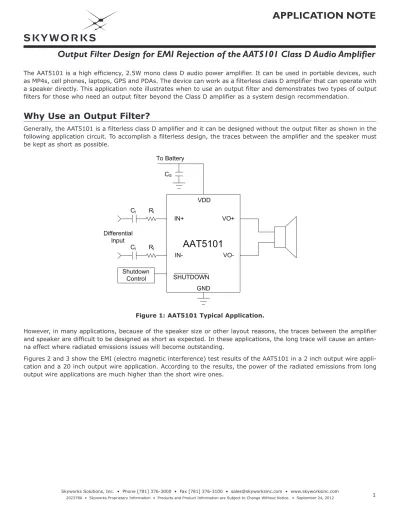

Output Filter Design for EMI Rejection of the AAT5101 Class D Audio Amplifier

(1)

The AAT5101 is a high efficiency, 2.5W mono class D audio power amplifier. It can be used in portable devices, such as MP4s, cell phones, laptops, GPS and PDAs. The device can work as a filterless class D amplifier that can operate with a speaker directly. This application note illustrates when to use an output filter and demonstrates two types of output filters for those who need an output filter beyond the Class D amplifier as a system design recommendation.

Why Use an Output Filter?

Generally, the AAT5101 is a filterless class D amplifier and it can be designed without the output filter as shown in the following application circuit. To accomplish a filterless design, the traces between the amplifier and the speaker must be kept as short as possible.

R

I

R

I

Differential Input

SHUTDOWN GND

VO+

VO- IN-

IN+

C

S

To Battery

VDD

AAT5101

Shutdown Control

C

I

C

I

Figure 1: AAT5101 Typical Application.

However, in many applications, because of the speaker size or other layout reasons, the traces between the amplifier and speaker are difficult to be designed as short as expected. In these applications, the long trace will cause an anten- na effect where radiated emissions issues will become outstanding.

Figures 2 and 3 show the EMI (electro magnetic interference) test results of the AAT5101 in a 2 inch output wire appli-

cation and a 20 inch output wire application. According to the results, the power of the radiated emissions from long

output wire applications are much higher than the short wire ones.

(2)

Figure 2: AAT5101 EMI Test Result with 2" Figure 3: AAT5101 EMI Test Result with 20"

Twisted-Pair Wire Connected to a 4Ω Speaker. Twisted-Pair Wire Connected to a 4Ω Speaker.

How is EMI (Electro Magnetic Interference) Radiation Generated?

A Class D amplifier uses a PWM signal to drive the output driver after the audio signal by comparing it with an internal saw tooth waveform. The radiated noise comes from the PWM switching noise caused by the fast rising and falling edges of the PWM square-wave. To reduce the noise in the system application, output filtering is necessary.

Choosing an Output Filter

There are two types of output filters: ferrite bead filters and LC filters.

Ferrite Bead Filter

If there is high frequency EMI sensitive circuits in the system, a ferrite bead filter connected after the class D outputs is recommended as shown in Figure 4. The ferrite bead is specified with the feature of high impedance at high frequen- cies, but very low impedance at low frequencies.

OUT+

OUT-

Ferrite Bead

1nF

OUT+’

OUT-’

Figure 4: Ferrite Bead Filter After AAT5101.

(3)

Figure 5 shows the impedance characteristics of a suitable ferrite bead (MPZ1608S221A). From the curve, it can be seen that the impedance Z of the ferrite bead is above 50Ω at high frequencies (from 10MHz to 1000MHz) while very low at low frequencies. With the ferried bead, the high frequency signal will be attenuated very well and the audio frequency signal can go across the ferrite bead easily with no lost power.

Figure 5: Impedance Characteristics of the Ferrite Bead (MPZ1608S221A).

In Figure 6, the oscilloscope waveform compares the result of the ferrite bead filtering the high frequency of the PWM rising edge of the Class D amplifier. The rise time becomes longer when there is a ferrite bead filter after the AAT5101 outputs.

Figure 6: Ferrite Bead Filter Result (Ch1: OUT+, Ch4: OUT+').

(4)

LC Filter

If there are low frequency EMI sensitive circuits in the system, an LC filter with low pass feature is suitable to be con- nected after the class D outputs as is shown in Figure 7. Choose the inductor and capacitor according to the following equations:

C = 1

2π · f C · R L

L = 2 · R L

4π · f C

Where

C is the capacitance L is the inductance

f

C

is the cut-off frequency of the LC filter

OUT+

OUT-

C

L C

R

L

Figure 7: LC Filter.

For example, select an LC filter for an 8Ω speaker. With the LC filter cut-off frequency f

C

set to 28kHz, C can be calcu- lated by:

C = 1

2π · f C · R L = 1 = 1µF 2π · 28kHz · 8Ω

L = 2 · R L

4π · f C = 2 · 8Ω = 32.2µH 4π · 28kHz

Table 1 gives the recommended value of the LC filter for 4Ω or 8Ω speaker when setting f

C

to 28kHz.

f

C

(kHz) L (μH) C (μF) R

L

(Ω)

28 15 2.2 4

28 33 1 8

Table 1: LC Filter Example for 4Ωor 8Ω Speaker when Setting f

C

to 28kHz

(5)

Figure 8 shows the LC filter frequency response with the L = 33μF, C = 1μF and R

L

= 8Ω.

Figure 8: LC Filter Frequency Response.

PCB Layout Guidance

When output filters are used in the AAT5101 application, the output filter should be placed very close to output of device. Since the AAT5101 is a fully differential class D audio amplifier, the output filter as well as the output traces should be identical to each other and the distance between the trace routing should be small to reduce common noise and radiation.

EMI Radiation Results with Ferrite Bead Filter

Figure 9 shows the EMI test results using the AAT5101 with a ferrite bead filter and a 20 inch twisted-pair output wire

connected to a 4Ω speaker. According to the test results, the EMI radiation is reduced to a low level and passes the CE

test EN55022.

(6)

Information in this document is provided in connection with Skyworks Solutions, Inc. (“Skyworks”) products or services. These materials, including the information contained herein, are provided by Skyworks as a service to its customers and may be used for informational purposes only by the customer. Skyworks assumes no responsibility for errors or omissions in these materials or the information contained herein. Sky- works may change its documentation, products, services, specifications or product descriptions at any time, without notice. Skyworks makes no commitment to update the materials or information and shall have no responsibility whatsoever for conflicts, incompatibilities, or other difficulties arising from any future changes.

No license, whether express, implied, by estoppel or otherwise, is granted to any intellectual property rights by this document. Skyworks assumes no liability for any materials, products or information provided here- under, including the sale, distribution, reproduction or use of Skyworks products, information or materials, except as may be provided in Skyworks Terms and Conditions of Sale.

THE MATERIALS, PRODUCTS AND INFORMATION ARE PROVIDED “AS IS” WITHOUT WARRANTY OF ANY KIND, WHETHER EXPRESS, IMPLIED, STATUTORY, OR OTHERWISE, INCLUDING FITNESS FOR A PARTICULAR PURPOSE OR USE, MERCHANTABILITY, PERFORMANCE, QUALITY OR NON-INFRINGEMENT OF ANY INTELLECTUAL PROPERTY RIGHT; ALL SUCH WARRANTIES ARE HEREBY EXPRESSLY DISCLAIMED. SKYWORKS DOES NOT WARRANT THE ACCURACY OR COMPLETENESS OF THE INFORMATION, TEXT, GRAPHICS OR OTHER ITEMS CONTAINED WITHIN THESE MATERIALS. SKYWORKS SHALL NOT BE LIABLE FOR ANY DAMAGES, IN- CLUDING BUT NOT LIMITED TO ANY SPECIAL, INDIRECT, INCIDENTAL, STATUTORY, OR CONSEQUENTIAL DAMAGES, INCLUDING WITHOUT LIMITATION, LOST REVENUES OR LOST PROFITS THAT MAY RESULT FROM THE USE OF THE MATERIALS OR INFORMATION, WHETHER OR NOT THE RECIPIENT OF MATERIALS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Skyworks products are not intended for use in medical, lifesaving or life-sustaining applications, or other equipment in which the failure of the Skyworks products could lead to personal injury, death, physical or en- vironmental damage. Skyworks customers using or selling Skyworks products for use in such applications do so at their own risk and agree to fully indemnify Skyworks for any damages resulting from such improper use or sale.

Customers are responsible for their products and applications using Skyworks products, which may deviate from published specifications as a result of design defects, errors, or operation of products outside of published parameters or design specifications. Customers should include design and operating safeguards to minimize these and other risks. Skyworks assumes no liability for applications assistance, customer product

Conclusion

A Low pass filter is recommended when the application system is sensitive to high frequency noise and the speaker connection is far from the class D driver. The Ferrite bead filter is recommended for high frequency radiation attenua- tion and the LC filter is for low frequency radiation reduction as shown in the summary in Table 2.
