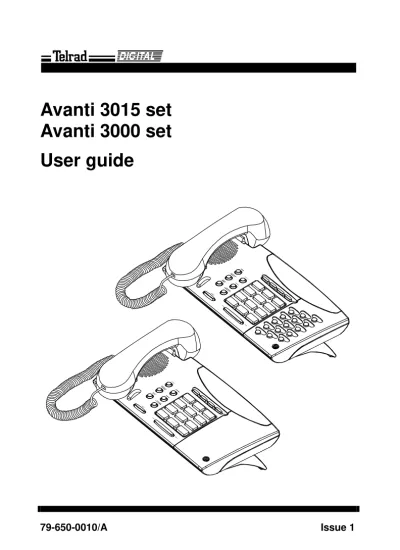

Avanti 3015 set

Avanti 3000 set

User guide

(2)

79-650-0010/A, Issue 1 Prin ted in Isr ael

(3)

79-650-0010/A, Issue1

Avanti 3015 set

Avanti 3000 set

User guide

Telrad Telecommunications Inc., Woodbury, New York

(4)

NOTICE

This publication refers to Telrad's Avanti 3015 set and Avanti 3000 set connected to Telrad's DIGI-TAL KEY BX system, Release SB7, or Telrad's DIGITAL 400 system, Release DB7, or Telrad’s DIGITAL 1000 system, Release LB7, as of July, 1999.

Telrad reserves the right to modify the equipment and the software described herein without prior notice. However, changes made to the equipment or to the software described herein do not neces-sarily render this publication invalid.

© 1999 Telrad Telecommunications Inc., Woodbury, New York

(5)

CONTENTS

ABOUT YOUR AVANTI TELEPHONE ... 1

TELEPHONE SET BUTTONS ... 1

DISTINCTIVE RINGING ... 6

MUTE ... 7

HOT DIALPAD ... 8

INTERNAL CALLS ... 9

BARGE INTO A CONVERSATION ... 10

PAGE CALLS ... 10

ANSWERING CALLS ... 11

CALL WAITING ... 11

OUTSIDE CALLS ... 13

AUTOMATIC REDIAL ... 14

WAITING FOR AN AVAILABLE OUTSIDE LINE ... 14

CIRCUMVENTING EXTENSION RESTRICTIONS ... 15

OBTAINING SPECIAL SERVICES VIA LINES DEFINED AS BEHIND AN EXCHANGE ... 16 HOLD ... 17 TRANSFERRING CALLS ... 18 CONFERENCE CALLS ... 19 PICKUP ... 20 MESSAGES ... 21 SENDING MESSAGES... 21 RECEIVING MESSAGES ... 21

DELETING ALL MESSAGES... 21

DO NOT DISTURB (DND) ... 22

DND MESSAGES ... 23

FORWARDING CALLS ... 24

CANCELING CALL FORWARD TO ME ... 26

ABBREVIATED DIALING ... 27 SPEED DIAL ... 27 MEMORY BUTTONS ... 28 ALARM ... 29 TELEPHONE LOCK ... 30 DOOR UNIT ... 31 NOTE PAD ... 32 ADVANCED FEATURES ... 33 FEATURE CODES ... 34

(6)
(7)
(8)

ABOUT YOUR AVANTI TELEPHONE

The Avanti 3000 set and the Avanti 3015 set are equipped with onhook dialing and hot dialpad capability, which enable you to dial or operate any feature by pressing the dialpad buttons. Only when you speak it is necessary to lift the handset.

NOTE

This guide describes the regular operation of the telephone. The configuration of your particular system and telephone may introduce differences in operation. For example, some of the features and buttons described in this guide may not be available on your telephone set. For more infor-mation, see your System Administrator.

TELEPHONE SET BUTTONS

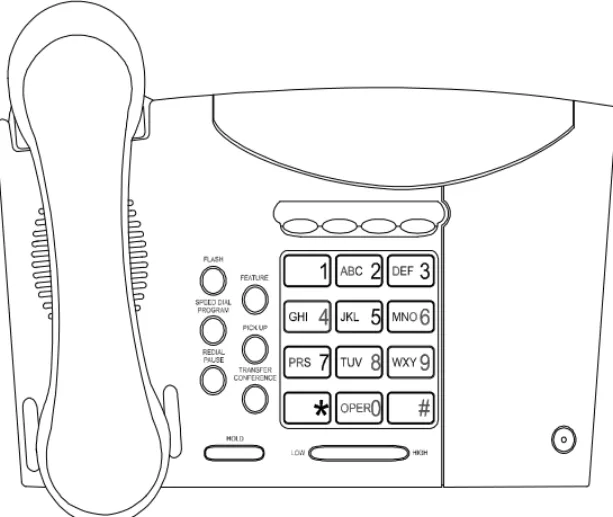

The Avanti 3000 set has eight fixed feature buttons plus four programmable buttons above the dialpad.

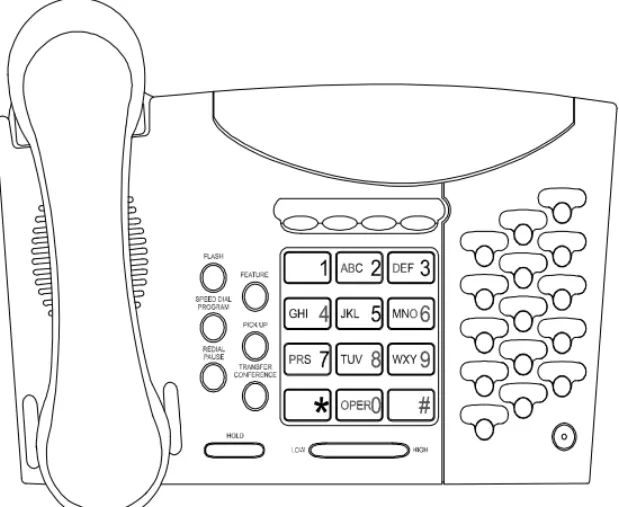

The Avanti 3015 set has 15 additional programmable but-tons to the right of the dial pad (see Figure 1 above).

NOTE

In this guide, fixed buttons appear in bold type, in capital letters, within brackets, e.g., [HOLD]. User programmable buttons appear in capital letters, e.g. SPEED DIAL.

(9)

The telephone sets’ programmable buttons have dual-color light indicators. The color and flash rate of the indicators show the status of the programmed line, feature or exten-sion.

In general, red indicates non-availability (for example, a busy line); green indicates that you are using the feature or line or that it is available to you.

User-programmable buttons

Some of the buttons on your telephone may be user-pro-grammable SPEED DIAL or MEMORY buttons. You may program these to access extensions, features or outside lines.

Fixed feature buttons

The following fixed feature buttons appear on your tele-phone set:

[HOLD]

This button places a call on hold. [FEATURE]

Press [FEATURE] and then dial a feature access code to activate features (see the Feature codes table at the end of this guide).

[PICK UP]

Press this button to pick up calls. [TRANSFER/CONFERENCE]

Press this button to transfer calls and when establishing and exiting conference calls.

NOTE

The [TRANSFER/CONFERENCE] button is referred to as [TRANSFER] or

(10)

[CONFER-[SPEED DIAL/PROGRAM]

This button is used for speed dialing and for programming various features.

[REDIAL/PAUSE]

This buttons lets you automatically redial the last outside number you dialed, after first accessing an outside line. Pressing this button while dialing on an external line inserts a pause in a dialing sequence.

[LO HI]

This button adjusts the volume of the speaker, handset, headset, ringer and background music when any of these is active.

[FLASH]

Depending on system programming, this button is used to disconnect or to send Flash Signal to the connected remote exchange.

Programmable buttons

The following buttons on your set have already been pro-grammed to perform specific functions. The System Administrator can program these buttons to perform other functions. If the function of certain buttons does not match those appearing in Figure 1 at the beginning of this guide, consult your System Administrator.

NOTE

With the default configuration, the following fea-tures are programmed on the four buttons above the dialpad: [MSG], [DND], [MUTE] and [SPKR].

(11)

[MSG]

This button is used to send messages to other extensions and to reply to messages left at your extension.

[DND]

This button activates and deactivates Do Not Disturb. [MUTE]

This button disables/enables your telephone microphone. [SPKR]

For handsfree operation, press [SPKR] instead of lifting or replacing the handset.

DN buttons

DN buttons are buttons associated with specific Directory Numbers.

The first DN button is your Primary DN button, which has the same number as your extension. The Primary DN but-ton is used for making and receiving most of your calls. Whenever you pick up the handset, your Primary DN but-ton, or - if it is not available - another DN button lights green.

If no DN buttons are available, no DN button lights, you do not receive dial tone, and you cannot place or answer calls.

NOTES

Not all telephone sets are programmed with DN buttons. The instructions in this manual often contain references to DN indicators and dis-plays of DN numbers. If your telephone set is not programmed with DN buttons, disregard these references.

(12)

Many of the instructions offer a number of options, one of which is pressing a DN button. If your telephone set is not programmed with DN buttons, choose one of the other options, or skip the step of pressing the DN button.

Some of the features operate slightly differently on a telephone set that is not programmed with DN buttons. These differences are indicated where relevant. Consult your System Adminis-trator for further details about the programming of your telephone set.

DN buttons may be programmed in three different modes: • ringing mode - the telephone rings and the DN button

flashes green when a call is received.

flashing mode - the DN button flashes green when a call is received, but there is no ringing.

delayed ringing mode - a call rings first at another set or group of sets, for a programmed length of time, before beginning to ring at your set.

Outside line buttons

One or more of the buttons on your telephone may be associated with either specific lines or outside line groups. To access a line for dialing outside the system, press an outside line button.

Floating buttons

Calls on outside lines for which no button has been

defined, may be associated with a button just for the dura-tion of the call. These buttons are called “floating” buttons.

NOTE

Some of the access codes in your system may be different from those indicated here. If so, see your system administrator for the correct codes.

(13)

DISTINCTIVE RINGING

You can program telephone sets located close to each other with distinctive rings, to enable you to identify which telephone is ringing. Nine different rings are available. To change the ring for your telephone set

1. Press [*] and [#] simultaneously.

2. Press one of the dialpad buttons ([1] - [9]). When you hear the ring that you want:

3. Press [#].

4. Lift and replace the handset.

Your telephone set reinitializes and all telephone rings (internal, external, recall, etc.) sound with the distinctive ring selected.

(14)

MUTE

If you want to talk to someone in your office during a call, without the connected party hearing, you can disable the handset or telephone set microphone.

To enable or disable the microphone (MUTE)

Press [MUTE] during a conversation. To enable or disable

the handset microphone (HANDSET MUTE) During a handset call:

Press [HS MUTE] (if programmed). NOTE

If your set is Single Audio Path (SAP), pressing [MUTE] deactivates both microphones.

ALLOWING OTHER PEOPLE TO HEAR

YOUR CONVERSATION (SPEAKER MONITOR)

While you are speaking through the handset, the conversa-tion can be directed through your telephone speaker, so that people in your vicinity can hear the other end of the conversation.

1. Press [FEATURE]. 2. Press [SPKR].

The [SPKR] indicator turns on.

(15)

HOT DIALPAD

The hot dialpad enables you to dial and activate features without lifting the handset or pressing [SPKR] first.

NOTE

The instructions in this guide assume that you have hot dialpad capability.

(16)

INTERNAL CALLS

To place a non-ringing call 1. Dial the extension number. When the called party answers: 2. Lift the handset to talk. To place a ringing call

1. Dial the TONE access code [1]. 2. Dial the extension number.

If the extension you called is busy (CALL BACK)

When you dial an extension and hear busy tone, you can activate the Callback feature:

1. Press [FEATURE].

2. Dial the CALLBACK/QUEUE access code ([2][2]). 3. Hang up.

When the called extension becomes available, your tele-phone rings.

4. Then:

Lift the handset.

You hear the called extension ringing. To cancel Call back

1. Dial the CANCEL code [#]. 2. Press [FEATURE].

3. Dial the CALLBACK/QUEUE access code ([2][2]). 4. Hang up.

(17)

BARGE INTO A CONVERSATION

Depending on system programming, you may be able to break into another conversation.

When you dial an extension and hear busy tone: 1. Press [FEATURE].

2. Dial the BARGE IN access code ([2][4]).

A warning tone is heard by all parties, depending on system programming.

PAGE CALLS

You can make announcements through an external page unit, or through the speakers of all DIGITAL telephones in a page zone.

1. Lift the handset. 2. Press [FEATURE].

3. Dial the PAGE zone access code ([4][1] - [4][8]). 4. After the double tone burst:

Make your announcement.

To speak directly with a page initiator (MEET ME PAGE)

You can call a page initiator during a page call: 1. Lift the handset.

2. Press [FEATURE].

3. Dial the MEET ME PAGE access code ([6][6]). 4. Dial the PAGE zone access code.

(18)

ANSWERING CALLS

When you receive a call an indicator flashes green on a telephone set that is programmed with DN buttons. You usually also hear a ring, unless your set has been pro-grammed not to ring.

To answer a ringing or flashing call • Pick up the handset

or

• Press the flashing button and pick up the handset. After you answer the call the indicator of the DN or pri-vate trunk line lights steady green.

To answer an intercom call

(coming through your telephone speaker) • Talk through the microphone.

If you prefer, you may lift the handset instead. CALL WAITING

You may hear a beep, indicating a second call, while already engaged in a conversation.

You can answer the call without disconnecting the first call. To answer a second call

1. Press [HOLD];

the first call is put on hold. The indicator for that line flashes green.

2. Press the DN or outside line button that is flashing green;

(19)

To return to the first call 1. Press [HOLD].

2. Press the flashing DN button. or

1. Press [PICK UP]. 2. Press [HOLD].

NOTE

If your telephone does not have DN buttons, you cannot put an internal call on hold. This means that you cannot answer another arriving internal call without disconnecting the first internal call. In this case, you must hang up first. You can then answer the second call when it rings.

(20)

OUTSIDE CALLS

Outside calls may be placed by accessing an outside line (or group) or using the Least Cost Routing (LCR) feature. When the instructions tell you to access an outside line, you may:

• Dial an outside line or outside line group number; • Press an outside line or outside line group button; • Dial the LCR access code (usually [9]).

To place an outside call 1. Obtain an outside line. 2. Dial the desired number.

See also Abbreviated dialing, below. When the called party answers:

3. Lift the handset to talk.

To redial the last outside number you dialed 1. Obtain an outside line.

2. Press [REDIAL].

To save a frequently dialed outside number (SAVE/REPEAT)

After dialing the desired number, but before hanging up: 1. Press [FEATURE].

(21)

To dial the number saved 1. Access an outside line. 2. Press [FEATURE].

3. Dial the SAVE/REPEAT access code ([7][7]). AUTOMATIC REDIAL

If you dial an outside number and hear busy tone you can have the system redial the number several times, at pre-defined intervals.

When you hear busy tone: • Press an ARD button. When the called party answers: • Lift the handset.

If the dialed number rings, or if the system makes the max-imum number of dialing attempts, the Automatic redial is deactivated.

To temporarily deactivate or reactivate Automatic RedialPress the ARD button again.

NOTE

Several Automatic redials may be activated simultaneously by using more than one ARD button.

WAITING FOR AN AVAILABLE OUTSIDE LINE (TRUNK QUEUE)

When you try to select an outside line and hear busy tone: 1. Press [FEATURE].

(22)

When an outside line becomes available, the system rings your extension. Then:

3. Lift the handset.

4. Listen for outside dial tone and dial the desired number. To cancel trunk queue

1. Dial the CANCEL code [#]. 2. Press [FEATURE].

3. Dial the CALLBACK/QUEUE access code ([2][2]). 4. Hang up.

CIRCUMVENTING EXTENSION RESTRICTIONS (TRAVELING CLASS OF SERVICE)

You can dial an outside number from a toll-restricted tele-phone by temporarily assigning it your own extension's Class Of Service (COS) or a system-wide (Global) COS, accessible only to privileged users.

1. Press [TC] (if defined) or dial the TRAVEL COS (Class Of Service) access code.

2. Dial your extension number - to apply your extension's COS, or

Press [

*

] for a Global COS.

3. Dial your ECC authorization code or a Global COS code.

The [TC] indicator (if defined) lights.

The Travel COS feature is active for a predefined period.

(23)

OBTAINING SPECIAL SERVICES

VIA LINES DEFINED AS BEHIND AN EXCHANGE (CENTREX OR PBX)

You may be able to access special services provided by a CENTREX or PBX exchange.

To access services while connected to the outside line

1. Press [FEATURE]. 2. Press [FLASH].

(24)

HOLD

There are two types of hold:

Exclusive hold: the call can be retrieved only from your extension.

Inclusive hold: the call can also be retrieved by other sets with a button for that appearance.

You cannot transfer a call that is on hold.

When you place a call on hold, you automatically receive dial tone and can make a page call or dial to another exten-sion. If you do not receive dial tone, this means that no DN is available.

To place a call on exclusive holdPress [HOLD] once.

The indicator flashes green on your set and red on other sets with a button for that line.

To place a call on inclusive holdPress [HOLD] twice.

The indicator flashes green on all sets that have a but-ton for that line.

Depending on the programming of your extension, the first press of hold may activate Inclusive hold, and the second press, Exclusive hold. See your System Administrator. To pick up a call from hold

• Press the flashing button of the call on hold. or

1. Press [PICK UP]. 2. Press [HOLD].

(25)

TRANSFERRING CALLS

You can transfer a call to another extension: 1. Press [TRANSFER].

2. Dial the extension number.

3. Announce the call when the other party answers and then hang-up.

To retrieve a transferred call

If you have not yet hung up and the other party has not yet answered the transferred call, you may retrieve the trans-ferred call.

(26)

CONFERENCE CALLS

A total of eight parties, any of which may be on outside lines, can participate in a conference.

To establish a conference 1. Make the first call. 2. Press [CONFERENCE]. 3. Make the next call. After the call is answered:

4. Press [CONFERENCE] again.

5. Repeat steps 2 through 4 to add up to five more parties to the conference.

(27)

PICKUP

You can answer a call at another extension, without leaving your desk.

To pick up a call on hold

or ringing at another extension 1. Press [PICK UP].

2. Dial the number of the extension at which the call is ringing or on hold.

To pick up a call ringing in your pickup group

• Press a MEMORY button programmed with GROUP PICK UP.

or

1. Press [PICK UP]. 2. Press [*].

See ABBREVIATED DIALING for instructions on how to program MEMORY buttons.

(28)

MESSAGES

If after dialing an extension, there is no answer or you hear busy tone, you can send a basic message or a message from a predefined list, which appears on the display of the extension you called.

When you send a basic message, display telephones show “CALL” followed by your extension name or number (e.g. “CALL STEVE”).

SENDING MESSAGES To send a basic message After dialing an extension: 1. Press [MSG].

2. Hang up

The message is sent. RECEIVING MESSAGES

When messages have been left at your extension, your [MSG] indicator lights and you hear a broken dial tone when you lift the handset or press [SPKR]. If your set has a display, it informs you of messages waiting for you. To call the message sender

1. Press [SPKR]. 2. Press [MSG].

DELETING ALL MESSAGES

To delete all messages left at your telephone 1. Press [#].

2. Press [MSG]. 3. Hang up.

(29)

DO NOT DISTURB (DND)

If you do not want calls to ring at your telephone, tempo-rarily, you can activate the DND feature.

NOTE

If your telephone set is not programmed with DN buttons, the DND indication is slightly different. If the [DND] button flashes red, this indicates that your set is programmed for Call forward. You can deactivate Call forward by pressing the flashing [DND] button.

To place your telephone in do not disturb modePress [DND].

The DND indicator lights steady red, and no calls ring at your telephone. Internal callers hear busy tone and see your DND message, if programmed. If your set is pro-grammed for DND call forwarding or for Call Forward, calls are forwarded.

To cancel DND modePress [DND].

(30)

DND MESSAGES

You can select a predefined message that appears on the display of telephones that call your extension, while it is in DND mode. You can also ask the System Administrator to program additional messages.

To program a DND message 1. Press [FEATURE].

2. Press [PROGRAM]. 3. Press [DND].

4. Enter a message number (two digits; e.g. 08. See the DND messages table at the end of this guide for a com-plete list of available messages).

5. Hang up.

To cancel your DND message 1. Press [#].

2. Press [PROGRAM]. 3. Press [DND].

(31)

FORWARDING CALLS

You may program your telephone set to forward your calls to another extension.

To program call forwarding

1. If your set does not have DN buttons, skip to step 2. If you want to program forwarding for a specific DN, first press the desired DN button.

If you want the calls on all the DNs at your set for-warded to the same destination, you may do this in one step (provided you have authorization to do so and none of the DNs are restricted for Call forwarding). Pro-ceed as described below, but press [*] after entering the destination (step 5).

If more than one set with a button for the same DN is authorized to forward calls for that DN, the last pro-gramming performed overrides the previous.

2. Press [FEATURE].

3. Dial the code that designates in which situation you want your calls forwarded:

4. Dial the code designating the calls you want forwarded:

In order to program Dial

Call forward always [F][L] or [3][5]

Call forward busy [F][B] or [3][2]

Call forward no answer [F][N] or [3][6]

In order to program Dial

All calls [A] or [2] [E] or [3]

(32)

5. Enter the new destination to which you want your calls forwarded.

NOTE

Instead of dialing the extension number, you may press a MEMORY button programmed with an extension number (for internal calls only) - or press a SPEED DIAL button (or press [SPEED DIAL] and dial a SPEED DIAL memory bin number) for internal or external calls, as determined by the contents of the memory. Calls are forwarded to the contents of the MEMORY button or SPEED DIAL bin. If you change the contents of the SPEED DIAL bin, calls are forwarded to the new destination. This does not apply to the MEMORY button. 6. Hang up.

To cancel call forwarding

1. Press the DN button (if applicable) and then press [CANCEL] or [#].

2. Press [FEATURE].

3. Dial the code that designates what type of Call forward-ing you want to cancel: [3][5], [3][2], or [3][6].

4. Dial the code that designates which of your calls are currently forwarded and for which you want to cancel the call forwarding programming: [2], [3], or [4].

If you want to cancel call forwarding for all DNs, press [*].

(33)

CANCELING CALL FORWARD TO ME

If another set has programmed your telephone set as its forwarding destination and you do not wish to be disturbed by those calls, you can cancel your status as a call for-warding destination.

To cancel Call Forward to me 1. Press the CANCEL code [#]. 2. Press [FEATURE].

3. Dial the CALL FORWARD access code [3][5]. 4. Dial [8].

5. Dial the extension number whose calls you no longer want forwarded to your set

or

Press [*] if you wish to cancel all Call Forward to me, from all sets.

(34)

ABBREVIATED DIALING

This section describes several ways of abbreviating dial-ing. Save/Repeat and Redial are described in Outside Calls, above.

SPEED DIAL

Speed dial shortens the procedure of dialing outside num-bers by using speed dial buttons and speed dial memories (called “bins”).

To speed dial an outside number

Press [SPEED DIAL] and dial the speed dial bin code (three digits),

or

Press the appropriate SPEED DIAL button. To program a speed dial memory code or button 1. Press [FEATURE].

2. Press [SPEED DIAL/PROGRAM]. 3. Do one of the following:

Dial a speed dial bin code (three digits; e.g. 003),or Press the SPEED DIAL button to be programmed. 4. Dial an outside line access code followed by the

num-ber you want to store. 5. Hang up.

NOTE

Pauses may be entered in a speed dial sequence by pressing [REDIAL/PAUSE].

(35)

MEMORY BUTTONS

Memory buttons are used for one-press dialing of exten-sions and feature access codes.

To dial with a MEMORY button • Press the programmed button. To program a MEMORY button 1. Press [FEATURE].

2. Press [PROGRAM].

3. Press the MEMORY button to be programmed. 4. Dial the desired extension number (up to four digits)

or

Press [FEATURE] and then dial the desired feature code.

See the Feature codes table at the end of this guide. 5. Hang up.

(36)

ALARM

Your telephone can sound an alarm ring at a pre-pro-grammed time.

To program an alarm time 1. Press [FEATURE].

2. Dial the TIME ALARM access code ([8][2]).

3. Dial the four-digit alarm time (HH:MM) using the 24 hour format (e.g. 1530 for 3:30 pm).

4. Hang up.

To cancel the alarm setting Before the alarm rings: 1. Press [#].

2. Press [FEATURE].

3. Dial the TIME ALARM access code ([8][2]). 4. Hang up.

To stop the alarm ring

(37)

TELEPHONE LOCK

You can prevent people from making outside calls from your telephone.

To lock your telephone

1. Dial the LOCK access code.

2. Dial your Executive Credit Code (see your System Administrator).

3. Hang up.

The telephone lock dialing restrictions are in effect. The [LOCK] button, if defined, lights.

To unlock your telephone • Repeat the above procedure.

(38)

DOOR UNIT

Your system may have a door unit equipped with an inter-com and electric door latch. When a visitor presses the doorbell, up to four system extensions ring.

When the door bell rings If your telephone is ringing:

Press [SPKR] or lift the handset. If another extension is ringing:

• Dial the PAGE zone access code associated with the door unit,

or

Press the flashing [DOOR] button, if defined. You can now speak with the person at the door. Opening the electric door latch

While connected to the door unit:Press [*].

(39)

NOTE PAD

You can save a number of up to 16 digits during a call. 1. Press [FEATURE].

2. Press [PROGRAM] twice.

3. Dial an available speed dial memory code (three digits) or press an available SPEED DIAL button.

4. Enter up to 16 digits. 5. Press [PROGRAM].

To dial the number saved, do a regular Speed Dial using the Speed Dial memory code or button you used to save the number (see Abbreviated dialing).

(40)

ADVANCED FEATURES

This section lists some advanced features which you can activate from your telephone. Details concerning the oper-ation of these features can be found in the DIGITAL Sys-tems Operating Instructions manual.

• Account code (voluntary, reminder, forced); • Answering a second incoming call;

• Background music; • Camp on; • Conference loop; • Confirmed transfer; • Dial attendant; • DISA;

• Executive Credit Code (ECC) programming; • Executive intercom;

• External Call Forward; • Floating buttons; • Hot line; • Intrusion; • Meet me conference; • Pick up; • Last hold; • Page transfer; • System speed dial;

(41)

FEATURE CODES

Features can be activated by pressing the [FEATURE] but-ton and then dialing a feature access code.

The default feature codes (see next page) reflect the fea-ture initials, using the letters on the dialpad buttons. For example:

To access Barge In

Press [FEATURE] followed by the dialpad buttons cor-responding to the letters BI (Barge In).

That is,

The feature codes in your system may have been

changed. If so, enter the updated feature access codes in the “Access method” column of the Feature codes table.

FEATURE 2

ABC

4 GHI

(42)

Feature codes

Feature name Abbreviation Access method

ACCOUNT CODE AT [FEATURE][2][8]

ACD LOGIN (1) -

-ACD LOGOUT (1) -

-ALL/GROUP - [*]

ATTENDANT - [0]

BACKGROUND MUSIC 1 BM [FEATURE][2][6]

BACKGROUND MUSIC 2-4 (1) (3) -

-BARGE IN BI [FEATURE][2][4]

CALL ACCOUNT MONITOR (1) -

-CALLBACK/QUEUE CB [FEATURE][2][2]

CALL FORWARD-ALWAYS FL [FEATURE][3][5]

CALL FORWARD-BUSY FB [FEATURE][3][2]

CALL FORWARD-NO ANSWER FN [FEATURE][3][6]

CANCEL - [#]

CLIR (1)(2) -

-CONFERENCE LOOP 1-10 (1) -

-DIRECTORY 1 THROUGH 9 (1) -

-DIRECTORY 10 (HELP) (1) -

-DROP (from conference) (1) -

-END OF DIALING/S-END - [FEATURE][#]

EXECUTIVE CREDIT CODE EX [FEATURE][3][9]

FEATURE - [7]

FLASH SIGNAL(1) FS [FEATURE][3][7]

FLIP FLOP FF [FEATURE][3][3]

GROUP PICKUP (1) -

-INTRUSION - [6]

LAST HOLD LH [FEATURE][5][4]

LEAST COST ROUTING (1) -

-LOCK (1) -

-MEET ME CONFERENCE 1-5 (1) -

-(1) Access method not assigned by default. (2) Only available on ISDN PRI calls.

(3) In the DIGITAL 400 up to eight; in the DIGITAL 1000 up to 24. Not all of the above features are available on every type of telephone set.

(43)

MEET ME PAGE MM [FEATURE][6][6] MESSAGE ME [FEATURE][6][3] NIGHT SERVICE (1) - -PAGE - INTERNAL 1 through 8 I1 through I8 [FEATURE][4][1] through [4][8] PAGE - EXTERNAL 1 through 8 (1) X1 through X8 -PICKUP PU [FEATURE][7][8] PROGRAM PM [FEATURE][7][6] REDIAL RL [FEATURE][7][5] SAVE/REPEAT SR [FEATURE][7][7]

SPEED DIAL SD [FEATURE][7][3]

TIME ALARM TA [FEATURE][8][2]

TONE - [1]

TONE DIAL (DTMF) (1) -

-TRAVEL COS(1) -

-TRUNK PATCH TP [FEATURE][8][7]

TRUNK SPEED DIAL (1) -

-VOICE MESSAGE (1) -

-Feature codes (Continued)

Feature name Abbreviation Access method

(1) Access method not assigned by default. (2) Only available on ISDN PRI calls.

(3) In the DIGITAL 400 up to eight; in the DIGITAL 1000 up to 24. Not all of the above features are available on every type of telephone set.

(44)

DND messages

Message number Default message Updated message

01 BE BACK SOON

02 BE BACK AT * * : * * (1)

03 BE BACK ON * * - * * (1)

04 OUT UNTIL * * : * * (1)

05 OUT FOR THE DAY

06 OUT OF OFFICE

07 OUT OF TOWN

08 OUT ON A CALL

09 OUT FOR LUNCH

10 ON VACATION

11 ON A TRIP

12 ON BREAK

13 AWAY FROM DESK

14 GONE HOME 15 BUSY UNTIL * * : * * (1) 16 CALL * * * * * (1) 17 CALL ME AT * * * * * (1) 18 CALL LATER 19 CALL TOMORROW 20 DO NOT DISTURB 21 IN A MEETING 22 IN CONFERENCE 23 WITH A CLIENT 24 WITH A GUEST 25 WITH A PATIENT 26 UNAVAILABLE 27 LEAVE MSG AT * * * (1) 28 TAKE MSG AT * * * * (1) 29 30

(45)

System messages

Message number Default message Updated message

01 CALL_ (Basic message) 02 CALL * * * * * (1) 03 CALL HOME 04 CALL ME 05 GONE OUT 06 READ MAIL 07 VOICE MAIL 08 CALL BOSS 09 TAKE MSGS 10 GONE HOME 11 JOB DONE 12 IN TROUBLE 13 CLIENT 14 BRING WORK 15 ANY NEWS? 16 REPORT DUE 17 COME HERE 18 MEET. NOW 19 MEMO READY 20 TYPE LETTR 21 WELL DONE 22 (2) 23 24 25 25 27 28 29 30

(46)

Your speed dial codes

Figure

Figure 1  Avanti 3015 set faceplate

Figure 1

Avanti 3015 set faceplate p.6
Figure 2  Avanti 3000 set faceplate

Figure 2

Avanti 3000 set faceplate p.7

References

Related subjects :
