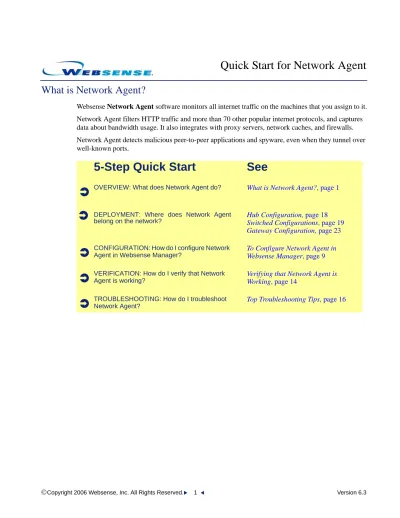

What is Network Agent?
Websense Network Agent software monitors all internet traffic on the machines that you assign to it. Network Agent filters HTTP traffic and more than 70 other popular internet protocols, and captures data about bandwidth usage. It also integrates with proxy servers, network caches, and firewalls. Network Agent detects malicious peer-to-peer applications and spyware, even when they tunnel over well-known ports.
5-Step Quick Start
See
OVERVIEW: What does Network Agent do? What is Network Agent?, page 1
DEPLOYMENT: Where does Network Agent
belong on the network? Hub ConfigurationSwitched Configurations, page 18, page 19
Gateway Configuration, page 23
CONFIGURATION: How do I configure Network Agent in Websense Manager?
To Configure Network Agent in Websense Manager, page 9
VERIFICATION: How do I verify that Network Agent is working?
Verifying that Network Agent is Working, page 14
TROUBLESHOOTING: How do I troubleshoot Network Agent?
On how many machines should I deploy Network Agent?
Capacity planning for Network Agent depends on hardware capabilities, bandwidth, memory, number of Network Interface Cards (NICs), operating system, user profiles, traffic mix, database, protocols assigned to Network Agent, and where you deploy it. Some sites use one Network Agent machine for every thousand users; some sites use one Network Agent machine for several thousand users. Websense Technical Support professionals and Sales Engineers can assist you with deployment decisions.
Where does Network Agent belong in the network?
Install Network Agent where can it see all internet requests for the machines it is assigned to monitor. For those machines, Network Agent must see all URL and protocol requests going out to the internet and replies coming back from the internet. This monitoring must be done on the internal side of the corporate firewall.
A machine running Network Agent can access the network via a switch or hub, as discussed in the
Network Agent’s special role
Websense software can filter internet requests based on protocols or internet applications used for: instant messaging streaming media file sharing file transfer internet mail media players
various other network or database operations
When users make internet requests, if you use an integrated firewall, proxy, or cache product, the integration product distinguishes HTTP content from content provided by other protocols. The integration product then passes the HTTP content to Filtering Service for filtering, and leaves traffic from other protocols to be managed by Network Agent.
Network Agent can also be used without an integrated proxy, cache, or firewall. In this case, select
Stand-alone during installation to cause Network Agent to manage requests for all protocols,
according to your filtering policies. Network Agent also provides bandwidth usage data to Policy Server and filtering log data to Filtering Service.
Measuring network bandwidth
With Bandwidth Optimizer, you can limit internet access based on bandwidth availability. Network Agent continually monitors overall network usage, including bytes transferred, and sends usage summaries to Filtering Service at predefined intervals.
Planning Worksheets
Planning worksheets on the next 4 pages capture all of the information you need to describe your Network Agent configuration via Websense Manager.
Associate each Network Agent machine with a Filtering Service instance.
Worksheet 1 Ensure that the entire network is visible to Network Agent.
Designate any internal machines to be monitored (intranet).
Worksheet 2 Identify proxy and cache machines and Network Agent ports. Worksheet 3 Assign a Network Interface card (NIC) to each segment of
the network, with no overlap. Identify IP exceptions.
Worksheet 1: Associate Network Agent and Filtering Service
More than 1 Network Agent may connect to each Filtering Service.
When you reach Filtering Service Connections Status, page 10, enter this data into Websense Manager via Server > Settings > Network Agent.
Filtering Services
Network Agent
Connections
Filtering Service IP address
Indicate the IP address of each Network Agent machine to associate with this in-stance of Filtering Service.
Your network may have only one Net-work Agent machine, and NetNet-work Agent and Filtering Service may reside on the same machine.
Network Agent IP address
Are other Network Agents connected to this same Filtering Service?
IP address
IP address IP address
Filtering Service IP address
Indicate the IP address of each Network Agent machine to associate with this in-stance of Filtering Service.
Network Agent and Filtering Service may reside on the same machine.
Network Agent IP address
Are other Network Agents connected to this same Filtering Service?
IP address IP address
Worksheet 2: Network Agent Global Settings
(use once per network)
Identify the machines in your network, either by individual IP address or IP range.When you reach Global Settings, page 10, enter this data into Websense Manager via Server >
Settings > Network Agent > Global Settings
Internal Network Definition
Identify the machines in your network for Network Agent to monitor. Click Add to add individual IP addresses or IP address ranges.
Identified segments are listed on the screen.
Add these individual machines:
IP IP IP IP IP IP IP IP IP IP IP address ranges IP to IP IP to IP IP to IP IP to IP IP to IP IP to IP
Internal Traffic Monitoring
By default, Network Agent ignores traffic between internal machines.
Identify specific internal machines here (such as your intranet server), only if you want to monitor the
traffic between this internal machine and all other internal machines.
IP IP IP
Additional Settings
Most sites leave the following default settings untouched. Bandwidth calculationinter-val (in seconds) (10) _______
Log requests and traffic volume by protocol? Yes / No
Worksheet 3: Individual Network Agent Planning
by IP Address
(use once per copy of NA)
When you reach Local Settings, page 11, enter this data into Websense Manager via Server >
Settings > Network Agent > Global Settings > IP address of Network Agent machine For this Network Agent IP:
Connected to this Filtering Service IP:
If this Filtering Service is unavailable: Block / Permit (choose one)
Proxy / Cache Machines
List the IP address of all proxy or cache servers used by the machines monitored by this Network Agent machine. Any device used in proxy mode must be identified.
Proxy or cache IP address Proxy or cache IP address
Proxy or cache IP address Proxy or cache IP address Proxy or cache IP address Proxy or cache IP address
Advanced Settings for this Network Agent (select only one)
If you use Websense Enterprise in Stand-Alone mode:
List Ports to scan for HTTP traffic (default 80, 8080) ______________________
If you use Websense Web Security Suite in Stand-Alone mode:
Network Agent scans all ports by default for HTTP traffic (default all)
If you use Websense Enterprise or Web Security Suite with an integration
product:
List Ports used by the integration product to scan for HTTP traffic (default 80,
8080). Network Agent does not filter these ports. For some integrations that do not log bytes, Network Agent sends log records to the Filtering Service for these ports. _____________________
Troubleshooting
Worksheet 4: Network Interface Card (NIC) Settings
(use once per NIC)
When you reach Network Interface Card (NIC) Settings, page 13, enter this data into Websense Manager via Server > Settings > Network Agent > Global Settings > Network Agent IP > NIC-#NIC Identification
NIC IP addressMonitor traffic passing through this NIC? Yes / No
If Yes, click Monitoring on screen and choose one answer:
How much of the network should be monitored by this NIC for internet and protocol requests?
All (all machines in the network segment seen by this NIC) None
Specific machines and ranges in this segment (Add IP addresses/ranges below.) Single IP addresses: IP address
IP address IP address
IP address IP address
Ranges of IP addresses, no overlap. Overlaps can cause inefficiencies in your network and
lead to duplicate block messages and duplicate logging entries.
IP address -- IP address
IP address -- IP address
IP address -- IP address
Exceptions (do not monitor internet and protocol requests for these IPs seen by this NIC). (Network Agent could safely ignore requests made by the CPM Server machine.)
IP address IP address
IP address IP address
Activities and Communication
Name the NIC that activates blocking (NIC name): This is typically the same NIC
used for monitoring. However, if a stealth NIC (a NIC without an IP address) is monitoring, it cannot also be used for blocking. Also, if your switch does not offer bi-directional port spanning, you must use two NICs on the machine: one for monitoring and a second NIC (identified here) for blocking.
Level of HTTP Monitoring (choose one)
Filter and log HTTP requests (default for Stand-Alone Mode)
Log HTTP requests (option only if integration product does the filtering) Protocol Management (select all that apply)
Network Interface Cards (NICs)
After you set up the hardware and install Websense software, configure Network Agents in Websense Manager. Specify the network segments where Network Agent should monitor or filter traffic, the network interface card (NIC) to use, and the handling method for HTTP and other protocols. Use the planning worksheets to capture this information.
NICs on the Network Agent machine
You can install Network Agent on 1 or more machines (but only once on each machine). Each Network Agent machine must use at least one designated network interface card (NIC). In the example, Network Agent uses one NIC for monitoring traffic, and another to block.
Each NIC that Network Agent uses for monitoring must be able to see all inbound and outbound traffic assigned to it. Network Agent needs to see the user IP addresses. Do not place Network Agent in a location where the original user IP addresses have been translated by another network device (such as a router or other Network Address Translation device).
Switches
If the device connected to the Network Agent machine is a switch, it must support port spanning (also known as mirroring). Traffic on monitored ports is simultaneously sent to the monitoring port to which Network Agent is connected.
NOTE
The NICs (network interface cards) on machines running Network Agent must be connected to your hub or switch, enabled in the operating system, and activated.
Each NIC used for monitoring must capture all packets on the network, not only the packets that are addressed directly to it (promiscuous mode).
If you use a switch that supports bi-directional spanning, Network Agent needs only one NIC. Some switches do not allow bi-directional traffic in spanning (mirroring) mode. The network card receiving data on the Network Agent machine can only listen, not send.
If you do not have a bi-directional switch:
Use the NIC connected to the spanning port to monitor traffic. Install a second NIC on the Network Agent machine.
Attach the second NIC to a port on the switch that can access all assigned workstations. Use the second NIC to block. The blocking NIC must have an IP address.
If you add a NIC on the Network Agent machine, restart the Network Agent service, and then configure the new NIC via Websense Manager.
Hubs
If the device connected to the Network Agent machine is a dumb hub (which distributes traffic from the up-linked port to all other ports), Network Agent requires only one NIC.
To Configure Network Agent in Websense Manager
1. Go to Server > Settings.
Filtering Service Connections Status
(Planning worksheet 1) For each Filtering Service, connect at least one Network Agent machine. Typically, Network Agent is installed on the Filtering Service machine, so the IP address is the same for both.
Global Settings
(Planning worksheet 2) Global Settings determine the functions performed by all Network Agents. If your network includes multiple Network Agent machines, these settings apply to all.
NOTE
Internal Network Definition: Identify the machines in your network.
To add machines other than network segments recognized by default, click Add.
Internal Traffic Monitoring: Network Agent monitors requests sent to and from the internal IP
addresses you specify. To identify a machine, click Add, then enter its IP address.
Additional Settings:
Bandwidth calculation interval (in seconds): A lower value (more frequent interval)
ensures higher accuracy but also increases overall network traffic.
Log requests and traffic volume by protocol: Do you want Network Agent to log requests
and volume by protocol? Uncheck this box to prevent Network Agent from logging protocol requests periodically.
If you enable protocol logging, either accept the default logging interval (1 minute) or specify a different interval (at least 1 minute).
When protocol logging is selected, Network Agent provides to Log Server both the number of requests by protocol and the traffic volume for each protocol.
Local Settings
(Planning worksheet 3) These settings determine the functions performed by each Network Agent machine. By default, Network Agent monitors traffic to and from external sites for all internal machines it sees. Machine names are tracked in log data and Real-Time Analyzer output.
Filtering Service IP Address: The Filtering Service connected to this Network Agent. If Filtering Service is unavailable: Should internet and protocol requests be blocked or
permitted when Filtering Service is down?
Proxy/Cache Machines: Identify any proxy or cache server machines situated between this
Network Agent machine and client machines. Network Agent ignores traffic from the proxy to external hosts. Include any device (such as a cache engine product) used in proxy mode.
Otherwise, Network Agent may filter and log traffic only from the server, and not from the users.
Advanced Settings for this Network Agent (select only one):
1. Websense Enterprise in Stand-Alone mode:
List Ports to scan for HTTP traffic (default 80, 8080) ______________________
2. Websense Web Security Suite in Stand-Alone mode:
Network Agent scans all ports by default for HTTP traffic (default all)
___________________
3. Websense Enterprise or Web Security Suites with an integration product:
List Ports used by the integration product to scan for HTTP traffic (default 80, 8080).
Network Agent does not filter these ports. For integrations that do not log bytes, Network Agent sends log records to the Filtering Service for these ports. _____________________
Network Interface Card (NIC) Settings
(Planning worksheet 4) The NIC used for monitoring can be set for stealth mode (no IP address), but it must be associated with a second NIC that is assigned an IP address and is used for blocking.
Identification: The selected NIC.
Monitoring: Use this NIC to monitor traffic? (If the Network Agent machine has multiple NICs,
you can configure more than one NIC to monitor traffic. Each monitoring NIC must capture all packets it is assigned, not just packets that are addressed directly to it.)
If you select Yes, click Monitoring to continue configuration of this NIC.
Monitor List: How much of the internal network should be monitored for internet and
protocol requests?
• All: Network Agent monitors requests from all machines it sees using the selected NIC.
• None: Network Agent monitors no machines in the selected NIC’s network segment.
• Specific: Network Agent monitors only a portion of the selected NIC’s network segment.
If you selected Specific, click Add to identify the IP addresses of the machines to monitor.
Monitor List Exceptions: Identify internal machines to exclude from monitoring. NOTE
Activities and Communication: Which NIC is used to activate Websense blocking? By default,
the NIC you are editing is used. Do not use a NIC without a valid IP address for blocking.
Filter and log HTTP requests: (Active by default in Stand-alone Mode) Network Agent
performs full HTTP monitoring and logging using the selected NIC.
Log HTTP requests: Network Agent logs but does not filter HTTP requests. Use this if the integration product filters HTTP traffic, but you want to use Network Agent’s detailed logging information for Reporting.
Protocol Management: Should this Network Agent handle non-HTTP protocol and
application requests via the selected NIC?
• If so, check Filter protocol requests not sent over HTTP ports (Protocol
Management).
• Measure bandwidth by protocol (Bandwidth Optimizer) activates the feature.
Verifying that Network Agent is Working
Run the Websense Traffic Visibility Tool on the Network Agent machine. 1. To start:
Windows: Start > Programs (or All Programs) > Websense > Utilities > Traffic Visibility Tool.
Linux or Solaris: Run ./TrafficVisibility.sh from the Websense installation directory (/opt/Websense).
IMPORTANT
2. From the Network Card drop-down list, select the network interface card (NIC) that the Network Agent is configured to use for monitoring.
A default list of networks (netmasks) appears. Use the defaults or add your own. 3. If the network you want to test does not appear in the default list, click Add Network.
Enter a new netmask value in the Network ID field. The subnet mask defaults to 255.0.0.0 and changes as the netmask is defined.
Click OK.Your new network appears in the list. 4. Select Remove Network to delete a network from the list. 5. Click Start Test to begin testing all networks in the list.
The counter in the IP Address Count column should begin recording internet traffic
immediately. The counter increments each time the NIC detects an individual IP address from the target network in a passing packet. The activity bar at the bottom of the dialog box indicates that a test is underway.
If the count for a network remains at zero or is very low, the selected NIC cannot see the traffic it is supposed to monitor.
6. If the Network Agent NIC is unable to see the desired traffic:
If the installation machine has multiple NICs, select a different card to test. If this card can see the desired traffic, configure Network Agent to use this card.
Resolve network configuration issues to make sure that the NIC can see the desired traffic. This might involve connecting to a different router or configuring for port spanning in a switched environment.
7. When you are finished, click Stop Test. 8. Click Close.
The Network Agent NIC must be able to monitor all assigned internet traffic. If Network Agent cannot see the traffic, either reposition the machine in the network or select another machine for Network Agent.
Field Description
Network Card Name of the network interface card (NIC) to test. Active cards on the installation machine appear in this list. Cards without an IP address do not appear.
Networks Tested Displays the netmasks that are being tested. Use the defaults or add your own. These netmasks can reside in different network segments depending on the IP address ranges to be filtered.
IP Address Count Number of IP addresses for which traffic is detected during the test. IP Address List
Detail
Top Troubleshooting Tips
Network Agent cannot communicate with Filtering Service after it has been reinstalled
When Filtering Service has been uninstalled and reinstalled, the Network Agent does notautomatically update the internal identifier (UID) for Filtering Service. After the new installation is complete, Websense Manager attempts to query Filtering Service using the old UID, which no longer exists.
To re-establish connection to Filtering Service: 1. Open Websense Manager.
An error message is displayed stating Network Agent <IP address> is unable to connect with
Filtering Service.
2. Clear the message and select Server > Settings. The same error message is displayed.
3. Clear the message again and select Network Agent from the Settings Selections list. 4. Click Local Settings.
5. Select the IP address listed above the NIC for the Network Agent. 6. Click Edit Selection.
The Filtering Service Connection dialog box appears.
7. Select the IP address of the Filtering Service machine from the Server IP Address drop-down list.
8. Click Finish.
9. Click OK in the Local Settings dialog box.
10. Click OK in the Settings dialog box to save the changes.
Network Agent fails to start with stealth mode NIC
IP address removed from Linux configuration file
Network Agent can monitor (not block) with a stealth mode NIC if the interface retains its old IP address in the Linux system configuration file. If you have bound the Network Agent to a network interface card configured for stealth mode, and then removed the IP address of the NIC from the Linux configuration file (/etc/sysconfig/network-scripts/ifcfg-<adapter name>), Network Agent will not start.
An interface without an IP address will not appear in the list of adapters displayed in the installer or in Websense Manager and will be unavailable for use. To reconnect Network Agent to the NIC, restore the IP address in the configuration file.
Stealth mode NIC selected for Websense communications in Solaris and Linux
Spanning or mirroring has not been turned on
The switch port connected to the Network Agent machine must see all traffic.
On most switches, you can change the port mode to spanning, mirroring, or monitoring mode (the term varies with the manufacturer; the function is the same). Cicso uses the term spanning. 3Com, DLink, and others use mirroring. HP and some other manufacturers call it monitoring.
To connect Network Agent to the network using a switch, plug the Network Agent machine into the port on the switch that mirrors (spans, monitors) the traffic going to the gateway or firewall port. The span port mirrors all the traffic that leaves the network segment, so traffic is simultaneously sent to the monitoring port to which Network Agent is connected.
Spanning or mirroring is set on the wrong port
Monitor (span, mirror) only the port going to the firewall or router port, not the entire network.
Router or Firewall traffic is being monitored in the wrong direction
Monitor (span, mirror) the traffic going to the firewall/router. On Cicso switches, this means you need to specify Tx. On HP and 3Com switches, you need to specify Egress.
To log bytes sent and received, set both Tx and Rx (Cisco) or both Egress and Ingress (HP, 3Com).
Mono-directional spanning (mirroring, monitoring) is used with a single NIC
Websense strongly recommends using a switch that supports bi-directional spanning. If such a switch is used, Network Agent can function successfully with a single Network Interface Card (NIC) performing both monitoring and blocking.
If the switch does not support bi-directional spanning, Network Agent must use separate NICs for monitoring and blocking.
How do I set up Network Agent on a machine with teamed NICs (TNICs)?
TNICs share the load under one common identity, with four adapters load-balancing under a single IP address. This is also known as link aggregation or trunking.
Websense recommends against using teamed NICs for Network Agent.
An anti-spoofing mechanism has been used in the switch
Either disable the anti-spoofing mechanism or contact Websense Technical Support for additional options.
Are other tools available for verifying that the Network Agent machine sees the traffic?
Yes. Contact a Websense Technical Support specialist or Sales Engineer for information about network tools that can help verify Network Agent behavior.Can a network tap be used with Network Agent?
Network Topology Addendum
Where Should Network Agent be Located on the Network?
Network Agent must be installed where it can monitor all URL and protocol requests going out to the internet and all replies coming back from the internet.
On a busy network, you may need to deploy Network Agent on more than one machine, with each machine monitoring a segment of the network.
Locate Network Agent on the internal side of the corporate firewall. Several possible configurations are described below.
Hub Configuration
Network Agent is often deployed on a dedicated machine, connected to an unmanaged, unswitched hub located between an external router and the network, as pictured here:
Network Agent must see the traffic, in both directions, for those segments of the network that it is assigned to monitor. The port to which the Network Agent machine is attached must be capable of bi-directional port spanning (also known as mirroring).
Switched Configurations
Network Agent may be connected to a switch or router, as shown here:
Network Agent must see all outbound and inbound traffic. Thus, the (switch) port connected to the Network Agent machine must see all traffic.
On most switches, you can change the port to spanning or mirroring mode. To connect to the network using a switch, plug the Network Agent machine into the port on the switch that mirrors (spans) the traffic on the gateway or firewall port. The span port mirrors all the traffic that leaves the network segment, so traffic on monitored ports is simultaneously sent to the monitoring port to which Network Agent is connected.
Multiple switches
Multiple Network Agents
On a busy network, you may need to install Network Agent on multiple machines and assign each machine to monitor a segment of your network.
If you install multiple Network Agents, note:
One copy of Filtering Service can support more than one Network Agent. Websense suggests up to four Network Agents per Filtering Service; some sites successfully use more.
Deploy the Network Agents so that together they filter the entire network.
Gateway Configuration
A gateway provides a connection between two networks, such as between your network and the internet.
Network Agent can be installed on the gateway machine. This allows Network Agent to manage and monitor all Internet traffic. The gateway can either be a proxy server or a network appliance. Do not install Network Agent on a firewall.
i
IMPORTANTThis configuration is supported only on the Windows operating system and is intended for small to medium networks.
