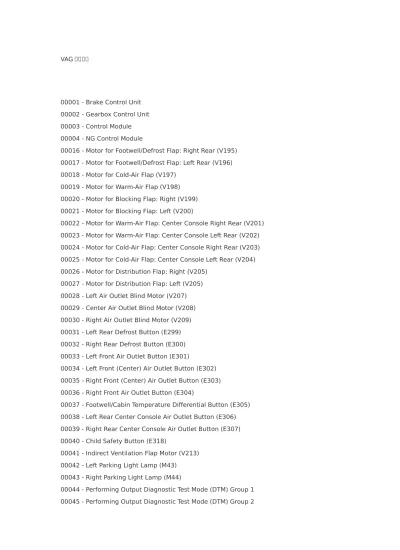

VAG 故故故故
00001 - Brake Control Unit 00002 - Gearbox Control Unit 00003 - Control Module 00004 - NG Control Module
00016 - Motor for Footwell/Defrost Flap: Right Rear (V195) 00017 - Motor for Footwell/Defrost Flap: Left Rear (V196) 00018 - Motor for Cold-Air Flap (V197)
00019 - Motor for Warm-Air Flap (V198) 00020 - Motor for Blocking Flap: Right (V199) 00021 - Motor for Blocking Flap: Left (V200)
00022 - Motor for Warm-Air Flap: Center Console Right Rear (V201) 00023 - Motor for Warm-Air Flap: Center Console Left Rear (V202) 00024 - Motor for Cold-Air Flap: Center Console Right Rear (V203) 00025 - Motor for Cold-Air Flap: Center Console Left Rear (V204) 00026 - Motor for Distribution Flap: Right (V205)
00027 - Motor for Distribution Flap: Left (V205) 00028 - Left Air Outlet Blind Motor (V207) 00029 - Center Air Outlet Blind Motor (V208) 00030 - Right Air Outlet Blind Motor (V209) 00031 - Left Rear Defrost Button (E299) 00032 - Right Rear Defrost Button (E300) 00033 - Left Front Air Outlet Button (E301)
00034 - Left Front (Center) Air Outlet Button (E302) 00035 - Right Front (Center) Air Outlet Button (E303) 00036 - Right Front Air Outlet Button (E304)
00037 - Footwell/Cabin Temperature Differential Button (E305) 00038 - Left Rear Center Console Air Outlet Button (E306) 00039 - Right Rear Center Console Air Outlet Button (E307) 00040 - Child Safety Button (E318)
00041 - Indirect Ventilation Flap Motor (V213) 00042 - Left Parking Light Lamp (M43) 00043 - Right Parking Light Lamp (M44)
00044 - Performing Output Diagnostic Test Mode (DTM) Group 1 00045 - Performing Output Diagnostic Test Mode (DTM) Group 2
00046 - Left Headlight Washer Jet Motor (V248) 00047 - Right Headlight Washer Jet Motor (V249) 00048 - Left Heater Core Temperature Sensor (G306) 00049 - Right Heater Core Temperature Sensor (G307) 00050 - Evaporator Temperature Sensor (G308)
00052 - Right Rear Footwell Temperature Sensor (G310) 00053 - Left Rear Center Console Temperature Sensor (G311) 00054 - Right Rear Center Console Temperature Sensor (G312) 00055 - Left Rear Child Safety Motor (V142)
00056 - Interior Temperature Sensor Blower (V210) 00057 - Right B-pillar/Footwell Shut-Off Flap Motor (V211) 00058 - Wiper Park Position Heating Relay (J582)
00059 - Terminal 30 for Interior Lighting 00060 - Foglight Lamps
00061 - Footwell Lights
00062 - Suspension Function Request 00063 - Back-Up Light Switch (F4)
00064 - Left B-pillar/Footwell Shut-Off Flap Motor (V212) 00065 - Left Rear Footwell Heater (Z42)
00066 - Right Rear Footwell Heater (Z43) 00067 - Consumer 1
00068 - Consumer 2
00069 - Right Rear Child Safety Motor (V143) 00070 - Starting Battery Voltage
00071 - Fog Lamp Button (E315) 00072 - Rear Fog Lamp Button (E314) 00073 - Glove Compartment Button (E316) 00074 - Power Outlet Fuse 1 (S184)
00075 - Power Outlet Fuse 2 (S185) 00076 - Power Outlet Fuse 3 (S281)
00077 - Windshield Wiper Stop Switch (F229) 00078 - Battery Cut Out Relay (J7)
00079 - Interior Illumination Switch (E317) 00080 - Function Request - Sliding Roof
00081 - Under-Voltage Cut-Out for Heated Seats 00082 - Terminal 61 for Generator
00083 - Fuel Pump (FP) Supply
00085 - Starter Battery Switch-Over Relay (J580) 00086 - Parallel Battery Connection Relay (J581) 00087 - Terminal 30 for Starting Relevant Consumers 00088 - Charge Monitoring for Starting Battery
00089 - Wire Monitoring for Terminal 30 Starter Battery 00090 - Supply Voltage Terminal 30 Starter Battery 00092 - Starter Battery Temperature Sensor (G331) 00093 - Terminal 15 for Starting Relevant Consumers 00094 - Left Rear Central Locking (Lock) Motor (V214) 00095 - Right Rear Central Locking (Lock) Motor (V215) 00096 - Drivers Door Central Locking (Safe) Motor (V161) 00097 - Front Passengers Central Locking (Safe) Motor (V162) 00098 - Left Rear Central Locking (Safe) Motor (V163)
00099 - Right Rear Central Locking (Safe) Motor (V164) 00100 - Drivers Interior Locking Button (E308)
00101 - Front Passengers Interior Locking Button (E309) 00102 - Left Rear Interior Locking Button (E310)
00103 - Right Rear Interior Locking Button (E311) 00104 - Fuel Tank Lid Unlock Button (E319)
00105 - Signal Central Locking SAVE/LOCK Drivers Side 00106 - Signal Central Locking SAVE/LOCK Passenger Side 00107 - Signal Central Locking SAVE/LOCK Left Rear 00108 - Signal Central Locking SAVE/LOCK Rear Right 00109 - Left Mirror Turn Signal Lamp (L131)
00110 - Right Mirror Turn Signal Lamp (L132)
00111 - Drivers Interior Locking Indicator Lamp (K174)
00112 - Front Passengers Interior Locking Indicator Lamp (K175) 00113 - Left Rear Interior Locking Indicator Lamp (K175)
00114 - Right Rear Interior Locking Indicator Lamp (K177) 00115 - Front Passengers Telephone Connection Button (E320) 00116 - Left Rear Telephone Connection Button (E321)
00117 - Right Rear Telephone Connection Button (E322) 00118 - Drivers Defroster Button (E323)
00119 - Front Passengers Defroster Button (E324)
00120 - Outside Warning Light/Door exit Light Driver Side 00121 - Outside Warning Light/Door exit Light Passenger Side 00122 - Outside Warning Light/Door exit Light LR
00124 - Communication Wire Door Control Module-closing Aid Driver Side 00125 - Communication Wire Door Control Module-closing Aid Passenger Side 00126 - Communication Wire Door Control Module-closing Aid LR
00127 - Communication Wire Door Control Module-closing Aid RR 00128 - Front Passengers Telephone Connection Indicator Lamp (K178) 00129 - Left Rear Inside Door Handle Illumination (L133)
00130 - Right Rear Inside Door Handle Illumination (L134)
00132 - Outside Door Handle Illumination/mirror Light Passenger Side 00133 - Outside Door Handle Illumination/mirror Light Rear Left 00134 - Outside Door Handle Illumination/mirror Light Rear Right 00135 - Left Front Wheel Acceleration Sensor (G337)
00136 - Right Front Wheel Acceleration Sensor (G338) 00137 - Left Rear Wheel Acceleration Sensor (G339) 00138 - Right Rear Wheel Acceleration Sensor (G340) 00139 - Left Front Body Acceleration Sensor (G341) 00140 - Right Front Body Acceleration Sensor (G342) 00141 - Rear Body Acceleration Sensor (G343)
00142 - Left Front Dampening Adjustment Valve (N336) 00143 - Right Front Dampening Adjustment Valve (N337) 00144 - Left Rear Dampening Adjustment Valve (N338) 00145 - Right Rear Dampening Adjustment Valve (M339)
00146 - Supply Voltage for Acceleration Sensor Front Right/rear Left 00147 - Supply Voltage for Acceleration Sensor Front Left/rear Right 00148 - Starter Battery Charger Transformer (A15)
00149 - End of Line Programming not Completed 00150 - Plausibility Brake Booster System
00151 - Plausibility Auto Distance Regulation (ADR) System 00152 - Right Windshield Wiper Motor Control Module (J584) 00153 - Left Windshield Wiper Motor (V216)
00154 - Right Windshield Wiper Motor (V217)
00155 - Driver-Passenger Side Control Module Communication 00156 - Control Circuit for Windshield Washer Pump
00157 - Terminal X
00158 - Function Request Dimming Stage Increase 00159 - Function Request Dimming Stage Decrease 00160 - Adaptation Brake Booster
00161 - System Test Brake Booster
00163 - Brake Booster Control Module Learning Work Points
00164 - Battery Monitoring Control Module (J367) in Emergency Mode 00165 - Switch for Transmission Position P/N
00166 - Access/Start Authorization Switch 00167 - Key 5
00168 - Key 6 00169 - Key 7 00170 - Key 8
00172 - Key 2 not learned 00173 - Key 3 not learned 00174 - Key 4 not learned 00175 - Key 5 not learned 00176 - Key 6 not learned 00177 - Key 7 not learned 00178 - Key 8 not learned
00179 - Left Access/Start Authorization Antenna (R134) 00180 - Right Access/Start Authorization Antenna (R135)
00181 - Access/Start Authorization Antenna (in Rear bumper) (R136) 00182 - Luggage Compartment Access/Start Authorization Antenna (R137) 00183 - Interior Access/Start Authorization Antenna 1 (R138)
00184 - Control Circuit for Engine Start/Stop Switch 00185 - Relay for Supply Voltage Terminal 15 Adaptation 00186 - Relay for Supply Voltage Terminal 15SV Adaptation 00187 - Relay for Supply Voltage Terminal 75X Adaptation 00188 - Relay for Supply Voltage Terminal 50 Adaptation 1 00189 - Relay for Supply Voltage Terminal 50 Adaptation 2 00190 - Driver's Door Handle Touch Sensor (G415)
00191 - Passenger's Door Handle Touch Sensor (G416) 00192 - Left Rear Door Handle Touch Sensor (G417) 00193 - Right Rear Door Handle Touch Sensor (G418) 00194 - Ignition Key Removal Lock
00195 - Supply Voltage for Interior Mirror Potentiometer 00196 - Inside Mirror Horizontal Position Sensor (G353) 00197 - Inside Mirror Vertical Position Sensor (G354) 00198 - Automatic Day/Night Interior Mirror (Y7) 00199 - Front Interior Lamp Button (E326) 00200 - Rear Interior Lamp Button (E327) 00201 - Front Reading Lamp Button (E328)
00202 - Rear Reading Lamp Button (E329) 00203 - Sunroof Switch (E8)
00204 - Sunroof Button (E325)
00205 - Garage Door Opener Indicator Lamp (K179) 00206 - Control Circuit for Interior Mirror Motor 00207 - Humidity Sensor Heater (N340) 00208 - Terminal 30 for Glovebox Illumination 00209 - Terminal 30 for Makeup Mirror
00210 - Control Circuit for Interior Illumination Front 00212 - Control Circuit for Reading Lights Front Left 00213 - Control Circuit for Reading Lights Front Right 00214 - Control Circuit for Reading Lights Rear Left 00215 - Control Circuit for Reading Lights Rear Right 00216 - Signal EC-mirror Fade Out
00217 - Supply Voltage for Sensor for Humidity 00218 - Humidity Sensor (G355)
00219 - Loading Level Active 00220 - Connection to Sunroof
00221 - Connection to Interior Monitoring 00222 - Connection to Rain Sensor
00223 - Vehicle Inclination Sensor Indicator Lamp (K188) 00224 - Ejector for Rear Lid Lock Clamping
00225 - Ejector for Rear Lid Lock Unclamping 00226 - Indicator Lamp for Dampening Adjustment 00227 - Dampening Adjustment Button (E387) 00228 - Button for Level Control System (E388) 00229 - Refrigerant Pressure
00230 - Transmission Park Selector Switch (F305) 00231 - Incorrect Engine Data-Set
00232 - Incorrect Transmission Data-Set
00233 - Sensor for Automatic Distance Control Coverage Area Blocked 00234 - Sensor for Automatic Distance Regulation Misadjusted
00235 - Adaptive Cruise Control Button (E357)
00236 - Interior Access/Start Authorization Antenna 2 (R139) 00237 - ABS Solenoid Valve: Front Left (N59)
00238 - ABS Solenoid Valve: Front Right (N58) 00239 - ABS Solenoid Valve: Rear Left (N57) 00240 - ABS Solenoid Valve: Rear Right (N56)
00241 - Traction Control Pressure Regulating Valve (N238) 00242 - Engine Throttle-back Valve (N237)
00243 - Engine Brake
00244 - Supply Voltage for ABS-Valves: Front Right + Rear Left 00245 - Supply Voltage for ABS-Valves: Front Left + Rear Right 00246 - Ground for ABS-Valve: Front Right + Rear Left
00247 - Ground for ABS-Valve: Front Left + Rear Right 00248 - Gearbox Switch (E206)
00249 - Function Return Message for Recirculating Air Regulator 00250 - Transfer Case Switch (E207)
00252 - Taillight Assembly - Left Rear 00253 - Taillight Assembly - Right Rear
00254 - Traction Control Adjustment not Available 00255 - ABS Valves
00256 - A/C Pressure/Temperature Sensor (G395) 00257 - ABS Inlet Valve: Front Left (N101)
00258 - Solenoid Valve 1 (N88)
00259 - ABS Inlet Valve: Front Right (N99) 00260 - Solenoid Valve 2 (N89)
00261 - Inlet Valve: Rear ABS (N103) 00262 - Solenoid Valve 3 (N90) 00263 - Transmission
00264 - Solenoid Valve 4 (N91)
00265 - ABS Outlet Valve: Front Left (N102) 00266 - Solenoid Valve 5 (N92)
00267 - ABS Outlet Valve: Front Right (N100) 00268 - Solenoid Valve 6 (N93)
00269 - ABS Outlet Valve: Rear (N104) 00270 - Solenoid Valve 7 (N94) 00271 - See Repair Group 1
00272 - Function Disabled due to Electromagnetic Interference 00273 - ABS Inlet Valve: Right Rear (N133)
00274 - ABS Inlet Valve: Left Rear (N134) 00275 - ABS Outlet Valve: Right Rear (N135) 00276 - ABS Outlet Valve: Left Rear (N136) 00277 - ABS Inlet/Outlet Valve: Front Left (N137) 00278 - ABS Main Valve (N105)
00280 - Differential Lock Valve 2 (N126) 00281 - Vehicle Speed Sensor (G68) 00282 - Throttle Position Actuator (V60)
00283 - Front Left ABS Wheel Speed Sensor (G47) 00284 - Right Front ABS Inlet/Outlet Valve (N138) 00285 - ABS Wheel Speed Sensor: Front Right (G45) 00286 - ABS Inlet/Outlet Valve: Rear Left (N139) 00287 - ABS Wheel Speed Sensor: Rear Right (G44) 00288 - Steering Column Lock Actuator (N360) 00289 - ABS Inlet/Outlet Valve: Rear Right (N140) 00290 - ABS Wheel Speed Sensor: Rear Left (G46) 00292 - Pressure Level of Hydraulic Energy Supply 00293 - Multi-function Switch (F125)
00294 - Pressure Switch 1 for Transmission State 00295 - Pressure Switch 2 for Transmission State 00296 - Kick-Down Switch (F8)
00297 - Gearbox Speed Sensor (G38) 00298 - Differential Lock Switch (E121)
00299 - Transmission Range Program Switch (E122) 00300 - Transmission Fluid Temp. Sensor (G93) 00301 - ABS Return Flow Pump (V39)
00302 - ABS Solenoid Valve Relay (J106) 00303 - Function Selector Switch (E91)
00304 - Control Circuit Regulator for Fresh Air Blower 00305 - Fuel Consumption indicator -signal
00306 - Secondary Air Injection: Cylinder Bank 1 00307 - Secondary Air Injection: Cylinder Bank 2
00308 - Supply Voltage for Motors for Sunroof/sunroof Shade 00309 - Washer Solution Metering Pump (V135)
00310 - CAT Temperature Sensor 1 (G20) 00311 - Tire Filling Connection
00312 - CAT Control Temp Sensor 2 (G132) 00313 - Catalytic Converter
00314 - EGR Two Way Valve (N161) 00315 - Connection to Sunroof Shade 00316 - Bulbs for Rear Illumination 00317 - Rear Lid Control Module (J605)
00319 - Rear Lid Hydraulic Motor (V241) 00320 - Rear Lid Hydraulic Valve (N346) 00321 - Rear Lid Hydraulic Sensor (G383)
00322 - Interior Monitoring Deactivation Switch (E267) 00323 - Vehicle Inclination Sensor (G384)
00324 - Deactivate Vehicle Inclination Sensor Button (E360) 00325 - Rear Window Opening Button (E361)
00326 - Anti-theft Alarm System Emergency Shut-Off Switch (E362) 00327 - Signal sliding Sunroof Opening
00328 - Control Circuit for Unlocking Rear Windshield 00329 - Control Circuit for Unlocking Rear Lid
00330 - Signal Rear Wiper Interval 00332 - Control Circuit for Tank Flap
00333 - Control Circuit for Closing Aid Relay
00334 - Control Circuit Heated Rear Windshield Stage 2 00335 - Control Circuit Taillights
00336 - Control Circuit Illumination Rear 00337 - Control Circuit Illumination Driver Door
00338 - Control Circuit for Passenger Door Illumination 00339 - Control Circuit Illumination Door Rear Left 00340 - Control Circuit Illumination Door Rear Right 00341 - Control Circuit Rear Lid Open
00342 - Control Circuit Rear Lid Close
00343 - Control Circuit Rear Lid Lock Extension 00344 - Control Circuit Rear Lid Lock Retraction 00345 - Control Circuit Rear Lid Lock Unlocking 00346 - Control Circuit Rear Lid Lock Locking 00347 - Solenoid Valve 8 (N281)
00348 - Solenoid Valve 9 (N282) 00349 - Solenoid Valve 10 (N283)
00350 - Ground (GND) Feedback for Modulation Valves 00351 - Intermediate Shaft Speed Sensor (G265) 00352 - Terminal 30A
00353 - Function Return Message from Fresh Air Blower Regulator 00354 - Windshield Heating Voltage Converter (A18)
00355 - Left Front Upper Body Outlet Motor (V237) 00356 - Right Front Upper Body Outlet Motor (V238)
00358 - Control Circuit for Coolant Shut-Off Valve
00359 - Left Front Upper Body Outlet Temperature Sensor (G385) 00360 - Right Front Upper Body Outlet Temperature Sensor (G386) 00361 - Heater Element for Auxiliary Heater (Z35)
00362 - Left Rear Air Flap Motor (V239) 00363 - Right Rear Air Flap Motor (V240) 00364 - Terminal 15 Slave
00365 - Communication Wire for Interior Monitoring Input 00366 - Communication Wire for Interior Monitoring Output 00367 - Left Front Shock Absorber Soft
00368 - Left Front Shock Absorber Hard 00369 - Right Front Shock Absorber Soft 00370 - Right Front Shock Absorber Hard 00372 - Left Rear Shock Absorber Hard 00373 - Right Rear Shock Absorber Soft 00374 - Right Rear Shock Absorber Hard
00375 - Control Circuit for Opening Left Hinged Window 00376 - Control Circuit for Closing Left Hinged Window 00377 - Control Circuit for Opening Right Hinged Window 00378 - Control Circuit for Closing Right Hinged Window 00379 - Terminal 58s
00380 - Special Vehicle Control Module (J608) 00381 - Databus Instrument Cluster
00382 - Left Rear Head Airbag Igniter (N343) 00383 - Right Rear Head Airbag Igniter (N344) 00384 - Optical Databus
00385 - Positive Output Audio Channel for Speech/Telephone 00386 - Negative Output Audio Channel for Speech/Telephone 00387 - Plus Output Audio Channel for Navigation Announcements 00388 - Negative Output Audio Channel for Navigation Messages 00389 - Headphone Output 1: Left Channel
00390 - Headphone Output 1: Right Channel 00391 - Headphone Output 2: Left Channel 00392 - Headphone Output 2: Right Channel 00393 - Display Test: Black Segments 00394 - Display Test: White Segments 00395 - Display Test: Red Segments 00396 - Display Test: Green Segments
00397 - Display Test: Blue Segments 00398 - Locating Illumination
00399 - Illumination Function Return Message 00400 - Signal: Acoustic Return Message 00401 - Acoustic Signal Sensor
00402 - Auxiliary Air Heater Element (Zxxx) 00403 - Sunroof Motor (V1)
00404 - Motor for sliding sun Roof: Rear (V146) 00405 - Sunroof Shade Motor (V260)
00406 - Sunroof Motor Position Sensor (G402) 00407 - Rear Sunroof Motor Position Sensor (G403) 00408 - Sunroof Blind Motor Position Sensor (G404)
00409 - Sunroof Switch: Signal from Emergency Button is Stuck ON 00410 - Pre-Selection Signal for Opening Sunroof
00412 - Comfort CAN L-Wire 00413 - Comfort CAN H-Wire 00414 - CAN L-Wire
00415 - CAN H-Wire
00416 - Sunroof Motor Thermal Protection 00417 - Left Front DSP Mid-Bass Speaker (R101) 00418 - Right Front DSP Mid-Bass Speaker (R102) 00419 - Left Front DSP Midrange Speaker (R103) 00420 - Right Front DSP Midrange Speaker (R104) 00421 - Left Rear DSP Midrange Speaker (R105) 00422 - Right Rear DSP Midrange Speaker (R106) 00423 - Thermal Protection of Motor for Sunroof Shade 00424 - Duty Cycle Control for Parking Aid Sensors 00425 - Function Test Display for Parking Aid 00426 - ESP Control Lamp (K155)
00427 - Wiring Test of Parking Aid Sensors 00428 - Function Test of Sensors for Parking Aid 00429 - Left Front Parking Aid Display (Y13) 00430 - Right Front Parking Aid Display (Y14) 00431 - Rear Parking Aid Display (Y15)
00432 - Supply Voltage for Display and Parking Aid Buzzer 00433 - Parking Aid Button (E266)
00434 - Left Front Inner Parking Aid Sensor (G332) 00435 - Right Front Inner Parking Aid Sensor (G333)
00436 - Left Rear Inner Parking Aid Sensor (G334) 00437 - Right Rear Inner Parking Aid Sensor (G335) 00438 - Fuel Supply Sensor 2 (G169)
00439 - Fuel Supply Sensor 3 (G237)
00440 - Auxiliary Tank Fuel Level Sensor (G292) 00441 - Auxiliary Tank Fuel Level Empty Sensor (G293) 00442 - Terminal 87F Fuel Pump (FP)
00443 - Auxiliary Tank Fuel Pump (FP) Fuse (S266) 00444 - Control Circuit Fuel Pump additional Fuel Tank 00445 - Loss of Refrigerant
00446 - Function Limitation due to Under-Voltage 00447 - Function Limitation due to Over-Voltage 00448 - Haldex Clutch Pump (V181)
00449 - Precharge Pump ON 00450 - Precharge Pump OFF
00452 - All Wheel Drive (AWD) Clutch Engaged 00453 - Function Limitation due to Over-Temperature 00454 - All Wheel Drive (AWD) Monitoring
00455 - Control Module for Access and Start Control: Comfort CAN (J518) 00456 - Control Module for Access and Start Control (J518)
00457 - Control Module for Network (J519)
00458 - Control Module for Battery Monitoring (J367) 00459 - Control Module for Display and Input: Front (J523) 00460 - Control Module for Display and Input: Rear (J524) 00461 - Control Module for Seat Memory: Passenger (J521) 00462 - Control Module for Seat Memory: Rear (J522) 00463 - Control Module for Digital Sound Package (J525)
00464 - Control Module with Display for Radio and Navigation (J503) 00465 - Control Module for Telephone/Telematic (J526)
00466 - Control Module for Steering Column Electronics (J527) 00467 - TV Tuner (R78)
00468 - CD-ROM Drive (R92)
00469 - Infotainment Databus in Single Wire Operation 00470 - Combination comfort Databus in Single Wire 00471 - Control Module for Elect. Regulated Dampers (J250) 00472 - Control Module for Brake Boost (J539)
00473 - Control Module for Elect. Park/Hand Brake (J540) 00474 - Control Module for Immobilizer
00475 - Control Module for Sliding Door 00476 - Control Module for Fuel Pump (J538)
00477 - Control Module: Display & Input: Comfort CAN: Front (J523) 00478 - Control Module: Display & Input: Comfort CAN: Rear (J524) 00479 - Control Module for Remote and Central Locking (J276) 00480 - Control Module in Instruments for Infotainment CAN (J285) 00481 - Control Module for Traffic Radio (J559)
00482 - Display for TV and Video: Rear (R97) 00483 - Control Module for Auxiliary Air Heater
00484 - Vehicle Position Recognition Control Module (J603)
00485 - Drivers Outside Door Handle Central Locking Button (E369)
00486 - Front Passengers Outside Door Handle Central Locking Button (E370) 00487 - Left Rear Outside Door Handle Central Locking Button (E371)
00488 - Right Rear Outside Door Handle Central Locking Button (E372) 00489 - Left Rear Vent Temperature Sensor (G405)
00490 - Right Rear Vent Temperature Sensor (G406) 00492 - Body kink Angle from Level Control Module 00493 - ESP-Sensor Unit (G419)
00494 - ESP-Sensor Unit (G419): Incorrect Component 00495 - ESP-Sensor Unit (G419): Supply Voltage 00496 - Sensor for Vehicle Leveling: Front 00497 - Sensor for Vehicle Leveling: Rear
00498 - Speed/Distance Recorder (German: "Fahrschreiber") 00499 - Vehicle Voltage Display
00500 - Oil Temperature Display
00501 - Engine Oil Level Indicator Light (K38)
00502 - Anti-Theft Engine Disable Indicator Light (K115) 00503 - Control Circuit for Pump-Jet Valves
00504 - Pump-Jet Valve: Cylinder 1 (N240) 00505 - Pump-Jet Valve: Cylinder 2 (N241) 00506 - Pump-Jet Valve: Cylinder 3 (N242) 00507 - Pump-Jet Valve: Cylinder 4 (N243) 00508 - Pump-Jet Valve: Cylinder 5 (N244) 00509 - Pump-Jet Valve: Cylinder 6 (N245) 00510 - Motor for Wind Deflector (V252) 00511 - Selector Lever (E313)
00512 - Camshaft Position (Hall) Sensor not at Reference Mark 00513 - Engine Speed Sensor (G28)
00514 - Ignition Point Sensor (G4)
00515 - Camshaft Position (Hall) Sensor (G40) 00516 - Closed Throttle (Idle) Position Switch (F60) 00517 - Full Throttle Switch (F81)
00518 - Throttle Position Sensor (G69)
00519 - Intake Manifold Pressure Sensor (G71) 00520 - Air Mass / Air Flow Sensor (G70)/(G19) 00521 - CO Fuel Trim Pot. (G74)
00522 - Engine Coolant Temperature Sensor (G62) 00523 - Intake Air Temp Sensor (G42)
00524 - Knock Sensor 1 (G61) 00525 - Oxygen Sensor (G39) 00526 - Brake Light Switch-F
00527 - Intake Manifold Temperature Sensor (G72) 00528 - Barometric Pressure (Altitude) Sensor (F96) 00529 - Engine Speed Signal Missing
00530 - Throttle Position Sensor (G88) 00532 - Supply Voltage B+
00533 - Idle Speed Regulation
00534 - Engine Oil Temperature Sensor (G8) 00535 - Knock Regulation 1
00536 - Knock Regulation 2
00537 - Lambda (Oxygen Sensor) Regulation 00538 - Reference Voltage
00539 - Fuel Temperature Sensor (G81) 00540 - Knock Sensor 2 (G66)
00541 - Potentiometer for Slide Travel Sensor (G99) [German: "Schieberweg"] 00542 - Needle lift Sensor (G80)
00543 - Maximum Engine Speed Exceeded (Engine Warranty VOID! :-) 00544 - Maximum Boost Pressure Exceeded
00545 - Engine-Transmission Electrical Connection 00546 - Data wiring faulty
00547 - ABS Pressure Control Switch (F137) 00548 - Fault memory Supply Voltage 00549 - Fuel Consumption Signal 00550 - Start of Injection Regulation 00551 - Catalyst Temperature too High
00553 - Mass Air Flow Sensor (G70)
00554 - Lambda (Oxygen Sensor) Regulation 2 00555 - Oxygen (Lambda) Sensor 2 (G108)
00556 - Exhaust Gas Recirculation Potentiometer (G212) 00557 - Pressure Switch: Power Steering (F88)
00558 - Mixture Regulation Adjustment Limit: Lean 00559 - Mixture Regulation Adjustment Limit: Rich 00560 - Exhaust Gas Recirculation System
00561 - Mixture Adaptation
00562 - Sensor for Oil Level/Temperature (G266) 00563 - Instantaneous Consumption Display (Y10) 00564 - Selection Lever (E313)
00565 - Rear A/C Control Head (Climatronic) (E265) 00566 - Steering Assistance Operation
00567 - Control Circuit: Power Steering Motor 00568 - Position Sensors in Steering Motor 00569 - Steering Motor Current
00570 - Power Steering Motor Relay (J509) 00572 - Steering Position Sensor (G268) 00573 - Steering Torque Sensor (G269) 00574 - Drive Motor On
00575 - Intake Manifold Pressure 00576 - Terminal 15
00577 - Knock Sensor Regulation Cylinder 1 00578 - Knock Sensor Regulation Cylinder 2 00579 - Knock Sensor Regulation Cylinder 3 00580 - Knock Sensor Regulation Cylinder 4 00581 - Knock Sensor Regulation Cylinder 5 00582 - Knock Sensor Regulation Cylinder 6 00583 - Knock Sensor Regulation Cylinder 7 00584 - Knock Sensor Regulation Cylinder 8 00585 - EGR Temp Sensor (G98)
00586 - EGR System Control/Regulation 00587 - Mixture Control Adjustment Limit 00588 - 故故故故故故故故故故(N95)
00591 - Seat Belt Switch: Left (E24) 00592 - Seat Belt Switch: Right (E25)
00594 - Airbag Igniter Circuits 00595 - 故故故故故故故故
00597 - Wheel Speed Impulses: Deviation 00598 - Hydraulic/Mechanical Malfunction
00599 - Plausibility of Pressure/Brake Light Switch
00600 - Potentiometer On Positioning Motor for Temperature Flap (G92) 00601 - Potentiometer On Positioning Motor for Central Flap (G112)
00602 - Potentiometer On Positioning Motor for Footwell/Defroster Flap (G114) 00603 - Footwell/defroster Flap Positioning Motor (V85)
00604 - Potentiometer Positioning Motor for Air Flow Flap (G113) 00605 - Two-way Valve for Fresh and Recirculating Air Flap (N63) 00606 - Two-way Valve for Coolant Cut-Off Valve (N147)
00607 - Ambient Temperature indicator (G106) 00608 - Load State Sensor (G119)
00609 - Ignition Output 1 00610 - Ignition Output 2 00611 - Ignition Output 3 00612 - Ignition Output 4 00613 - Ignition Output 5 00615 - Ignition Output 7 00616 - Ignition Output 8
00617 - Airbag Deceleration Sensor: Left (G104) 00618 - Airbag Deceleration Sensor: Right (G105) 00619 - Sensor Feed Wire: Left
00620 - Sensor Feed Wire: Right
00621 - Pressure Reduction Valve (N155) 00622 - De-Water Fuel Filter
00623 - ABS/Transmission Electrical Connection 00624 - A/C Compressor Engagement Intervention 00625 - Vehicle Speed Signal
00626 - Glow Plug Indicator Light (K29) 00627 - Water Level Sensor (G120) 00628 - Positioning Level Monitoring 00629 - Brake Pedal Switch (F47) 00630 - A/C Switched On
00631 - Communications/Connection AC <-> Motronic 00632 - Climatronic Combi Interface
00634 - EDL/EDS Series Resistance (N159)
00635 - Oxygen (Lambda) Sensor Heating: Before CAT 00636 - Acceleration Sensor: Right Front (G121) 00637 - Acceleration Sensor: Left Rear (G122) 00638 - Engine/Transmission Electrical Connection 2 00639 - Deceleration Sensor (G123)
00640 - Relay for Oxygen (Lambda) Sensor Heating (J278) 00641 - AFT Temperature
00642 - EDL Change-Over Valve: Right Front (N166) 00643 - EDL Outlet Valve: Right Front (N167) 00644 - EDL Change-Over Valve: Left Front (N168) 00645 - EDL Outlet Valve: Left Front (N169) 00646 - ABS-TICS / Engine: Electrical Connection 1 00647 - ABS-TICS / Engine: Electrical Connection 2 00648 - Oxygen (Lambda) Sensor Heater: Behind CAT 00649 - ABS Inlet/Outlet Valve: Rear (N160)
00650 - Clutch Pedal Switch (F36) 00651 - Wiring for Ignition Circuits 00652 - Gear Monitoring
00653 - Selector Lever/Auto Trans Plausibility
00655 - Seat Belt Tensioner Igniter: Passenger Side (N154) 00656 - Seat Occupied Sensor: Passenger Side (G128) 00657 - Positioning Motor for Central Vents (V102) 00658 - Operating Unit
00659 - Self-Test
00660 - Kickdown Switch/Throttle Position Sensor 00661 - Temperature Indicator
00662 - Tachometer (G5) 00663 - Speedometer (G21) 00664 - Fuel gauge
00665 - Seat Belt Warning Light (K19) 00666 - Chime/Buzzer/Gong
00667 - Ambient Temperature Signal 00668 - Supply Voltage Terminal 30 00669 - Secondary MIL (K97)
00670 - Throttle Position Sensor (G127) 00671 - Cruise Control Switch (E45)
00673 - Press Brake Pedal 00674 - Release Brake Pedal
00675 - Front Left Inlet Valve: 0 Volts: Outlet Valve: 0 Volts: Wheel: Locked 00676 - Front Left Inlet Valve: VBatt: Outlet Valve: 0 Volts: Wheel: Locked 00677 - Front Left Inlet Valve: VBatt: Outlet Valve: VBatt: Wheel: Free 00678 - Front Left Inlet Valve: Vat: Outlet Valve: 0 Volts: Wheel: Free 00679 - Heating of Oxygen (Lambda) Sensor 2: Before CAT
00680 - Front Right Inlet Valve: 0 Volts: Outlet Valve: 0 Volts: Wheel: Locked 00681 - Front Right Inlet Valve: VBatt: Outlet Valve: 0 Volts: Wheel: Locked 00682 - Front Right Inlet Valve: VBatt: Outlet Valve: VBatt: Wheel: Free 00683 - Front Right Inlet Valve: Vat: Outlet Valve: 0 Volts: Wheel: Free 00684 - Heating of Oxygen (Lambda) Sensor 2: After CAT
00685 - Rear Left Inlet Valve: 0 Volts: Outlet Valve: 0 Volts: Wheel: Locked 00686 - Rear Left Inlet Valve: VBatt: Outlet Valve: 0 Volts: Wheel: Locked 00687 - Rear Left Inlet Valve: VBatt: Outlet Valve: Vat: Wheel: Free 00688 - Rear Left Inlet Valve: Vat: Outlet Valve: 0 Volts: Wheel: Free 00689 - Leak in Intake System
00690 - Rear Right Inlet Valve: 0 Volts: Outlet Valve: 0 Volts: Wheel: Locked 00691 - Rear Right Inlet Valve: VBatt: Outlet Valve: 0 Volts: Wheel: Locked 00692 - Rear Right Inlet Valve: VBatt: Outlet Valve: Vat: Wheel: Free 00693 - Rear Right Inlet Valve: VBatt: Outlet Valve: 0 Volts: Wheel: Free 00695 - EDL/EDS Valves / Hydraulic Pump: VBatt: Front R&L Wheels Locked 00696 - ABS Pressure Reducing Valve: Left (N170)
00697 - ABS Pressure Reducing Valve: Right (N171) 00698 - Control Module Increased Current Consumption 00699 - Oxygen (Lambda) Sensor Behind CAT (G130) 00700 - Oxygen (Lambda) Sensor 2 Behind CAT (G131) 00701 - Engine Coolant Temperature Overheat Test 00702 - Fuel Composition Sensor (G133)
00703 - Idle Position Potentiometer/ Switch On Throttle
00704 - EDL/EDS Valves/Hydraulic-Pump: Vbatt-wheels Locked 00705 - Relay for Coolant Fan: Stage 1 (J279)
00706 - Relay for Coolant Fan: Stage 2 (J513) 00707 - Center Vent Valve (N236)
00708 - WARNING! Coolant Fan will be Switched ON 00709 - Sunlight Photosensor 2 (G134)
00710 - Defroster Flap Positioning Motor (V107) 00711 - Left Footwell Flap Positioning Motor (V108)
00712 - Right Footwell Flap Positioning Motor (V109) 00713 - Centre Left Vent Positioning Motor (V110) 00714 - Centre Right Vent Positioning Motor (V111) 00715 - Rear Footwell Vent Positioning Motor (V112) 00716 - Air recirculation Flap Positioning Motor (V113) 00717 - ACF Flap Positioning Motor (V114)
00718 - Switch for Top Left Vent (F179) 00719 - Upper Right Vent Switch (F180) 00720 - Lower Left Vent Switch (F181) 00721 - Lower Right Vent Switch (F182) 00722 - Left Center Vent Switch (F183) 00723 - Right Center Vent Switch (F184) 00724 - Left Rear Footwell Vent Switch (F185) 00725 - Right Rear Footwell Vent Switch (F186) 00726 - Center Rear Footwell Vent Switch (F187)
00727 - Potentiometer in Positioning Motor for Defrost Flap (G135)
00728 - Potentiometer in Positioning Motor for Left-Hand Central Vent (G136) 00729 - Potentiometer in Positioning Motor for Right-Hand Central Vent (G137) 00730 - Potentiometer in Positioning Motor for Central Vent (G138)
00731 - Potentiometer in Positioning Motor for Left-Hand Footwell Flap (G139) 00732 - Potentiometer in Positioning Motor for Right-Hand Footwell Flap (G140) 00733 - Potentiometer in Positioning Motor for Rear Footwell Vent (G141) 00735 - Potentiometer in Positioning Motor for Air recirculation Flap (G143) 00736 - Potentiometer in Positioning Motor for ACF Flap (G144)
00737 - Left Heat Regulating Valve (N175) 00738 - Rear Heat Regulating Valve (N176) 00739 - Coolant Circulation Pump (V50) 00740 - Cylinder 1 Recognition Sensor (G145) 00741 - Brake Pedal Monitoring
00742 - Drive Battery Ventilation System 00743 - Battery Ventilation Sensor (G146) 00744 - Drive Battery Temperature Regulation 00745 - Insulation Monitoring
00746 - Battery Cell Failure
00747 - Front Battery Temp Sensor (G52) 00748 - Rear Battery Temp Sensor (G53) 00749 - Ventilation Flap
00751 - Battery Capacity Indicator 00752 - Fan and Battery Heating
00753 - Electrical Connection to Wheel Speed Sensor 00754 - Hot Warning Light
00755 - Engine Oil Pressure Warning Light (K3) 00756 - Left Vent Temp Sensor (G150)
00757 - Right Vent Temp Sensor (G151) 00758 - Secondary Air Injection System (AIR) 00759 - Left Vent Temp Regulator (G155) 00760 - Right Vent Temp Regulator (G156) 00761 - DTC Stored in ECM
00762 - Injection Valve (N181)
00763 - Gas Pressure Sensor (Driver Side) (G147) 00764 - Gas Pressure Sensor (Passenger Side) (G148) 00765 - Modulating Piston Movement Sensor (G149) 00766 - Front Vent Temperature Sensor (G152) 00767 - Rear Evaporator Temp Sensor (G153) 00768 - Rear Heater Core Temp Sensor (G154)
00769 - Coolant Temperature Sensor at Engine Outlet (G82) 00770 - Coolant Temperature Sensor at Radiator Outlet (G83) 00771 - Fuel Level Sensor (G)
00772 - 0.3 Bar Oil Pressure Switch (F22) 00773 - Engine Oil Pressure Sensor (G10)
00775 - Level Control System Sensor: Right Rear (G77) 00776 - Level Control System Sensor: Left Front (G78) 00777 - Accelerator Position Sensor (G79)
00778 - Steering Angle Sensor (G85) 00779 - Outside Air Temp Sensor (G17) 00780 - Sensor for Vertical Acceleration (G90) 00781 - Positioning Motor: Left Front (V76) 00782 - Positioning Motor: Right Front (V77) 00783 - Positioning Motor: Left Rear (V78) 00784 - Positioning Motor: Right Rear (V79) 00785 - Temp Sensor in Instrument Panel (G56) 00786 - Temp Sensor in Headliner (G86)
00787 - Temperature Sensor in Fresh Air intake duct (G89) 00788 - Two-way Valve for Footwell-defrost Flap (N118) 00789 - Backup Switch (F41)
00790 - Recirculating/Fresh Air Flap 00791 - A/C Evaporator Temp Switch (E33) 00792 - A/C Pressure Switch (F129)
00793 - Brake Pedal Position Sensor (G100) 00794 - Hydraulic Pump Sensor (G101)
00795 - Rear Axle Vertical Acceleration. Sensor (G102) 00796 - Fan for Interior Temp Sensor (V42)
00797 - Sunlight Photo Sensor (G107) 00798 - Segment Test
00799 - Coolant Temperature Sensor (G110)
00800 - Temperature Sensor at Fresh Air Blower (G109) 00801 - A/C Refrigerant High Pressure Switch (F118) 00802 - A/C Refrigerant Low Pressure Switch (F73) 00803 - Spring Travel Sensor: Right Front (G116) 00804 - Spring Travel Sensor: Left Front (G115) 00805 - Suspension Strut Valve: Left Front (N148) 00806 - Suspension Strut Valve: Right Front (N149) 00807 - Suspension Strut Valve: Left Rear (N150) 00808 - Suspension Strut Valve: Right Rear (N151) 00809 - Brake Booster ESP
00810 - Sensor 1/2 for Brake Pressure
00811 - System Not Ready for Interrogation (Ross-Tech: Cycle Ignition and Try Again) 00812 - Brake Pressure Release Solenoid (F84)
00813 - Sensor 2 for Brake Pressure (G214) 00815 - Switch for Brake Recognition (F238) 00816 - Power Steering Sensor (G250)
00817 - Steering Assist Temperature Protection
00818 - Sensor for Evaporator Outlet Temperature (G263) 00819 - High Pressure Sensor (G65)
00820 - Switch for Brake Recognition (F83) 00821 - Antenna 2 for Radio (R93)
00822 - Connection DSP to Radio 00823 - Line-Output: Front Left
00824 - Traction Control Indicator Light (K86) 00825 - Drivers Seat Heating Element (Z6) 00826 - Passengers Seat Heating Element (Z8) 00827 - Coolant Fan Control Relay (J26)
00829 - Heater Control Module (J162)
00830 - Convertible Top Control Module (J256) 00831 - Coolant Fan Control Module (J293) 00832 - A/C Control Head (E87)
00833 - Signal for Activation of Heated Windshield 00834 - Signal for Activation of Heated Rear Window 00835 - Connection to Convertible Top Control Module 00836 - Valve 1 for Gear Selection (N284)
00837 - Valve 2 for Gear Selection (N285) 00838 - Valve 3 for Gear Selection (N286) 00839 - Valve 4 for Gear Selection (N287)
00840 - Transmission Hydraulic Pump Relay (J510) 00841 - Transmission Hydraulic Pressure Sensor (G270) 00842 - Control Module for Electronic Manual Transmission 00843 - Sensor for Front/Rear Selection Lever (G272) 00844 - Shift Lever: Gate Recognition Switch (J257) 00845 - Shift Lever: Neutral-Recognition Switch (F258) 00846 - Shift Lever: Stop-Recognition Switch (F259) 00847 - Consumer Switch-off Relay (J511)
00848 - Electronic Manual Transmission Switch (E262) 00849 - S-contact at Ignition/Starter Switch -D-00850 - Control Output Active: Radio Amplifier 00851 - Loudspeaker(s) 00852 - Loudspeaker(s): Front 00853 - Loudspeaker(s): Rear 00855 - Connection to CD changer 00856 - Radio Antenna 00857 - CD Changer Unit (R41)
00858 - Connection: Radio ZF Output to Antenna Amplifier 00859 - Line-Output: Front Right
00860 - Line-Output: Rear Left
00861 - Connection to Navigation Computer 00862 - Antenna for GPS Navigation (R50/R52) 00863 - Antenna 1 for TV (R55)
00864 - Antenna 2 for TV (R56) 00865 - Antenna 3 for TV (R57) 00866 - Antenna 4 for TV (R58)
00868 - Turn Angle Sensor (G208) 00869 - Line Output: Rear Right 00870 - Bass Speaker Front Left (R21) 00871 - Bass Speaker Front Right (R23) 00872 - Bass Speaker Rear Left (R15) 00873 - Bass Speaker Rear Right (R17) 00874 - Treble Speaker Front Left (R20) 00875 - Treble Speaker Front Right (R22) 00876 - Treble Speaker Rear Left (R14) 00877 - Treble Speaker Rear Right (R16) 00878 - Connection to Speaker Front Left 00879 - Connection to Speaker Front Right 00880 - Connection to Speaker Rear Left 00881 - Connection to Speaker Rear Right
00882 - Operating Control for Program Selection (E200) 00883 - Ignition Switch (D) Terminal S
00884 - Ignition Switch (D) Terminal X 00885 - Ignition Switch (D) Terminal 50 00886 - Turn Signal Switch (E2)
00887 - Switch for Emergency Flasher (E229)
00888 - Wiper Switch for Intermittent Operation (E22) 00889 - Horn (H)
00890 - Switch for Heated Rear Window (E230) 00891 - Switch for Remote Trunk Release (E233) 00892 - Switch for Trunk Closing Cylinder (F248) 00893 - Switch for Trunk Handle (E234)
00895 - Cruise Control Switch (E45) 00896 - Trunk Lock Unit (F256)
00897 - Windshield Washer Pump (V5) 00898 - Control Circuit A/C compressor 00899 - Fuse for Wiper Motor (S128) 00900 - Fuse for Signal Horn (S194) 00901 - Back-Up Lamps
00902 - Fuse for Trunk Release (S195)
00903 - Fuse for Heated Outside Mirrors (S196) 00904 - Fuse for Solenoid for Shift-Block (S197) 00905 - Fuse for Back-Up Lamps (S40)
00907 - Intervention load Management 00908 - Control Module for Wiper Motor 00909 - Windshield Wiper Motor (V) Stage 1/2 00910 - Indicator Lamp for Emergency Flashers (K6) 00911 - Indicator Lamp for Heated Rear Glass (K10) 00912 - Window Regulator Switch: Front Left (E40)
00913 - Window Regulator Switch: Front Right Driver (E81) 00914 - Window Regulator Switch: Rear Left: Driver (E53) 00915 - Window Regulator Switch: Rear Right: Driver (E55) 00916 - Blocking Switch for Rear Windows (E39)
00917 - Control for Windshield Wiper Interval Setting 00918 - Terminal 31
00919 - Motor for Rear Window Wiper (V12)
00920 - Heated Outside Mirrors: Driver Side (Z4) / Passenger Side (Z5) 00921 - Indicator Lamp for Heated Outside Mirrors (K153)
00922 - Wiper Switch for Intermittent Operation (Stage 1) (E22) 00923 - Wiper Switch for Intermittent Operation (Stage 2) (E22) 00924 - Relay for Headlamp Cleaning System (J39)
00925 - Fuse (30) for Interior Lamps (S261) 00926 - Terminal 30
00927 - Terminal 30 (Right)
00928 - Locking Module for Central Locking: Front Driver Side (F220) 00929 - Locking Module for Central Locking: Front Passenger Side (F221) 00930 - Locking Module for Central Locking: Rear Left (F222)
00931 - Locking Module for Central Locking: Rear Right (F223) 00932 - Electric Window Motor: Drivers Side (V147)
00933 - Electric Window Motor: Passenger Side (V148) 00935 - Electric Window Motor: Rear Right (V27)
00936 - Electric Window Switch in Front Passenger Door (E107). 00937 - Switch for Electric Window: Rear Left (E52)
00938 - Switch for Electric Window: Rear Right (E54) 00939 - Mirror Adjust Motor: Drivers Side (V149) 00940 - Mirror Adjust Motor: Passenger Side (V150) 00941 - Exterior Mirror Retract Motor: Driver Side (V121) 00942 - Exterior Mirror Retract Motor: Passenger Side (V122) 00943 - Heated Exterior Mirror: Driver Side (Z4)
00944 - Heated Exterior Mirror: Passenger Side (Z5) 00945 - Crash Sensor (G190)
00946 - Interior Light (W)
00947 - Trunk Lid remote Control Switch (E188) 00948 - Signal: Close sliding Roof
00949 - Central Locking Motor - tailgate (V53): LOCK 00950 - Central Locking Motor - tailgate (V53): UNLOCK 00951 - Tailgate Central Locking Motor Relay (J398) 00952 - Signal: Drivers Door Open
00953 - Interior Light Time limit 00954 - Starter Inhibitor Relay (J433) 00955 - Key 1
00956 - Key 2 00957 - Key 3 00958 - Key 4
00959 - Indicator Lamp for Central Locking: Safe (K133) 00960 - Switch for Central Locking: Driver Side (F59) 00961 - Switch for Central Locking: Passenger Side (F114) 00962 - Alarm via. Tilt Sensor
00963 - Circuit to Tilt Sensor
00964 - Signal Drivers Door Open: Plus 00965 - Fuse for Alarm Horn (S158) 00966 - Fuse for Blinkers (S151) 00967 - Left Turn Signals 00968 - Right Turn Signals
00969 - Fuse for Heated Rear Window (S41) 00971 - Relay for Heated Windshield: Left (J410) 00972 - Relay for Heated Windshield: Right (J411) 00973 - Switch for Heated Rear Window (E15) 00974 - Switch for Heated Windshield (E180)
00976 - Indicator Lamp for Heated Windshield (K122) 00977 - Low Beams: Left & Right
00978 - Lamp for Low Beam: Left (M29) 00979 - Lamp for Low Beam: Right (M31) 00980 - Fuse for Low Beam: Left (S152) 00981 - Fuse for Low Beam: Right (S153) 00982 - Fuse for Parking Lamps: Left (S154) 00983 - Fuse for Parking Lamps: Right (S155) 00984 - Left Tail Light (M4)
00986 - Fuse for Brake Lights (S156) 00987 - Lamp for Brake Light: Left (M9) 00988 - Lamp for Brake Light: Right (M10) 00989 - Fuse for Consumption Cut-Off (S157) 00990 - Consumption Cut-Off
00991 - Interior Lights
00992 - Consumption Cut-Off Active 00993 - Consumption Cut-Off Inactive
00994 - Sensor for Front Height Adjustment On Drivers Seat (G215) 00995 - Sensor for Rear Height Adjustment On Drivers Seat (G216) 00996 - Sensor for Height Adjustment On Drivers Headrest (G217) 00997 - Motor for Driver's Seat Position: Fore/Aft (V48)
00998 - Motor for Driver's Seat Recline (V45)
00999 - Motor for Front Height Adjustment of Driver's Seat (V29) 01000 - Motor for Rear Height Adjustment of Driver's Seat (V30) 01001 - Motor Drivers Seat Headrest Adjustment (V103)
01002 - Switch for Drivers Height Adjustment: Front: Up (E208) 01003 - Switch for Drivers Height Adjustment: Front: Down (E209) 01004 - Switch for Drivers Height Adjustment: Rear: Up (E210) 01005 - Switch for Drivers Height Adjustment: Rear: Down (E211) 01006 - Switch for Drivers Position: Forwards (E212)
01007 - Switch for Drivers Position: Rearward (E213) 01008 - Note: Emergency OFF Switch is Active!
01009 - Sensor for Driver's Seat Position Fore/Aft (G218) 01010 - Sensor for Driver's Seat Recline (G219)
01011 - Switch for Driver's Headrest: Up (E214) 01012 - Switch for Driver's Headrest: Down (E215) 01013 - A/C Compressor Load Signal
01014 - Output Stage for Fan Thermostat
01016 - Gas Filled Suspension Bleeder Valve (N106) 01017 - Gas Filled Suspension Compressor (V65) 01018 - Radiator Fan (V7)
01019 - Relay
01020 - Water Pump (V36)
01021 - Differential Lock Indicator Light (K81)
01022 - Interior Illumination: Combination Image Activated 01023 - Buzzer/gong/Chime (H3)
01025 - Trigger for On Board Diagnostic Lamp: Malfunction 01026 - Rear Evaporator Fan (V20)
01027 - Rear Warm Air Fan (V47) 01028 - Fan Relay (J323)
01029 - A/C Relay (J32)
01030 - Central Locking Key Switch: Driver Side: Lock 01031 - Central Locking Key Switch: Driver Side: Unlock 01032 - Central Locking Key Switch: Passenger Side: Lock 01033 - Central Locking Key Switch: Passenger Side: Unlock 01034 - Electric Window Thermal Protection Active: Driver 01035 - Electric Window Thermal Protection Active: Passenger 01036 - Electric Window Thermal Protection Active: Rear Left 01037 - Electric Window Thermal Protection Active: Rear Right 01038 - Central Locking Thermal Protection
01039 - Coolant Temperature Sensor (G2)
01040 - ABS/Transmission Electrical Connection 2 01041 - Traction Control System: Function Not Plausible 01042 - Control Module: Not Coded
01043 - Control Module: Incorrect Software Version 01044 - Control Module Incorrectly Coded
01045 - Tiptronic Switch (F189)
01046 - Brake Pad Wear Indicator Light (K32) 01047 - Brake and Parking Brake Warning Light (K7) 01048 - Diesel Electronic Warning Light (K104) 01049 - Supply Voltage Term 50
01050 - Glow Plug Monitoring
01051 - Fuel Regulation Positioning Motor (V117) 01052 - Load Signal Potentiometer (G157) 01053 - Start of Injection Valve (N182)
01054 - Power Supply Relay: Terminal 30 (J317) 01056 - Function: Equalization Charge
01057 - Function: Constant Voltage Charge 01058 - Function: Constant Current Charge 01059 - Rotor Position Sensor (G159)
01060 - Ignition Coil Lower Temp Sensor (G160) 01061 - Ignition Coil Upper Temp Sensor (G161) 01062 - Signal for Battery Current Reduction
01064 - Terminal 58d: Interior Dimming
01065 - Connection from RNS to TV Antenna Amplifier 01066 - Driving Despite Selector Lever Position N 01067 - Auxiliary Heater Core Shut-Off Valve (N317) 01068 - Clutch Slave Cylinder Hydraulic Pump Relay (J498) 01069 - Pressure System for Brake Boost
01070 - Starter Motor Relay (J53)
01071 - Clutch Movement Sensor (G162) 01072 - Clutch Positioner Vacuum Valve (N183) 01073 - Clutch Pressure System
01074 - Clutch Positioner Breather Valve (N184) 01075 - Vacuum Pump Relay (J318)
01076 - Hydraulic Pump Clutch Relay (J319) 01077 - Brake Booster Vacuum Switch (F190) 01078 - Gear Selection Switch (F191)
01079 - Power Steering Relay (J320)
01080 - Power Steering Pressure Switch (F192) 01081 - Priority Switch Valve (N185)
01082 - Low Fuel Level Warning Light (K105)
01083 - Low Windshield Washer Fluid Indicator Light (K106) 01084 - 32 故 (0 故) Temperature Warning Light (K107) 01085 - 39 故 (4 故) Temperature Warning Light (K108) 01086 - Speedometer Sensor (G22)
01087 - Basic Setting Not Performed 01088 - Mixture Control Adaptation 2
01089 - Switch for Tensioning Strut Stowed (F204) 01090 - Switch for Tensioning Strut Raised (F203) 01091 - Switch Front Canopy (F202)
01092 - Switch For Stowed Canopy (F171)
01093 - Switch for Convertible Top Box Lid: Top (F201) 01094 - Switch 3 for Convertible Top Box Lid: Left (F195)
01096 - Switch 1 for Convertible Top Box Lid Latched: Left (F199) 01097 - Switch for Front Canopy Latch (F172)
01098 - Switch for Trunk Lid Close (F206) 01099 - Switch for Luggage Compartment: Lock 01100 - Switch for Luggage Compartment: Unlock 01101 - Switch to Disable Unlocking (F205)
01103 - Switch 2 for Convertible Top Box Lid Released: Right (F198) 01104 - Switch 1 for Convertible Top Box Lid Latched: Right (F200) 01105 - Solenoid Valve 8 (N186)
01106 - Power Window Opening Relay (J291)
01107 - Convertible Top Locked Indicator Light (K98) 01108 - Power Window Closing Relay (J292)
01109 - Hydraulic Pump Relay (J321)
01110 - Solenoid for Disabling Locking Function (N187) 01111 - Luggage Comp. Lock Actuator Motor 1
01112 - Actuator Motors 1 and 2 Power Supply 01113 - Luggage Comp. Lock Actuator Motor 2 01114 - Parking Brake Warning Light Switch (F9) 01115
-01116 - Conv. Top Unlocking Actuator Motor 01117 - Generator Terminal DF Load Signal 01118 - Engine Preheating
01119 - Gear Recognition Signal 01120 - Camshaft Adjustment 1 01121 - Camshaft Adjustment 2
01122 - Camshaft Position (Hall) Sensor 2 (G163) 01123 - Control Circuit Faulty
01124 - Charge Time Monitoring 01125 - Intake Manifold Changeover 01126 - Engine Speed Signal
01127 - Fuel Reserve Warning Light (K16) 01128 - Immobilizer Pickup Coil (D2) 01129 - S Terminal (H15)
01130 - ABS Operation
01131 - Control Circuit for Turn Signals 01132 - Front Infrared Sensor (G166) 01133 - Rear Infrared Sensor (G167) 01134 - Alarm Horn (H12)
01136 - Engine Starting Interrupted
01137 - Central Locking Switch: Locking contacts 01138 - Central Locking Switch: Driver Door Unlocking
01139 - Central Locking Switch: Front Passenger Door Unlocking 01140 - Central Locking Switch: tailgate/rear Lid Unlocking 01141 - Luggage Compartment Unlocking Switch (E165)
01142 - Central Locking Motors: Driver Door and Tank Valve Locked 01143 - Central Locking Motors: Driver Door and Tank Valve Unlocked 01144 - Central Locking Motor: Unlock Passenger Door
01145 - Central Locking Motors: Unlock Rear Doors
01146 - Central Locking Motors: Front Passenger and Rear Doors Locked 01147 - Luggage Compartment Lid Locking Motor (V120)
01148 - Activation of Safety/Deadbolt Locks in Doors 01149 - Deactivation of Safety/Deadbolt Locks in Doors 01150 - Analog Indicators
01151 - Diesel Engine Inhibitor Switch (F207) 01152 - Gear Monitoring Switch (F209) 01153 - Ecomatic Switch (E163)
01154 - Clutch System Pressure Switch (F210) 01155 - Clutch
01156 - Gear Recognition Switch (F208) 01157 - Alarm Horn Supply Voltage 01158 - Turn Signal Supply Voltage
01159 - Wiring for Safety/Deadbolt Locking 01160 - Coolant Glow Plug Relay (J325)
01161 - Output Stage for Cam Adjustment Valve 01162 - Combustion Misfiring
01163 - Ignition Discharge 01164 - ESP Operation
01165 - Throttle Body Control Module (J338) 01166 - Engine Torque Signal
01167 - Full Load Stop Valve (N194) 01168 - Idle Speed Boost Valve (N177) 01169 - Door Contact Switch Driver Side (F2) 01170 - Fuel Injection Duration Sensor (G175)
01171 - Temperature Sensor: Passenger Side Heated Seat (G60) 01172 - Temperature Sensor: Driver's Heated Seat (G59)
01173 - Motor for Driver Seat Fore/Aft Adjustment (V28) 01174 - Driver Seat Height Adjustment Motor (V138) 01176 - Key
01177 - Engine Control Unit
01178 - Powertrain Databus: Static [Quiet / No Messages?] 01179 - Incorrect Key Programming
01181 - Initializing: Only 2 Keys Learned 01182 - Altitude Adaptation
01183 - Warning Light for Catalyst Monitoring (K72) 01184 - Rear Vent Outlet Temperature Sensor (G174) 01185 - Rear Fresh Air Blower (V80)
01186 - Rear Air Distribution Flap Motor (V136)
01187 - Rear Temperature Flap Positioning Motor (V137)
01188 - Electrical Connection between Control Module and Magnetic Clutch 01189 - Front Air Distribution Flap Motor (V145)
01190 - Electrical Connection between Control Module and Actuator Motor 01191 - Motors for Seat Adjustment
01192 - Torque Converter Lock-Up Clutch
01193 - Relay for Low-Output Coolant Preheat (J359) 01194 - Relay for High-Output Coolant Preheat (J360) 01195 - END
01196 - Engine-Transmission Data Bus
01197 - Power Train Data Bus: Incorrect Software Version 01198 - Comfort Data Bus: Incorrect Software Version 01199 - Electrical Connection between Engine and ABS 01200 - ABS Valves Supply Voltage
01201 - ABS Valves Supply Voltage 01202 - Diagnostic Cable
01203 - Electrical Connection between ABS and Instrument Cluster 01204 - Engine Temperature Sensor (G27)
01205 - Climatronic Relay (J254)
01206 - Signal for Duration of Ignition: OFF 01207 - Control Module for Auxiliary Heater (J364) 01208 - Data Records in Control Unit Altered
01209 - Engine Speed Signal - Alternator Terminal W 01210 - Control Module Learning Adjustment Range 01211 - Belt Tensioner Igniter: Rear Driver Side (N196) 01212 - Belt Tensioner Igniter: Rear Passenger Side (N197) 01213 - Belt Tensioner Igniter: Rear Middle (N198)
01214 - Crash Data for Belt Tensioner Stored
01216 - Seat Occupant Sensor: Passenger Side Rear (G178) 01217 - Side Airbag Igniter: Driver Side (N199)
01218 - Side Airbag Igniter: Passenger Side (N200) 01219 - Rear Airbag Igniter: Driver Side (N201)
01220 - Rear Airbag Igniter: Passenger Side (N202) 01221 - Crash Sensor Side Airbag: Driver Side (G179) 01222 - Crash Sensor Side Airbag: Passenger Side (G180) 01223 - Central Locking Signal: Unlock
01224 - Control Module Does Not Match Vehicle 01225 - Radio Receiver for Aux Heat (R64)
01226 - Crash Data Stored for Side Airbag: Driver Side 01227 - Crash Data Stored for Side Airbag: Passenger Side 01228 - Airbag Cut-Off Switch for Passenger Side (E224) 01229 - A/C Humidity Sensor (G260)
01230 - Left Footwell Vent Temperature Sensor (G261) 01231 - Right Footwell Vent Temperature Sensor (G262) 01232 - A/C Compressor Regulator Valve (N280)
01233 - Engine Coolant Blocking Valve for Heater (N279) 01234 - Heated Windshield Control Module (J505)
01235 - Secondary Air Injection Inlet Valve (N112) 01236 - Shift Selector Locking Solenoid (N110) 01237 - Fuel Shut-Off Valve (N109)
01238 - Ignition Timing Control/Adjustment
01239 - Vent Valve in Throttle Valve Positioning Actuator (N97) 01240 - Breather Valve in Throttle Valve Positioning Actuator (N117) 01241 - Activated Charcoal Filter (EVAP) System Solenoid Valve 2 (N115) 01242 - Output Stages in Control Module
01243 - Intake Manifold Changeover Valve (N156)
01244 - Control Module for Oxygen (Lambda) Sensor Heating (J208) 01245 - Pressure Regulator (N73)
01246 - Intake Manifold Preheating Relay (J81)
01247 - Activated Charcoal Filter (EVAP) System Solenoid Valve 1 (N80) 01248 - Two-Way Valve for Full Throttle Enrichment (N54)
01249 - Fuel Injector for Cylinder 1 (N30) 01250 - Fuel Injector for Cylinder 2 (N31) 01251 - Fuel Injector for Cylinder 3 (N32) 01252 - Fuel Injector for Cylinder 4 (N33) 01253 - Fuel Injector for Cylinder 5 (N83) 01254 - Fuel Injector for Cylinder 6 (N84) 01256 - Fuel Injector for Cylinder 8 (N86) 01257 - Idling Speed Stabilization Valve (N71) 01258 - Choke Valve Positioner (V63)
01259 - Fuel Pump Relay (J17)
01260 - Deceleration Fuel Shut-Off Valve (N65)
01261 - Oxygen (Lambda) Sensor Frequency Valve (N7) 01262 - Solenoid Valve for Boost Pressure Control (N75) 01263 - Cold Start Injector (N17)
01264 - Secondary Air Injection Pump Relay (J299) 01265 - Exhaust Gas Recirculation Valve (N18) 01266 - Glow Plug Relay (J52)
01267 - Automatic Glow Time Control Module (J179) 01268 - Quantity Adjuster (N146)
01269 - Commencement of Injection Valve (N108) 01270 - A/C Magnetic Clutch (N25)
01271 - Positioning Motor for Temperature Flap (V68) 01272 - Positioning Motor for Central Flap (V70) 01273 - Fresh Air Blower (V2)
01274 - Air Flow Flap Positioning Motor (V71)
01275 - Rear Side Airbag Shut-Off Key Switch (E280) 01276 - ABS Hydraulic Pump (V64)
01277 - ABS Hydraulic Pump Relay (J185) 01278 - EDL/EDS Cut-Off Relay (J263)
01279 - Longitudinal Acceleration Sensor (G251) 01280 - Airbag: Passenger Side: Disabled 01281 - Airbag: Drivers Side: Disabled
01282 - Intake Manifold Flap change-over Valve (N239) 01283 - Motor for Intake Manifold Flap (V157)
01284 - Side Airbag: Drivers Side: Disabled 01285 - Side Airbag: Passenger Side: Disabled 01286 - Belt Tensioner: Drivers Side: Disabled 01287 - Belt Tensioner: Passenger Side: Disabled 01288 - Terminal 30: Steering Assist
01289 - Terminal 15: Steering Assist 01290 - Reference Voltage: Steering Assist
01291 - Left Rear Side Airbag Shut-Off Key Switch (E297) 01292 - Right Rear Side Airbag Shut-Off Key Switch (E298)
01293 - Indicator Lamp for Side Airbag Disabled: Rear Dr. Side (K167) 01294 - Indicator Lamp for Side Airbag Disabled: Rear Pass. Side (K168) 01296 - Sensor for Vent Temperature: Center (G191)
01298 - Instrument Cluster Lamp Test 01299 - 数据总总总断接口(J533)
01300 - Control Module for Navigation with CD-Rom (J401) 01301 - Control Module for Voice Recognition (J507) 01302 - Control Module for Telematic (J499)
01303 - Telephone Transceiver (R36) 01304 - Radio
01305 - Databus for Infotainment 01306 - Fast Data Bus Display 01307 - LWL Databus Display
01308 - Control Module for Roof Electronics (J528) 01309 - Power Steering Control Module (J500) 01310 - Level Control System Control Module (J197) 01311 - Information Data Bus
01312 - 力系 数据总 总 总总 01314 - Engine Control Module 01315 - Transmission Control Module 01316 - ABS Control Module
01317 - Control Module in Instrument Cluster (J285) 01318 - Control Module for Injection Pump (J399) 01319 - Control Module for Distance Control (J428) 01320 - Control Module for Climatronic (J255) 01321 - Control Module for Airbags (J234)
01322 - Control Module for Multi-Function Unit (MFA) (J501) 01323 - Control Module for Automatic Clutch (J439)
01324 - Control Module for All Wheel Drive (J492)
01325 - Control Module for Tire Pressure Monitoring (J502) 01326 - Control Module for Multi-Function Steering Wheel (J453) 01327 - Control Module for Parking Aid (J446)
01328 - Convenience System Data Bus
01329 - Convenience System Data Bus in Emergency Mode 01330 - Central Control Module for Central Convenience (J393) 01331 - Door Control Module: Driver Side (J386)
01332 - Door Control Module: Passenger Side (J387) 01333 - Door Control Module: Rear Left (J388) 01334 - Door Control Module: Rear Right (J398)
01335 - Drivers Seat/Mirror Position Control Module (J543) 01337 - Interior Door Handle Illumination
01338 - Signal: Doors Not Closed 01339 - Door Warning Light 01340 - Mirror Adjustment Switch
01341 - Control Module in Instrument Panel On Comfort CAN (J285) 01342 - Engine Control Module 2 (Slave 1)
01343 - Engine Control Module 3 (slave 2) 01344 - HID (Xenon) Headlight
01345 - Ignition Module for HID Headlamp (N195) 01346 - Wire to igniter Unit
01347 - Wire to HID Headlamp
01348 - Interior Monitoring System Indicator Lamp (K162) 01349 - Alarm via Theft Warning System: Front
01350 - Alarm via Theft Warning System: Rear 01351 - Communication Wire at/to Ground (GND) 01352 - Wire for Clock/Pulse Signal: Front at 5V 01353 - Wire for Clock/Pulse Signal: Rear at 5V 01354 - Immobilizer Release Signal
01355 - Signal: Open All Windows
01356 - Signal: Close all Windows and Roof 01357 - Tank Flap Locking Motor (V155)
01358 - Internal Central Locking Switch: Driver Side (E150) 01359 - Internal Central Locking Switch: Passenger Side (E198) 01360 - Switch for Anti-Theft Alarm: Open
01361 - Switch for Anti-Theft Alarm: Close 01362 - Close Switch for Tailgate/Trunk (F124)
01363 - Switch for Central Locking: Driver's Door (F59) 01364 - Switch for Central Locking: Passenger Door (F114) 01365 - Lock/Unlock Switch: Interior
01366 - Opened Due to Crash Signal
01367 - Central Locking Pump Run Time Exceeded (Likely Leak) 01368 - Alarm triggered by Luggage Compartment Switch 01369 - Alarm triggered by Hood Switch
01370 - Alarm triggered by Interior Monitoring
01371 - Alarm triggered by Door Contact Switch: Driver's Side
01372 - Alarm triggered by Door Contact Switch: Passenger Side or Rear 01373 - Alarm triggered by Radio Ground Contact
01374 - Alarm triggered by Terminal 15 01375 - Valves for Engine Mounting: Stage 1
01377 - Ultra Sonic Sensor for Alarm System: Left (G170) 01378 - Ultra Sonic Sensor for Alarm System: Right (G171) 01379 - Interior Monitor Switch (E183)
01380 - Alarm triggered by Anti-Theft Sensor: Rear Left 01381 - Alarm triggered by Anti-Theft Sensor: Rear Right 01382 - Alarm triggered by Anti-Theft Sensor: Front Left 01383 - Alarm triggered by Anti-Theft Sensor: Front Right 01384 - Alarm triggered by Glass Breakage Sensor 01385 - Alarm System Indicator Lamp (K95) 01386 - Trigger(ing) Alarm
01387 - Wiring for Supply Voltage 01388 - Wiring for Timing/Pulse Signal 01389 - Tailgate Open Switch (F124) 01390 - Activate Interior Monitor 01391 - Simulate Crash Signal 01392 - Next Output: --> Activate 01393 - Sensor for Level-Control (G84)
01394 - Indicator Lamp for Level-Control (K134) 01395 - Motor for Level-Control Compressor (V66) 01396 - Valves for Struts: Rear (N150) / (N151) 01397 - Venting Solenoid for Level Control (N111)
01398 - Signal Conductor for Central Locking: Doors Open 01399 - Relay for Level-Control Compressor (J403)
01400 - Level Control 01401
-01402 - Data Wiring from Navigation System 01403 - Glass-Break Sensors: Rear
01404 - Valves for Motor Mounts: Stage 2
01405 - Exhaust Gas Recirculation Valve 2 (N213) 01406 - No Flame
01407 - Flame Extinguished
01408 - Under-Voltage Shut-Off (fixed Value) 01409 - Repeated Flame-Out
01410 - Heater Over-Temp
01411 - Temperature Sensor (G18)
01412 - Glow-Plug with Flame Monitoring (Q8) 01413 - Dosing/Metering Pump (V54)
01415 - Recirculating Pump (V55)
01417 - Signal for Water Heating Activation
01418 - Switch Valve 1 for Electronic Stability Program (N225) 01419 - Switch Valve 2 for Electronic Stability Program (N226)
01420 - High Pressure Switch Valve 1 for Electronic Stability Program (N227) 01421 - High Pressure Switch Valve 2 for Electronic Stability Program (N228) 01422 - Hydraulic Pump for Electronic Stability Program (V156)
01423 - Lateral Acceleration Sensor (G200) 01424 - Yaw Rate Sensor (G202): Reference Wire 01425 - Yaw Rate Sensor (G202): Signal Wire 01426 - Controls in Steering Wheel (E221) 01427 - Radio Louder
01428 - Radio Quieter 01429 - Radio Seek Up 01430 - Radio Seek Down 01431 - Telephone Memory 01432 - Next Telephone Memory
01433 - Speaker for Telephone/Navigation (R39) 01434 - Brake Light Disable Relay (ESP) (J508) 01435 - Brake Pressure Sensor 1 (G201) 01436 - Brake Fluid Level too Low 01437 - Control Position not Learned 01438 - Vehicle being Raised
01439 - Check Inclination 01440 - Fuel Level Signal
01441 - Low Fuel Level Sensor (G210) 01442 - Misfire due to Lack of Fuel 01443 - Adaptation of Battery Incomplete 01444 - Under-Voltage Shut-Off (Automatic) 01445 - Sensor for Driver Seat Fore/Aft (G227)
01446 - Sensor for Driver Seat: Seatback Adjust (G230) 01447 - Sensor for Driver Seat: Height Adjust (G231) 01448 - Sensor for Driver Seat: Tilt Adjust (G232) 01449 - Switch for Driver Seat: Tilt Adjust (E222): Back 01450 - Switch for Driver Seat: Tilt Adjust: (E222): Forward 01451 - Driver's Seat Fore/Aft and Height Adjust Switch (E61): Up 01452 - Driver's Seat Fore/Aft and Height Adjust Switch (E61): Down 01453 - Driver's Seat Fore/Aft and Height Adjust Switch (E61): Forward
01454 - Driver's Seat Fore/Aft and Height Adjust Switch (E61): Back 01455 - Driver's Seat Switch for Seatback Adjust (E96): Forward 01457 - Signal for Mirror Position
01458 - Signal from Central Locking
01459 - Driver's Seat-Memory Switch Button 1 (E218) 01460 - Driver's Seat-Memory Switch Button 2 (E219) 01461 - Driver's Seat-Memory Switch Button 3 (E220) 01462 - Anti-theft alarm ultra sonic Sensor (G209)
01463 - Alarm triggered by Sensor for anti-theft alarm System 01464 - Brake Pressure/lateral Acceleration Sensor
01465 - Signal wiring from Combi-instrument 01466 - Signal wiring to Combi-instrument 01467 - Front Left Tire Pressure Sensor (G222) 01468 - Front Right Tire Pressure Sensor (G223) 01469 - Rear Left Tire Pressure Sensor (G224) 01470 - Rear Right Tire Pressure Sensor (G225) 01471 - Spare Wheel Tire Pressure Sensor (G226)
01472 - Aerial for Monitoring Front Left Tire Pressure (R59) 01473 - Aerial for Monitoring Front Right Tire Pressure (R60) 01474 - Aerial for Monitoring Rear Left Tire Pressure (R61) 01475 - Aerial for Monitoring Rear Right Tire Pressure (R62) 01476 - Aerial for Monitoring Tire Pressure -spare Wheel (R63) 01477 - System Switched Off
01478 - Monitoring of Spare Tire Turned Off 01479 - Sensor for Head-Rest Adjustment (G129) 01480 - Drivers Headrest Adjustment Switch (E155): Up 01481 - Drivers Headrest Adjustment Switch (E155): Down 01482 - Motors for Central Locking
01483 - Control Circuit for Rear Lid Remote Unlocking 01484 - Key-Switch: Central Locking: Lock
01485 - Key-Switch: Central Locking: Unlock 01486 - System Function Test Activated 01487 - System Function Test
01488 - Sensor for Coolant Temperature -Aux. Heating (G241) 01489 - Over-Temp Sensor (G189)
01490 - Flame-Monitor (G64) 01491 - Glow-Plug for Heater (Q9) 01492 - Function Lock-Out
01493 - Bulb for Blinkers: Front Left (M5) 01494 - Bulb for Parking Lamps: Left (M1) 01495 - Bulb for High-Beams: Left (M30) 01497 - Bulb for Blinkers: Front Right (M7) 01498 - Bulb for Parking Lamps: Right (M3) 01499 - Bulb for High-Beams: Right (M32) 01500 - Bulb for Fog-Lamps: Right (L23) 01501 - Bulb for Blinkers: Rear Left (M6) 01502 - Bulb for Rear Fog: Left (L46) 01503 - Bulb for 3rd Brake Light (M25) 01504 - Bulb for License-Plate Light (X) 01505 - Bulb for Blinkers: Rear Right (M8) 01506 - Bulb for Rear Fog: Right (L47) 01507 - Initialization Not Successful
01508 - Switched Off because Final Position Not Reached
01509 - Spoiler not Extended at Speed Exceeding Warning Threshold 01510 - Spoiler not Extended at Speed Exceeding Alarm Threshold 01511 - Rear Spoiler Switch
01512 - Control Module for Sliding Roof 01513 - Unable to Lower Roo
f
01514 - Regulator for Roof
01515 - Enable/Release Signal from Comfort System 01516 - Terminal 30: Left
01517 - Control Module for Trailer/Towing Sensor (J345) 01518 - Bulb for Back-Up Lights: Left (M16)
01519 - Bulb for Back-Up Lights: Right (M17) 01520 - Rain and Light Recognition Sensor (G397) 01521 - Sensor for Tire Pressure
01522 - Handset for Telephone (R37) 01523 - Microphone for Telephone (R38) 01524 - Antenna for Telephone
01525 - Telephone-Card for Telematic 01526 - Emergency Call Button (E276) 01527 - Roadside Assistance Button (E275) 01528 - Auxiliary Antenna for Telematik (R90) 01529 - Auxiliary Speaker for Telematik (R91)
01530 - Radio Mute Switch 01531 - Emergency Battery
01532 - Signal Wiring to Instrument Cluster 01533 - Terminal 56 (High Beams)
01534 - Control Circuit for Left Headlight Range Adjusting Motor (V48) 01535 - Control Circuit for Right Headlight Range Adjusting Motor (V49) 01537 - Vehicle Level Sensor: Supply Voltage
01538 - Motors for Headlight Range Adjustment (V48) / (V49) 01539 - Headlights Not Adjusted
01540 - Headlights being Lowered 01541 - Headlights being Raised 01542 - Yaw Rate Sensor (G202)
01543 - Parking Aid Warning Chime (H15) 01544 - Indicator Lamp for Parking-Aid (K136) 01545 - Sensor for Parking Aid: Rear Left (G203) 01546 - Sensor for Parking Aid: Rear Mid-Left (G204) 01547 - Sensor for Parking Aid: Rear Mid-Right (G205) 01548 - Sensor for Parking Aid: Rear Right (G206) 01549 - Supply Voltage for Parking-Aid Sensor 01550 - Signal for Reverse Gear
01551 - Signal to Lock Central Locking
01552 - Motor for Central Locking: Drivers Door (V56): Lock 01553 - Motor for Central Locking: Passenger Door (V57): Lock 01554 - Motors for Central Locking: Rear Doors: Lock
01555 - Motors for Central Locking: Save [Safe?] 01556 - Motors for Central Locking: Unlock
01557 - Contact Switch in Locking Cyl: Driver Side: Open (F241) 01558 - Contact Switch in Locking Cyl: Driver Side: Close (F241) 01559 - Drivers Door
01560 - Passenger Door 01561 - Left Rear Door 01562 - Right Rear Door
01563 - Interior Lock Switch: Driver Side (E150): Lock 01564 - Interior Lock Switch: Driver Side (E151): Unlock 01565 - Luggage Compartment Light (W3)
01566 - Activate Signal for Interior Monitor
01567 - Contact Switch for Anti-Theft Alarm (F120) 01568 - Signal for Convenience Opening
01569 - Signal for Convenience Closing 01570 - Turn-Off Delay: Terminal 15 01571 - Signal for Seat Memory
01572 - Alarm triggered by Door Contact Switch: Passenger Side 01573 - Alarm triggered by Door Contact Switch: Left Rear 01574 - Alarm triggered by Door Contact Switch: Right Rear 01575 - Control Switched Off
01577 - Turn-Off due to Over-Temp
01578 - Airbag Deactivation Warning Lamp: Passenger Side (K145) 01579 - Signal for Seat Occupied Sensor: Front Passenger Side (G128) 01580 - Seat-Occupied Sensor: Child-Seat: Passenger Side (G211) 01581 - Incorrect Component Detected
01582 - Signal for Coolant Temperature 01583 - Leak in System Detected
01584 - Vehicle too Low: Pumping Up Started
01585 - Locking Cylinder Contact Switch: Passenger Side (F242): Open 01586 - Locking Cylinder Contact Switch: Passenger Side (F242): Close 01587 - Igniter 2 for Airbag: Drivers Side (N250)
01588 - Igniter for Head-Airbag: Drivers Side (N251) 01589 - Igniter for Head-Airbag: Passenger Side (N252) 01590 - Igniter for Battery Disconnect (N253)
01591 - Indicator Lamp for Airbag Off: Drivers Side (K144) 01592 - Air Quality Sensor (G238)
01593 - Heated Windshield (Z2) 01594 - Alternator Pull-In Relay (J442) 01595 - Tire Pressure Control Switch (E226)
01596 - Motor for Outside/Recirculated Air Flap (V154) 01597 - Drive Battery Pre-Charge Circuit
01598 - Drive Battery Voltage
01599 - Main Relay for Electric Drive (J437)
01600 - Throttle Valve Signal from Engine Control Module 01601 - Sensor for Rotor-Position in Electric Motor
01602 - Electric Drive Motor (V141) 01603 - Converter [Inverter?] (C21)
01604 - Potentiometer 1 for Gear Recognition (G239) 01605 - Potentiometer 2 for Gear Recognition (G240) 01606 - Signal from Battery Monitoring
01608 - Indicator Lamp Test
01609 - Cooling Fan in Control Module 01610 - Switch for Drive-Type (E228) 01611 - Set Mode Switch to Electric Drive 01612 - Valve for Clutch Actuator (N255) 01613 - Relay for Fuel-Cooling Pump (J445) 01614 - Drive Battery Capacity Loss
01615 - Tank Door Remote Unlocking Switch (E204) 01617 - Please Check DTC Memory of Interior Monitoring 01618 - Automatic Convertible Top Valve 2 (N272) 01619 - Motors for Storage Compartments: Rear 01620 - Convertible Top Operation Switch (E137) 01621 - AC Plug not in Bracket
01622 - Voltage-Converter (264V/12V) (A13) 01623 - Charging Signal for Alternator
01624 - Switch for Drive-Type (E228): Start Setting 01625 - Front Parking Aid Warning Chime (H22) 01626 - Sensor for Parking-Aid: Front Right (G252) 01627 - Sensor for Parking-Aid: Front Mid-Right (G253) 01628 - Sensor for Parking-Aid: Front Mid-Left (G254) 01629 - Sensor for Parking-Aid: Front Left (G255)
01630 - Igniter for Aux. Side Airbag: Drivers Side (N277) 01631 - Igniter for Aux. Side Airbag: Pass. Side (N278) 01632 - Loss of High-Current Capacity
01633 - Thermal Management Failure
01634 - Igniter for Battery Disconnection: Disabled
01635 - Igniter for Battery Disconnection: Crash Data Stored 01636 - Igniter for Seat-Belt Tensioner: Rear Drivers Side (N196) 01637 - Igniter for Seat-Belt Tensioner: Rear Pass. Side (N197) 01638 - Crash-Sensor for Side Airbag: Rear Drivers Side (G256) 01639 - Crash-Sensor for Side Airbag: Rear Passenger Side (G257) 01640 - Seatbelt Switch: Rear: Drivers Side (E258)
01641 - Seatbelt Switch: Rear: Pass. Side (E259)
01642 - Seat-Occupied Sensor: Rear Drivers Side (G177) 01643 - Seat-Occupied Sensor: Rear Pass. Side (G178) 01644 - Side Airbag: Rear Drivers Side: Disabled 01645 - Side Airbag: Rear Pass. Side: Disabled 01646 - Head-Airbag: Drivers Side: Disabled
