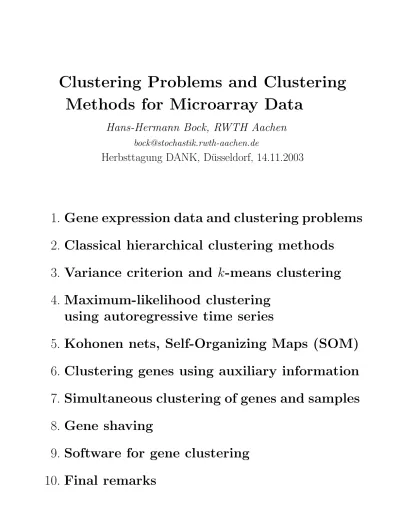

Clustering Problems and Clustering
Methods for Microarray Data
Hans-Hermann Bock, RWTH Aachen
bock@stochastik.rwth-aachen.de
Herbsttagung DANK, D¨usseldorf, 14.11.2003
1.
Gene expression data and clustering problems
2.
Classical hierarchical clustering methods
3.
Variance criterion and
k
-means clustering
4.
Maximum-likelihood clustering
using autoregressive time series
5.
Kohonen nets, Self-Organizing Maps (SOM)
6.
Clustering genes using auxiliary information
7.
Simultaneous clustering of genes and samples
8.
Gene shaving
9.
Software for gene clustering
1. Gene expression data and clustering problems
Analysis of gene expression data is an important problem
today.
Typical data set:
•
n
genes
k
= 1
, ..., n
from cDNA or mRNA
react with RNA (DNA) in a hybridization process
•
in
p
situations
j
= 1
, .., p
(e.g.,
p
samples,
p
time points,
p
tissues,...)
Result:
•
A
n
×
p
matrix
X
= (
x
kj
) of ’expression levels’
x
kj
:= value/intensity of gene
k
for situation
j
Samples
Genes
x
11
· · ·
x
1
j
· · ·
x
1
p
...
...
...
x
k
1
· · ·
x
kj
· · ·
x
kp
...
...
...
x
n
1
· · ·
x
nj
· · ·
x
np
=
x
1
...
x
j
...
x
n
=
X
Many different versions and technologies:
•
cDNA arrays
•
Oligonucleotide arrays (Affymetrix, Agilent)
•
Serial analysis of gene expression data (SAGE)
Analysis of microarray data:
•
Analysis of unknown, but conjectured (or observed)
hetero-geneity among samples (columns):
e.g.: tumor versus normal tissues, different time points,...
•
Comparing the behaviour of different genes (rows)
•
Visualization of large data tables (e.g., coloured arrays)
•
Looking for interesting patterns (in lines, in columns)
Clustering:
•
Find
clusters of similarly expressing genes
(rows)
•
Find
clusters of similarly behaving columns
e.g., tissues, mRNAs/Oligos, time points, diseases
Main goals of clustering:
– Ordering of columns and rows such that structures will
be evident
– Detecting unknown function of genes
(from class membership and class characteristics)
– Selection of predictive genes (1 from each gene cluster)
– Prediction of survival rates
(e.g., from a class-specific Cox model)
– Decreasing costs for sequencing (only 1 DNA per cluster!)
Verschiedene Clustermethoden:
Graphentheoretische Verfahren:
Highly connected subgraphs: Hartuv et al. (1999)
Zuf¨allige bin¨are Graphen mit Fehlermodell: Cluster affinity search technique: Ben-Dor et al. (1999)
Zusammenhangskomponenten als ’relevance network’: Butte et al. (2000)
Modellbasierte Clusterverfahren:
Mischung von Normalverteilungen: Alon et al. (1999) Fixed-classification models: Yeoung et al. (2001))
k-means bzw. SSQ-Clustern: Tavazoie et al. (1999)
Bayes-Modelle mit autoregressivem Prozeß f¨ur Zeitreihen: Ramoni et al. (2002)
Mode clustering mit gesch¨atzter Verteilungsdichte und Dimensionsreduktion: Bonnet et al. (2002)
Hierarchische Clustermethoden (vor allem: Average-linkage agglomerativ):
Klassisches, Average-LinkageagglomerativesClustern: Alizadeh et al. (2000), Eisen et al. (1998), Weinshtein et al. (1997), Wen et al. (1998), Sherf et al. (2000)
Klassisches Average-Linkage divisivesClustern: Alon et al. (1999) Ramoni et al. (2002)
Verschiedene, mehr oder weniger heuristische Verfahren:
’Gene shaving’ (verwandt zu: PCA-Clustern, projection pursuit clustering): Hastie et al. (2000), Choi et al. (2001)
Cluster scoring, significance analysis: Tibshirani et al. (2001) Two-way-Clustern von Kontingenztafeln: Bock (2003)
Auswahl interessanter Splits (Bipartitionen) nebst Variablenreduktion: Golub et al. (1999), Du-doit et al. (2000), Heydebreck et al. (2001), Markowetz et al. (2003); auch Allison et al. (2002) Resampling und Bagging bei Clusterverfahren: Fridyland and Dudoit (2001)
Neuronale Netze, Kohonen-Maps, SOM:
Kohonen Maps, SOMs: Tamayo et al. (1999), Herrero et al. (2001) Support-Vektor-Methoden: Brown et al. (2000), Markowetz et al. (2003)
Zeitliche Abl¨aufe, Zeitreihen (Zeit = Spalten der Datenmatrix):
Bayes-Modelle mit autoregressivem Prozeß f¨ur Zeitreihen: Ramoni et al. (2002a, 2002b) Ben-Dor (1999)
Kohonen Maps: Tamayo et al. (1999)
Graphiken:
Shaded diagrams f¨ur ¨Ahnlichkeitsmatrizen: Hartuv et al. (1999), Ben Dor et al. (1999) Rearrangement of the data matrix
Bipartitions: Markowetz et al. (2003), Heydebreck et al. (2001) Cluster profiles in SOM: Tamayo et al. (1999)
9. Software for
Clustering gene expression data
CLUSTER: for classical methods (Alizadeh et al. 2000) GENECLUSTER for SOMs (Tamayo et al. 1999)
CAGED for Bayesian and ML methods for time series (Ramoni et al. 2002): See CSDA 40 (2002), p. 425
http:/kebab/tch/harvard.edu/caged/ http://genomethods.org/cadeg/about.htm
BioMine from Gene Network Sciences
See also website
http://www.stat.wisc.edu/∼yandell/statgen/software/
