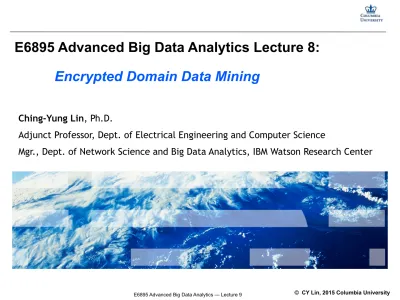

E6895 Advanced Big Data Analytics Lecture 8:! Encrypted Domain Data Mining

(1)

© CY Lin, 2015 Columbia University

E6895 Advanced Big Data Analytics — Lecture 9

E6895 Advanced Big Data Analytics Lecture 8:

!

Encrypted Domain Data Mining

Ching-Yung Lin, Ph.D.

Adjunct Professor, Dept. of Electrical Engineering and Computer Science

(2)

Encrypted Domain Recommendation

How can users contribute their private data

without compromising their privacy?

(3)

2011/11/11

3

(4)

2011/11/11

4

TOO MUCH

(5)

How Do Recommendations Work in End-to-End

Encrypted Scheme

?

■

End to End Encryption

■

Similarity Measure in Encrypted Domain

■

Encrypted Measurement Result Ranking

■

Encrypted Domain Operations

■

Secure Communication Channel

(6)

Encrypted Scheme?

■

Secure Communication Channel

(7)

1. Patients’ diagnosis results encrypted before doctor submits to database.

Alice

Bob

Carol

Doctors

Surgeons

2. Sends to server via secure channels

III. Privacy preserving ranking

I. Doctor submits encrypted query to system

(Private Information Retrieval) _Encrypted

results returned to doctor Physicians II. Server measures encryption-domain similarity at encrypted database

(8)

Alice

Carol

Doctors

Surgeons

Bob

(9)

Encrypted Scheme?

■

2011/11/11

(10)

Alice

Bob

Carol

Doctors

Surgeons

I. Doctor submits encrypted query to provide treatment

(Private Information Retrieval) _Encrypted

(11)

( ) ( ) ( )

2 3 2 2 2 1

,

ε

m

,

ε

m

ε

( ) ( ) ( )

3 3 3 2 3 1

,

ε

m

,

ε

m

ε

…

∑ ∑

∑

= = _n k i ki ai i ki ai m m m m 1 ak ) ( . ) ( ) ( . ) ( ) (

W

ε ε ε ε ε P1

Item 1 Item 2 Item 3

……

Using homomorphic encryption algorithm to calculate similarity in encrypted domain according to doctor’s request.

P2 P3

Encrypted medical record database

( ) ( ) ( )

1 3 1 2 1 1

,

ε

m

,

ε

m

ε

(12)

How Do Recommendations in an End-to-End

Encrypted Domain?

■

12

(13)

Alice

Bob

Carol

Doctors

Surgeons

(14)

∑ ∑

∑

= = _n k i ki ai i ki ai m m m m 1 ak ) ( . ) ( ) ( . ) ( ) (

W

ε ε ε ε ε

Doctor chooses two private keys to conduct order-preserving

encryption on encrypted domain similarity results so proxy

can rank the encryption results. The proxy knows only the rank and not the true similarity measurements of each patient.

) ( ) ( ) ( ) (R1doctor ε

W

_ak ε R2doctor εop

W

_ak ε + = ) ( ), (R1doctor ε R2doctor ε Order-preserving encryption key

Doctor

Secure channel

(15)

(16)

Alice

Bob

Carol

Doctors

Surgeons

(17)

How Do Recommendations Work in End-to-End

Encrypted Scheme?

■

Secure

Communication Channel

2011/11/11

(18)

Alice

Bob

Carol

Doctors

Surgeons

(Private Information Retrieval) Encrypted _{results returned to}

doctor Physicians II. Server measures encryption-domain similarity at encrypted database

Secure Channel

(19)

Encrypted-Domain Operations

■

Ring homomorphic encryption

■

Privacy-preserving ranking

■

Secure channel

2011/11/11

(20)

=

a

×

b

+

c

a

×

c

b

a

×

+

b

+

c

Encrypted

Encrypted Encrypted

Decryption

Encrypted

Plaintext

Algebraic operation supports

both

addition

and

multiplication

2011/11/11

(21)

Ring Homomorphic Encryption

■

Polynomial rings setting

■

Key generation

■

Encryption scores

■

Encrypted domain similarity measure

■

Decryption results

2011/11/11

(22)

2011/11/11

22

An Example of Ring Homomorphic

Encryption

(23)

(24)

(25)

(26)

(27)

(28)

(29)

(30)

(31)

(32)

(33)

(34)

(35)

Encrypted domain similarity

measure

(36)

(37)

Apply second private key for

decryption

(38)

Apply second private key for

decryption

(39)

Recover the exact plaintext

similarity measurement results

(40)

Encrypted-Domain Operations

■

Ring homomorphic encryption

■

Privacy-preserving ranking

■

Secure channel

2011/11/11

(41)

Alice

Bob

Carol

Doctors

Surgeons

(42)

Using the affine transformation for

privacy-preserving ranking

2011/11/11

42

Toorani, M. and Falahati, A 2011 A secure cryptosystem based on affine transformation, Security and Communication Networks pp 207-215

(43)

Encrypted Domain Operation

■

Ring Homomorphic Encryption

■

Privacy Preserving Ranking

■

Secure Channel

2011/11/11

(44)

Alice

Bob

Carol

Doctors

Surgeons

(Private Information Retrieval) Encrypted _{results returned to}

doctor Physicians II. Server measures encryption-domain similarity at encrypted database

Secure Channel

(45)

Diffie-Hellman key exchange scheme for

secure channel

Secure

channel

(46)

(47)

Outline

■

Introduction

■

Privacy-Preserving Recommendation

System

■

Experiments

■

Conclusion

2011/11/11

(48)

Experiment Sets

2011/11/11

48

■

Prototype system

■

Microsoft Windows 7 (32-bit) operation system

■

Intel Core 2 Quad CPU, and 2 GB RAM.

■

Jester dataset from UC Berkeley

■

Book-Crossing dataset

(49)

Experiments

2011/11/11 49

■

Performance

■

Accuracy

■

Security

!

(50)

Experiments

2011/11/11 50

■

Performance

■

Accuracy

■

Security

!

(51)

(52)

Experiments

■

Performance

■

Accuracy

■

Security

!

(53)

Canny, J. 2002. Collaborative filtering with privacy. In proceedings of the IEEE Symposium on Security and Privacy (Oakland, CA, SA, May, 2002) 45-57.

Polat, H. and Du, W. 2006. Privacy-Preserving Collaborative Filtering on Vertically Partitioned Data. PAKDD 2005: 651-658.

(54)

Dot Products in

Random Perturbation

54

)

(

)

(

1 i i n i i i

r

b

v

a

B

A

!

⋅

!

=

∑

+

=

∑

= = = =

+

=

n i i n i i i n i i i n i i i i

b

a

v

r

b

r

v

a

1 1 1 1 i n i i

b

a

∑

=

≈

1

Zero Mean

(55)

Drawbacks of User Profile Distribution

55

Canny, J. 2002. Collaborative filtering with privacy. In proceedings of the IEEE Symposium on Security and Privacy (Oakland, CA, SA, May, 2002) 45-57.

■

Distribution

■

Clustering based approaches

!

(56)

Experiments

56

■

Performance

■

Accuracy

■

Security

!

(57)

(58)

Contributions

■

Ring homomorphism operation

■

Secret sharing key management

■

End-to-end encryption

2011/11/11

(59)

Conclusion

■

High accuracy recommendation

■

Lossless number theory approaches

■

Statistical approaches

■

Practical and implementable

■

Well-suited for cloud computing applications

■

Highly Secure

■

Post-quantum cryptography

2011/11/11

(60)

Future Work

■

More

complex mathematical operations in

the encryption domain

■

Robust privacy-preserving data mining

2011/11/11

(61)

Multimodality Intelligent Sensor for Homecare

S S

S

: sensors

Sensors in the home to detect

or prevent accident

Sleep

monitoring

Fall down

Stroke

Tension

(62)

Multimodality Intelligent Sensor for Homecare

S S

S

: sensors

Long-Term Monitoring and Logging

of Personal Activities for Chronicle

Disease and Health Maintenance

Watching TV

Talking on

the phone

Sleep

(63)

Intelligent Multimodality Sensor

p

Commodity:

■ Fixed Low-Cost Multimodality Recognition Sensor installed under the ceiling or mounted on the wall. ■ A Replacement or extension of the smoke detector,

intruder detector, baby monitor, etc.

!

p

Technical Innovation:

■ Distributed Intelligence:

p Integrated recognition-driven feature extraction module

in the sensor

p Only transmitting required features through wireless

channel (e.g., MVs, Color histogram, Sound MFCC coefficients, etc.)

p Separate inference engines for behavior and event

recognition.

■ Benefits:

▪ Low-Energy Consumption

▪ Low Data Transmission Bandwidth

(64)

Intelligent Multimodality

Behavior-Recognition Software Engine

p Commodity:

■ Extensible software applications residing in PC or other

computing devices for behavior or event inference.

■ Standard-compliant wireless signal receiver for interfacing

with the wireless sensor.

!

p Technical Innovation:

■ Distributed Intelligence:

p Developing Machine Learning and Data Mining Algorithms for

Human Behavior or Environmental Context Recognition

p Recognition is based on the received feature signals

■ Benefits:

▪ Scalability: Consumers can buy any combination of software modules for different applications – surveillance, healthcare, etc.

▪ Low Maintenance Cost

!

Signal Receiver & Software Inference engines visual feature audio feature features from other data modality

fall down sleep smoke

(65)

Simple Multimodality Sensors for Sleep

Situation Inference

[Peng et al., ISCAS 2006] [Peng et al., D2H2 2006]

p Understand human night-time

activity – Sleep

!

p What we have achieved:

■ Using visual-audio sensors to

monitor a person’s sleep patterns

(66)

Develop Hardware Multimodality Semantic Sensor

p

Extract Features of Audio/Visual/PIR

Signals using FPGA.

(67)

Issues about Sensor Network

p The coverage range (required number) of sensors installed in

the target environment

!

p The power consumption of mobile sensors; Different

strengths (power fading) of transmitted signals from mobile sensors in different regions

!

p Hand-off of signals/communication in mobile sensor

networks

!

p Information Fusion of Sensors

!

(68)

Issues about Activity Understanding

p

How to learn human activity automatically – Need

to develop novel learning algorithms

!

p

Hybrid choices of supervised learning and

unsupervised learning

!

p

Frameworks for activity object tracking,

multimodality feature extraction.

!

p

Multimodality Joint Activity and Behavior

Understanding

!

(69)

Distributed Sensor Information Processing,

Mining and Management

p Distributed Signal Processing:

■ Decide the optimal solutions to distribute the stages

of recognition modules into multiple sensors and servers based on resource constraints

!

p Sensor Information Management:

■ Record, Index, and Manage the recognition results

and the original sensor signals for activity mining

!

p Sensor Network Information Aggregation:

■ Federated information reasoning based on aggregated

recognition results from sensors and sensor networks at multiple sites

(70)

Sleep-Monitoring and Sensors

!

■ Sleep Research Laboratory

equipped with polysomnographic sleep recording system

(http://www.son.washington.edu/ departments/bnhs/bnhs-tg/sleep-lab.asp)

(71)

Sleep Monitoring

■

Sleep occupies almost

1/3

of human

life!

!

■

Sleep deprivation due to

sleep-related disorders may introduce

severe health impairments

[WHO

2004]

!

■

Long-term sleep monitoring can

provide information for

detection of

early symptoms of sleep related

(72)

Previous Studies in Sleep Monitoring

■

Previous works in sleep monitoring

!

❑

Static charge sensitive bed, heuristic thresholding,

detection of wake, quiet-sleep, and active-sleep

[Salmi et al. 1986]

!

❑

EEG, HMM, detection of arousal

[Huang et al. 1996]

!

❑

Air cushion, finite-state machine, detection of

6-stages of sleep

[Watanabe et al. 2004]

!

(73)

Traditional Methods to Measure Sleep (1)

■

Subjective approach

!

❑

Self-rated questionnaires

and sleep diaries

!

■

Pittsburgh Sleep Quality

Index (PSQI)

❑ How many hours of actual

sleep did you get at night?

❑ Cough or snore loudly?

!

❑

Limited capabilities

!

❑

Less reliable than

(74)

Traditional Methods to Measure Sleep (2)

■

Objective approach

!

❑

Polysomnography (PSG)

■

EEG, ECG, EMG, and EOG

■

Data scored by human examiners

■

~$1000/study

■

Intrusive

!

❑

Actigraphy

■

Limb movement via accelerometer

■

Less-intrusive than PSG

(75)

Innovation and Advantage

p Single vs. Multimodality

!

■ Using multimodality data fusion, the accuracy can be increased or

the FA can be reduced compared to previous works using single data modality

■ Example: sleep-wake detection using PIR & HR sensors

!

p Specific vs. Generic framework

!

■ Compared to previous works which impose many conditions and

thus are specific to certain activity recognition, our method would be a framework for general activities understanding

Modality Fusion Motion only Heart-rate only

Miss Rate 0.1610 0.1867 0.0737

FA 0.0615 0.3604 0.2693

(76)

2012/6/3

76 Jyh-Ren Shieh, Ching-Yung Lin, Ja-Ling Wu, "Recommendation in End-to-End Encrypted Domain," the 20th ACM Conference on Information and Knowledge Management (CIKM 2011), Glasgow, Scotland, UK, (2011) acceptance rate 15% (Oral presentation ).

(77)

Publications

■ Y.-T. Peng, C.-Y. Lin, M.-T. Sun, and C. A. Landis, “Multimodality sensor system

for long-term sleep quality monitoring,” in IEEE Trans. on Biomedical Circuits and Systems, Fall, 2007 (to be appeared).

!

■ Y.-T. Peng, C.-Y. Lin, and M.-T. Sun, “Audio event classification using binary

hierarchical classifiers with feature selection for healthcare applications,” in IEEE ISCAS 2008 (submitted).

!

■ Y.-T. Peng, C.-Y. Lin, and M.-T. Sun, “Multimodality Sensors for sleep quality

monitoring and logging,” in IEEE Workshop on Electronic Chronicles

(eCHRONICLE), April 2006.

!

■ Y.-T. Peng, C.-Y. Lin, M.-T. Sun, and M.-W. Feng, “Sleep condition inferencing

using simple multimodality sensors,” in IEEE ISCAS 2006.

!

■ Y.-T. Peng, C.-Y. Lin, and M.-T. Sun, “A distributed multimodality sensor system

for home-used sleep condition inference and monitoring,” in 1st Transdisciplinary Conference on Distributed Diagnosis in Home Healthcare (D2H2), April 2006.

(http://www.son.washington.edu/

departments/bnhs/bnhs-tg/sleep-lab.asp
