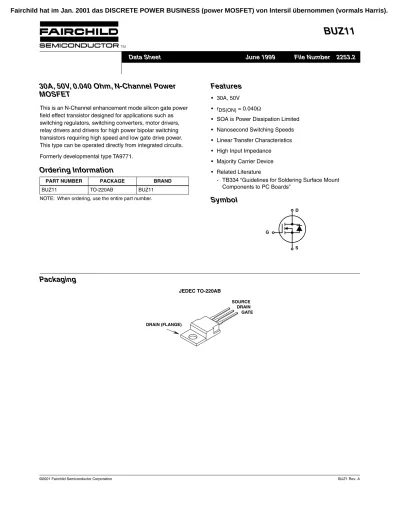

BUZ11
30A, 50V, 0.040 Ohm, N-Channel Power MOSFET
This is an N-Channel enhancement mode silicon gate power field effect transistor designed for applications such as switching regulators, switching converters, motor drivers, relay drivers and drivers for high power bipolar switching transistors requiring high speed and low gate drive power.
This type can be operated directly from integrated circuits.
Formerly developmental type TA9771.
Features
• 30A, 50V
• rDS(ON) = 0.040Ω
• SOA is Power Dissipation Limited
• Nanosecond Switching Speeds
• Linear Transfer Characteristics
• High Input Impedance
• Majority Carrier Device
• Related Literature
- TB334 “Guidelines for Soldering Surface Mount Components to PC Boards”
Symbol
Packaging
JEDEC TO-220AB
Ordering Information
PART NUMBER PACKAGE BRAND
BUZ11 TO-220AB BUZ11
NOTE: When ordering, use the entire part number.
G
D
S
GATE
DRAIN (FLANGE)
SOURCE DRAIN
June 1999 File Number 2253.2
[ /Title (BUZ1 1) /Sub- ject (30A, 50V, 0.040 Ohm, N- Chan- nel Power MOS- FET) /Autho r () /Key- words (Inter- sil Corpo- ration, N- Chan- nel Power MOS- FET, TO- 220AB ) /Cre- ator () /DOCI NFO pdf- mark
Data Sheet
Fairchild hat im Jan. 2001 das DISCRETE POWER BUSINESS (power MOSFET) von Intersil übernommen (vormals Harris).
Absolute Maximum Ratings
TC = 25oC, Unless Otherwise SpecifiedBUZ11 UNITS
Drain to Source Breakdown Voltage (Note 1) . . . .VDS 50 V Drain to Gate Voltage (RGS = 20kΩ) (Note 1) . . . VDGR 50 V Continuous Drain Current TC = 30oC. . . ID 30 A Pulsed Drain Current (Note 3) . . . IDM 120 A Gate to Source Voltage . . . .VGS ±20 V Maximum Power Dissipation . . . .PD 75 W Linear Derating Factor . . . 0.6 W/oC Operating and Storage Temperature . . . TJ, TSTG -55 to 150 oC DIN Humidity Category - DIN 40040 . . . E
IEC Climatic Category - DIN IEC 68-1 . . . 55/150/56 Maximum Temperature for Soldering
Leads at 0.063in (1.6mm) from Case for 10s . . . TL Package Body for 10s, See Techbrief 334 . . . Tpkg
300 260
oC oC CAUTION: Stresses above those listed in “Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress only rating and operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied.
NOTE:
1. TJ = 25oC to 125oC.
Electrical Specifications TC = 25oC, Unless Otherwise Specified
PARAMETER SYMBOL TEST CONDITIONS MIN TYP MAX UNITS
Drain to Source Breakdown Voltage BVDSS ID = 250µA, VGS = 0V 50 - - V
Gate Threshold Voltage VGS(TH) VGS = VDS, ID = 1mA (Figure 9) 2.1 3 4 V
Zero Gate Voltage Drain Current IDSS TJ = 25oC, VDS = 50V, VGS = 0V - 20 250 µA
TJ = 125oC, VDS = 50V, VGS = 0V - 100 1000 µA
Gate to Source Leakage Current IGSS VGS = 20V, VDS = 0V - 10 100 nA
Drain to Source On Resistance (Note 2) rDS(ON) ID = 15A, VGS = 10V (Figure 8) - 0.03 0.04 Ω
Forward Transconductance (Note 2) gfs VDS = 25V, ID = 15A (Figure 11) 4 8 - S
Turn-On Delay Time td(ON) VCC = 30V, ID≈ 3A, VGS = 10V, RGS = 50Ω, RL = 10Ω
- 30 45 ns
Rise Time tr - 70 110 ns
Turn-Off Delay Time td(OFF) - 180 230 ns
Fall Time tf - 130 170 ns
Input Capacitance CISS VDS = 25V, VGS = 0V, f = 1MHz (Figure 10) - 1500 2000 pF
Output Capacitance COSS - 750 1100 pF
Reverse Transfer Capacitance CRSS - 250 400 pF
Thermal Resistance Junction to Case RθJC ≤ 1.67 oC/W
Thermal Resistance Junction to Ambient RθJA ≤ 75 oC/W
Source to Drain Diode Specifications
PARAMETER SYMBOL TEST CONDITIONS MIN TYP MAX UNITS
Continuous Source to Drain Current ISD TC = 25oC - - 30 A
Pulsed Source to Drain Current ISDM TC = 25oC - - 120 A
Source to Drain Diode Voltage VSD TJ = 25oC, ISD = 60A, VGS = 0V - 1.7 2.6 V
Reverse Recovery Time trr TJ = 25oC, ISD = 30A, dISD/dt = 100A/µs, VR = 30V
- 200 - ns
Reverse Recovery Charge QRR - 0.25 - µC
NOTES:
2. Pulse Test: Pulse width ≤ 300ms, duty cycle ≤ 2%.
BUZ11
Typical Performance Curves
Unless Otherwise SpecifiedFIGURE 1. NORMALIZED POWER DISSIPATION vs CASE TEMPERATURE
FIGURE 2. MAXIMUM CONTINUOUS DRAIN CURRENT vs CASE TEMPERATURE
FIGURE 3. MAXIMUM TRANSIENT THERMAL IMPEDANCE
FIGURE 4. FORWARD BIAS SAFE OPERATING AREA FIGURE 5. OUTPUT CHARACTERISTICS TA, CASE TEMPERATURE (oC)
POWER DISSIPATION MULTIPLIER
0
0 25 50 75 100 150
0.2 0.4 0.6 0.8 1.0 1.2
125
40
30
20
10
0
0 50 100 150
TC, CASE TEMPERATURE (oC) ID, DRAIN CURRENT (A)
VGS > 10V
10-5 10-4 10-3 10-2 10-1 100 101
t, RECTANGULAR PULSE DURATION (s) ZθJC,TRANSIENT THERMAL IMPEDANCE
1
0.1
0.01
SINGLE PULSE 0.5
0.2 0.1 0.05 0.02 0.01
PDM
NOTES:
DUTY FACTOR: D = t1/t2 PEAK TJ = PDM x ZθJC + TC
t1 t2
VDS, DRAIN TO SOURCE VOLTAGE (V) ID, DRAIN CURRENT (A)
100µs 10µs
DC 1ms
10ms 100ms 103
102
101
100
100 101 102
2.5µs OPERATION IN THIS
AREA MAY BE LIMITED BY rDS(ON)
TC = 25oC TJ = MAX RATED SINGLE PULSE
60
50
40
30
20
10
0 ID, DRAIN CURRENT (A)
0 1 2 3 4 5 6
VDS, DRAIN TO SOURCE VOLTAGE (V)
VGS = 8.0V VGS = 7.5V VGS = 7.0V VGS = 6.5V VGS = 6.0V VGS = 5.5V VGS = 5.0V VGS = 4.5V VGS = 4.0V 10V VGS = 20V PULSE DURATION = 80µs PD = 75W DUTY CYCLE = 0.5% MAX
BUZ11
FIGURE 6. TRANSFER CHARACTERISTICS FIGURE 7. DRAIN TO SOURCE ON RESISTANCE vs GATE VOLTAGE AND DRAIN CURRENT
FIGURE 8. DRAIN TO SOURCE ON RESISTANCE vs JUNCTION TEMPERATURE
FIGURE 9. GATE THRESHOLD VOLTAGE vs JUNCTION TEMPERATURE
FIGURE 10. CAPACITANCE vs DRAIN TO SOURCE VOLTAGE FIGURE 11. TRANSCONDUCTANCE vs DRAIN CURRENT
Typical Performance Curves
Unless Otherwise Specified (Continued) 2015
10
5
I DRAIN TO SOURCE CURRENT (A)DS(ON), 0
0 1 2 3 4 5 6 7 8
VGS, GATE TO SOURCE VOLTAGE (V) PULSE DURATION = 80µs
VDS = 25V
DUTY CYCLE = 0.5% MAX
0.15
0.10
0.05
00 20 40 60
ID, DRAIN CURRENT (A) rDS(ON), ON-STATE RESISTANCE (Ω)
5.5V 6V 6.5V 7V 7.5V 8V 9V
20V 10V PULSE DURATION = 80µs
VGS = 5V
DUTY CYCLE = 0.5% MAX
-50 0 50 100 150
rDS(ON), DRAIN TO SOURCE 0.08
0.06
0.04
0.02
0
TJ, JUNCTION TEMPERATURE (oC) ID = 15A, VGS = 10V
PULSE DURATION = 80µs
ON RESISTANCE (Ω)
DUTY CYCLE = 0.5% MAX
-50 0 50 100 150
VGS(TH), GATE THRESHOLD VOLTAGE (V) 4
3
2
1
0
TJ, JUNCTION TEMPERATURE (oC) ID = 1mA VDS = VGS
0 20 30 40
VDS, DRAIN TO SOURCE VOLTAGE (V) 10
10-2 10-1 100
C, CAPACITANCE (nF)
101
CISS COSS CRSS
VGS = 0V, f = 1MHz CISS = CGS + CGD CRSS = CGD COSS≈ CDS + CGD
10
8
6
4
2
0
0 5 10 15 20
ID, DRAIN CURRENT (A) gfs, TRANSCONDUCTANCE (S)
TJ = 25oC PULSE DURATION = 80µs
VDS = 25V
DUTY CYCLE = 0.5% MAX
BUZ11
FIGURE 12. SOURCE TO DRAIN DIODE VOLTAGE FIGURE 13. GATE TO SOURCE VOLTAGE vs GATE CHARGE
Test Circuits and Waveforms
FIGURE 14. SWITCHING TIME TEST CIRCUIT FIGURE 15. RESISTIVE SWITCHING WAVEFORMS
FIGURE 16. GATE CHARGE TEST CIRCUIT FIGURE 17. GATE CHARGE WAVEFORMS
Typical Performance Curves
Unless Otherwise Specified (Continued)0 0.5 1.0 1.5 2.0 2.5 3.0
VSD, SOURCE TO DRAIN VOLTAGE (V) 103
102
101
100
10-1 ISD, SOURCE TO DRAIN CURRENT (A)
PULSE DURATION = 80µs
TJ = 25oC
TJ = 150oC DUTY CYCLE = 0.5% MAX
15
10
5
0
0 10 20 30 40 50
Qg, GATE CHARGE (nC) VGS, GATE TO SOURCE VOLTAGE (V)
ID = 45A
VDS = 10V
VDS = 40V
VGS
RL
RG
DUT +
-
VDD
tON
td(ON) tr
90%
10%
VDS
90%
10%
tf td(OFF)
tOFF
90%
50%
50%
10% PULSE WIDTH
VGS 0
0
0.3µF 12V
BATTERY 50kΩ
VDS S
DUT D
G
Ig(REF) 0
(ISOLATED VDS
0.2µF
CURRENT REGULATOR
ID CURRENT SAMPLING IG CURRENT
SAMPLING
SUPPLY)
RESISTOR RESISTOR SAME TYPE AS DUT
Qg(TOT) Qgd Qgs
VDS
0
VGS VDD
Ig(REF)
0
BUZ11
