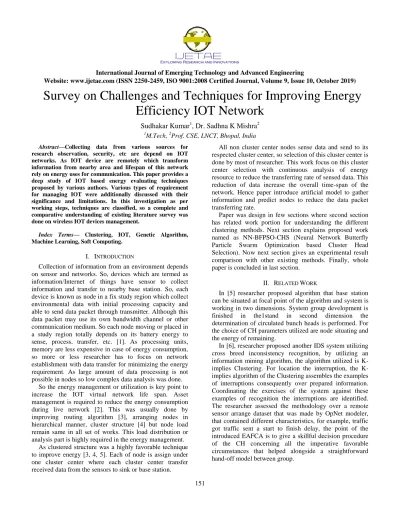

Survey on Challenges and Techniques for Improving Energy Efficiency IOT Network

(1)

International Journal of Emerging Technology and Advanced Engineering

Website: www.ijetae.com (ISSN 2250-2459, ISO 9001:2008 Certified Journal, Volume 9, Issue 10, October 2019)

151



Survey on Challenges and Techniques for Improving Energy

Efficiency IOT Network

Sudhakar Kumar

1

, Dr. Sadhna K Mishra

2

1

M.Tech, 2Prof. CSE, LNCT, Bhopal, India

Abstract—Collecting data from various sources for

research observation, security, etc are depend on IOT networks. As IOT device are remotely which transform information from nearby area and lifespan of this network rely on energy uses for communication. This paper provides a deep study of IOT based energy evaluating techniques proposed by various authors. Various types of requirement for managing IOT were additionally discussed with their significance and limitations. In this investigation as per working steps, techniques are classified, so a complete and comparative understanding of existing literature survey was done on wireless IOT devices management.

Index Terms— Clustering, IOT, Genetic Algorithm,

Machine Learning, Soft Computing.

I. INTRODUCTION

Collection of information from an environment depends on sensor and networks. So, devices which are termed as information/Internet of things have sensor to collect information and transfer to nearby base station. So, each device is known as node in a fix study region which collect environmental data with initial processing capacity and able to send data packet through transmitter. Although this data packet may use its own bandwidth channel or other communication medium. So each node moving or placed in a study region totally depends on its battery energy to sense, process, transfer, etc. [1]. As processing units, memory are less expensive in case of energy consumption, so more or less researcher has to focus on network establishment with data transfer for minimizing the energy requirement. As large amount of data processing is not possible in nodes so low complex data analysis was done.

So the energy management or utilization is key point to increase the IOT virtual network life span. Asset management is required to reduce the energy consumption during live network [2]. This was usually done by improving routing algorithm [3], arranging nodes in hierarchical manner, cluster structure [4] but node load remain same in all set of works. This load distribution or analysis part is highly required in the energy management.

As clustered structure was a highly favorable technique to improve energy [3, 4, 5]. Each of node is assign under one cluster center where each cluster center transfer received data from the sensors to sink or base station.

All non cluster center nodes sense data and send to its respected cluster center, so selection of this cluster center is done by most of researcher. This work focus on this cluster center selection with continuous analysis of energy resource to reduce the transferring rate of sensed data. This reduction of data increase the overall time-span of the network. Hence paper introduce artificial model to gather information and predict nodes to reduce the data packet transferring rate.

Paper was design in few sections where second section has related work portion for understanding the different clustering methods. Next section explains proposed work named as NN-BFPSO-CHS (Neural Network Butterfly Particle Swarm Optimization based Cluster Head Selection). Now next section gives an experimental result comparison with other existing methods. Finally, whole paper is concluded in last section.

II. RELATED WORK

In [5] researcher proposed algorithm that base station can be situated at focal point of the algorithm and system is working in two dimensions. System group development is finished in the1stand in second dimension the determination of circulated bunch heads is performed. For the choice of CH parameters utilized are node situating and the energy of remaining.

(2)

From the outcome that was taken from HNA and FND methodologies demonstrated that the sensor organize life span and consequently guaranteed the heap all through dissemination the system working.

In [7] (Hbrid bunching energy mindful steering convention) H-CERP has been proposed to shape the effectiveness of the groups with lesser head check of the group than the ideal estimations and utilizing the correspondence of multihop with passages nodes for correspondence alongside the base station. This cutting edge procedure gives the frameworks more preferences that the inclusion of the sensors and system lifetime are much essential at no extra expenses.

In [8], scientist give a energy proficient Clustering strategy, in view of fake honey bee settlement algorithm and factional math. MFABC try to augment the system energy and life time of nodes by half breed ideally choosing group head. This algorithm created to control the union rate of Artificial Bee Colony with the recently structured wellness work which considered three targets like, energy utilization, remove ventured out and deferrals to limit the general goal. The execution for bunch head determination of MFABC is contrasted and three conventions; LEACH, PSO and ABC-based steering as indicated by energy and life time. The reenactment results appeared, FABC is amplifies the energy and life time of nodes as contrasted and existing conventions.

Open issues in the internet of things

There is a great number of heterogeneous machines, for example, home machines, observation cameras, vehicles, sensors and actuators which work as a piece of home mechanization, shrewd city, keen framework, knowledge full farming, astute transportation framework, and so forth. Three core elements: remote sensor systems, machine-to-machine (M2M) correspondence, Radio frequency identity (RFID), supervisory control and data collection are considered as a piece of the Internet of Things [2]. It will almost certainly join directly and flawlessly a vast number of these various gadgets connect layer innovations, and administrations that might be associated with such a framework. Presently IoT goes past M2M correspondence and guarantees a mechanical upset, yet for it to function admirably, every one of the gadgets need to communicate in a similar language. It's a huge task which is looked at specific issues. How about we notice a few issues that different scientists are attempting to resolve for the improvement and use of Internet of Things idea in our life.

Constrained resources

The fundamental issue of the Internet of Things and the main factor of different issues is that a portion of the gadgets (e.g., sensors and actuators, RFID labels) have very asset limitation nature. They have restricted processing assets, memory, and battery size. Assets of the gadget are generally identified by its size, cost, and application because of the restrictions in the assembling procedures [24]. IoT gadget is commonly present as an installed gadget, so it must have a little size regardless of whether it's a piece of a huge gadget like a vehicle [9]. For certain applications, IoT gadget must be portable. Here and there they even ought to be insert into the body.

Analysis of big data

The second concern that appears in this situation is where to store data, apply method, and accumulate information from various gadgets. The huge flow of information is inspected and calculated which is transmitted by IOT, to change the raw information into usable knowledge [7]. Remote observing and control as well should be given, reactions and commands must be sent back to the gadgets. Cloud applications probably could help in that also or close server can also be used. Sometimes, it might happen that when this function uses a local database and a computer system, it will show you insufficient storage or deficiency of computational assets. A constant threat of losing the data is also there. Because of this, it is instructed to use a solid cloud based framework. [20]. Even if, a huge part of the IoT traffic are tiny and to the point like records from a sensor, it loads the network and the server, so it‟s good to perform few filtering and preprocessing of the data at the centre of the system, if that hub has enough assets apparently. Several computational focuses can be utilized at diverse stages of the system as well [3].

Scalability

(3)

153 Security

In this work if we discuss about security aspects, IoT gadgets must almost definitely recover records and participate with diverse objects and systems without compromising with safety or protection. Depending upon the type of use, several security parameters of association innovation can be basic: privacy, respectability, accessibility, validation, non-denial, and trust [8].Generally, correspondence innovation somehow should possibly guarantee these parameters even with drawbacks arrange hubs.

Reliability

In information transmission, parcels could fall flat or be spoiled on account of the crashes and hurdles in the channel. Retransmissions and error handling has a very huge impact on the system execution. Apart from this, most of the communication terms and conditions used in IoT doesn‟t assure you the trustworthiness of parcel delivery. Different fault detection and adjustment calculations have vast overhead that affects control use and result abilities of obliged gadgets. There are different workings for reducing the effect of impedances and keep a strategic distance from impacts. Such as, recurrence deft instruments, or utilizing media access control conventions.

III. TECHNIQUES OF ENERGY MANAGEMENT

Path Data Centric Storage (PathDCS)

PathDCS [14] is a move towards the dealing with data driven capacity that needs just standard tree development calculations, a basic officially available in some supportable arrangements. This uses a couple of common perspectives called tourist spots and name areas by their way from one of these common perspectives. The tourist spots has many signal centre, which can be preferred arbitrarily or physically arranged. To give the assurity all hubs recognize how to arrive at the reference points, standard tree-development methods to build trees established at every single one of these signals is utilized. The overhead to set up the vital state is corresponding to the quantity of reference points. As this number is little, pathDCS forces minimal overhead. The amount of jumps essential for each query or store is relative to the distance across of the system, which is the the same for all DCS draws near, duplicated by the size of sections. Along these lines, the way of maintaining the overhead of pathDCS reasonable is keeping the quantity of fragments little.

Greedy Hierarchical Virtual Protocol (HVP)

Hierarchical Virtual Position (HVP) [15] computation uses the blend of all K-level virtual positions (K>=1) and the geographic places of hubs in a down-slope design. HVP expects hubs to store the geographic positions just as all the Klevel virtual places of itself and its instant neighbors. A notice level is added to the parcels to show the current degree of virtual point. The down-slope method is uni-directional to guarantee that HVP is without circle. HVP arises short if the majority minimal level virtual position (the geographic position) is as of now utilized and there is no neighbor to add further ground towards the objective of a parcel. The down-slope procedure does not need a fixed decrement of 1. When utilizing larger decrements, less degrees of virtual position are essential, that suggests less data stockpiling on centre. When certain degree of virtual position is absent dynamic reductions can be utilized. Particle Swarm Virtual Coordinates (PSVC)

PSVC [16] is a brings virtual arrange task estimation that utilizes Particle Swarm Optimization to register virtual guidelines for geographic steering. The determination of the reference hubs and the unwinding ladder are like GSpring. PSVC registers the guidelines of the mention hubs by representing the jump tallies between the reference hubs as a spatial division in a way like NoGeo. The race of each reference hub floods the net-work, yet the expense per reference hub is around O (D) ≈ O (√n), where D is the breadth of the system and n is the system size. PSVC utilizes 4 reference hubs for 2D systems and 6 reference hubs for 3D systems. PSVC joins quicker, achieve a lower bounce stretch, and scales well up to giant systems of 3,200 hubs contrasted with NoGeo. Additionally, PSVC makes no suppositions on the system topology and can generally be extend to three-dimensional (3D) IOT.

LEACH (Low Energy Adaptive Clustering Hierarchy)

(4)

Bunch head makes a TDMA (Time Division Multiple Access) plan dependent on the quantity of hubs in the assembling. CDMA (Code Division Multiple Access) code is utilized for arbitrary correspondence within the group. Filter isn't suitable for wide system territories.

Ant-Based analysis

Projected work in [18] which depends on the Ant Colony Optimization heuristic. In the beginning, it forward ants and they are sent to no specific aim hub, which implicit that sensor hubs be required to speak with one another and the navigation tables of every hub must hold the ID of all the sensor hubs in the area and the correspondent levels of pheromone trail. For vast systems, this could be a concern since hubs would need huge dealings of memory to spare all the data about the neighboring hubs. The computation can be effectively changed to spare memory. In the happening that the forward ants are sent directly to the sink, the navigation tables just need to spare the neighbor hubs that are toward the sink. This declined the size of the navigation tables and, in result the memory required by the hubs. The nature of a given means between a sensor hub and the sink-hub, ought to be resolved as far as the division, yet additionally regarding the energy level of that way.

SOP (Self-organizing protocol)

Proposed work in [19] which include bunch engineering of LEACH with multi-jump navigation to weaken transmission energy. In various IOT multi-jump navigation is embraced. This makes a hub that needs to transmit information to a end hub find out one or numerous middle of the road hubs. The correspondence happens among every one of the hubs until the information parcels arrive at the end [20]. In a word, the information bundles take a few bounces among the hubs in the system. The standard bit of scope of this methodology is that transmission energy utilization is reduced. And yet dullness of the system and suspension of information bundles will increment. At times, no rigid fundamentals on inertness, the multi-bounce navigation can prompt high energy productivity. In this convention when bunches are sorted out, the group heads structure a multi-bounce directing spine. Each bunch part hub sends information to the group head openly for the correspondence reason. At the same time for the correspondence between the bunch head and the base station, a multi-bounce navigation is received to diminish the transmission energy and limit the distinction of energy utilization among all hubs in the system.

IV. CONCLUSION

To make an energy efficient design for routing protocol in IOT network, is the major challenge faced today. The main aim is to make the IOT devices to work for long time with less usage of energy. Consequently, many innovative security protocols and techniques have been developed to meet this challenge. It was obtained that use of dynamic algorithm which handle real time situation without any prior training is highly demanding. So genetic based soft computing is an promising one for the resource management. Here these algorithms are dynamic and ready to work in real time situation with any prior training. In future a flawless calculation is with great component blend is wanted by investigating new load balancing calculations which adjusts the load much better and furthermore helps in green processing.

REFERENCES

[1] Suraj Sharma, Deepak Puthal, Sabah Tazeen, Mukesh Prasad, And Albert Y. Zomaya. MSGR: A Mode-Switched Grid-Based Sustainable Routing Protocol for Wireless Sensor Networks.Digital Object Identifier 10.1109/ ACCESS October 12, 2017.

[2] M. J. Usman, Z. Xing, H. Chiroma, A. Y. U. Gital, A. I. Abubakar, A. M. Usman and Herawan, Modified Low-Energy Adaptive Clustering Hierarchy Protocol for Efficient Energy Consumption in Wireless Sensor Networks for Healthcare Applications, International Review on Computers and Software, vol. 9, no. 11, pp. 1904-1915, 2014.

[3] Bouachir Ons, Mnaouer Adel Ben, Touati Farid, Cresciniy Damiano, “Opportunistic Routing and Data Dissemination Protocol for Energy Harvesting Wireless Sensor Networks”, 978-1-5090- 2914-3/16©2016 IEEE.

[4] Chun-Wei Tsai, Zhen-An Liy, Ming-Chao Chiang and Chu-Sing Yang. “A novel clustering algorithm for wireless sensor network based on search economics”. 2017 IEEE International Conference on Systems, Man, and Cybernetics (SMC) Banff Center, Banff, Canada, October 5-8, 2017.

[5] M. Aslam and A. A. Ehsan Ullah Munir, Muhammad Bilal, Muhammmad Asad, „HADCC: Hybrid Advanced Distributed and Centralized Clustering Path Planning Algorithm for WSNs‟, IEEE 28th International Conference on Advanced Information Networking and Applications, pp. 657–664, 2014.

[6] I. S. Akila and R. Venkatesan, „A Cognitive Multi-hop Clustering Approach for Wireless Sensor Networks‟, Wireless Personal Communications, vol. 90, no. 2, pp. 729–747, 2016.

[7] C. P. S. S. Malarkkan, „H-CERP: Energy Efficient Scheme for Industrial WSN Applications‟, Wireless Personal Communications, vol. 94, no. 4, pp. 1937– 1950, 2017.

[8] R. Kumar and D. Kumar, „Multi-objective fractional artificial bee colony algorithm to energy aware routing protocol in wireless sensor network‟, Wireless Networks, vol. 22, no. 5, pp. 1461–1474, 2016. [9] Ms Nidhi Sharma, Mr Alok Sharma “The Black-hole node attack in

(5)

155

[10] XIN FENG , JING ZHANG , CHENGHAO REN, AND TINGTING GUAN. “An Unequal Clustering Algorithm Concerned With Time-Delay for Internet of Things”. June 13, 2018, date of current version

July 6, 2018.Digital Object Identifier

10.1109/ACCESS.2018.2847036.

[11] Chun-Wei Tsai_, Zhen-An Liy, Ming-Chao Chiangy and Chu-Sing Yang. “A novel clustering algorithm for wireless sensor network based on search economics”. IEEE International Conference on Systems, Man, and Cybernetics (SMC) Banff Center, Banff, Canada, October 5-8, 2017.

[12] Aashish Kumar Bohre1, Dr. Ganga Agnihotri2,Dr. Manisha Dubey, Jitendra Singh Bhadoriya. “A Novel Method To Find Optimal Solution Based On Modified Butterfly Particle Swarm Optimization”. International Journal Of Soft Computing, Mathematics And Control (Ijscmc), Vol. 3, No. 4, November 2014. [13]

https://medium.com/@14prakash/back-propagation-is-very-simple-who-made-it-complicated-97b794c97e5c.

[14] G.S. Mamatha and Dr. S. C. Sharma "A Highly Secured Approach against Attacks in MANETS", International Journal of Computer Theory and Engineering, Vol. 2, No. 5, 1793-8201, October, 2010.

[15] R. V. Biradar, S. R. Sawant, R. R. Mudholkar and V. C. Patil, “Inter-Intra Cluster Multihop-LEACH Routing in Self-Organizing Wireless Sensor Networks”, International Journal of Research and Reviews in Computer Science (IJRRCS), vol. 2, no. 1, (2011)

[16] J. Zhou, Y. Chen, B. Leong and B. Feng, “Practical Virtual Coordinates for Large Wireless Sensor Networks”, Proceedings of IEEE International Conference on Network Protocol (ICNP), Kyoto, Japan, (2010) October 5- 8.

[17] Yu Zhang, Loukas Lazos and William Jr. Kozma "AMD: Audit-based Misbehavior Detection in Wireless Ad Hoc Networks" IEEE Transactions On Mobile Computing (Article in Press), 2012. [18] Pramod K. Singh and Govind Sharma, “An Efficient Prevention of

black hole problem in AODV routing protocol in MANET,” 2012 IEEE 11th_{International Conference on Trust ,Security and Privacy in}

Computing and Communications, pp. 902-905.

[19] Ms Nidhi Sharma, Mr Alok Sharma “The Black-hole node attack in MANET" 2012 Second International Conference on Advanced Computing & Communication technologies, 546-550 2012 IEEE. [20] Latha Tamilselvan, Dr. V Sankaranarayanan, "Prevention of

Blackhole Attack in MANET", In Proceedings of IEEE 2nd
