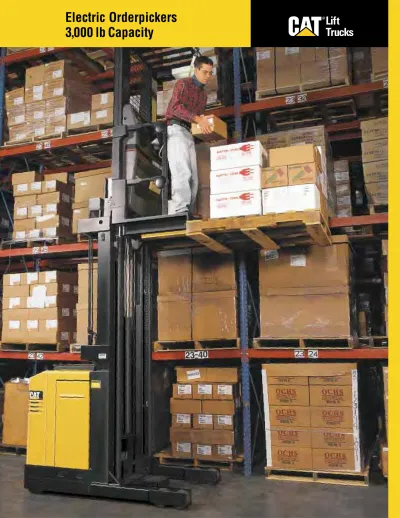

Electric Orderpickers 3,000 lb Capacity

Electric Orderpickers

3,000 lb Capacity

I n n o v a t i v e D e s i g n

Capacity

Model

Voltage

at 24 in

Load Center

NOR30*

24

3,000 lb

NOR30P

24

3,000 lb

NOR30P

36

3,000 lb

*Optional performance package available

You’re buying or leasing an orderpicker, so you take

a hard look at your cost of operation. What it gets

down to is moving more product to more customers

faster. And doing it cost effectively. Your operator

is a key to making that happen. With the right

truck, the operator will increase productivity.

Driven By Productivity

So that’s where Caterpillar

®

Lift Trucks began to

design its line of narrow aisle trucks—around the

operator. The idea was to use the latest ergonomic

design and create a universal operator environment,

w h e r e a n y o p e r a t o r w o u l d f e e l i m m e d i a t e l y

comfortable, confident and in control.

The Cat

_{Command Center–}

a new standard in control,

comfort and function.

Everything about the Cat Command Center tells you you’re looking at operator acceptance and increased productivity.

The technology is advanced. The “brain” of the entire truck is Caterpillar Lift Trucks’ MICRO COMMANDNA_{, a state-of-the-art microprocessor control} system. Everything from informational messages to self diagnostics are clearly displayed for the operator’s convenience.

The operation is simple. That’s because the single, multi-function control handle operates the many orderpicker functions simultaneously with the touch of one hand. What’s more, the control handle provides complete programmability to ensure the application fit.

Caterpillar Lift Trucks’ergo­

nomic design innovations

a control handle perfectly shaped to the hand; a picking window with maximum accessibility; a mast with good visibility; infinitely variable lift/lower and travel speed control.

All this makes the operator compartment the ideal blend of comfort, flexibility and functionality—factors that help increase productivity.

When it comes to ease of operation and serviceability, “Innovative Design Driven By Productivity” says it all.

3

Model

NOR30 NOR30P

Alarm, travel O O

Base leg widths: 44 in (1120 mm),

O O

48 in (1220 mm)

Battery compartment covers O S

Cold storage conditioning NA O

Fire extinguisher 2.5 lb O O

Forks: 30 in (760 mm), 36 in (915 mm),

48 in (1220 mm), 49 in (1245 mm) to O O

96 in (2440 mm) in any length

Furniture platform with straddle _{O O}

base legs and guide rollers

Guidance - mechanical rail (single or dual) O O

Guidance - wire 1 KHz to 10 KHz O O

Lift limit switch with override O O

Lift, variable speed O S

Light- strobe, clear, red or

O O

blue (amber standard)

Light and fan package O S

Mast - FFT over 240 in (6090 mm) MFH NA O

Mast - mechanical stops O O

Mast - safety glass guard O O

Mast lowering deceleration O O

Operator platform width extensions: [39 in (990 mm) standard], 44 in (1120 mm), 47 in (1195 mm),

51 in (1295 mm), 55 in (1400 mm), O O

59 in (1500 mm), 63 in (1600 mm), 67 in (1700 mm)

Operator retractable safety tether O O

Overhead guard raised 6 in (150 mm) O O

Paint - special color O O

Performance package

O S

High speed lift motor and variable speed

Power hook-up for on-board terminal O O

Sidegate, fixed S NA

Sidegate power disconnect switch O O

Sidegate, retractable O S

Steering - electronic power (required for _{O S} wire guidance field conversion)

Travel Speed - full to 60 in (1525 mm) O S

UL type E label O O

UL classification type EE with label NA O

Voltage - 36V NA O

The Cat Command Center–

advanced technology with

a lot of common sense

I f Yo u r O p e r a t o r D e s i g n e d

T h e P e r f e c t O r d e r p i c k e r,

The operator environment of the Cat Command

Center is the most efficient, most comfortable

compartment modern ergonomic design and

common sense can provide.

That’s why the pick window is over 1740 sq in

That’s why the control handle works the way

t h e h u m a n h a n d w o r k s . A n d w h y t h e m a s t

provides good operator vision.

Operator, control handle, high-tech controls

and the compartment design interact naturally

to maximize operator comfort and efficiency.

The entire environment of the Cat Command

Center has but a single purpose—to improve

the material handling performance of “Man

and Machine.”

Cushioned mast stops

Good-visibility mast

It Would Be Like This

Easy-to-read display panel Easy-to-see steer wheel indicator Minimum-effort power steering* 1748 sq in, unencumbered pick window Strategically positioned brake pedal *Standard on the NOR30P, optional on the NOR30

Ergonomically designed handle fits natural shape and position of hand Single, multi-function, simultaneous control handle Flip-up, nested sidegates* Handy, large storage area Pallet clamp release pedal Twin fan and light package*

Spacious 27 x 39 in platform

Operator compartment area

• Over 1740 sq in for maximum accessibility • Sidegates nest completely out of operator’s way • Easy operating sidegates with pneumatic

cylinder assist

• Steering wheel mounted flush with cover • Mast with good visibility

• Twin light and fan packages with separate switches and adjustable louvers

• Operator storage compartment with clear­ view front

• Pencil tray

• Strategically located tether mounting • Automatic pallet clamp and centering

device with foot release

Steering

• Efficiently positioned, easy­ grip steering knob

• Steer wheel indicator located on operator console

• Electronic power steering* – Quiet, quick and smooth – Automatic centering on start-up – Steer cables eliminated to

reduce maintenance

Brake pedal and floor area

• Hydraulic brake provides modulated, smooth stopping • Brake automatically applied

when pedal is released • Brake applied when power

disconnect is activated • Pedal strategically positioned

to enhance operation • Cushioned, non-slip floor pad

and brake pedal

Control handle

• Multi-function handle allows operator to travel, lift/lower simultaneously

• Provides complete programmability to fit the application

• Infinitely variable lift/lower speeds for precise control* • Natural grip gives operator precise control even while wearing gloves

• Thumb control of lift/lower function • Simple travel direction control—push for

forward, pull for reverse • Horn button

Operator display

• MICRO COMMANDNA _{visually communicates} information directly to the operator • LED scrolling, 8-character display panel is

perfectly positioned on the operator’s platform for quick reading at a glance

Make lower costs and higher

p ro d u c t i v i t y a n eve r yd a y

thing.

From mast to motors, the rugged

construction of your Cat lift truck sets a new

standard in reliability, durability and strength.

Simply put, Cat trucks are always ready to go.

Combine Cat reliability with the complete

programmability of the Cat MICRO COMMAND

_,

and you’re putting a more powerful, more cost­

effective material handling tool into the hands

of your operator.

The result –

improved efficiency that shows

up in more picks per hour.

The payoff –

increased productivity.

The bottom line –

a significant reduction in your

cost of ownership.

I f M a n a g e m e n t D e s i g n e d

T h e P e r f e c t O r d e r p i c k e r,

It Would Work Like This

Classified by Underwriter’s Laboratories, Inc.® _{as to fire and electric shock hazards}

only. Type E industrial truck 205A.

Cat lift trucks meet nationally recognized safety standards

The Cat MICRO COMMAND

,

Information Center

Your Cat lift truck comes with built-in reliability. That’s what the MICRO COMMANDNA _provides.

Among the informational scrolled messages commun­ icated on the easy-to-read display panel are:

Current battery status Scrolled informational messages

Operating hours Self-test

From start-up to the end of the shift, MICRO COMMANDNA _{monitors all critical functions:} • Start-up diagnostics check over 120 critical

functions to ensure proper truck operations without the need for a “tester”

• Run-time diagnostics monitor the entire system 40 times per second while the truck is in use • Thermal limiting reduces travel speed in 4 steps,

if required

• Stall protection prevents extensive motor wear and damage

• Emergency disconnect cuts all current to lift circuit, disables travel and applies the brake • Audible signals inform operator immediately of a

limiting condition, fault or incorrect password • Four hour meters for scheduling maintenance

(hours on the operator’s presence switch, hours lifting, key on, and travel miles)

Program the performance

to fit the application.

only the control handle, you or your operator can easily program MICRO COMMANDNA _{to set} the performance characteristics of your Cat orderpicker. It’s your assurance that your Cat lift truck always fits your appplication.

Among the programmable features are: Set maximum travel speed

Set lift acceleration: soft, medium, hard

Set lift interrupt: 0-50%

The aerospace design of the handle allows the operator to easily set and perform the following functions separately or simultaneously

depending on the job:

• Control handle position determines precise machine speed regardless of load or floor conditions

• Precise, smooth travel direction maximizes load stability

• Lift/lower speed control reduces bouncing, load shaking, shifting and damage

• Precise torque control improves

maneuverability and delivers smooth inching without stalling/lurching

• Proportional plugging provides maximum operator control while maneuvering at all speeds

• Infinitely variable lift/lower speed control (performance models)

As tough as the sum of

its parts.

You can look long and

hard and you won’t find a more rugged,

more durable narrow aisle truck.

Once you see a Cat lift truck in action,

you’ll be convinced it’s tougher than

your toughest job.

Chassis

• Rugged, robotic welded-steel construction

• Wraparound, steel bumper • Computer, stress­

analyzed design

• Rolled, structural steel mast channels handle heavier loads with more stability • Multiple-leaf lift chains • Chrome-plated lift cylinders • Canted mast rollers • Cushioned mast stops • Durable poly wheels

I f M a i n t e n a n c e D e s i g n e d

T h e P e r f e c t O r d e r p i c k e r,

It Would Be Built Like This

Drive Unit And Brake

• Rotates on precision-hardened steel ball bearings revolving in a lubricated track to ensure continuous support

• Motor mounted directly to transmission for proper gear alignment, reducing drive train wear

• Motor, transmission, drive tire and brake mounted vertically for superior cooling and durability

• Multi-strand, flexible power cables

• Components easily removed for easy service

• Spring-applied brake, hydraulically released, fully modulated • Brake drum mounted on drive motor shaft

Hydraulic System

• Fewer fittings and hoses for increased reliability

• Filter drip tray and drain tube for convenient service • Internally routed hoses and

cables provide greater protection

Battery Compartment

• Easy battery removal from either side

• Battery gates with adjustable stops

• Corrosion-resistant liftout battery rollers

Everything you need to know to cut

your cost of maintenance.

self diagnostics of the Cat MICRO COMMANDNA _{to accessibility, the} expression “easy to service” takes on new meaning.

MICRO COMMAND

_{automatically communicates status}

• Built-in hour meter automatically records hours on brake pedal for scheduling preventive maintenance

• More than 65 status codes pinpoint conditions, information displayed on LED readout

• Informs operator when to notify service personnel

• Audible signals inform operator immediately of limiting condition, fault or incorrect password

Using only the control handle, specific problems

are analyzed without removing covers

• Over 44 maintenance tests for quick analysis • Learn function automatically adjusts for new

components

9

resistant markings

terminal strips

Easy to get to, fewer parts,

less downtime.

cover and you’re looking at the Cat easy-to­ motors, hydraulic components and electrical system. Everything is right up front, where a smart maintenance crew would put it. • Digital controls eliminate trim

potentiometers

• Electrical component assemblies located away from hydraulic areas • Motor brushes accessible without removing

or repositioning motors

• Drive tire retained with five bolts, removes through frame access cover • Wiring and cabling covered with oil­

• Computer-style cabling replaces

Yo u N a m e T h e A p p l i c a t i o n ,

Configurations to improve your cost

of ownership.

There is a Caterpillar orderpicker for

virtually all applications. Every configuration and every option

is designed to increase your productivity.

Wire Guidance (Option)

• Integrated into drive, steer and braking systems for improved truck control and productivity

• Automatically operates on all signals from 1 KHz to 10 KHz

• Wire sensor protector

Cat Lift Trucks Has The Fit

Performance Package (Option)

• High-speed travel motor • High-speed lift motor

• Infinitely variable lift/lower speed control

Rail Guidance

(Option)

Ask for a demonstration.

The Cat orderpicker’s big advantages

become clear with a demonstration drive

at your Cat lift truck dealer. See strong

proof that only Caterpillar Lift Trucks, and

only your Cat lift truck dealer, offer you

more productivity-driven benefits. That

adds up to measurable value and low

cost of ownership. Call today for an

appointment.

Specifications

CHARACTERISTICS NOR30-24 NOR30P-24 NOR30P-36

1 _Capacity at rated load center lb kg 3000 1360 3000 1360 3000 1360

2 at load center – distance in mm 24 610 24 610 24 610

3 Operator Position standard stand-up stand-up stand-up 4 Power diesel, gasoline, LP gas, electric electric electric electric 5 Tire type load / drive polyurethane polyurethane polyurethane 6 Wheels (x = driven) number front / rear 1 x / 2 or 4 1 x / 2 or 4 1 x / 2 or 4

DIMENSIONS

10 Lift with maximum fork height in mm 240 6100 366 6100 366 6100

11 triplex mast free fork height in mm 22 559 68 1725 68 1725

12 Forks length x width x thickness in mm 42X4X1.5 1067X102X40 42X4X1.5 1067X102X40 42X4X1.5 1067X102X40 Fork spacing out-to-out minimum / maximum in mm 24 / 28 610 / 710 24 / 28 610 / 710 24 / 28 610 / 710

13 head length in mm 72 1830 72 1830 72 1830

14

width power unit in mm 40 1015 40 1015 40 1015 15 Overall platform in mm 39 990 39 990 39 990

16 dimensions with lowered mast in mm 107 2725 153 3890 153 3890

17 height power unit in mm 47 1195 47 1195 47 1195

18 operator compartment in mm 78.5 1995 78.5 1995 78.5 1995

19 with extended mast in mm 325 8280 451 11,450 451 11,450

20 Minimum outside turning radius in mm 72 1830 72 1830 72 1830

PERFORMANCE loaded/empty up to _{mph km/h 5.0/5.3 8.0/8.5 5.4/5.8 8.7/9.3 6.0/6.1 9.7/9.8} 24 in MFH 610 mm loaded/empty 25 in to 60 in MFH _{mph km/h 2.5/2.5 4.0/4.0 5.4/5.8 8.7/9.3 6.0/6.1 9.7/9.8} 635 mm to 1525 mm travel loaded/empty 61 in to 120 in MFH _{mph km/h 2.5/2.5 4.0/4.0 4.3/4.3 6.9/6.9 4.3/4.3 6.9/6.9} 1550 mm to 3050 mm (Steer loaded/empty 121 in to 150 in MFH _{mph km/h 2.5/2.5 4.0/4.0 2.7/2.7 4.3/4.3 2.7/2.7 4.3/4.3} 40 Speeds _{angle 3075 mm to 3810 mm} under loaded/empty 151 in to 180 in MFH _{mph km/h 1.0/1.0 1.6/1.6 2.7/2.7 4.3/4.3 2.7/2.7 4.3/4.3} 10°) 3830 mm to 4570 mm loaded/empty 181 in to 366 in MFH _{mph km/h 1.0/1.0* 1.6/1.6* 1.0/1.0 1.6/1.6 1.0/1.0 1.6/1.6} 4600 mm to 9300 mm 41 lift loaded/empty fpm m/s 35/45 .18/.23 36/58 .18/.29 48/75 .25/.38 42 lower loaded/empty fpm m/s 40/40 .20/.20 80/69 .41/.35 80/69 .41/.35 WEIGHT

50 Empty w/minimum weight battery lb kg 6200 2800 8900 4050 8900 4050

with rated load front drive lb kg 2200 1010 2800 1310 2800 1310 51 Axle load rear load lb kg 7000 3150 9100 4100 9100 4100 without load front drive lb kg 3475 1570 4975 2270 4975 2270 rear load lb kg 2725 1230 3925 1780 3925 1780

CHASSIS

60 _{Tire size} drive tire in mm 12 X 5 305 X 127 12 X 5 305 X 127 12 X 5 305 X 127

61 load wheels in mm 6 X 3.6 152 X 92 6 X 3.6 152 X 92 6 X 3.6 152 X 92

62 Wheelbase in mm 60 1525 60 1525 60 1525

63 Ground clearance at center of wheelbase in mm 2 51 2 51 2 51

64 Brakes service foot, hydraulic foot, hydraulic foot, hydraulic

POWER TRAIN

80 type lead acid lead acid lead acid

81 _Battery voltage / capacity volts / AH MAX 24 660 24 850 36 775

82 weight, maximum lb kg 2000 907 2000 907 2000 907

83 weight, minimum lb kg 920 420 1600 730 1600 730

87 traction output (60 min. rating) 24v HP kW 3.9 2.9 3.9 2.9 – 88

Motors traction output (60 min. rating) 36v HP kW – – 2.0 1.5 89 lift output (60 min. rating) 24v HP kW 4.1 3.0 5.2 3.9 – 90 lift output (30 min. rating) 36v HP kW – – 9.7 7.2

91

Controls drive type / speed transistor / infinite transistor / infinite transistor / infinite 92 hydraulic type / speed contactor / single contactor / infinite contactor / infinite

DIMENSIONS CHARA

PERFORMANCE

WERTRAIN

NOR30 NOR30P (24 Volt) NOR30P (36 Volt)

WEIGHT

PO

CTERISTICS

CHASSIS

* Max fork height for NOR30 is 241 in 6100 mm

NOTE: These specifications assume the use of drive axles, tires and tilt angles specified. Any modification to specifications, or any other combination of specifications made after the shipment of the truck, requires prior written approval from Mitsubishi Caterpillar Forklift America Inc. (MCFA). (See ANSI B56.1 Part II 4.2.) Also be advised that overall operating visibility may be affected by the mast configuration and mast options of your lift truck. Therefore, you may need to add ancillary [auxiliary] devices or modify your operating practices. Consult your dealer for further information.

Call-out numbers shown in the diagram below correspond to the first column of the

Specifications chart. 14 12 15 2 in (51 mm) 63 7 in (178 mm) (89 mm) 3.5 in 7 in (178 mm) C to C_{L L} 17 16 19 62 13 11 12 _{4.5 in} (114 mm) 2 in (51 mm) 18 40 in (1016 mm) 27 in (685 mm)

SAFETY STANDARDS

These trucks are designed and manufactured

to meet American National Standards

Institute (ANSI) B56.1 Part III Safety

Standards for powered industrial lift trucks.

UL-Classified by Underwriters Laboratories

Inc. as to fire hazard only; Optional Type E,

EE Industrial Trucks.

Users should be aware of, and adhere to,

applicable codes and regulations regarding

operator training, use, operation and

maintenance of powered industrial trucks,

including:

• Occupational Safety and Health

Administration (OSHA) regulations

that may apply.

• ANSI B56.1 Part II.

Specifications, equipment, technical data,

photos and illustrations based on information

at time of printing and subject to change

without notice. Some products may be shown

with optional equipment.

BATTERY COMPARTMENT AND MAXIMUM BATTERY SIZES

Standard Compartment Maximum Battery

Model

Length Width Height

Optional Compartment Maximum Battery

Length Width Height Length Width Height Length Width Height

in 31.50 13.25 30.88 31.00 13.00 30.50 36.75 14.50 30.88 36.50 14.25 30.50 mm 800 343 784 787 330 775 933 368 784

in 36.75 14.50 30.88 36.50 14.25 30.50 38.62 14.00 30.88 38.38 13.75 30.50 mm 933 368 784 927 362 775 980 355 784

in 38.62 14.00 30.88 38.38 13.75 30.50 – – – – – –

Connector, SB350 *Red or **Gray, Lead Length 20 in (508 mm), Position C

NOR30* 927 362 775 NOR30P* (24 Volt) _{975 349 775} NOR30P** (36 Volt) _{mm 980 355 784 975 349 775 – – – – – –}

13

C a t l i f t t r u ck d e a l e r s

p u t c u s t o m e r n e e d s

f i r s t , w i t h t h e m o s t

c o m p r e h e n s i v e

c u s t o m e r s u p p o r t

p ro g r a m s i n t h e

i n d u s t r y.

C a l l t o d ay t o s e e h o w

t h e b e n e f i t s o f o w n i n g

o r l e a s i n g C a t l i f t t r u ck s

c a n p ay o f f i n a b e t t e r

r e t u r n o n i nv e s t m e n t

fo r yo u r o p e r a t i o n s .

14

Durability & Support

Unlimited Hours Warranty covers parts and labor for one year,

regardless of service hours.

Parts Fast or Parts Free Guarantee ensures next-business-day

delivery of parts for all brands of lift trucks or they are free,

including freight.

Free Loaner Service Guarantee provides a lift truck until the

repair is done if your lift truck is not repaired right the first time

and within the quoted time.

Contact your Cat lift truck dealer for complete terms and

conditions of these guarantees.

Cat Financial Services provides a variety of financing and leasing

options with terms, cash requirements and tax benefits to suit the

needs of your business.

Caterpillar Lift Trucks offers an extensive range of products, warning devices and services geared towards your specific applications and requirements. Your dealer can provide many options and additional visual and audible warning devices. Operator training programs are also available to boost productivity and to reduce the potential for product damage and personal injury.

1 - 8 0 0 - C AT- L I F T

C o p y r ig ht

_©
