NEW PRODUCTS
WORKSHOP EQUIPMENT 2021
ASSEMBLY EQUIPMENT
Suitable for the following systems:

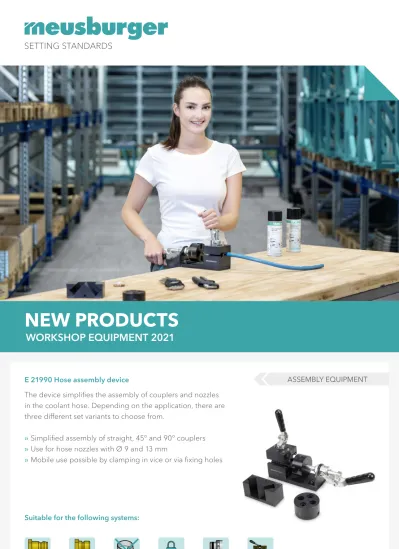

E 21990 Hose assembly device
The device simplifies the assembly of couplers and nozzles in the coolant hose. Depending on the application, there are three different set variants to choose from.
» Simplified assembly of straight, 45° and 90° couplers
» Use for hose nozzles with Ø 9 and 13 mm
» Mobile use possible by clamping in vice or via fixing holes
W ZF 1 22 4 81 P W ZF 1 22 68 1P
W ZF 1 285 81 W ZF 1 28 4 6 W ZF 1 28 4 62
Further
recommendations
CUTTING TOOLS
Milling cutters for aluminium and copper
We have expanded our range of high performance milling cutters for aluminium and copper with 3 cutting edges, 2 cutting edges and 1 cutting edge.
» With non-uniform pitch and centre cut
» Best surfaces due to nano polished cutting edges
» High stability through narrow neck and optimal transfer
Carbide high-performance milling cutter with corner radius, relieved
New in our range are carbide high-performance milling cutters for universal use for finish milling, rough milling, and roughing with a tool.
» Different helix angles for quiet, low vibration operation
» Relieved behind the cutting edge
» Excellent surface quality
Tool holders HWZ xxxxx FROM
Ø 2 TO 16 MM
FROM Ø 6 TO
16 MM
ITS-50
ITS-50
System H ITS-50
ITS-50 ITS-50
ITS-50
Adapter for clamping system H With the new system adapters, electrode holders from the ITS system can be clamped quickly and easily to the H clamping system and vice versa.
HER 3680 Adapter system H to ITS-50 HER 3082 Adapter
ITS-50 to system H
HER 6115 Rotatable pendulum vice, 1 jaw
The rotatable pendulum vice with a jaw can be used to precisely clamp and adjust workpieces for wire EDM.
» Workpieces can be adjusted in three axes
» Possible clamping range 0-100 mm
» 360° angle adjustment
HER 6120 V-block holder ITS-50
The V-block holder enables the clamping of round and angular workpieces such as ejector pins or cutting punches.
EDM ACCESSORIES
Round material Square and flat material
Quick-action clamping chucks HER 6310
Rotatable pendulum vice HER 6114
System stand
HER 1890
INOX
ICE
MEU
E 1272 M E 1274 M E 1275 M
Expansion of Meusburger lifting equipment
From now on the following new sizes are available from stock:
HWS 512 Precision vice, stainless
The tried and trusted precision vice is ideal for horizontal, vertical and lateral milling, grinding, inspection and EDM work.
Now this is also available in a stainless steel variant.
» Stainless steel variant especially well suited for use on EDM machine
» Precision-ground to exact angles on all sides
» Angle accuracy and parallelism of 0.003/100 mm E 1273 Load ring with central force application
New in range is our load ring in the sizes M36 and M42.
LIFTING EQUIPMENT & CLAMPING EQUIPMENT
LIFTING EQUIPMENT
CLAMPING EQUIPMENT THA 90 USB RFID reader
New in range is our functional RFID reader for digitalising your lifting point inventory.
» Fast and easy reading of RFID transponders
» Output of unique identification number as text
» Pairing via USB (A) with PC, tablet, laptop and OTG enabled smartphones
Precision vice HWS 510
Permanent magnetic clamping block HWS 730
Permanent lifting magnet THL 100 M8, M36, M8
M42, M48 M8, M56,
M64
W ZF 2 74 96 W ZF 2 74 98 W ZF 2 8 49 6
W ZF 222 4 82 W ZF 222 4 83 W ZF 2 824 6
CUTTING TOOLS
Torus and full-radius milling cutters for materials to 54 HRC
The newest coating technology on these milling cutters enables extremely smooth cutting edges for the best surface results.
» Highest precision for the shank and tool diameter, concentricity and radius
» Ideally suited for dry and wet machining
» Available with 2 cutting edges and 4 cutting edges
Micro milling cutter as end milling cutter and full-radius milling cutter
Achieve high economic efficiency with the micro milling cutters through improved service life, maximum cutting performance and excellent surface quality on the workpiece.
» With centre cut
» Precision-ground, polished cutting edges and chip spaces
» Short cutting edge length for good stability
FROM Ø 0.5 TO
3 MM
FROM
Ø 0.8 MM
d2+0.5 0
l1
90°
V 36200
V 31300 V 31010
3 bar
VCF 18 Foam cleaner for cavities
The cleaner efficiently removes plastic remains and burnt-on residues from injection moulds.
» Effective foam with long reaction time
» Can be used on temperature-regulated moulds
» User-friendly and biodegradable
GDSF 5010 Air file with pendulum stroke, premium The air file is ideal for use in recessed contours.
The pendulum movement prevents damage to the bottom or front surfaces.
V 31300 Bit holder for torque screwdriver
The screwdriver is the perfectly matched assembly tool for fastening the E 20760 screw plugs.
CONSUMABLES
SURFACE FINISHING EQUIPMENT
ASSEMBLY EQUIPMENT
Compatible with:
E 20760 Screw plug with sealing cone
Matching products:
V 31010 Torx
®Bit T20 / T30 / T40
NO. STROKE €
GDSF 5010/0.3 0.3
395.00 GDSF 5010/0.7 0.7
GDSF 5010/1.2 1.2
