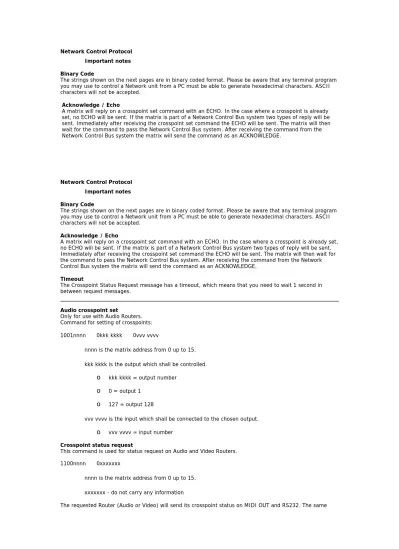

Network Control Protocol Important notes Binary Code
The strings shown on the next pages are in binary coded format. Please be aware that any terminal program you may use to control a Network unit from a PC must be able to generate hexadecimal characters. ASCII characters will not be accepted.
Acknowledge / Echo
A matrix will reply on a crosspoint set command with an ECHO. In the case where a crosspoint is already set, no ECHO will be sent. If the matrix is part of a Network Control Bus system two types of reply will be sent. Immediately after receiving the crosspoint set command the ECHO will be sent. The matrix will then wait for the command to pass the Network Control Bus system. After receiving the command from the Network Control Bus system the matrix will send the command as an ACKNOWLEDGE.
Network Control Protocol Important notes Binary Code
The strings shown on the next pages are in binary coded format. Please be aware that any terminal program you may use to control a Network unit from a PC must be able to generate hexadecimal characters. ASCII characters will not be accepted.
Acknowledge / Echo
A matrix will reply on a crosspoint set command with an ECHO. In the case where a crosspoint is already set, no ECHO will be sent. If the matrix is part of a Network Control Bus system two types of reply will be sent. Immediately after receiving the crosspoint set command the ECHO will be sent. The matrix will then wait for the command to pass the Network Control Bus system. After receiving the command from the Network Control Bus system the matrix will send the command as an ACKNOWLEDGE.
Timeout
The Crosspoint Status Request message has a timeout, which means that you need to wait 1 second in between request messages.
Audio crosspoint set
Only for use with Audio Routers. Command for setting of crosspoints: 1001nnnn 0kkk kkkk 0vvv vvvv
• nnnn is the matrix address from 0 up to 15.
• kkk kkkk is the output which shall be controlled.
o kkk kkkk = output number
o 0 = output 1
o 127 = output 128
• vvv vvvv is the input which shall be connected to the chosen output.
o vvv vvvv = input number
Crosspoint status request
This command is used for status request on Audio and Video Routers.
1100nnnn 0xxxxxxx
• nnnn is the matrix address from 0 up to 15.
• xxxxxxx - do not carry any information
command format as for crosspoint set is used.
Video crosspoint set
Only for use with Video Routers. Command for setting of crosspoints: 1010nnnn 0kkkkkkk 0vvvvvvv
• nnnn is the matrix address from 0 up to 15.
• kkk kkkk is the output which shall be controlled.
o kkk kkkk = output number
o 0 = output 1
o 127 = output 128
• vvv vvvv is the input which shall be connected to the chosen output. vvv vvvv = input number
Interface protocol RS232
The RS-232 port is used for external control of VikinX units. The RS-232 port allows the customer to control the equipment via Network’s PC Software THOR or self-defined customised solutions.
Connector for the RS-232 port is a DS9 female. Pin 2 - Tx. Pin 3 - Rx Pin 5 - GND
A standard DCE (Data Communication Equipment) cable can be used for connection between PC and Network equipment. The connection between the connectors is made one-to-one.
Data-rate is 19200 baud. 8 data-bit, 1 stop-bit, no parity.
N−1 VM 3000 Installation and Operating Manual
Appendix N
Jupiter ASCII Communications Protocol
Revision E 1/11/2000
Hardware connections for an external computer are shown on page 2−84.
Set−up in the Jupiter Control System File Server includes defining one or more port pairs as being ASCII in the Serial Protocol Table (page 5−26).
The control computer is identified on the MPK Devices table (page 5−130). You will need to define each port as being type “Serial”, and give each port a CP Level, Input, and Output Set. These sets will determine which levels, inputs, and outputs are available to each ASCII port to control and status.
The ASCII Computer Interface is assigned to a SC 3000, SI 3000, or VM 3000 serial port pair and uses a simple ASCII data format defined below. The serial protocol defaults to 9600 Baud, 8 Data Bits, No Parity, and 1 Stop Bit. Baud rates of 2400, 4800, 19.2K and 38.4K are also user−configurable from the Jupiter Control System File Server. The control port uses XON (0x11) and XOFF (0x13) to control command pacing if necessary.
All commands are in upper case ASCII. Space (0x20)characters are optional and will be ignored. Each command is fol-lowed by a carriage return (0x0D). If a line feed (0x0A)is included it must follow the carriage return.
The controlling computer must take care to wait for a ZY or ZN response after each command before attempting to send a subsequent command. Failure to do so will result in a ZN response, and possibly an XOFF condition. If switcher status is received, wait for all levels to be statused before sending another command.
Here is a key to help you understand the following command descriptions:
OOO −−−> Router Switcher OUTPUT. This corresponds with the “Selection” number defined in this AS-CII port’s CP Output Set. The range is from 000 to 999. (Previous releases had a range from 000 to 249.)
III −−−−−−−> Router Switcher INPUT. This corresponds with the “Selection” number defined in this ASCII port’s CP Input Set. (Previous releases had a range from 000 to 249.)
ASCII Protocol
LLLLLLL −−−> Router Switcher LEVELS. This corresponds with a logical position in this ASCII port’s CP Level Set. The range is from 1 to 7. For example, 1 refers to the first entry in the CP Level Set, and 5 refers to the fifth entry in that same set. If no levels are specified, then the take is assumed to apply to all levels defined in that set. Level number entries are NOT position−de-pendent.
ASCII General Purpose Commands
ZA Acknowledge This command is used to see if the ASCII interface exists and is running. A response of ZA is returned whenever a ZA is received.
ZZ Reset This command forces the ASCII controller to reset. This
causes the interface to cancel all previous ZP, ZV, and ZW commands. A ZX response is returned to the external computer upon command completion. This ZX is also returned whenever the interface is manually reset.
ZY Command Accepted This response is returned after the serial port has (ACK) successfully parsed the command and in the case of a
switch command has successfully issued the TAKE to the system and received a switch response back from the sys-tem. This does NOT mean that the command was
success-fully executed. The remote computer should not issue a new command until receiving a ZY or ZNfrom the cur-rent command. The amount of time for the response will vary depending on system complexity and current system activity. Also the number of switches involved in the com-mand will affect the amount of time it takes to receive the ZY response.Multiple switches sent in one command may result in ZR response(s) being returned before the ZY response.
ZN Command Rejected A ZN will be issued when a condition occurs where (NAK) the current command cannot be executed. A ZN response
com-ASCII Protocol
N−3 VM 3000 Installation and Operating Manual
mand, an invalid command format, or an invalid input, output or level. Invalid inputs, outputs and levels are logged to the system logger. Also if the system is busy a ZN will be issued followed by XOFF. When it is again ready for the next command a XON will be issued. Note that after the XON, response(s) from the prior command may be issued (e.g. ZR response(s)).
Router Switcher Control and Status Commands
ZSOOOIIILLLLLLL Switch Request This command causes the interface to issue a TAKE Switch Request to the routing switcher control system and affects a single routing switcher output. If no levels are specified, then ALL defined levels are assumed.
Note: Passwords are not honored by automation protocol handling.
A remote computer can send a command with multiple Switch Requests (older releases do not have this capabili-ty). A single command can be up to 180 characters long which allows switching of from 12−22 outputs (depending on the specified levels). An example of a multiple Switch Request follows:
ZS00000112ZS00100212ZS00200312<CR>
This examplecommand would switch outputs 0, 1, and 2 on levels 1 and 2.
ZROOO Status Request This command requests current switcher status for a single output. The response is in the format:
ZROOOIIILLLLLLL
.
If the status for the output is “split”, multiple responses will be returned.
ZWOOO Watch Output This command causes the interface to watch the specified output for any changes and report such changes. A request to watch output “999” is a request to watch all defined
ASCII Protocol
outputs in that port’s serial output set. All responses are in the “ZR” format described above. When issued, this com-mand also may result in an immediate ZR response for the requested output(s). No ZR response(s) will be returned if the requested output(s) do not have any inputs assigned to them.
ZPOOO Lock Output This command LOCKS the specified output from being changed by any system control device.
ZVOOO Protect Output This command PROTECTS the specified output from being changed by any other system control device.
ZUOOO Unlock Output This command removes the LOCK or PROTECT from the specified system output. If another system control device or interface locked or protected this output, this command will fail.
ZJOOO Report Lock Status This command will return a code based on which kind of system control device or interface LOCKED or PRO-TECTED the specified output. If the output is not locked or protected, no response will be sent. The response codes are as follows:
ZJ000 JupiterControl Panel ZJ001−004 Party Line Control Panel
ZJ999 THIS ASCII INTERFACE
Note: Lock status returned for the first level only in the CP Level Set for this ASCII port.
