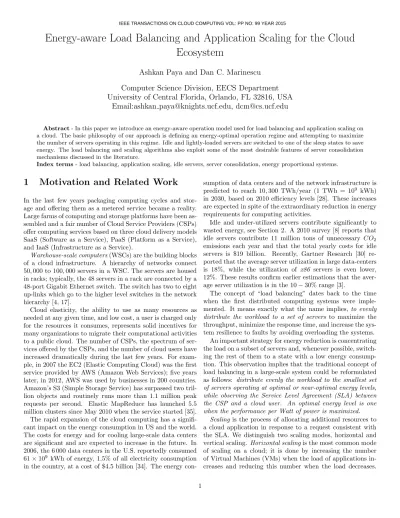

Energy-aware Load Balancing and Application Scaling for the Cloud

Ecosystem

Ashkan Paya and Dan C. Marinescu

Computer Science Division, EECS Department

University of Central Florida, Orlando, FL 32816, USA

Email:ashkan [email protected], [email protected]

Abstract - In this paper we introduce an energy-aware operation model used for load balancing and application scaling on a cloud. The basic philosophy of our approach is defining an energy-optimal operation regime and attempting to maximize the number of servers operating in this regime. Idle and lightly-loaded servers are switched to one of the sleep states to save energy. The load balancing and scaling algorithms also exploit some of the most desirable features of server consolidation mechanisms discussed in the literature.

Index terms - load balancing, application scaling, idle servers, server consolidation, energy proportional systems.

1 Motivation and Related Work

In the last few years packaging computing cycles and stor-age and offering them as a metered service became a reality. Large farms of computing and storage platforms have been as-sembled and a fair number of Cloud Service Providers (CSPs) offer computing services based on three cloud delivery models SaaS (Software as a Service), PaaS (Platform as a Service), and IaaS (Infrastructure as a Service).

Warehouse-scale computers (WSCs) are the building blocks of a cloud infrastructure. A hierarchy of networks connect 50, 000 to 100, 000 servers in a WSC. The servers are housed in racks; typically, the 48 servers in a rack are connected by a 48-port Gigabit Ethernet switch. The switch has two to eight up-links which go to the higher level switches in the network hierarchy [4, 17].

Cloud elasticity, the ability to use as many resources as needed at any given time, and low cost, a user is charged only for the resources it consumes, represents solid incentives for many organizations to migrate their computational activities to a public cloud. The number of CSPs, the spectrum of ser-vices offered by the CSPs, and the number of cloud users have increased dramatically during the last few years. For exam-ple, in 2007 the EC2 (Elastic Computing Cloud) was the first service provided by AWS (Amazon Web Services); five years later, in 2012, AWS was used by businesses in 200 countries. Amazon’s S3 (Simple Storage Service) has surpassed two tril-lion objects and routinely runs more than 1.1 miltril-lion peak requests per second. Elastic MapReduce has launched 5.5 million clusters since May 2010 when the service started [35]. The rapid expansion of the cloud computing has a signifi-cant impact on the energy consumption in US and the world. The costs for energy and for cooling large-scale data centers are significant and are expected to increase in the future. In 2006, the 6 000 data centers in the U.S. reportedly consumed 61 × 109 _{kWh of energy, 1.5% of all electricity consumption} in the country, at a cost of $4.5 billion [34]. The energy

con-sumption of data centers and of the network infrastructure is

predicted to reach 10, 300 TWh/year (1 TWh = 109 kWh)

in 2030, based on 2010 efficiency levels [28]. These increases are expected in spite of the extraordinary reduction in energy requirements for computing activities.

Idle and under-utilized servers contribute significantly to wasted energy, see Section 2. A 2010 survey [8] reports that idle servers contribute 11 million tons of unnecessary CO2 emissions each year and that the total yearly costs for idle servers is $19 billion. Recently, Gartner Research [30] re-ported that the average server utilization in large data-centers is 18%, while the utilization of x86 servers is even lower, 12%. These results confirm earlier estimations that the aver-age server utilization is in the 10 − 30% range [3].

The concept of “load balancing” dates back to the time when the first distributed computing systems were imple-mented. It means exactly what the name implies, to evenly distribute the workload to a set of servers to maximize the throughput, minimize the response time, and increase the sys-tem resilience to faults by avoiding overloading the syssys-tems.

An important strategy for energy reduction is concentrating the load on a subset of servers and, whenever possible, switch-ing the rest of them to a state with a low energy consump-tion. This observation implies that the traditional concept of load balancing in a large-scale system could be reformulated as follows: distribute evenly the workload to the smallest set of servers operating at optimal or near-optimal energy levels, while observing the Service Level Agreement (SLA) between the CSP and a cloud user. An optimal energy level is one when the performance per Watt of power is maximized.

Scaling is the process of allocating additional resources to a cloud application in response to a request consistent with the SLA. We distinguish two scaling modes, horizontal and vertical scaling. Horizontal scaling is the most common mode of scaling on a cloud; it is done by increasing the number of Virtual Machines (VMs) when the load of applications in-creases and reducing this number when the load dein-creases.

(2)

Load balancing is critical for this mode of operation. Vertical scaling keeps the number of VMs of an application constant, but increases the amount of resources allocated to each one of them. This can be done either by migrating the VMs to more powerful servers or by keeping the VMs on the same servers, but increasing their share of the server capacity. The first alternative involves additional overhead; the VM is stopped, a snapshot is taken, the file is migrated to a more powerful server, and the VM is restarted at the new site.

The alternative to the wasteful resource management pol-icy when the servers are always on, regardless of their load, is to develop energy-aware load balancing and scaling

poli-cies. Such policies combine dynamic power management

with load balancing and attempt to identify servers operat-ing outside their optimal energy regime and decide if and when they should be switched to a sleep state or what other actions should be taken to optimize the energy

consump-tion. The vast literature on energy-aware resource

man-agement concepts and ideas discussed in this paper includes [1, 3, 5, 6, 7, 10, 11, 22, 25, 28, 32, 33, 34].

Some of the questions posed by energy-aware load balancing and application scaling are: (a) Under what conditions should a server be switched to a sleep state? (b) What sleep state should the server be switched to? (c) How much energy is necessary to switch a server to a sleep state and then switch it back to an active state? (d) How much time it takes to switch a server to a running state from a sleep state? (e) How much energy is necessary for migrating a VM running on a server to another one? (f) How much energy is necessary for starting the VM on the target server? (g) How to choose the target where the VM should migrate to? (h) How much time does it takes to migrate a VM?

The answers to some of these questions depend on the server’s hardware and software, including the virtual machine monitor and the operating systems, and change as the tech-nology evolves and energy awareness becomes increasingly more important. In this paper we are concerned with high-level policies which, to some extent are independent of the specific attributes of the server’s hardware and, due to space limitation, we only discuss (a), (b), and (g). We assume that the workload is predictable, has no spikes, and that the de-mand of an application for additional computing power dur-ing an evaluation cycle is limited. We also assume a clustered organization, typical for existing cloud infrastructure [4, 17].

There are three primary contributions of this paper: (1) a new model of cloud servers that is based on different operating regimes with various degrees of “energy efficiency” (process-ing power versus energy consumption); (2) a novel algorithm that performs load balancing and application scaling to max-imize the number of servers operating in the energy-optimal regime; and (3) analysis and comparison of techniques for load balancing and application scaling using three differently-sized clusters and two different average load profiles.

Models for energy-aware resource management and applica-tion placement policies and the mechanisms to enforce these policies such as the ones introduced in this paper can be evalu-ated theoretically [1], experimentally [10, 11, 13, 22], through simulation [5, 7, 27], based on published data [2, 8, 19, 20], or

through a combination of these techniques. Analytical mod-els can be used to derive high-level insight on the behavior of the system in a very short time but the biggest challenge is in determining the values of the parameters; while the results from an analytical model can give a good approximation of the relative trends to expect, there may be significant errors in the absolute predictions. Experimental data is collected on small-scale systems; such experiments provide useful perfor-mance data for individual system components but no insights on the interaction between the system and applications and the scalability of the policies. Trace-based workload anal-ysis such as the ones in [10] and [33] are very useful though they provide information for a particular experimental set-up, hardware configuration, and applications. Typically trace-based simulation need more time to produce results. Traces can also be very large and it is hard to generate represen-tative traces from one class of machines that will be valid for all the classes of simulated machines. To evaluate the energy aware load balancing and application scaling policies and mechanisms introduced in this paper we chose simulation using data published in the literature [4].

Operating efficiency of a system and server consolidation are discussed in Sections 2 and 3, respectively. The model described in Section 4 introduces the operating regimes of a processors and the conditions when to switch a server to a sleep state. Load balancing and scaling algorithms suitable for a clustered cloud organization based on the model are presented in Section 5; these algorithms aim to optimize the energy efficiency and to balance the load. Simulations exper-iments and conclusions are covered in Sections 6 and 7.

2 Energy Efficiency of a System

The energy efficiency of a system is captured by the ra-tio “performance per Watt of power.” During the last two decades the performance of computing systems has increased much faster than their energy efficiency [3].

Energy proportional systems. In an ideal world, the energy consumed by an idle system should be near zero and grow linearly with the system load. In real life, even systems whose energy requirements scale linearly, when idle, use more than half the energy they use at full load. Data collected over a long period of time shows that the typical operating regime for data center servers is far from an optimal energy consumption regime.

An energy-proportional system consumes no energy when idle, very little energy under a light load, and gradually, more energy as the load increases. An ideal energy-proportional system is always operating at 100% efficiency [3].

Energy efficiency of a data center; the dynamic range of subsystems. The energy efficiency of a data center is measured by the power usage effectiveness (PUE), the ratio of total energy used to power a data center to the energy used to power computational servers, storage servers, and other IT equipment. The PUE has improved from around 1.93 in 2003 to 1.63 in 2005; recently, Google reported a PUE ratio as low

(3)

as 1.15 [2]. The improvement in PUE forces us to concentrate on energy efficiency of computational resources [7].

The dynamic range is the difference between the upper and the lower limits of the energy consumption of a system as a function of the load placed on the system. A large dynamic range means that a system is able to operate at a lower frac-tion of its peak energy when its load is low.

Different subsystems of a computing system behave differ-ently in terms of energy efficiency; while many processors have reasonably good energy-proportional profiles, significant im-provements in memory and disk subsystems are necessary. The largest consumer of energy in a server is the processor, followed by memory, and storage systems. Estimated distri-bution of the peak power of different hardware systems in one of the Google’s datacenters is: CPU 33%, DRAM 30%, Disks 10%, Network 5%, and others 22% [4] .

The power consumption can vary from 45W to 200W per multi-core CPU. The power consumption of servers has in-creased over time; during the period 2001 - 2005 the esti-mated average power use has increased from 193 to 225 W for volume servers, from 457 to 675 for mid range servers, and from 5,832 to 8,163 W for high end ones [19]. Volume servers have a price less than $25 K, mid-range servers have a price between $25 K and $499 K, and high-end servers have a price tag larger than $500 K. Newer processors include power saving technologies.

The processors used in servers consume less than one-third of their peak power at very-low load and have a dynamic range of more than 70% of peak power; the processors used in mobile and/or embedded applications are better in this respect. According to [3], the dynamic power range of other components of a system is much narrower: less than 50% for DRAM, 25% for disk drives, and 15% for networking switches. Large servers often use 32 − 64 dual in-line memory modules (DIMMs); the power consumption of one DIMM is in the 5 to 21 W range.

A server with 2 − 4 hard disk drives (HDDs) consumes 24 − 48 W. A strategy to reduce energy consumption by disk drives is concentrating the workload on a small number of disks and allowing the others to operate in a low-power mode. One of the techniques to accomplish this is based on replication [34]. Another technique is based on data migration [15].

A number of proposals have emerged for energy propor-tional networks; the energy consumed by such networks is proportional with the communication load. An example of an energy proportional network is the InfiniBand. A network-wide power manager, which dynamically adjusts the network links and switches to satisfy changing datacenter traffic loads, called Elastic Tree is described in [16].

Sleep states. The effectiveness of sleep states in optimiz-ing energy consumption is analyzed in [11]. A comprehen-sive document [18] describes the advanced configuration and power interface (ACPI) specifications which allow an operat-ing system (OS) to effectively manage the power consumption of the hardware.

Several types of sleep sates, are defined: C-states (C1−C6) for the CPU, D-states (D0 − D3) for modems, hard-drives, and CD-ROM, and S-states (S1 − S4) for the basic

input-output system (BIOS). The C-states allow a computer to save energy when the CPU is idle. In a sleep state, the idle units of a CPU have their clock signal and the power cut. The higher the state number, the deeper the CPU sleep mode, the larger the energy saved, and the longer the time for the CPU to return to the state C0 which corresponds to the CPU fully operational. The clock signal and the power of different CPU units are cut in states C1 to C3 , while in state C4 to C6 the CPU voltage is reduced. In state C1 the main internal CPU clock is stopped by the software, but the bus interface and the advanced programmable interrupt controller (APIC) are running, while in state C3 all internal clocks are stopped, and in state C4 the CPU voltage is reduced.

Resource management policies for large-scale data

centers. These policies can be loosely grouped into five

classes: (a) Admission control; (b) Capacity allocation; (c) Load balancing; (d) Energy optimization; and (e) Quality of service (QoS) guarantees. The explicit goal of an admission control policy is to prevent the system from accepting work-load in violation of high-level system policies; a system should not accept additional workload preventing it from completing work already in progress or contracted. Limiting the workload requires some knowledge of the global state of the system; in a dynamic system such knowledge, when available, is at best obsolete. Capacity allocation means allocating resources for individual instances; an instance is an activation of a service. Some of the mechanisms for capacity allocation are based on either static or dynamic thresholds [23].

Economy of scale affects the energy efficiency of data pro-cessing. For example, Google reports that the annual energy consumption for an Email service varies significantly depend-ing on the business size and can be 15 times larger for a small business than for a large one [13]. Cloud computing can be more energy efficient than on-premise computing for many organizations [2, 26].

3 Server Consolidation

The term server consolidation is used to describe: (1) switch-ing idle and lightly loaded systems [33] to a sleep state; (2) workload migration to prevent overloading of systems [7]; or (3) any optimization of cloud performance and energy effi-ciency by redistributing the workload [25].

Server consolidation policies. Several policies have

been proposed to decide when to switch a server to a sleep state. The reactive policy [31] responds to the current load; it switches the servers to a sleep state when the load decreases and switches them to the running state when the load in-creases. Generally, this policy leads to SLA violations and could work only for slow-varying, predictable loads. To re-duce SLA violations one can envision a reactive with extra ca-pacity policy when one attempts to have a safety margin and keep running a fraction of the total number of servers, e.g., 20% above those needed for the current load. The AutoScale policy [10] is a very conservative reactive policy in switching servers to sleep state to avoid the power consumption and the delay in switching them back to running state. This can be

(4)

advantageous for unpredictable spiky loads.

A very different approach is taken by two versions of pre-dictive policies [33]. The moving window policy estimates the workload by measuring the average request rate in a window of size ∆ seconds uses this average to predict the load during the next second (second (∆ + 1)) and then slides the window one second to predict the load for second (∆ + 2), and so on. The predictive linear regression policy uses a linear regression to predict the future load.

Optimal policy. In this paper we define an optimal policy as one which guarantees that running servers operate within their optimal energy regime or for limited time in a subopti-mal regime, and, at the same time, the policy does not pro-duce any SLA violations. At this time SLAs are very general and do not support strict QoS guarantees, e.g., hard real-time deadlines. Different policies can be ranked by comparing them with an optimal policy. The mechanisms to implement energy-aware application scaling and load balancing policies should satisfy several conditions: (i) Scalability - work well for large farms of servers; (ii) Effectiveness - lead to substantial energy and cost savings; (iii) Practicality - use efficient algo-rithms and require as input only data that can be measured with low overhead and, at the same time, accurately reflects the state of the system; and last, but not least, (iv) Consis-tency with the global objectives and contractual obligations specified by Service Level Agreements.

The workload can be slow- or fast-varying, have spikes or be smooth, can be predicted or is totally unpredictable; the admission control can restrict the acceptance of additional load when the available capacity of the servers is low. What we can measure in practice is the average energy used and the average server setup time. The setup time varies depending on the hardware and the operating system and can be as large as 260 seconds; the energy consumption during the setup phase is close to the maximal one for the server [10].

The time to switch the servers to a running state is critical when the load is fast varying, the load variations are very steep, and the spikes are unpredictable. The decisions when to switch servers to a sleep state and back to a running state are less critical when a strict admission control policy is in place; then new service requests for large amounts of resources can be delayed until the system is able to turn on a number of sleeping servers to satisfy the additional demand.

4 The System Model

The model introduced in this section assumes a clustered or-ganization of the cloud infrastructure and targets primarily the IaaS cloud delivery model represented by Amazon Web Services (AWS). AWS supports a limited number of instance families, including M3 (general purpose), C3 (compute opti-mized), R3 (memory optiopti-mized), I2 (storage optiopti-mized), G2 (GPU) and so on. An instance is a package of system re-sources; for example, the c3.8xlarge instance provides 32 vCPU, 60 GiB of memory, and 2 × 320 GB of SSD storage. AWS used to measure the server performance in ECUs (Elas-tic Compute Units) but has switched recently to, yet to be

specified, vCPU units; one ECU is the equivalent CPU capac-ity of a 1.0 − 1.2 GHz 2007 Opteron or 2007 Xeon processor. Applications for one instance family have similar profiles, e.g., are CPU-, memory-, or I/O-intensive and run on clus-ters optimized for that profile; thus, the application interfer-ence with one another is minimized. The normalized system performance and the normalized power consumption are dif-ferent from server to server; yet, warehouse scale computers supporting an instance family use the same processor or fam-ily of processors [4] and this reduces the effort to determine the parameters required by our model.

In our model the migration decisions are based solely on the vCPU units demanded by an application and the available capacity of the host and of the other servers in the cluster. The model could be extended to take into account not only the processing power, but also the dominant resource for a particular instance family, e.g., memory for R3, storage for I2, GPU for G2 when deciding to migrate a VM. This extension would complicate the model and add additional overhead for monitoring the application behavior.

The model defines an energy-optimal regime for server op-eration and the conditions when a server should be switched to a sleep state. Also the model gives some hints regarding the most appropriate sleep state the server should be switched to and supports a decision making framework for VM migration in horizontal scaling.

Clustered organization. A cluster C has a leader, a sys-tem which maintains relatively accurate information about the free capacity of individual servers in the cluster and com-municates with the leaders of the other clusters for the imple-mentation of global resource management policies. The leader could consist of a multi-system configuration to guarantee a fast response time and to support fault-tolerance.

An advantage of a clustered organization is that a large percentage of scheduling decisions are based on local, there-fore more accurate, information. Server Sk makes scheduling decisions every τk units of time. The servers in the cluster report to the leader the current load and other relevant state information every τi _{units of time, or earlier if the need to} migrate an application is anticipated.

We consider three levels of resource allocation decision mak-ing: (a) the local system which has accurate information about its state; (b) the cluster leader which has less accurate information about the servers in the cluster; and (c) global decisions involving multiple clusters. In this paper we are only concerned with in-cluster scheduling coordinated by the leader of the cluster. Inter-cluster scheduling is based on less accurate information as the leader of cluster C exchanges in-formation with other leaders less frequently.

System and application level resource management. The model is based on a two-level decision making process, one at the system and one at the application level. The sched-uler of the Virtual Machine Monitor (VMM) of a server inter-acts with the Server Application Manager (SAM) component of the VMM to ensure that the QoS requirements of the appli-cation are satisfied. SAM gathers information from individual application managers of the VMs running on the server.

(5)

10.1109/TCC.2015.2396059, IEEE Transactions on Cloud Computing Normalized performance Normalized power (3) Optimal 1 1 (2) Suboptimal-low (5) Undesirable-high (4) Suboptimal-high α_kopt,h α_kopt,l α_ksopt,l α_ksopt,h βksopt,l βkopt,h βkopt,l βksopt,h βk0 (1) Undesirable-low βk α_k

Figure 1: Normalized performance versus normalized power; boundaries of the five operating regimes are shown.

and dynamic information about all servers in cluster C. Static information includes:

Sk - the serverId;

γk - a constant quantifying the processing power of server Sk; the processing power is expressed in vCPUs.

The model illustrated in Figure 1 uses several parameters:

αsopt,l_k αopt,l_k , αopt,h_k , and αsopt,h_k , the normalized

perfor-mance boundaries of different operating regimes.

τk - the reallocation interval. Ever τk units of time the system determines if and how to reallocate resources.

The application record of application Ai,k includes the ap-plicationId and several other parameters:

(1) ai,k(t) - current demand of application Ai for processing power on server Sk at time t in vCPU units, e.g., 0.4. (2) λi,k - highest rate of increase in demand for processing power of application Ai on server Sk.

(3) pi,k(t) - migration cost. (4) qi,k(t) - horizontal scaling cost.

The increase in demand for processing power of application Ai,k during a reallocation interval is limited

ai,k(t + τk) ≤ ai,k(t) + λi,kτk. (1)

ak(t), the fraction of processing power of server Sk used by all active applications at time t is an example of dynamic information. This information is reported with period τi, or whenever the server determines that it needs to migrate an application or to create additional VMs for an application. To minimize communication costs, the reporting period τi _is much larger than the rescheduling period of individual

clus-ters. A server Sk has a computational constant γk which

quantifies the highest level of performance it can deliver. Server operating regimes. The normalized performance of server Skdepends on the power level, αk(t) = fk[βk(t)]. We distinguish five operating regimes of a server, an optimal one, two suboptimal, and two undesirable, Figure 1:

R1 - undesirable-low regime

β_k0≤ βk(t) ≤ β_ksopt,l and 0 ≤ ak(t) ≤ αsopt,l_k . (2) R2, R3, R4, - suboptimal-low, optimal, and suboptimal high regimes

βr1,llim≤ βk ≤ βr2,hlim and αr1,llim≤ αk ≤ αr2,hlim (3)

with:

R2: r1=sopt, r2=opt, llim=l, hlim=1 R3: r1=r2=opt, llim=l, hlim=h R4: r1=opt, r2=sopt, llim=h, hlim=h

R5 - undesirable-high regime

β_ksopt,h≤ βk(t) ≤ 1 and αsopt,h_k ≤ ak(t) ≤ 1. (4)

Our choice of five operating regimes is motivated by the desire to distinguish three types of system behavior in terms of power utilization: optimal, suboptimal, and undesirable. The optimal regime is power efficient and gives a degree of confidence that the sever will not be forced to request VM migrations during the next few scheduling cycles while the sub-optimal regimes are acceptable only for limited periods of time. The five-regime model coupled with delayed actions, e.g., allowing a system to operate within a suboptimal or undesirable-high regimes, could reduce the system overhead and even save power by reducing VM migration costs. One can consider a more refined system behavior, e.g., a seven-regime model, but this adds to the model complexity without clear benefits.

This classification captures the current system load and al-lows us to distinguish the actions to be taken to return to the optimal regime. A system operating in the suboptimal-low regime is lightly loaded; the server is a candidate for switch-ing to a sleep state. The undesirable-high regime should be avoided because a scaling request would immediately trig-ger VM migration and, depending on the system load, would require activating one of the servers in a sleep state. This classification also captures the urgency of the actions taken; suboptimal regimes do not require an immediate attention, while the undesirable-low does. The time spent operating in each suboptimal regime is also important.

Measuring server energy efficiency. A recent bench-mark [29] compares the energy efficiency of typical business applications running on a Java platform. For example, Table 1 based on data reported in Figure 5.3 of [4] shows the re-sults for the SPECpower ssj2008 benchmark for a server with a single chip 2.83 GHz quad core Intel Xeon processor, 4GB of DRAM, and one 7.2 k RPM 3.5” SATA disk drive.

From Table 1 we see that the energy efficiency is

nearly-linear. Consider the case when the workload of n servers

operating in the R1 regime migrates to nopt servers already in the R3regime and the n servers are forced to a sleep state. The energy saved over an interval of time T , Es_{(T ), while} delivering the same level of performance satisfies the condition

(6)

Table 1: The average workload as a percentage of the maximal workload, the power used in Watts, the number of transac-tions, and the computational efficiency, the ratio of transactions to the average power consumption, from [4]

Load (%) 0 10 20 30 35 40 50 60 70 80 90 100

P - power (W) 165 180 185 190 195 200 210 220 225 235 240 250

T- transactions 0 175 335 484 552 620 738 854 951 1,049 1,135 1,214

Efficiency= T/P 0 0.97 1.81 2.55 2.83 3.10 3.51 3.88 4.23 4.46 4.73 4.84

assuming that all servers have the same: (1) energy consump-tion when idle, β0; (2) average migration costs ¯p; and (3) av-erage setup cost ¯s. The first term of Equation 5 shows that the longer the system operates in this mode, the larger the energy savings. The second term measures the energy used for VM migration and for server setup when they need to be brought back from the sleep state. The last term of Equa-tion 5 accounts for the increase in energy consumpEqua-tion due to additional load of the noptservers operating in the optimal

regime. For the example in Table 1, β0 = 165 W. In [10]

the setup time is 260 seconds and during that time the power

is consumed at the peak rate of ¯s = 200 W. There are no

reliable estimations of the migration costs. Processors with low-power halt states, such as the C1E state of x86, have a lower setup cost [4].

The results in Table 1 suggest the following boundaries for the five operating regions:

αsub,l= 35%, αopt,l= 50%, αsub,l= 80%, αund,h= 90% (6)

These boundaries will be used for the simulation discussed in Section 6. The parameters for the five operating regimes

R1, R2, R3, R4 and R5 corresponding to the boundaries in

Equation 6 are summarized in Table 2.

Table 2: The thresholds α, the average power consumption per processor, ¯P , the average performance measured as the number of transactions, ¯T , and the ratio ¯T / ¯P for the five

regimes: R1, R2, R3, R4and R5. R1 R2 R3 R4 R5 α 0-34.9 35-49.9 50-79.9 80-89.9 90-100 ¯ P 180 202.5 222.5 237.5 245 ¯ T 276 645 894 1,092 1,175 ¯ T / ¯P 1.410 3.165 3.985 4.595 4.785

Application scaling. We assume that the SAM of server Skupdates every τkunits of time the ai,k(t) of all applications

Ai,k and predicts the consumption at the beginning of the

next reallocation interval. The SAM maintains a control data structure including all currently running applications, ordered by ai,k(t). At each reallocation instance, server Skdetermines its available capacity

dk(t) = αopt,h_k − 1 γk

X

i

ai,k(t), (7)

as well as the largest possible demand for processing capacity at the end of that reallocation interval

gk(t + τk) =X i

(ai,k(t) + λi,kτk) . (8)

5 Energy-aware Scaling Algorithms

The objective of the algorithms is to ensure that the largest possible number of active servers operate within the bound-aries of their respective optimal operating regime. The actions implementing this policy are: (a) migrate VMs from a server operating in the undesirable-low regime and then switch the server to a sleep state; (b) switch an idle server to a sleep state and reactivate servers in a sleep state when the cluster load increases; (c) migrate the VMs from an overloaded server, a server operating in the undesirable-high regime with applica-tions predicted to increase their demands for computing in the next reallocation cycles.

The clustered organization allows us to accommodate some of the desirable features of the strategies for server consolida-tion discussed in Secconsolida-tion 3. For example, when deciding to migrate some of the VMs running on a server or to switch a server to a sleep state, we can adopt a conservative policy similar to the one advocated by autoscaling [10] to save en-ergy. Predictive policies, such as the ones discussed in [33] will be used to allow a server to operate in a suboptimal regime when historical data regarding its workload indicates that it is likely to return to the optimal regime in the near future.

The cluster leader has relatively accurate information about the cluster load and its trends. The leader could use predictive algorithms to initiate a gradual wake-up process for servers in a deeper sleep state, C4 − C6, when the workload is above a “high water mark” and the workload is continually increasing. We set up the high water mark at 80% of the capacity of active servers; a threshold of 85% is used for deciding that a server is overloaded in [12], based on an analysis of workload traces. The leader could also choose to keep a number of servers in C1 or C2 states because it takes less energy and time to return to the C0 state from these states. The energy management component of the hypervisor can use only local information to determine the regime of a server.

Scaling decisions. The Server Application Manager

SAMkis a component of the Virtual Machine Monitor (VMM)

of a server Sk. One of its functions is to classify the appli-cations based on their processing power needs over a window of w reallocation intervals in several categories: rapidly in-creasing resource demands (RI), moderately inin-creasing (MI),

(7)

stationary (S), moderately decreasing (MD), and rapidly de-creasing (RD). This information is passed to the cloud leader whenever there is the need to migrate the VM running the application.

SAMk interacts with the cluster leader and with the

ap-plication managers of servers accepting the migration of an application currently running on server Sk. A report sent to the cluster leader includes the list of applications currently running on Sk, their additional demands of over the last real-location cycle and over a window of w realreal-location intervals, and their classification as RI/MI/S/MD/RD over the same window. The scaling decisions are listed in the order of their energy consumption, overhead, and complexity:

(1) Local decision - whenever possible, carry out vertical ap-plication scaling using local resources only.

(2) In-cluster, horizontal or vertical scaling - migrate some of the VMs to the other servers identified by the leader; wake-up some of the servers in a sleep state or switch them to one of the sleep states depending on the cluster workload.

(3) Inter-cluster scaling - when the leader determines that the cluster operates at 80% of its capacity with all servers run-ning, the admission control mechanism stops accepting new applications. When the existing applications scale up above 90% of the capacity with all servers running then the cluster leader interacts with the leaders of other clusters to satisfy the requests. This case is not addressed in this paper.

All decisions take into account the current demand for pro-cessor capacity, as well as the anticipated load.

I. Local, vertical scaling. The anticipated load at the end of the current and the following scheduling cycle allow the server to continue operating in the optimal regime

gk(t + τk) ≤ γkaopt,h_k & γkaopt,l_k ≤ gk(t + 2τk) ≤ γkaopt,h_k . (9) II. In-cluster scaling. The anticipated load could force the server to transition to the suboptimal-low, suboptimal-high, or undesirable-high regimes, respectively:

gk(t + τk) ≤ γkαopt,h_k & γkαsopt,l_k ≤ gk(t + 2τk) ≤ γkαopt,l_k gk(t + τk) ≤ γkαopt,h_k & γkαopt,h_k ≤ gk(t + 2τk) ≤ γkαsopt,h_k

gk(t + τk) ≤ γkαopt,h_k & gk(t + 2τk) > γkαsopt,h_k . (10) The leader includes the server in the WatchList when Equations 10 are satisfied.

III. Inter-cluster scaling. The anticipated load could force the server to transition to the undesirable-low regime.

gk(t + τk) ≤ γkαopt,h_k & gk(t + 2τk) ≤ γkαsopt,l_k . (11) The leader includes the server in the MigrationList in case of Equation 11.

In addition to the lazy approach discussed in (II) when a server operates within the boundaries of the suboptimal-high regime until its capacity is exceeded, one could use an anticipatory strategy. To prevent potential SLA violations in

the immediate future, in this case we force the migration from the suboptimal-high region as soon as feasible.

A. Synchronous operation. The algorithm executed by

SAM−k every τk units of time is:

1. Order applications based on the demand. Compute the actual rate of increase or decrease in demand over a window of w

reallocation cycles according to Equation 6. Compute servers available capacity.

2. If Equations 9 or 11 are satisfied send an

imperative request for application migration. 3. If first or third equations in 10 are satisfied

send a warning including application history.

4. Else, reallocate CPU cycles to allow each

application its largest rate of increase.

If time elapsed from the last status report

is larger than in-cluster reporting period

send an update to the leader.

A server operating in the undesirable-high regime has a high energy efficiency, but gives us a warning that we should be prepared to activate servers in the sleep states and that VM migration is very likely.

B. Asynchronous operation. When a server receives a mes-sage related to VM migration, its SAM reacts immediately:

B.1. When Sk receives a request from the cluster leader

to accept the migration or vertical scaling on an application, it first checks that by accepting the request it will still be operating on an optimal regime. If so, it sends an accept message to the leader and to Sv, the server requesting the migration or vertical scaling of application. In the former case it starts one or more VMs for the application; in the later case it waits to receive from Sv the snapshot of the VM image and then starts the new VMs.

B.2. When, in response to a report of operation in a subop-timal regime, server Sk receives an accept message for vertical scaling of application Ai,k from another server, Sv, it stops the application, constructs the image of the VM running the application, and then sends it to Sv. For horizontal scaling, it sends Sv the location of the image.

Cluster management. The leader of a cluster maintains several control structures:

OptimalList - includes servers operating in an optimal regime or those in suboptimal regime projected to migrate back to the optimal regime; the list is ordered in the increas-ing order of computincreas-ing power. Within a group of servers with similar γk, the servers are ordered in the increasing order of available capacity.

WatchList - includes servers running in two suboptimal regime and the undesirable-high regimes whose applications are candidates for VM migration.

MigrationList - includes servers operating in undesirable regimes. The leader selects candidates for migration and iden-tifies possible targets for migration.

(8)

SleepList - includes servers in one of the sleep states; the list is ordered on the type of sleep state and then in the increasing order of computing power reflected by the constant γk.

The leader performs several functions: admission control for new applications, server consolidation and reactivation, and VM migration.

1. Admission control. When the cluster leader receives a request to accept a new application it computes the available capacity and admits it if the system is not overloaded

dC(t) PnaC k=1γk ≤ 0.8 with dC(t) = naC X k=1 dk(t) (12)

with dC(t) is the available capacity and naC represents the number of servers operating in the optimal and subopti-mal regimes, those included in the Optisubopti-malList and the WatchList. If the SleepList is not empty, the leader has the choice to place the application on a standby queue and then wake up one or more servers in this list and assign the application to these servers.

2. Server consolidation and re-activation. The leader ex-amines each server in the MigrationList and attempts to pair those operating in the lower undesirable regime with the ones in the upper undesirable regime and to migrate applica-tions from the later to the former ones taking into account the application profile. Servers left to operate in the lower unde-sirable region are then ordered to switch to one of the sleep states, depending on the current system load and the pre-dicted future load. These servers are added to the SleepList. When the server load reaches the high water mark, then the leader initiates gradual server transitions from deeper sleep states to the lighter sleep states and reactivation of some servers in state C1.

3. VM migration. A VM can only be migrated at the time

when checkpointing is possible and a consistent cut [23] can

be defined. The leader acts as a broker for the selection of a

target for horizontal or vertical scaling of application A. Once it receives a request for in-cluster scaling it first identifies a potential target; then the two servers, the one sending the request and the one accepting to be the target for horizontal

or vertical scaling, negotiate the VM migration. Once an

agreement has been reached, the two servers carry out the operation without the intervention of the leader. The target selection is guided by two objectives:

(i) Ensure that the selected target server will be able to accommodate application scaling for an extended period of time, while operating in its optimal regime; this will help reduce the migration costs and the power consumption.

(ii) Keep the user costs low by selecting the least costly server, the one with the lowest γk that satisfies condition (i). The strategy is to consider a window of future intervals, φ, and determine the largest possible increase in resource de-mand of application Ai.

ai(t + φ × λi) = ai(t) + φλi (13)

Then search the WatchList for a server operating in the lower suboptimal regime with suitable available capacity

dv(t) > ai(t + φ × λi). (14)

If such a server does not exist, then server Su from SleepList with the lowest γu is selected if it satisfies the conditions

ai(t) ≥ γuαsopt,l

u and ai(t + φ × λi) ≤ αsopt,lu . (15)

The algorithms assume that the thresholds for

normal-ized performance and power consumption of server Sk are

constant. When the processor supports dynamic

volt-age and frequency scaling [32] the thresholds, αopt,l_k (t),

αopt,high_k (t), αsopt,l_k (t), αsopt,high_k (t), βopt,l_k (t), β_kopt,high(t),

β_ksopt,l(t), β_ksopt,high(t) will vary in time. The basic

philos-ophy will be the same, we shall attempt to keep every server in an optimal operating regime. An additional complication of the algorithms is that we have to determine if it is benefi-cial to increase/decrease the power used thus, push up/down the thresholds of the operating regimes of the server. We still want to make most scaling decisions locally.

6 Simulation Experiments

The effectiveness of an energy-aware load balancing and scal-ing algorithm is characterized by its computational efficiency, the number of operations per Watt of power, and by its nega-tive impact reflected by the potential SLA violations. In our study we shall use the data in Table 2 based on the measure-ments reported in Table 1 from [4]. These measuremeasure-ments are for a transection processing benchmark, SPECpower ssj2008, thus, the computational efficiency will be the number of trans-actions per Watt. We define the ideal computational efficiency as the number of transactions when all servers operate at the upper limit of the optimal region, at 8o% load, and no SLA violations occur. In this case

T P ideal = T80% P80% = 1049 235 = 4.46 transactions/W att. (16)

We conduct a simulation study to evaluate the effectiveness

of the algorithms discussed in Section 5 . The simulation

experiments reported in this paper were conducted on the Amazon cloud; an c3.8xlarge EC2 instance with 60 G memory and 32 cores was used.

The study will give us some indications about the operation of the algorithm in clusters of different sizes and subject to a range of workloads. The metrics for assessing the effectiveness and the overhead of the algorithms are:

(i) The evolution of the number of servers in each of the five operating regimes as a result of the load migration mandated by the algorithm.

(ii) The computational efficiency before and after the appli-cation of the algorithm.

(iii) The ratio of local versus in-cluster scaling decisions during simulation. This reflects the overhead of the algorithm.

(9)

Table 3: The effects of application scaling and load balancing algorithm on a system with the parameters described in Table 2. We experimented with two average system loads, 30% and 70% of the server capacity and three different cluster sizes, 102_{, 10}3_{, and 10}4_{. The data before/after the application of the algorithm are: (a) the number of servers in each one of the} five operating regimes, R1, R2, R3, R4, R5 and in the sleep state (slp) (columns 3-8); (b) P - the average power consumption per processor in Watts (column 9); (c) T - the performance measured as the average number of transactions per processor (column 10); and (d) the average ratio T/P (column 11).

Load Size # in R1 # in R2 # in R3 # in R4 # in R5 # in slp P T T/P 30% 102 _65/0 _35/27 _0/64 _0/2 _0/3 _0/4 _188/197 _264/746 _1.4/3.8 103 _550/0 _450/300 _0/598 _0/20 _0/64 _0/18 _190/214 _442/825 _2.3/3.8 104 _5500/0 _4500/3050 _0/5950 _0/50 _0/319 _0/631 _190/203 _442/771 _2.3/3.8 70% 102 0/0 0/58 20/35 80/2 0/5 0/0 234/204 1,052/742 4.5/3.6 103 0/0 0/430 190/490 810/20 0/56 0/4 234/215 1,054/823 4.5 /3.7 104 _0/0 _0/4000 _2000/4500 _8000/250 _0/233 _0/17 _235/193 _1,052/715 _4.5/3.7

For simplicity we chose only two sleep states C3 and C6 in the simulation. If the load of the cluster is more than 60% of the cluster capacity we do not choose the C6state because the probability that the system will require additional resources in the next future is high. Switching from the C6 state to

C0 requires more energy and takes more time. On the other

hand, when the cluster load is less than 60% of its capacity we choose the C6 state because it is unlikely that the server will be reactivated in the next future.

The simulation uses Amazon Web Services (AWS). AWS offers several classes of services; the servers in each class are characterized by the architecture, CPU execution rate, main memory, disk space, and I/O bandwidth. The more powerful the server, the higher the cost per hour for the class of service. Table 3 summarizes the effects of application scaling and load balancing algorithm on a cluster when the parameters of the servers are given in Table 2 and the application is a trans-action processing system. In a transtrans-action processing system there is no workload migration, a front-end distributes the transactions to the servers thus, we did not include migration costs. To asses the power consumption and the performance measured by the number of transactions we use average val-ues for each regime. Recall that in this case the boundaries of the five operating regimes are given in Equation 6.

The effect of the system load. In [27] we report on simulation experiments designed to evaluate the effectiveness of the algorithms for load balancing and energy optimization during application scaling. One of the questions we addressed was whether the system load has an effect on the resource management strategy to force the servers in a cluster to oper-ate within the boundaries of the optimal regime. The exper-iments we report in this paper are for clusters with 102, 103, and 104 servers consisting of multiple racks of a WSC. For each cluster size we considered two load distributions: (i) Low average load - an initial load uniformly distributed in the interval 20 − 40% of the server capacity. Figure 2 (a) shows the distribution of the number of servers in the five operating regimes for clusters with 104 _{servers, before and} after load balancing; the distributions for 102 _{and 10}3_servers in a cluster are similar. When the average server load is 30% of

their capacity, the algorithm is very effective; it substantially improves the energy efficiency to 3.8 from as low as 1.4. After load balancing, the number of servers in the optimal regime increases from 0 to about 60% and a fair number of servers are switched to the sleep state.

(ii) High average load - initial server load uniformly dis-tributed in the 60 − 80% of the server capacity. Figure 2 (b) shows that when the average server load is 70% of their capac-ity, the average computational efficiency decreases from about 4.5 to 3.6 asmany servers, about 80% of them, are forced from

R4to the R2and R3regimes to reduce the possibility of SLA

violations. Initially, no servers operated in the R5regime. In

this experiment we did not use the anticipatory strategy and allowed servers to operate in the R5regime after load balanc-ing; as a result, a small fraction of servers ended up in the R5 regime. There is a balance between computational efficiency and SLA violations; the algorithm can be tuned to maximize computational efficiency or to minimize SLA violations ac-cording to the type of workload and the system management policies.

These results are consistent with the ones reported in [27] for smaller cluster sizes, 20, 40, 60, and 80 servers. This shows that the algorithms operate effectively for a wide range of cluster sizes and for lightly, as well as, heavily loaded systems.

0 10 20 30 40 50 60 70 80 90 100 110 0 1 2 3 4 5 Time Ratio of In

cluster to Local Decisions

Ratio

Figure 4: The ratio of in-cluster to local decisions in response to scaling requests versus time for a cluster with 40 servers when the average workload is 50% of the server capacity.

(10)

10.1109/TCC.2015.2396059, IEEE Transactions on Cloud Computing 1 2 3 4 5 0 1000 2000 3000 4000 5000 6000 Regime of Operation Number of Servers

Initial And Final Number of Servers in Each Regime Initial State Final State 1 2 3 4 5 0 2000 4000 6000 8000 10000 Regime of Operation Number of Servers

Initial And Final Number of Servers in Each Regime Initial State Final State

(a) Cluster size: 104. Average load: 30% (b) Cluster size 104. Average load: 70%

Figure 2: The effect of average server load on the distribution of the servers in the five operating regimes, R1, R2, R3, R4 and R5, before and after energy optimization and load balancing. Average load: (a) 30% and (b) 70%. Cluster size: 104_. Similar results are obtained for cluster size 102 and 103.

Table 4: Average and standard deviation of in-cluster to local decisions ratio for 30% and 70% average server load for three cluster sizes, 102, 103, and 104.

Cluster Average Average Standard Average Average Standard

size load ratio deviation load ratio deviation

102 _30% _0.69 _0.57 _70% _0.51 _0.89

103 _30% _0.33 _0.21 _70% _0.58 _0.92

104 _30% _0.49 _0.27 _70% _0.53 _0.98

elasticity allows an application to seamlessly scale up and down. In the next set of simulation experiments we inves-tigate horizontal and vertical application scaling. Horizontal scaling requires the creation of additional VMs to run the application on lightly loaded servers. In-cluster, horizontal scaling incurs higher costs than vertical scaling for load bal-ancing. The higher costs in terms of energy consumption and time are due to the communication with the leader to identify the potential targets and then to transport the VM image to one or more of them. Local, vertical scaling, allows the VM running an application to acquire additional resources from the local server; local vertical scaling has lower costs, but it is only feasible if the server has sufficient free capacity.

The average ratio of high-cost in-cluster horizontal scaling to low-cost local vertical scaling for a transient period of 40 reallocation intervals are summarized in Table 4 and in Fig-ures 3 (a), (b), (c), (d), and (e). When the average workload is 30% the algorithm works better; the larger the cluster, the more effectively the algorithm handles the application scaling as most decisions are done locally. After 40 reallocation inter-vals the ratios for the two average workload are 0.3 and 0.7, respectively, for cluster size 104; this shows that at higher workload VM migrations are more intense. The trends are different for the two cases, the ratio decreases in time when the average load is 30% and increases when the average load is 70%; we expect these trends to continue in the steady-state regime.

We carried out measurements of computational efficiency on a system with a 3GHz Intel Core i7 with 8 cores and a solid state disk. The system was running under OS X Yosemite. The application used for our measurements runs under Xcode 6, an integrated development environment containing a suite of software tools for OS X and iOS. The application is I/O intensive, it reads a record from the secondary storage car-ries out some trivial computations and writes back the record. Xcode allowed us to measure the normalized performance and the corresponding normalized power consumption and thus, to calculate the computational efficiency at the boundaries of the five operating regimes described by Equation 6. Xcode reports only the power used by the cores running the applica-tion, so the average computational efficiency we were able to measure refers only to the processor, rather than the entire system.

We then considered a cloud infrastructure consisting of 10, 000 servers identical with the system we have measured. We used the distribution of the servers in each of the five regimes in Table 3 to compute the computational efficiency before and after the application of the algorithm.

The results are summarized in Table 5. We see that the

average computational efficiency decreases from 1.42 in R2to

1.245 in R3, and 1.055 in R4. As a result, the computational

efficiency due to application of our algorithm increases only from 1.03 to 1.21 for the lightly loaded system and shows a modest increase from 1.09 to 1.18 for the heavy load case.

(11)

10.1109/TCC.2015.2396059, IEEE Transactions on Cloud Computing 0 10 20 30 40 0 0.5 1 1.5 2 2.5 Reallocation Interval

Ratio of In−cluster to Local Decisions

Ratio 0 10 20 30 40 0 0.5 1 1.5 2 Reallocation Interval

Ratio (a) (b) 0 10 20 30 40 0 0.5 1 1.5 2 2.5 Reallocation Interval

Ratio 0 10 20 30 40 0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 Reallocation Interval

Ratio (c) (d) 0 10 20 30 40 0.2 0.4 0.6 0.8 1 1.2 Reallocation Interval

Ratio 0 10 20 30 40 0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 1.8 Reallocation Interval

Ratio

(e) (f)

Figure 3: Time series of in-cluster to local decisions ratios for a transient period of 40 reallocation intervals. Average load: 30% of the server capacity in (a), (c), and (e); 70% in (b), (d), and (f). The cluster size: 102 in (a) and (b); 103 in (c) and (d); 104 in (e) and (f). After 40 reallocation intervals almost double rations when the load is 70% versus 30%.

As noted in Section 2, the processors consume less than one-third of their peak power at the very-low load thus, the actual improvement due to the application of our algorithm should be considerably higher.

Finally, we attempted to carry out measurements in a re-alistic cloud environment and we investigated the possibility of using EC2 instances. First, we realized that no Mac OS-based AMIs (Amazon Machine Images) are supported, so we

could not use Xcode. We then discovered that the AWS vir-tual machine monitors prevent both Linux and Ubuntu AMIs to collect information related to power consumption. As a re-sult, tools such as dmidecode or lshw used to report hardware information by monitoring kernel data structures return the fields related to power consumption as unknown. This lack of transparency makes the investigation of energy consumption in cloud environments a rather challenging task.

(12)

Table 5: The effects of application scaling and load balancing algorithm on a system with 104 servers 3GHz Intel Core i7. Shown are the number of servers in each one of the five operating regimes before and after the application of the algorithm according to Table 3 and the average computational efficiency in each regime ¯CRi

ef , 1 ≤ i ≤ 5 determined by our measurements. ¯Cef shows the average computational efficiency before and after the application of the algorithm.

Load # in R1 # in R2 # in R3 # in R4 # in R5 C¯ef ¯ CR1 ef = 0.725 C¯ R2 ef = 1.420 C¯ R3 ef = 1.245 C¯ R4 ef = 1.055 C¯ R5 ef = 1.050 30% 5500/0 4500/3050 0/5950 0/50 0/319 1.03/1.21 70% 0/0 0/4000 2000/4500 8000/250 0/233 1.09/1.18

7 Conclusions & Future Work

The realization that power consumption of cloud computing centers is significant and is expected to increase substantially in the future motivates the interest of the research community in energy-aware resource management and application place-ment policies and the mechanisms to enforce these policies. Low average server utilization [30] and its impact on the en-vironment [8] make it imperative to devise new energy-aware policies which identify optimal regimes for the cloud servers and, at the same time, prevent SLA violations.

A quantitative evaluation of an optimization algorithm or an architectural enhancement is a rather intricate and time-consuming process; several benchmarks and system configu-rations are used to gather the data necessary to guide future developments. For example, to evaluate the effects of architec-tural enhancements supporting Instruction-level or Data-level Parallelism on the processor performance and their power con-sumption several benchmarks are used [17]. The results show different numerical outcomes for the individual applications in each benchmark. Similarly, the effects of an energy-aware algorithm depend on the system configuration and on the ap-plication and cannot be expressed by a single numerical value. Research on energy-aware resource management in large-scale systems often use simulation for a quasi-quantitative and, more often, a qualitative evaluation of optimization al-gorithms or procedures. As stated in [4] “First, they (WSCs) are a new class of large-scale machines driven by a new and

rapidly evolving set of workloads. Their size alone makes

them difficult to experiment with, or to simulate efficiently.” It is rather difficult to experiment with the systems discussed in this paper and this is precisely the reason why we choose simulation.

The results of the measurements reported in the literature are difficult to relate to one another. For example, the wake-up time of servers in the sleep state and the number of servers in the sleep state are reported for the AutoScale system [10]; yet these figures would be different for another processor, sys-tem configuration, and application.

We choose computational efficiency, the ratio of the amount of normalized performance to normalized power consumption, as the performance measure of our algorithms. The amount of useful work in a transition processing benchmark can be measured by the number of transactions, but it is more diffi-cult to assess for other types of applications. SLA violations

in a transaction processing benchmark occur only when the workload exceeds the capacity of all servers used by the appli-cation, rather than the capacity of individual servers. Thus, in our experiment there are no SLA violation because there are servers operating in low-load regimes.

We need to balance computational efficiency and SLA vio-lations; from Table 3 we see that the computational efficiency increases up to 3.6 − 3.8, while the optimum is 4.46 transac-tions/Watt. Figure 2 (b) and Table 3 show that the compu-tational efficiency decreases after the application of the algo-rithm to a system with the average load 70% because servers operating in the suboptimal-high regime are forced to reduce

their workload. The lazy approach discussed in Section 5

would eliminate this effect.

Even the definition of an ideal case when a clairvoyant re-source manager makes optimal decisions based not only on the past history, but also on the knowledge of the future can be controversial. For example, we choose as the ideal case the one when all servers operate at the upper boundary of the optimal regime; other choices for the ideal case and for the bounds of the five regimes could be considered in case of fast varying, or unpredictable workloads.

The five-regime model introduced in this paper reflects the need for a balanced strategy allowing a server to operate in an optimal or near-optimal regime for the longest period of time feasible. A server operating in the optimal regime is unlikely to request a VM migration in the immediate future and to cause an SLA violation, one in a sub-optimal regime is more likely to request a VM migration, while one in the undesirable-high regime is very likely to require VM migration. Servers in the undesirable-low regime should be switched to a sleep state as soon as feasible.

The model is designed for clusters built with the same type of processors and similar configurations; the few parameters of the model are then the same for all the servers in the clus-ter. The clustered organization allows an effective manage-ment of servers in the sleep state as they should be switched proactively to a running state to avoid SLA violations. It also supports effective admission control, capacity allocation, and load balancing mechanisms as the cluster leader has rel-atively accurate information about the available capacity of individual servers in the cluster.

Typically, we see a transient period when most scaling cisions require VM migration, but in a steady-state, local

(13)

system load affects the average ratio of in-cluster to local de-cisions thus, the migration costs, increases from 0.33 to 0.55

for a cluster with 103 _{servers when the average system load}

increases from 30% to 70%. As pointed out in [4] there is a

real need for energy benchmarks such as the one in [29] which could be used to guide the design choices for new systems.

From the large number of questions posed by energy-aware load balancing policies we restrict our analysis to the condi-tions when a server should be switched to a sleep state and the choice of the sleep state, and how to chose the target server where to move a VM. The mechanisms for load bal-ancing and application scaling policies are consistent with the requirements discussed in Section 3, scalability, effectiveness, practicality, and consistency with global system objectives.

Though designed specifically for the IaaS cloud delivery model, the algorithms discussed in Section 5 can be adapted for the other cloud delivery models. Typically, PaaS applica-tions run for extended periods of time and the smallest set of servers operating at an optimal power level to guarantee the required turnaround time can be determined accurately.

Our future work will evaluate the overhead and the limi-tations of the algorithm proposed in this paper; it will also include the implementation of a Server Application Manager and the evaluation of the overhead for the algorithm proposed in this paper. The algorithm will be incorporated in the self-management policies introduced in [24].

8 Acknowledgments

The authors are grateful for the constructive comments of anonymous reviewers.

References

[1] D. Ardagna, B. Panicucci, M. Trubian, and L. Zhang. “Energy-aware autonomic resource allocation in multi-tier virtualized environments.” IEEE Trans. on Services Computing, 5(1):2–19, 2012.

[2] J. Baliga, R.W.A. Ayre, K. Hinton, and R.S. Tucker. “Green cloud computing: balancing energy in process-ing, storage, and transport.” Proc. IEEE, 99(1):149-167, 2011.

[3] L. A. Barroso and U. H¨ozle. “The case for

energy-proportional computing.” IEEE Computer, 40(12):33– 37, 2007.

[4] L. A. Barossso, J. Clidaras, and U.H¨ozle. The Data-center as a Computer; an Introduction to the Design of Warehouse-Scale Machines. (Second Edition). Morgan & Claypool, 2013.

[5] A. Beloglazov, R. Buyya “Energy efficient resource man-agement in virtualized cloud data centers.” Proceedings of the 2010 10th IEEE/ACM International Conference on Cluster, Cloud and Grid Comp., 2010.

[6] A. Beloglazov, J. Abawajy, R. Buyya. “Energy-aware resource allocation heuristics for efficient management of data centers for Cloud computing.” Future Generation Computer Systems, 28(5):755-768, 2012.

[7] A. Beloglazov and R. Buyya. “Managing overloaded

hosts for dynamic consolidation on virtual machines in cloud centers under quality of service constraints.” IEEE Trans. on Parallel and Distributed Systems, 24(7):1366-1379, 2013.

[8] M. Blackburn and A. Hawkins. “Unused server survey

results analysis.” www.thegreengrid.org/media/White

Papers/Unused%20Server%20Study WP 101910 v1. ashx?lang=en (Accessed on December 6, 2013).

[9] M. Elhawary and Z. J. Haas. “Energy-efficient protocol for cooperative networks.” IEEE/ACM Trans. on Net-working, 19(2):561–574, 2011.

[10] A. Gandhi, M. Harchol-Balter, R. Raghunathan, and M.Kozuch. “AutoScale: dynamic, robust capacity man-agement for multi-tier data centers.” ACM Trans. on Computer Systems, 30(4):1–26, 2012.

[11] A. Gandhi, M. Harchol-Balter, R. Raghunathan, and M.Kozuch. “Are sleep states effective in data centers?” Proc. Int. Conf. on Green Comp., pp. 1–10, 2012. [12] D. Gmach, J. Rolia, L. Cherkasova, G. Belrose, T.

Tu-cricchi, and A. Kemper. “An integrated approach to re-source pool management: policies, efficiency, and quality metrics.” Proc. Int. Conf. on Dependable Systems and Networks, pp. 326–335, 2008.

[13] Google. “Google’s green computing: efficiency at scale.” http://static.googleusercontent.com/external content/ untrusted dlcp/www.google.com/en/us/green/pdfs/google -green-computing.pdf (Accessed on August 29, 2013). [14] V. Gupta and M. Harchol-Balter. “Self-adaptive

admis-sion control policies for resource-sharing systems.” Proc. 11th Int. Joint Conf. Measurement and Modeling Com-puter Systems (SIGMETRICS’09), pp. 311–322, 2009. [15] K. Hasebe, T. Niwa, A. Sugiki, and K. Kato.

“Power-saving in large-scale storage systems with data migra-tion.” Proc IEEE 2nd Int. Conf. on Cloud Comp. Tech-nology and Science, pp. 266–273, 2010.

[16] B. Heller, S. Seetharaman, P. Mahadevan, Y. Yiakoumis,

P. Sharma, S. Banerjee, and N. McKeown.

“Elastic-Tree: saving energy in data center networks.” Proc. 7th USENIX Conf. on Networked Systems Design and Im-plementation, pp. 17–17, 2011.

[17] J. L. Hennessy and D. A. Patterson. Computer Archi-tecture; A Quantitative Approach, 5th Edition. Morgan Kaufmann, 2012.

(14)

[18] Hewlet-Packard/Intel/Microsoft/Phoenix/Toshiba.

“Advanced configuration and power interface

specifications, revision 5.0” http://www.acpi.info/

DOWNLOADS/ACPIspec50.pdf, 2011. (Accessed on

November 10, 2013).

[19] J. G. Koomey. “Estimating total power consumption

by servers in the US and world.” http://hightech.lbl. gov/documents/data centerssvrpwrusecompletefinal.pdf (Accessed on May 11, 2013).

[20] J.G. Koomey, S. Berard, M. Sanchez, and H. Wong. “Im-plications of historical trends in the energy efficiency of computing.” IEEE Annals of Comp., 33(3):46–54, 2011. [21] E. Le Sueur and G. Heiser. “Dynamic voltage and fre-quency scaling: the laws of diminishing returns.” Proc. Workshop on Power Aware Computing and Systems, HotPower’10, pp. 2–5, 2010.

[22] B. Li; J. Li; J. Huai; T. Wo; Q. Li; L. Zhong. “EnaCloud: an energy-saving application live placement approach for

cloud computing environments.” Cloud Comp., 2009.

CLOUD ’09, pp.17 - 24, 2009.

[23] D. C. Marinescu. Cloud Computing; Theory and Prac-tice. Morgan Kaufmann, 2013.

[24] D. C. Marinescu, A Paya, and J.P. Morrison. “Coalition formation and combinatorial auctions; applications to self-organization and self-management in utility comput ing.” http: //arxiv.org/pdf/1406.7487v1.pdf, 2014.

[25] C. Mastroianni, M. Meo, G. Papuzzo. “

Probabilis-tic consolidation of virtual machines in self-organizing cloud data centers.” IEEE Trans. on Cloud Computing, 1(2):215–228, 2013.

[26] NRDC and WSP 2012. “The carbon emissions of

server computing for small-to medium-sized organi-zation - a performance study of on-premise vs. the cloud.” http://www.wspenvironmental.com/media/docs/ ourlocations/usa/NRDC-WSP Cloud Computing.pdf October 2012 (Accessed on November 10, 2013).

[27] A. Paya and D. C. Marinescu. “Energy-aware load

balancing policies for the cloud ecosystem.” http:

//arxiv.org/pdf/1307.3306v1.pdf, December 2013. [28] C. Preist and P. Shabajee. “Energy use in the media

cloud.” Proc IEEE 2nd Int. Conf. on Cloud Comp. Tech-nology and Science, pp. 581–586, 2010.

[29] SPEC ”SPECpower ssj2008 benchmark.” https://www. spec.org/power ssj2008/ (Accessed on May 15, 2014). [30] B. Snyder. “Server virtualization has stalled, despite

the hype.” http://www.infoworld.com/print/146901 (Ac-cessed on December 6, 2013).

[31] B. Urgaonkar and C. Chandra. “Dynamic provisioning of multi-tier Internet applications.” Proc. 2nd Int. Conf, on Automatic Comp., pp. 217–228, 2005.

[32] H. N. Van, F. D. Tran, and J.-M. Menaud. “Performance and power management for cloud infrastructures.” Proc. IEEE 3rd Int. Conf. on Cloud Comp., pp. 329–336, 2010. [33] A. Verma, G. Dasgupta, T. K. Nayak, P. De, and R.

Kothari. “Server workload analysis for power

mini-mization using consolidation.” Proc. USENIX’09 Conf., pp.28–28, 2009.

[34] S. V. Vrbsky, M. Lei, K. Smith, and J. Byrd. “Data replication and power consumption in data grids.” Proc IEEE 2nd Int. Conf. on Cloud Computing Technology and Science, pp. 288–295, 2010.

[35] ZDNet. “Infrastructucture is not a differentiator.”

http://www.zdnet.com/amazon-cto-werner-vogels-infrastructure-is-not-a-differentiator-7000014213 (Ac-cessed on August 29, 2013).

Ashkan Paya is a Ph.D. candidate in the Electrical Engi-neering and Computer Science Department at University of Central Florida pursuing his degree in Computer Science. He graduated from Sharif University of Technology in Tehran, Iran, with a BS Degree in the same major in 2011. His re-search interests are in the area of resource management in large-scale systems and cloud computing.

Dan C. Marinescu. During the period 1984-2001 Dan

Marinescu was an Associate and then Full Professor in the Computer Science Department at Purdue University in West Lafayette, Indiana. Since August 2001 he is a Provost Pro-fessor of Computer Science at University of Central Florida. He has published more than 220 papers in referred journals and conference proceedings and several books including Cloud Computing: Theory and Practice, Morgan Kaufmann, 2013.
