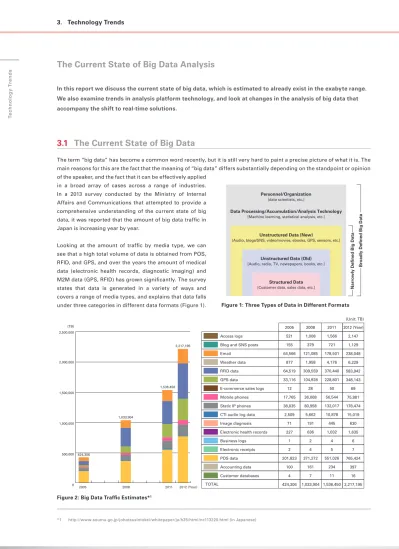

3. Technology Trends
In this report we discuss the current state of big data, which is estimated to already exist in the exabyte range. We also examine trends in analysis platform technology, and look at changes in the analysis of big data that accompany the shift to real-time solutions.
The Current State of Big Data Analysis
3.1
The Current State of Big Data
The term “big data” has become a common word recently, but it is still very hard to paint a precise picture of what it is. The main reasons for this are the fact that the meaning of “big data” differs substantially depending on the standpoint or opinion of the speaker, and the fact that it can be effectively applied
in a broad array of cases across a range of industries. In a 2013 survey conducted by the Ministry of Internal Affairs and Communications that attempted to provide a comprehensive understanding of the current state of big data, it was reported that the amount of big data traffic in Japan is increasing year by year.
Looking at the amount of traffic by media type, we can see that a high total volume of data is obtained from POS, RFID, and GPS, and over the years the amount of medical data (electronic health records, diagnostic imaging) and M2M data (GPS, RFID) has grown significantly. The survey states that data is generated in a variety of ways and covers a range of media types, and explains that data falls under three categories in different data formats (Figure 1).
*1 http://www.soumu.go.jp/johotsusintokei/whitepaper/ja/h25/html/nc113220.html (in Japanese)
Figure 2: Big Data Traffic Estimates*1
Access logs Blog and SNS posts Email
Weather data RFID data GPS data
E-commerce sales logs Mobile phones Static IP phones CTI audio log data Image diagnosis Electronic health records Business logs Electronic receipts POS data Accounting data Customer databases 2005 521 155 64,566 877 64,519 33,116 12 17,765 38,035 2,509 71 227 1 2 201,823 100 4 424,306 2008 1,008 379 121,085 1,958 309,559 104,928 28 36,068 80,958 5,662 191 636 2 4 371,272 161 7 1,033,904 2011 1,566 721 178,501 4,176 370,440 228,801 50 56,544 132,017 10,878 445 1,032 4 5 551,026 234 11 1,536,450 2012 (Year) 2,147 1,129 238,048 6,229 583,942 348,143 69 75,881 178,474 15,019 630 1,635 6 7 765,424 397 16 2,217,195 (Unit: TB) TOTAL 2005 2,500,000 (TB) 2,000,000 1,500,000 1,000,000 500,000 0 2008 2011 2012 (Year) 2,217,195 1,536,450 1,033,904 424,306
Figure 1: Three Types of Data in Different Formats
Broadly Defined Big Data
Narrowly Defined Big Data
Personnel/Organization
[data scientists, etc.]
Data Processing/Accumulation/Analysis Technology
[Machine learning, statistical analysis, etc.]
Unstructured Data (New)
[Audio, blogs/SNS, video/movies, ebooks, GPS, sensors, etc.]
Unstructured Data (Old)
[Audio, radio, TV, newspapers, books, etc.]
Structured Data
T
echnology T
rends
However, from a data analysis perspective, the unstructured data (new) group includes data with standard formats specified such as POS, RFID, and GPS (in other words, structured data) in some cases. In other cases streamed data such as video, audio, and text includes metadata including the title or author. This suggests we should actually consider these examples as mixed data that includes both structured and unstructured data. Figure 2 indicates that big data traffic in Japan is dominated by structured data rather than unstructured data.
The figures below show estimated big data traffic by industry type (Figure 3) and accumulated volume (Figure 4), as reported in the Ministry of Internal Affairs and Communications survey.
One thing of great interest regarding these estimates is that despite traffic amounts increasing with roughly the same characteristics (except for the real estate industry), accumulated amounts vary drastically for each industry. Assuming that the amount of big data accumulated shows the degree of utilization, it can also be surmised that this indicates a difference in commitment to initiatives for the application of big data in each industry. However, it may be that this just reflects that each
Figure 3: Trends in Big Data Distribution Volume (By Industry)*2
Figure 4: Big Data Accumulation Volume (By Industry, in 2012)*3
Manufacturing Construction Power/Gas/Water Commerce Finance/Insurance Real estate Transportation Telecommunications Service 2005 100 100 100 100 100 100 100 100 100 2008 233 303 200 239 211 378 260 242 236 2011 320 411 327 345 349 732 410 351 363 2012 (Year) 431 576 436 496 459 1,310 632 462 499 (Index based on 2005 as 100) 2005 (Index based on 2005 as 100) 200 400 600 800 1,000 1,200 1,400 0 2008 2011 2012 (Year) Manufacturing 543,156 203,562 79,350 826,069 Construction 1,194,956 90,900 4,860 1,290,716 Electricity gas and water supply
3,722 1,376 515 5,613 Commerce 2,468,219 678,545 64,598 3,211,362 Finance and insurance 334,843 412,397 76,594 823,833 Real estate 270,270 63,237 348 333,855 Transportation 76,887 30,258 8,199 115,344 Information and communicaitons 350,485 167,949 64,911 583,345 Services 1,455,067 990,394 72,472 2,517,932 Accumulation inside enterprises Accumulation outside enterprises, inside Japan Accumulation outside enterprises, outside Japan Total 500,000 826,069 5,613 1,290,716 823,833 333,855 115,344 583,345 2,517,932 3,211,362 1,000,000 1,500,000 2,000,000 2,500,000 3,000,000 3,500,000 (TB) Total: 9,708,068 TB = 9.7 exabytes
T
echnology T
rends
industry has different practices. Looking at the amount of accumulated data by industry, it is evident that B2C industries accumulate more data than B2B ones, and that most big data is kept private by its owners.
Given that exabytes of data is already in circulation according to the Ministry of Internal Affairs and Communications survey results, it is fair to say that the use and application of big data has started. However, it is becoming clear that the primary utilization of big data, namely to gain new knowledge by sorting and analyzing the big data collected and accumulated from vast data sources, is only now beginning to happen.
With regard to discussion of issues relevant to big data for promoting and accelerating its future utilization and application, two issues often raised are how to promote the sharing of big data, and how to obtain new knowledge through its analysis. In this context, three key words that are frequently encountered are M2M, IoT, and CPS. To briefly cover the definitions of each of these, Machine-to-Machine (M2M) is technology that enables communication between devices of the same type using wired or wireless communication systems, while the Internet of Things (IoT) involves uniquely identifiable objects represented virtually in an Internet-like structure. A Cyber-Physical System (CPS) is a system of cooperative computational elements that control physical entities. Rather than independent concepts, it may be best to think of these as presenting three perspectives on networks comprised of devices such as sensors. For example, package pickup and delivery management using RFID tags involves attaching an RFID tag to each package, and when a package passes near an RFID reader, data with location information added is generated. By collecting this data and tracing the location information for a particular package, it is possible to check the route that package has taken, and where it is currently stored. Furthermore, if you trace all the packages handled by the pickup and delivery management system, you can accurately ascertain the delivery centers where packages are concentrated. With the proliferation of smartphones these days, the activities of people can also be tracked using the same method. Collecting the data generated by each device creates big data, which it is believed would provide knowledge useful for work optimizations and marketing.
3.2
Technology Trends in Big Data Analysis Platforms:
A Shift to Real-Time Solutions
The analysis of big data generated from device networks based on the M2M, IoT, and CPS concepts described earlier obviously demands immediacy. That means big data analysis platforms must accommodate the need for real-time analysis. For many, platform technology for big data analysis calls to mind distributed processing platforms based on MapReduce, in particular. However, applying MapReduce architecture designed for batch processing to real-time analysis presents difficulties. Because the process results are not determined until a job finishes, a delay equal to the processing time occurs. One solution for reducing this time is to optimize and speed up the processing itself, but naturally there are limitations. Another measure is to reduce the size of batch processing, but when too small batch processing becomes meaningless. Normally, MapReduce jobs require anywhere between a few minutes to a few hours to process, and reducing this to the response time of a few seconds that is acceptable for web services is practically impossible.
Two approaches have been evaluated in research into real-time big data analysis platforms. The first involves responding to user requests in real time, and this covers cases in which response performance is improved by enhancing the functions of a MapReduce platform itself, as well as cases envisaged as platform systems that incorporate MapReduce, with MapReduce used internally, and improvements to response performance made in other areas. The other approach is to actually execute data processing in real time, using platform technology that implements so-called “real-time stream processing” in place of MapReduce.
T
echnology T
rends
MapReduce Online*4 is an example of enhancing the functions of the MapReduce platform itself. In this case, pipelines
are used to handle the delivery of data between Map processes and Reduce processes with a heavily modified version of Hadoop. These enhancements enable users to check job status details during processing, in other words making event monitoring possible. It also allows stream processing to be written into MapReduce applications.
Examples of platform systems that incorporate MapReduce include the two open source clones that follow the idea of Google’s Dremel*5: “Apache Drill*6” and “Cloudera Impala*7.” Neither carry out data processing in real time, but they
demonstrate equivalent low delay query response performance.
Apache Storm (Twitter Storm)*8 is an example of real-time stream processing. Storm was originally a system developed by
BackType, which conducted Twitter analytics. After Twitter acquired BackType, Storm was made open source via the Apache Project, but it is a versatile big data processing platform.
Storm incorporates a stream engine that enables Complex Event Processing (CEP), ensuring that lossless data streams are supplied to the entities known as Spouts/Bolts that carry out big data processing. Storm stream flow is expressed in units called tuples, with overall stream processing implemented by defining topologies that connect Spouts and Bolts. Spouts are entities that represent data sources, and Bolts are entities that govern the conversion or processing of data. Their definitions and functions are completely different, but they could be thought of as Map and Reduce in MapReduce.
Like Hadoop, Storm can be comprised of clusters, and it operates four types of software: the Nimbus, Zookeepers, Supervisors, and Workers. The Nimbus is the master node that handles the scheduling and monitoring of Workers. Zookeepers are the distributed lock managers that are also used in Hadoop. Supervisors receive requests from the Nimbus and control the launch and termination of Workers. Workers function as the processes that carry out actual processing. Placing these pieces of software appropriately in nodes within a cluster achieves high scalability and fault-tolerance. Storm itself is written in a Lisp-like language called Clojure, and runs on a Java VM. Accordingly, Spouts and Bolts can be written using a variety of development languages that run on Java VMs, such as Java.
Here we have introduced the challenges of enabling real-time big data analysis platforms, as well as a number of examples, but it appears that more and more are seeing the appearance of Apache Storm as a trend towards a de facto standard for these platforms. It seems a simple programming model in common with Hadoop (MapReduce) and Twitter analytic performance are requirements expected of a versatile platform.
So, will Storm replace Hadoop as an open source big data analysis platform? The answer to this question seems likely to be that both will continue to become compartmentalized. This is because immediacy is not required for all big data analysis. As mentioned, those demanding big data analysis with a real-time response will transition to Storm, but those for which conventional batch processing is sufficient (or necessary) will probably continue to use Hadoop. Hybrid system architecture methods that utilize Storm for the preprocessing of Hadoop analysis (data shaping, filtering, and matching), or combine batch processing with stream processing in what is known as Lambda architecture, have also been proposed. Currently, it is generally accepted that both are mutually complementary.
T
echnology T
rends
3.3
Changes in Big Data Analysis Due to the Shift to Real-Time Solutions
The shift towards real-time big data analysis platforms is understood to be a response to improve velocity, which is one of the often-quoted “3Vs” that define big data (Volume, Variety, and Velocity). According to Gartner, which coined the 3Vs definition, velocity is the speed of data creation and processing. For example, the analysis of sensor and log data, the analysis of spatiotemporal data using GPS information, and the analysis of stream data obtainable from social media are all specific examples in which this velocity requirement must be met. For existing analysis cases such as these, there are well-known examples of obtaining new knowledge from previously accumulated data, including records of abnormal behavior detection and spatial migration, as well as sentiment analysis. However, due to improvements in the immediacy of real-time big data analysis platforms, in the future it is thought that analysis methods will become more diverse, such as time-series analysis that places more emphasis on timelines, and estimates based on this.
3.3.1 Wikipedia as Social Big Data
We are trying out trend analysis using Wikipedia Pageview Count (Wikipedia PVC: http://www.gryfon.iij-ii.co.jp/ranking/) (in Japanese) as an example of analysis focused on the timeline of big data. As everyone knows, Wikipedia is the most successful Internet encyclopedia. It has adopted an extremely open administration policy, and because its databases can be obtained charge-free, it is utilized for research and a variety of other purposes. The Wikipedia PVC is part of the information published, and has been available since around January 2013. It indicates the number of page views for each Wikipedia page over the last hour, with updates posted every hour or two. By combining Wikipedia PVC and the Wikipedia database, they are usable as time-series data for indicating social trends, and this can be considered as an example of social big data obtainable via the Internet. Because it has the properties of an encyclopedia, the following characteristics apply compared to typical social media sites (SNS or blogs).
- Users are allowed to make alterations themselves, but because there are measures in place to prevent venting through article content using guidelines, etc., it is possible to find common denominators regarding society as a whole.
- Because it is an encyclopedia, the content is very thorough, with linked data formed within a close space.
- The service has high public recognition, and users use it to learn the details of topics they don’t know about, and discover related information.
- It supports many languages, and in many cases each page is clearly mapped out for each language.
When performing text analysis using messages obtained from general social media for trend analysis, etc., the lack of consistent terminology can hinder data analysis. However, this is less likely to be a problem with Wikipedia data that keeps meaning-related outbursts in check, and as a result we believe that analysis results that are easily understandable by people can be obtained.
3.3.2 Analysis of Wikipedia PVC Time-Series Fluctuations
For Wikipedia, which is well-known as an encyclopedia, the dominant usage pattern likely involves users finding the page they want by searching for the topic they are interested in from the main page or a search engine.
By focusing on a certain Wikipedia page, and observing the time-series fluctuations in its PVC, we can confirm that a peak is reached at some point, after which activity gradually subsides. In particular, after investigating a number of pages with notable peaks further, we learned that pages dealing with topics reported on TV broadcasts or Internet news showed large responses. In other words, this supports the hypothesis that viewers of TV programs and readers of Internet news look up topics they don’t know about on Wikipedia when they arise.
To verify this hypothesis, we focused on serial dramas, surveying the relationship between each broadcast time and time-series fluctuations in the Wikipedia PVC. We concentrated on serial dramas because we had confirmed it was highly likely for the PVC peak for the Wikipedia page to occur at the same time as each episode was broadcast. Television dramas also have viewer ratings, a widely-known index of viewer numbers, and it was important to investigate the relationship between this and the Wikipedia PVC.
T
echnology T
rends
Author:
Wikipedia PVC provides data on all 334 serial dramas broadcast on commercial stations since 2008. Of these, we used the following method to analyze 244 dramas with complete sets of Wikipedia PVC data.
1. Assuming a broadcast time of one hour for each drama episode, we extracted a single set of time-series data for the 168 hours between the broadcast time and an hour before the next broadcast.
2. We performed regression analysis on the extracted time-series data, and used the coefficient obtained as the social interest level of that episode.
3. We investigated the correlation between the social interest level and average viewer ratings for each episode, and confirmed the significance of this.
For the regression analysis in step two, we used the regression formula pvc =α* exp(β*t) + γ, based on knowledge in econometrics that “social events fluctuate exponentially.” We also adjusted peak values to take into consideration broadcast time delays or expansion.
Non-linear regression analysis results indicate a high peak during broadcast times in each case, which subsequently converges with the γ value. After looking into the correlation between the coefficients α, β, and γ obtained from analysis and average viewer ratings, correlation was seen with the Y value. Figure 5 shows the correlation analysis results between the γ value for each episode of the TV drama Hanzawa Naoki, and its average viewer ratings.
At the time of writing, we had analyzed the correlation between the γ value and average viewer ratings for 40 of 244 sets of valid data, and results showed significant correlation. We will analyze correlation for the remaining 204 cases, but because we have found cases in which Wikipedia PVC fluctuations and viewer behavior did not match, particularly for dramas with low viewer ratings, we plan to clarify the number of cases in which significant valid data can be confirmed, as well as the range of Wikipedia PVC values for which this analysis method can be applied.
3.4
Summary
In this report, we examined the current state of big data through the lens of the key words M2M, IoT, and CPS. We also looked at technological trends related to analysis platforms that demand a shift to real-time solutions, and the diversification of big data analysis techniques for which knowledge can be obtained from time-series data.
We imagine that attempts to obtain detailed data live and utilize it in processing platforms with high immediacy to identify what is happening right at this moment will make it possible to obtain dynamic, micro-knowledge vastly different from big data analysis that obtains conventional static macro-knowledge. This new knowledge may even contain signs of what is yet to come. Finding these signs before anyone else could be the challenge for big data in the future.
Figure 5: Correlation Analysis Results for γ Value and Viewer Ratings of Each “Hanzawa Naoki” Episode
“Hanzawa Naoki” Viewer Ratings and Gamma Value Correlation Diagram - After Adjustment
V
iewer R
atings
