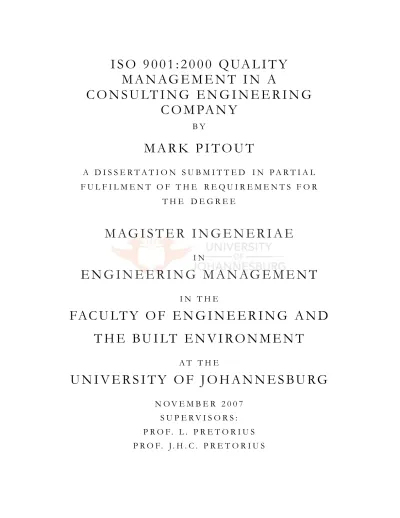

M A N A G E M E N T I N A

C O N S U LT I N G E N G I N E E R I N G

C O M PA N Y

B Y

M A R K P I T O U T

A D I S S E R T A T I O N S U B M I T T E D

I N P A R T I A L

F U L F I L M E N T O F T H E

R E Q U I R E M E N T S F O R

T H E

D E G R E E

M A G I S T E R I N G E N E R I A E

I N

E N G I N E E R I N G M A N A G E M E N T

I N T H E

FA C U LT Y O F E N G I N E E R I N G A N D

T H E B U I LT E N V I R O N M E N T

A T T H E

U N I V E R S I T Y O F J O H A N N E S B U R G

N O V E M B E R 2 0 0 7

S U P E R V I S O R S :

P R O F . L . P R E T O R I U S

P R O F . J . H . C . P R E T O R I U S

(2)

A C K N O W L E D G E M E N T S

My sincerest thanks and gratitude to:

My wife, Karien, for her love, support and patience. My family, for their love and support.

Professor Leon Pretorius, for his guidance. Richard Baard, for his support and assistance.

Roelene Botha, for convincing me to enrol in this masters degree program. And above all, God.

(3)

A B S T R A C T

This dissertation provides a study of ISO 9001:2000 based quality management in the consulting engineering environment.

The motivation for carrying out this study was to assess why an ISO 9001:2000 based quality management system was not operating effectively in a particular consulting engineering company.

A brief literature study of the topic of Quality Management is given, as well as an overview of the ISO 9001:2000 standard.

A case study is made of the particular consulting engineering company (called ABC Projects as a pseudonym for the sake of confidentiality). The case study presents the results of two questionnaires, one circulated among the employees of the consulting engineering company, and the other circulated among the directors of the Group that owns the company.

The case study also contains an assessment of the company’s quality management system at the hand of the ISO 9001:2000 standard. The assessment highlights various aspects of the company’s quality management system that needed to be improved.

The case study concludes with a 6-point plan aimed at improving the operational procedures of the company, as well the quality management system used by the company.

(4)

T A B L E O F C O N T E N T S ACKNOWLEDGEMENTS...II ABSTRACT...III TABLE OF CONTENTS...IV LIST OF FIGURES...V LIST OF TABLES...V LIST OF ABBREVIATIONS...VI CHAPTER 1 : INTRODUCTION... 1 1.1PROLOGUE... 1 1.2PROBLEM STATEMENT... 1 1.3RESEARCH OBJECTIVES... 2 1.4RESEARCH METHODOLOGY... 3 1.5CONCLUSION... 3

CHAPTER 2 : OVERVIEW OF QUALITY MANAGEMENT ... 4

2.1INTRODUCTION... 4

2.2HISTORY OF QUALITY... 4

2.3TOTAL QUALITY MANAGEMENT –AMODEL... 8

2.4CONCLUSION... 12

CHAPTER 3 : OVERVIEW OF ISO 9001:2000 ... 13

3.1INTRODUCTION... 13

3.2BACKGROUND... 14

3.3THE ISO9001:2000STANDARD... 17

3.4AIMS AND BENEFITS OF ISO9001:2000 ... 30

3.5LIMITATIONS AND DISADVANTAGES OF ISO9001:2000... 32

3.6CONCLUSION... 33

CHAPTER 4 : CASE STUDY - QUALITY MANAGEMENT IN ABC PROJECTS (A CONSULTING ENGINEERING COMPANY) ... 34

4.1INTRODUCTION... 34

4.2WHAT IS A CONSULTING ENGINEERING COMPANY?... 34

4.3OVERVIEW OF ABCPROJECTS... 37

4.4RESULTS OF THE QUALITY MANAGEMENT SYSTEM - EMPLOYEE OPINION QUESTIONAIRE... 38

4.5RESULTS OF THE QUALITY MANAGEMENT SYSTEM - MANAGEMENT OPINION QUESTIONAIRE... 42

4.6ASSESSMENT OF THE ABCPROJECTS QUALITY MANAGEMENT SYSTEM... 47

4.7IMPROVEMENTS THAT COULD BE MADE... 50

4.8CONCLUSION... 53

CHAPTER 5 : SUMMARY, CONCLUSION AND RECOMENDATION ... 55

5.1SUMMARY... 55

5.2CONCLUSION... 56

(5)

BIBLIOGRAPHY ... 58

APPENDIX A. QUALITY MANAGEMENT SYSTEM EMPLOYEE OPINION QUESTIONNAIRE – AS COMPLETED BY THE EMPLOYEES OF ABC PROJECTS ... 60

APPENDIX B. QUALITY MANAGEMENT SYSTEM MANAGEMENT OPINION QUESTIONNAIRE – AS COMPLETED BY THE MANAGEMENT OF THE ABC GROUP ... 75

APPENDIX C. TRANSCRIPT OF THE INTERVIEW BETWEEN MARK PITOUT (THE AUTHOR) AND RICHARD BAARD (CHIEF OPERATING OFFICER OF ABC PROJECTS), 19 NOVEMBER 2007 ... 82

L I S T O F F I G U R E S Figure 2.1 Oakland’s model for TQM [3] ...9

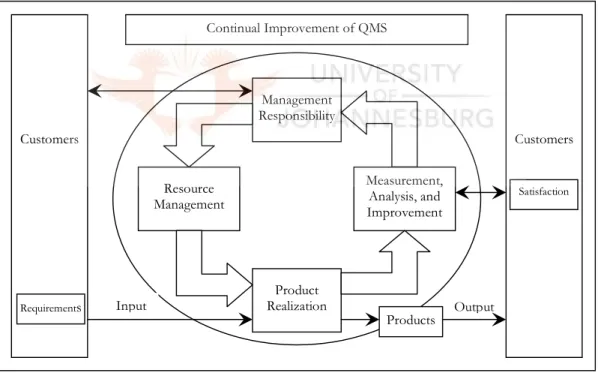

Figure 3.1 Model of a process-based QMS [1] ...17

Figure 3.2 The Plan-Do-Check-Act methodology [3]...18

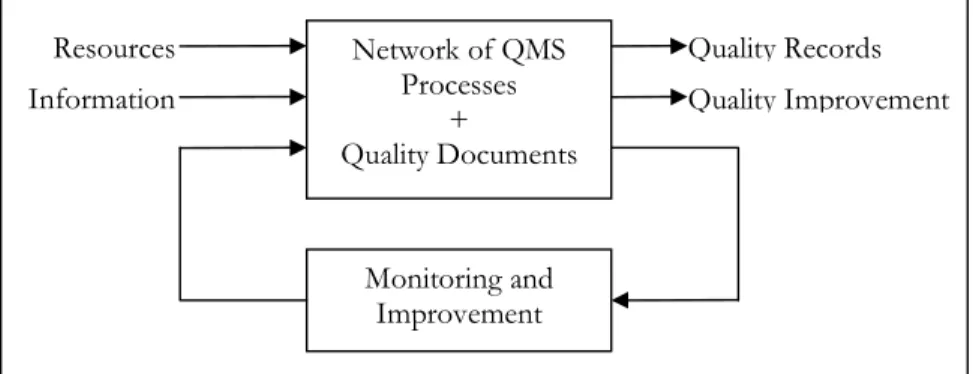

Figure 3.3 Generic model of a QMS ...20

Figure 3.4 The QMS interacting with other processes in the organization ...21

Figure 3.5 The product design and development process ...27

Figure 3.6 Cost of Poor Quality vs. QMS Cost [2]...31

Figure 4.1 Results of the QMS Employee Opinion Questionnaire ...40

Figure 4.2 Results of the QMS Management Opinion Questionnaire ...44

L I S T O F T A B L E S Table 4.1 Results of the QMS Employee Opinion Questionnaire...39

(6)

L I S T O F A B B R E V I A T I O N S

QMS : Quality Management System

QM : Quality Manual

TQM : Total Quality Management

ISO : International Organization for Standardization

PDCA : Plan-Do-Check-Act methodology

SAACE : South African Association of Consulting Engineers

ECSA : Engineering Council of South Africa

(7)

CHAPTER 1 :

INTRODUCTION

1.1 PROLOGUE

Most businesses of today find themselves in a market, where they compete against each other for customers. Competing organizations are evaluated based of their reputation for Quality, Reliability, Price and Delivery. Of these factors quality is named as the most important. [3]

But what is quality? How does one measure quality? How does one achieve quality? Six Sigma provides the following definition for quality: “Anticipate and honour the need of an intending user”. [11] This definition implies that the quality of a company is dependant on the company’s ability to identify its customer’s need and then provide a product or service that effectively satisfies that need.

The above definition of quality seems very simple; however it is the view of this author that the implications of applying this definition in certain organizations can be very complex.

Since the early 1950’s there have been many “Guru’s” that studied the concept of quality and developed various philosophies and tools regarding the topic. [11] As a result the notion of Quality Management was born, and many publications have been made on this topic.

1.2 PROBLEM STATEMENT

In January 2003 the South African Association of Consulting Engineers (SAACE), declared that all of its members shall “Implement and maintain a system of quality

management in their practices”. [7] The SAACE also names the ISO 9001:2000 standard as

“a comprehensive, internationally recognized common sense approach for managing and controlling a consulting company” and recommends that consulting companies use it to achieve quality in their operations. [7]

(8)

The ABC Group* (a member of the SAACE), adopted a quality assurance system based on the ISO 9001:2000 standard. This system is to be used by all the member companies of the group and is aimed at providing the companies with a Quality Management System (QMS) that is to govern all of its operations, especially in the operation of delivering engineering solutions to its clients.

Despite a strict company policy requiring its entire staff to cooperate and comply with the system, ABC Projects†

(a member of the ABC Group) has not yet implemented the system successfully, nor has it attained ISO 9001:2000 accreditation.

1.3 RESEARCH OBJECTIVES

In this dissertation the author provides an overview of quality management and in particular the ISO 9001:2000 standard by highlighting:

• The key aspects of the standard.

• The benefits / advantages of the standard.

• The limitations / disadvantages of the standard.

• The practical issues surrounding the implementation of the standard.

Furthermore the author makes an analysis of the implementation of the standard by ABC Projects, and highlights the shortcomings and successes of their implementation.

At the hand of relevant research, the author also makes recommendations on how the company could proceed to improve its quality assurance system and ultimately attain ISO 9001:2000 accreditation.

* The ABC Group is a pseudonym for the sake of confidentiality. † ABC Projects is pseudonym for the sake of confidentiality.

(9)

1.4 RESEARCH METHODOLOGY

Firstly the author provides a brief literature study of Quality Management as a whole, highlighting the history of Quality, Total Quality Management, and ISO 9001:2000, and their relation to each other.

Secondly the author provides a literature study on the ISO 9001:2000 standard, highlighting the key aspects of the standard, the aims and benefits of the standard, the structure of the standard and the limitations and disadvantages of the standard.

Thirdly the author provides a case study of the QMS in ABC Projects, evaluating it at the hand of the ISO 9001:2000 standard.

In addition to this evaluation the author provides the results of two questionnaires that were circulated in the company. One questionnaire was circulated among the employees of ABC Projects, and the second among the management of the ABC Group.

Lastly the author provides his conclusions made from the study, the lessons learnt from the study and also makes recommendations for further study.

1.5 CONCLUSION

In today’s competitive market quality has become a very important factor in the survival of any organization, and since the early 1950’s the subject of quality management has been widely studied and developed.

ABC Projects, a member of SAACE, has adopted a Quality Management System based on the ISO 9001:2000 standard. However, ABC Projects has not yet implemented the QMS successfully, nor has it attained ISO9001:2000 accreditation

This dissertation will provide and overview of quality management, and in particular the ISO 9001:2000 standard. A case study of ABC Projects and its implementation of the standard will also be presented.

(10)

CHAPTER 2 :

OVERVIEW OF QUALITY MANAGEMENT

2.1 INTRODUCTION

In order to view the ISO 9001:2000 standard for quality management systems in context, one should investigate the broader subject of quality management. Section 2.2 provides a brief overview of quality management, by highlighting the history of quality management that led to the concept of Total Quality Management (TQM) as well as the development of the ISO 9000 set of quality standards. Section 2.3 provides an overview of a TQM model and highlights how ISO 9001:2000 standard forms part of that model.

2.2 HISTORY OF QUALITY

MEDIEVAL EUROPE

Before the industrial revolution of the early 19th

century, goods were produced by craftsmen that belonged to unions called guilds. Each guild had stringent rules that defined the quality of products produced by its members. A product that passed the quality inspection of the guild would be marked with a special symbol of that guild. In many cases each craftsman would also mark his product with his own symbol. [6, 12]

These two symbols together with the reputation of the craftsman and the guild that he belonged to, would indicate the quality of the product to the customer. In this era the concept of quality was simple – Produce products that satisfy your customers or suffer a bad reputation that will finally lead to the closure of your business.

THE INDUSTRIAL REVOLUTION

During the industrial revolution factories aimed at mass production and mass income came into existence. Many of the smaller craftsman businesses were replaced by these factories, and the craftsmen became employees in such factories. Initially quality was achieved through skilled labourers and inspections. [12]

(11)

As time progressed the emphasis in factories became maximising productivity and minimizing workforce, which led to a decline in quality. As a counter to this decline in quality, factories created entire quality inspection departments that had the responsibility of detecting and eliminating defective products before being released from the factory. [12]

In this era, the pride and reputation of the craftsmen gave way to mass production. Quality was no longer an inherent part of the process of production, but rather an afterthought. Rather than making sure that every product produced would satisfy the needs of the customer, factories would only try to ensure that defective products were not sold.

EARLY 20TH

CENTURY

In the mid 1920’s Walter Shewhart, a statistician for Bell Laboratories, developed statistical methods for controlling quality. Shewhart’s approach was to evaluate the data produced by manufacturing processes by using statistical techniques. Such evaluation then indicated whether the manufacturing processes were operating correctly or not. [6, 12]

Shewhart’s methods of evaluating process related data by statistical techniques are referred to as Statistical Quality Control (SQC). Shewhart’s SQC methods eventually led to

the development of modern day methods like control charts. [12]

The major difference between SQC and quality control techniques that were used before it is that SQC focuses not only on the final product, but on the process that produced it as well. [12]

During World War II the United States Army developed, with the aid of Bell Laboratories, a standard for sample inspection of military equipment (MIL-STD-105). The U.S. Army also promoted the use of SQC to its suppliers, and sponsored SQC training courses. Despite this promotion of SQC most manufacturing companies only employed SQC programmes to comply with the U.S. Army requirements, and terminated these

programmes when their contracts with the U.S. government expired. [6, 12]

Shewhart also introduced the Plan-Do-Check-Act (PDCA) methodology. [11] The

PDCA methodology forms the basis for the ISO 9001:2000 standard and is described in section 3.3 of this dissertation.

(12)

TOTAL QUALITY MANAGEMENT

In the early years after World War II, Japan had a reputation for producing inferior quality products, and most Japanese companies were unsuccessful in international markets. As a result Japanese companies changed their view on quality, by broadening the focus of their quality efforts to all their organizational processes. [12]

This approach of focussing on quality throughout the entire organization is called Total Quality Management (TQM), and was developed by various “Guru’s” in the field of Quality Management:

W.E. Deming - Developed a fourteen point plan, centred around changing the culture in organizations to focus on quality. [13] His philosophy placed the majority of the responsibility on the management of organizations to improve their business processes on an ongoing basis. Deming also promoted the use of the Plan-Do-Check-Act methodology, developed by Shewhart. [11]

Dr. J.M. Juran - Developed the quality trilogy which consists of three main items. [11, 14]

• Quality Control: Maintaining an established level of quality

• Quality Planning: Planning projects that are aimed at improving the quality of processes within an organization

• Quality Improvement: Executing planned projects in order to establish a new level of quality

Juran also considered each person involved in the processes of the organization as both an internal supplier and an internal customer of the product, as it passed through the various stages of manufacture.

Dr. K. Ishikawa - Developed the “seven basic tools of quality”, a set of analytical diagrams and charts that are aimed identifying the cause of quality “problems” in the organization. The most notable of these charts is the Cause and Effect diagram (or Fishbone diagram). Ishikawa also advocated an organization-wide approach to quality. [11]

(13)

Dr. G. Taguchi - Promoted quality focused design that is aimed at developing products that are impervious to variations in the production process. Taguchi believed that quality problems needed to be solved at the design / development stage, rather than the production or final inspection stages. Taguchi also developed the Taguchi Methodology – a

prototyping method aimed at optimising products during development. [11]

P. Crosby - As quality director of ITT, introduced two philosophies of quality namely “Quality is free” and “Zero Defects”. Based on these philosophies he had four absolutes.

[3, 11, 15, 16]

• The definition of quality is conformance to requirements

• The system for achieving quality is prevention

• The standard for quality is zero defects

• The measurement of poor quality is the price of non-conformance

Crosby also offered his organization a 14-step program to improve quality. This program revolved around concepts like management commitment and involvement, communicating quality objectives throughout the company and continuous assessment and improvement. [3, 11, 15, 16]

Ironically, in the second chapter of Crosby’s book “Quality is Free”, he makes the statement that: “Unfortunately, the business of quality management is not all that easy.” [15]

Therefore quality management requires considerable effort. Effort implies time spent, which in turn implies cost. Therefore quality is not entirely free. However by achieving quality in one’s product, money can be saved in areas like maintenance and service costs, and money can be made in other areas like repeat business from satisfied customers. Therefore the effort, time and money spent on quality management, has a payback which covers the expenditure and gives rise to the concept of “Quality Is Free”.

(14)

From the work of the “Guru’s” mentioned above one can see a common theme that developed for the theory of TQM:

• Quality is a function that has to be driven by an organization’s management

• Quality is an organization-wide function

• Quality improvement is a never-ending cycle of assessment, planning,

implementation and re-assessment

THE ISO 9000 SET OF QUALITY STANDARDS

As a result of the increasing focus on quality in organizations around the world, the International Organization for Standardization developed, in 1987, a set of standards known as ISO 9000:1987. This set of standards has been reviewed and developed further to produce sector specific standards, such as QS-9000 for the automotive industry, AS9000

for the aerospace industry, and ISO 14000 for environmental management. [12]

The process of refining the ISO 9000 set of quality standards to its current form (ISO9000:2000) also led to ISO 9001:2000, an internationally recognized standard for Quality Management Systems (QMS’s). An overview of ISO 9001:2000 is provided in Chapter 3 of this dissertation.

2.3 TOTAL QUALITY MANAGEMENT – A MODEL

John S. Oakland presents in his book (TQM, Text with Cases - 3rd

Edition) [3], a model for TQM. This model is based on what he calls “The four P’s and three C’s of TQM” and is provided in Figure 2.1.

In this model the four P’s represent the “hard management factors” that have to be considered when TQM is practiced in an organization. The three C’s represent the “soft management factors” that need to be integrated into the four P’s, in order for TQM to be effective. [3]

(15)

Performance Process People Planning Cu lture Commitment C o m m un ica tion

Figure 2.1 Oakland’s model for TQM [3]

It is the author’s opinion that Oakland’s model for TQM, elegantly ties the key aspects of TQM together. Figure 2.1 provides only a high-level view of this model; so in order to understand the model better, one must study the four P’s and Three C’s of the model. Oakland provides a detailed description of this model in his book (TQM, Text with Cases - 3rd

Edition). Here follows a brief overview of the model:

PLANNING

Planning for the implementation of TQM should include a review of the entire organization. This review focuses on the organization’s mission and vision, processes, sub-processes and structure. The mission and vision of the organization determines the goals of the organization, while the processes and structure determines how the organization achieves those goals. Consideration must be given to how each of these facets of the organization impacts on quality. [3]

(16)

The resources that the organization uses in its processes (including those resources sources from other organizations / suppliers) also need to be considered. An organization should establish policies or rules that govern the sourcing and management of resources or materials from suppliers, with the focus again being on the impact on quality. The organization can choose to form partnerships with suppliers that adhere to these policies.

[3]

Products, services, processes, and organization structures are realized from designs. As per the philosophy introduced by Dr. G. Taguchi, quality is introduced during the design phase of these factors, rather than during the realization phase. Quality can be introduced into designs by various methods, such as Quality Function Deployment (QFD) and Failure Mode, Effect and Criticality Analysis (FMECA). [3, 11]

PERFORMANCE

As part of an organizations continuous improvement (the PDCA cycle) the performance of the organization and its processes must be measured. For this measurement an appropriate framework needs to be established to make measurements at four levels: Strategic level; Process level; Individual Performance level; and Review level. [3]

Measurement frameworks have associated costs in their development and implementation. These costs need to be balanced with the value that they add to the organization. [3]

Various models like the Deming Prize, the Baldrige Award, and the European Foundation for Quality Management Excellence Model are available for organizations to perform self-assessment. These models can be used in a number of approaches, including workshops, audits, surveys, etc. [3]

Benchmarking is another technique that can be used to measure an organization’s performance. During benchmarking an organization compares its operations, products, and services to those of a competitor, to industry standards, or internal standards. The purpose of benchmarking is to establish the perspective of how well an organization is doing compared to its competitors, to challenge current practises and standards, and to set goals for improvement. [3]

(17)

PROCESSES

All activities in an organization can be viewed as processes. Managing the core processes of the organization provides the key to improve performance. To help the managers understand their organization’s processes better, flowcharts can be used to graphically document the processes. In some cases it may be necessary to completely re-design certain processes as the organization changes with time. [3]

In order to manage the quality of an organization, its processes and its products or services, an appropriate Quality Management System (QMS) must be established. The ISO 9000:2000 set of standards (including the ISO 9001:2000 standard) provides an international standard for such QMS’s. The QMS should follow the PDCA methodology.

[3]

The ultimate goal of the QMS is continuous improvement of the organization’s processes. This improvement can be implemented by various methods such as Pareto analysis, cause and effect analysis, matrix diagrams, Taguchi methods, etc. [3]

PEOPLE

The most valuable resource in an organization is its people. Organizations that place emphasis on quality also align their Human Resource Management (HRM) policies with the strategic goals of the organization. Employees should be empowered by and involved in their organization. Employees should also be trained to have the skills they require for their work. [3]

Process management and improvement is generally achieved by teams of people. The success of such teams depends on factors like composition and dynamics, leadership, clear objectives, and reviews. Teams go through four phases before they become truly effective.

These phases are: Forming; Storming; Norming and Performing. [3]

In order to sway the employees of an organization to accept the TQM approach, effective communication with those employees must be achieved. The quality strategy and goals must be clearly communicated from top management to all employees. Employees must be educated to understand their role in the TQM process, as well as the benefits that the TQM process offers. [3]

(18)

The combination of empowered and trained employees, well structured teams that also perform well, and adequate communication of the organization’s quality strategy, will create the right sort of culture for quality and also make the employees committed to the TQM efforts of the organization. [3]

2.4 CONCLUSION

The history of Quality Management dates back to the industrial revolution, where the method of production shifted away from individual craftsmen to factories. Quality management developed from the initial method of inspecting the final product for conformance to requirements, to making quality the focus of all aspects of organizations.

[6, 12] Various methods and models were developed to achieve quality in all aspects of organizations, and the concept became known as Total Quality Management. As a result of this focus on quality management the ISO 9000:2000 family of international standards were developed. [11, 12]

Oakland’s [3] model for TQM provides a framework for understanding, developing and implementing TQM in an organization. In this model there are four P’s (Planning, Performance, Processes and People), that represent the “hard management issues” that need to be considered, while the three C’s (Communication, Culture and Commitment) represent the “soft management issues”.

As part of the “Processes” leg of the Oakland Model [3], an effective Quality Management System (QMS) needs to be established in the organization, in order to manage and improve the quality of the organizations processes and its products. The ISO 9000:2000 family of standards provides a framework for such QMS’s that may be implemented by organizations across the world.

(19)

CHAPTER 3 :

OVERVIEW OF ISO 9001:2000

3.1 INTRODUCTION

As ISO 9001:2000 is quoted by the South African Association of Consulting Engineers (SAACE) as the recommended quality management standard to be used by a consulting engineering company [7], it will be the focus of this study.

ISO 9001:2000 is also internationally recognised as the standard for quality management due to the fact that it was produced by the International Organization for Standardization (ISO).

In this chapter the author will provide background of the standard including the history of the standard, and how the standard evolved from its previous versions to the current ISO 9001:2000.

The author also takes an in-depth look at key aspects of the ISO 9001:2000 standard, which include:

• The quality management system.

• Management responsibility.

• Resource management.

• Product Realization.

• Measurement, Analysis and Improvement.

Lastly the aims and benefits of the ISO9001:2000 standard are discussed, as well as the limitations and disadvantages.

(20)

3.2 BACKGROUND

WHAT IS ISO?

The acronym ISO stands for “International Organization for Standardization”. It is an international federation of national standards bodies, that develops standards by using

technical committees composed of representatives of each member body. [1]

One of ISO’s aims is to develop standards that are internationally applicable, and

provides a common “set of rules” for organisations to be governed and measured by. [2]

The ISO 9001:2000 standard, for example, is applicable to quality management, and provides that “set of rules” that organisations can use to create, operate and maintain their QMS.

The “set of rules” are also used to measure how well a specific organization’s QMS performs, and the organization attains ISO 9001:2000 accreditation based on that measurement. In certain industries it may be critical for an organization to attain this accreditation, as their customers may insist on only dealing with organizations that are ISO 9001:2000 accredited.

HISTORY OF THE ISO 9001:2000 STANDARD

Ray Tricker [2] offers a very concise overview of the history of the standard in his book ISO 9001:2000 for Small Businesses (3rd

edition). Highlights of this history are given here: The first version of the standard was released in 1987 as the ISO 9000:1987 set of standards, and it was based to a large extent on the British Standard BS 5750, parts 1 to 3. After its release various other standards bodies, adopted the text without changes and republished it under their own naming convention (such as EN 29000:1987 as the European version of the standard and BS 5750:1987 as the British version). [2]

As the standard grew in popularity, it also became more apparent that there were certain elements missing. In 1994 the standard was revised and published as ISO 9000:1994 which consisted of 20 elements that had to be addressed in a QMS. However there were still some problems with the standard. For instance, complying with the standard did not implicitly mean that an organization would deliver services or produce products that were

(21)

of a high quality. It only ensured that the services and products were of a consistent quality. In other words, if an organization that continually produced a poor quality product, could still comply with the standard. [2]

As ISO 9000:1994 grew more popular it became apparent that the standard provided a good base to start from, for organizations that wanted to implement QMS’s, but additional effort and further development of their QMS’s was required for it to be of benefit. Furthermore there were parts of the standard that an organization could ignore, and still maintain the quality of their product. Therefore further revision of the standard was required. [2]

The ISO maintains a policy whereby all international standards are reviewed five years after publication, to determine if the standards are still applicable. To this end the ISO assigned its technical committee No. 176 (also known as ISO/TC176), to conduct a survey of the ISO 9000:1994 standard with the aim of discovering the problems with the standard and the requirements for the revised standard. The committee was also to investigate how the standard could be revised to complement environmental management and health and safety standards. [2]

The survey indicated several improvements that needed to be made during the revision of the standard. The most notable of these improvements were that the standard had to be

[2]:

• More flexible to accommodate organizations of all types and sizes

• Clearer and easier to understand

• Based on a process model

• More compatible with other management system standards

• Aimed at continual improvement and increasing customer satisfaction

ISO 9000:1994 was also a set of standards consisting of four parts ISO 9001:1994 , ISO 9002:1994 , ISO 9003:1994, ISO 9004:1994, which created some confusion as to which one was applicable for certification. To this end two overall standards were created: ISO 9001:2000, which combined the first three of the aforementioned standards and addressed the requirements of a QMS, and ISO 9004:2000 which was a revision of the last

(22)

standard of the set, and addressed the gradual improvement of an organisations overall quality performance. [2]

Based on the requirements that were identified in the survey conducted by ISO/TC176, the standard underwent an extensive revision process whereby several drafts of the standard were produced. Working drafts were produced during the course of 1997 and 1998, for review by the technical committee itself. Committee drafts were produced during 1998 an 1999 for member bodies to vote and comment on. A final draft was

produced in September 2000, and finally in December 2000 the standard was published. [2]

WHAT DOES THE ISO 9001:2000 STANDARD LOOK LIKE TODAY?

Instead of 20 elements, the revised standard, ISO 9001:2000, now contains five main clauses [1] pertaining to:

• The quality management system – Which sets the general requirements for the

system as well as its associated documentation.

• Management responsibility – Which details the requirements of an

organizations management to effectively implement and maintain the system.

• Resource management – Which details the requirements of an organizations resources to effectively implement and maintain the system.

• Product realization – Which details the processes that are to be followed to produce/deliver a quality product/service.

• Measurement, analysis and improvement – Which details the requirements for

assessing and improving not only products and services, but also the processes within the organization and the QMS itself.

It is important to note that according to the definition given in the standard, a product is seen as “a process, which uses resources to transform inputs into outputs” and can fall into one of four categories – hardware; software; services; and process materials. [2] Therefore the clause referring to product realization is not limited to the manufacturing industry.

(23)

3.3 THE ISO 9001:2000 STANDARD

The scope of the standard can be defined as the specification for a QMS that provides assurance of an organization’s ability to [1]:

• consistently provide a service or product that meets customer and regulatory requirements,

• enhance customer satisfaction and

• provides continual improvement of an organisations processes.

The introduction of the ISO 9001:2000 standard requires that all operations of an organization (including the QMS) be process-based in order for the QMS to interact with the other operations of the organization. A process-based QMS can be represented as in Figure 3.1:

Figure 3.1 Model of a process-based QMS [1]

In the model of a process based QMS , the organization is represented as a cyclic system that consists of Management Responsibility, Resource Management, Product Realization, and Measurement, Analysis and Improvement. The cycle represents Clauses 4 to 8 of the standard. Output Customers Product Realization Resource Management Requirements Measurement, Analysis, and Improvement Management Responsibility Continual Improvement of QMS Customers Satisfaction Products Input

(24)

This system interacts with the customer on various levels: Management communicates with the customer; the customer provides inputs to the product realization process; the product is delivered to the customer; and the customer’s satisfaction is measured by information relating to the customer’s perception.

The cyclic process of the QMS is not only focussed on improving the product and thereby enhancing customer satisfaction, but also is also focussed on improvement of the QMS itself.

Also noted in the introduction of the standard is that the Plan-Do-Check-Act (PDCA)

methodology can be applied to all processes. [1] The PDCA methodology dictates that one

must: plan the objectives of a process that is to be implemented; implement the process; verify that the process is achieving the planned objectives; and take action to improve the process. [3] Figure 3.2 represents the Plan-Do-Check-Act methodology as a continuous cycle:

Figure 3.2 The Plan-Do-Check-Act methodology [3]

The ISO 9001:2000 standard consists of eight clauses and two annexes. However, as mentioned in section 3.2 there are five main clauses in the standard, as the firsts three clauses merely describe the scope of the standard, normative references, and terms and definitions.

Implement the plan Plan the actions aimed at achieving the desired results

Record and review the results

Revise the plan to improve the results CHECK

ACT DO PLAN

(25)

The two annexes in the standard highlight the correspondence between ISO 9001:2000 and ISO 9001:1994 as well as ISO 14001:1996.

Here follows the author’s interpretation of the five main clauses of the ISO 9001:2000 standard (Clauses 4 to 8). In this study the standard as published by the ISO [1] and the book ISO 9001:2000 for Small Businesses (3rd edition) by Ray Tricker [2] are used as the main references.

CLAUSE 4 - QUALITY MANGEMENT SYSTEM

Clause 4.1 – The general requirements of a QMS follow almost logically from taking a process view on the QMS. The requirements are plainly that:

• The processes required for the QMS, their sequence and their interaction be identified.

• The criteria and methods for the operation and control of the processes be identified.

• The resources and information required for the processes be available.

• The processes are monitored for effectiveness, and action be taken to

continually improve them.

Clause 4.2 - In addition to the system described in clause 4.1 there are also certain documentation requirements for the QMS. The documents that must be prepared for the QMS include:

• Statements of the quality policy and quality objectives.

• Quality manual.

• Quality procedures.

• Planning, Operation and Control documents of the organization’s processes.

• Quality records.

The manual must include the scope of the QMS, the quality procedures (or reference to them), and the description of the interaction between the QMS processes.

The standard further specifies that a documented procedure must be established for the control of the QMS documents. The procedure must basically ensure that approved versions of the documents are available at the intended point of use; the documents are

(26)

revised and re-approved when required; superseded versions of the documents are removed from circulation.

The last requirement of the QMS specified by the standard is that records must be kept of product or service conformity to the given requirements, as well as the effective operation of the QMS. A documented procedure must be established that describes how these records are identified, stored, protected, and retrieved, as well as how long the records are stored, and how they are disposed of.

As the standard is written to be generic and applicable to any organization, the standard does not specify what the above documents should look like. Instead it merely states that the extent of the documents depends of the size of the organization, the complexity of its processes and the competence of its personnel.

Although this generic nature of the standard makes it applicable to any organization, it does present some difficulties in the sense that very few “hard and fast” specifics are given regarding the requirements of the QMS. Organizations are required to determine for themselves what the extent of their QMS and its associated documents will be. Therefore the success of the QMS will be determined by the skill of the people developing and implementing the QMS in the organization, rather than the QMS’s conformance to the standard.

As the QMS is meant to be approached as a process, a generic process flow diagram for the QMS could be represented as in Figure 3.3.

Figure 3.3 Generic model of a QMS

Quality Improvement Monitoring and Improvement Information Quality Records Network of QMS Processes + Quality Documents Resources

(27)

The monitoring and improvement of the QMS is represented as a feedback loop to the QMS. However, the QMS itself represents a feedback loop to the other processes of the organization. Therefore a process flow diagram of the QMS and its interaction with these other processes could be represented as Figure 3.4.

Figure 3.4 The QMS interacting with other processes in the organization

This interaction of the QMS with the other processes of the organization represents what is known as a dual feedback loop. In other words the QMS monitors and improves not only the other processes of the organization but itself as well.

The criteria for the QMS given in Clause 4 of the standard (as summarized above) are stated very generically and without many specifics; the following clauses (5 to 8) provided further requirements that must also be met by the system. These requirements will be highlighted in the sections that follow.

CLAUSE 5 - MANAGEMENT RESPONSIBILITY

In this clause the standard lays a lot of responsibility on the top management of an organization, to ensure that the QMS is implemented, maintained and improved. As with all other systems, management has to be the driving force behind the QMS, in order for it to be accepted in the organization. Functions that are to be fulfilled or driven by top management are summarised below:

Quality Improvement Monitoring and Improvement Information Quality Records Network of QMS Processes + Quality Documents Other Processes in the Organization Inputs Outputs

(28)

Clause 5.1 - The top management of an organization must have a commitment to the QMS. At first glance one might think that this is a very peculiar topic to be addressed in a standard for a system. “Commitment” is a human attribute that may vary, depending on a multitude of intangible factors, like for instance the personality of the person that fulfils the management roll.

Then how does the standard determine an intangible factor like “commitment”? The standard does this by specifying the measurement of the effect of the management’s commitment: Clause 5.1 states merely that the top management of an organization shall “provide evidence” of its commitment to the development, implementation and improvement of the QMS by:

• Communicating the importance of meeting customer, statutory, and regulatory

requirements (i.e. the goal of the QMS).

• Establishing the quality policy.

• Ensuring that quality objectives are established.

• Conducting management reviews.

• Ensuring the availability of resources.

This implies that top management should perform the above functions (or at least appoint people to perform them) and the products of these functions should be captured on relevant records, to serve as evidence. The QMS must therefore make allowance for these records and contain them.

Clause 5.2 - The top management of an organization shall ensure that the customer’s requirements are determined and met, in order to enhance the customer’s satisfaction. This focus on the customer’s requirements is needed, because unlike the statutory and regulatory requirements that are naturally stated in specific terms by documents produced by the bodies that enforce them; the customer’s requirements would not always be stated in specific terms. Therefore the organizations must record and agree the customer’s requirements in specific terms, so as to ensure that they are met, and the customer is satisfied. Again the QMS is to allow for and contain records of these requirements.

(29)

Clause 5.3 - The Quality Policy of a company is indicated in Clause 4 of the standard to be an integral part of the QMS documentation. Clause 5.1 states that the establishment of this policy is the responsibility of the top management of the organization. The most notable requirements of the quality policy is that: it must include the organizations commitment to quality; provide the framework by which quality objectives are established and reviewed; and the policy must be communicated and understood throughout the organization.

Clause 5.4 - The quality objectives for each function and level of the organization must be established by top management. These objectives are established when the top management plans the QMS. Such planning should also ensure that the QMS fulfils the requirements set in Clause 4.1 and that the QMS retains its integrity when changes are made to improve the QMS.

Clause 5.5 - The organization must identify responsibilities and authorities, and communicate them throughout the organisation. One such authority must be a representative from top management who, aside from his other responsibilities, drives the QMS by ensuring its operation, reporting on its performance, and promoting the QMS throughout the organization. This clause therefore indicates the necessity for a person that champions the QMS.

Clause 5.6 – States the requirement for the management of an organization to review its QMS. These reviews should be held at planned intervals and should cover information gathered about audits held, customer feedback, performance, etc. Of course all such information that is to be reviewed should be captured on applicable records that form part of the QMS. During the QMS review, management should make decisions on how the QMS can be improved, how their product / service can be improved, and what resources are required for the QMS and the identified improvements. The reviews themselves must also be recorded and the records must be contained in the QMS.

(30)

CLAUSE 6 - RESOURCE MANAGEMENT

Clause 6.1 - As with most systems in an organization, the QMS will require certain resources to operate properly. As every QMS would be unique to the particular organization that it operates in, so to would the resources required to operate the QMS. Clause 6.1 of the ISO 9001:2000 standard therefore does not specify what resources would be required, but does state that the organization shall identify AND provide the resources required for the effective operation of the QMS.

Clause 6.2 - People (human resources) involved in the QMS must have the competence required to perform their assigned tasks. To accomplish this, the people involved in the QMS have to be trained to have the competencies that are identified for their specific tasks and records of such training have to be kept. Again these records are to be provided and contained in the QMS itself.

The people involved in the QMS must also be informed of how their tasks influence the achievement of quality objectives so that they understand the relevance of the tasks that they perform. Having this understanding would in all probability increase their commitment to the QMS.

Clauses 6.3 and 6.4 - Having the human resources to operate the QMS is not enough though. The organization must also identify and provide the relevant infrastructure and working environment for the QMS and its associated human resources. In other words, the people that operate the QMS must not only be trained, but they have to be given the required tools and workspace as well.

It is the author’s opinion that the one resource that is frequently overlooked in the implementation of a QMS is time. Frequently the tasks required for the operation of the QMS are assigned to people that already have other tasks to perform in the other systems of the organization, and these people then struggle to find the time required to perform their QMS tasks.

(31)

CLAUSE 7 - PRODUCT REALIZATION

Clause 7 of the ISO 9001:2000 standard describes the requirements for the systems that realize the product of an organization. One might say that specifying requirements for the product realization processes is beyond the scope of a standard for quality management systems, and that the authors of the standard should focus on their own domain. However, it is the interface between the QMS and the product realization process that prompts the authors to define the requirements of these processes. In other words, how the product realization processes are structured, will determine how well the QMS system can interface with these systems and therefore measure the quality of the product.

As mentioned above in section 3.2, where the standard uses the word product, it is not referring only to hardware or software but services as well. Therefore the services delivered by a specific organization (for instance a consulting engineering company), could be considered as its product.

Clause 7.1 - The first step to realizing a product is to plan how it will be realized. From the QMS’s point of view this means that an organization needs to establish the following:

• The process required to realize the product, as well as associated documents and resources.

• The quality objectives of the product and the process that produces it.

• The way in which the product will be verified, validated, tested, etc. to ensure

that the product fulfils the requirements.

• The records that will serve as proof of the abovementioned verification, validation, testing, etc.

It is noted at the end of clause 7.1 that the documentation of the above can be referred to as the quality plan. As a result of clause 7.1 it would be safe to assume that such a quality plan would exist for every product produced by an organization.

Clause 7.2 - Before a product is realized, the requirements of the product must be defined in specific terms. In this clause the standard describes what it calls a customer related process whereby the requirements are determined (documented), reviewed, and communicated to the client.

(32)

The documented requirements include those of the client, the relevant statutory and regulatory bodies, the organization itself, and those necessary for the intended use of the product.

An organization must review these requirements before it commits to producing the product, in order to ensure that the requirements are defined in specific terms and that the organization is capable of meeting the requirements.

Communicating the documented requirements not only ensures that the customer is in agreement with the requirements, but also provides the forum for the customer to give feedback to the organization.

Clause 7.3 - A product must be designed and developed according to a certain process. The process described in this clause is one of:

• Planning the development stages; the review, verification and validation of each

stage; and resources required for each stage.

• Using the requirements documented as per clause 7.2 as inputs to the

development process.

• Documenting development outputs, such as purchasing, production and service

provision information; product acceptance criteria; etc.

• Reviewing the development process at certain predetermined stages.

• Verification of the design.

• Validation of the design.

• Controlling changes that result from review, verification, validation, or the discovery of further requirements.

Each step of the process described in Clause 7.3 is to be documented and captured in appropriate records that are provided by and contained in the QMS.

A generic process flow diagram for this process could be represented as shown in figure 3.5:

(33)

Figure 3.5 The product design and development process

Clause 7.4 - Products purchased by the organization that form part of the product realization process, must conform to predetermined purchase requirements. These requirements must specify the approval procedures, qualification of the personnel involved in providing the product, and the suppliers own QMS.

As part of the organization’s QMS, it must establish criteria whereby it will evaluate and select suppliers of the products required for the product realization process. The QMS must therefore provide and contain records of the evaluation of suppliers.

The organization must also verify that the products purchased conform to the stated purchase requirements. Again the QMS must provide and contain these records.

Clause 7.5 - An organization must plan its production (or service delivery) processes in such a way that they operate under controlled conditions. The control that must be exercised on these processes must ensure that the appropriate information, work instructions, equipment and measuring devices are available to the processes. Furthermore the organization must ensure that the measurement is implemented in the production process, as well as implement the process related to releasing the product to the customer.

Every product that is produced by an organization must be identified, and be traceable back to the processes that produced it, as well as the monitoring and measurement that was done on the product.

Inputs

Identify New Requirements Change Records Outputs Verification Development Validation Change Control Review at Predetermined Intervals Planning Final Outputs Requirements Document

(34)

Clause 7.6 - An organization must exercise control of its monitoring and measurement devices. This control will include maintaining the calibration status of the devices, and where a device is found to be producing incorrect measurements, results of previous measurements must be re-assessed.

CLAUSE 8 - MEASUREMENT, ANALYSIS AND IMPROVEMENT

Clause 8.1 – The organization has to put in place the systems that monitor, measure, analyse and improve the organization’s products as well as the QMS. These systems should provide the proof of the product’s quality, that the QMS operates as planned, and also improve the QMS on an ongoing basis.

Clause 8.2 – The monitoring and measurement systems of the organization should cover at least four aspects:

• The organization shall measure its Customers’ satisfaction by assessing their perception of the organization’s ability to meet their requirements. This assessment must be done in a formal and structured way.

• The organization shall audit its QMS on planned intervals and according to

pre-determined criteria, scope and methods. The auditors must be selected to ensure impartiality. A documented procedure shall be established that describes the auditing process (responsibilities, procedures, reporting of results, etc). The management of any area that is audited must respond to the resulting audit report, by ensuring that the required actions are taken, verifying those actions, and reporting on the results.

• The organization shall also monitor the processes of the QMS, in order to ensure that the expected results of the QMS are achieved. Where these results are not achieved, the offending processes must be corrected.

• At appropriate stages of the product realization process, the product must be assessed to ensure that it conforms to the requirements established at the start of the product realization process (clauses 7.1 to 7.2) Records of these assessments must be kept in the QMS. No product shall be released until it has been verified as conforming to the requirements.

(35)

Clause 8.3 – If, during an assessment it is found that a product does not conform to the requirements initially set out, the organization must identify that product and take action to correcting the conformity. This can be achieved by eliminating the non-conformity from the product, releasing it under concession of the client and or relevant authorities, or precluding the original intended use of the product.

The QMS must contain records of any non-conforming products, as well as the course of action that was taken to correct the non-conformity. Products that have been corrected shall also be subject to re-verification.

Clause 8.4 – The organization shall analyse data generated by the measurement and monitoring processes. The analysis should provide feedback regarding customer satisfaction, product conformities and non-conformities, trends of the organization’s processes and products, and feedback from suppliers. The information provided by the analysis will be used to prove the effectiveness of the QMS and to identify areas of the QMS that need to be improved.

Clause 8.5 - The organization can improve its QMS and its other processes in one of three ways – Continual improvement is achieved as a natural result of the QMS’s continuous monitoring, auditing and analysis processes; Corrective action is taken in response to identified non-conformities (either by products or by the QMS); Preventative action is taken where analysis of data identified potential non-conformities that may occur.

In all three ways of introducing the improvements into the organization processes, and QMS, the organization is required to follow the Plan-Do-Check-Act methodology that is described in the introduction of the standard. In other words any improvement the organization makes is to be planned, implemented and the results recorded and verified.

(36)

3.4 AIMS AND BENEFITS OF ISO 9001:2000

The main aims of the ISO 9001:2000 standard are [2]:

• To be flexible enough to be applicable to any organization and integrate with other management systems.

• To introduce a simple structure for QMS’s by implementing a

Plan-Do-Check-Act (PDCA) process-based model.

• To place emphasis on determining and reviewing customer requirements, and verifying that they are met. Emphasis is also placed on measuring the customer’s satisfaction.

• To assert continual reviewing and improvement of organisational processes, including the QMS.

• To define the responsibilities, authorities and resource requirements of the QMS.

The standard represents a QMS in a process-based manner that follows the PDCA philosophy. This philosophy has a natural inclination towards continuous improvement as it is a process of perpetuating cycles that start by planning the actions that are to be implemented, and end with checking whether the planned results were achieved. Improvements are achieved incrementally during each cycle and builds on the knowledge of previous cycles.

The standard places emphasis on establishing the requirements for a product or a service up front, where such requirements originate from both the customer and statutory and regulatory authorities. Verifying that the requirements have been met serves as proof of the quality of the product or service.

Emphasis is also placed on the records that are to be kept in the QMS. These records provide the basis on which the QMS can be assessed, either by internal or external audits. The records also serve as a knowledge base that assists the management of an organization to improve its processes by learning from past achievements and failures.

As mentioned the ISO 9001:2000 standard is applicable to all organizations and the products and/or services that they deliver. Therefore any organization, big or small, in any market, can use the standard to develop and implement a QMS that can be certified by an

(37)

ISO 9001:2000 certification body. Certification of the QMS serves as proof to customers that the organization can meet their needs.

The flexible nature of the standard allows an organization to shape its QMS to integrate seamlessly with the rest of the operations of the organization, as long as they are process-based. Therefore in most cases implementing the QMS will not drastically change the operations of the organization, except where such changes are required to improve quality.

The financial benefit of a QMS is difficult to quantify up front, as the product of the QMS (namely quality) is one that cannot generate revenue on its own. The QMS does however introduce an indirect financial benefit, as the organization spends less time and money correcting products that failed to meet their requirements. Further financial gain is also made by virtue of the fact that the QMS enhances customer satisfaction, and therefore stimulates future sales by repeat business and word-of-mouth.

However the financial gain of improved quality is not linear to the cost of improving the QMS. There is a point where the quality of the product and the cost spent achieving that quality reaches an optimum. This optimum point is illustrated in the Figure 3.6. The challenge for the management of an organization is determining where that point lies.

Figure 3.6 Cost of Poor Quality vs. QMS Cost [2]

Cost of QMS Cost of Poor Quality Optimum Benefit Achieved Quality Increasing Cost

(38)

3.5 LIMITATIONS AND DISADVANTAGES OF ISO 9001:2000

P.D.T. O’Connor writes in his book, Practical Reliability Engineering [4], that the ISO 9001:2000 standard only describes the requirements for a QMS in “vague terms”. In section 3.4 above the flexibility of the ISO 9001:2000 standard is mentioned as a benefit, however it is this pursuit of flexibility that necessitates a certain degree of vagueness when describing the QMS. In fact it would in all probability be impossible to describe in very definite terms the requirements for a QMS that is applicable for all conceivable organizations, as this would require that all organizations follow the same operational processes.

The disadvantage that this vagueness of the standard presents, is that organizations could develop a QMS that complies with the standard and attain ISO 9001:2000 certification, but still produce/deliver poor quality products/services. O’Conner calls such

products/ services “well documented rubbish” [4]. The challenge for the management of

an organization is thus to keep their focus on the improvement of quality and critically evaluate whether their QMS does actually achieve planned quality objectives.

A further complication introduced by the vagueness of the standard, is that it requires more effort to develop the QMS. Instead of directly implementing each clause of the standard step-by-step, the management of an organization must first interpret how the clauses apply to their organization and develop the relevant processes and records from that interpretation.

The certification process also presents some limitations. The certification bodies cannot always have the knowledge required to evaluate the quality of products produced by specialist organizations. In such a case the only thing the certifying body can do is verify that the QMS of the organization is developed according to the standard, and is being operated in the prescribed manner. In other words the fact that an organization has ISO 9001:2000 certification merely proves that they have an operational QMS, but does not guarantee that they produce high quality products.

(39)

3.6 CONCLUSION

The International Organization for Standardization has been developing the ISO 9001:2000 standard over the past thirty years, and is an internationally recognized standard for Quality Management Systems (QMS’s).

The ISO 9001:2000 standard calls for a process-based quality management system that follows the Plan-Do-Check-Act methodology. Further more it requires that all other operations in an organization be process-based as well, in order for the QMS to successfully interact with those operations.

The ISO 9001:2000 standard has five “main clauses” that set the requirements for a QMS. These five main clauses cover the QMS itself, Management Responsibility, Resource Management, Product Realization, Measurement, Analysis and Improvement.

Specific emphasis is placed on the roles that the top Management have to fulfil in order to operate the QMS effectively. There are also a number of records that need to be kept for certain functions of the QMS. These records are identified in the standard but are not described in detail.

ISO 9001:2000 is flexible enough to allow the QMS to be tailored to suite any organization’s structure and processes. This flexibility can be seen as a benefit, but also as a disadvantage due to the fact that the flexibility of the standard also makes it vague.

With the overview of the ISO 9001:2000 standard in hand the author will now proceed with a case study of a QMS that is implemented in ABC Projects (a consulting engineering company).

(40)

CHAPTER 4 :

CASE STUDY - QUALITY MANAGEMENT

IN ABC PROJECTS (A CONSULTING ENGINEERING

COMPANY)

4.1 INTRODUCTION

Having reviewed the broader subject of quality and the ISO 9001:2000 standard for QMS’s, one can now investigate how well the ABC Projects has implemented its QMS, and whether it conforms to the ISO 9001:2000 standard.

In section 4.2 the author presents a brief overview of what a consulting engineering company is and in section 4.3 the author presents an overview of ABC Projects and its operations.

Two questionnaires were prepared and circulated, one among the employees of ABC Projects, and the other among the management (directors) of the ABC Group. The purpose of the questionnaires was to acquire feedback from the employees and management regarding specific issues highlighted by the ISO 9001:2000 standard and to evaluate how well ABC Projects and the management structure it reports to, address those issues. The results of these questionnaires are presented in sections 4.4 and 4.5.

The author also makes an evaluation of the QMS employed in ABC Projects, by comparing it, clause by clause, to the ISO 9001:2000 standard. As part of this evaluation, the author interviewed the Chief Operating Officer of ABC Projects, the transcript of which is used as reference and is attached in Appendix C.

4.2 WHAT IS A CONSULTING ENGINEERING COMPANY?

Consulting engineering companies are businesses that generally offer independent technology-based intellectual services in the built, human and natural environments to clients for a fee. [7] The services offered can include:

• Administrative – Project planning, feasibility studies and management; Tender

(41)

• Technical – Investigation; Design; Implementation; etc.

• Management – Construction management; Cost Management; Quality

management; etc.

• Contractual – Co-ordination of contractors; Special forms of contract; Financial

and Legal; etc.

In essence the product that a consulting engineering company sells to its clients is the time and engineering expertise of its employees.

In addition to the above description, the South African Association of Consulting Engineers (SAACE) has a code of conduct that its members must adhere too. This code of conduct is divided into two parts – Regulatory and Good Practise Standards.

SAACE CODE OF CONDUCT - REGULATORY

Here follows a brief overview of the regulatory requirements set by the SAACE code

of conduct. Members of SAACE must [7]:

• Ensure that their conduct does not contravene the Laws of the country in which they are working.

• Take all reasonable steps to ensure that persons registered at the Engineering Council of South Africa (ECSA), in their employ, adhere to the code of conduct of ECSA.

• Adhere to the constitution, policies and by-laws of the SAACE and conduct their business so as not to bring the SAACE’s reputation into disrepute.

• Adhere to the rules and standards of the International Federation of Consulting

Engineers.

• Only undertake to provide services that are inline with their professional competence and responsibility.

• Employee professionally registered persons to lead the organization, and

control the services provided to external clients.

• Not commit acts of corruption or other misconduct.

• Notify the SAACE if any registered person in their employ is found guilty of a

Figure

Figure 2.1 Oakland’s model for TQM [3]

Figure 2.1

Oakland’s model for TQM [3] p.15
Figure 3.1 Model of a process-based QMS [1]

Figure 3.1

Model of a process-based QMS [1] p.23
Figure 3.2 The Plan-Do-Check-Act methodology [3]

Figure 3.2

The Plan-Do-Check-Act methodology [3] p.24
Figure 3.3 Generic model of a QMS

Figure 3.3

Generic model of a QMS p.26
Figure 3.4 The QMS interacting with other processes in the organization

Figure 3.4

The QMS interacting with other processes in the organization p.27
Figure 3.5 The product design and development process

Figure 3.5

The product design and development process p.33
Figure 3.6 Cost of Poor Quality vs. QMS Cost [2]

Figure 3.6

Cost of Poor Quality vs. QMS Cost [2] p.37
Table 4.1 Results of the QMS Employee Opinion Questionnaire

Table 4.1

Results of the QMS Employee Opinion Questionnaire p.45
Figure 4.1 Results of the QMS Employee Opinion Questionnaire

Figure 4.1

Results of the QMS Employee Opinion Questionnaire p.46
Table 4.2 Results of the QMS Management Opinion Questionnaire

Table 4.2

Results of the QMS Management Opinion Questionnaire p.49

References

Related subjects :
