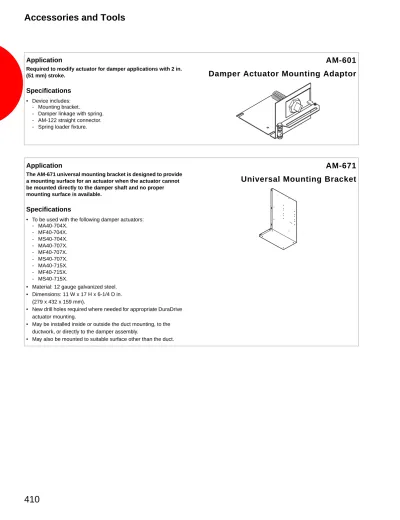

Accessories and Tools

(1)

Required to modify actuator for damper applications with 2 in. (51 mm) stroke.

Specifications

• Device includes:

- Mounting bracket.

- Damper linkage with spring. - AM-122 straight connector. - Spring loader fixture.

AM-601

Damper Actuator Mounting Adaptor

Application

The AM-671 universal mounting bracket is designed to provide a mounting surface for an actuator when the actuator cannot be mounted directly to the damper shaft and no proper mounting surface is available.

Specifications

• To be used with the following damper actuators: - MA40-704X. - MF40-704X. - MS40-704X. - MA40-707X. - MF40-707X. - MS40-707X. - MA40-715X. - MF40-715X. - MS40-715X.

• Material: 12 gauge galvanized steel. • Dimensions: 11 W x 17 H x 6-1/4 D in.

(279 x 432 x 159 mm).

• New drill holes required where needed for appropriate DuraDrive actuator mounting.

• May be installed inside or outside the duct mounting, to the ductwork, or directly to the damper assembly.

• May also be mounted to suitable surface other than the duct.

AM-671

Universal Mounting Bracket

sories

and

Tools

(2)

Application

The AM-672 universal mounting bracket is designed to provide a mounting surface for an actuator when the actuator cannot be mounted directly to the damper shaft and no proper mounting surface is available.

Specifications

• To be used with the following damper actuators: - MA40-704X. - MF40-704X. - MS40-704X. - MA40-707X. - MF40-707X. - MS40-707X. - MA40-715X. - MF40-715X. - MS40-715X.

• Material: 12 gauge galvanized steel. • Dimensions: 10-1/4 W x 13 H x 6-1/8 D in.

(260 x 330 x 156 mm).

• May be installed inside or outside the duct mounting, to the ductwork, or directly to the damper assembly.

• May also be mounted to suitable surface other than the duct.

AM-672

Universal Mounting Bracket

Application

The AM-673 multiple actuator mounting bracket makes it possible to mount two of the actuators onto one damper shaft when more torque is required.

Specifications

• To be used with the following damper actuators: - MA40-707X. - MF40-707X. - MS40-707X. - MA40-715X. - MF40-715X. - MS40-715X.

• Material: 12 gauge galvanized steel.

• Dimensions: 7 W x 3-3/8 max. H x 5-3/4 D in. (178 x 86 x 146 mm).

• Allows the mounting of two damper actuators onto one damper shaft.

AM-673

Multiple Actuator Mounting Bracket

(3)

The AM-674 weather shield provides moderate weather protection for damper actuators which are mounted outdoors. While this weather shield provides effective, moderate, weather protection it is not designed as a water-tight enclosure.

Specifications

• Material: 16 gage galvanized steel.

• Provides weather protection for the following actuators: - MX40-704X. - MX40-707X. - MX40-715X. - MX40-717X. - MF40-6043. - MS40-6043. - MF40-6083. - MS40-6083. - MF40-6153. - MS40-6153. - MF40-6343. - MS40-634X. - MS50-E2X01. - MS50-H2X01. • Dimensions: 9-1/2 W x 14 3/8 L x 6 D in. (241 x 365 x 152 mm).

AM-674

Weather Shield

Application

The AM-675 base mounting plate is used with the AM-674 weather shield if a suitable mounting surface for the weather shield is not present.

Specifications

• Material: 12 gage galvanized steel.

• Provides weather protection for the following actuators: - MX40-704X. - MX40-707X. - MX40-715X. - MX40-717X. - MF40-6043. - MS40-6043. - MF40-6083. - MS40-6083. - MF40-6153. - MS40-6153. - MF40-6343. - MS40-634X. - MS50-E2X01. - MS50-H2X01. • Dimensions: 9-5/16 W x 14-5/16 H in. (237 x 364 mm).

AM-675

Base Mounting Plate

(4)

Application

The AM-676 universal shaft extension extends the length of the damper shaft in applications where the damper shaft is too short to reach the damper actuator.

Specifications

• Length: Approximately 9-1/2 in. (13 mm). • Damper shaft sizes:

- 3/8 to 11/16 in. (10 to 17 mm) diameter for round shafts. - 3/8 to 9/16 in. (10 to 14 mm) square for square shafts. • AM-710 is required for MA40-704X series, MF40-704X series

and MS40-704X series.

• To be used with the following damper actuators: - MX40-704X. MF40-6083. - MX40-707X. MS40-6083. - MX40-715X. MF40-6153. - MX40-717X. MS40-6153 - MF40-6043. MF40-6343. - MS40-6043. MS40-634X. - MS50-E2X01. - MS50-H2X01.

AM-676

Universal Shaft Extension

Application

The AM-686 damper position indicator mounts on the actuator to indicate actuator position when the V-bolt indicator is not visible.

Specifications

• Material: Zinc dichromate plated steel. • Mounts on the following actuators:

- MX40-707X. - MX40-715X.

AM-686

Damper Position Indicator

Application

The AM-687 universal clamp assembly is used to replace the standard universal clamp assembly when a larger diameter damper shaft must be gripped, up to 1.05 in dia or up to 5/8 in sq. The AM-688 replacement universal clamp is used to clamp the actuator on shafts up to 3/4 in. dia. or up to 1/2 in. sq. Available to replace lost standard clamps shipped with actuator.

Specifications

• Material: Zinc dichromate plated steel. • Mounts on the following actuators:

- MX40-707X. - MX40-715X.

AM-687, AM-688

Universal Clamp Assembly

(5)

The AM-689 Rotation Limiter is used to limit the angle of rotation of a direct coupled damper actuator in applications where the damper does not have a proper end-stop.

Specifications

• Material: Zinc dichromate plated steel. • Maximum angle allowed: 95°. • Setting Increments: 5°.

• Actuators: MX40-707X and MX40-715X.

AM-689

Rotation Limiter

Application

The AM-690 crank arm kit is used in non-direct mounting applications for round shafts.

Specifications

• Actuators: MX40-707X and MX40-715X. • Maximum damper shaft size: 3/4 in. (19 mm).

AM-690

Crank Arm Kit

Application

The AM-691 crank arm kit is used in non-direct mounting applications for jack shafts.

Specifications

• Actuators: MX40-707X and MX40-715X.

• Maximum damper shaft size: 1.05 in. (27 mm) jackshaft.

AM-691

Crank Arm Kit

Application

The AM-692 V-bolt kit is used with the AM-690 and AM691 crank arm. The V-bolts in the kit are used for standard and larger diameter damper shafts when crank arm assembly is necessary.

Specifications

• Actuators: MX40-707X and MX40-715X. • Parts included in kit:

- (2) washers. - (2) nuts. - (2) V-bolts.

AM-692

V-Bolt Kit

(6)

Application

The AM-693 damper linkage kit provides a mechanical linkage between the damper actuator and the damper shaft when a direct coupling is not possible.

Specifications

• Actuators: MX40-707X and MX40-715X. • Parts included in kit:

- Crank arm with wire clip. - “C” mounting brackets (2) - Self-tapping metal screws (4). - Ball joints (2).

- Flat washers (4)

AM-693

Damper Linkage Kit

Application

The AM-703 span adjustment module changes non-standard current and voltage signals into a 2 to 10 Vdc signal.

Specifications

• Actuators:MS40-7043, 7073, 7153, 717X, 6083, 6153 and 6343. • Supply voltage: 24 Vac/Vdc ± 15%.

• Zero offset of 0 to 18 Vdc.

• Span adjustment: Span range of 2.6 to 17 Vdc. • Will accept 4 to 20 mA signal.

• Connection: Wire terminals, 14 gauge maximum. • Ambient temperature: -20 to 150°F (-30 to 65°C). • Humidity: 5 to 95% RH non-condensing. • Mounting: Snap-Track (provided) • Dimensions:

- Board: 1-3/16” x 2-3/16” x 9/16” (30 x 56 x 14 mm) - With Snap-Track: 1-7/8” x 2-3/8” x 15/16" (48 x 60 x 24 mm)

AM-703

Span Adjustment

(7)

Application

The AM-704 modulation interface converts signal input from a pulse-width modulated input signal to an analog 2 to 10 Vdc signal.

Specifications

• Actuators: MS40-7043, MS40-7073, MS40-7153, MS40-717X, MS40-6083, MS40-6153 and MS40-6343.

• Four input pulse clock rates. • Optically isolated input signal.

• Linear analog output has 256 steps of resolution. • Diagnostic LEDs.

• Supply voltage: 24 Vac/Vdc ± 15%. • Input:

- Isolation: Optically isolated (when wired as such). - Type: Normal or triac, jumper selectable.

- Trigger level: 12 to 24 Vac/Vdc or dry contact to com. - Time between trigger pulses: 12.5 milliseconds minimum. - Impedance: Vac - 500 ohms, Vdc - 10 ohms.

- Pulse duration/resolution: 4 selectable ranges, in seconds or dry contact or SSR closure ± 40% of signal increment. - Range 1: 0.0235 to 6 seconds/ in 0.0235 sec. increments. - Range 2: 0.0196 to 5 seconds/ in 0.0196 sec. increments. - Range 3: 0.1 to 25.5 seconds/ in 0.100 sec. increments. - Range 4: 0.59 to 2.93 seconds/ in 0.092 sec. increments. • Output:

- Voltage: 2 to 10 Vdc. - Current: 15 mA max. - Accuracy: ± 2%.

• Electrical connection: Wire terminals, 14 gauge max. • Ambient temperature: -20 to 150°F (-30 to 65°C). • Humidity: 5 to 95% RH non-condensing. • Mounting: Snap-Track (provided) • Dimensions: - Board: 2-3/16” x 2-3/16” x 9/16” (56 x 56 x 14 mm) - With Snap-Track: 2-3/8” x 2-1/4” x 15/16" (60 x 57 x 24 mm)

AM-704

Modulation Interface

Application

The AM-705 and AM-706 positioners are used for remotely controlling proportional actuators. The AM-705 is for surface mounting. The AM-706 is for flush mounting.

Specifications

• Actuators: MS40-7043, MS40-7073, MS40-7153, MS40-717X, MS40-6083, MS40-6153 andMS40- 6343.

• Control range is 0 to 100% of the actuator rotation angle. • Power supply: 24 Vac ± 20%, 50/60 Hz, 24 Vdc ± 10%. • Control Signal: 0.5 to 10 Vdc, 2 to 10 Vdc (switchable). • Power output: Up to 10 actuators (1mA max). • Degree of protection (AM-705 only): NEMA 4 (IP54). • Connection: Terminals, 14 gauge wire max. • Humidity: 5 to 95% RH non-condensing.

AM-705 and AM-706

Positioners

AM-706

(8)

Application

The AM-708 500 ohm resistor converts a 4 to 20 mA signal to a 2 to 10 Vdc signal.

Specifications

• Actuators: MS40-7043, MS40-7073, MS40-7153, MS40-717X, MS40-6083, MS40-6153 and MS40-6343. • Wire leads.

AM-708

500 Ohm Resistor

Application

The AM-709 damper shaft position indicator is used in short shaft applications to show the shaft position.

Specifications

• Actuators: MX40-704X. • Shaft sizes:

- Up to 3/4" diameter round shaft - Up to 1/2” square for square shaft. - Secured to actuator with retaining ring.

AM-709

Damper Shaft Position Indicator

Application

The AM-710 universal clamp is used to clamp the actuator to 3/4” diameter round shafts, 3/8” to 5/8" hex shafts, or 1/2” square shafts. The AM-710 is required whenever the AM-676 shaft extension is used.

Specifications

• Actuators: MX40-704X. • Shaft sizes:

- Up to 3/4" diameter round shafts. - 3/8” to 5/8” hex shafts.

- Up to 1/2” square for square shafts. - Secured to actuator with retaining ring.

AM-710

Universal Clamp

Application

The AM-711 crankarm kit attaches to the actuator and provides a crankarm for shafts up to 1/2” diameter.

Specifications

• Actuators: MX40-704X.

AM-711

Crankarm Kit

(9)

The AM-712 is a crankarm kit that includes the crankarm (AM-711) plus an actuator mounting bracket, three

flatwashers, three sheet metal screws, and three self-tapping screws. This kit is used to mount the actuator and provide a crankarm for shafts up to 1/2” diameter.

Specifications

AM-712

Crankarm Kit

Application

The AM-713 bracket is a mounting bracket for Honeywell Mod IV M6415-type actuators.

Specifications

AM-713

Bracket

Application

The AM-714 weather shield provides moderate weather protection for damper actuators which are mounted outdoors. While these weather shields provide effective, moderate, weather protection, they are not designed as a water-tight enclosure.

Specifications

• Actuators: MX40-704X, MX40-707X, MX40-715X, MX40-6083, and MX40-6153.

• Clear, smoke-tinted polycarbonate.

• Dimensions: 13" x 6" x 9.5” (330 x 152 x 241 mm) Note: Cannot be used with aux. switch mounted models

MF40-6083 series, MS40-6083 series, M40-6153, and MS40-6153.

AM-714

Weather Shield

(10)

Application

The AM-715 is a crankarm kit that includes the crankarm (AM-711) plus an angled plate mounting bracket, two self-tapping screws, and two flat washers. This kit is used to mount the actuator and provide a crankarm for shafts up to 1/2” diameter. This kit can be used with Honeywell Mod IV M6415-type actuators.

Specifications

• Actuators:MX40-704X.

AM-715

Crankarm Kit

Application

The AM-717 replacement universal clamp is used to clamp the actuator up to 5/8 in. dia. or up to 1/2 in. sq. Available to replace lost standard clamps shipped with actuator.

AM-717

Universal Clamp

Application

The AM-720, AM-721, AM-722 and AM-723 auxiliary switches can be added to the DuraDrive MX-6083 and MX-6153 electric actuators. These provide greater control of the actuator movement. Typical applications include control and feedback for the MX40-6083 and MX40-6153 non-spring return actuators for damper control. This includes air handling units, unit ventilators, and inlet guide valves.

Specifications

• Actuators: MX40-6083, MX40-6153.

• Power requirements: 24 Vac, 50/60 Hz, 2 Watts, 6 VA. • Connections: 3 ft. (1m) 18 AWG color-coded appliance cable. • Ambient temperature limits:

- Shipping and storage: -40 to 176°F (-40 to 80°C) - Operating: 20 to 131°F (-7 to 55°C).

• Location: NEMA 2 (IEC IP54).

AM-720, AM-721, AM-722, AM-723

Auxiliary Switches

0˚ 90˚ 0˚

(11)

The AM-724 and AM-725 potentiometers can be added to the DuraDrive MX-6083 and MX-6153 electric actuators. These provide greater control of the actuator movement. Typical applications include control and feedback for the MX40-6083 and MX40-6153 non-spring return actuators for damper control. This includes air handling units, unit ventilators, and inlet guide valves.

Specifications

• Actuators: MX40-6083, MX40-6153.

• Power requirements: 24 Vac, 50/60 Hz, 2 Watts, 6 VA. • Connections: 3 ft. (1m) 18 AWG color-coded appliance cable. • Ambient temperature limits:

- Shipping and storage: -40 to 176°F (-40 to 80°C) - Operating: 20 to 131°F (-7 to 55°C).

• Location: NEMA 2 (IEC IP54).

AM-724 and AM-725

Potentiometers

Application

The AM-726 accessory kit provides for changing the actuator rotary motion to linear motion for the MF40-6043 and MS40-6043 series 35 in.-lb. non-spring return direct coupled damper actuators.

Specifications

• Contains: - Swivel clamps (2) - Bracket (1) - Crank arm (1) - Bushing (1) • Actuators: - MF40-6043 - MS40-6043

AM-726

Accessory Kit

Application

The AM-727 accessory kit provides for changing the actuator rotary motion to linear motion for the MF40-6043 and MS40-6043 series 35 in.-lb. non-spring return direct coupled damper actuators.

Specifications

• Contains: - Swivel clamps (2) - Crank arm (1) - Bushing (1) • Actuators: - MF40-6043 - MS40-6043

AM-727

Accessory Kit

0˚ 90˚ 0˚ 90˚

(12)

Application

The AM-728 accessory kit provides a conduit connection for the MF40-6043 and MS40-6043 series 35 in.-lb. non-spring return direct coupled damper actuators.

Specifications

• Contains:

- Adaptor mounting bracket. - Conduit adaptor. - Mounting screws (2). • Actuators: - MF40-6043 - MS40-6043

AM-728

Accessory Kit

Application

The AM-751 and AM-752 anti-rotation brackets are used to hold the actuator in position during operation. The AM-752 is for mounting in narrow spaces.

Specifications

• Material: zinc dichromate plated steel.

• Provides a narrow mounting option for the following actuators: - MA40-717X. - MF40-717X. - MS40-717X. - MF40-6343. - MS40-634X. - MS50-H2X01. - MS50-E2X01.

AM-751 and AM-752

Anti-rotation Bracket

Application

The AM-753 and AM-754 shaft mounting clamps are used to clamp the actuator to the damper shaft. The AM-753 is used for a 5/8” (16 mm) square shaft, or 3/4” to 1” (19 mm to 25 mm) round shaft. Two clamps are in each package. The AM-754 is used for a 3/8” to 1/2” (10 to 13 mm) round and square shaft. Two clamps are in each package.

Specifications

• Material: zinc dichromate plated steel. • For use with the following actuators:

- MA40-717X. - MF40-717X. - MS40-717X. - MF40-6343. - MS40-634X.

AM-753, AM-754

Universal Mounting Clamps

AM-751

AM-752

(13)

Application

The AM-755 manual override crank is used to manually position the actuator for setup and installation.

Specifications

• For use with the following actuators: - MF40-6343

- MS40-634X

AM-755

Manual Override Crank

Application

The AM-756 metric conduit adaptor is used with the following actuator series: MX40-704X, MX40-707X, MX40-715X, MX40-717X, and MX40-634X.

Specifications

• Material: zinc plated, low carbon steel. • Adapts 1/2” NPT threads to M20 threads.

AM-756

Metric Conduit Adaptor

Application

The AM-758 universal mounting bracket is designed to provide a mounting surface for the MX40-707X and MX40-715X actuators when the actuators cannot be mounted directly to the damper shaft and no proper mounting surface is available. The bracket allows both vertical and horizontal mounting. The bracket requires the AM-690 and AM-691 crankarm kit be used.

Specifications

• Material: 12-gauge galvanized steel.

• May be installed inside or outside the duct, mounting to the duckwork, or directly to the damper assembly.

• When used as a replacement it will place the crankarm in the same relative position as the Honeywell™ Mod IV actuators.

AM-758

Universal Mounting Bracket

(14)

Application

The AM-759 universal mounting bracket is designed to provide a mounting surface for the MX40-707X and MX40-715X actuators when the actuators cannot be mounted directly to the damper shaft and no proper mounting surface is available. The bracket allows both vertical and horizontal mounting. The bracket requires the AM-690 and AM-691 crankarm kit be used.

Specifications

• When used as a replacement it will place the crankarm in the same relative position as the Honeywell™ Mod III actuators.

AM-759

Universal Mounting Bracket

Application

The AM-760 universal mounting brackets are designed to provide a mounting surface for the MX40-707X and MX40-715X actuators when the actuators cannot be mounted directly to the damper shaft and no proper mounting surface is available. The bracket allows both vertical and horizontal mounting. The bracket requires the AM-690 and AM-691 crankarm kit be used.

Specifications

• Provided with hole patterns to mount the actuators in a horizontal or vertical position.

AM-760

Slotted L Mounting Bracket

(15)

The AM-761 and AM-762 anti-rotation brackets are used to secure the MX40-707X and MX40-715X actuators and prevent them from rotating around the shaft. Available to replace lost anti-rotation brackets shipped with actuator.

Specifications

• AM-761: 7 inch length. • AM-762: 9 inch length.

AM-761, AM-762

Anti-rotation Bracket

Application

Duct status pressure sensing tips.

Specifications

• Mounting hardware provided. • 1/4 in. for plastic or copper end fitting. • Construction: Brass

• Mounting location: Areas with air turbulence caused by filters, dampers, etc.

• Dimensions: Insertion length 4 in. (102 mm); 5 L x 2-1/2 W in. (127 x 64 mm).

• For use with: - P323 Series. - PC-301. - PF-300 Series. - PP-1012. - PP-3013. - PP-3113. - PP-8121. - PP-8516. - PP-8616. - PP-8621. - PKS-323. - R435. - R436.

AP-302

Static Pressure Probe

(16)

Application

Duct status pressure sensing tips.

Specifications

• Mounting hardware provided. • 1/8 in. pipe thread end fitting. • Construction: Brass with S.S. tee end. • Mounting location: Very low actuating pressure. • Dimensions: 8-3/4 L x 2-1/2 W in. (222 x 64 mm). • For use with:

- P323 Series. - PC-301. - PF-300 Series. - PP-1012. - PP-3013. - PP-3113. - PP-8121. - PP-8516. - PP-8616. - PP-8621. - PKS-323. - R435. - R436.
