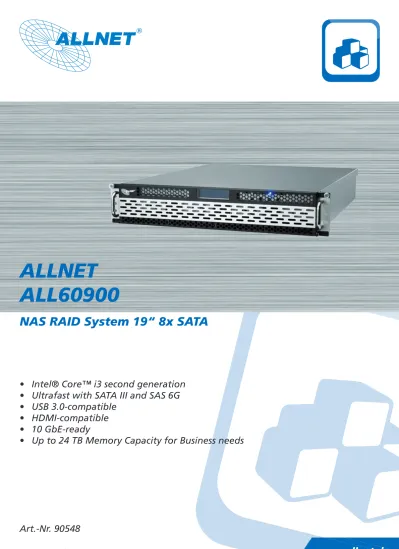

NAS RAID System 19“ 8x SATA
• Intel® Core™ i3 second generation
• Ultrafast with SATA III and SAS 6G
• USB 3.0-compatible
• HDMI-compatible
• 10 GbE-ready
• Up to 24 TB Memory Capacity for Business needs
ALLNET
High-performance data centers often need a level of speed, an average internet connection today can not provide. This ALLNET NAS is ready for 10Gb Ethernet so that it meets the most demanding requirements of today and tomorrow.
USB 3.0 compatible
The next-generation interface is there - and equal to 10 times faster than USB 2.0. Whether connecting digital cameras and smart phones, backing up large external hard drives or extend the capacity of your NAS with USB 3.0 with 5 Gbit / sec. everything is done in no time. Backwards compatible with all USB 2.0 and USB 1.1 devices can continue to be used with such connections - the ideal combination of speed and universal usability.
Dual DOM
A Disk On Module (DOM) contains all critical system software. If it stops working for any reason, your system fi rmware could be inac-cessible - or worse. In ALLNET‘s unique Dual DOM design (OS Redundancy), a secondary DOM automatically reprograms the primary DOM should a failure occur. This means that your data is always safe and accessible.
Multiple RAID modes
When it comes to data management, you really have with the NAS from ALLNET free hand. Create different RAID volumes each supporting different RAID modes, including RAID 0, 1, 5, 6, 10, 50, 60 and JBOD. Depending on the importance of performance or data protection. If a disk failure occur, is not a problem to replace a disk thanks to online RAID migration and expansion, hot spare and automatic rebuild
Several fi le systems
Support for multiple fi le systems including Ext3, EXT4, and XFS, ALLNET NAS allows fl exible compatibility with many different ty-pes of environments. Users can simultaneously use different fi le systems across multiple RAID volumes to avail the benefi ts of all.
iSCSI Thin Provisioning
Optimize the extremely fast speed of iSCSI and the effi ciency of iSCSI thin provisioning out of your storage space. You connect via iSCSI and take advantage of the fastest data transfer rates. A waste of space is defi nitely over with the fl exible memory function of thin provisioning.
Rsync
The security of your data is very important, and each has specifi c needs when it comes to his memory. ALLNET‘s Rsync functio-nality gives you the option for remote backup capability, a fl exible scheduler, and the stability of Linux-based data transmission great fl exibility.
PCI-e slot
ALLNET’s NAS products are ready for a new set of technologies. Thanks to the built-in PCI-e slot professional users can add a 10G Ethernet Adaptor for lightning-fast transfer speeds, or add a USB 3.0 adapter card interface of the next generation.
Item Specifi cation
Processor Intel® Core™ i3-2120 System memeory 8 GB DDR3 SDRAM
LAN-Interface (PCI-e) RJ-45x3: Intel 82574L 10/100/1000 BASE-TX Auto MDI/MDI-X, WOL-support USB-Interface USB 2.0 Host-Port x6 (2x vorne, 4x hinten) (Typ A) USB 3.0 Host-Port x2 (2x hinten)
LED-Display Operating: (blue) System busy: (yellow) System alarm: Error of the redundant power supply or the fan (red) HDD 1-8 Aktivität/Fehler (green/red)
OLED Displays system status and information (Multilingual) HDMI-Output HDMI-Port (1x rear)
Audio microphone input, Line-Input, Audio output SAS/SATA Controller (HBA), PCI-e
(8-lane)
LSI 2008 HBA-Karte supports 6G SAS/SATA (x8) Disk-Interface 8 x SATA internal 1 x eSATA external
Power Supply Redundant power supply 500W or more (80plus)
PCI-e Slots 8-Lane (x3), one is used by SAS HBA 4-Lane (x1) 1-Lane (x1), is used by CU30N (USB 3.0) Thermal-/Fan control Thermal sensor to measure processor temperature, CPU-fan control, Systemfan control System fan Hot-Swapping-able (x2)
Keys Power button (Frontside, shutdown controlled by user interface) LCM-Taste (ENT, ESC, UP, DOWN) System-Reset-button, Locator-button
RS232 1 (for UPS)
Environment Temperature: 5°C to 40°C Humidity: 0 ~ 80 % rel. Humidity (non condensed) Chassis 2U-Rackmount
RAID
RAID-Modi RAID 0, 1, 5, 6, 10, 50, 60 and JBOD Automatic reconstruction supported
Hot-swap supported Dedicated Hot-Spare supported Global Hot-Spare supported Online-RAID-Migration supported Online-RAID-Expansion supported RAID-Volume-Encryption supported
Disk
Power management Shutdown available in the idle setting Bad-Block-Scanning supported
SMART-Info supported SMART-Test supported
Disk-Roaming Roaming to other ALL60900 supports
Network
Confi guration Fixed IP-Adresse, dynamic IP-Adresse IP-Sharing-Mode can be enabled / disabled
Transport protocols TCP/IP/AppleTalk
File protocols SMB/CIFS, HTTP/HTTPS, FTP, NFS v4, AFP
Link-Aggregation Load balance, failover, 802.3ad, Balance-XOR, Balance-TLB, Balance-ALB
Data access
supported Client-operating systems Windows 2000/XP/2003/Vista/7 UNIX/Linux Mac OS 9/X FTP Integrated FTP-Server with bandwidth control
Secure FTP Integrated Secure FTP-Server with bandwidth control Download-Manager HTTP/FTP/BitTorrent/eMule (via modul)
Print Server (IPP) Supports USB printer (list / delete) Supports various IPP printers printing tasks can be managed by the client through a Web interface
Backup
NAS-Remote-replication Dual-Modus, volume-based (Rsync Modul) Incrementel synchronised USB-Copy to ALL60900 controlled by LCM
Bidirectional USB-Copy supported (über Modul) Mac time machine supported
Item Specifi cation
Block Level Access
iSCSI Target/Initiator supports Microsoft/Mac OS X/Linux initiators and ALLNET NAS targets iSCSI-Thin-Provisioning Confi gurable to virtual size 16TB
MPIO supported MCS supported SCSI3 Persistent Group Reservation supported
Power Management
programmed Switching supported Volume-Management
Multiple RAID supported Multiple fi le system selectable EXT3/EXT4/XFS Multimedia-Support Multimedia-Support
iTunes-Server supported File types: AAC, MP3 with ID3-Tag, WAV Media server supports uPnP-AV-Streaming-Protocol
User authentication
Local user Supports built-in user accounts local group Supports built-in user groups Windows ADS supported
File system
Type Journaling File System
Capacity 24 TB (XFS)/ 16 TB (EXT4)/ 8 TB (EXT3) pro Volume supported languages Unicode
Authorisierung (ACL) Assignment of read-write or Deny options on individual users and / or groups for share and sub-folders
Benutzerquote supported
Administration
User interfaces Web-based user interface supports English, Traditional Chinese, Simplifi ed Chinese, Japanese, Korean, French, German, Italian, Spanish, Russian, Polish and Portuguese.
Utility-Programm MS Windows Assistent supports Windows 2000/XP/2003/Vista/7 Mac OS X Setup-Assistent
e-mail notifi cation Sends system messages via email to the system administrator SNMP-Trap Systeminformation, Trap-Out
Bidirektional USB-Copy supported (via modul) Mac time machine supported
