A Hardware Fixed-Point Multiplier/Divider.
A Hardware Fixed-Point Multiplier/Divider.
Nicholas Arpad Balatoni University of Windsor
Follow this and additional works at: https://scholar.uwindsor.ca/etd
Recommended Citation Recommended Citation
Balatoni, Nicholas Arpad, "A Hardware Fixed-Point Multiplier/Divider." (1971). Electronic Theses and Dissertations. 6655.
https://scholar.uwindsor.ca/etd/6655
by
NICHOLAS ARPAD BALATONI
A Thesis
Submitted to the F a c u l t y o f Graduate Stud ies through the Department o f E l e c t r i c a l Engineering in P a r t i a l F u l f i l l m e n t o f the Requirement f o r the Degree of
Master of Applied Science a t the U n i v e r s i t y o f Windsor
UMI Number: EC53048
INFORMATION TO USERS
The quality of this reproduction is dependent upon the quality of the copy
submitted. Broken or indistinct print, colored or poor quality illustrations and
photographs, print bleed-through, substandard margins, and improper
alignment can adversely affect reproduction.
In the unlikely event that the author did not send a complete manuscript
and there are missing pages, these will be noted. Also, if unauthorized
copyright material had to be removed, a note will indicate the deletion.
®
UMI
UMI Microform EC53048
Copyright 2009 by ProQuest LLC.
All rights reserved. This microform edition is protected against
unauthorized copying under Title 17, United States Code.
ProQuest LLC
789 E. Eisenhower Parkway PO Box 1346
APPROVED:
ABSTRACT
T h i s work des cr ibe s the design and implementation o f a lo w - c o s t
Hardware F i x e d - P o i n t M u l t i p l i e r / D i v i d e r to be used p r i m a r i l y w i t h
the PDP-8/S computer.
I t was deemed advantageous t o have the use o f such a de v ic e
i n s i t u a t i o n s where n e i t h e r an Extended A r i t h m e t i c Element nor the
Data Break F a c i l i t y were a v a i l a b l e and where a t the same time f a s t
M u l t i p l i c a t i o n and D i v i s i o n o p e r a t i o n s were r e q u i r e d - such a p p l i c a
t i o n s may occur i n o n - l i n e c o n t r o l and i n g r a p h i c s . The dev ic e
c on s tr u c t e d has a maximum M u l t i p l i c a t i o n time o f 90 microseconds,
a minimum M u l t i p l i c a t i o n time o f 18 microseconds, and a D i v i s i o n time
o f 155 microseconds. The speed thus obtained i s a t l e a s t 15 times
f a s t e r than the speed obt ain ed using s ub ro ut in e M u l t i p l i c a t i o n and
D i v i s i o n .
The de v ic e c o n s i s ts o f t h r e e 1 2 - b i t r e g i s t e r s which make up the
main working a r e a s , a s e r i a l A d d e r / S u b t r a c t e r , two 4 - b i t counters
and the a p p r o p r i a t e M u l t i p l i e r and D i v i d e r C o n t r o l l e r s a t an ap
proximate c o s t o f $2000.
To ac hi e v e M u l t i p l i c a t i o n the Leech A l g o r i t h m was used i n
which the l a s t t h r e e d i g i t s o f the M u l t i p i i e r a re compared and ac
c o r d i n g l y t he a p p r o p r i a t e o p e r a t i o n i s c a r r i e d o u t . For D i v i s i o n ,
the Booth A l g o r i t h m was adopted. In t h i s method the f i r s t b i t o f the
D i v i s o r and the f i r s t b i t o f the P a r t i a l Remainder a re compared and
f e a t u r e s and the M u l t i p l i e r / D i v i d e r proved to be a v a l u a b l e a d d i t i o n
ACKNOWLEDGEMENTS
The aut hor wishes t o express hi s a p p r e c i a t i o n to
Dr. P. A .V . Thomas f o r his s u p e r v i s i o n and continuous a s s i s ta n c e
durin g the course o f t h i s r e s e a r c h . Fur th erm or e, the a u t h o r ' s thanks
go to the N a t i o n a l Research Council o f Canada f o r i t s generous
ACKNOWLEDGEMENTS « V
TABLE OF CONTENTS Vt
LIST OF ILLUSTRATIONS v i i i
LIST OF TABLES i x
Chapter
I- INTRODUCTION
1.1 P r e l i m i n a r y Co n s id e r a ti o n s 1
1 . 2 General O u t l i n e 5
I I PHILOSOPHY OF DESIGN
2.1 Algo rithm s Used 9
2 . 1 . 1 M u l t i p l i c a t i o n Algo rithm s 9
2 . 1 . 2 D i v i s i o n Al gor it hm s 17
2 . 2 Basic Timing Requirements: M u l t i p l i e r 20
2 . 3 Basic Timing Requirements: D i v i d e r 22
I I I SYSTEM LOGIC
3.1 " M u l t i p l i c a n d / D i v i s o r " R e g i s t e r (AR) 26
3 . 2 "Ac c um ul a to r/ Di v id e nd /M o s t S i g n i f i c a n t
R e s ul t" R e g i s t e r (BR) 28
3 . 3 “M u l t i p l i e r / Q u o t i e n t / L e a s t S i g n i f i c a n t
R e s ul t" R e g i s t e r tDR) 31
3 . 5 Pulse Counter 43
3 . 6 Cycle Counter 48
3 . 7 L e f t / R i g h t S h i f t Pulse and Level C o n t ro l s 53
3 . 8 M u l t i p l i e r C o n t r o l l e r 55
3 . 9 D i v i d e r C o n t r o l l e r 59
3 . 1 0 I / O , C l o c k , and Flag C i r c u i t s 61
3.11 T o t a l Sequence o f O per ati on 64
IV PERFORMANCE
4 . 1 Cost R e a l i z a t i o n 67
4 . 2 Speed R e a l i z a t i o n 68
4 . 3 R e l i a b i l i t y and Accuracy w i t h E r r o r
Discussion 71
V USE AND LIMITATIONS
5.1 I n s t r u c t i o n Set 73
5 . 2 M u l t i p l i e r Programme 76
5 . 3 D i v i d e r Programme 77
5 . 4 Some L i m i t a t i o n s 77
5 . 5 F i n a l Conclusions and Suggestions 80
APPENDIX
A Sample C a l c u l a t i o n s 82
B Sample R es ult s 87
REFERENCES 89

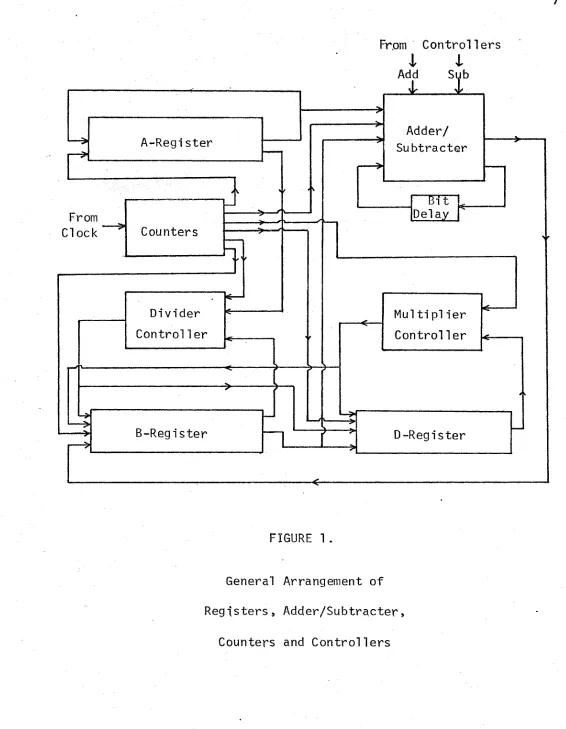

1 - General Arrangement o f R e g i s t e r s , Adder/
S u b t r a c t e r , Counters and C o n t r o l l e r s 7

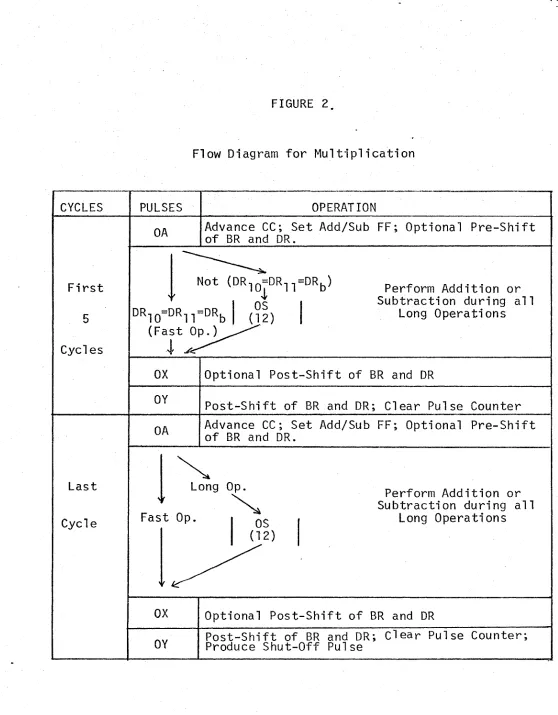

2 Flow Diagram f o r M u l t i p l i c a t i o n 16
3 Flow Diagram f o r D i v i s i o n 21

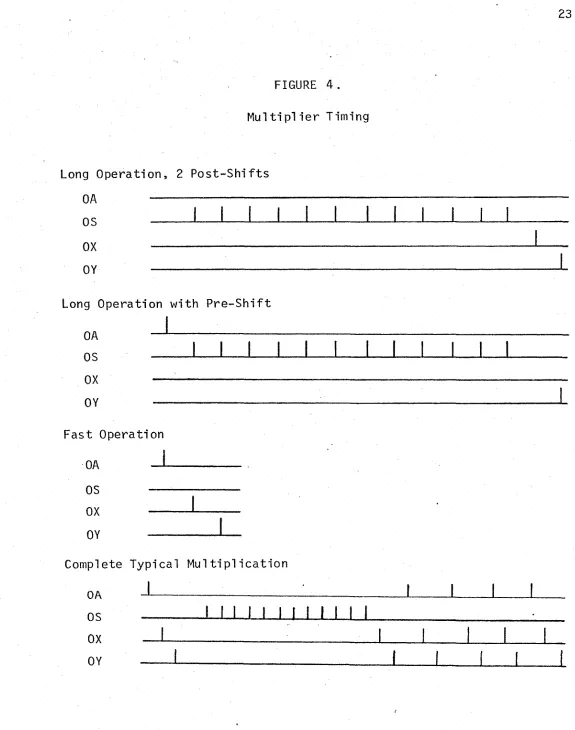

4 Timing Pulses f o r M u l t i p l i e r 23
5 Timing Pulses f o r D i v i d e r 25

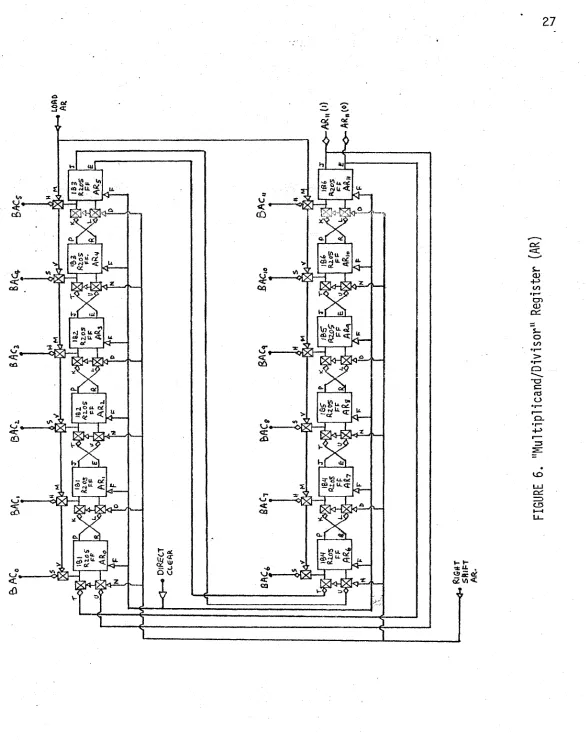

6 " M u l t i p l i c a n d / D i v i s o r " R e g i s t e r (AR) 27

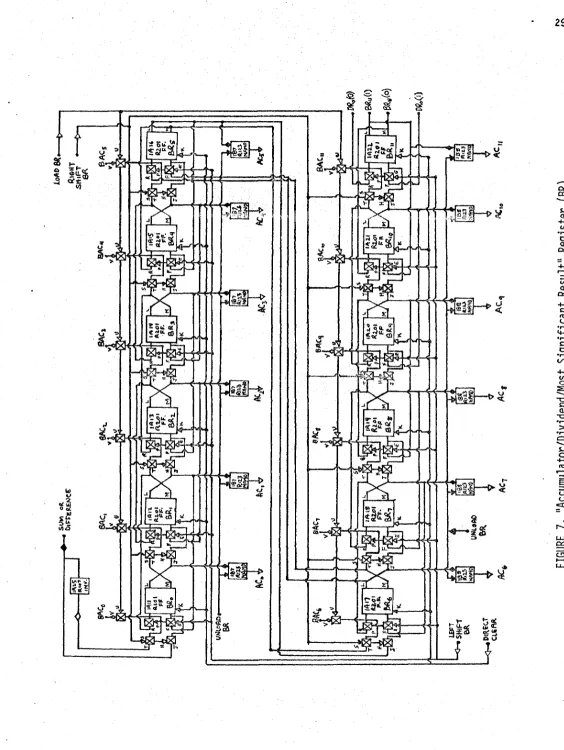

7 • "A c c um ul a to r/ Di v id e nd /M o s t S i g n i f i c a n t
Re s ul t" R e g i s t e r (BR) 29
8 " M u l t i p l i e r / Q u o t i e n t / L e a s t S i g n i f i c a n t
R e s u l t " R e g i s t e r (DR) 32
9 A d d e r / S u b t r a c t e r 42
10 Pulse Counter 44
11 Cycle Counter 50
12 L e f t / R i g h t S h i f t Pulse and Level Control 54
13 M u l t i p l i e r C o n t r o l l e r 56
14 D i v i d e r C o n t r o l l e r 60
LIST OF TABLES
T a b l e Page
l . a Booth A l g o r i t h m f o r M u l t i p l i c a t i o n 11
l . b Leech A lg o ri t h m f o r M u l t i p l i c a t i o n 13

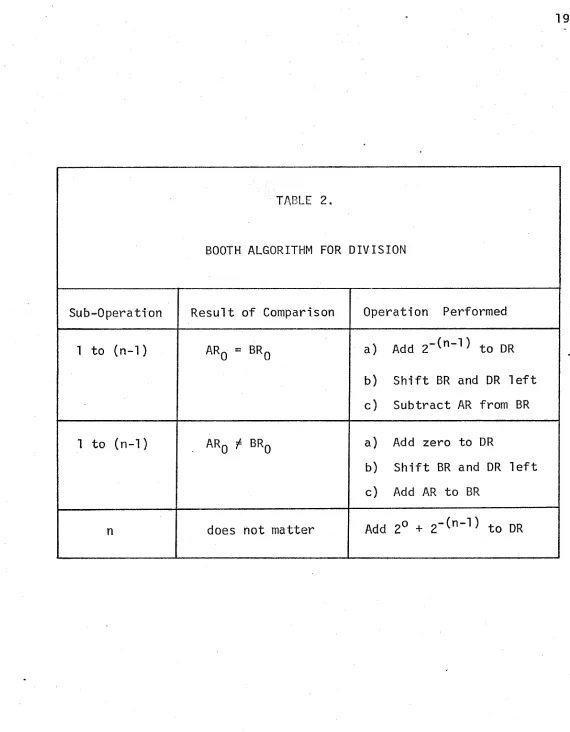

2 Booth A l g o r i t h m f o r D i v i s i o n 19
3 H a l f - A d d e r f o r ( X+Y ) 36
4 F u l l - A d d e r f o r ( X+Y ) 37
5 H a T f - S u b t r a c t e r f o r ( X-Y ) 38
6 F u l l - S u b t r a c t e r f o r ( X-Y ) 39
1.1 P r e l i m i n a r y C o n s i d e r a t i o n s .
When thought i s given to the design o f a M u l t i p l i e r / D i v i d e r ,
some p r e l i m i n a r y s p e c i f i c a t i o n s must f i r s t be o u t l i n e d . T h i s in c l u d e s
a re v ie w o f a l r e a d y e x i s t i n g require men ts w i t h thought being given to
the environment in which the de v ic e w i l l be used and t o e x i s t i n g f e a s
i b l e equipment and components t h a t a r e a v a i l a b l e to the d e s i g n e r .
The need t h a t gave r i s e t o the i n i t i a l , idea o f a Hardware
F i x e d - P o i n t M u l t i p l i e r / D i v i d e r came about because o f the a v a i l a b i l i t y
o f an i n s t a l l a t i o n t h a t c o n s is ts o f a PDP-8/S D i g i t a l Computer and
i t s a s s o c ia t e d p e r i p h e r a l d e v i c e s . T h is computer is one o f the
e a r l i e r l o w - c o s t mini-computers o f the D i g i t a l Equipment Company.
The PDP-8/S computer i s equipped w i t h a bus-type I / O channel making
i t s u i t a b l e f o r the a d d i t i o n o f 64 p e r i p h e r a l d e v i c e s . These devices
a re e x t e r n a l to the computer proper and a re r e a d i l y programmable
through t h e r e g u l a r I / O channels w i t h the a i d o f the I / O s k i p f a c i l i t y .
The a r i t h m e t i c u n i t provided i n the PDP-8/S i s a o n e - b i t f u l l
s e r i a l a d d e r, and, using i t , s u b t r a c t i o n may be performed by f i r s t
making one number ne g a ti v e and then per forming an a d d i t i o n . With
t he hi g h e r l i n e o f PDP computers t h e r e is an Extended A r i t h m e t i c
E l e m e n t ( E A E ) a v a i l a b l e w h i c h c a n a l s o b e u s e d f o r M u l t i p l i c a t i o n
and f o r D i v i s i o n . The EAE performs p a r a l l e l a r i t h m e t i c op e ra t i o n s
on p o s i t i v e b in a r y numbers o n l y . Because o f i t s p a r a l l e l n a t u r e , i t
2
from 9 . 0 to 2 1 . 0 microseconds and a d i v i s i o n in a tim e o f 3 6 . 5 m i c r o
seconds. However, on these hig he r l i n e s o f PDP computers, the sub
r o u t i n e f o r signed m u l t i p l i c a t i o n r e q u i r e s 4 0 . 5 to 6 6 . 0 microseconds
and the s u b r o u t i n e f o r signed d i v i s i o n r e q u i r e s 6 5 . 0 microseconds.
By comparison, i t i s p o s s i b l e t o perform signed m u l t i p l i c a t i o n and
signed d i v i s i o n on the PDP-8/S using s u b r o u t i n e s , but the m u l t i p l i
c a t i o n s u b r o u t i n e , as observed in an ac tua l t e s t programme, r e q u i r e d
up t o 6 m i l l i s e c o n d s ; t h i s i s o f course v e ry slow. I t must be
considered f u r t h e r t h a t memory and processor i n s t r u c t i o n times on the
hi g h e r l i n e s o f computers range from 1 . 5 to 4 . 0 microseconds,
compared w i t h times o f 2 0 . 0 t o 4 0 . 0 microseconds per i n s t r u c t i o n on
th e PDP-8/S. The EAE f u r t h e r m o r e r e q u i r e s t h e presence o f the Data
Break F a c i l i t y a v a i l a b l e on the PDP-8 but not a v a i l a b l e on the PDP-8/S.
Thus, times o f up to 100 microseconds f o r m u l t i p l i c a t i o n and 160
microseconds f o r d i v i s i o n , ex c lu d in g sto ra g e t i m e s , would be deemed
q u i t e rea s o na b le and advantageous f o r the proposed d e v i c e .
I t can be e a s i l y concluded then t h a t s u b r o u t i n e m u l t i p l i c a t i o n
and d i v i s i o n a r e not f e a s i b l e t o use i n a p p l i c a t i o n s where l o g i c a l
d e c i s i o n s i n v o l v i n g these two o p e r a t i o n s , or where f r e q u e n t use o f
these op e ra ti on s , a r e r e q u i r e d t o t a k e place r a p i d l y . Such a p p l i
c a t i o n s may e a s i l y occur i n o n - l i n e c o n tr o l and in g r a p h i c s .
U n d e n i a b l y , the s p e e d o f the de v ic e and i t s c os t must be o f
prime i n t e r e s t . To gain speed two t h i n g s may be co n si de re d, namely,
the type o f components t h a t w i l l be used and the type o f a r i t h m e t i c
d e v i c e com pa ti bl e w i t h the PDP-8/S, DEC components p r o v i d e the l o g i c a l
types o f modules t o be used. The two types o f n e g a t i v e l o g i c
modules a v a i l a b l e a re the 2MHZ and the 10 MHZ modules. Thus, to gain
a t best f i v e times the speed, the high speed components should be
used which would p r a c t i c a l l y double the cost o f t he proposed d e v i c e .
S i m i l a r i l y , t o gain speed in the a r i t h m e t i c , p a r a l l e l
o p e r a t i o n s should be adopted. The d i f f e r e n c e i n c o s t i s however
p r o h i b i t i v e due t o t he f a c t t h a t i n s t e a d o f having one A d d e r / S u b t r a c t
e r as f o r s e r i a l a r i t h m e t i c , in p a r a l l e l a r i t h m e t i c one Adder/Sub
t r a c t e r i s r e q u i r e d f o r each b i t o f the 12 b i t r e g i s t e r s used.
The answer t o the re q ui re m e n t problem must l i e then i n the
time c r i t e r i a placed on a s i n g l e m u l t i p l i c a t i o n and on a s i n g l e
d i v i s i o n . To gain an idea o f thes e t i m e s , an examination of the
c a p a b i l i t i e s and requirements o f the a l g o r it h m s used i s c a l l e d f o r .
The a l g o r i t h m s , found in S e c t io n 2 . 1 , suggest t h a t s i x c y c le s a r e r e
q u ir e d f o r M u l t i p l i c a t i o n , and tw e lv e cy c le s f o r D i v i s i o n .
Co nsid er ing a p a r a l l e l A d d e r / S u b t r a c t e r and 4 pulse times per c y c l e ,
M u l t i p l i c a t i o n would r e q u i r e 24 pulse times o r le s s .due to the
e x i s t e n c e o f the Fa s t Op er ati o n which can occur under c e r t a i n con
d i t i o n s t o be discussed l a t e r . Considering 3 pulse times per c y c l e
and 11 f u l l c y c le s plus one s h o r t c y c l e , d i v i s i o n would r e q u i r e 34
puls e t i m e s . I f a s e r i a l A d d e r / S u b t r a c t e r i s c o n s i d e r e d w i t h t w e l v e
pulse times per A d d i t i o n or S u b t r a c t i o n , a M u l t i p l i c a t i o n would
r e q u i r e 90 pulse times or l e s s , and d i v i s i o n would r e q u i r e 155 pulse
4
I f the most expensive proposal were adopted ( 10MHZ modules
and p a r a l l e l o p e r a t i o n ) M u l t i p l i c a t i o n and D i v i s i o n times o f 5 and
7 microseconds r e s p e c t i v e l y could be a c hie ve d. Since an I / O
i n s t r u c t i o n time on the PDP-8/S is 38 microsecond^, such speed i s not
j u s t i f i e d f o r the added cost because o f a l l th e overhead, or
unused, t i m e .
I f the s e r i a l A d d e r / S u b t r a c t e r were used and 10MHZ modules,
18 and 30 microseconds may be r e a l i z e d f o r t he M u l t i p l i c a t i o n and
D i v i s i o n o p e ra t i o n s r e s p e c t i v e l y . Th is would indeed c o n f i n e the
d e v i c e o p e r a t i o n time w i t h i n one I / O i n s t r u c t i o n t i m e . However, i f
the p r i c e d i f f e r e n c e i s considered between t he 10MHZ and 2MHZ
modules, and the f a c t too t h a t some i n t e r f a c i n g i s r e q u i r e d between
the two types i f used i n com bi n a tio n, the proposal i s s t i l l an
u n j ' u s t i f i a b l y expensive one.
L e t the proposal which was f i n a l l y accepted be now c o n s id e r e d ,
t h a t i s , using s e r i a l a r i t h m e t i c and 2MHZ components. I t was found
t h a t the maximum speed o b t a i n a b l e , due t o c a r r y propa gat ion in
counters ( 4 stages) and i n s h i f t r e g i s t e r s is 1.3MHZ. However,
c o n s id e r in g 1MHZ o p e r a t i o n , each pulse time ( tim e from the s t a r t
o f a pulse t o the s t a r t o f the n e x t ) i s one microsecond. Th is then
y i e l d s a M u l t i p l y time o f 90 microseconds or l e s s , and a D i v i s i o n time
o f 1 5 5 mic r o s e c o n d s . C o n s i d e r i n g t h e p r e s e n c e o f the F a s t - O p e r a t i o n ,
the minimum time f o r a M u l t i p l i c a t i o n i s 18 microseconds ( 6 cy c le s
o f 3 puls e times e a c h ) . An I / O Skip f a c i l i t y i s a v a i l a b l e a t no
D i v i s i o n o p e r a t i o n should exceed one I / O i n s t r u c t i o n t im e . The
M u l t i p l i c a t i o n O p e r a t i o n , the main purpose o f the d e v i c e , never
exceeds 3 1 / 0 times and in most cases i t can be completed w i t h i n
2 I / O t i m e s , i e . 76 microseconds. Since i t i s expected t h a t
D i v i s i o n w i l l be much les s used than M u l t i p l i c a t i o n , t he performance
times thus ac qu ire d a re q u i t e a c c e p t a b l e . At t h i s t i m e i t should be
f u r t h e r poin te d out t h a t the d e v ic e w i l l be a b l e t o M u l t i p l y and
D i v i d e 1 2 - b i t signed b i n a r y numbers which g iv e s the added advantage
o f no t having t o perform sign conversions by s o f t w a r e . Th is would
i n d i c a t e an advantage even over the EAE, a u n i t which f u r t h e r r e q u i r e s
the Data Break F a c i l i t y . Furth erm ore , since t he M u l t i p l i e r / D i v i d e r
i s an e x t e r n a l d e v i c e , i t i s r e a d i l y usable n o t o n l y w i t h the PDP-8/S
but w i t h o t h e r PDP 1 2 - b i t word computers.
1 . 2 General O u t l i n e .
I t i s p o s s ib l e to d e s c r i b e the M u l t i p l i e r / D i v i d e r by d i s
cussing i n general terms t he major se c tio ns o f i t s block diagram.
Because one may m u l t i p l y two 1 2 - b i t signed b i n a r y numbers, by
the n a t u r e o f M u l t i p l i c a t i o n the r e s u l t w i l l y i e l d i n many cases a
b i n a r y number t h a t i s more than 1 2 - b i t s but never more than 2 4 - b i t s
lon g. Thus, i t i s necessary to prov ide a double le n g th r e g i s t e r from
which the r e s u l t can be e x t r a c t e d in two t w e lv e b i t segments through
the r e g u l a r programmed I / O cha n ne ls . The u n i t then r e q u i r e s two
s i n g l e le n g th r e g i s t e r s which a t the end o f the o p e r a t i o n w i l l
6
r e s u l t .
Fu rth er m or e, i t i s necessary t o load i n - t h r o u g h t he I / O
c ha n n e ls - the two numbers on which the a r i t h m e t i c o p e r a t i o n i s to be
performed. In order t o r e t a i n t he M u l t i p l i c a n d w h i l e the i n t e r m e d i a t e
o p e r a t i o n s , a d d i t i o n and s u b t r a c t i o n , t a k e p l a c e a t h i r d r e g i s t e r i s
necessary. I t i s found t h a t d u r i n g the D i v i s i o n o p e r a t i o n t h i s
t h i r d r e g i s t e r w i l l c o n ta i n the D i v i s o r .
For i d e n t i f i c a t i o n purposes, l e t the r e g i s t e r used t o s t o r e
the M u l t i p l i c a n d / D i v i s o r be c a l l e d the A - R e g i s t e r (AR). Also the
r e g i s t e r t o hold t he Most S i g n i f i c a n t R e s u l t or in D i v i s i o n , the
D i v i d e n d , s h a l l be c a l l e d the B - R e g i s t e r ( B R ), and the t h i r d r e g i s t e r ,
t o hold th e L e a s t S i g n i f i c a n t R e s u l t / M u l t i p l i e r / Q u o t i e n t , s h a l l be
c a l l e d the D - R e g i s t e r ( D R ) .
These t h r e e r e g i s t e r s p r o v i d e the main working areas i n t o
which data i s lo a d e d , i n which a l l s h i f t i n g t ake s p l a c e , in which
the i n t e r m e d i a t e r e s u l t s a r e held and from which the f i n a l answers a re
e x t r a c t e d . F i g u r e 1 gi ve s the Block Diagram form of the M u l t i p l i e r /
D i v i d e r .
Also noted i n F i g u r e 1 , the f o u r t h major bl o ck in the
diagram i s th e A d d e r / S u b t r a c t e r . An i n s p e c t i o n o f th e a l g o r it h m s in
Se c ti on 2. 1 shows t h a t i n some cases i t i s necessary t o perform an
A d d i t i o n b e t w e e n t h e c o n t e n t s o f AR and BR, a n d i n o t h e r c a s e s a
S u b t r a c t i o n o f the conte nts o f AR from BR i s r e q u i r e d . I n 2 ‘ s
complement a r i t h m e t i c , a S u b t r a c t i o n may be performed by complement
From C o n t r o l l e r s
1 i
Add
✓ I From
Clock
Bi t Delay
Control 1er D i v i d e r Counters
Mul t i pi i e r
C o n t r o l ! e r
D-Reg i s t e r B - R e g i s t e r
A-Regi s t e r
Adder/ S u b t r a c t e r
FIGURE 1.
General Arrangement o f
R e g i s t e r s , A d d e r / S u b t r a c t e r ,
8
when the F u l l A d d e r / S u b t r a c t e r was developed from) Boolean Functions
( r e f e r t o Se c ti on 3 . 4 ) , t t was found t h a t a F u l l Adder and a F u l l
S u b t r a c t e r were r e a d i l y combined such t h a t t h e A d d i t i o n or S u bt ra c
t i o n o f two 1 2 - b i t signed numbers y i e l d e d the c o r r e c t l y signed
1 2 - b i t r e s u l t , w i t h o u t the need f o r the complement and increment
o p e r a t i o n .
The blo ck l a b e l l e d "COUNTERS" serves t h e purpose o f
g e n e r a t i n g and d i s t i n g u i s h i n g from each o t h e r the t w e lv e OS pulses
necessary f o r A d d i t i o n or S u b t r a c t i o n , and t h e c o n t r o l pulses OA, OB,
OX and OY used f o r s h i f t purposes. There a r e two counters however,
one being the Pulse Counter and t he o t h e r being the Cycle Counter.
These a r e d e a l t w i t h in d e t a i l in Sect ions 3 . 5 and 3 . 6 r es p e c
t i v e l y .
Not i nc lu ded in the blo ck diagram a re two major s e c tio ns
t h a t c o n t r o l the M u l t i p l i c a t i o n and D i v i s i o n processes which are
d e t a i l e d i n Sections 3 . 8 and 3 . 9 r e s p e c t i v e l y . These u n i t s compare
the a p p r o p r i a t e d i g i t s o f AR, BR and DR, y i e l d i n g d e c i s io n s as to
which pulses a re a p p l i e d to the r e g i s t e r s and whether A d d i t i o n ,
S u b t r a c t i o n or n e i t h e r i s t o be c a r r i e d out i n each c y c l e o f the
p a r t i c u l a r o p e r a t i o n .
For s i m p l i c i t y i n t he block diag ram , t h e c l o c k , f l a g s and
I / O c o n t r o l c i r c u i t s a r e a l s o o m i t t e d , b u t t h e y a r e d i s c u s s e d a t
C h a p t e r II
P H I L O S O P H Y OF DESIGN
2.1 A lgo rit hm s Used.
2 . 1 . 1 M u l t i p l i c a t i o n A l g o r i t h m s .
The most common forms o f auto ma tic m u l t i p l i e r s a r e the s e r i a l
and p a r a l l e l t y p e , as discussed by P . A .V . Thomas T h e i r g r e a t
l i m i t a t i o n i s t h a t they a r e a b l e t o handle p o s i t i v e numbers o n l y ,
such t h a t a c o r r e c t i v e s u b ro ut in e must be int ro du ce d when n e g a t i v e
numbers must a ls o be handled. T h e i r mode o f o p e r a t i o n i s one o f
continued a d d i t i o n , one a d d i t i o n f o r each b i t o f the e n t i r e word
l e n g t h . This occurs i n a s e r i a l m u l t i p l i e r where only one adder is
u t i l i z e d . I n the p a r a l l e l m u l t i p l i e r , one adder i s r e q u i r e d f o r
each b i t i n the word l e n g t h . To the above l i m i t a t i o n must then be
added one o f slow speed or high c o s t r e s p e c t i v e l y in the two cases
mentioned.
Since i t was decided t o use th e s e r i a l mode o f o p e r a t i o n , a
(o\
scheme suggested by Dr s. A.D. Booth and K .H .V . B o o t h v 'was
i n v e s t i g a t e d . This scheme i n v o lv e s a s e r i a l m u l t i p l i e r which y i e l d s
the c o r r e c t l y signed product o f two signed i n p u t numbers. The
method compares the l e a s t s i g n i f i c a n t b i t o f the M u l t i p l i e r w i t h an
10
s u b t r a c t s the M u l t i p l i c a n d to the P a r t i a l Product i n the accumulator.
T h is occurs i f these two d i g i t s t h a t a r e compared d i f f e r from each
o t h e r . I f the two d i g i t s a re the same, the P a r t i a l Product i s l e f t
u n a l t e r e d . The c o n te n t o f the M u l t i p i i e r R e g i s t e r and Accumulator
a r e s h i f t e d one pl ac e t o the r i g h t i n each c y c l e f o r the number of
cyc les as t h e r e are b i t s in a word l e n g t h . On a 1 2 - b i t word on
low speed modules and s e r i a l o p e r a t i o n t h i s would mean a M u l t i p l i c a
t i o n time o f a pp ro x im a t e ly 170 microseconds.
I n quest f o r a f a s t e r method o f M u l t i p l i c a t i o n , the method
proposed by J.W. Leech^^was adopted i n which the l a s t two
s i g n i f i c a n t d i g i t s o f the M u l t i p l i e r R e g i s t e r , along w i t h the e x t r a
M u l t i p l i e r R e g i s t e r b i t , a r e compared and the M u l t i p l i e r and P a r t i a l
Product a r e r i g h t - s h i f t e d t w i c e , i n t h i s manner almost h a lv i n g the
M u l t i p l i c a t i o n time w i t h o n l y a s l i g h t in c r e a s e in c o s t .
The Booth A l g o ri t h m f o r M u l t i p l i c a t i o n may be simply s t a t e d
in t a b u l a r form as shown in Ta b le l . a . In th e t a b l e , the P a r t i a l
Product i s given t he s h o r t form PP, the M u l t i p l i e r , MLR, and the
M u l t i p l i c a n d i s shortened to MND.
Motitig t h a t o n l y two d i g i t s a re compared, the l a s t M u l t i p l i e r
b i t and the e x t r a b i t a s s oc ia te d w i t h the M u l t i p l i e r R e g i s t e r , on ly
f o u r combinations o f these two b i t s can occur. A c c o r d i n g l y , the
TABLE 1 .a
BOOTH ALGORITHM FOR MULTIPLICATION
M u l t i p l i e r D i g i t s
O p e r a ti o n Performed
bn bn+l
—
*
•—
1
o
o
—
«
o
—
*
o S h i f t PP and MLR one p la c e r i g h t
Add MND t o PP and s h i f t PP and MLR one p l a c e to th e r i g h t
S u b t r a c t MND from PP and s h i f t PP and MLR one p l a c e to th e r i g h t
S h i f t PP and MLR one p l a c e t o the r i g h t
r e l a t i v e l y si mp le . Booth and Booth f u r t h e r o f f e r a r e c u r s i v e formula
f o r the above process and t h i s formula is giv e n i n Equation ( 1 )
below.
an-p = O / 2 ) *an- p + i + ( b n- p + l ~ bn - p ^ M; f o r P=1 > ( h - 1 )
In t h i s equ ati o n a'n i s t he v a lu e o f the accumulator a t t he p
stage o f the proces s, and M i s the v a l u e o f t h e M u l t i p l i c a n d .
On the basis o f t h i s r e c u r s i v e f o r m u l a , Booth and Booth g i v e
a c o n s t r u c t i v e pr oof by means o f a s t a g e - w i s e s u b s t i t u t i o n o f the
v al ues o f 1p 1. A f t e r the s u b s t i t u t i o n s , a l l the equations are
r\ 1
m u l t i p l i e d by a power o f 2 , namely 2 p“ , then t he equa tions are
summed and r ea r ra n ge d to form an equation o f the type a-j = b.M and
i n t h i s way the A l g o ri t h m i s proved.
As noted e a r l i e r , the r e c u r s i v e for mula encountered by Booth
and Booth i s a r e l a t i v e l y simple one due t o t h e f a c t t h a t o n l y two
d i g i t s a r e compare and on ly the f o u r p o s s i b l e combinations must be
accounted f o r . When a t t e n t i o n i s d i r e c t e d t o the Leech A l g o r i t h m ,
i t i s found t h a t t h r e e d i g i t s are compared. Th is g iv e s r i s e to
e i g h t d i f f e r e n t p o s s i b l e patterns-. To show t h i s , the Leech
A l g o r i t h m f o r M u l t i p l i c a t i o n i s now s t a t e d i n t a b u l a r form as shown
below in T a b l e l . b in which a l l a b b r e v i a t i o n s o f Ta b le l . a hold and
a l l s h i f t i n g i s t o the r i g h t .
TABLE l . b
LEECH ALGORITHM FOR MULTIPLICATION
M u l t i p i i e r D i g i t s
O per ati on Performed
bn - l bn bn+l
0 0 0 F a s t - O p e r a t i o n , 2 P o s t - S h i f t s o n ly
0 1 0 Add MND to PP, 2 P o s t - S h i f t s
1 0 0 1 P r e - S h i f t , S u b t r a c t MND from PP, 1 P o s t - S h i f t
1 1 0 S u b t r a c t MND from PP, 2 P o s t - S h i f t s
0 0 1 Add MND to PP, 2 P o s t - S h i f t s
0 1 1 1 P r e - S h i f t , Add MND t o PP, 1 P o s t - S h i f t
1 0 1 S u b t r a c t MND from PP, 2 P o s t - S h i f t s
any l i t e r a t u r e , and as a consequence, i t was decided t o c o n s t r u c t a
r e c u r s i v e formula t h a t would com ple te ly d e s c r i b e the A l g o r i t h m . A
more complex for mu la was expected and the equa tion t h a t was f i n a l l y
found i s as shown i n Equation ( 2 ) .
an - 2 p = ( 1 / 8 ) - an - 2 p + 2 ^ 2" ^ 1 / 2 ^ * ^ bn - 2 p + brt-2p+l T 2bn - 2 p - l ^ "
l bn - 2 p " bn - 2 p + l 1 ^ - H + 0 / 2 ) • ( l bn-2 p + 2 + bn-2p+3 "
2bn - 2 p + l ^ * ^ " l bn-2p+2 " bn - 2 p + 3 I ^ + ^ bn - 2 p “ bn - 2 p - l ^
^ " bn - 2 p " bn - 2 p - l ^ * l bn - 2 p “ bn - 2 p + l ^ * M
The n o t a t i o n used f o r Equation ( 1 ) a l s o a p p l i e s f o r Equation ( 2 ) .
The c o e f f i c i e n t , 1 / 2 , i n Equation ( 1 ) appears because a r i g h t s h i f t
i s performed d u ri n g each c y c l e . This r i g h t s h i f t i s the d i g i t a l
e q u i v a l e n t o f m u l t i p l y i n g by 1 / 2 . Thus i t i s not s u r p r i s i n g to f i n d
t he c o e f f i c i e n t 1 / 8 i n Equation ( 2 ) f o r , i f two p o s t - s h i f t s and one
p r e - s h i f t t a k e p la c e b e f o r e the a d d i t i o n or s u b t r a c t i o n , the c o e f
f i c i e n t m u l t i p l y i n g the 1 / 8 i s 1. I f o n l y two p o s t - s h i f t s have
occurred be f o r e the a d d i t i o n or s u b t r a c t i o n , t h i s c o e f f i c i e n t i s 2.
Th i s i s a l s o the case i f a p o s t - s h i f t and a p r e - s h i f t haye taken
p l a c e . I f on ly one p o s t - s h i f t occurred b e f o r e the a d d i t i o n or
s u b t r a c t i o n , the c o e f f i c i e n t i s 4 . The m u l t i p l y i n g c o e f f i c i e n t
b e f o r e the accumulator term thus becomes 1 / 8 , 1 / 4 , 1 / 4 or 1 / 2
depending on whether 3 , 2 or 1 s h i f t s have o c c u rre d.
in a c o n s t r u c t i v e p r o o f , th e equ ati on a t each stage must be
m u l t i p l i e d by the power o f two t h a t has occurred i n t he previous -i, r
s t a g e .a nd to t h a t power must a l s o be added th e number o f p o s t - s h i f t s
and p r e - s h i f t , i f any, t h a t have occurred j u s t b e f o r e the a d d i t i o n
or s u b t r a c t i o n t h a t i s about to t a k e pla ce d u rin g t h i s s t a g e .
Due t o the c o m p l e x it y o f the equations and the d i f f i c u l t i e s
which a r i s e from i t , a c o n s t r u c t i v e pr oo f w i l l not be o f f e r e d here.
However, a sample c a l c u l a t i o n showing the method i s given in the Ap
pe n di x . The mere purpose o f the above d is c u s s io n i s t o p o i n t out
how the c o m p le x it y Of the r e c u r s i v e for mula in c r e a s es as more
d i g i t s o f the M u l t i p l i e r a re compared a t each stage o f the
M u l t i p l i c a t i o n process. In passing i t may be f u r t h e r mentioned t h a t ,
i f an a l g o r i t h m were designed such t h a t f o u r d i g i t s would be
compared a t a t i m e , t h r e e r i g h t s h i f t s would have t o be c a r r i e d out
a t each stage and the whole M u l t i p l i c a t i o n could be c a r r i e d out in
f o u r c y c l e s . The d i f f e r e n c e in the time r e q u i r e d f o r a M u l t i p l i c a t i o n
i n t h i s way would o f course not j u s t i f y th e c o m p l e x i t y t h a t would
a r i s e i n th e c o n t r o l c i r c u i t s o f the process.
Thus, the Leech A l g o r i t h m was adopted f o r M u l t i p l i c a t i o n
because th e time f o r one M u l t i p l i c a t i o n could be halved i n
comparison to the Booth Method and because the d i f f e r e n c e i n costs
was found to be a c c e p t a b l e even when the in c r e a s e in the c os t o f
the more complex c o n t r o l l e r l o g i c was c on s id e re d.
The Flow Diagram f o r M u l t i p l i c a t i o n i s given i n Fi g ur e 2 where
16
FIGURE 2.
Flow Diagram f o r M u l t i p l i c a t i o n
CYCLES PULSES OPERATION
F i r s t
5
Cycles
OA Advance CC; Set Add/Sub F F ; O pt io n a l P r e - S h i f t o f BR and DR.
> DRio=t
(Fa«
J
Not (
)Rn =DRb ; t Op. )
DR-, n- D R - . D R . ) n _ - I * *, .
10i 11 b Perform A d d i t i o n or i S u b t r a c t i o n during a l l
(1 2) Long Oper ations
OX Op ti on a l P o s t - S h i f t o f BR and DR
OY
P o s t - S h i f t o f BR and DR; C l e a r Pulse Counter
L a s t
Cycle
OA Advance CC; Set Add/Sub FF; Op tional P r e - S h i f t o f BR and DR.
>
Fas
>
X
Long 0
t Op.
' ieZL
P* Perform A d d i t i o n or S u b t r a c t i o n during a l l
Long Oper ations (1 2)
OX Opti ona l P o s t - S h i f t o f BR and DR
c y c le s r e q u i r e d and w i t h r e s p e c t to the number o f pulses r e q u i r e d
per c y c l e .
2 . 1 . 2 D i v i s i o n A l g o r it h m s .
To achi ev e D i v i s i o n on a b i n a r y base computer, t h e r e a r e two
a l t e r n a t i v e processes a v a i l a b l e , namely, the standard t r i a l and
e r r o r method and the n o n - r e s t o r i n g method.
In the f i r s t case, the D i v i s o r i s compared w i t h the P a r t i a l
Remainder a t each s u b - o p e r a t i o n , and i f the former q u a n t i t y i s the
l e s s e r , a s u b t r a c t i o n i s performed and a ' 1 ' i s added to the l e a s t
s i g n i f i c a n t b i t o f the Q u o t i e n t R e g i s t e r . I f , however, the D i v i s o r
i s g r e a t e r than the P a r t i a l Remainder, then nothing i s done except
a zero i s added to the l e a s t s i g n i f i c a n t end o f the Q u o ti e n t
R e g i s t e r . The Q u o t ie n t and the P a r t i a l Remainder a re then doubled
( i e . s h i f t e d l e f t one p l a c e ) and the u n i t i s ready f o r the ne x t sub
o p e r a t i o n i n the D i v i s i o n process.
To ac hieve the above process i n hardware, the e a s i e s t method
t o use i s t o s u b t r a c t the Q u o ti e n t from the P a r t i a l Remainder, t e s t
the sign and, i f n e g a t i v e , add the D i v i s o r back t o the P a r t i a l
Remainder. The l i m i t a t i o n s o f t h i s method a re t h a t only p o s i t i v e
numbers can be handled and the method i s slow c o n s id e r in g the number
o f r e - a d d i t i o n s t h a t must take p l a c e .
The s e c o n d m e t h o d , w h i c h was f o u n d t o b e p r e f e r a b l e an d w h i c h
was adopted f o r t h i s work, i s the n o n - r e s t o r i n g method. As (2)
18
p o s i t i v e and n e g a t i v e numbers and r e q u i r e s no r e - a d d i t \ o n s t o t a k e
p l a c e . The time o f a l l D i v i s i o n o p e ra t i o n s i s thus f i x e d a t as niany
word le n g th s as t h e r e a r e b i t s i n one word. I n t h i s case a word i s
t w e l v e b i t s long.
L e t i t be assumed t h a t the D i v i s o r (m) i s s t o r e d i n the
A-R e g i s t e r ( A A-R ) , the Dividend ( a ) i n B - A-R e g i s t e r (BA-R ), and the Q u o ti e n t
(b ) w i l l appear i n the D - R e g i s t e r (DR) a t th e completion o f the
D i v i s i o n process. The Booth A l g o ri t h m as s t a t e d by Booth and Booth
i s given in Ta b le 2.
I t should be noted t h a t i n the D i v i s i o n process i n t e g e r s are
not ob tai n ed i n the Q u o t i e n t . The form o f th e answer i s such t h a t
a b i n a r y p o i n t e x i s t s a f t e r the sign b i t . As an example the number
0 . 1 0 000 000 000 r e p re s e n ts the r e s u l t 1 / 2 . T h i s occurs because by
t h e n a t u r e o f the A l g o ri t h m the Q u o t i e n t , a/m = b , i s generated o n l y
i n cases where m > a . I t i s thus r e q u i r e d t o s c a l e th e v a l u e o f m
i n cases where m < a u n t i l m > a. The D i v i s i o n i s then c a r r i e d out
and the Q u o t i e n t may be r e - s c a l e d to o b t a i n the t r u e v a lu e o f the
r e s u l t .
Booth and Booth g i v e a c o n s t r u c t i v e p r o o f i n d e t a i l based on
t he f o l l o w i n g r e c u r s i v e for mu la :
r k = 2 r k - i + 0 - 2bk )-"'
where r^ i s the remainder a f t e r the k o p e r a t i o n and b. i s the ■f* h
k d i g i t o f the P a r t i a l Remainder ( b ) . A s t a g e -w i s e s u b s t i t u t i o n
TABLE 2.
BOOTH ALGORITHM FOR DIVISION
Sub-Operation R e s u l t o f Comparison O p e r a ti o n Performed
1 to ( n - 1 ) ARo = BR0 a ) Add 2 " ( n_1) t o DR
b) S h i f t BR and DR l e f t
c) S u b t r a c t AR from BR
1 to ( n - 1 ) AR0 f BRq a) Add zero to DR
b) S h i f t BR and DR l e f t
c) Add AR t o BR
20
a p p r o p r i a t e power o f two. The equ ations thus ob tai n ed a re then added
and the r e s u l t i n g equ ati o n i s r ea r ra n ge d u n t i l an expression is
obt aine d i n the form a/m = Q u o t i e n t . The r e s u l t generated i s c o r r e c t
i n a l l r es p e c ts except f o r the s i g n . To c o r r e c t the sign u n i t y i s
added to the r e s u l t . The above scheme ge n e ra te s the t r u e Q u o t i e n t ,
a/m, r e g a r d l e s s o f the signs o f 'a* and 'm*.
I n T a b l e 2. i t i s shown t h a t 2 - ^n_^ i s added to the Q u o ti e n t
i n t he t w e l f t h or l a s t c y c l e . Th is i s o p t i o n a l s in c e i t s purpose i s
t o g i v e t he l e a s t biased r o u n d - o f f e r r o r as w i l l be discussed in
S e c t i o n 4 . 3 . A sample c a l c u l a t i o n i s given in the Appendix.
The Flow Diagram f o r D i v i s i o n i s given i n F i g u r e 3 , in which
a D i v i s i o n i s de s c ri be d w i t h r e s p e c t t o the number o f cyc les
r e q u i r e d and w i t h r e s p e c t t o the number o f pulses r e q u i r e d per c y c l e .
2 . 2 Basic Timing Requirements: M u l t i p l i e r .
According to the M u l t i p l i c a t i o n A l g o r i t h m , s i x basic cy c le s
a re r e q u i r e d to accomplish the M u l t i p l i c a t i o n o p e r a t i o n . The pulse
req uir eme nts i n each c y c l e are no t n e c e s s a r i l y t he same because 15
pulses a re r e q u i r e d in a c y c l e i n v o l v i n g a Long Op er ati o n and on ly
3 pu ls es a r e necessary i n a c y c l e i n v o l v i n g a Fa s t O p e r a ti o n .
I n both types o f c y c l e s , the f i r s t pulse i s the OA pu ls e .
T h is p u l s e i s n e c e s s a r y i n c a r r y i n g o u t a p r e - s h i f t , an i n i t i a l
r i g h t s h i f t o f BR and DR, f o r s e t t i n g a f l i p - f l o p t o block ou t
the o p t i o n a l OX p u l s e , f o r g e n e r a t i n g the Jam Pulse i n t he Fa s t
FIGURE 3.
Flow Diagram f o r D i v i s i o n
CYCLES PULSES OPERATION
Fi r s t
10
Cycles
OA
Advance CC; Set Add/Sub FF; Add ' 1 ' or 'O' t o DR
OB L e f t S h i f t BR and DR
OS
( 1 2 ) Perform A d d i t i o n or S u b t r a c t i o n
L a s t
Cycl e
OA Advance CC; Set Add/Sub F F ; Add ' 1 ‘ or 'O' to DR
OB L e f t S h i f t BR and DR
OS (1 2 )
Perform A d d i t i o n or S u b t r a c t i o n
On 0S-|2 Complement DRQ and Produce
22
de s ir e d s t a t e .
In t he Fast O p e r a t i o n , the Jam Pulse advances the Pulse
Counter by 12. I n the Long O p e r a t i o n , a f t e r t h e OA p u l s e , 12 pulses
a r e produced t o c a r r y out the a d d i t i o n or s u b t r a c t i o n . These tw e lv e
OS pulses a re channeled t o AR and BR, and a l s o t o the A d d e r / S u b t r a c t e r .
A f t e r the OA pulse i n the Fa s t O p e r a t i o n , and a f t e r O S ^ in
the Long O p e r a t i o n , two more pulses a r e produced, OX and OY. Each
o p e r a t i o n r e q u i r e s two r i g h t s h i f t s due to t h e number o f b i t s being
compared. When a p r e - s h i f t has taken pl ac e on pulse OA, the r i g h t
s h i f t o f BR and DR a re blocked out on t he OX p u l s e , and the mand
a t o r y second r i g h t s h i f t occurs on the OY p u l s e . When no p r e - s h i f t
has taken p l a c e , the r e q u i r e d two r i g h t s h i f t s are performed using
the OX and OY p u ls e s .
In F i g u r e 4 a re shown diagrams o f t he t i m i n g pulses f o r the
d i f f e r e n t types o f cy c le s encountered along w i t h the t o t a l sequence
o f pulses f o r a complete M u l t i p l i c a t i o n .
2 . 3 Basic Timing Requirements: D i v i d e r .
No a l g o r i t h m i c s h o r t c u t s have been i n c o r p o r a t e d i n t o the
D i v i s i o n process, making the f i r s t eleven cy c le s i d e n t i c a l as a l l
pulses a re mandatory.
The process begins w i t h g e n e r a t i n g an OA p u l s e . On t h i s
pulse the A d d / S u b t r a c t F l i p - F l o p is s e t t o t he d e s i r e d s t a t e and
a ls o a ' 1 ' or 'O' i s added i n t o the l e a s t s i g n i f i c a n t b i t o f DR,
FIGURE 4 .
M u l t i p l i e r Timing
Long O p e r a t i o n , 2 P o s t - S h i f t s
0A
---I
I
I
I
i
I
I I
OS
OX
OY
Long O pe ra tio n w i t h P r e - S h i f t
OA
OS
OX
OY
F a s t O per ati on
OA
OS
OX
OY
Complete T y p i c a l M u l t i p l i c a t i o n
OA
OS
OX
OY
I I
I
I
I
I
I I
1 I
L
I_____ L
I I I J . . J . J 1 1 1 .... 1 1 1
1 1 1 1 1 1
24
the Cycle Counter by one.
The next pulse t h a t i s generated is t he OB p u l s e , the s o l e
purpose o f which is t o perform a s i n g l e l e f t s h i f t on BR and DR.
T h i s s h i f t could not be performed on the OA pulse s inc e DR-j-j r e q u i r e s
a t l e a s t 400 nanoseconds to s e t t l e when i n i t i a l l y pulsed by OA.
A f t e r OB, the tw e lv e OS pulses are gen e ra te d. These pulses
perform the a d d i t i o n or s u b t r a c t i o n as d i c t a t e d by t he A d d / S u b t ra c t
F l i p - F l o p .
Once the el even i d e n t i c a l cy c le s have been completed, the
* D i v i s i o n i s e s s e n t i a l l y f i n i s h e d . However, as s t a t e d in the
d is c u s s io n o f the a l g o r i t h m , a t the completion o f the D i v i s i o n o p e ra
t i o n the sign b i t i s i n c o r r e c t . Thus a t w e l f t h c y c l e i s necessary to
c o r r e c t t h i s c o n d i t i o n . I t c o n s i s t s o f a s i n g l e pulse which changes
the sign o f the Q u o t i e n t by complementing DRQ. A c t u a l l y i t was
found t h a t since the D - R e g i s t e r i s pulsed o n l y on the OB p u l s e s ,
the 0 S-J2 pulse o f the e l e v e n t h c y c l e can be used t o c o r r e c t the
s i g n .
I n F ig u r e 5 a r e shown an example o f t he e le v e n i d e n t i c a l cycles
and an example o f the t w e l f t h c y c l e pulse t i m i n g , w h i c h occurs in
r e a l i t y on the O S ^ pulse and i s used f o r s h u t - o f f and f o r the
F i r s t Eleven I d e n t i c a l Cycles
OA — I--- :_____ ;______
QB — 1---
---Eleve nth Cycle S h u t - O f f Timing
OA---— ^---
---O B ______ I____________________________
---26
CHAPTER I I I
SYSTEM LOGIC
3.1 M u l t i p l i c a n d / D i v i s o r R e g i s t e r (AR).
T h i s r e g i s t e r , as i t s name i m p l i e s , i s m a i n l y used f o r the
s t or age o f the M u l t i p l i c a n d and the D i v i s o r . By n e c e s s i t y , the
sto ra g e must be n o n - d e s t r u c t i v e s in c e these two numbers a r e necessary
i n each stage o f the M u l t i p l i c a t i o n or D i v i s i o n o p e r a t i o n s . The
c i r c u i t diagram o f AR i s shown i n FIGURE 6.
The f a c i l i t i e s necessary a r e the d i r e c t c l e a r , load i n , and
t he r i g h t s h i f t o p e r a t i o n s , in a d d i t i o n to which i t must be a
c i r c u l a t i n g s h i f t r e g i s t e r in or de r t o r e t a i n th e 1 2 - b i t number
s tor ed in i t . I t was found t h a t the R-205 F l i p - F l o p was v e r s a t i l e
enough t o meet the above r e q u i r e m e n t s . The bussed d i r e c t c l e a r
t e r m i n a l s achi ev e th e c l e a r o p e r a t i o n . The t h i r d DCD gate in each
F l i p - F l o p achieves the l o a d - i n o p e r a t i o n by bussing the pulse i n p u t .
Also the l e v e l i n p u t o f each DCD gate is the corresponding ou tpu t l i n e
from the Accumulator of t he PDP-8/S.
The DCD gates a t the gated Set and gated C l e a r t e r m i n a l s a re
used f o r s h i f t i n g by cro s s -c o n n e c ti n g the o u t p u t o f the previous
F l i p F l o p t o the l e v e l in p u t o f the DCD gates o f the f o l l o w i n g F l i p
-F l o p . T h u s when t h e p u l s e i n p u t s o f t h e s e DCD g a t e s a r e pu l s e d , t h e
s h i f t i n g o f the con tents o f one F l i p - F l o p t o t he n e x t i s a c hi e v e d.
To c r e a t e the c i r c u l a t i n g r e g i s t e r , the ou t p u t o f the l a s t F l i p - F l o p
28
F I i p - F l o p o f AR.
Fur th er m or e, i t i s necessary t o make the conte nts o f A R^
a v a i l a b l e t o the A d d e r / S u b t r a c t e r a t each i n s t a n c e o f s h i f t i n g . AR
thus becomes t he r e q u i r e d c i r c u l a t i n g sto ra g e r e g i s t e r .
3 . 2 Ac c um u la t o r /D iv id e n d /M o s t S i g n i f i c a n t R e s u l t R e g i s t e r ( B R ) .
Beside p r o v i d i n g a f a c i l i t y f o r l o a d in g i n t he D i v i s o r , t h i s
r e g i s t e r i s a l s o used as an accumulator t o hold the P a r t i a l Product
d u ri n g the i n t e r m e d i a t e steps o f M u l t i p l i c a t i o n o p e r a t i o n . The
c i r c u i t diagram o f BR i s shown in FIGURE 7 .
Due t o the f a c t t h a t D i v i s i o n was a l s o include d in the hard
w a re , i t became necessary t o pro v id e not only the r i g h t s h i f t but
a l s o the l e f t s h i f t f a c i l i t y . Fu rth er m or e, t he d i r e c t c l e a r , load
i n and unload f a c i l i t i e s were a l s o found necessary. Thus, t h e DEC
R201 modules, which pro v id e f i v e DCD i n p u t gates were s e l e c t e d . Two
o f these gates a r e used f o r r i g h t s h i f t i n g as n e c e s s i t a t e d i n
M u l t i p l i c a t i o n , two more a r e used f o r l e f t s h i f t i n g as r e q u i r e d in
D i v i s i o n , and the f i f t h DCD gate i s used f o r lo a d i n g in d a t a .
To achi ev e the unload f a c i l i t y , one o u t p u t ga te had to be
provided f o r each F l i p - F l o p in the r e g i s t e r . The R123 NAND-gate
module was s e l e c t e d f o r t h i s purpose so t h a t , when these gates are
p u l s e d , th e conte nts o f
BR
a re t r a n s f e r r e d t o the PDP-8/S accumulatorthrough the I / O c a b l e s . The outputs o f th e f i r s t b i t , i e .
B R q ,
a r ecompared i n D i v i s i o n w i t h the outputs o f ARQ t o det erm ine the
o p e r a t i o n t h a t i s to be performed. Thus the out puts o f
B R
q a r e fedCO.
o
o
4 ■*.
k.
i I*
30
must be made a v a i l a b l e t o the A d d e r / S u b t r a c t e r in M u l t i p l i c a t i o n and
i n D i v i s i o n . Furthermore the outputs o f BR^-j must a l s o be s up pl ie d
t o DRq in M u l t i p l i c a t i o n v i a the r i g h t s h i f t l e v e l c o n t r o l , f o r ,
e f f e c t i v e l y in t he process BR and DR form a double l e n g th r e g i s t e r
f o r the 2 4 - b i t r e s u l t o f M u l t i p l i c a t i o n .
A g a in , r i g h t s h i f t i s achieved by the c ro s s -c o n n e c ti o n o f the
o u t p u t of the lower b i t to the l e v e l i n p u t o f the ne x t hig her b i t .
L e f t s h i f t on the o t h e r hand i s accomplished by the c ro s s -c o n n e c ti o n
o f th e out put o f the hi g h e r b i t to t he l e v e l i n p u t o f the DCD ga te
o f the next lower b i t . I n both types o f s h i f t i n g the r e s p e c t i v e p a i r s
o f DCD gates a re pulsed a t the same time when r e q u i r e d v i a the
pulse in p u t s o f these g a t e s .
During the i n t e r m e d i a t e o p e r a t i o n s o f A d d i t i o n or S u b t r a c t i o n ,
the DCD g a t e l e v e l in p u t s o f BRq (on r i g h t s h i f t s ) a re obtained
from t he o u t p u t o f the A d d e r / S u b t r a c t e r . Fu rt h er m o r e, on the r i g h t
s h i f t s p o s s i b l e on OA, OX and OY d u ri n g M u l t i p l i c a t i o n , the f i r s t
b i t , namely BRQ, must remain unchanged. Thus BRQ i s r i g h t s h i f t e d
o n ly on the t w e l v e OS p u l s e s , whereas BR-j t o BR^ a re r i g h t s h i f t e d
on a l l compulsory r i g h t s h i f t s namely on OA and OY, or on OX and
OY. The r i g h t s h i f t DCD gate pulse i n p u t s a r e thus bussed on BR-j to
BR^ whereas the r i g h t s h i f t pulse in p u t s o f BRq a re obtained d i r e c t l y
f r o m t h e OS p u l s e s o u r c e . I n D i v i s i o n , th e l e f t s h i f t pulse inp ut s a re
obtained f o r a l l BR b i t s from t he OB pulse source (with the a i d o f
3 . 3 M u l t i p l i e r / Q u o t i e n t / L e a s t S i g n i f i c a n t R e s u l t R e g i s t e r (DR).
The o p e r a t i n g c h a r a c t e r i s t i c s o f DR a re indeed s i m i l a r t o
those o f BR, because DR i s e f f e c t i v e l y the lower s e c t i o n o f a double
le n g th r e g i s t e r . The D - R e g i s t e r provides a p l a c e o f sto ra g e f o r the
M u l t i p l i c a n d and f o r the L ea st S i g n i f i c a n t Product in M u l t i p l i c a t i o n
and a l s o f o r the Q u o t i e n t i n D i v i s i o n . The c i r c u i t diagram o f DR i s
give n i n FIGURE 8.
Both r i g h t and l e f t s h i f t c a p a b i l i t i e s are included in DR
f o r M u l t i p l i c a t i o n and D i v i s i o n r e s p e c t i v e l y , as w e l l as the d i r e c t
c l e a r , load i n and unload f a c i l i t i e s . The DEC R201 F l i p - F l o p s were
used and two o f i t s f i v e DCD gates were used f o r the r i g h t s h i f t ,
two f o r the l e f t s h i f t and the remaining DCD g a t e was used f o r
load in g in t he M u l t i p l i c a n d d i r e c t l y from the PDP-8/S Accumulator.
I d e n t i c a l t o BR, the R123 Nand gate module was used f o r
unloading d a t a back to the PDP-8/S Accumulator, thus u t i l i z i n g one
g a t e a t t h e ' I 1 p u tp u t o f each F l i p - F l o p o f DR, DRQ t o DR^-j.
A t t h i s p o i n t however DR's s i m i l a r i t y to BR ends. There
i s a t h i r t e e n t h F l i p - F l o p inclu ded i n DR, namely DR^, making DR a
t h i r t e e n b i t r e g i s t e r . The purpose o f t h i s e x t r a b i t i s t o pro v id e
a f a c i l i t y f o r comparing the l a s t t h r e e b i t s of DR as r e q u i r e d in
th e M u l t i p l i c a t i o n A l g o r i t h m . Thus b i t s DR-j q, DR-j-j and DR^ are
e x a m i n e d d u r i n g e a c h c y c l e , w i t h the understanding t h a t DR^ is zero
a t the f i r s t stage o f the M u l t i p l i c a t i o n process. Because a t o t a l
o f t w e lv e r i g h t s h i f t s o f DR a r e used f o r a complete M u l t i p l i c a t i o n ,
32 to CD :r P CC
w n
-fc o <r
u
''o t ^ c
^ O
1 z*5 ^
U o' IU <C r/ Ul
- J
Q U t KCg.
o
rf\
cQ
co
FI
GU
RE
8.
co
n
tin
u
e
34
stage w i l l be found in DRb a f t e r t he completion o f the s i x t h or
f i n a l c y c l e . S h i f t i n g i n DR i s achieved by t h e same cro s s -c o n n e c ti o n
and pu l s in g method as descr ibed f o r BR i n S e c t i o n 3 . 2 .
During M u l t i p l i c a t i o n the ' 1 ' and ' 0 ' outputs o f DR-j q, DR-j^,
and DR^ a r e routed to the M u l t i p l i e r C o n t r o l l e r f o r comparison pu r
poses, and during the OA, OX, and OY pulse times the contents o f BR^
a r e r out ed to DRq by means o f the r i g h t s h i f t l e v e l c o n t r o l . T h i s
Ri g h t S h i f t Level Control i s de s c ri be d i n S e c t io n 3 . 7 .
L
During t he D i v i s i o n o p e r a t i o n DR^ i s n o t used. C o n s i d e r a ti o n
must n e v e r t h e l e s s be given to i t s conte nts because DR i s l e f t
s h i f t e d i n each c y c l e . I t i s found t h a t DR^ must be s e t to zero a t
a l l times in D i v i s i o n in or der t o have DR ^ i n the zero s t a t e
such t h a t i t w i l l be p o s s i b l e t o add a 1 or 0 t o i t on the OA pulse
w i t h o u t o v e r f l o w . When the l e f t s h i f t occurs on OB, DR-j-| w i l l again
become zero ready to accept a 1 or 0 on the OA pulse o f the next
c y c l e . I t may be mentioned t h a t t he ‘ Add 1 t o DR-^' pulse from the
D i v i d e r C o n t r o l l e r i s a p p l i e d t o the s e t t e r m i n a l o f DR-j-j. Thus when
the pulse i s p r e s e nt a ' 1 ‘ i s added to the D - R e g i s t e r and when the
pulse i n p u t i s absent nothing i s done, t h a t i s , e f f e c t i v e l y a 'O' i s
added to DR-j-j.
Because the D i v i s i o n A lg o ri t h m y i e l d s t h e c o r r e c t magnitude
but th e wrong sign o f the Q u o t i e n t , th e t w e l f t h c y c l e o p e r a t i o n ,
changing the s i g n , must be performed on DRQ. I n s t e a d o f a l l o w i n g
the c l o c k to run any f u r t h e r and having t o f i n d i t necessary to bloc k
