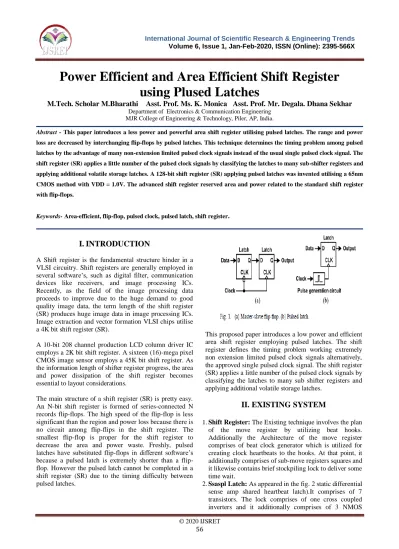

Power Efficient and Area Efficient Shift Register using Plused Latches

M.Tech. Scholar M.Bharathi Asst. Prof. Ms. K. Monica Asst. Prof. Mr. Degala. Dhana Sekhar

Department of Electronics & Communication Engineering MJR College of Engineering & Technology, Piler, AP, India.

Abstract -This paper introduces a less power and powerful area shift register utilising pulsed latches. The range and power loss are decreased by interchanging flip-flops by pulsed latches. This technique determines the timing problem among pulsed latches by the advantage of many non-extension limited pulsed clock signals instead of the usual single pulsed clock signal. The shift register (SR) applies a little number of the pulsed clock signals by classifying the latches to many sub-shifter registers and applying additional volatile storage latches. A 128-bit shift register (SR) applying pulsed latches was invented utilising a 65nm CMOS method with VDD = 1.0V. The advanced shift register reserved area and power related to the standard shift register with flip-flops.

Keywords-Area-efficient, flip-flop, pulsed clock, pulsed latch, shift register.

I. INTRODUCTION

A Shift register is the fundamental structure hinder in a VLSI circuitry. Shift registers are generally employed in several software’s, such as digital filter, communication devices like receivers, and image processing ICs.

Recently, as the field of the image processing data proceeds to improve due to the huge demand to good quality image data, the term length of the shift register (SR) produces huge image data in image processing ICs.

Image extraction and vector formation VLSI chips utilise a 4K bit shift register (SR).

A 10-bit 208 channel production LCD column driver IC employs a 2K bit shift register. A sixteen (16)-mega pixel CMOS image sensor employs a 45K bit shift register. As the information length of shifter register progress, the area and power dissipation of the shift register becomes essential to layout considerations.

The main structure of a shift register (SR) is pretty easy.

An N-bit shift register is formed of series-connected N records flip-flops. The high speed of the flip-flop is less significant than the region and power loss because there is no circuit among flip-flips in the shift register. The smallest flip-flop is proper for the shift register to decrease the area and power waste. Freshly, pulsed latches have substituted flip-flops in different software’s because a pulsed latch is extremely shorter than a flip- flop. However the pulsed latch cannot be completed in a shift register (SR) due to the timing difficulty between pulsed latches.

This proposed paper introduces a low power and efficient area shift register employing pulsed latches. The shift register defines the timing problem working extremely non extension limited pulsed clock signals alternatively, the approved single pulsed clock signal. The shift register (SR) applies a little number of the pulsed clock signals by classifying the latches to many sub shifter registers and applying additional volatile storage latches.

II. EXISTING SYSTEM

1. Shift Register: The Existing technique involves the plan of the move register by utilizing beat hooks.

Additionally the Architecture of the move register comprises of beat clock generator which is utilized for creating clock heartbeats to the hooks. At that point, it additionally comprises of sub-move registers squares and it likewise contains brief stockpiling lock to deliver some time wait.

2. Ssaspl Latch: As appeared in the fig. 2 static differential sense amp shared heartbeat latch).It comprises of 7 transistors. The lock comprises of one cross coupled inverters and it additionally comprises of 3 NMOS

(2)

© 2020 IJSRET 57 transistors (M1-M3). The most reduced clock power has been accomplished in light of the evidence that the time clock signal is granted to one single transistor M1. The complementary information output has been acquired dependent on the information input D and Db. The three NMOS transistors has been planned accordingly transistors has been utilized to hold the information with four transistors (cross-coupled-inverters). It additionally requires differential data inputs and a pulsed clock signal. If the pulsed clock signals input is powerful so it updates the information.

Fig. 3. Schematic of the SSASPL.

The node Q or QB is drag down to earth according to the equivalent data inputs. The output signals of the initial latch (Q1 and Q1b) exchange perfectly, because the input data signal of the initial latch (IN) is fixed when the clock pulse width. On the other words, the output production signals of the secondary latch (Q2 and Q2b) do not alter, because the input data signals of the other latch, which are related to the output data signals of the other latch (Q2 and Q2b), exchange while the clock pulse width.

The SSASPL flip the requirements of the cross-coupled inverters like Q and Qb by arranging current down by either or when the clock pulse width. The clock pulse width is chosen as the least time to flip the output data signals of the latch like Q and Qb while its input data signals such as D and Db are stable. If the input data signals improve when the clock pulse width, the time dragging current down by either or becomes less than the clock pulse width so that the latch has not just clock pulse time to flip the output data signals after the input data signals develop.

3.Delayed Pulse Clock Generator: The pulsed clock generator comprises of postpone circuit AND door. The deferred pulsed clock generator is valuable for producing little pulsed clock signals. The AND entryway and deferred pulsed clock signals are accustomed to producing sharp pulsed clock flags with the goal that summation of rising and falling edge is shorter. The quantity of locks and clock beat circuit's progressions as

per word length of the sub-move registers.

Fig.4. Delayed pulsed clock generator.

3. Sub-Shift Registers: The M number of phases of sub-move registers has been utilized to move the information through the hooks (q1-q5).the brief stockpiling lock named as T1-TM. It doesn't create similar information to the following sub-move registers it changes as per the contribution of the bit moved to the locks. Fig 4 shows the square graph of existing movement registers and fig 5 show the schematic waveform for existing movement register.

Fig.6.Existing Shift Register.

Fig.7. Schematic Existing Shift Register.

III PROPOSED SYSTEM

1. Proposed Shift Register

A master-slave flip-flop working two latches in Fig. 1(a) can be substituted via a pulsed latch consisting of a latch and a pulsed clock signal in Fig. 1(b). Every pulsed latch distributes the pulse development circuit to the pulsed clock signal. As a result, the region and power loss of the pulsed latch become roughly half of those of the master- slave flip-flop. The pulsed latch is a winning solution for a small region and less power dissipation.

(3)

© 2020 IJSRET 58 The pulsed latch cannot be done in shift registers due to the timing obstacle, as displayed in Fig 6. The shift register (SR) in Fig 6(a) consists of various latches and a pulsed clock signal such as CLK_pulse. The process waveforms in Fig 6(b) determine the timing obstacle in the shifter register (SR). The output data signal of the initial latch (Q1) transfers perfectly because the input data signals of the initial latch (IN) is fixed during the clock pulse width (T PULSE). But the other latch has an undecided output data signal (Q2) because of its input data signal (Q1) exchanges through the clock pulse width.

Fig. 8. Shift register with latches and a pulsed clock signal. (a) Schematic. (b)Wave forms.

One answer for the timing difficulty is to combine limited circuits among latches, as shown in Fig. 7(a). The output data signal of the latch is limited (T DELAY) and arrives at the next latch after the clock pulse. As displayed in Fig.

7(b) the output data signals of the first latch and second latch i.e Q1 and Q2 change when the clock pulse width (T PULSE), but the input data signals of the second and third latches like D2 and D3 become the equivalent as the output data signals of the first and second latches like Q1 and Q2 after the clock pulse. As a result, all latches possess fixed input data signals when the clock pulse and no timing problem is happen among the latches. However, the limited circuits reason a extensive region and power overheads.

Fig.9. Shift register with latches, delay circuits, and a pulsed clock signal. (a) Schematic. (b) Waveforms.

Another clarification is to utilize many non-extensions limited pulsed clock signals, the limited pulsed clock signals are made when a pulsed clock signal travels

within limited circuits. Individually latch utilizes a pulsed clock signal which is limited from the pulsed clock signal applied in its next latch. Therefore, every latch renews the data after the next latch modernizes the data. As an outcome, every latch becomes a fixed input throughout its clock pulse and no timing problem is happening between latches. However, this solution needs several limited circuits. The power optimization is related to area optimization.

The power is utilized essentially in latches and clock- pulse circuits. Each latch utilizes power for data passing and clock charging. When the circuit powers are normalized with a latch, the power waste of a latch and a clock-pulse circuit are1 and αP, sequentially. The complete power loss is also αP x (K+1) + N(1+1/K) the good profit proportion of the clock buffers is short. The several numbers of clock buffers are K. As K increases, the size of a clock buffer decays in proportion to 1/K because a large amount of latches attached to a clock buffer (M=N/K) is equivalent to 1/K. Accordingly, the total extent of the clock buffers improves lightly with increasing K and the outcome of the clock buffers can be ignored for accepting K.

Fig. 10. Minimum clock cycle time of the proposed shift register.

The (K+1) pulsed check flags in Fig. 8 are provided to all sub move registers. Each pulsed clock signal lands at the sub move registers at various time because of the beat slant in the wire. The beat slant expands relative to the wire good ways from the postponed pulsed clock generator. All pulsed clock signals have nearly a similar heartbeat slants when they land at a similar sub move register. In this way, in a similar sub move register, the beat slant contrasts between the pulsed clock signals are little. The clock beat interims bigger than the beat slant contrasts counteract the impacts of the beat slant contrasts. Additionally, the beat slant contrasts between the distinctive sub move registers don't cause any planning issue, since two locks interfacing two sub move registers utilize the first and last pulsed tickers

(4)

IV. SIMULATION RESULTS

Every one of the recreations are performed on Microwind3.5 and DSCH3.5. The principle focal point of this work is to address all difficulties faces in planning of move register circuit with pulsed hook. The move register diminishes zone and force utilization by supplanting flip- flops with pulsed locks.

The planning issue between pulsed hooks is understood utilizing different non-cover deferred pulsed clock flags rather than a solitary pulsed clock signal. Few the pulsed clock signals are utilized by gathering the locks to a few sub shifter registers and utilizing extra impermanent stockpiling hooks the recreation results are appeared in beneath figures.

Fig 11. Schematic of 16 bit shift register using SSASPL

Fig.12. Timing Diagram of 16bit shift register using SSASPL.

Fig.13. Layout of 16 bit shift register using SSASPL.

Fig.14. Simulation of Layout of 128 bit shift register using SSASPL.

V. CONCLUSION

This paper proposed a low-power and territory proficient move register utilizing pulsed locks. The Shift Register (SR) lessens field and force utilization by supplanting flip flops with pulsed hooks. The timing obstacle among pulsed latches is determined to employ many non-overlap limited pulsed clock signals instead of a single pulsed clock signal. Few the pulsed clock signals are utilized by assembly the latches to a few sub-shifter registers and utilizing extra transitory stockpiling locks. A128-bit move register was created utilizing a 65nm µm CMOS process with VDD = 1.0V. The proposed move register spares zone and force contrasted with the ordinary move register with flip-flops.

Future Scope: In future, there is a lot of chance to reduce the power moderately extra by performing alterations in the recommended shift register (SR) architecture; this design can be extended to 256 bits now it can be higher in the future.
