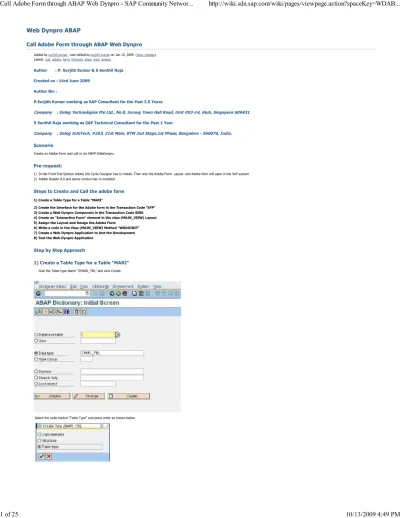

Call Adobe Form through ABA..

(1)

Labels: call, adobe, form, through, abap, web, dynpro

Added by surjith kumar , last edited by surjith kumar on Jun 15, 2009 (view change)

Author : P. Surjith Kumar & S Senthil Raja Created on : 14rd June 2009

Author Bio :

P.Surjith Kumar working as SAP Consultant for the Past 3.5 Years.

Company : Enteg Technologies Pte Ltd., No.9, Jurong Town Hall Road, Unit #03-14, iHub, Singapore 609431. S Senthil Raja working as SAP Technical Consultant for the Past 1 Year.

Company : Enteg InfoTech, #263, 21st Main, BTM 2nd Stage,1st Phase, Bangalore - 560076, India. Scenario

Create an Adobe Form and call in via ABAP WebDynpro .

Pre-request:

1) In the Front End System Adobe Life Cycle Designer has to install. Then only the Adobe Form Layout and Adobe form will open in the SAP system 2) Adobe Reader 8.0 and above version has to installed

Steps to Create and Call the adobe form

1) Create a Table Type for a Table "MARI"

2) Create the Interface for the Adobe form in the Transaction Code "SFP" 3) Create a Web Dynpro Component in the Transaction Code SE80 4) Create an "Interactive Form" element in the view (MAIN_VIEW) Layout 5) Assign the Layout and Design the Adobe Form

6) Write a code in the View (MAIN_VIEW) Method "WDDOINIT" 7) Create a Web Dynpro Application to test the Development 8) Test the Web Dynpro Application

Step by Step Approach

1) Create a Table Type for a Table "MARI"

(2)

Save and activate it.

2) Create the Interface for the Adobe Form in the Transaction Code "SFP"

Give the interface name as "ZADOBE_INTERFACE" and click Create.

Then give the Description and click save as shown below.

Save it as local object.

(3)

Click the "Append Row" Icon as shown below.

(4)

3) Create a Web Dynpro Component in the Transaction Code SE80

Select the "Web Dynpro Comp./Intf" and Give the Application Name, then press Enter

Then a popup window will appear and click "Yes".

(5)

Then another popup window will appear, Give the "Window Name" & "View Name", and press Enter.

Then save it as local Object.

Then you can see Web Dynpro screen as below.

(6)

4) Create an "Interactive Form" element in the view (MAIN_VIEW) Layout

Go to change Mode, select the "ROOTUIELEMENTCONTAINER" and right click it. Then click "Insert Element" as shown below.

(7)

Enter a Name and select the Interactive Forms, then press Enter.

(8)

Then Increase the Height & width as "700px" as indicated below.

In the "Template Source" give name as ZADOBE_FORMS and double click it. Then a Popup will appear as indicated below. Now assign the Adobe Interface Name "ZADOBE_INTERFACE" that created in the Transaction Code "SFP" earlier.

Then Click the "Use" button.

(9)

Then save it as Local Object.

Then a popup will appear as mentioned below and click "Yes".

Then save the View "MAIN_VIEW" by click the "Yes" button.

(10)

5) Assign the Layout and Design the Adobe Form

Click the "Properties" Tab in the screen.

(11)

(12)

Then go to "Context Tab" and expand the import as show below.

Drag and Drop the Table "ZMARI" in to the Context as shown below.

Then the Below Screen will appear.

(13)

(14)

Drag the Table ZMARI and place it in the Design View as shown below.

(15)

(16)

After Active the Adobe Form and Double click the VIEW " MAIN_VIEW"

Navigate to the "Methods " tab .

(17)

(18)

Double click the "WDDOINIT" method and enter the below code.

(19)

METHOD wddoinit .

*&---&* *& Author : P Surjith Kumar & S Senthil Raja

*& Purpose : Call the Adobe form via Webdynpro

*&---&* DATA: node_zadobe_forms TYPE REF TO if_wd_context_node,

it_mari TYPE zmari_tbl.

SELECT * FROM mari INTO TABLE it_mari UP TO 15 ROWS.

node_zadobe_forms = wd_context->path_get_node( 'ZADOBE_FORMS.ZMARI' ).

node_zadobe_forms->bind_table( new_items = it_mari set_initial_elements = abap_true ). ENDMETHOD.

(20)

You can see the view embedded to the window(MAIN_WINDOW). If it does not appear Drag and drop the View "MAIN_VIEW" to the Window (MAIN_WINDOW) as shown below.

Then select the whole Web Dynpro Component and activate as mentioned below.

(21)

(22)

7) Create a Web Dynpro Application to test the Development

Then create a webdynpro application as show below .

Enter the description and click the "Tick" button as mention below.

(23)

(24)

Expand the " Web Dynpro Applications" as highlighted.

8) Test the Web Dynpro Application

Then Right Click the Web Dynpro Applications "zadobe_n_webdyn" and click the Test.

(25)
