Development of SIMS (Simple Indigenous

Metallic Stabilizer) for OPCAB

Murali P. Vettath, Kannan Arunachalam Venkatachalam, Nitin Gangadharan,

Madhu Ravisankar, Smera Koroth, Gopalakrishnan Raman

Meitra Hospital, Kozhikode, India

Abstract

Development of a simple, reusable stabilizer for beating heart surgery has been long overdue. Every time a disposable stabilizer is used and discarded, we add to the carbon footprint we leave behind. We had been working on developing such a stabilizer, and had finally come up with a simple indigen-ous (reusable) metallic stabilizer (SIMS). We have used it for over 600 con-secutive off pump coronary artery bypass (OPCAB) with excellent results. The anatomy of the stabilizer is described here along with a comparison of this stabilizer with the commercially available one.

Keywords

SIMS, OPCAB

1. Introduction

OPCAB (off pump coronary artery bypass) has been the standard of care in a few centers around the world. We have been performing the same for over two decades. As one of the pioneers of this technique, we have fabricated, developed, innovated and re-engineered this technique to perform OPCAB in all patients needing CABG (coronary artery bypass grafting) [1]-[7]. We herewith present our recent innovation—A simple indigenous metallic stabilizer (SIMS) which we have used for the past three years. We have compared this with a similar number of OPCABs done using the commercially available stabilizer in the market.

Since the arrival of the first Octopus stabilizer in the market in the late nine-ties, we have been using them to perform OPCAB. In our country, these stabi-lizers have been reused by ethylene oxide sterilization, at an average of about ten times each so that the cost of surgery comes down.

As only 10% - 15% of our population has medical insurance the cost of

sur-How to cite this paper: Vettath, M.P., Venkatachalam, K.A., Gangadharan, N., Ravisankar, M., Koroth, S. and Raman, G. (2019) Development of SIMS (Simple In-digenous Metallic Stabilizer) for OPCAB. World Journal of Cardiovascular Diseases, 9, 324-330.

https://doi.org/10.4236/wjcd.2019.95028

Received: April 11, 2019 Accepted: May 13, 2019 Published: May 16, 2019

(2)

DOI: 10.4236/wjcd.2019.95028 325 World Journal of Cardiovascular Diseases

gery is usually borne by the individual. Hence bypass surgeries becomes in af-fordable unless the cost is contained. It has been our endeavor to bring down the cost of cardiac surgery to the minimum, and the development of SIMS has defi-nitely made it possible in a big way.

2. Materials and Method

Since 2015, we had started using our SIMS and by the end of 2018 we have used them in over 600 OPCABs. We have compared this with a similar 600 OPCABs performed using the commercially available Maquet stabilizers which we have been using for the last ten years. We have compared the ability of these two sta-bilizers in performing anastomosis in all the walls of the heart and to perform the grafts on all the coronary arteries we needed to graft. The comparative chart is provided in Table 1. We have noticed that both the stabilizers have been pro-ficient in stabilizing in every region of the heart and once we started off with us-ing SIMS, we have never ever had to go back on to these commercially available stabilizers ever again. The way to use this stabilizer is shown in the link provided in the last paragraph.

The interesting aspect is that we have used only two sets of SIMS stabilizers all through to perform these 600 OPCABs, without any need to replace them, and that its still being used. The only part that has to be changed every 5 to 10 cases was the stabilizer pods (Photo 1).

SIMS (simple indigenous metallic stabilizer)

(3)

[image:3.595.65.535.93.738.2]

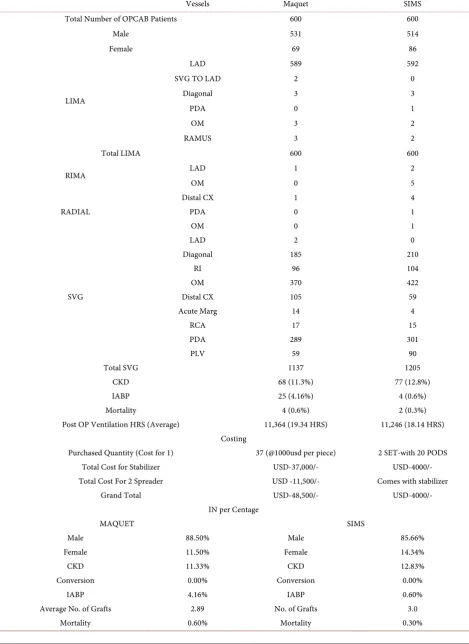

Table 1. Showing comparison of maquet stabilizer with SIMS.

Vessels Maquet SIMS

Total Number of OPCAB Patients 600 600

Male 531 514

Female 69 86

LIMA

LAD 589 592

SVG TO LAD 2 0

Diagonal 3 3

PDA 0 1

OM 3 2

RAMUS 3 2

Total LIMA 600 600

RIMA LAD 1 2

OM 0 5

RADIAL

Distal CX 1 4

PDA 0 1

OM 0 1

SVG

LAD 2 0

Diagonal 185 210

RI 96 104

OM 370 422

Distal CX 105 59

Acute Marg 14 4

RCA 17 15

PDA 289 301

PLV 59 90

Total SVG 1137 1205

CKD 68 (11.3%) 77 (12.8%)

IABP 25 (4.16%) 4 (0.6%)

Mortality 4 (0.6%) 2 (0.3%)

Post OP Ventilation HRS (Average) 11,364 (19.34 HRS) 11,246 (18.14 HRS)

Costing

Purchased Quantity (Cost for 1) 37 (@1000usd per piece) 2 SET-with 20 PODS

Total Cost for Stabilizer USD-37,000/- USD-4000/-

Total Cost For 2 Spreader USD -11,500/- Comes with stabilizer

Grand Total USD-48,500/- USD-4000/-

IN per Centage

MAQUET SIMS

Male 88.50% Male 85.66%

Female 11.50% Female 14.34%

CKD 11.33% CKD 12.83%

Conversion 0.00% Conversion 0.00%

IABP 4.16% IABP 0.60%

Average No. of Grafts 2.89 No. of Grafts 3.0

(4)

Photo 1. SIMS (simple indigenous metallic stabilizer).

Photo 2. SIMS, a combo device.

(5)

Photo 4. Vertical two inch metallic rod.

Photo 5. The stabilizer rod.

conventional stabilizers, which could be attached to the suction apparatus and used as suction stabilizer as well. Over time, once we get used to the stabilizer we can avoid the suction unless it is absolutely needed.

3. Results

(6)

converted on to the heart lung machine. In fact we had published our last data on our OPCABs which showed that over the last ten years we have had no con-versions on to the Cardio-pulmonary bypass so far [8].

4. Discussion

OPCAB surgery started in the early nineties after Buffalo (1985) and Benetti (1991) reported their individual papers on how they had been able to perform coronary bypass surgery without going on the heart lung machine [9] [10]. These publications stimulated our group to start performing OPCABs in all pa-tients who had to undergo CABG. The Utrecht group published (1996) their se-minal article after which the name Octopus became a name synonymous with beating heart surgery [11]. This was the first commercially available stabilizer that was available to perform OPCAB in all the coronary arteries around the heart. After that many disposable stabilizers came into the market and have re-mained so far. But the need to be able to reuse and recycle these stabilizers made us research for developing an indigenous reusable metallic stabilizer which could be used as any surgical steel instrument [12].

Development of this stabilizer actually brought down our carbon foot print significantly that the last 600 odd patients could undergo OPCAB with the same device and only the pods have been changed frequently. Hence apart from saving on cost incurred per patient, it has also improved our expertise to perform such surgeries. Hence with increasing expertise in OPCAB surgery, we hope that this type of instrumentation would be able to make inroads into developing this specialty and that after a decade on pump CABG would be a thing of the past.

We have also uploaded videos which how SIMS has been used by us in differ-ent positions of the heart in youtube. That can be seen on clicking this link or copy pasting this. The youtube link is

https://www.youtube.com/playlist?list=PLmvb6npEfabinhlatq8IYLBz8WlHo8bu1.
