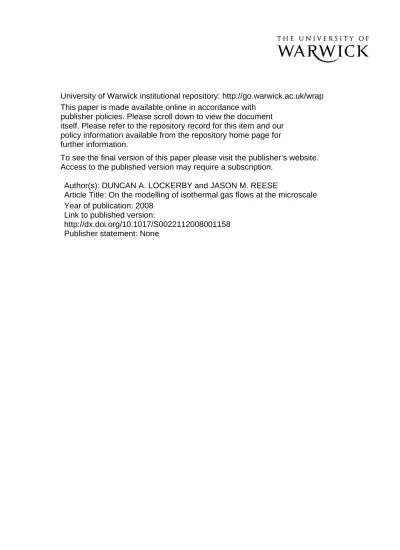

University of Warwick institutional repository: http://go.warwick.ac.uk/wrap

This paper is made available online in accordance with

publisher policies. Please scroll down to view the document

itself. Please refer to the repository record for this item and our

policy information available from the repository home page for

further information.

To see the final version of this paper please visit the publisher’s website.

Access to the published version may require a subscription.

Author(s): DUNCAN A. LOCKERBY and JASON M. REESE

Article Title: On the modelling of isothermal gas flows at the microscale

Year of publication: 2008

Link to published version:

On the modelling of isothermal gas flows

at the microscale

D U N C A N A. L O C K E R B Y1 A N D J A S O N M. R E E S E2

1_{School of Engineering, University of Warwick, Coventry CV4 7AL, UK}

2_{Department of Mechanical Engineering, University of Strathclyde, Glasgow G1 1XJ, UK}

(Received18 September 2007 and in revised form 21 February 2008)

This paper makes two new propositions regarding the modelling of rarefied (non-equilibrium) isothermal gas flows at the microscale. The first is a new test case for benchmarking high-order, or extended, hydrodynamic models for these flows. This standing time-varying shear-wave problem does not require boundary conditions to be specified at a solid surface, so is useful for assessing whether fluid models can capture rarefaction effects in the bulk flow. We assess a number of different proposed extended hydrodynamic models, and we find the R13 equations perform the best in this case.

Our second proposition is a simple technique for introducing non-equilibrium effects caused by the presence of solid surfaces into the computational fluid dynamics framework. By combining a new model for slip boundary conditions with a near-wall scaling of the Navier–Stokes constitutive relations, we obtain a model that is much more accurate at higher Knudsen numbers than the conventional second-order slip model. We show that this provides good results for combined Couette/Poiseuille flow, and that the model can predict the stress/strain-rate inversion that is evident from molecular simulations. The model’s generality to non-planar geometries is demonstrated by examining low-speed flow around a micro-sphere. It shows a marked improvement over conventional predictions of the drag on the sphere, although there are some questions regarding its stability at the highest Knudsen numbers.

1. Introduction

A number of competing high-order equation sets have been developed in recent years in order to model rarefied gas flows within an efficient continuum-fluid framework (see Reese, Gallis & Lockerby 2003; Struchtrup 2005). These methods have shown promise, to varying degrees, in predicting certain non-equilibrium behaviour in high-speed as well as microscale gas flows at a fraction of the computational cost of molecular-based simulations. However, good predictions of, for example, the viscous structure of one-dimensional shock waves have not always been matched by similarly compelling success in modelling microscale gas flows. The primary difficulty is that, unlike the shock-wave case, micro gas flows tend to be dominated by the influence of solid bounding surfaces. The non-equilibrium introduced by a solid surface is qualitatively different to that generated by the variation of hydrodynamic variables alone; if the wall is assumed to behave like a Maxwellian emitter, a discontinuity is introduced in the molecular distribution function.

properly the region of local non-equilibrium that exists up to one or two molecular mean free paths from the wall in any gas flow near a surface. Kogan (1969) demonstrated that the Chapman–Enskog technique (see Chapman & Cowling 1970) does not provide a solution to the Boltzmann equation in this ‘Knudsen layer’, or ‘kinetic boundary layer’, and Lockerby, Reese & Gallis (2005a) compared Knudsen-layer predictions from a number of current high-order equation sets and concluded that none could be considered both reliable and accurate. This is problematic for the future design and application of micro and nano flow devices because the momentum and energy fluxes from the region of the Knudsen layer to the boundaries have a critical influence on the overall flow behaviour.

Although not definitively proving that continuum equation sets are incapable of accurately modelling near-wall behaviour, there is therefore strong evidence to suggest that – if continuum equations are to be used at all – alternative phenomenological approaches may be as useful in these non-equilibrium regions (at least for practical engineering simulation purposes). We discuss this issue in greater depth in

§3.

Despite the difficulties associated with near-wall regions, there is no reason to believe that high-order continuum equations cannot be used in regions of microscale gas flows away from the walls. The questions that arise are, therefore: outside the direct influence of solid bounding surfaces, can significant non-equilibrium exist in low-speed micro gas flows? If so, can this be resolved using higher-order continuum equations? In§2, we focus on addressing these questions.

2. The standing-shear-wave problem

A simple test case, that does not involve solid bounding surfaces, is required as an analogue of typical micro gas flows. To be relevant to many micro device applications, and for simplicity, it is desirable that this be low speed and isothermal (meaning here negligible temperature variation, although not necessarily negligible heat flux). Here we propose a standing shear wave: the one-dimensional shear flow generated by a temporally and spatially oscillating body force. In this case, the body force (per unit mass) is of the form:

Fx =Aeiαt_cos

βy, (1)

For convenience, the following non-dimensional variables are defined:

ˆ

y=βy,uˆ = _√u

RT,tˆ=β

√

RT t,Fxˆ = Fx

A,αˆ =

α

β√RT,

ˆ

τxy= τxy

βµ√RT,qxˆ =

qx

βµRT,

(2)

whereu is the macroscopic velocity in thex-direction,µthe gas viscosity, R the gas constant, T the gas temperature,τxy the shear stress andqx is the heat flux in the x-direction. The ‘hat’ symbol, which here denotes a dimensionless value, will hereinafter be omitted to aid clarity. We also define a Knudsen number, Kn, as follows:

Kn= βµ

√

RT

p , (3)

wherep is the gas pressure.

There are several different high-order continuum equation sets, although the majority stem from two alternative methods of solving the Boltzmann equation: the Chapman–Enskog series expansion and Grad’s 13- moment approach. Because of considerations of space, we restrict our attention here to the following more established equation sets: Navier–Stokes; Burnett (1935); super-Burnett; Grad (1949) 13-moment; Struchtrup (2005) Regularized 13-moment. Space also precludes detailed descriptions of their derivation and relative merits, but these can be found in the relevant literature just cited, so we now consider their application to the standing-shear-wave problem for a monatomic gas.

Navier–Stokes equations

In this case, the linear Navier–Stokes x-momentum equation in non-dimensional form is:

∂u ∂t −Kn

∂2_u

∂y2 =Fx, (4)

where the non-dimensionalized body force given in (1) isFx = eiαt_{cosy. For this study,} we restrict our attention to velocity perturbations about an otherwise stationary flow; the solution to (4) thus has the form:

u= ¯ueiαt_cos

y, (5)

where ¯uis the amplitude of the velocity field. Equation (4) then simplifies to:

(αi +Kn)¯u= 1. (6)

For a quasi-steady body force (i.e. α = 0), the Navier–Stokes model predicts the dimensionless amplitude of the velocity to be the inverse of the Knudsen number.

Burnett and super-Burnett equations

As detailed by Chapman & Cowling (1970), the Boltzmann equation can be solved by the Chapman–Enskog approach, which is a series expansion with the Knudsen number as the perturbation parameter. At first-order in Knudsen number, this method retrieves the Navier–Stokes equations (4); to second and third order, the Burnett and super-Burnett equations, respectively.

The linear Burnett x-momentum equation in non-dimensional form is:

∂u ∂t −Kn

∂2_u

∂y2 +Kn 2 ∂3u

and the linear super-Burnettx-momentum equation in non-dimensional form is:

∂u ∂t −Kn

∂2u ∂y2 +Kn

2 ∂3u

∂t∂y2 −Kn 3 ∂4u

∂t2_∂y2 −

5 3Kn

3∂4u

∂y4 =Fx. (8)

Note that the exact forms of the material derivatives that feature in the Burnett and super-Burnett stress tensors have been used (see Reese 1993 for further details).

Burnett solutions to the standing-shear-wave problem (restricting, as before, our interest to velocity perturbations from an otherwise stationary flow) are therefore:

(αi +Kn−αiKn2)¯u= 1, (9)

and the super-Burnett solution is:

αi +Kn−αiKn2−α2Kn3− 5 3Kn

3_¯

u= 1. (10)

Grad’s 13-moment equations

An alternative to the Chapman–Enskog method of solving the Boltzmann equation was proposed by Grad (1949). He expanded the molecular distribution function as a series of Hermite tensor polynomials, with variable parameters, around the Maxwellian equilibrium state. To evaluate the distribution function at second-order, moment equations are required for 13 dependent variables in the conservation equation set. This process led to what are termed Grad’s 13-moment equations, which for this one-dimensional case are somewhat more complicated than the Burnett and super-Burnett equations, and now involve a coupling of the shear stress with a parallel heat flux. The coupled set of equations is:

∂u ∂t +

∂τxy ∂y =Fx,

τxy =−Kn∂τxy

∂t −

2 5Kn

∂qx

∂y −Kn

∂u ∂y,

qx =−3 2Kn ∂qx ∂t − 3 2Kn ∂τxy ∂y ⎫ ⎪ ⎪ ⎪ ⎪ ⎪ ⎬ ⎪ ⎪ ⎪ ⎪ ⎪ ⎭ (11)

For a standing shear wave generated about an otherwise stationary and isothermal flow, Grad’s equations (11) reduce to the following linear set:

¯

uαi + ¯τxyi = 1, ¯

uKni + ¯τxy(1 +Knαi) + 2

5qx¯Kni = 0, 3

2τxy¯ Kni + ¯qx

1 +3₂Knαi= 0,

⎫ ⎪ ⎬ ⎪

⎭ (12)

where τxy = ¯τxyieiαtsiny and qx = ¯qxeiαt_{cosy. Equations (12) can be solved} simultaneously to obtain ¯u.

Regularized 13-moment equations

∂u ∂t +

∂τxy ∂y =Fx,

τxy=−Kn∂τxy

∂t −

2 5Kn

∂qx

∂y −Kn

∂u ∂y +

16

15Kn

2∂2τxy

∂y2 ,

qx =−3 2Kn ∂qx ∂t − 3 2Kn ∂τxy ∂y + 9 5Kn

2∂2qx

∂y2 .

⎫ ⎪ ⎪ ⎪ ⎪ ⎪ ⎬ ⎪ ⎪ ⎪ ⎪ ⎪ ⎭ (13)

Again, for the standing shear wave of (1) (in stationary and isothermal base-flow conditions), this reduces to a set of relatively simple linear equations:

¯

uαi + ¯τxyi = 1,

¯

uKni + ¯τxy1 +Knαi +16₁₅Kn2+ 2₅qx¯Kni = 0,

3

2τxy¯ Kni + ¯qx

1 +3

2Knαi + 9 5Kn

2_{= 0,}

⎫ ⎪ ⎬ ⎪

⎭ (14)

which can be solved simultaneously to obtain ¯u.

In this analysis we considered velocity perturbations from a stationary and isothermal flow field, as described by (5). However, the general solution requires the addition of the complementary function, which is a solution to (4), (7), (8), (11) and (13) in the unforced case, i.e. Fx = 0. For example, the steady-state general solutions for the Navier–Stokes, Burnett and Grad’s 13-moment equations are:

u= ¯ucosy+C1y+C2. (15)

For the super-Burnett equations, the general solution is:

u= ¯ucosy+C1y+C2+C3sin

_√

15

5Kny +C4cos

_√

15

5Kny ; (16)

and for the R13 equations:

u= ¯ucosy+C1y+C2+C3exp

_√

5

3Kny +C4exp

− √

5

3Kny . (17)

The integration constants, C1−4, relate to characteristics of the one-dimensional flow

field that are independent of the body forcing, Fx. These general solutions indicate that in the steady-state a uniform velocity field, as well as a constant rate of strain, can be supported within the flow field. Interestingly, equation (16) shows that the super-Burnett equations can also support, in the steady state, a spatially-oscillating velocity field with a dimensional wavelength of approximately six mean free paths. There is, then, according to the super-Burnett equations, a spatial wavenumber for which there is no viscous damping.

2.2. Results and comparison with a kinetic theoretical model

0 2 4 6 8 10

0.2 0.4 0.6 0.8 1.0

Amplitude, |

u

|

Kn

Figure 1.Quasi-steady wave-amplitude variation with Knudsen number. BGK solution (—); Navier–Stokes and Burnett (· · ·); super-Burnett (— · · —); Grad’s 13-moment (— · —); regularized 13-moment (— — —).

2005; Nariset al.2005). For solutions to the standing-shear-wave problem, a quasi-one-dimensional spatial treatment is adopted with sinusoidal variations in y having the same wavenumber as the imposed body force. This implies a stationary base flow field, corresponding to the assumptions of our analysis in the previous section.

Though it has limitations, the physical basis of the BGK Boltzmann model is appropriate for the linear and isothermal flows we are considering. It is important to stress that we do not attempt to assess the accuracy of the physical model underpinning the BGK equations here; our intention is to compare the predictive capabilities of competing continuum equation sets relative to a more computationally expensive molecular technique.

The quasi-steady case

0 1 2 3 4 5 6 7

0 1 2 3 4 5

Amplitude,|

u

|

Frequency, α

Figure 2. Wave-amplitude variation with non-dimensional body-force frequency, α;Kn= 0.1; BGK solution (—); Navier–Stokes (— — —).

0 10 20 30 40 50 60 70 80 90

0 1 2 3 4 5

Phase lag (deg.)

Frequency,α

Figure 3. Velocity-phase-lag variation with non-dimensional body-force frequency, α;Kn= 0.1; BGK solution (—); Navier–Stokes (— — —).

Time-varying shear waves

While our results for the quasi-steady case show that, for Kn ≈ 0.1, the Navier– Stokes and the BGK models agree, we should extend the analysis to the

time-dependent case. Figures 2 and 3 show that, for fixed Kn = 0.1, the BGK model

results closely match the Navier–Stokes solution for all frequencies considered, both in amplitude and phase lag. There does not, then, appear to be an independent non-equilibrium effect introduced by the body forcing frequency at lowKn.

1 2 3 4

0 0.2 0.4 0.6 0.8 1.0

Amplitude,|

u

|

Frequency,α

Figure 4.Wave-amplitude variation with non-dimensional body-force frequency,α;Kn= 0.5. BGK solution (—); Navier–Stokes (· · ·); Burnett (– – – –); super-Burnett (– ·· –); Grad’s 13-moment (–·–); regularized 13-moment (– – –).

10 20 30 40 50 60 70 80 90

0 1 2 3 4 5

Phase lag (deg.)

Frequency, α

Figure 5.Velocity-phase-lag variation with non-dimensional body-force frequency, α;Kn = 0.5. BGK solution (—); Navier–Stokes (· · ·); Burnett (– – – –); super-Burnett (–··–); Grad’s 13-moment (–·–); regularized 13-moment (– – –).

predicts that non-equilibrium effects tend to make the shear wave lag behind the driving force. In both figures it is striking that the Burnett and super-Burnett results are quite poor, whereas the R13 equations accurately reproduce the BGK results over the range of frequencies considered.

1

0 1 2

Amplitude, |

u

|

Kn

Figure 6. Wave-amplitude variation with Knudsen number; α = 1.0. BGK solution (–); Navier–Stokes (· · ·); Burnett (– – – –); super-Burnett (– ·· –); Grad’s 13-moment (– · –); regularized 13-moment (– – –).

0 10 20 30 40 50 60 70 80 90

0.2 0.4 0.6 0.8 1.0

Phase lag(deg.)

Kn

Figure 7. Velocity phase lag variation with Knudsen number;α = 1.0. BGK solution (—); Navier–Stokes (· · ·); Burnett (– – – –); super-Burnett (– ·· –); Grad’s 13-moment (– · –); regularized 13-moment (– – –).

Note that our analysis and results in this section, for a standing shear wave, are equivalent to those for a travelling shear wave of speed α. In that case, the non-dimensional body force, velocity response, shear stress, and heat flux would be Fx = ei(y+αt)_{, u= ¯ue}i(y+αt)_{, τxy = ¯τxye}i(y+αt)_{, and qx = ¯qxe}i(y+αt)_{, respectively. The}

remainder of the analysis then follows identically, as do the results.

3. Knudsen layers

layer, as we outlined in§1. The Knudsen layer is also an interesting problem because, whereas its structure has been extensively investigated and is well-understood from a kinetic theoretical viewpoint (see e.g. Kogan 1969; Cercignani 1990; Sone 2002), high-order continuum equations generally have difficulties in predicting the extent of the layer – which kinetic theory predicts is some 1.4 molecular mean free paths into the flow from any surface. For example, the R13 equations, which performed well for the standing-shear-wave problem in§2, predict a Knudsen layer of around twice this extent (see Lockerbyet al.2005a). There are also difficulties that arise in selecting the addi-tional wall boundary conditions required for uniquely solving higher-order equations sets (although Struchtrup & Torrilhon 2007 shows significant advances in this area).

Despite the generally poor ability of high-order equations to capture the Knudsen layer accurately, a continuum-fluid formulation (in conjunction with slip boundary conditions) is still preferred, particularly for engineering applications, as it would offer distinct and practical computational advantages over current molecular methods. The issue is, therefore, how to develop or adapt a continuum-fluid model to incorporate the most important non-equilibrium Knudsen-layer effects.

3.1. Continuum-fluid models of slip

Integral to any calculation of the Knudsen layer is the model for gas slip at the surface. Maxwell’s (1879) slip boundary condition relates velocity slip to the shear stress at a gas–surface interface. Although his derivation was crude in comparison to modern kinetic theory, this boundary condition performs surprisingly well. It is partly owing to this, and its simplicity, that it still endures in rarefied gas dynamics (see Lockerby et al.2004). This boundary condition, for isothermal cases, has the form:

uslip =−2−σ

σ λ

τ

µ, (18)

where uslip is the velocity slip, τ is the shear stress, µ is the viscosity, σ is the tangential momentum accommodation coefficient (equal to one for perfectly diffuse molecular deflection, and zero for purely specular deflection) and λis the mean free path, defined as:

λ=µ

π

2ρp, (19)

whereρis the density, and pis the pressure.

However, one of the main shortcomings of Maxwell’s boundary condition is its inability to take into account the nonlinear stress/strain-rate relationship characteristic of the Knudsen layer (as depicted schematically in figure 8). As a way of compensating for this, modern slip boundary conditions (see e.g. Kogan 1969; Cercignani 1990; Sone 2002) use slip coefficients that predict greater than the actual slip at the boundaries. This ‘fictitious’ slip, as it is sometimes called, ensures that the linear Navier–Stokes model is accurate beyond the Knudsen layer, but not within it (i.e. the diagonal dashed line in figure 8).

The Maxwell condition is often supplemented by a second-order contribution to the slip, i.e.

uslip =A1λ

du dx +A2λ

2d2u

dx2, (20)

where x is in a direction normal to, and away from, the surface, and A1 and A2

≈ 2λ

u∗

uslip

uw

τ = const

Figure 8. Schematic of the Knudsen layer extending out from a solid wall surface (shaded): uw is the velocity of the wall;uslipthe velocity slip at the wall;u* is the amount of ‘fictitious’ slip velocity that would be required to ensure that a Navier–Stokes solution (diagonal dashed line) provides an accurate prediction (solid line) beyond the Knudsen-layer limit (vertical dashed line).

monatomic and isothermal gas at low Knudsen number:

A1 = 1.1466, A2=−0.9576, (21)

(this further assumes perfectly diffuse reflection of molecules at surfaces, i.e. σ= 1).

Using the same DVM for the BGK Boltzmann model as we used in §2.2, we

compare in figures 9 and 10 BGK solutions for isothermal Couette and Poiseuille channel flows with Navier–Stokes solutions using the boundary conditions (20) with (21). These results are for Kn(= λ/H) = 0.05, where the characteristic length,H, is the channel depth. As expected, a near-precise agreement is shown; it is only near to the walls that any inaccuracy is evident. Note that all the results that follow are non-dimensionalized using µ, λ and p, all of which are constant for the cases presented.

If the average error in the Navier–Stokes velocity profile compared to the BGK result may be defined as:

uerr=

1

|uBGK|max

(ui −uBGK_i)2_{, (22)}

where ui is the non-dimensional velocity of the Navier–Stokes solution at the

1.0

0.5

0 u

–1.0 –0.5

0 0.2 0.4

x/H

0.6 0.8 1.0

Figure 9.Non-dimensional velocity profile for Couette flow,Kn= 0.05 (=λ/H). Comparison of the BGK solution (—) with the slip solution (– – –). Non-dimensional wall velocities at

x= 0 andx=H are –1 and 1, respectively.

4

3

2 u

1

0 0.2 0.4

x/H

0.6 0.8 1.0

Figure 10.Non-dimensional velocity profile for Poiseuille flow, Kn = 0.05 (= λ/H). Comparison of the BGK solution (—) with the slip solution (– – –). The non-dimensional applied pressure gradient =Kn.

with the Navier–Stokes constitutive relations are: (i) that some portion of the flow domain is therefore necessarily fictitious, and at transitional Knudsen numbers (i.e. Kn = 0.1 ∼ 1), where the Knudsen layers are relatively much larger, this error becomes unacceptable; (ii) that for moderate transitionalKn, the linear stress/strain-rate relationship is invalid, not just near the walls, but for the entire channel. For example, a BGK solution of Couette flow withKn= 0.5 shows that nowhere in the flow are the linear Navier–Stokes constitutive relations less than 16% inaccurate. This inaccuracy is inherent in the foundational axioms of linearity of the Navier–Stokes constitutive relations, and is irrespective of the amount of slip introduced at the boundary.

However, we here propose an adaptation to the Navier–Stokes model capable of addressing both of these problems. This new model has two components: micro slip coefficients, which model the actual slip at gas–surface interfaces; and a wall-distance-dependent scaling of the Navier–Stokes constitutive relations. It is important to stress that our new model, for rarefied monatomic gas flows, is calibrated with precisely the same BGK result as used in the generation of the standard second-order slip boundary conditions (20) with (21). Any generality is therefore left intact.

3.2. Near-wall scaling of the constitutive relations

For ease of implementation, we seek a simple functional relationship between the departure from Navier–Stokes behaviour and the wall-normal distance from a surface. This concept is similar to the ‘wall-function’ proposed in Lockerby et al. (2005b). However, there are some marked differences in the model we propose below, most notably the presence of a second-order contribution to the near-wall scaling (second-order, in that it is dependent on a local Knudsen number) and a more accurate functional form (we also do not continue to use the phrase ‘wall-function’ in the present paper, to avoid confusion with those wall-functions associated with turbulence modelling). There are some similarities between our method and effective viscosity approaches, such as the one proposed by Guo, Shi & Zheng (2007).

For a simple one-dimensional flow, we propose scaling the stress/strain-rate relationship as follows (the scaling for a three-dimensional flow is essentially similar, see (31)–(34) below):

du

dx =−

τ

µ[1 +Ψ1( ˆx) +kΨ2( ˆx)], (23)

with the functionsΨi defined by:

Ψi( ˆx) =aixˆbi_ecixˆ_{, (24)}

where ˆxis the perpendicular distance from a wall surface (non-dimensionalized withλ) and positive in the direction away from the surface; ai, bi and ci are coefficients to be determined; and the variablek is:

k= 1 τ

dτ

d ˆx. (25)

Values for the coefficientsai,bi andci are optimised using a simple genetic algorithm to most accurately reproduce the two low-KnBGK results presented in Figures 9 and 10, resulting in:

a1= 0.1859, b1 =−0.4640, c1=−0.7902,

a2= 0.4205, b2 =−0.3518, c2=−0.4521.

(26)

Although these values are given to four significant figures, our results that follow are reasonably insensitive to their exact values. For example, for a Poiseuille flow of Kn = 0.2 (based on channel depth), a 5% alteration in any of the values listed in (26) results in less than 1% difference in the additional mass flow rate that occurs in the rarefied case.

Our scaling may be implemented conveniently within an existing computational fluid dynamics (CFD) code by defining a variable viscosity to effect the desired scaling. It is important to emphasize, however, that nothing artificial is being introduced into the subsequent Navier–Stokes calculations. The actual viscosity remains unaltered. Furthermore, the velocity profile correction that results is not at the expense of an inaccuracy in the prediction of stress (as will be demonstrated later); it is only the stress/strain-rate relationship that is being altered, and this is a reflection of what happens in reality.

The functional form given in (24) is qualitatively different to that proposed by Lockerbyet al.(2005b) and Guo et al.(2007), and has been chosen to reproduce the Knudsen layer’s actual structure more accurately; it allows for an indefinitely steep profile in the inner most regions of the Knudsen layer, and a more gradual decay in the outer regions. It also allows for a second-order contribution to the Knudsen layer. Our model predicts an infinite scaling at the wall (since the coefficientsb1 andb2 are

negative), and therefore an infinite rate of strain. Although this might, at first, seem counter-intuitive, it is in accord with kinetic theory analysis of the Knudsen layer by Sone (2002) and the recent work of Lilley & Sader (2007). In practice, this has limited consequences on the implementation of our method since the function is evaluated within the first fluid cell close to a wall (i.e. between the surface and first fluid grid points). As such, there is no singularity to reckon with in the computational scheme. Difficulties arise only if the spatial resolution is particularly high; then derivatives become large and the errors associated with their evaluation significant. To avoid this, very near-wall scaling values (e.g. ˆx <0.05) can be obtained by linear extrapolation from a value that is close to the wall, but which does not have excessively large derivatives (an example of this technique is discussed below).

3.3. Combined effect of two parallel walls

At transitional Knudsen numbers, it is likely that surfaces in close proximity will have a coupled effect on the departure of the flow from Navier–Stokes behaviour. Here, as an initial model, we assume that in parallel wall cases, their contributions can be combined linearly. This rather crude assumption is based on the simple premise that the direct influence of a wall is restricted to molecules travelling away from its surface. Since, in steady-flow cases, this set of molecules is half the total number, the influence of the opposite wall can be considered separately, and therefore added to this. In cases involving parallel walls, the combined scaling function is then:

du

dx =−

τ

surfaces, respectively. It is important to note that this would make no appreciable difference to the low-Knudsen-number cases in figures 9 and 10 because of the relatively large distance between the solid surfaces. It is highly likely that for non-planar cases, this linear combination of Knudsen-layer effects will have to be reconsidered in a more rigorous manner.

3.4. Micro slip

In our new model, we aim to model the actual (sometimes referred to as ‘micro’) slip, as opposed to a fictitious value of slip. So we propose here boundary conditions for the micro slip in a similar form to those used for fictitious slip, as in (20), but in terms of stress rather than strain-rate. For ordinary Navier–Stokes simulations this difference is of no consequence, but this is not the case for our model. Lockerbyet al. (2004) showed that Maxwell’s slip boundary condition should be expressed in terms of stress rather than strain-rate, and so here we extend this to second order:

uslip =−A1λ

τ µ−A2

λ2

µ dτ

dx. (28)

We obtain the values of the slip coefficientsA1 andA2directly from the low-KnBGK

solutions presented in figures 9 and 10:

A1= 0.798, A2=−0.278. (29)

This completes our micro-slip Navier–Stokes model with near-wall scaling of the constitutive relations.

3.5. Results and comparison with a kinetic theoretical model

We now compare our new model to both conventional second-order slip solutions and BGK results at transitional Knusden numbers. This represents a real test of both the conventional second-order slip model (equation (20)) and our new model, since both are based upon the same low-KnBGK data.

It is important to be clear that we are not investigating the appropriateness of the physical model underpinning the BGK Boltzmann equation itself; we are interested only in whether the standard and our current models can achieve the same predictions. As such, we do not present solutions to the Boltzmann equation for the same test cases; however, such solutions can be used to refine the calibration of our proposed model. Although not used in our simulations presented here, the model coefficients for a hard-sphere gas (calibrated using the data of Ohwada, Sone & Aoki 1989a,b) are: a1 = 0.1824; b1 = −0.5101; c1 = −1.051; a2 = 0.2001;

b2 = −0.7193; c2 = −0.652; A1 = 0.8055; and A2 = −0.1452. The first-order

coefficients (A1, a1, b1, c1) are very similar to those from the BGK model; the disparity

in the second-order coefficients (A2, a2, b2, c2) reflects the inaccuracy of the BGK

0.5

0 u

–0.5

0 0.2 0.4

x/H

0.6 0.8 1.0

Figure 11.Non-dimensional velocity profile for high Knudsen number Couette flow (Kn = 1.0). Comparison of the slip solution (· · ·), the BGK solution (—), and our model (– – –). Non-dimensional wall velocities atx= 0 andx=H are−1 and 1, respectively.

100

75

50

25

0 0.5 1.0 1.5

Kn

2.0 uerr

(%)

Figure 12.Average error of Couette flow velocity predictions up toKn= 2.0. Comparison of no-slip solution (–·–), slip solution (· · ·), and our model (– – –).

Couette flow

–1.0

–1.5 –0.5

τ

0 0.2 0.4

Kn

0.6 0.8 1.0

Figure 13. Non-dimensional Couette flow shear stress up to Kn= 1.0. Comparison of the no-slip solution (–· –), slip solution (· · ·), BGK solution (——) and our model (– – –). The non-dimensional wall velocities atx= 0 andx=H are –1 and 1, respectively.

range of Knudsen numbers. The slip solution has an average error of approximately 1% for Kn= 0.07, whereas our model can reachKn= 2.0 before showing the same level of error; this clearly represents a significant extension of applicability of the continuum-fluid model.

Our model’s accuracy in predicting the Couette velocity field is not, as initially might be assumed, at the expense of the stress field. The stress is constant throughout the channel, and predictions of our model are compared to those of the slip model and the BGK solutions in figure 13. Clearly, both the slip model and our current model very accurately predict the stress in the channel. For a Knudsen number as high as Kn = 2.0 the stress predictions are within 5% of the BGK solution for our model and within 6% for the slip model.

Poiseuille flow

The second-order elements of the slip model and our current model are not tested in Couette flow, as it is a constant-stress problem. So we now consider planar Poiseuille flow at transitional Knudsen numbers. For these simulations, we have chosen a non-dimensional streamwise pressure gradient equal toKn.

Figure 14 shows the velocity profiles for a high-KnPoiseuille flow (Kn=λ/H = 1.0) predicted by our model (with the same coefficients, equations (26)), the slip model and the BGK code. The current model provides a great improvement on the slip solution: the strain-rate variation of the velocity profile predicted by our model is very close to that of the BGK solution, suggesting that in this case it is the micro slip coefficient that is introducing most of the error, rather than the scaling of the constitutive relations.

The average error of the velocity profile is plotted in figure 15 for Knudsen numbers up to 2.0. The slip model shows an average error of 5% at a Knudsen number as

low as 0.13, whereas our model can reach Kn = 0.62 before showing the same

2.0

1.5

u

1.0

0.5

0 0.2 0.4

x/H

0.6 0.8 1.0

Figure 14.Non-dimensional velocity profile for high-Knudsen-number Poiseuille flow (Kn = 1.0). Comparison of the slip solution (· · ·), the BGK solution (—), and our model (– – –). The non-dimensional applied pressure gradient isKn.

150

100

50

0 0.5 1.0 1.5

Kn

2.0 uerr

(%)

Figure 15.Average error of Poiseuille flow velocity predictions up toKn= 2_.0. Comparison of no-slip solution (– · –), slip solution (· · ·), and our model (– – –). The non-dimensional applied pressure gradient isKn.

4

m.

2

0 0.4 0.8

Kn

1.2 1.6

Figure 16. Normalized mass flow rate predictions for Poiseuille flow up to _Kn = 1_.6. Comparison of no-slip solution (– · –), slip solution (· · ·), BGK solutions (—), and our model (– – –). The non-dimensional applied pressure gradient is Kn; the non-dimensional mass flow rate is normalized with√π/(2Kn).

(Kn ∼0.9). (Note that in this figure the Knudsen minimum appears quite slight; it would be more accentuated if the graph were extended to higherKn.)

Couette/Poiseuille flow

In developing slip models and extensions to Navier–Stokes solvers, the hope is that they might be applicable to general geometries. The model we have proposed is no less general in its derivation than the conventional slip model we have used for comparison. An investigation into both models’ accuracy in cases other than Couette and Poiseuille flows is therefore required.

For a combined Couette/Poiseuille test case we have chosen a non-dimensional pressure gradient equal to Kn and opposing wall velocities equal to −1 and 1. Figure 17 shows the velocity profile of this combined flow at Kn = 1.0. Again, our current model (with the same coefficients) provides a much better prediction than the conventional slip model. The average error of the velocity profile is plotted in figure 18 versus Knudsen number. The slip model shows a 5% average error at a Knudsen number of 0.14, whereas our model can reach a Knudsen number of 0.67 before showing the same level of error.

2.0

1.5

u

1.0

0.5

0 0.2 0.4

x/H

0.6 0.8 1.0

Figure 17.Non-dimensional velocity profile for high-Knudsen-number combined Couette/Poiseuille flow (Kn= 1.0). Comparison of the slip solution (· · ·), the BGK solution (–), and our model (– – –). The non-dimensional applied pressure gradient is Kn, and the non-dimensional wall velocities atx= 0 andx=H are –1 and 1, respectively.

150

100

50

0 0.5 1.0 1.5

Kn

2.0 uerr

(%)

Figure 18.Average error of combined Couette/Poiseuille flow velocity predictions up to Kn= 2.0. Comparison of no-slip solution (–· –), slip solution (· · ·), and our model (– – –). The non-dimensional applied pressure gradient isKn.

3.6. Results and comparison for micro-sphere flow

Stokes drag prediction of flow past a sphere required correction as the Knudsen number increased. Allen & Raabe (1985) conducted a similar but improved experiment and used their data to obtain a drag formula, dependent on Knudsen number, as follows:

D=DS1 +Kn(α+βe−γ /Kn−1

, (30)

where Ds is the Stokes drag, Kn is the Knudsen number based on sphere radius, α= 1.142±0.0024, β = 0.558±0.0024, andγ = 0.999±0.0212. This expression will be used as our experimental benchmark to which we compare the predictions of our model, alongside conventional slip solutions.

The governing equations

The three-dimensional low-speed incompressible Navier–Stokes momentum

equations with our constitutive-relation scaling are as follows:

∇P = 2µ∇·(Φ∇U) =µΦ∇2U+ 2µ∇Φ·∇U , (31) where

∇U = 1

2[∇U+ (∇U) T

], (32)

and

Φ= [1 +Ψ1( ˆn) +kΨ2( ˆn)]−1, (33)

with ˆn being the non-dimensional surface-normal distance from the nearest wall surface, and the functions Ψi and their coefficients are, again, those in (24) to (26). The variablek is calculated as follows:

k= 1 τ

dτ

d ˆn with τ =ixˆ·(inˆ·Π), (34)

whereΠis the stress tensor,inˆ is a unit vector in the wall-normal direction and ixˆ is a

unit vector perpendicular to inˆ in a direction that gives maximum shear stress,τ. Our

constitutive-scaling model as a whole can indirectly (although will not necessarily) affect the shear stress field, which in turn will alter k, producing a weak coupling effect.

A schematic of the sphere and the coordinate system adopted is shown in figure 19.

The symmetry of the problem indicates a solution independent of θ and with no

θ-component of velocity, i.e.

U =

⎡ ⎣ UrUφ

0 ⎤

⎦, ∂Ur

∂θ =

∂Uφ

∂θ =

∂p

∂θ = 0. (35)

Furthermore, since this is creeping flow (i.e. very low Reynolds number), variations in flow variables can be assumed to have the following form, with dependence only on r:

Ur(r, φ) =ur(r) cosφ, Uφ(r, φ) =uφ(r) sinφ, P(r, φ) =p_∞+p(r) cosφ,

⎫ ⎪ ⎬ ⎪

⎭ (36)

φ

θ

r Flow direction

Figure 19.Coordinate system for the micro-sphere flow problem.

The continuity and momentum equations are then:

0 = ∂Ur

∂r + 2Ur r + 1 r ∂Uφ ∂φ +

Uφcotφ

r , (37)

∂P

∂r =µΦ

∂2Ur

∂r2 +

2 r

∂Ur

∂r −

2Ur r2 +

1 r2

∂2Ur ∂φ2 +

cotφ r2 ∂Ur ∂φ − 2 r2 ∂Uφ ∂φ −

2Uφcotφ r2

+µ∂Φ

∂r ∂Ur

∂r , (38)

1 r

∂P

∂φ =µΦ

∂2_Uφ

∂r2 +

2 r

∂Uφ

∂r −

Uφ r2_sin2_φ +

1 r2

∂2_Uφ

∂φ2 +

cotφ r2 ∂Uφ ∂φ + 2 r2 ∂Ur ∂φ +µ∂Φ ∂r ∂Uφ ∂r + 1 r ∂Ur ∂φ − Uφ r . (39)

Note that Φ has dependence only on r, which is equal toλnˆ (the variable k, which must be evaluated for Φ, is also dependent only on r despite the shear stress, τ, varying with sinφ). After making substitutions for Ur, Uφ and P given in (36), and after eliminatingur from the momentum equations, (37) to (39) become:

uφ =−ur− r 2

dur

dr , (40)

dp

dr =µΦ

d2_ur

dr2 +

4 r

dur dr

+ 2µdΦ

dr dur

dr , (41)

p

r =µΦ

r 2

d3_ur

dr3 + 3

d2_ur

dr2 +

2 r

dur dr

+µdΦ

dr

r 2

d2_ur

dr2 +

dur dr

following fourth-order ordinary differential equation:

0 =Φ

r2

2 d4_ur

dr4 + 4r

d3_ur

dr3 + 4

d2_ur

dr2 −

4 r dur dr +dΦ dr

r2d

3_ur

dr3 + 5r

d2_ur

dr2 +

dur dr + d 2_Φ dr2 r2 2

d2_ur

dr2 +r

dur dr

. (43)

This is solved with the following boundary conditions:

ur(r =∞) =U_∞, ur(r =a) = 0,

dur

dr (r=∞) = 0, dur

dr (r=a) =− 2uφ a = 2uslip a , ⎫ ⎪ ⎪ ⎪ ⎪ ⎬ ⎪ ⎪ ⎪ ⎪ ⎭ (44)

where a is the radius of the sphere and U_∞ is the free-stream velocity. Note that in the final boundary condition given in (44), the gradient of ur at the surface of the sphere is related to the slip velocity via the continuity equation (40).

The surface shear stress, τ, and surface normal stress,σ, are as follows:

τ(φ) = ˆτsinφ, σ(φ) = ˆσcosφ, (45)

where

ˆ τ =µΦ

r 2

d2_ur

dr2 +

dur dr

, σˆ =−2µΦ

dur dr

. (46)

These expressions, combined with the pressure that is obtained from (42), can be used to evaluate the total drag force,F, on the sphere:

F =

S

(P +σ −τ)ds, (47)

where S is the surface of the sphere and ds = a2sinφdφdθ. By substituting (45), and the pressure equation in (36), into (47) our final expression for the drag force is obtained:

F = 4 3πa

2_{(p+ ˆσ −2 ˆτ). (48)}

Note that, numerically, the surface stresses and surface pressure may be evaluated by one-sided finite differences.

Numerical procedure

The domain is semi-infinite, and so the following mapping is used:

η= L

r−a+L, (49)

1.0 0.9 0.8 0.7 Normalized drag 0.6 0.5

0 0.1 0.2

Knudsen number

0.3 0.4 0.5

Figure 20.Normalized drag on a sphere versus Knudsen number. Comparison of classical slip solution (–· ·–) by Basset (1888); a second-order slip solution (· · ·) by Cercignani (1990); our model (– – –); a BGK solution (䊊) by Lea & Loyalka (1982); and a curve fit to the experimental data of Allen & Raabe (1985) (——).

follows:

∂ur

∂r ≡ −

η2 L ∂ur ∂η ,

∂2_ur

∂r2 ≡

η4

L2

∂2_ur

∂η2 +

2 η ∂ur ∂η ,

∂3ur ∂r3 ≡ −

η6 L3

∂3ur

∂η3 +

6 η

∂2ur ∂η2 +

6 η2 ∂ur ∂η ,

∂4ur ∂r4 ≡

η8 L4

∂4ur

∂η4 +

12 η

∂3ur ∂η3 +

36 η2

∂2ur ∂η2 +

24 η3 ∂ur ∂η . ⎫ ⎪ ⎪ ⎪ ⎪ ⎪ ⎪ ⎪ ⎪ ⎪ ⎪ ⎪ ⎬ ⎪ ⎪ ⎪ ⎪ ⎪ ⎪ ⎪ ⎪ ⎪ ⎪ ⎪ ⎭ (50)

We discretize the resulting differential equation using centred finite differences and solve it using a standard linear equation solver. For all computations presented here, 4000 grid points have been used, but acceptably accurate results can be obtained with far fewer points. ForKn= 0.1, a simulation with 100 grid points obtains a prediction of drag within 2.5% of that obtained using 4000 grid points; a simulation with 300 grid points, within 1%.

One minor numerical complication arises from the derivatives of the function Φ tending to infinity at the surface of the sphere. To circumvent the numerical problems this causes, the function is linearly extrapolated back towards the surface for values of ˆn < 0.05. This extrapolated region is very small and has negligible effect on the solution other than to stabilize it.

Results

Our model is compared with the experimentally-fitted function of (30), a first-order slip solution due to Basset (1888) (A1 = 1; A2 = 0), a second-order slip solution

given by Cercignani (1990) (A1 = 1.1466; A2 = −0.9576), and BGK results from

significantly better predictions than the second-order slip model, and much better predictions than Basset’s classical slip model, when compared to both the experimental data and the BGK result. Considering that the second-order slip solution also has fictitious contributions to the flow velocity near to the wall (as we noted in§3.1), our current model is therefore greatly to be preferred.

One caveat to this latter statement is that at much higher Kn (greater than about 0.6), and for this configuration, our model meets some stability problems. More work is required to establish whether this is a problem with the current implementation strategy, or an inherent instability in the model.

4. Discussion and conclusions

We have tested a number of different continuum-type equations, each purporting to capture non-equilibrium physical flow effects, against a simple new benchmark case in rarefied flows: the time-varying standing shear wave. While this is an ideal case, it has the distinct advantage of separating rarefied gas effects in the bulk flow from those due to solid bounding surfaces. Another advantage is that the analysis is relatively simple, so competing continuum-type models can be evaluated straightforwardly. We showed that the R13 equations, proposed by Struchtrup & Torrilhon as a development of Grad’s original 13 moment technique, provide the best model among those we tested. Cases more complicated than this ideal benchmark may, however, require efficient computational methods in order to make the R13 equations a tractable design tool; it is unclear at present how computationally demanding calculations of three-dimensional flows in complex geometries may be for any high-order continuum equation set.

To tackle, within the conventional fluid dynamics framework, the non-equilibrium introduced by solid surfaces, we have developed a new Navier–Stokes model for monatomic micro gas flow simulations. This combines slip boundary conditions with a near-wall scaling of the constitutive relations. We showed that this model is much more accurate at higher Knudsen numbers than the conventional second-order slip model. It provides good results for combined Couette/Poiseuille flow, and can predict the stress/strain-rate inversion that is evident from BGK solutions.

We also applied our new model to the non-planar low-speed micro-flow around a sphere. Again, it demonstrated a marked improvement on conventional second-order slip predictions of drag, although there are some as yet unanswered questions regarding its stability at high Knudsen numbers.

In addition to its predictive capabilities in planar and curved geometries, our new model

(i) does not require re-calibration of its coefficients for different geometries; (ii) is easily and consistently implemented within existing CFD frameworks as a scaled effective viscosity;

(iii) is of equivalent computational cost to the standard Navier–Stokes equations (and additional numerical grid points are not required to maintain accuracy);

(iv) is based on the same BGK results as standard second-order slip boundary conditions, i.e. it has not been fitted to higher Knudsen number data for the particular flows considered;

(v) does not require additional boundary conditions for higher moments of the flow properties.

(i) consideration of the effect of non-parallel wall interactions on the overall flow field;

(ii) incorporating the thermal Knudsen layer that is important in non-isothermal flows;

(iii) developing micro slip and constitutive relation scaling based on a more sophisticated collision model than the BGK approximation;

(iv) investigating polyatomic gas flows and the effect of gas mixtures.

The authors would like to thank Professor Dimitris Valougeorgis for providing a well-documented DVM code that generated the BGK results presented in this paper. We also thank the referees of this paper for their very helpful comments. This work is funded in the UK by the Engineering and Physical Sciences Research Council under grant EP/D007488/1.

R E F E R E N C E S

Allen, M. D. & Raabe, O. G. 1985Slip correction measurements of spherical solid aerosol-particles in an improved Millikan apparatus.Aerosol Sci. Tech.4, 269–286.

Basset, A. B.1888A Treatise on Hydrodynamics. Cambridge University Press.

Burnett, D.1935 The distribution of molecular velocities and the mean motion in a non-uniform gas.Proc. Lond. Math. Soc.40, 382.

Cercignani, C.1990Mathematical Methods in Kinetic Theory. Plenum.

Chapman, S. & Cowling, T. G. 1970 The Mathematical Theory of Non-Uniform Gases, 3rd edn. Cambridge University Press.

Grad, H.1949 On the kinetic theory of rarefied gases.Commun. Pure Appl. Maths.2, 331.

Greenshields, C. J. & Reese, J. M. 2007 The structure of shock waves as a test of Brenner’s modifications to the Navier–Stokes equations.J. Fluid Mech.580, 407–429.

Guo, Z. L., Shi, B. C. & Zheng, C. G.2007 An extended Navier–Stokes formulation for gas flows in the Knudsen layer near a wall.EPL80, 24001.

Hadjiconstantinou, N.2003 Comment on Cercignani’s second-order slip coefficient._{Phys. Fluids} 15, 2352

Kogan, M. N.1969Rarefied Gas Dynamics. Plenum.

Lea, K. C. & Loyalka, S. K.1982 Motion of a sphere in a rarefied gas.Phys. Fluids 25, 1550.

Lilley, C. R. & Sader, J. E.2007 Velocity gradient singularity and structure of the velocity profile in the Knudsen layer according to the Boltzmann equation.Phys. Rev.E76, 026315. Lockerby, D. A., Reese, J. M., Emerson, D. R. & Barber, R. W.2004 Velocity boundary condition

at solid walls in rarefied gas calculations.Phys. Rev. E70, 017303.

Lockerby, D. A., Reese, J. M. & Gallis, M. A._{2005aThe usefulness of higher-order constitutive} relations for describing the Knudsen layer.Phys. Fluids17, 100609.

Lockerby, D. A., Reese, J. M. & Gallis, M. A.2005bCapturing the Knudsen layer in continuum-fluid models of nonequilibrium gas flows.AIAA J. 43, 1391.

Maxwell, J. C. 1879 On stresses in rarefied gases arising from inequalities of temperature.Phil. Trans. R. Soc. Lond170, 231.

Millikan, R. A. 1923 The general law of fall of a small spherical body through a gas, and its bearing upon the nature of molecular reflection from surfaces.Phys. Rev.22, 1.

Naris, S. & Valougeorgis, D.2005 The driven cavity flow over the whole range of the Knudsen number.Phys. Fluids17, 907106.

Naris, S., Valougeorgis, D., Kalempa, D. & Sharipov, F.2005 Flow of gaseous mixtures through rectangular microchannels driven by pressure, temperature and concentration gradients.Phys. Fluids17, 100607.

Ohwada, T., Sone, Y. & Aoki, K. 1989a Numerical analysis of the Poiseuille and thermal transpiration flows between two parallel plates on the basis of the Boltzmann equation for hard-sphere molecules.Phys. FluidsA1(12), 2042.

University, UK.

Reese, J. M., Gallis, M. A. & Lockerby, D. A. 2003 New directions in fluid dynamics: non-equilibrium aerodynamic and microsystem flows.Phil. Trans. R. Soc. Lond.A361, 2967. Sone, Y.2002Kinetic Theory and Fluid Dynamics. Birkhauser, Boston.

Struchtrup, H.2005Macroscopic Transport Equations for Rarefied Gas Flows. Springer.

Struchtrup, H. & Torrilhon, M.2003 Regularization of Grad’s 13-moment equations: derivation and linear analysis.Phys. Fluids15, 2668.

Struchtrup, H. & Torrilhon, M.2007 H theorem, regularization, and boundary conditions for linearized 13 moment equations.Phys. Rev. Lett.99, 014502.

Valougeorgis, D.1988 Couette flow of a binary gas mixture.Phys. Fluids31, 521.
