Functions:
16 IP-Cameras
Face recognition
Autotracking with PTZ Camera
Counting objects/persons
POS
E- Map with camera position
CMS & Client software for remote monitoring
Access via iPhone-App.
Timeline recording

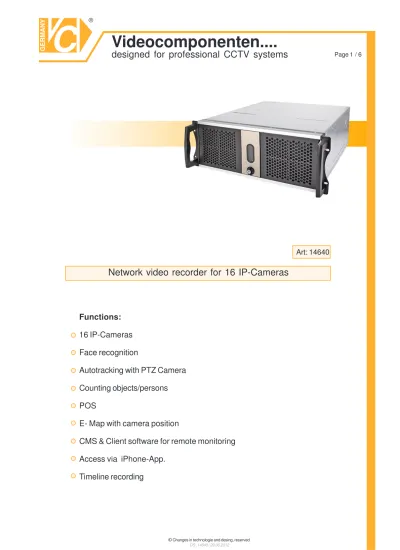

Network video recorder for 16 IP-Cameras
Optional accessories:
Technical data:
Rear pannel
Operations System: Windows 7
Hard drive: 1 x 30GB SSD for OS
Camera connection No of: 16 IP-Cameras
Compressions method MPEG4, H264, MJPEG
Storage groups Ring storage / Alarm storage / Text storage
Record capacity depending on HD and compressions method
Recording / Display 1, 4, 8, 9, 13, 16, 32-fach / 1, 4, 8, 9, 13, 16-fach
Recording/ Display speed 32 Megapixel total,up to 25 frames per second each camera
Search function Direct search, Alarm, Timer, Event, POS
Motion-, Panorama- und Symbol search
Search criteria Date , Time, alarm triggering, high speed search function etc...
Signal / Noise Ratio > 62 dB
Synchronisation Internal
Programming on site or via remote access
Alarm history yes
Operations temperature 5 ° up to + 40° C
Safety aprovals. EN 50081-1, 55011 Klasse B
EMF compliant. EN 50082-2, 50204, 61000-4
Ssecurity EN 60950, 60065
Index Protection compliant german lows IP - 40 Connections:
Video 1 x VGA Output, 1 x DVI-D Output, 1 x HDMI Output
Operations temperature 240V AC
Dimenssions (W x H x L) 485 x 180 x 470 mm
Weight 19 kg
Max. 3 x 2TB internal, HDD Hard Drive, optional external RAID Rack U-Frame Art.Nr. 12051
mobile rack Art.Nr. 12050 Backup extention Art.Nr. 12070
4x COM-Card Art.Nr. 12114 (connection of 3 x ATM) 8x COM-Card Art.Nr. 12112 (connection of 7 x ATM) VGA extention cable RJ-45 Art.Nr. 13911
Mouse / keyboard extention cable RJ-45 Art.Nr. 13912 Backup-CD Art.Nr. 14532
To the Video Hybrid Recorder can be connected analoge and IP cameras.The system support more than 250 IP protocols, ONVIF . It can also be connected megapixel resolution cameras up to 2 Megapixel (1x 5 Megapixel) .The total capacity of all connected cameras can be up to 32 megapixels. An PDA or mobile phone access is also possible.
Face recognition Autotracking with PTZ Camera
The face recognition recognize faces and will be displayed as a thumbnail.
The video recorder support of a Autotracking function for connected PTZ cameras. The Trackingsoftware can follows the objects in a horizontal plane , the camera will take the position needed in order to follows the object in a vertical/ horizontal plane ( right , left)
The counting object function allows the counting of objects in both directions.
The data output as a list or a graphic
.
The data can be stored as a file in order to make this a further analysis program available.
Graphical ana
lisys
Intelligent functions
Server software E Map
Up to 8 maps can be created.
The cameras are positioned freely on the map
The status of the cameras is shown in color
Other intelligent features are :
- Alarm at hidden or disguised cameras - Alarm forgotten objects
- Pay attention function (the user has to push a buttom at 60 min. at least) - Fixed setting for days of recording
- Built in watermark - FTP transmission - E-Map popup
T
The server software and client software , customize the appearance of the resolution to the screen format. (4:3, 16:9) .The maximal resolution is 1920 x 1080 (Full HD) in 16:9 Format.
Server-Software on Full HD Resolution 1920 x 1080 Pixel by 16:9 Format
Server-Software Resolution of 1024 x 768 Pixel by 4:3 Format
Search for pictures on the server
The recorder supports 5 search modes:
Standard searching mode:on a color timeline, the actual time will be called up and displayed simultaneously to 16 cameras.
Symbol searching mode: üon a color timeline, the actual time be called. It will be shown on one channel all day, week or month.
By clicking the video image in the desired time range is an indication of the stored images in the next mode e.g. Hour mode, appears when you click the 10 minute mode.
This function can be repeated until you find the desired image.
Motion searching mode:It can be marked a range of a camera through a window and the recorder picks put all times of the recordings in which something has moved within the selected field.
Text searching mode:
For example, searching for a cancellation process. In a text box to search the text „cancellation“ is entered.A mouse click will search for the text.All Transanktionen that contain this text will be displayed with time and date.
By clicking on the image of a transaction is playing with the text display.
Search of alarm list:
