92009674 3rd Carrier RBS6201 Procedure

(1)

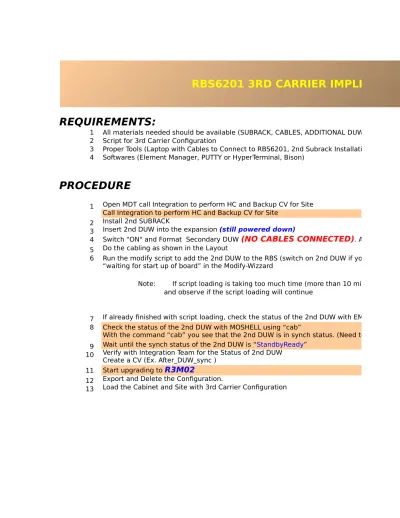

REQUIREMENTS:

1 All materials needed should be available (SUBRACK, CABLES, ADDITIONAL DUW) see Layout for Cable reference 2 Script for 3rd Carrier Configuration

3 Proper Tools (Laptop with Cables to Connect to RBS6201, 2nd Subrack Installation) 4 Softwares (Element Manager, PUTTY or HyperTerminal, Bison)

PROCEDURE

1 Open MDT call Integration to perform HC and Backup CV for Site Call Integration to perform HC and Backup CV for Site

2 Install 2nd SUBRACK 3

4

5 Do the cabling as shown in the Layout 6

Note: If script loading is taking too much time (more than 10 mins) you need to switch "OFF" and the switch "ON" again t and observe if the script loading will continue

7 If already finished with script loading, check the status of the 2nd DUW with EMAS (needs to be enabled) 8

9 10 11

12 Export and Delete the Configuration.

13 Load the Cabinet and Site with 3rd Carrier Configuration Insert 2nd DUW into the expansion (still powered down)

Switch "ON" and Format Secondary DUW

(NO CABLES CONNECTED)

. After Format Switch"OFF" again Run the modify script to add the 2nd DUW to the RBS (switch on 2nd DUW if you see

“waiting for start up of board” in the Modify-Wizzard

Check the status of the 2nd DUW with MOSHELL using “cab”

With the command “cab” you see that the 2nd DUW is in synch status. (Need to restart cabinet if 2nd DUW is not showing on moshell) Wait until the synch status of the 2nd DUW is “StandbyReady”

Verify with Integration Team for the Status of 2nd DUW Create a CV (Ex. After_DUW_sync )

Start upgrading to

R3M02

(2)

All materials needed should be available (SUBRACK, CABLES, ADDITIONAL DUW) see Layout for Cable reference Script for 3rd Carrier Configuration

Proper Tools (Laptop with Cables to Connect to RBS6201, 2nd Subrack Installation) Softwares (Element Manager, PUTTY or HyperTerminal, Bison)

Open MDT call Integration to perform HC and Backup CV for Site Call Integration to perform HC and Backup CV for Site

Install 2nd SUBRACK

Do the cabling as shown in the Layout

Note: If script loading is taking too much time (more than 10 mins) you need to switch "OFF" and the switch "ON" again t and observe if the script loading will continue

If already finished with script loading, check the status of the 2nd DUW with EMAS (needs to be enabled)

Export and Delete the Configuration.

Load the Cabinet and Site with 3rd Carrier Configuration

(NO CABLES CONNECTED)

. After Format Switch"OFF" again

Run the modify script to add the 2nd DUW to the RBS (switch on 2nd DUW if you see

With the command “cab” you see that the 2nd DUW is in synch status. (Need to restart cabinet if 2nd DUW is not showing on moshell)

INTEGRATION

TEAM

(3)

RPM 777 277 / 00900 R3A

SIGNAL CABLE

(approximate length 1m)

Need additional 3 pcs for 3rd Carrier

(Connection from RUW to Secondary DUW)

RPM 777 263 / 00650 - R1B

SIGNAL CABLE

(IDL to IDL Connection from Primary to Secondary DUW)

RPM 777 279 / 00650 R1B

SIGNAL CABLE

( F to F Connection from Primary to Secondary DUW)

RPM 777 193 / 01000 R1C

DC POWER CABLE WCDMA Need Additional 1 pc

(Power Cable for Secondary DUW)

Connected to PDU

IMPORTANT

IDL Cable labeled with "PRIMARY" should be connected to the

primary DUW and "SECONDARY" to secondary DUW and do not be mistaken to interchange, otherwise primary DUW will be corrupted

(4)

RPM 777 277 / 00900 R3A

SIGNAL CABLE

RPM 777 279 / 00650 R1B

SIGNAL CABLE

(5)

RPM 777 277 / 00900 R3A

SIGNAL CABLE

RPM 777 277 / 00900 R3A

SIGNAL CABLE

Existing from Cabinet Delivery (3pcs Only)

(Connection from RUW to Primary DUW)

CABLES NEEDED FOR 3rd CARRIER

RPM 777 277 / 00900 R3A - 3pcs RPM 777 263 / 00650 - R1B - 1pc RPM 777 279 / 00650 R1B - 1pc RPM 777 193 / 01000 R1C - 1pc

(6)

RPM 777 277 / 00900 R3A

SIGNAL CABLE

(7)

RPM 777 277 / 00900 R3A

SIGNAL CABLE

Existing from Cabinet Delivery (3pcs Only)

(Connection from RUW to Primary DUW)

CABLES NEEDED FOR 3rd CARRIER

RPM 777 277 / 00900 R3A - 3pcs RPM 777 263 / 00650 - R1B - 1pc RPM 777 279 / 00650 R1B - 1pc RPM 777 193 / 01000 R1C - 1pc

(8)

(9)

(10)

(11)

RPM 777 263 / 00650 - R1B

SIGNAL CABLE

(IDL to IDL Connection from Primary to Secondary DUW)

RPM 777 279 / 00650 R1B

SIGNAL CABLE

RPM 777 277 / 00900 R3A

SIGNAL CABLE

(12)

RPM 777 193 / 01000 R1C

DC POWER CABLE WCDMA Need additional 1 pc

(Power Cable for Secondary DUW) RPM 777 277 / 00900 R3A

SIGNAL CABLE

(13)

Welcome to OSE Shell ose5.3.

OSE Delta PowerPC/BL250206 Welcome to OSE Shell ose5.3.

$ Start of @(#)CXC1725340 R3A03 2010-02-26 07:56:41 GMT Plug-in Unit Product Name: DUW3001

Plug-in Unit Product No: KDU127161/3 Plug-in Unit Product rev: R3C

Plug-in Unit Product Date: 20110120 Plug-in Unit Product Serial: CB4G222342 Ethernet MAC_address 0: 0xC835B842FAA2 RAM size: 1024 Mbytes

Stop due to remain in basic/backup set

formathd /d

Formatting Hard Disk...

formathd /c2

username: rbs password:rbs

$

reload

--All data on volume will be destroyed. Continue? y/n (n):

y

$

reload

--HOW TO FORMAT DUW

(14)

Formatting Hard Disk...

ifconfig le0 169.254.1.1 netmask 255.255.0.0

$

All data on volume will be destroyed. Continue? y/n (n):

y

(15)

--HOW TO FORMAT DUW

(16)

(17)

2 from serial to 3 on RJ45 3 from serial to 2 on RJ45 5 from serial to 1 on RJ45

The connection between a DUW and a PC for serial connection (RS232) should look like this. Please note that this is applicable for DUW/DUL/DUG.

(18)

The connection between a DUW and a PC for serial connection (RS232) should look like this. Please note that this is applicable for DUW/DUL/DUG.

use FEMALE serial

(19)

output power 3-7-11 / 60 st plugin txdev 0-3/1-3 hscode 1-1/2-2/3-3/1/2/3 get . Pool2 25/25 32574 32575 32576
