Car Park Design

(1)

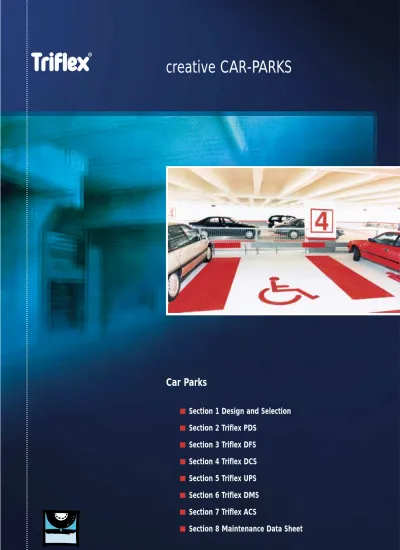

Triflex creative CAR-PARKS

creative CAR-PARKS

Car Parks

Section 1 Design and Selection

Section 2 Triflex PDS

Section 3 Triflex DFS

Section 4 Triflex DCS

Section 5 Triflex UPS

Section 6 Triflex DMS

Section 7 Triflex ACS

(2)

1

Triflex creative CAR-PARKS Design and Selection

Design and Selection

Section 1 Creative Car Parks

Triflex Creative Car Parks

Colours

(3)

Triflex Creative Car Parks

Our aim is to offer the total package of waterproofing, surfacing and protection solutions for car park refurbishment and new build construction projects. Through a combination of high technology systems and our extensive range of design opportunities, the car park environment can be totally transformed.

Triflex has been manufacturing waterproofing, surfacing and protection systems for more than 25 years, and systems specifically for car parks for more than 20 years. Our expertise in terms of both refurbishment and new build applications ensures that you can be confident you have selected the right partner.

What makes a successful

car park?

Whatever the use of the car park, the users are the key and for a car park to be successful their demands need to be met. Users expect car parks to be light, bright and clearly laid out in order that they feel personally safe and welcomed, and feel secure in the knowledge that their personal property is being looked after.

Why does it matter?

First impressions count.

A light, bright, safe, user friendly car park with attention to colour and design says a lot about what you think about the users. A car park which is dark and dismal ensures that if given the choice, potential users will park elsewhere.

Design and Selection Triflex creative CAR-PARKS

(4)

System philosophy

Our philosophy in whichever area of waterproofing, surfacing and protection we are involved in is to offer long term protective solutions. Our many years of experience in the car park industry ensure that we understand the specific demands of these structures and only offer high quality, proven systems.

The Triflex package

Triflex offers a full range of systems designed to add value to the structure, by: Providing an enhanced, safer, aesthetically pleasing environment for users Prolonging building life

Protecting property

The Triflex range of systems comprises:

External deck waterproofing and surfacing systems Internal deck waterproofing and surfacing systems Internal deck coating systems

Ramp waterproofing and surfacing systems

Underground car park waterproofing, surfacing and coating systems Dynamic Marking Systems

Anti-Carbonation Systems

Designing car parks for the

people who use them

A successful car park needs to be well designed and look good. To assist in the transformation process, and to provide the maximum range of design options, Triflex can produce computer generated visualisatons. This allows you to try innovative designs and colours, and identify potential opportunities in advance. And then, when we’ve helped you create the ideal design for your own and your users needs, we’ll put our sophisticated materials to work to turn the concept into reality.

(5)

Deck systems

Triflex has a standard range of 9 colours for quartz topped car park deck waterproofing and surfacing systems.

Traffic grey over basalt is also an option for car park decks, and standard for ramp systems.

Deck markings

For details of the Triflex DMS (Dynamic Marking System) colour range please refer to section 6.

Walls, columns and soffits

Triflex ACS (Anti-Carbonation Systems) are available in almost any colour to ensure the best balance between aesthetics, light reflectivity and maintenance.

Finish: Traffic Green

Finish: Traffic Grey Finish: Traffic Yellow

Finish: Traffic Orange Finish: Stone Grey

Finish: Traffic Pebble

Finish: Traffic Grey over Basalt

Finish: Traffic Red

Finish: Traffic Purple Finish: Traffic Blue

Please note: There may be slight variations in shade between actual colours and those shown here. This is unavoidable due to printing technology and the nature of the material.

Special colours can be produced to order, subject to minimum quantities

Design and Selection Triflex creative CAR-PARKS

(6)

Section

3 Section

2 Section

3 System Selector

The aim of this System Selector is to help direct you to the specific system or systems to meet the needs of the project.

How to use the System Selector

Choose your project requirement from the first column of the following table Read across the table to find the relevant system

Refer to the relevant section of the Triflex Car Parks manual or request specific system information from Triflex or our approved contracting partners

Waterproofing, Surfacing and Protection Systems

PDS _ExternalDFS- (1) DFS PDS-Ramp DFS-Ramp DCS UPS DMS

ACS or Colorcret

Notes:

(1)_{Not suitable for External Car Park and Service Decks over occupied premises. Subject to conditional survey} SYSTEM

APPLICATION

Waterproofing and Surfacing of External Car Park and Service Decks over Occupied Premises Waterproofing and Surfacing of External Car Park and Sevice Decks

Waterproofing and Surfacing of Internal Car Park Decks

Waterproofing and Surfacing of External Car Park Ramps over Occupied Premises Surfacing of External Car Park Ramps

Waterproofing and Surfacing of Internal Car Park Ramps(2)

Coating of Internal Car Park Decks

Waterproofing, Surfacing and Coating of Underground Car Parks

Deck Markings

(7)

2

Triflex creative CAR-PARKS Triflex PDS

Triflex PDS

Waterproofing and Surfacing for

Exposed Car Park and Service Decks

over Occupied Premises

Section 2 Creative Car Parks

Waterproofing and Surfacing for

Exposed Car Park and Service Decks

over Occupied Premises

Triflex PDS - System Data

Triflex PDS - Ramp- System Data

NBS Specification Clauses

Typical Sketch Details

(8)

Triflex PDS Triflex creative CAR-PARKS

The problems

Exposed car park decks are often:

Inadequately protected from water ingress and environmental damage, for example Chlorides and Carbon Dioxide, leading to long term structural damage and damage to property

Surfaced with unsuitable, low technology materials, or thin coat systems which are incapable of providing both the waterproofing and a durable, aesthetically pleasing surface finish. The consequences of under specification are system failure after a relatively short period of time

Difficult for drivers and pedestrians to use effectively due to a lack of colour and design options Difficult to clean and maintain

The Triflex solution

The BBA approved Triflex PDS (Park Deck System) provides exposed car park decks with exceptional protection from environmental, mechanical and physical damage, while offering almost limitless design options.

The heavy duty, thick layer, fully reinforced Triflex PDS has been designed and developed over more than 20 years to fulfil the specific demands of the most demanding exposed parking areas, whether in refurbishment or new build applications.

Triflex PDS

(Park Deck System)

Exposed car park and service decks over occupied premises must provide a high level of protection to the structure and property beneath, and a durable, safe, aesthetically pleasing surface finish capable of withstanding long term trafficking.

Triflex has more than 20 years experience in providing long term waterproofing, surfacing and protection solutions for exposed car park and service decks over occupied premises whether new build or refurbishment. The exceptional durability of our systems also allows areas such as ramps over occupied premises to be comprehensively protected.

Ramps and service decks

The Triflex PDS - Ramp variant provides optimum traction and abrasion resistance characteristics, improving safety and ensuring the maximum system durability in these high wear areas.

Triflex also has significant experience in providing waterproofing, surfacing and protection solutions to service decks and car park decks trafficked by Heavy Goods Vehicles. Based on this experience we are able to offer overlay solutions and specific design advice to ensure that all areas can be treated with total confidence.

(9)

UNIQUE FULLY REINFORCED MEMBRANE - The system comprises a unique, fully reinforced membrane with a fully aggregate filled wearing course. The reinforced membrane ensures that the System has exceptional resistance to flexural fatigue, and can withstand the stresses from thermal expansion and contraction, dynamic loading and cracking which occur in exposed car park decks. The System provides exceptional structural protection for the main deck and details from the damaging ingress of water, Carbon Dioxide and Chlorides. The membrane is resistant to all common automotive fluids, frost and UV radiation

The seamless application ensures that all details and potential areas of weakness can be incorporated within the same fully reinforced waterproofing and surfacing membrane DURABILITY - The PDS is a heavy duty, thick layer system with a dry film thickness greater than 4mm. With its’ fully aggregate filled, anti skid wearing course, the PDS is suitable as the waterproofing and surfacing system for heavily trafficked car park and service deck environments (BBA Durability Statement - 20years)

ELASTOMERIC - The Triflex PDS is elastomeric, which when combined with the unique reinforcement, provides resistance to dynamic cracking and flexural fatigue which cannot be provided by other systems. All regular and unforeseen movement is comfortably accommodated within the system. This makes the system particularly suitable for high movement and high risk areas such as trafficked decks over occupied premises COMPATIBILITY - The system can be used to overlay concrete, asphalt, HRA, SMA and some existing membranes subject to testing, avoiding the disruption and costs associated with removal

CURE TIMES - The PDS has low cure times compared to PU and EPOXY materials providing advantages to the client and contractor. The final finish coat can be trafficked after only 3 hours

COLOURS - Our range of finish options and special colours ensure the clients’ aesthetic requirements can be fulfilled. Dedicated pedestrian walkways and safe zones, together with colour coding can be incorporated from the design stage

JOINTS - The system can be combined with the Triflex projoint system to provide single source liability for the total waterproofing and surfacing package

CERTIFIED PROTECTION - The Triflex PDS has full BBA certification, confirming that it has been tested and approved at the highest level

RAMPS - For these areas, the Triflex PDS - Ramp offers optimum abrasion resistance and traction characteristics through the use of a basalt split aggregate and optional traction strips CLEANING AND MAINTENANCE - The hard wearing PDS can be easily cleaned and maintained using conventional methods

Benefits

Triflex PDS-Ramp - Suitable for ramps

and ramp aprons (showing optional

traction strips)

The system in detail

Triflex PDS - Suitable for

(10)

Supply Options

For larger projects, the PDS System is available in 1000kg re-usable containers, reducing wastage and the impact on the environment.

Further information

Please refer to the Triflex PDS and PDS - Ramp System Data Sheets and BBA certificate no. 91/2639 or request specific information from Triflex or an approved contracting partner. To request a copy of the BBA certificate contact Triflex direct or complete the literature request form on our website: www.triflex.co.uk

To print a copy of the System Data Sheets, please use the Triflex Systems CD provided inside the back cover.

Triflex PDS

Colours

The System is available with either quartz aggregate topping and pigmented seal or basalt topping with traffic grey seal.

Please refer to section 1 for details

Survey, inspection

and report service

Triflex offer a free of charge survey, inspection and report service to ensure that the specification can be tailored to the specific requirements of the project.

To take advantage of this service, please contact Triflex directly.

Design assistance

Through the use of computer generated visualisations, we can demonstrate the transformation which can be achieved through the innovative use of colour, design and graphics.

(11)

Triflex PDS

Heavy duty, thick layer, fully reinforced waterproofing

and surfacing system for exposed car park decks

System Data Sheet

1 Substrate

2 Triflex Primer

3 Triflex PD

4 Triflex Reinforcement Fleece

5 Triflex PD

6 Triflex PD embedding layer

7 Crystal quartz or basalt aggregate 8 Triflex Cryl Finish 205

System Build Up

Triflex Primer - Primer for sealing of substrate and to improve adhesion. Triflex PD Reinforced Embedment Layer - Waterproofing layer fully

reinforced with a tough polyester fabric.

Triflex PD Wearing Layer - Incorporating a hard wearing crystal quartz

or basalt aggregate.

Triflex Finish - Abrasion resistant system seal coat.

Applications

The system is suitable for waterproofing and surfacing of exposed car park decks.

Fire resistant to BS476:PART3:1958 (EXT.F.AA) Chemical resistant

Resistant to Chloride and Carbon Dioxide ingress Vapour permeable

UV resistant Solvent free Anti-skid

Available in a wide range of colours and textures Totally waterproof

Fully reinforced, thick layer system BBA certified - no. 91/2639 Tough – abrasion resistant Fast curing

Cold applied Seamless Elastomeric

Dynamic crack bridging

Properties

2 3 4 5 6 7 8

(12)

Triflex PDS

Substrate preparation and priming

System Data Sheet

Substrate Preparation Triflex PDS Triflex prodetail

Notes main area option for details

Asphalt 1 Triflex Cryl Primer 222 Triflex Cryl Primer 222

Hot Rolled Asphalt (HRA) 1 Triflex Cryl Primer 222 Triflex Cryl Primer 222

Stone Mastic Asphalt (SMA) 1 Triflex Cryl Primer 222 Triflex Cryl Primer 222

Felt 2 N/A details only No primer required

SBS Felt 2 N/A details only No primer required

APP Felt 3 N/A details only No primer required

Bitumen 1 Triflex Cryl Primer 222 Triflex Cryl Primer 222

Concrete 1 Triflex Cryl Primer 276 Triflex Cryl Primer 276

Screed 1 Triflex Cryl Primer 276 Triflex Cryl Primer 276

Lightweight concrete 1 Triflex Cryl Primer 276 Triflex Cryl Primer 276

Mortar, synthetic resin modified 1 Triflex Cryl Primer 276 Triflex Cryl Primer 276

Steel 4 N/A details only No primer required

Galvanised steel 4 N/A details only No primer required

Stainless steel 4 N/A details only No primer required

Aluminium 4 N/A details only No primer required

Copper 4 N/A details only No primer required

Zinc 4 N/A details only No primer required

Lead 4 N/A details only No primer required

Glass 4 N/A details only No primer required

Wood 2 N/A details only Triflex Cryl Primer 276

Plastics (sheets, coatings, mouldings)

CPE 4 N/A details only Triflex Cryl Primer 276

EVA 2 N/A details only Triflex Cryl Primer 276

PIB 2 N/A details only Triflex Cryl Primer 276

PVC-P, nB 4 N/A details only No primer required

UPVC 4 N/A details only No primer required

GRP 4 N/A details only No primer required

PU (polyurethane) 5 No primer required No primer required

PMMA (acrylic) 5 No primer required No primer required

UP (polyester) 5 No primer required No primer required

EP (Epoxy) 5 No primer required No primer required

For other substrates, consult Triflex (UK) Limited for required preparation methods and priming. Notes:

1 = Scarify, grind or lightly bead blast 2 = Clean

3 = Liquefy surface by application of heat and immediately top with quartz

4 = Rub down thoroughly with Triflex Cleaners, and lightly sand metals and hard plastics

4 = (steel must be ground or blasted to bright metal) 5 = Lightly sand and carry out adhesion test

Where there are any doubts as to adhesion, carry out an adhesion test.

(13)

Triflex PDS

Heavy duty, thick layer, fully reinforced waterproofing

and surfacing system for exposed car park decks

System Data Sheet

Substrate Assessment

In all cases the condition and stability of the underlying substrate should be assessed prior to the commencement of work. See Deck Testing section. Concrete structures should be designed in accordance with BS8110/CP110.

Substrate Preparation

Generally:

Remove existing paint and finishes etc. by grinding.

Ensure that the prepared surface is clean, dry and free from dust, laitence, grease, oil and any other contaminants.

Priming

Triflex Cryl Primer 222:

Apply with a lambswool roller (0.4kg/m2

min.) Rainproof after approx. 30 minutes.

Can be walked upon/next coat applied after approx. 45 minutes.

Apply with a lambswool roller (0.4kg/m2_min.)

Rainproof after approx. 30 minutes.

Surface Preparation

Surface repairs and filling:

Cut out blisters and repair all minor indentations and cracks with Triflex Cryl Paste. Allow to dry for a minimum of 1 hour.

Fill all voids at upstand transitions with Triflex Cryl Paste and allow to dry for a minimum of 1 hour.

Larger indentations can be filled with a Triflex Mortar System.

Interface Details

Apply Triflex PD or Triflex prodetail (2.0 kg/m2_{min.) with a lambswool roller}

to the horizontal and vertical faces.

Roll a strip of Triflex 110g Reinforcement into the wet resin, pressing trapped air free using the lambswool roller, ensuring a minimum 50mm overlap between the reinforcement sheets.

Apply Triflex PD or Triflex prodetail (1.3 kg/m2_{min.) wet on wet to ensure}

full saturation of the fleece.

Triflex PD: Rainproof after approx. 60 minutes

Can be walked on/next coat applied after approx. 2 hours.

Triflex prodetail: Rainproof after approx. 30 minutes

Can be walked on/next coat applied after approx. 45 minutes.

Main Deck

Reinforced embedment layer:

Apply an even layer of Triflex PD (1.5 kg/m2_{min.) using a lambswool roller.}

Roll 110g Reinforcement into the wet resin, pressing trapped air free using the lambswool roller, ensuring a minimum 50mm overlap between the reinforcement sheets.

Apply Triflex PD (1.0 kg/m2_{min.) wet on wet to ensure full saturation of the}

fleece.

Rainproof after approx. 60 minutes

Wearing layer:

Apply Triflex PD (1.5kg/m2_{min.) with a lambswool roller.}

Embed into the liquid layer a full cover of crystal quartz (0.7-1.2mm) or basalt (0.5-1.2mm/1.0-1.6mm) (7.0kg/m2_{) approx. Allow to dry for a}

minimum of 3 hours, sweep away excess aggregate and vacuum clean. Rainproof after approx. 60 minutes.

Can be walked upon after approx. 2 hours. Next coat applied after approx. 3 hours.

(14)

Triflex PDS

Heavy duty, thick layer, fully reinforced waterproofing

and surfacing system for exposed car park decks

System Data Sheet

Finish

Main Deck and Interface Details

Apply Triflex Cryl Finish 205 (0.65kg/m2_{min.) (0.80kg/m}2_{min. if over basalt)}

using a hard squeegee and a dry lambswool finish roller. Rainproof after approx. 30 minutes.

Can be walked upon after approx. 1 hour.

Can be driven upon after approx. 3 hours. (Provided Triflex PD wearing layer has been allowed to cure for more than 12 hours).

Expansion Joints

Consult Triflex (UK) Limited for confirmation of design details required.

Interruptions During Works

If work is interrupted for more than 12 hours, use Triflex Cleaner to clean and reactivate the transition area.

Evaporation time: at least 20 minutes.

The subsequent waterproofing must overlap by at least 10cm, including the fleece.

System Components

Please see the appropriate product information sheet for details about areas of application/application conditions/mixing instructions (available on request):

Triflex Cryl Primer 222 Triflex Cryl Primer 276 Triflex Cryl Paste Triflex PD Triflex prodetail Triflex Cryl Finish 205

Quality Standard

All products are manufactured to ISO 9001.

Substrate Testing

Prior to the commencement of work the Contractor must check and only proceed if he has satisfied the following requirements.

Hardness: All concrete substrates, concrete repair materials, screeds and mortars shall be cured and allowed to achieve a minimum hardness of 25N/mm2.

Moisture: Prior to overlay with Triflex systems, the equilibrium moisture content of the substrate must not exceed 6% and 75% RH.

Adhesion: Trial areas to be prepared to ensure that the System achieves a minimum bond to the substrate of:

Concrete, concrete repair materials, screeds and mortars: 1.5N/mm2

All other substrates: 0.8N/mm2

Health and Safety

Refer to product health and safety data prior to using the materials.

Coverage Rates

The coverage rates given are guidelines based on smooth, level substrates. Allowances must be made if the substrate is uneven, rough or porous.

Drying Times

The drying times stated are dependent upon weather conditions.

Important Notes

It is the Contractors’ responsibility to ensure that the substrate is suitable and that the system is applied in all areas in accordance with Technical Data Sheets, Application Guidelines and BBA certificate in force at the time. The advice we can provide on the application of our products is based on extensive development work as well as many years of experience and is given to the best of our knowledge. However, the wide variety of requirements for a building under the most diverse conditions mean that it is necessary for the Contractor to test the product for suitability in any given case. We reserve the right to make alterations in keeping with technical developments or improvements.

(15)

Triflex creative CAR-PARKS Triflex PDS-Ramp

Triflex PDS-Ramp

Heavy duty, thick layer, fully reinforced waterproofing

and surfacing system for exposed car park ramps

System Data Sheet

8 Triflex Cryl Finish 205

7 Basalt aggregate

6 Triflex PD Thixo embedding layer

5 Triflex PD Thixo

4 Triflex Reinforcement Fleece 3 Triflex PD Thixo

1 Substrate

System Build Up

Triflex Primer - Primer for sealing of substrate and to improve adhesion. Triflex PD Thixo Reinforced Embedment Layer - Waterproofing layer

fully reinforced with a tough polyester fabric.

Triflex PD Thixo Wearing Layer - Incorporating a hard wearing basalt

aggregate.

Applications

The system is suitable for waterproofing and surfacing of exposed car park ramps.

Fire resistant to BS476:PART3:1958 (EXT.F.AA) Chemical resistant

Available in a wide range of colours and textures Featuring optional traction and wear strips Totally waterproof

Fully reinforced, thick layer system BBA certified - no. 91/2639 Tough – highly abrasion resistant Fast curing

Cold applied Seamless Elastomeric

Dynamic crack bridging

Properties

(16)

Triflex PDS-Ramp

Substrate preparation and priming

System Data Sheet

Triflex PDS-Ramp Triflex creative CAR-PARKS

Substrate Preparation Triflex PDS-Ramp Triflex prodetail

Notes main area option for details

(17)

Triflex PDS-Ramp

Heavy duty, thick layer, fully reinforced waterproofing

and surfacing system for exposed car park ramps

System Data Sheet

Substrate Assessment

Substrate Preparation

Generally:

Priming

Apply with a lambswool roller (0.4kg/m2

min.) Rainproof after approx. 30 minutes.

Surface Preparation

Surface repairs and filling:

Cut out blisters and repair all minor indentations and cracks with Triflex Cryl Paste. Allow to dry for a minimum of 1 hour.

Interface Details

Apply Triflex PD Thixo or Triflex prodetail (2.0 kg/m2_{min.) with a lambswool}

roller to the horizontal and vertical faces.

Apply Triflex PD Thixo or Triflex prodetail (1.3 kg/m2_{min.) wet on wet to}

ensure full saturation of the fleece.

Triflex PD Thixo: Rainproof after approx. 60 minutes

Triflex prodetail: Rainproof after approx. 30 minutes

Can be walked on/next coat applied after approx. 45 minutes.

Main Deck

Reinforced embedment layer:

Apply an even layer of Triflex PD Thixo (1.5 kg/m2_{min.) using a lambswool}

roller.

Roll 110g Reinforcement into the wet resin, pressing trapped air free using the lambswool roller, ensuring a minimum 50mm overlap between the reinforcement sheets.

Apply Triflex PD Thixo (1.0 kg/m2_{min.) wet on wet to ensure full saturation}

of the fleece.

Rainproof after approx. 60 minutes

Wearing layer:

Apply Triflex PD Thixo (1.5kg/m2_{min.) with a lambswool roller.}

Embed into the liquid layer a full cover of basalt (1.0-1.6mm) (7.0kg/m2₎

approx. Allow to dry for a minimum of 3 hours, sweep away excess aggregate and vacuum clean.

Rainproof after approx. 60 minutes. Can be walked upon after approx. 2 hours. Next coat applied after approx. 3 hours.

(18)

Triflex PDS-Ramp

Heavy duty, thick layer, fully reinforced waterproofing

and surfacing system for exposed car park ramps

System Data Sheet

Triflex PDS-Ramp Triflex creative CAR-PARKS

Finish

Can be walked upon after approx. 1 hour.

Can be driven upon after approx. 3 hours. (Provided Triflex PD wearing layer has been allowed to cure for more than 12 hours).

Optional Traction Strips

Apply Triflex Cryl M264 (3.5kg/m2_{min.) by trowel.}

Can be walked upon after approx. 30 minutes. Can be driven upon after approx. 1 hour.

Expansion Joints

Consult Triflex (UK) Limited for confirmation of design details required.

Interruptions During Works

Evaporation time: at least 20 minutes

The subsequent waterproofing must overlap by at least 10cm, including the fleece

System Components

Triflex Cryl Primer 222 Triflex Cryl Primer 276 Triflex Cryl Paste Triflex PD Thixo Triflex prodetail Triflex Cryl Finish 205 Triflex Cryl M264

Quality Standard

All products are manufactured to ISO 9001 .

Substrate Testing

Hardness: All concrete substrates, concrete repair materials, screeds and mortars shall be cured and allowed to achieve a minimum hardness of 25N/mm2.

Health and Safety

Coverage Rates

Drying Times

Important Notes

It is the Contractors’ responsibility to ensure that the substrate is suitable and that the system is applied in all areas in accordance with Technical Data Sheets, Application Guidelines and BBA certificate in force at the time. The advice we can provide on the application of our products is based on extensive development work as well as many years of experience and is given to the best of our knowledge. However, the wide variety of requirements for a building under the most diverse conditions mean that it is necessary for the Contractor to test the product for suitability in any given case. We reserve the right to make alterations in keeping with technical developments or improvements.

(19)

NBS Triflex PDS

The systems can be specified in a wide range of colours to suit aesthetic and design requirements. For further details of the colours and finishes available, consult the Triflex Car Park colour chart available from Triflex (UK) Limited.

For internal car park decks refer to the Triflex DFS.

Triflex systems are only installed by Triflex (UK) Limited approved contracting partners.

Consult Triflex (UK) Limited for technical advice and information on the treatment of specific details.

Preparation:Consult Triflex technical literature for details of substrate preparation.

Waterproof coating:

Triflex PDS: Aggregate ... Colour...

Triflex PDS - Ramp: Traction strips ... Colour...

Manufacturer:Triflex (UK) Ltd, Meaford Power Station, Meaford, Stone, Staffordshire, ST15 0UA. Tel: 01782 374 374. Fax: 01782 374 373. Email: [email protected] Web: http://www.triflex.co.uk

Primer reference:Consult Triflex technical literature for details of primers to individual substrates.

Coating system reference: Triflex PDS

Triflex PDS - Ramp Application:

Triflex PDS:1st coat Triflex PD at a minimum of 2.5kg/m2_{- roller applied}

with 110g reinforcement embedded, 2nd coat Triflex PD at a minimum of 1.5kg/m2_{- roller applied, full cover of crystal quartz or basalt, Triflex Cryl}

Finish 205 at a minimum 0.65kg/m2_(0.80kg/m2_{if over basalt) - roller}

applied.

Triflex PDS - Ramp:1st coat Triflex PD Thixo at a minimum of 2.5kg/m2

-roller applied with 110g reinforcement embedded, 2nd coat Triflex PD Thixo at a minimum of 1.5kg/m2_{- roller applied, full cover of basalt, Triflex Cryl}

Finish 205 at a minimum 0.80kg/m2_{- roller applied. Optional strips of Triflex}

Cryl M264 at a mininimum 3.5kg/m2_{- trowel applied.}

Reinforcement:Triflex 110g reinforcement. NBS (the National Building Specification) is the most authoritative and

widely used system for specifying products and workmanship for construction projects.

It is a comprehensive library of written specification clauses supported with extensive guidance notes. Instead of a specification being written “from scratch” clauses are selected by the specifier, so that the final document is produced in a format which is widely recognised as the UK industry standard.

Triflex (UK) Limited are integrated into the National Building Specification (NBS) Plus Specification Manager & Specification Writer packages. NBS Plus is an electronic library of participating building manufacturers’ products linked to relevant clauses. It enables the insertion of correct, concise product details directly into an NBS project specification. These details are written in a format that integrates the product information with the specification clause more easily, thus saving the specifier valuable time and producing a clear unambiguous proprietary specification.

Specification Clauses for NBS users

J31 Liquid Applied Waterproof Roof Coatings Types of Coating:

110 Liquid Applied Roof Coatings…

Specification Triflex PDS

A fully reinforced, BBA certified, heavy duty, seamless, thick layer, anti-skid waterproofing and surfacing system for external car park decks. The system is available in a wide range of colours and finish options, all providing structural protection from the damaging effects of water, carbon dioxide and chloride ingress.

The Triflex PDS system is available in two variants; PDS

Designed for the waterproofing and surfacing of external car park decks. Featuring: Crystal quartz or basalt aggregate with a pigmented seal coat for maximum durability and impact resistance.

PDS - Ramp

Designed for external car park ramps.

Featuring: Basalt aggregate with a pigmented seal coat and optional traction and wear strips for optimum traction and abrasion resistance.

(20)

Triflex PDS

Triflex PDS Ramp

upstand with chase

Sketch Details

ca. 15 cm

Interface detail: Triflex PD or prodetail with 110g reinforcement fleece Embedment layer: Triflex PD with 110g reinforcement Wearing layer: Triflex PD with crystal quartz or basalt aggregate Finish: Triflex Cryl Finish 205

Primer: dependent upon substrate

min. 5 cm

(21)

Triflex PDS

Triflex PDS Ramp

upstand with cover flashing

Sketch Details

ca. 15 cm

min. 10 cm

(22)

ca. 15 cm

Triflex PDS

Triflex PDS Ramp

deck penetration

Sketch Details

min. 5 cm min. 5 cm

(23)

Triflex PDS

Triflex PDS Ramp

surface mounted detail

Sketch Details

ca. 15 cm

min. 5 cm min. 5 cm

(24)

3

Triflex PDS

Triflex PDS Ramp

gully

Sketch Details

min. 5 cm min. 5 cm

(25)

3

Triflex creative CAR-PARKS Triflex DFS

Triflex DFS

Waterproofing and Surfacing for

Internal and External Car Park Decks

Section 3 Creative Car Parks

Waterproofing and Surfacing for

Internal and External Car Park Decks

Triflex DFS - System Data

Triflex DFS - Ramp- System Data

Triflex DFS - External- System Data

NBS Specification Clauses

(26)

The problems

Internal and external car park decks are often: Dark, dismal uninviting environments Inadequately protected from water ingress and environmental damage, for example Chlorides and Carbon Dioxide, resulting in expensive structural damage

Surfaced with unsuitable, low technology materials, or thin coat systems which do not provide a long term, durable, aesthetically pleasing surface finish Patchy and uneven as a result of surface wear Difficult for drivers and pedestrians to use effectively due to poor design and signage

Difficult to clean and maintain

The Triflex solution

The Triflex DFS (Deck Floor System) provides internal and external car park decks with exceptional protection from environmental, mechanical and physical damage, while offering almost limitless design options. Although ground floor decks may not have the same structural protection requirements, the System will transform the environment for users.

The heavy duty, thick layer Triflex DFS is suitable for almost any substrate likely to be encountered in the car park environment both during refurbishment and new build. The thick layer system can mask deck imperfections and profiles which would reflect through thin coat systems.

At Triflex we understand that the majority of wear generally occurs on the ground floor, internal decks and ramps. The Triflex DFS is designed to withstand this mechanical stress

Triflex DFS Triflex creative CAR-PARKS

Triflex DFS

(Deck Floor System)

Car parks are important, particularly when attached to retail or offices as they can often be your customers’ or clients’ first contact point. Creating the right impression can ensure repeat business, a favourable first impression and possibly increased parking revenue. Ground floor and internal decks are the most commonly used decks in the majority of car parks and their importance should not be ignored. Many decks may require structural protection and surfacing, however even ground floor levels where protection may not be an issue can benefit from a highly durable, aesthetically pleasing surface treatment. Triflex has more than 20 years experience in providing long term waterproofing, surfacing and protection solutions for internal and external car park decks. Our thick layer DFS ensures even the most difficult of substrates can be transformed. Subject to a conditional survey, the DFS - External variant can be specified in place of the Triflex PDS for multi-storey top decks which are not over occupied premises.

External decks and ramps

The Triflex DFS - External variant allows the economical waterproofing and surfacing of multi-storey top decks provided that they are not over occupied premises.

The Triflex DFS - Ramp variant provides optimum traction and abrasion resistance characteristics, improving safety and ensuring the maximum system durability in these high wear areas.

(27)

DURABILITY - The DFS is a heavy duty, thick layer system with a dry film thickness greater than 4mm. With its' fully aggregate filled wearing course, the DFS is suitable for the waterproofing and surfacing, or surfacing only of heavily trafficked ground floor, internal and external car park decks

PROTECTION - In addition to offering heavy duty surfacing, the DFS offers waterproofing and protection from the ingress of Carbon Dioxide and Chlorides to what are often neglected decks. The system can withstand the stresses from thermal expansion and contraction, frost and UV radiation and is resistant to all common automotive fluids

THICK LAYER - The 4mm thick system helps mask deck imperfections, providing a more aesthetically pleasing, easier to maintain system. The system thickness allows even profiled substrates such as lightly tamped concrete, heavily brushed concrete or crimped asphalt to be overlaid without the original profile reflecting through

COMPATIBILITY - The system can be used to overlay concrete, asphalt, HRA, SMA and some existing membranes subject to testing

RAPID CURE TIMES - Allowing maximum flexibility in approach and the minimum disruption to the client and users. The maximum cure time before trafficking by vehicles of any of the system components is 3 hours LOW TEMPERATURES - The system will cure at temperatures as low as 0°C DETAILING - Fully reinforced details can be incorporated at upstands, transitions etc. to provide total waterproofing

COLOURS - Our range of finish options, and special colours ensure the clients' aesthetic requirements can be fulfilled. Dedicated pedestrian walkways and safe zones, together with colour coding can be incorporated from the design stage JOINTS - The system can be combined with the Triflex projoint system to provide single source liability for the total waterproofing and surfacing package RAMPS - For these areas, the Triflex DFS - Ramp offers optimum abrasion resistance and traction characteristics through the use of a basalt split aggregate and optional traction strips

CLEANING AND MAINTENANCE - The hard wearing DFS can be easily cleaned and maintained using conventional methods

Benefits

The system in detail

Triflex DFS-Ramp

Suitable for ramps and ramp aprons (showing optional traction strips)

Triflex DFS-External

Suitable for external main deck areas (subject to conditional survey)

Triflex DFS - Suitable

for internal main deck areas

(28)

Triflex DFS

Colours

The System is available with either quartz aggregate topping and pigmented seal or basalt topping with traffic grey or clear seal.

Please refer to section 1 for details

Supply Options

For larger projects the DFS is available in 1000kg re-usable containers, reducing wastage and the impact on the environment.

Further information

Please refer to the Triflex DFS, DFS - Ramp and DFS - External System Data Sheets or request specific information from Triflex or an approved contracting partner.

To print a copy of the System Data Sheets, please use the Triflex Systems CD provided inside the back cover.

Survey, inspection

and report service

Triflex offer a free of charge survey, inspection and report service to ensure that the specification can be tailored to the specific requirements of the project. When considering the DFS - External, it is important that a Triflex technical representative surveys the structure to ensure that the system is suitable for the application.

To take advantage of this service, please contact Triflex directly.

Design assistance

Through the use of computer generated visualisations, we can demonstrate the transformation which can be achieved through the innovative use of colour, design and graphics.

(29)

1 2 3 4 5

Triflex DFS

Heavy duty, thick layer, waterproofing and surfacing

for internal car park decks

Chemical resistant

Available in a wide range of colours

System Data Sheet

Waterproof, thick layer system Tough – abrasion resistant Fast curing

Cold applied

Compatible with a wide range of substrates Seamless

Flexible Fire resistant

Properties

System Build Up

Triflex Primer - Primer for sealing of substrate and to improve adhesion. Triflex Deck Floor Layer - Waterproof, self levelling surfacing layer with

hard wearing crystal quartz or basalt aggregate.

Applications

The system is suitable for waterproofing and surfacing of internal car park decks.

1 Substrate

3 Triflex Cryl RS 233

(30)

Triflex DFS

Substrate preparation and priming

System Data Sheet

Substrate Preparation Triflex DFS Triflex prodetail

Notes main area for details

(31)

Triflex DFS

Heavy duty, thick layer, waterproofing and surfacing

for internal car park decks

System Data Sheet

Substrate Assessment

Substrate Preparation

Generally:

Priming

Surface Preparation

Surface repairs and filling:

Cut out blisters and repair all minor indentations and cracks with Triflex Cryl RS 233. Allow to dry for a minimum of 1 hour.

Dynamic cracks:

Remove any existing filler material and fill with Triflex Cryl RS 233. Apply Triflex Cryl R 230 (1.5kg/m2

min..) with a lambswool roller. Roll a strip of Triflex 110g Reinforcement into the wet resin, pressing trapped air free using the lambswool roller, ensuring a minimum 50mm overlap between the reinforcement sheets.

Apply Triflex Cryl R 230 (1.5kg/m2_min.._{) wet on wet to ensure full saturation}

of the fleece. Allow to dry for a minimum of 1 hour.

Interface Details

Apply Triflex prodetail resin (2.0kg/m2_{min.) with a lambswool roller to the}

horizontal and vertical faces.

Apply Triflex prodetail (1.3kg/m2_{min.) wet on wet to ensure full saturation}

of the fleece.

Main Deck

Apply Triflex Cryl RS 233 (4.0kg/m2_{min.) by trowel.}

Embed into the wet Triflex Cryl RS 233 a full cover of crystal quartz (0.7-1.2mm) or basalt (0.5-1.2mm/1.0-1.6mm) (5.0kg/m2

) approx. Allow to dry for a minimum of 2 hours, sweep away excess aggregate and vacuum clean.

Rainproof after approx. 30 minutes. Can be walked upon after approx. 1 hour. Next coat applied after approx. 2 hours.

Finish

Can be walked upon after approx. 1 hour. Can be driven upon after approx. 3 hours.

Expansion Joints

(32)

Health and Safety

Coverage Rates

Drying Times

Important Notes

It is the Contractors’ responsibility to ensure that the substrate is suitable and that the system is applied in all areas in accordance with Technical Data Sheets and Application Guidelines in force at the time.

The advice we can provide on the application of our products is based on extensive development work as well as many years of experience and is given to the best of our knowledge. However, the wide variety of requirements for a building under the most diverse conditions mean that it is necessary for the Contractor to test the product for suitability in any given case. We reserve the right to make alterations in keeping with technical developments or improvements.

Interruptions During Works

For reinforced details, the subsequent waterproofing layers must overlap by at least 10 cm, including the fleece.

System Components

Triflex Cryl Primer 222 Triflex Cryl Primer 276 Triflex Cryl Paste Triflex Cryl R 230 Triflex prodetail Triflex Cryl RS 233 Triflex Cryl Finish 205

Quality Standard

Substrate Testing

Hardness: All concrete substrates, concrete repair materials, screeds and mortars shall be cured and allowed to achieve a minimum hardness of 25N/mm2

.

Triflex DFS

Heavy duty, thick layer, waterproofing and surfacing

for internal car park decks

(33)

5 Triflex Cryl Finish 205

4 Basalt aggregate

3 Triflex Cryl RS 233 Thixo

1 Substrate

6 Optional Traction and Wear Strips

Triflex creative CAR-PARKS Triflex DFS-Ramp

Triflex DFS-Ramp

Heavy duty, thick layer, waterproofing and surfacing

for internal and external car park ramps

Available in a wide range of colours Featuring optional traction and wear strips

System Data Sheet

Waterproof, thick layer system Tough – highly abrasion resistant Fast curing

Cold applied

Properties

System Build Up

hard wearing basalt aggregate.

Applications

The system is suitable for waterproofing and surfacing of internal and external. For ramps over occupied premises refer to Triflex PDS - Ramp.

(34)

Triflex DFS-Ramp Triflex creative CAR-PARKS

Triflex DFS-Ramp

Substrate preparation and priming

System Data Sheet

Substrate Preparation Triflex DFS-Ramp Triflex prodetail

Notes main area for details

(35)

Triflex creative CAR-PARKS Triflex DFS-Ramp

Triflex DFS-Ramp

Heavy duty, thick layer, waterproofing and surfacing

for internal and external car park ramps

System Data Sheet

Substrate Assessment

Substrate Preparation

Generally:

Priming

Surface Preparation

Surface repairs and filling:

Cut out blisters and repair all minor indentations and cracks with Triflex Cryl RS 233 Thixo. Allow to dry for a minimum of 1 hour.

Dynamic cracks:

Remove any existing filler material and fill with Triflex Cryl RS 233 Thixo. Apply Triflex Cryl R 230 (1.5kg/m2

min..) with a lambswool roller. Roll a strip of Triflex 110g Reinforcement into the wet resin, pressing trapped air free using the lambswool roller, ensuring a minimum 50mm overlap between the reinforcement sheets.

Apply Triflex Cryl R 230 (1.5kg/m2_min.._{) wet on wet to ensure full saturation}

of the fleece. Allow to dry for a minimum of 1 hour.

Interface Details

Apply Triflex prodetail resin (2.0kg/m2_{min.) with a lambswool roller to the}

horizontal and vertical faces.

Apply Triflex prodetail (1.3kg/m2_{min.) wet on wet to ensure full saturation}

of the fleece.

Main Deck

Apply Triflex Cryl RS 233 Thixo (4.0kg/m2_{min.) by trowel.}

Embed into the wet Triflex Cryl RS 233 Thixo a full cover of basalt (0.5-1.2mm/1.0-1.6mm) (5.0kg/m2

) approx. Allow to dry for a minimum of 2 hours, sweep away excess aggregate and vacuum clean.

Rainproof after approx. 30 minutes. Can be walked upon after approx. 1 hour. Next coat applied after approx. 2 hours.

Finish

Apply Triflex Cryl Finish 205 (0.80kg/m2_{min.) using a hard squeegee and a}

dry lambswool finish roller. Rainproof after approx. 30 minutes. Can be walked upon after approx. 1 hour. Can be driven upon after approx. 3 hours.

Optional Traction Strips

Apply Triflex Cryl M264 (3.5kg/m2_{min.) by trowel.}

Can be walked upon after approx. 30 minutes. Can be driven upon after approx. 1 hour.

Expansion Joints

(36)

Health and Safety

Coverage Rates

Drying Times

Important Notes

It is the Contractors’ responsibility to ensure that the substrate is suitable and that the system is applied in all areas in accordance with Technical Data Sheets and Application Guidelines in force at the time.

The advice we can provide on the application of our products is based on extensive development work as well as many years of experience and is given to the best of our knowledge. However, the wide variety of requirements for a building under the most diverse conditions mean that it is necessary for the Contractor to test the product for suitability in any given case. We reserve the right to make alterations in keeping with technical developments or improvements.

Interruptions During Works

For reinforced details, the subsequent waterproofing layers must overlap by at least 10 cm, including the fleece.

System Components

Triflex Cryl Primer 222 Triflex Cryl Primer 276 Triflex Cryl Paste Triflex Cryl R 230 Triflex prodetail Triflex Cryl RS 233 Thixo Triflex Cryl Finish 205 Triflex Cryl M264

Quality Standard

Substrate Testing

Hardness: All concrete substrates, concrete repair materials, screeds and mortars shall be cured and allowed to achieve a minimum hardness of 25N/mm2

.

Triflex DFS-Ramp Triflex creative CAR-PARKS

Triflex DFS-Ramp

Heavy duty, thick layer, waterproofing and surfacing

for internal and external car park ramps

(37)

Triflex creative CAR-PARKS Triflex DFS-External

1 2 3 4 5

Triflex DFS-External

Heavy duty, thick layer, waterproofing and surfacing

for external car park decks

Available in a wide range of colours

System Data Sheet

Waterproof, thick layer system Tough – abrasion resistant Fast curing

Cold applied

Properties

System Build Up

hard wearing crystal quartz or basalt aggregate.

Applications

The system is suitable for waterproofing and surfacing of external car park decks which are not over occupied premises. (Subject to conditional survey).

1 Substrate

3 Triflex Cryl RS 233
