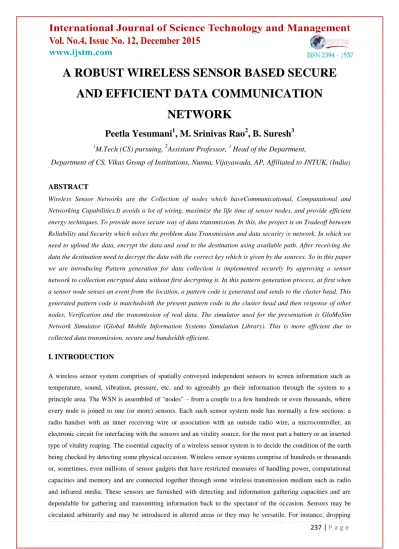

A ROBUST WIRELESS SENSOR BASED SECURE AND EFFICIENT DATA COMMUNICATION
NETWORK
Peetla Yesumani
1, M. Srinivas Rao
2, B. Suresh
31M.Tech (CS) pursuing, 2Assistant Professor, 3 Head of the Department,
Department of CS, Vikas Group of Institutions, Nunna, Vijayawada, AP, Affiliated to JNTUK, (India)
ABSTRACT
Wireless Sensor Networks are the Collection of nodes which haveCommunicational, Computational and Networking Capabilities.It avoids a lot of wiring, maximize the life time of sensor nodes, and provide efficient energy techniques. To provide more secure way of data transmission. In this, the project is on Tradeoff between Reliability and Security which solves the problem data Transmission and data security in network. In which we need to upload the data, encrypt the data and send to the destination using available path. After receiving the data the destination need to decrypt the data with the correct key which is given by the sources. So in this paper we are introducing Pattern generation for data collection is implemented securely by approving a sensor network to collection encrypted data without first decrypting it. In this pattern generation process, at first when a sensor node senses an event from the location, a pattern code is generated and sends to the cluster head. This generated pattern code is matchedwith the present pattern code in the cluster head and then response of other nodes, Verification and the transmission of real data. The simulator used for the presentation is GloMoSim Network Simulator (Global Mobile Information Systems Simulation Library). This is more efficient due to collected data transmission, secure and bandwidth efficient.
I. INTRODUCTION
A wireless sensor system comprises of spatially conveyed independent sensors to screen information such as temperature, sound, vibration, pressure, etc. and to agreeably go their information through the system to a principle area. The WSN is assembled of "nodes" – from a couple to a few hundreds or even thousands, where every node is joined to one (or more) sensors. Each such sensor system node has normally a few sections: a radio handset with an inner receiving wire or association with an outside radio wire, a microcontroller, an electronic circuit for interfacing with the sensors and an vitality source, for the most part a battery or an inserted type of vitality reaping. The essential capacity of a wireless sensor system is to decide the condition of the earth being checked by detecting some physical occasion. Wireless sensor systems comprise of hundreds or thousands or, sometimes, even millions of sensor gadgets that have restricted measures of handling power, computational capacities and memory and are connected together through some wireless transmission medium such as radio and infrared media. These sensors are furnished with detecting and information gathering capacities and are dependable for gathering and transmitting information back to the spectator of the occasion. Sensors may be circulated arbitrarily and may be introduced in altered areas or they may be versatile. For instance, dropping
238 | P a g e them from a flying machine as it flies over the earth to be checked may convey them. Once dispersed, they might either stay in the areas in which they landed or they might start to move if dynamic.
In many access relay networks, relay nodes may association the ciphers received from dissimilar sources to generate Header and send them to the destination. Then, the destination may use the system produced header to improve the dependability of decrypting. While this technology is capable in successful statement excellence, it also presents a novel contest at the physical layer due to the addiction of the collaboration. That is, reliance on implicit trust relationship among participating nodes makes it more vulnerable to falsified data injection.
Although this might also happen in a modern system without compliant communication, its effect is far more serious with cooperative communication. The problem of detecting malicious relay nodes in so, networks has been studied in the literature for dissimilar relaying approaches. Node in apply network coding while those in follow the decode-and-forward using UDP protocol.
In DES algorithms for justifying fabricated data addition things are proposed. The network model used in these works composed of single source, multiple transitional nodes which apply network coding. The contributions of this part can be summarized as follow:
1) We propose an algorithm to detect the malicious Attacks in wireless sensor networks where the in-between nodes send the data Source to destination.
2) We present the tradeoff between Communication and safety in numerous entrance relay networks. The customer peruses the file and encrypts the file with eight characters and send to the Destination through transitional nodes. The server receives the message from the any client node and decrypt with correct code.
Sensor systems are alert in light of the expansion furthermore, evacuation of sensors because of gadget disappointment notwithstanding versatility issues. Security in wireless sensor systems is a real test. The constrained measure of preparing force, computational capacities and memory with which every sensor gadget is prepared makes security a troublesome issue to settle. The GlomoSim system test system (Global Mobile Information Frameworks Simulation Library) is the test system utilized which is a adaptable recreation
239 | P a g e environment for vast wireless and wired line correspondence systems. GloMoSim utilizes a parallel discrete- occasion recreation ability gave by Parsec. The pattern codes are essentially illustrative information things that are extricated from the real information in a manner that each pattern code has certain attributes of the comparing real data.
II. RELATED WORK
Transmission of information over systems dispersal of advanced data has achieved a few security issues.
Unlawful dispersion of computerized media, copyright insurance of advanced information, duplicating, and unapproved data interference are basic issues requiring inventive and novel arrangements. Of these, cryptography remains the most widely recognized. There are an extensive number of financially accessible cryptosystems for information encryption that are considered computationally secure and are moderately hard to break.
This undertaking shows the encoded data concealing idea to diminish the danger of utilizing cryptographic calculations alone. Data concealing methods unique data into another medium making it vague to others, aside from those that are intended to get the shrouded data and know about it vicinity. It concentrates on systems for encoding concealed information in which cryptographic calculations are consolidated with the data concealing procedures to expand the security of transmitted information. In such plans, the mystery information is initially encoded, and then picks destination send information to the destination, which is then sent through a system.
The unapproved recuperation of concealed encoded information is extremely troublesome in light of the fact that it needs the interceptor to first identify the presence of the shrouded data, this data is pressed by the scrambled information. To give the information or unscramble information the created key is required to break the Encrypted information that key was produced by String or characters representation.
In this Existing System of wireless sensor system included spatially disseminated gadgets utilizing wireless sensor nodes to screen physical or ecological conditions, for pattern, sound, temperature, and movement. The individual nodes are equipped for detecting their surroundings, handling the data information locally, and sending information to one or more gathering focuses in a WSN.
Efficient information transmission is a standout amongst the most imperative issues for WSNs. Then, numerous WSNs are sent in cruel, disregarded and frequently antagonistic physical situations for specific applications, for pattern, military spaces and detecting undertakings with trustless environment.
III. PATTERN GENERATION (PG)
Input: Sensor reading D,Data parameters being sensed.
Output: Pattern-code (PC)
• Sensing information from nature
• Defining interims from edgevaluesset for environment parameters
• Assigning basic valuesfor interims utilizing pattern seed from bunch head
• Generating the lookup table
• Generating pattern codes utilizing pattern generation calculation.
• Sending pattern codes to group heads
240 | P a g e
• Receiving send-demands/ACK from the group head
• Sending encrypted actual data to cluster-heads.
IV. ALGORITHM
The pattern generation algorithm performs the below steps
• Pattern code to be created is instated to purge pattern code
• The calculation emphasizes over sensor perusingvaluesfor parameters of information that are being detected.
For this situation, it in the first place considers temperature
• Temperature parameter is extricated from sensor perusing D
• For the temperature parameter, the calculation first checks whether another pattern seed is gotten from the cluster head. Landing of a seed invigorates the mapping of basicvaluesto information interims.
Table1:Look up table for data intervals and critical values
Threshold
Values 30 50 70 80 90 95 100
Internal 0-30 31-50 51-70 71-80 81-90 91-95 96-100
Values
Critical 1 2 3 4 5 2 3
values
• The information interim that contains the detected temperature is found from the interim table.
• Then, from the interim quality, comparing basic worth is resolved. "Table 2: Critical quality table", Shows the basicvaluesfor diverse sensor readings.
• PC is set to the new basic quality found. For weight and dampness; comparing basicvaluesare added to the end of somewhat framed PC.
• Previous steps are connected for the weight and dampness readings
• When full pattern code is produced, timestamp and sensor identifier is sent with the pattern code to the cluster head
Table: 2 Pattern Code Generation Table
SENSORS 1 2 3 4 5
DATA D(56,92,70) D(70,25,25) D(58,93,69 D(68,28,30) D(63,24,26)
CRIRICAL
VALUE FOR 3 3 3 3 3
241 | P a g e D1
CRIRICAL
VALUE FOR 2 1 2 1 1
D2
CRIRICAL
VALUE FOR 3 1 3 1 1
D3
PC 323 311 323 311 311
Pattern codes with the similar value are mentioned as a terminatedregular. In this pattern, data detected by sensor 1 and sensor 3 are similar with each other as determined from the comparison of their pattern code values (pattern code value 323) and they form the Terminated Set #1. Similarly, data sensed by sensor 2 sensor 4 and sensor 5 are the same (pattern code value 311), Terminated Set #2. The cluster-head selects only sensor from each redundant set (sensor 1 and sensor 5 in this pattern) to communicate the realinformation of that terminated set based on the timestamps.
V. CONCLUSION
This project presents the original information hiding concept to reduce the risk of using cryptographic algorithms alone. we first followed up on tha data transmission and security problems in CWSN.Hereits been discussed about the lack of symmetric key management for secure data transmission .So here we introduced two secure and efficitive data transmission protocols for CWSNs,SET-IBS and SET-IBOOS .In this valuation scenario we allow feasibility of the proposed SET-IBS and SET-IBOOS with respective to the security requirement and analysis against routing attacks. SET-IBS and SET-IBOOS are efficient in communication and applying the ID-based crypto-system, which achieves security requirements in CWSNs, as well as solved the orphan node problem in the secure transmission protocols with the symmetric key management. Lastly, the comparison in the calculation and simulation results show that, the proposed SET-IBS and SET-IBOOS protocols have better performance than existing secure protocols for CWSNs. With respect to both computation and communication costs, we pointed out the merits that, using SET-IBOOS with less auxiliary security overhead is preferred for secure data transmission in CWSNs
VI. FUTURE WORK
In the future work, the proposed system provides two-way secure data transmission as an enhancement for the present project. In future, this project will be implemented to provide secure data transmission in two-way
242 | P a g e communication. And to identify the compromised nodes and to transmit correct data to the destination i.e. base station even in the presence of attacks.
REFERENCES
[1] H. Çam, S. Özdemir, Prashant Nair, D. Muthuavinashiappan, “ESPDA: energy efficient and secure pattern-based data aggregation for wireless sensor networks,'' Proc. of IEEE Sensors - The Second IEEE Conference on Sensors, Oct. 22-24, 2005, Toronto, Canada, pp. 732-736.
[2] W. Ye, J. Heidemann, D. Estrin, “An Energy- Efficient MAC Protocol for Wireless Sensor Networks”, Proc. of INFOCOM 2002, vol. 3, pp. 1567-1576, June 2002.
[3] A. Sinha, A. Chandrakasan, “Dynamic power management in wireless sensor networks”, IEEE Design and Test of Computers, vol. 18(2), pp. 62-74, March- April 2006.
[4] A. Perrig, R. Szewczyk, J.D. Tygar, V. Wen, D.E. Culler, “SPINS: Security protocols for sensor network”, Wireless Networks, vol. 8, no. 5, pp. 521-534, 2002.
[5] C. Intanagonwiwat, D. Estrin, R. Govindan, J. Heidemann, “Impact of network density on Data Aggregation in wireless sensor networks”, Proc. of the 22nd International Conference on Distributed Computing Systems, pp. 575- 578, July 2002.
[6] [ Online] Available :http://en.wikipedia.org/wiki/Wireless_sensor_networks.
[7] X. Zeng, R. Bagrodia, M. Gerla, “GloMoSim: A Library for Parallel Simulation of Large-scale Wireless Networks”, Proc. of the 12th Workshop on Parallel and Distributed Simulations, PADS'98, May 1998, Banff, Alberta, Canada.
[8] L.B. Oliveira et al., ―Sec LEACH-On the Security of Clustered Sensor Networks,‖ Signal Processing, vol. 87, pp. 2882-2895, 2007.
[9] P. Banerjee, D. Jacobson, and S. Lahiri, ―Security and Performance Analysis of a Secure Clustering Protocol for Sensor Networks,‖Proc. IEEE Sixth Int’l Symp. Network Computing and Applications (NCA), pp. 145-152, 2007.
[10] K. Zhang, C. Wang, and C. Wang, ―A Secure Routing Protocol for Cluster-Based Wireless Sensor Networks Using Group Key Management,‖ Proc. Fourth Int’l Conf. Wireless Comm., Networking and Mobile Computing (WiCOM), pp. 1-5, 2008.
[11] T. Hara, V.I. Zadorozhny, and E. Buchmann, Wireless Sensor Network Technologies for the Information Explosion Era, Studies in Computational Intelligence, vol. 278. Springer-Verlag, 2010.
[12] Y. Wang, G. Attebury, and B. Ramamurthy, ―A Survey of Security Issues in Wireless Sensor Networks,‖ IEEE Comm. Surveys &Tutorials, vol. 8, no. 2, pp. 2-23, Second Quarter 2006.
[13] A.A. Abbasi and M. Younis, ―A Survey on Clustering Algorithms for Wireless Sensor Networks,‖
Computer Comm., vol. 30, nos. 14/15, pp. 2826-2841, 2007.
243 | P a g e
AUTHOR DETAILS
PeetlaYesumanipursuing M.Tech (CS) from Vikas Group of Institutions, Nunna, Vijayawada, Krishna (D)-521229,Andhra Pradesh, Affiliated to JNTUK, India.
M.SrinivasaRaoworking as Assistant Professor, Department of (CS) from Vikas Group of Institutions, Nunna, Vijayawada, Krishna (D)-521229, Andhra Pradesh, Affiliated to JNTUK, India.
BETAM SURESH B.Tech(CSE),M.Tech(CSE),M.Tech(IT) (Ph.D), M.A(Socialogy), Working as Head of the Department of (CS) from Vikas Group of Institutions, Nunna, Vijayawada, Krishna (D)-521212, Andhra Pradesh, Affiliated to JNTUK, India.
