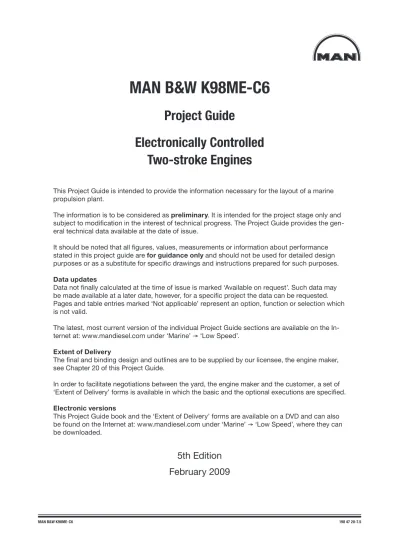

MAN B&W K98ME-C6. Project Guide. Electronically Controlled Two stroke Engines

MAN B&W K98ME-C6 198 47 20-7.5 This Project Guide is intended to provide the information necessary for the layout of a marine

propulsion plant.

The information is to be considered as preliminary. It is intended for the project stage only and subject to modification in the interest of technical progress. The Project Guide provides the gen-eral technical data available at the date of issue.

It should be noted that all figures, values, measurements or information about performance stated in this project guide are for guidance only and should not be used for detailed design purposes or as a substitute for specific drawings and instructions prepared for such purposes. Data updates

Data not finally calculated at the time of issue is marked ‘Available on request’. Such data may be made available at a later date, however, for a specific project the data can be requested. Pages and table entries marked ‘Not applicable’ represent an option, function or selection which is not valid.

The latest, most current version of the individual Project Guide sections are available on the In-ternet at: www.mandiesel.com under ‘Marine’ → ‘Low Speed’.

Extent of Delivery

The final and binding design and outlines are to be supplied by our licensee, the engine maker, see Chapter 20 of this Project Guide.

In order to facilitate negotiations between the yard, the engine maker and the customer, a set of ‘Extent of Delivery’ forms is available in which the basic and the optional executions are specified. Electronic versions

This Project Guide book and the ‘Extent of Delivery’ forms are available on a DVD and can also be found on the Internet at: www.mandiesel.com under ‘Marine’ → ‘Low Speed’, where they can be downloaded.

5th Edition

February 2009

Project Guide

Electronically Controlled

Twostroke Engines

MAN B&W K98ME-C6 198 47 20-7.5 MAN Diesel Teglholmsgade 41 DK2450 Copenhagen SV Denmark Telephone +45 33 85 11 00 Telefax +45 33 85 10 30 [email protected] www.mandiesel.com

Copyright © 2009 MAN Diesel, branch of MAN Diesel SE, Germany, registered with the Danish Commerce and Companies Agency under CVR Nr.: 31611792, (herein referred to as “MAN Diesel”).

This document is the product and property of MAN Diesel and is protected by applicable copyright laws. Subject to modification in the interest of technical progress. Reproduction permitted provided source is given. 7020-0042-01ppr Feb 2009
