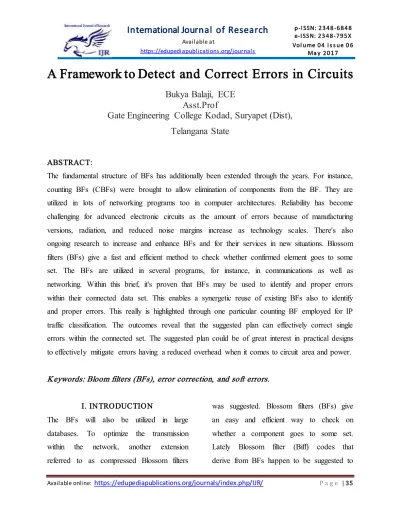

A Framework to Detect and Correct Errors in Circuits
Bukya Balaji, ECE
Asst.Prof
Gate Engineering College Kodad, Suryapet (Dist),
Telangana State
ABSTRACT:
The fundamental structure of BFs has additionally been extended through the years. For instance, counting BFs (CBFs) were brought to allow elimination of components from the BF. They are utilized in lots of networking programs too in computer architectures. Reliability has become challenging for advanced electronic circuits as the amount of errors because of manufacturing versions, radiation, and reduced noise margins increase as technology scales. There's also ongoing research to increase and enhance BFs and for their services in new situations. Blossom filters (BFs) give a fast and efficient method to check whether confirmed element goes to some set. The BFs are utilized in several programs, for instance, in communications as well as networking. Within this brief, it's proven that BFs may be used to identify and proper errors within their connected data set. This enables a synergetic reuse of existing BFs also to identify and proper errors. This really is highlighted through one particular counting BF employed for IP traffic classification. The outcomes reveal that the suggested plan can effectively correct single errors within the connected set. The suggested plan could be of great interest in practical designs to effectively mitigate errors having a reduced overhead when it comes to circuit area and power.
Keywords: Bloom filters (BFs), error correction, and soft errors.
I. INTRODUCTION
The BFs will also be utilized in large databases. To optimize the transmission within the network, another extension referred to as compressed Blossom filters
do error correction in large data sets [1]. Generally, BFs are implemented using electronic circuits. The items in a BF are generally kept in a higher speed memory and needed processing is completed inside a processor or perhaps in devoted circuitry. The set accustomed to construct the BF can also be generally kept in a lesser speed memory. The longevity of electronic circuits has become challenging as technology scales. Errors brought on by interferences, radiation, along with other effects are
common. Therefore, minimization
techniques are utilized at different levels to make sure that the circuits still operate
reliably. For BF implementation,
recollections really are a critical element. For recollections, permanent errors and defects are generally remedied using spare rows and posts. However, soft errors caused for instance by radiation can impact any memory cell altering its value during circuit operation [2]. Soft errors don't produce harm to the memory device that is constantly on the operate properly but has got the wrong value within the affected cell. To cope with soft errors, using a per word parity bit or even more advanced error correction codes (ECCs) continues to be common in recollections for several years. The BFs are
whenever a query to have an element that is not put into the BF is completed. That is a component is improperly considered being kept in the BF when happens to be away from the element set [3]. This will happen if additional factors have set to 1 the positions that match the hash values of this element. An issue with BFs is the fact that elements cannot remove easily. It is because a situation having a one out of the array could be shared by a number of elements Using integers rather than bits enables removing elements as now each position within the array stores the amount of factors that share that position. The false positive rate of the correctly dimensioned CBF is equivalent to what standard BF.
Fig.1.Probability of error correction
III. PROPOSED SCHEME
The suggested plan is dependent on the observation that the CBF, additionally to some structure that enables fast membership check for an element set, can also be in ways
a redundant representation from the element set. Therefore, this redundancy may be
employed for error recognition and
correction. To understand more about this concept, a typical implementation of CBFs in which the aspects of the set are kept in a sluggish memory and also the CBF is kept in a quicker memory is recognized as. Particularly, the assumption is the aspects of the set are kept in DRAM as the CBF is kept in a cache. The reasoning behind this would be that the CBF is utilized frequently and requires a quick access time for you to maximize performance, as the aspects of the set are just utilized when elements are read, added or removed and then the access time isn't an issue. It ought to be noted that whenever the whole element set is kept in a sluggish memory, no incorrect deletions can happen because they could be detected when getting rid of the element in the slow memory. Recollections are safe having a per word parity bit or having a single bit error correction code. This is dependent on the observation that many errors affect just one bit or even when they affect multiple bits, the errors could be spread among different
words through interleaving [4].
The appearance rate for terrestrial programs is incorporated in the order with a minimum of days or days and for that reason, it's generally assumed that errors are isolated. That's, when a gentle error arrives any previous soft error continues to be remedied or detected. It is really an assumption that is required, for instance, when single bit error correction codes are utilized. Within the following, one of these simple two most typical protection options can be used. Particularly, the assumption is that both DRAM and also the cache are safe having a per word parity bit that may identify single errors. As when utilizing single bit error correction codes, it's also assumed that errors are isolated. The aim with this implementation is to offer the correction of single bit errors while using CBF. That's, the CBF would enable single bit error correction without incurring in the price of adding an ECC towards the recollections. The initial step to attain error correction would be to identify errors. This is accomplished by examining the parity bit when being able to access either the DRAM or even the cache. To make sure earlier recognition of errors, using scrubbing to periodically browse the recollections might be considered. Once a mistake is detected, a correction procedure
is triggered [5]. When the error happens within the CBF, it may be remedied by clearing the CBF and reconstructing it while using element set. When the error happens within the element set, the process is more complicated and could be divided in 2 phases which are described within the following sections. The concept would be that the simpler and faster procedure can be used first and just when it's not able to fix the mistake, the 2nd more complicated error
correction procedure can be used
utilizing a real illustration of a CBF
accustomed to speed-up traffic
classification. Pairs of IP addresses are kept in a multiple hash table, and some CBFs enables to understand by which table the element is stored, supplying a quick retrieve from the value connected towards the element. Since IP version four is recognized as, how big the weather is 64 bits. The
potency of the straightforward error
correction procedure greatly is dependent around the load from the CBF.
III. CONCLUSION
Particularly, it's proven that CBFs may be used to correct errors within the connected element set. The concept is by using the BFs in existing programs also to identify and proper errors within their connected element set. Within this brief, a brand new use of BFs continues to be suggested. This allows an expense efficient means to fix mitigate soft errors in programs designed to use CBFs. The configuration considered within this brief is a memory protected having a per word parity bit that it's shown the CBF may be used to achieve single bit error correction. The overall idea may also be used once the memory remains safe and secure with increased advanced codes. For
instance, if the SEC-DED code can be used, the CBF could be employed to correct double errors. This shows how existing CBFs may be used to achieve error correction additionally to do their traditional
membership checking function.
Additionally, the easiest area of the error correction plan may also be put on traditional BFs to attain some extent of error recognition and correction. The search for these alternative designs remains for future work.
REFERENCES
[1] T. Kocak and I. Kaya, “Low-power bloom filter architecture for deep packet inspection,” IEEE Commun. Lett., vol. 10, no. 3, pp. 210–212,Mar. 2006.
[2] F. Bonomi, M. Mitzenmacher, R. Panigrahy, S. Singh, and G. Varghese, “An improved construction for counting bloom filters,” in Proc. 14th Annu. ESA, 2006, pp.
1–12.
[3] P. Reviriego, J. A. Maestro, S. Baeg, S. J. Wen, and R. Wong, “Protection of memories suffering MCUs through the
distance,” IEEE Trans. Nucl. Sci., vol. 57, no. 4,pp. 2124–2128, Aug. 2010.
[4] G. Wang, W. Gong, and R. Kastner, “On the use of bloom filters for defect maps in
nanocomputing,” in Proc. IEEE/ACM
ICCAD, Nov. 2006,pp. 743–746.
[5] B. Bloom, “Space/time tradeoffs in hash coding with allowable errors,” Commun. ACM, vol. 13, no. 7, pp. 422–426, 1970.
