Cummins celect

(1)

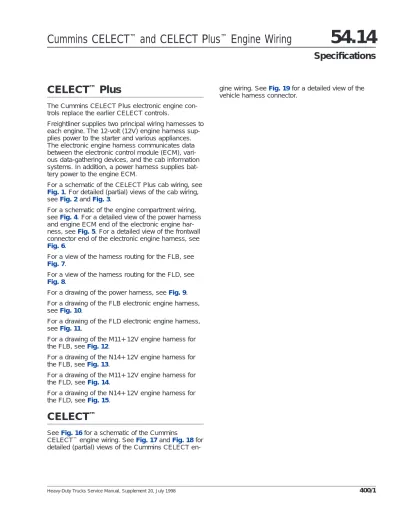

CELECT

™

_Plus

The Cummins CELECT Plus electronic engine con-trols replace the earlier CELECT concon-trols.

Freightliner supplies two principal wiring harnesses to each engine. The 12-volt (12V) engine harness sup-plies power to the starter and various appliances. The electronic engine harness communicates data between the electronic control module (ECM), vari-ous data-gathering devices, and the cab information systems. In addition, a power harness supplies bat-tery power to the engine ECM.

For a schematic of the CELECT Plus cab wiring, see Fig. 1. For detailed (partial) views of the cab wiring, seeFig. 2andFig. 3.

For a schematic of the engine compartment wiring, seeFig. 4. For a detailed view of the power harness and engine ECM end of the electronic engine har-ness, seeFig. 5. For a detailed view of the frontwall connector end of the electronic engine harness, see Fig. 6.

For a view of the harness routing for the FLB, see Fig. 7.

For a view of the harness routing for the FLD, see Fig. 8.

For a drawing of the power harness, seeFig. 9. For a drawing of the FLB electronic engine harness, seeFig. 10.

For a drawing of the FLD electronic engine harness, seeFig. 11.

For a drawing of the M11+ 12V engine harness for the FLB, seeFig. 12.

For a drawing of the N14+ 12V engine harness for the FLB, seeFig. 13.

For a drawing of the M11+ 12V engine harness for the FLD, seeFig. 14.

For a drawing of the N14+ 12V engine harness for the FLD, seeFig. 15.

CELECT

™

SeeFig. 16for a schematic of the Cummins

gine wiring. SeeFig. 19for a detailed view of the vehicle harness connector.

(2)

O N T H R O T T L E P E D A L

11/13/97 f541774

Ref. Dia.: D06−23330 Chg. Ltr. A

(3)

11/13/97 f541775 Ref. Dia.: D06−23330 Chg. Ltr. A

Fig. 3

(4)

11/13/97 Ref. Dia.: D06−23330 Chg. Ltr. A f541776

Fig. 2

(5)

Fig. 5

Fig. 6

f541777 Ref. Dia.: D06−23330 Chg.Ltr. A

11/13/97

(6)

Fig. 6

11/13/97

(7)

Fig. 5

11/13/97

(8)

f541780 2 3 4 5 6 7 8 9 10 Ref. Dia.: D06−23332 Chg.Ltr. B 9 11 12 11/13/97

NOTE: Engine shown in side view.

1. Shifter-Mounted Cruise Control Interface (optional) 2. Tunnel

3. A/C Pressure Switch Connector 4. Engine ECM

5. Low Coolant Level Harness Connector 6. Electronic Engine Harness

7. Fan Solenoid Connector

8. Speedometer Sensor (VSS) Connector 9. Battery Ring Terminal(s)

10. Power Harness

11. Tachometer Output (optional) 12. 12V Engine Harness

(9)

f541781 1 2 3 4 5 ₆ 7 8 9 10 11 12 Ref. Dia.: D06−23331 Chg.Ltr. A 11/13/97 10 13

NOTE: Engine shown in side view. 1. Engine ECM

2. Low Coolant Level Harness Connector 3. Actuator Harness (supplied by CUM) 4. Fan Solenoid Connector

5. A/C Pressure Switch Connector 6. Electronic Engine Harness

7. Shifter-Mounted Cruise Control Interface (optional)

8. Tachometer Output (optional)

9. Speedometer Sensor (VSS) Connector 10. Battery Ring Terminal(s)

11. Power Harness

12. 21-Pin Deutsch Connector 13. 12V Engine Harness

(10)

10/07/97 f541782 A B NC20 A B NC22 NC09 N C 0 9 N C 2 2 N C 2 0 1 2 4 4 A B C

Ref. Dia.: A06−23326 Chg.Ltr. B

1. 3-Pin Engine ECM Connector 2. Tie Strap

3. 15-Amp Fuse

4. Battery Ring Terminal(s)

(11)

1 9 1 0 1 9 2 0 2 8 1 9 B A B A A B B A A B B A N A 0 8 N 1 0 1 4 9 N 1 7 N 0 3 D C B A N 0 7 A B C D E F G H J K L M N P R S T U V WX 14 26 5 1 2 8 31 19 7 6 15 30 18 17 16 27 29 28 20 9 3 4 13 25 21 10 11 12 24 22 23 D C B A D C B A 03/02/98 f541783 1 2 3 4 5 6 7 8 9 10 C A V C I R C A V C I R 1 N 0 1 1 7 − 2 N 0 2 1 8 N 1 8 3 1 4 9 1 9 N 1 9 4 N 0 4 2 0 − 5 N 0 5 2 1 N A 1 6 6 N 0 6 2 2 N 2 2 7 − 2 3 N 2 3 8 N 0 8 2 4 − C A V C I R C A V C I R 1 N 0 1 8 N 0 8 2 N 0 2 9 N 0 9 3 N 0 3 1 0 N 1 0 4 N 0 4 1 1 N 1 1 5 N 0 5 1 2 N 1 2 6 N 0 6 1 3 N 1 3 7 N 0 7 1 4 N 1 4 C A V C I R C A V C I R 1 5 − 2 2 N 2 2 1 6 N 1 6 2 3 N 2 3 1 7 N 1 7 2 4 − 1 8 N 1 8 2 5 N 2 5 1 9 N 1 9 2 6 − 2 0 − 2 7 N 2 7 2 1 − 2 8 N 2 8 C A V C I R C A V C I R A N C 2 6 H − B − J N A 2 2 C N C 0 7 K N A 1 3 D − L N A 1 8 E − M N A 0 9 F − N N A 2 3 G − P N A 0 5 C A V C I R R − S − T N A 0 8 U − V N A 1 6 W − X − C A V C I R A N A 0 9 B N A 1 3 C N A 2 2 D N A 1 8 C A V C I R A N 1 0 B N 1 2 C N 2 2 D N 0 4 9 N 0 9 2 5 N 2 5 1 0 N 1 0 2 6 − 1 1 N 1 1 2 7 N 2 7 1 2 N 1 2 2 8 N 2 8 1 3 N 1 3 2 9 N C 2 6 1 4 N 1 4 3 0 N A 0 5 1 5 − 3 1 N A 2 3 1 6 N 1 6 − − C A V A B C D Ref.Dia.: D06−23322 Chg.Ltr. B

1. 31-Pin Frontwall Connector

2. Shifter-Mounted Cruise Control Connector #1 (optional)

3. A/C Pressure Switch Connector 4. Fan Solenoid Connector 5. 28-Pin Engine ECM Connector

6. Low Coolant Level Harness Connector 7. 21-Pin Engine Connector

8. Speedometer Sensor (VSS) Connector 9. Tachometer Output (optional)

(12)

f541784 03/02/98 1 2 3 4 5 6 7 8 9 10

Ref. Dia.: A06−23321 Chg.Ltr. C

1. 31-Pin Frontwall Connector 2. A/C Pressure Switch Connector 3. Fan Solenoid Connector 4. 28-Pin Engine ECM Connector 5. Low Coolant Level Harness Connector 6. 21-Pin Engine Connector

8. Speedometer Sensor (VSS) Connector 9. Tachometer Output (optional)

(13)

03/02/98 f541787 Ref. Dia.: D06−25877 Chg.Ltr. A 1 2 3 4 5 6 7 8 9 12 13 14 15 16 17 3 10 11

Where possible, connectors are identified by component name. 1. Speedometer Sensor (VSS)

2. Back-Up Light Switch 3. Starter Solenoid 4. Starter (BAT terminal) 5. Ammeter Shunt (optional) 6. Magnetic Switch

7. 25-Pin Frontwall Connector

8. 16-Pin Frontwall Connector 9. Power Stud

10. A/C Compressor Clutch 11. Ether Start Sensor

12. Coolant Temperature Sensor 13. Engine Oil Temperature Sensor 14. Tachometer Pickup (optional)

15. Transmission Fluid Temperature Sensor

16. High Coolant Temperature Warning Switch

17. High Coolant Temperature Shutdown Switch

(14)

f541785 Ref. Dia.: A06−25878 Chg.Ltr. A

1 2 3 4 3 17 16 6 7 5 8 15 14 13 12 10 11 9 03/02/98

Where possible, connectors are identified by component name. 1. Speedometer Sensor (VSS)

2. Back-Up Light Switch 3. Starter Solenoid 4. Starter (BAT terminal) 5. Ammeter Shunt (optional) 6. Ether Start Sensor

7. Engine Oil Temperature Sensor

8. Magnetic Switch

9. 25-Pin Frontwall Connector 10. 16-Pin Frontwall Connector 11. Power Stud

12. A/C Compressor Clutch 13. High Coolant Temperature

Shutdown Switch

15. Coolant Temperature Sensor 16. Tachometer Pickup (optional) 17. Transmission Fluid Temperature

Sensor

(15)

Ref. Dia.: D06−25980 Chg. Ltr. A f541786 1 2 3 4 5 7 8 9 10 11 12 13 14 18 17 16 15 6 7 03/02/98

Where possible, connectors are identified by component name. 1. 25-Pin Frontwall Connector

2. 16-Pin Frontwall Connector 3. Power Stud

4. Engine Oil Temperature Sensor 5. Starter (BAT terminal)

6. Ammeter Shunt (optional) 7. Starter Solenoid

8. A/C Compressor Clutch 9. Ether Start Sensor

10. Coolant Temperature Sensor 11. High Coolant Temperature

Shutdown Switch

13. Magnetic Switch 14. Electric Horn

15. Tachometer Pickup (optional) 16. Transmission Fluid Temperature

Sensor

17. Speedometer Sensor (VSS) 18. Back-Up Light Switch

(16)

03/02/98 f541789 1 2 3 4 7 8 9 10 11 12 13 14 15 16 17 18

Ref. Dia.: A06−25971 Chg.Ltr. A

9

Where possible, connectors are identified by component name. 1. 25-Pin Frontwall Connector

2. 16-Pin Frontwall Connector 3. Tachometer Pickup (optional) 4. Transmission Fluid Temperature

Sensor

5. Speedometer Sensor (VSS) 6. Back-Up Light Switch

7. Starter (BAT terminal) 8. Ammeter Shunt (optional) 9. Starter Solenoid

10. Ether Start Sensor

11. Engine Oil Temperature Sensor 12. A/C Compressor Clutch 13. Coolant Temperature Sensor

14. High Coolant Temperature Shutdown Switch

16. Electric Horn 17. Magnetic Switch 18. Power Stud

(17)

A B C D E F G H J K L M N O P Q R S T U V W X N14 N23 N16 N121 N99 N11 N18 N19 121C N05 121D N21 N25 N10 N08 N27 N06 N09 N13 N02 N04 N22 N12 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 N01 N02 N03 N04 N05 N06 N07 N08 N09 N10 N11 N12 N13 N14 −−− N16 −−− N18 N19 −−− N21 N22 N23 −−− N25 −−− N27 −−− 02 03 04 05 06 07 08 09 01 A B C D E F G H J NA17 NA14 NA17 N99 −−− N121 121D 121C NA14 B A C D F E M6E B A C D F E M6E B A C D F E M6E B A C D F E M6E ENGINE CHECK LIGHT (Yellow) SHUTDOWN LIGHT (Red) A C B A C B M3B F 3B REDBLKWHT M1A N10 N13 M1A A A

(LOWER LEFT−HAND DASH PANEL) (ON CLUTCH LINKAGE)

(MAIN AIR−JUNCTION BLOCK)

(ELECTRICAL MOUNTING PLATE)

SRVC BRAKE

C/0 SWITCH IGN SUPPLIED

CIR BRKR

TPS RETURNTPS VOLT OUTTPS + 5V SPLYTHRTL ACTIVEIDEL ACTIVECHK LT GNDSHUTDN LT GNDCRUISE ON SIGSET SIGRESUME SIGIDLE/INSCREASEIDLE/DECREASEDIAGN SIGBRAKE SIG CLUTCH SIGENG BRK RQSTENG BRK LO5V PWR SUPPLYENG BRK ENABLEENG BRK HIDATA LINK INVRTDATA LINK NONINVRTIGN KEY SW SIG N19N11N18NO9NO6N25N16N02N12N22N14N23 N21N13N04N05121CN10N121121DN0BN27N99 N19N11N18NO9NO6N25N16N02N12N22N14N23 N21N13N04 N10N10 N0BN27N99 N10NO6NO9 N18N11N19 M1A M23 F23 F3E M 3E OPTB OPTA F6A M6A F4A M4A N25 N16 H F G SR N C U XW A B M TV K JO D LP Q E N99 CLUTCH SWITCH FROM IGN SW TO IGN ACC’S CRUISE SET/RESUME CRUISE ON/OFF IDLE/ INCR/DECR SWITCH ENG CHECK SWITCH DATALINK CONNECTOR F2D M2D A B N21N10N10N23N14 N27N08 N22N12N10N02 M3E F3E BLKWHTRED REDBLKWHT N08 N27 N10 N10 N10 N10 N21 N23 N14 N22 N12 N02 N16 N25 N06 N09 N13 N10 N04 N99 N10 10 81C IDLE THRTL FULL IDLE C3 C2 N10 N10 N12 (SET) N22 (RES) IDLE VALIDATION SWITCH THROTTLE POSITION SENSOR A C B CBA B B A A CD FEDC VEHICLE HARNESS CONNECTOR to ECM to Cummins ECM harness connector to vehicle speed sensor to Cummins actuator harness connector 23 PIN CONNECTOR to battery Reference Diagram: A06−17834,Chg. Ltr.E

NOTE: Connector end view is shown from the cable insertion end.

PINPOSITION CIRCUITNUMBER

PINPOSITION CIRCUITNUMBER N27N08 X W V U T S R Q P O N M L K J A B C D E F G H f542425

Fig. 18

Fig. 19

Fig. 17

03/02/98

(18)

B A C D F E M6E B A C D F E M6E B A C D F E M6E B A C D F E M6E ENGINE CHECK LIGHT (Yellow) SHUTDOWN LIGHT (Red)

(LOWER LEFT−HAND DASH PANEL)

OPTB OPTA F6A M6A F4A M4A N25 N16 CRUISE SET/RESUME CRUISE ON/OFF IDLE/ INCR/DECR SWITCH ENG CHECK SWITCH DATALINK CONNECTOR F2D M2D A B N21 N10 N10 N23 N14 N27 N08 N22 N12 N10 N02 C3 C2 N10 N10 N12 (SET) N22 (RES) B B A A C D F E D C 03/02/98 Reference Diagram: D06−19175, Chg. Ltr. C Fig. 18 f540701a

(19)

A C B A C B M3B F3B RED BLK WHT M1A N10 N13 M1AA A

(ON CLUTCH LINKAGE)

(MAIN AIR−JUNCTION BLOCK)

(ELECTRICAL MOUNTING PLATE)

SRVC BRAKE

C/0 SWITCH _{IGN SUPPLIED} CIR BRKR

TPS RETURN TPS VOLT OUT TPS + 5V SPLY THRTL ACTIVE IDEL ACTIVE CHK LT GND SHUTDN LT GND CRUISE ON SIG SET SIG RESUME SIG IDLE/INSCREASE IDLE/DECREASE DIAGN SIG BRAKE SIG CLUTCH SIG ENG BRK RQST ENG BRK LO 5V PWR SUPPLY ENG BRK ENABLE ENG BRK HI DATA LINK INVRT DATA LINK NONINVRT IGN KEY SW SIG N19 N11 N18 NO9 NO6 N25 N16 N02 N12 N22 N14 N23 N21 N13 N04 N05 121C N10 N121 121D N0B N27 N99 N19 N11 N18 NO9 NO6 N25 N16 N02 N12 N22 N14 N10 N10 N0B N27 N99 N10 NO6 NO9 N18 N11 N19 M1A M23 F23 F3E M3E H F G SR N C U XW A B M TV K JO D LP Q E N99 CLUTCH SWITCH FROM IGN SW TO IGN ACC’S M3E F3E BLK WHT RED RED BLK WHT N08 N27 N10 N10 N10 N10 N21 N23 N14 N22 N12 N02 N16 N25 N06 N09 N13 N10 N04 N99 N10 10 81C IDLE THRTL FULL IDLE IDLE VALIDATION SWITCH THROTTLE POSITION SENSOR A C B CBA N23 N21 N13 N04 03/02/98 Reference Diagram: D06−19175, Chg. Ltr. C f540702a Fig. 17 Fig. 19

(20)

10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 N01 N02 N03 N04 N05 N06 N07 N08 N09 N10 N11 N12 N13 N14 −−− N16 −−− N18 N19 −−− N21 N22 N23 −−− N25 −−− N27 −−− 02 03 04 05 06 07 08 09 01 A B C D E F G H J NA17 NA14 NA17 N99 −−− N121 121D 121C NA14 to ECM to Cummins ECM harness connector to vehicle speed sensor to Cummins actuator harness connector to battery

PIN POSITION CIRCUIT NUMBER

A B C D E F G H J K L M N O P Q R S T U V W X N14 N23 N16 N121 N99 N11 N18 N19 121C N05 121D N21 N25 N10 N08 N27 N06 N09 N13 N02 N04 N22 N12 X W V U T S R Q P O N M L K J A B C D E F G H 23 PIN CONNECTOR Reference Diagram: A06−17834,Chg. Ltr.E

NOTE: Connector end view is shown from the cable insertion end.

PIN POSITION CIRCUIT NUMBER

02/07/94 f540703a
