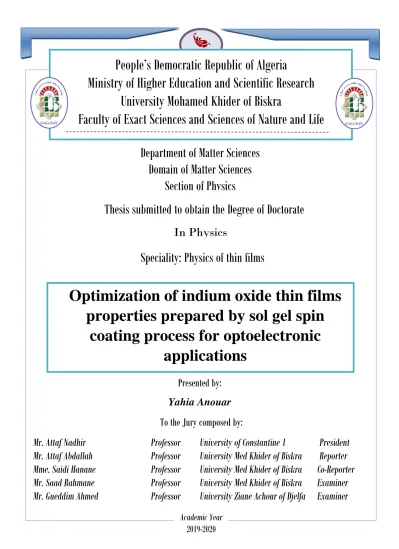

Optimization of indium oxide thin films properties prepared by sol gel spin coating process for optoelectronic applications

(1)

Optimization of indium oxide thin films

properties prepared by sol gel spin

coating process for optoelectronic

applications

Academic Year

2019-2020

Presented by:

Yahia Anouar

People’s Democratic Republic of Algeria

Ministry of Higher Education and Scientific Research

University Mohamed Khider of Biskra

Faculty of Exact Sciences and Sciences of Nature and Life

Department of Matter Sciences

Domain of Matter Sciences

Section of Physics

To the Jury composed by:

Mr. Attaf Nadhir

Professor

University of Constantine 1

President

Mr. Attaf Abdallah

Professor

University Med Khider of Biskra

Reporter

Mme. Saidi Hanane

Professor

Co-Reporter

Mr. Saad Rahmane

Professor

Examiner

Mr. Gueddim Ahmed

Professor

University Ziane Achour of Djelfa Examiner

Speciality: Physics of thin films

Thesis submitted to obtain the Degree of Doctorate

(2)

رلا الله مسب

نحم

رلا

ميح

﴿

حلا

م د

ذلا لله

ي

حه حد

حنا

ح ل

حذ

حمو ا

ك ا

نا

ل ح ن

ه حت

د

حي

حل و

حل

حأ

ن

حه حد

حنا

الله

﴾

﴿

حو ق

ل

حر ب

ز

د

ن

ع

ل حما

﴾

ميظعلا الله قدص

(3)

DEDICATION

To everyone who contributed in this humble work

From near or far

With a lot or a little

In openly or in secretly

I mentioned him or not

I knew him or not

I dedicate this thesis

(4)

ACKNOWLEDGEMENT

Firstly, I thank GOD the whole powerful for having agreed his infinite kindness, courage, the force and patience to complete this modest work.

I wish to express my deep sense of gratitude to Attaf Abdallah. Professor and Head, Faculty of Exact Sciences and Sciences of Nature and Life in University Mohamed Khider of Biskra for suggesting the problem and his unstinted guidance and supervision throughout the course of this work.

I should thank from the bottom of my heart to Saidi Hanane professor at the department of sciences of matter at faculty of exact sciences and sciences of nature and life in University Mohamed Khider of Biskra, for her constant encouragement and kind help extended to my work.

I take immense pleasure in thanking to Attaf Nadhir professor at the University of Constantine 1, Department of physic, who agreed to be the president of the doctoral committee.

I am also thankful to Saad Rahmane professor at the department of sciences of matter at faculty of exact sciences and sciences of nature and life in University Mohamed Khider of Biskra, who agreed to accept to belong to the jury and to examine my work.

I owe my heartful thanks to Gueddim Ahmed professor at the physics department in Ziane Achour University of Djelfa, who showed great interest in my research work and accepted to belong to the jury and to examine my work.

I am indebted to Prof. Tibermacine Toufik for his help during the progress of my work. I express my sincere thanks to my fellow research scholars Dr. Dahnoun Mohamed, Dr. Labed Mohamed and Dr. Bouhdjer Adel.

I thank my beloved Parents for their love and care. I wish also to express my gratitude to my brothers and sisters for their constant encouragement and untired support towards the completion of my research work.

Lastly, I offer my regards to many people who have helped me at various stages of my work then and there needed. This work would not be possible without their help.

(5)

ii

ABSTRACT

Optimization of indium oxide thin films properties prepared by

sol gel spin coating process for optoelectronic applications

Indium oxide thin films have been deposited by sol-gel spin coating technique using indium

(III) nitrate hydrate, absolute ethanol and acetylacetone as precursor solution, solvent and

stabilizer, respectively. The effect of the molar concentration, annealing temperature, titanium

doping and cupric doping on the structural, morphological, optical and electrical properties of

In2O3 films have been studied.

All films have been characterized by multiple techniques such as X-ray diffraction (XRD), UV-Visible spectroscopy, scanning electron microscope (SEM), photoluminescence (PL) spectroscopy, Fourier transform infrared (FTIR) spectroscopy and four probe method to investigate the physical properties of indium oxide films. X-ray diffraction analysis showed that

the films are polycrystalline in nature having cubic crystal structure with preferred growth

orientation along (222) plane. SEM images show that the films are homogenous, uniform and

dense without any pin holes and cracks. The transmittance of In2O3 films was high up to 90%

and it is probably related to the goodcrystalline quality of the films. The optical gap was found

to vary between 3.5 and 4.0 eV. The photoluminescence measurements revealed mainly three

emission peaks (ultraviolet, blue and green) corresponding to the near band edge (NBE) and defect levels (DL) emissions. The broad ultraviolet luminescence peak 310-420 nm is assigned

to NBE emission. The blue and green luminescence are attributed to DL emission. Theelectrical

measurements revealed that prepared Cu doped In2O3 films have a low resistivity (about

1.77×10-3 – 6.34×10-3 (Ω.cm)) which made these films suitable for optoelectronic applications.

Keywords: Thin film, indium oxide, sol-gel, spin coating technique, doping, optical properties,

(6)

صخلم

ديسكلأ ةقيقرلا حئارشلا صئاصخ ينستح

لئاس يزكرلما درطلا ةينقت ةطساوب ةرضلمحا مويدنلإا

–

ملاه

ةيئوضورهكلا تاقيبطتلل

لئاس يزكرلما درطلا ةينقت ةطساوب مويدنلإا ديسكلأ ةقيقرلا حئارشلا بيسرت تم

–

،هيملما يثلاثلا مويدنلإا تاترن مادختسبا ملاه

.لياوتلا ىلع تبثمو بيذم ،ردصمك نوتيسلأا ليتيسأو لوناثيلإا

ميعطتلا ،ةرارلحا ةجرد ،ليولما زيكترلا نم لك یرثتأ ةسارد تم دقو

اتيتلا مادختسبا

،ةيجولوفرولما ،ةيوينبلا صئاصلخا ىلع ساحنلاو موين

و ةيئوضلا

ةيئبارهكلا

ةقيقرلا مويدنلإا ديسكأ حئارشل

.

نيوتركللإا رهلمجا ،ةيئرلماو ةيجسفنبلا قوف ةيفايطلما ،ةينيسلا ةعشلأا جارعنا لثم قرط ةدع لامعتسبا حئارشلا لك فيصوت تم

ا ةيفايطم ،يئوضلا قلأتلا ةيفايطم ،حسالما

ءارملحا تتح ةعشلأ

(

FTIR

)

و

ةينقت

سلما

اب

یر

لأا

ةعبر

ةينيسلا ةعشلأا جارعنا ليلاتح ترهظأ .

ةعيبط تاذ حئارشلا نأ

رولبتلا ةددعتم

هاتجا عم لكشلا ةيبعكم ةينبب

لضفم

لل

( يوتسلما قفو ومن

222

رهلمجا روص تنيب امك .)

.قوقش وأ تاماسم يأ دوجو نود فيثكو لثامتم ،سناجتم حطس تاذ حئارشلا نأ حسالما نيوتركللاا

كلذ لىإ ةفاضإ

ةيذافن تناك

ثيبح ةيلاع مويدنلإا ديسكأ حئارش

تلصو

ةبسنلا لىإ

90

%

،

و

دق

دوعي

كلذ

للت

.حئارشلا هذله ةديلجا رولب

ترت امك

ةوجف ميق حوا

ينب ام عونملما قاطنلا

3.5

و

4.0

.طلوف نوتركلإ

اضيأو

ممق يساسأ لكشب يئوضلا قلأتلا تاسايق تفشك

ا

قوف( ثاعبنلال

قفاوت )رضخلأاو قرزلأاو يجسفنبلا

لاا

بويعلا تياوتسمو بيرقلا قاطنلا ةفاح نم تثااعبن

ثيبح

ةمق

قلأتلا

ةعساولا

قوف ةعشلأل

ةيجسفنبلا

لالمجا في

310

–

420

بيرقلا قاطنلا ةفاح نم ثاعبنلال دوعت ترموننا

،

لىإ دوعي ءارضلخاو ءاقرزلا ةعشلأل قلأتلا امنيب

.بويعلا تياوتسم نم ثاعبنلاا

،كلذ نع لاضف

نأ ةيئبارهكلا تاسايقلا ترهظأ

مويدنلإا ديسكأ حئارش

ساحنلبا ةمعطلما

لقأ كلتم

ةيمواقم

لا ينب نم

حئارش

ةرضلمحا

(

حواترت

ينب ام

3

-10

×

1.77

–

3

-10

×

6.34

)مس.موأ

في لامعتسلال ةلحاص اهلعيج امم

ةيئوضورهكلا تاقيبطتلا

.

:ةيحاتفلما تاملكلا

لا

حئارش

لا

لئاس ،مويدنلإا ديسكأ ،ةقيقر

–

،ملاه

،يزكرلما درطلا ةينقت

صئاصخ ،ةيئوض صئاصخ ،ميعطت

.ةيئبارهك

(7)

iv

RESUME

Optimisation des propriétés des couches minces d'oxyde d'indium

préparées par le procédé sol-gel type spin coating pour des

applications optoélectroniques

Les couches minces d'oxyde d'indium ont été déposées par la technique de sol-gel spin coating en utilisant du nitrate hydraté d'indium (III), l'éthanol absolu et l'acétylacétone comme précurseur, solvant et stabilisant, respectivement. Les effets de la concentration molaire, la température de recuit, dopage par le titane et dopage par le cuivre sur les propriétés structurelles,

morphologiques, optiques et électriques des films d’In2O3 ont été étudiés.

Tous les films ont été caractérisés par de nombreuses techniques telles que la diffraction des rayons X (DRX), la spectroscopie UV-Visible, le microscope électronique à balayage (MEB), la spectroscopie à photoluminescence (PL), la spectroscopie infrarouge à transformée de Fourier (IR-TF) et la méthode de quatre points pour étudier les propriétés physiques des films d'oxyde d'indium. L'analyse par diffraction des rayons X a montré que les films sont de nature polycristalline et présentent une structure cristalline cubique avec une orientation de croissance préférée selon le plan (222). Les images de MEB montrent que les films sont des surfaces homogènes, uniformes et denses, sans aucune de porosité et fissures. La transmittance des

couches d’In2O3 était élevée jusqu'à 90% et est probablement liée à la bonne qualité cristalline

des films. Le gap optique variait entre 3,5 et 4.0 eV. Les mesures de photoluminescence ont révélé principalement trois pics d'émission (ultraviolets, bleus et verts) correspondant aux émissions de bord proche de la bande et des niveaux des défauts. Le large pic de luminescence ultraviolet 310-420 nm est attribué à l'émission de bord proche de la bande. Les luminescences bleue et verte sont attribuées à l'émission des niveaux des défauts. Les mesures électriques ont

révélé que les couches préparées d’In2O3 dopées par Cu ont une faible résistivité (autour de

1.77×10-3–6.34×10-3 (Ω.cm)),ce qui rend ces films adaptés aux applications optoélectroniques.

Mots-clés: couche mince, oxyde d’indium, sol-gel, technique de spin coating, dopage, propriétés
