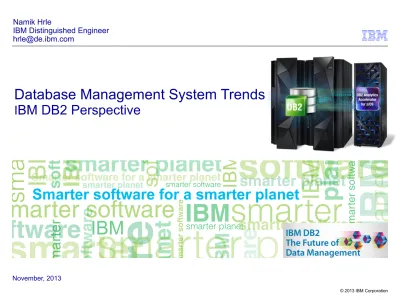

Database Management System Trends IBM DB2 Perspective

(1)

Database Management System Trends

I

BM DB2 Perspective

Namik Hrle

IBM Distinguished Engineer [email protected]

(2)

U.S. Government Users Restricted Rights - Use, duplication or disclosure restricted by GSA ADP Schedule Contract with IBM Corp.

IBM’s statements regarding its plans, directions, and intent are subject to change or

withdrawal without notice at IBM’s sole discretion. Information regarding potential future products is intended to outline our general product direction and it should not be relied on in making a purchasing decision. The information mentioned regarding potential future products is not a commitment, promise, or legal obligation to deliver any material, code or functionality. Information about potential future products may not be incorporated into any contract. The development, release, and timing of any future features or functionality described for our products remains at our sole discretion.

Disclaimer

IBM, the IBM logo, ibm.com, DB2, and DB2 for z/OS are trademarks or registered trademarks of International Business Machines Corporation in the United States, other countries, or both. If these and other IBM trademarked terms are marked on their first occurrence in this information with a trademark symbol (® or ™), these symbols indicate U.S. registered or common law trademarks owned by IBM at the time this information was published. Such trademarks may also be registered or common law trademarks in other countries. A current list of IBM trademarks is available on the Web at “Copyright and trademark information” at www.ibm.com/legal/copytrade.shtml

(3)

Agenda

• Business and Technology Drivers

• IBM DB2 Technology

(4)

Traditional Systems Landscape

OLTP Staging Area ODS EDW Data Marts

(5)

Traditional Systems Landscape

(6)

Traditional Systems Landscape

ETL ETL ETL ETL

Applications

(7)

Traditional Systems Landscape

ETL ETL ETL ETL

Negative ramifications:

• Complexity

➔ both in systems management and in applications

• Difficulties in supporting real time analytics • Inability to match ever more demanding SLA

requirements

• High total cost of ownership

Applications

(8)

Traditional Systems Landscape

ETL ETL ETL ETL

Historical reasons:

• Different access patterns

➔ impact on performance

• EDW as the data integration hub

➔ again, impact on performance

• Different life-cycle characteristics

➔ and again, impact on performance

• Different Service Level Agreements (SLA)

➔ Lack of broadly available workload management capabilities ➔ Choice of lower cost-of-acquisition offerings

Negative ramifications:

• Complexity

➔ both in systems management and in applications

• Difficulties in supporting real time analytics • Inability to match ever more demanding SLA

requirements

• High total cost of ownership

Applications

(9)

Road to Visionary Systems Landscape

ELT ELT ELT ELT

BenefitsBenefits

➔Uniform policies and procedures for security, HA,

DR, monitoring, same tools, same skills, ...

➔Efficient data movement within the system, often

not involving network (ELT vs. ETL)

Applications

operational analytical

➔Uniform access to any data for types of applications ➔Opportunity to remove, i.e. consolidate some of

(10)

Data

Visionary Systems Landscape

Applications

BenefitsBenefits

➔Uniform access to any data for types of applications ➔Opportunity to remove, i.e. consolidate some of the

(11)

Data

Visionary Systems Landscape

Applications

ChallengesChallenges

➔Mixed workload management capabilities ➔Ensuring continuous availability, security and

reliability

➔Providing seamless scale-up and scale-out ➔Providing universal processing capabilities to

deliver best performance for both transactional and analytical workloads without the need for

excessive tuning

BenefitsBenefits

(12)

Data

Visionary Systems Landscape

Applications

reliability

BenefitsBenefits

layers, ultimately leading to a single database

ApproachesApproaches

➔Large RAM

 'In-memory' databases

➔Massively parallel processing

 Large number of sockets, cores, servers  Vector processing

➔Hardware acceleration through special purpose

processors

 FPGA, GPU, ...

➔Columnar stores ➔Appliances

(13)

Re-inventing In-Memory Computing

●

The benefits of “in-memory” processing have been known since the onset

of IT itself

➔

The fastest I/O is no I/O

➔

Many software components already support practically unlimited data cache sizes

➔

The limiting factor has been the cost

●

The DIMM price per GB has decreased by 9.4 times since 2007

➔

However, there are signs that the bottom of a down cycle might have been

reached

●

Supporting very large memory is not the same as supporting in-memory

computing

➔

A genuine in-memory computing product must be designed with assumption that

all (or most) of the data will be in memory at any point in time

➔

Most of the traditional database management systems do not satisfy this condition

●

The key promises:

➔

lightning performance without tuning

➔

eliminating all the data redundancy that is traditionally created to deliver

(14)

In-Memory Database Challenges

●

Database Management System is a state-full resource and non-volatile storage

is realistically unavoidable for fast and reliable recovery

➔

Many wrongly conclude that an ‘in-memory’ database does not require any disk storage

 If there is no disk, the database would not be recoverable

 Writing logs to disk happens at commit

 Writing data to disk happens periodically (checkpoints, savepoints, ...)

➔

For example, SAP's HANA requires much more disk storage than the real memory

●

'Data must fit in memory' is a major limitation

➔

particularly challenging for enterprise data warehouses

➔

incompatible with Big Data requirements

●

Scale out is typically based on shared-nothing architecture

➔

Does not scale well for workloads that do not adhere to data-to-node affinity

●

DRAM is still much more expensive than disk

●

New comers will need to address many non-performance quality of service

characteristics

●

Eliminating data redundancy is not a realistic goal due to integration hub aspects

(15)

SELECT

SELECT _*_*FROM T WHERE C1 = unique keyFROM T WHERE C1 = unique key SELECT AVG(C3) FROM TSELECT AVG(C3) FROM T

Column Store

Row Store

Row-oriented vs. Column-oriented Data Store Model

C1 C2 C3 C4 C5 C1 C2 C3 C4 C5 C1C1 C2C2 C3C3 C4C4 C5C5 R 1 R 2 R 3 R 4 C 1 C 2 C 3 C 4 C 5 C 1 C 2 C 3 C 4 C 5 R 1 R 2 R 3 R 4 SELECT

SELECT _*_*FROM T WHERE C1 = unique keyFROM T WHERE C1 = unique key

R 1 R 2 R 3 R 4 R 1 R 2 R 3 R 4

SELECT AVG(C3) FROM T

R 1 R 2 R 3 R 4

(16)

Agenda

• Business and Technology Drivers

• IBM DB2 Technology

• IBM DB2 Analytics Accelerator

(17)

Data

Visionary Systems Landscape

Applications

reliability

BenefitsBenefits

➔Large RAM

processors

 FPGA, GPU, ...

(18)

Data

Visionary Systems Landscape

Applications

reliability

Building on proven technology baseBuilding on proven technology base

➔DB2 (both z/OS and LUW) already provide

superior technology to address most of the challenges

➔The remaining challenge is addressed by adding

special purpose processing component for analytical workloads

✔ DB2 for z/OS: IBM DB2 Analytics AcceleratorIBM DB2 Analytics Accelerator ✔ DB2 for LUW: BLUBLU

BenefitsBenefits

➔Large RAM

processors

 FPGA, GPU, ...

(19)

DB2 for z/OS Approach: Hybrid Database Management System

IBM DB2

Analytics

Accelerator

Applications

DBA Tools, z/OS Console, ...

. . .

Operation Interfaces (e.g. DB2 Commands) Application Interfaces (standard SQL dialects)

DB2

Log

Manager

IRLM

Buffer

Manager

Data

Manager

(20)

DB2 for LUW Approach: BLU Acceleration

§

New innovative technology for analytic queries

_{New innovative technology for analytic queries}

• Dynamic in-memory technology loads terabytes of data in RAM instead of hard disks. This

streamlines query workloads even when data sets exceed the size of the memory.

• Columnar store scans and locates the most relevant data based on columns instead of rows, resulting in faster processing.

• New run-time engine exploits cache-aware memory management and parallel vector processing providing multi-core and multiple data parallelism (SIMD) and allowing you to analyze data in parallel over different processor sockets and cores

• Actionable compression enables data to be analyzed

in compressed format and results in further storage reduction

• Data skipping skips unnecessary processing of irrelevant or duplicate data, loading only the information that needs to be analyzed.

§

Revolution by Evolution

• Built directly into the DB2 kernel

• BLU tables can coexists with traditional row tables, in same schema, tablespaces, bufferpools

• Query any combination of BLU or row data

• Memory-optimized (not “in-memory”)

§

Value : Order-of-magnitude benefits in …

_{Value : Order-of-magnitude benefits in …}

• Performance

• Storage savings

(21)

DB2 Family

• Different code bases …

–

DB2 for z/OS is written in PL/X and runs on z/OS

–

DB2 for LUW is written in C and runs on multiple operating systems

• … but very close cooperation between development teams

• Common application interfaces

–

Common SQL interface

• DB2 SQL Language Council ensures consistency is maintained

• DB2 SQL Reference for Cross Platform Development (over 1200 pages)

–

Starburst optimizer

–

pureXML

–

System z Parallel Sysplex and LUW pureScale

–

Bitemporal data

–

Row and column access control

–

…

• On-going work on uniform database administration tasks

(22)

Agenda

• Business and Technology Drivers

• IBM DB2 Technology

• IBM DB2 Analytics Accelerator

➔

Built on DB2 - The Industrial Strength DBMS

➔

Architecture

➔

Customer References

(23)

Synergy with System z

• Capacity on Demand and backup and recovery solutions lets you be more

responsive to your needs, frees your staff up to do more important work

• "Shared data" database environment and synergies with z/OS means data is more

available

• Robust z/OS – allows database serving without interruption, even in the event of an

operating system function error

• System z Philosophy: The more errors prevented at the hardware and microcode

levels – the less impact on applications, operations, and end users

• Highest availability on the planet

➔ Continuous availability

➔ Non-disruptive upgrades of hardware, operating system, applications and database systems ➔ Comprehensive multi-site disaster recovery

• Unmatched end-to-end security from logon through data encryption

• System-level mixed workload management with full resource utilization

➔ Special component named the Workload Manager manages all resources ➔ 100% utilization, 24 hours a day

➔ Most cost effective SLA

(24)

DB2 and zEnterprise EC12

§

Faster CPU – 1.25x compared to z196

−

20-28% CPU reduction measured with DB2 OLTP workloads

−

25% reduction measured with DB2 query and utilities

workloads

−

Less compression overhead with DB2 data (1-15%)

§

50% More System Capacity to help consolidation

−

Excellent synergy with DB2 10 scalability

§

New Features DB2 11 plans to exploit

−

FLASH memory and pageable 1MB frames

−

2GB frame support drive additional CPU savings

−

DB2 code backed by large frames for CPU reductions

−

Enhanced prefetch instruction for CPU reductions

§

Transactional Memory provides further possibilities for

performance gains

(25)

DB2 11 Major Themes

• Performance Improvements

• Improving efficiency, reducing costs, no application changes • 0-5% for OLTP, 5-15% for update intensive batch

• 5-20% for query workloads

• Less overhead for data de-compression • Exploitation of new zEC12 hardware features

• Continuous Availability Features

• Improved autonomics which reduces costs and improves availability • Making online changes without affecting applications

• Online REORG improvements, less disruption

• DROP COLUMN, online change of partition limit keys • Extended log record addressing capacity (1 yottabyte) • BIND/REBIND, DDL break into persistent threads

• Enhanced business analytics

• Faster, more efficient performance for query workloads • Temporal and SQLPL enhancements

• Transparent archiving

• SQL improvements and IDAA enhancements

• Simpler, faster DB2 version upgrades

• No application changes required for DB2 upgrade • Access path stability improvements

(26)

DB2 for z/OS and Distributed BigData

DB2 is providing the connectors and the DB capability to allow DB2 applications to easily

and efficiently access data in Hadoop

•New user-defined

functions

•New generic table

UDF capability

JAQL_Submit

HDFS_Read is a user-defined table function to read a file in Hadoop file system. The output schema is determined at query time.

JAQL_Submit is a user-defined scalar function to submit a JAQL script to BigInsight

HDFS_Read

(27)

Agenda

• Business and Technology Drivers

• IBM DB2 Technology

• IBM DB2 Analytics Accelerator

➔

Built on DB2 - The Industrial Strength DBMS

➔

Architecture

➔

Customer References

(28)

DB2 Components

Applications

DBA Tools, z/OS Console, ...

DB2

. . .

Log

Manager

IRLM

Buffer

Manager

Data

Manager

(29)

IBM DB2 Analytics Accelerator as a Virtual DB2 Component

Accelerator

Applications

DBA Tools, z/OS Console, ...

. . .

DB2

Log

Manager

IRLM

Buffer

Manager

Data

Manager

(30)

DB2 Becomes a Hybrid Database Management System

IBM DB2

Analytics

Accelerator

Applications

DBA Tools, z/OS Console, ...

. . .

DB2

Log

Manager

IRLM

Buffer

Manager

Data

Manager

(31)

Connectivity Options

Multiple DB2 systems can connect to a single accelerator

A single DB2 system can connect to multiple accelerator

DB2 Accelerator

• residing in the same LPAR • residing in different LPARs • residing in different CECs

• being independent (non-data sharing) • belonging to the same data sharing group • belonging to different data sharing groups

Multiple DB2 systems can connect to multiple accelerator

DB2 DB2 DB2 Accelerator Accelerator DB2 Accelerator Accelerator

Full fl exibility for DB2 systems:

Policy based workload management

Better utilization of accelerator resources

Scalability

High availability

(32)

DB2 for z/OS: Query Execution Process Flow

DB2 for z/OS

Optimizer IDAA Application Application Interface

Queries executed with IDAA Queries executed without IDAA

Heartbeat (IDAA availability and performance indicators) Query execution run-time for

queries that cannot be or should not be off-loaded to IDAA

SPU CPU FPGA Memory SPU CPU FPGA Memory SPU CPU FPGA Memory SPU CPU FPGA Memory S M P H os t Heartbeat ID A A D R D A R eq ue st or

(33)

Data Synchronization Options

Synchronization options Use cases, characteristics and requirements Full table refresh

The entire content of a database table is refreshed for accelerator processing

§ Existing ETL process replaces entire table § Multiple sources or complex transformations § Smaller, un-partitioned tables

§ Reporting based on consistent snapshot § Need for refresh automatically detected Table partition refresh

For a partitioned database table, selected partitions can be refreshed for accelerator processing

§ Optimization for partitioned warehouse tables, typically appending changes “at the end”

§ More efficient than full table refresh for larger tables § Reporting based on consistent snapshot

§ Need for refresh automatically detected Incremental update

Log-based capturing of changes and propagation to IDAA with low latency (typically few minutes)

§ Scattered updates after “bulk” load

§ Reporting on continuously updated data (e.g., an ODS), considering most recent changes

§ More efficient for smaller updates than full table refresh § Applications can request reporting on committed data only

(34)

High Availability Configuration

System z DB2 for z/OS IDAA 1 Tab 1 Tab 3 Tab 2 IDAA 2 Tab 1 Tab 3 Tab 2 Tab 1 Tab 2 Tab 3 Tab 4 Tab 5

(35)

Disaster Recovery Configuration Example: Prior to Disaster

System z DB2 CF IDAA 1 Member 1 Tab 1 Tab 3 Tab 2 System z DB2 CF Member 2 IDAA 2 Tab 1 Tab 3 Tab 2 Tab 1 Tab 2 Tab 3 Tab 4 Tab 5 _{Tab 1} Tab 2 Tab 3 Tab 4 Tab 5 synchronous replication Site A Site B

(36)

36 © 2013 IBM Corporation System z DB2 CF IDAA 1 Member 1 Tab 1 Tab 3 Tab 2 System z DB2 CF Member 2 IDAA 2 Tab 1 Tab 3 Tab 2 Tab 1 Tab 2 Tab 3 Tab 4 Tab 5 _{Tab 1} Tab 2 Tab 3 Tab 4 Tab 5 synchronous replication Site A Site B

(37)

System z DB2 CF IDAA 1 Member 1 Tab 1 Tab 3 Tab 2 System z DB2 CF Member 2 IDAA 2 Tab 1 Tab 3 Tab 2 Tab 1 Tab 2 Tab 3 Tab 4 Tab 5 _{Tab 1} Tab 2 Tab 3 Tab 4 Tab 5 Site A Site B

(38)

High Performance Storage Saver

Major saving of host disk space for historical data

Year Year -1 Year -2 Year -3 Year -4 Year -5 Year -7

Historical Data

Current Data

One Quarter = 3.57% of 7 years of data One Month = 1.12% of 7 years of data One month = 2.78% of 3 years of data

4Q 4Q 1Q 2Q 3Q 4Q 1Q 2Q 3Q 4Q 1Q 2Q 3Q 4Q 1Q 2Q 3Q 4Q 1Q 2Q 3Q 1Q 2Q 3Q 4Q 1Q 2Q 3Q

(39)

High Performance Storage Saver

Storing historical data in accelerator only

Accelerator Part #1

Query from

Application

Or

No longer present on DB2 Storage

Part #1 Part #2 Part #3 Part #4 Part #5 Part #6 Part #7

DB2

Active Historical

§ Time-partitioned tables where:

– only the recent partitions are used in a transactional context (frequent data

changes, short running queries)

– the entire table is used for analytics (data intensive, complex queries).

§ High Performance Storage Saver’s “Archive” Process:

– Data is loaded into Accelerator if not already loaded

– Automatically takes Image Copy of each partition to be archived

– Automatically remove data from DB2 archived tablespace partitions

– DBA starts archived partitions as read-only

(40)

40 © _{20 1 3 IBM Corporation}

Data Residency to Match Query Types

DB2 Table A Accelerator Table A Applications DB2 Table A SQL

§ Transactional onlyTransactional only §Active data onlyActive data only

§Historical data onlyHistorical data only

§Active & historical dataActive & historical data

§Mixed workloadMixed workload

§ Mixed workloadMixed workload

§ Active data onlyActive data only

Accelerator Table A Active & Historical DB2 Table A Active Query Types

(41)

Agenda

• Business and Technology Drivers

• IBM DB2 Technology

• IBM DB2 Analytics Accelerator

➔

Built on DB2 - The Industrial Strength DBMS

➔

Architecture

➔

Customer References

(42)

Major US Healthcare Insurance Company

The company provides a range of insurance products and related services for 10s of millions of members. The network includes 100,000s of doctors, 1000s of hospitals and nearly a million other healthcare professionals.

Customer Benefits

• Enables the company to meet stringent on-time reporting requirements with the solution’s incremental update feature • Anticipates a significant reduction in storage costs with the

data server’s high-performance storage saver feature

• Processes some queries thousands of times faster, reducing query times from nearly 3 hours to 6 seconds

Business challenge

The changing healthcare landscape drove the company to ensure it could manage a massive influx of data and the mounting reporting requirements as the Affordable Care Act ushers tens of millions of new customers into the insurance market.

The DB2 Analytics Accelerator

greatly exceeded our

expectations. The first time we

ran our very resource-intensive

queries on the solution,

queries which had historically

taken hours to run, they ran in

seconds.

- Systems Engineering Manager

(43)

Example

:

Customer Table ~ 5 Billion Rows 300 Mixed Workload Queries

Times Faster Query Total Rows Reviewed Total Rows

Returned Hours Sec(s) Hours Sec(s)

Query 1 2,813,571 853,320 2:39 9,540 0.0 5 1,908 Query 2 2,813,571 585,780 2:16 8,220 0.0 5 1,644 Query 3 8,260,214 274 1:16 4,560 0.0 6 760 Query 4 2,813,571 601,197 1:08 4,080 0.0 5 816 Query 5 3,422,765 508 0:57 4,080 0.0 70 58 Query 6 4,290,648 165 0:53 3,180 0.0 6 530 Query 7 361,521 58,236 0:51 3,120 0.0 4 780 Query 8 3,425.29 724 0:44 2,640 0.0 2 1,320 Query 9 4,130,107 137 0:42 2,520 0.1 193 13 DB2 Only DB2 with IDAA 270 queries continue to execute in DB2 returning results in seconds or sub-seconds

30 complex, expensive queries got routed to IDAA and reduced elapsed time and CPU cost by orders of magnitude.

(44)

Large European Insurance Company

Business challenge:

With roughly 2.5 billion transactions in the company’s financial data store, fast and accurate analysis is essential for setting the right premiums. To improve access to claims data across its multiple international locations,

the company needs to increase system availability, optimize

workloads, speed queries and accelerate the generation of claims reports run by internal business users.

Solution:

Deploy the IBM zEnterprise System with DB2 for z/OS to process all data loads from a central location, and IBM DB2 Analytics Accelerator to deliver faster responses to individual analytic queries.

Benefits

§ Speeds report generation by as much as 70 percent through faster query response time, and improves staff efficiency by centralizing data on a single platform

§ Reduces processing costs and CPU consumption by routing eligible workloads to the accelerator

§ Increases satisfaction among internal business users by

delivering a comprehensive overview of claims transactions that integrates operational data with advanced analytics

We were surprised by the

performance gain IBM DB2

Analytics Accelerator

provided, as well as its ability

to further boost the capacity of

our IBM zEnterprise System.

-

Director of Operations

(45)

Major Italian Bank

Business challenge:

One of the largest banks in Italy. Employing 1,000s of people and

generating annual revenue of 100s of millions, the group provides banking, insurance and asset management services from more than 1000 branches across the country. They wanted to meet their growth objectives by

identifying customer demand for new products or services, then adapting their offerings to win the new business. The challenge was extracting actionable insight from its big data, as the size of its databases made queries from business users frustratingly slow.

Solution:

The bank created the “big data project” – an initiative to develop the infrastructure to support the analytics requirements of the business. As a first step, the bank implemented IBM DB2 Analytics Accelerator on its existing IBM System z mainframes. The DB2 Analytics Accelerator inherits all of the benefits of System z – including security, performance and

scalability

Benefits

• Offers rapid time-to-insight for 1,000 business users – informing the development of new products, services and strategies.

• Enables the bank to match its offering with customer demand – driving business growth in line with corporate objectives.

• Creates a platform for future innovation, including data mining from IBM SPSS and marketing management from IBM Campaign.

Being a leader in the

banking industry requires a

strong commercial offering

that meets fast-evolving

customer expectations. To

understand what your

customers want, you need

an excellent grasp of your

business data, and to

develop new products and

services, you need the

ability to deliver those

insights rapidly to the right

people in the business.

- Chief Information Officer

Customer References

Video Link Video Link

(46)

The IBM DB2 for z/OS is a secure and highly

available repository for the bank's data.

High-performance specialty processors have

performance specialty processors have

significantly improved query response times

significantly improved query response times as compared to our previous solution. The new

as compared to our previous solution. The new

zEnterprise hybrid technology is

zEnterprise hybrid technology is highly scalable highly scalable

and flexible

and flexible which means that our users are now which means that our users are now able to access the information they need more

able to access the information they need more

quickly.

– Chief Information Officer

Benefits:

• Less time for tuning of SQL statements • No data base maintenance – define

tables/refresh data

• Faster, more agile development

• Coexistence of OLTP and DWH databases on same LPAR

• CPU saving because of redirecting execution to IBM DB2 Analytics Accelerator

SQL DB2 on z196 Stand-alone Netezza Exadata _{DB2 with DB2} Analytics Accelerator Query 1 00:01:50 00:00:04 00:00:09 00:00:03 Query 2 00:75:31 00:00:09 00:00:39 00:00:04 Query 3 00:00:46 00:00:05 00:00:13 00:00:02

Business challenge:

Experienced performance issues with its data warehouse. Required to supply financial activity reports to European Central Bank (ECB) by 9 am every business day. Performance issues were seriously hindering bank’s ability to meet this objective.

The bank needed a technology solution that would address and eliminate performance issues and enable timely financial reporting to support compliance requirements.

Large Central European Bank

Customer References

(47)

Agenda

• Business and Technology Drivers

• IBM DB2 Technology

• IBM DB2 Analytics Accelerator

➔

Built on DB2 - The Industrial Strength DBMS

➔

IBM DB2 Analytics Accelerator Architecture

➔

Customer References

(48)

§ User Data Capacity:

192 TB*

§ Data Scan Speed:

478 TB/hr*

§ Power Requirements:

_{§ Cooling Requirements: 27,000 BTU/hr}

7.5 kW

* 4X compression assumed

Scales from

½ Rack to 4 Racks

12 Disk Enclosures

§ 288 600 GB SAS2 Drives

➢ 240 User Data, 14 S-Blade

➢ 34 Spare

§ RAID 1 Mirroring

2 Hosts (Active-Passive)

§ 2 6-Core Intel 3.46 GHz CPUs

§ 7x300 GB SAS Drives

§ Red Hat Linux 6 64-bit

7 PureData for Analytics S-Blades™

§ 2 Intel 8 Core 2+ GHz CPUs

§ 2 8-Engine Xilinx Virtex-6 FPGAs

§ 128 GB RAM + 8 GB slice buffer

§ Linux 64-bit Kernel

(49)

• HX5 Blade

• 128 GB RAM

• 16 Intel cores

• BPE4 Side Car

• 16 GB RAM

• 16 Virtex-6 FPGA cores

• SAS Controller

N2001 Snippet-Blade

TM

_{(S-Blade) Components}

Netezza DB Accelerator

IBM BladeCenter Server

(50)

N2001: Speed Through Taking Most of Streaming Capabilities

FPGA Core

CPU Core

Decompress Project Restrict Visibility Complex ∑

Joins, Aggs, etc.

S-Blade Table Cache DB2 for z/OS 130 MB/s 1300 MB/s 1000 MB/s 1000 MB/s 4x compression assumed 130 MB/s 65 MB/s

2.5 drives per core

(51)

N1001

N2001

Blade type HS22 HX-5

CPU sockets & cores per blade 2 x 4 Core Intel CPUs 2 x 8 Core Intel CPUs

# Disks 96 x 3.5” / 1 TB SAS_{(92 Active)} 288 x 2.5” / 600GB SAS2_{(240 Active)}

Raw Capacity 96 TB 172.8 TB

Total Disk Bandwidth ~11 GB/s ~32 GB/s

S-Blades per Rack (cores) 14 (112) 7 (112)

S-Blade Memory 24 GB 128 GB

Rack Configurations ¼, ½, 1, 1 ½, 2, 3, … 10 ½, 1, 2, 4

FPGA Cores / Blade 8_{(2 x 4 Engine Xilinx FPGA)} 16_{(2 x 8 Engine Xilinx Virtex 6 FPGA)}

User Data / Rack

(assuming 4x compression) 128 TB 192 TB

(52)

IBM DB2 Analytics Accelerator Supports All Models

N1001 Models 002 005 010 015 025 030 040 060 080 100 Cabinets ¼ ½ 1 1 ½ 2 3 4 6 8 10 S-Blades 3 6 12 18 24 36 48 72 96 120 Processing Units 24 48 96 144 192 288 384 576 768 960 Capacity (TB) 8 16 32 48 64 96 128 192 256 320 Effective Capacity (TB)* 32 64 128 192 256 384 512 768 1024 1280 N2001 Models 005 010 025 040 Cabinets 1/2 1 2 4 S-Blades 4 7 14 28 Processing Units 64 112 224 448 Capacity (TB) 24 48 96 192 Effective Capacity (TB)* 96 192 384 768

Capacity = User data space

(53)

Agenda

• Business and Technology Drivers

• IBM DB2 Technology

• IBM DB2 Analytics Accelerator

➔

Built on DB2 - The Industrial Strength DBMS

➔

Architecture

➔

Customer References

➔

Powered by PureData for Analytics

(54)

DB2 for z/OS

Strategy

Query Query Accelerator

Accelerator StorageStorage_Saver_Saver

ELT ELT Accelerator Accelerator OLTP OLTP

Enable DB2 transition into a truly universal DBMS that provides best characteristics for

both OLTP and analytical workloads.

Advanced

Analytics

■ Complement DB2's industry leading transactional processing capabilities

■ Provide specialized access path for data intensive queries

■ Enable real and near-real time analytics processing

■ Execute transparently to the applications

■ Operate as an integral part of DB2 and System z ■ Reusing industry leading PDA's query and

analytics capabilities and take advantage of future enhancements

■ Extend query acceleration to new, innovative usage cases, such as:

– in-database transformations – advanced analytical capabilities

– multi-temperature and storage saving solutions

■ Ultimately allow consolidation and unification of transactional and analytical data stores

(55)

Roadmap

Query Query Accelerator Accelerator Storage Storage Saver Saver ELT ELT Accelerator Accelerator Unified Unified Store Store Advanced Advanced Analytics Analytics

PD

A t

ec

hn

olo

gy

ev

olu

tion

Im

pro

ve

me

nts

of

ex

isti

ng

fe

atu

res

enhancing current capabilities

enabling more query acceleration

increasing IDAA transparency

supporting new use cases

V1

V2

V3

(56)

Fast Evolution of IBM DB2 Analytics Accelerator

• Version 1

➔

IBM Smart Analytics Optimizer

➔

In-memory, column-store, multi-core and SIMD algorithms

➔

Discontinued and replaced by IBM DB2 Analytics Accelerator

• Version 2

➔

New name: IBM DB2 Analytics Accelerator

➔

Incorporates Netezza query engine

➔

Preserves key V1 value propositions and adds many more

• Version 3

➔

Better performance, more capacity

➔

Incremental update

➔

High Performance Storage Server

• Version 4

➔

Much broader acceleration opportunities

➔

More enterprise features

Nov 2010 Nov 2010 Nov 2011 Nov 2011 Nov 2012 Nov 2012 Nov 2013 Nov 2013

(57)

IDAA V3 Highlights

Generally available since November 2012

(1) – features retrofitted to V2

■

Propagating DB2 changes to the accelerator as they happen: Incremental Update

■

Reducing disk storage cost by archiving data in the accelerator and maintaining the

excellent performance for analytical queries: High Performance Storage Saver

■

Workload Manager integration

■

Automatic detection of needs to refresh data in the accelerator

■

More query routing control for applications (all, eligible)

■

More query offload (e.g. DB2 OLAP functions)

■

Speeding-up data refresh and reducing associated CPU cost on System z

(1) ■

Accelerating in-database transformation

(1)

■

Enhancing high availability and scaling out

(1)

■

Improving performance of queries that generate very large result sets

(1) ■

Supporting multi-byte EBCDIC data encoding (phase 1)

(1)

■

Increasing capacity to more than 1 petabyte

(1) ■

Support for SAP workloads

(1)

(58)

IDAA V3 Highlights

Additions since GA

■

Additional query engine: PureData System for Analytics N2001

■

Support for Netezza operating system 7

■

Further reduction of CPU time associated with IDAA load process

– Up to 30%

– Enhancements in DFSMS BSAM routines managing data on the USS pipes – z/OS PTFs:

• z/OS V1.12 UA68971

• z/OS V1.13 UA68972

• z/OS V2.1 UA68973

■

Multiple time zones in the same accelerator

■

Limited support for LOCAL DATE setting

■

Support for BITAND and TIMESTAMPDIFF functions

■

Support for DECFLOAT when used as implicit cast

– e.g. when comparing different data types

(59)

Version 4 at a Glance

More Query Acceleration Enhanced Capabilities Improved Transparency

Static SQL Greatly improved scalability of _{Incremental Update} Automatic workload balancing with _{multiple accelerators}

DB2 11 (2) Better performance of Incremental

Update New RTS 'last-changed-at' timestamp (2)

Multi-row fetch from local applications Improved performance for large result _sets₍₂₎ Automated NZKit installation

EBCDIC and Unicode in the same

DB2 system and accelerator Better access control for HPSS archived partitions Built-in Restore for HPSS

HPSS archiving to multiple accelerators Protection for image copies created by _{HPSS archiving process} Extending WLM support to local

applications Profile controlled special registers (2)

Rich system scope monitoring Improved continuous operations for _{Incremental Update}

Reporting prospective CPU cost and elapsed time savings

Separation of duties for accelerator system administration operations Loading from flat file or image copy (1) Loading in parallel to DB2 and

accelerator (1)

Loading data as of any past point in time (1)

Loading data to accelerator only (1)
