PRE-FEASIBILITY REPORT

(1)

OF

MASONRY MINING PROJECT

(M.L. No. 107/02, ML Area: 1.0 ha)

At

Near

Village-Banar

Tehsil- Kotputli

District - Jaipur (Raj.

)

PROJECT PROPONENT

Shri Surendra Singh Tomar S/o Shri Mohan Singh Tomar

R/o Navratan Apartment, Plot No. 7A, Sec 23, Dwarika, Delhi

Contact Person: Shri Gyani Ram (Authorized Signatory) Contact No. 9311102038

(2)

S. NO. PARTICULARS PAGE NO.

1.0 EXECUTIVE SUMMARY 18

2.0 INTRODUCTION OF THE PROJECT/ BACKGROUND INFORMATION 20 i Identification of Project Proponent and Project 20 ii Brief Description of the Nature of Project 20 iii Need for the Project & Its Importance to the Country/ Region 20

iv Demand – Supply Gap 20

v Imports vs. Indigenous Production 20

vi Export Possibility 20

vii Domestic/Export Markets 20

viii Employment Generation (Direct and Indirect) due to the Project 21

3.0 PROJECT DESCRIPTION 21

i Type of Project Including Interlinked And Independent Projects, If Any

21

ii Location (map showing general location, specific location, and project boundary & project site layout) with coordinates

22

iii Details of alternative site considered 23 iv Size and magnitude of operation 23

v Project Description with Process Detail 23

4.0 SITE ANALYSIS 25

5.0 PLANNING BRIEF 29

6.0 PROPOSED INFRASTRUCTURE 29

7.0 REHABILITATION AND RESETTLEMENT (R & R) PLAN 30 8.0 PROJECT SCHEDULE & COST ESTIMATES 30

(3)

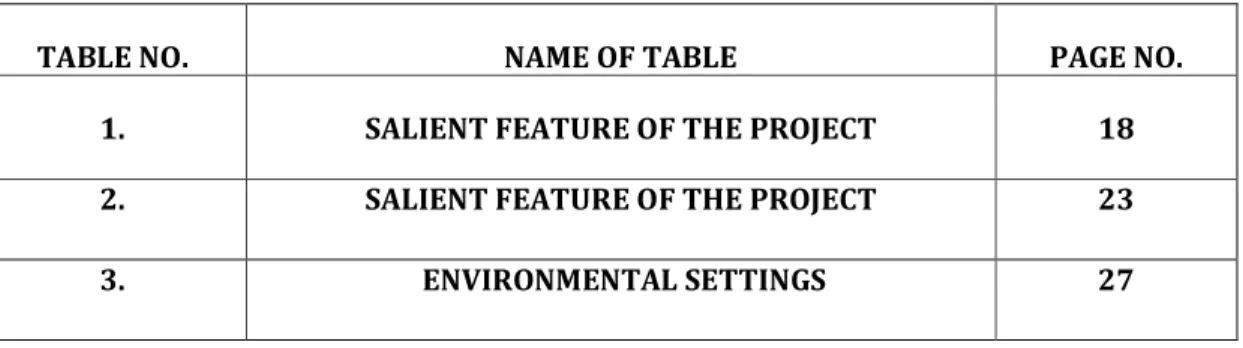

TABLE NO. NAME OF TABLE PAGE NO. 1. SALIENT FEATURE OF THE PROJECT 18 2. SALIENT FEATURE OF THE PROJECT 23

3. ENVIRONMENTAL SETTINGS 27

LIST OF FIGURES

FIGURE NO. NAME OF FIGURE PAGE NO.

1. LOCATION MAP 22

2. KEY PLAN 28

(4)

Shri Surendra Singh Tomar S/o Shri Mohan Singh Tomar

APPENDIX I

(See paragraph – 6) FORM 1

(I) Basic Information:

S. No. Item Details

1. Name of Project Masonry Stone Mining Project, (M. L. No. 107/02, Area 1.0 ha) 2. S. No. in the schedule As per EIA Notification dated 2006, as amended time to time,

this project is comes under A Category 3. Proposed capacity/ area/

length/ tonnage to be handled/ command area/ lease area/number of wells to be drilled.

Proposed production capacity of Masonry Stone 211765 TPA Area : 1.0 ha

4. New/ Expansion/ Modernization

Expansion

5. Existing Capacity/Area Etc. -

6. Category of Project i.e. ‘A’ or ‘B’ Category “A” 7. Does it attract the general

condition? If yes, please specify.

Yes, it attract the General Condition as the Haryana–Rajasthan Interstate Boundary lies at a distance of ~2.00 km. in North direction from the mine site. And sum ara of operating mining (cluster)is more than 5 ha.with 500 m radious of applied mining lease. Thus deemed to be of Category “A”.

8. Does it attract the specific condition? If yes, please specify.

No, it does not attract the Specific Condition.

9. Location:

Plot/Survey/Khasra No. Part of Khasra No. 304, 316

Village Banar

Tehsil Kotputli District Jaipur

(5)

State Rajasthan

10. Nearest Railway station/ Airport along with distance in Km.

Nearest Railway Station : Dabla RS at a distance of ~15 km from Mine Site

Nearest Airport : Jaipur International Airport ~120 km from Mine Site.

11. Nearest Town, City, District Headquarters along with distance in Km.

Nearest city & : Kotputli at a distance of ~17 km. from Mine Site &

District headquarter : Jaipur district headquarter at a distance of ~ 115 km from Mine

site. 12. Village Panchayats,

ZilaParishad, Municipal Corporation, Local body (complete postal addresses with telephone nos. to be given)

Village Panchayat : Banar Zila Parishad : Jaipur

13. Name of the Applicant Shri Surendra Singh Tomar S/o Shri Mohan Singh Tomar

14. Registered Address R/o Navratan Apartment, Plot No. 7A, Sec 23, Dwarika, Delhi 15. Address for correspondence: Project Proponent

Name Shri Gyani Ram Designation

(Owner/Partner/CEO)

Authorized Signatory

Address R/o Navratan Apartment, Plot No. 7A, Sec 23, Dwarika, Delhi Pin Code 110075

E-mail [email protected]

Telephone No. 9311102038 Fax No.

16.

Details of Alternative Sites Examined, if any. Location of these sites should be shown

No alternative site has been examined since it is a site specific mining project based on availability of mineral potentiality in the area.

(6)

on a toposheet.

17. Interlinked Projects No Interlinked Projects 18. Whether separate application

of interlinked project has been submitted?

Not Applicable

19. If yes, date of submission Not Applicable 20. If no, reason Not Applicable 21. Whether the proposal

involves approval/clearance under: If yes, details of the same and their status to be given.

(a)The forest (Conservation) Act, 1980?

(b)The Wildlife (Protection) Act, 1972?

(c)The C.R.Z Notification, 1991?

All three are not applicable

22. Whether there is any Government order/ Policy relevant/ relating to this site?

No

23. Forest Land involved (Hectares)

Nil

24. Whether there is any litigation pending against the project and/or land in which the project is proposed to be set up?

(a) Name of the court (b) Case No.

(7)

(c) Orders/ Directions of the court, if any and its relevance with the proposed project.

(II) Activity

1. Construction, operation or decommissioning of the Project involving actions, which will cause physical changes in the locality (topography, land use, changes in water bodies, etc.) S. No. Information/ Checklist confirmation Yes/ No

Details thereof (with approximate quantities /rates, wherever possible) with source of information data

1.1 Permanent or temporary change in land use, land cover or topography including increase in intensity of land use (with respect to local land use plan).

Yes The mining lease area is 1.0 ha which is a Govt. waste land. At the end of life of mine excavated area about 0.82 ha. which will converted into water reservoir and rest area about 0.18 ha will be used in Green belt on periphery of the lease boundary.

1.2 Clearance of existing land, vegetation and buildings?

Yes There is no building & structure which need to be demolished/ removed from mining lease area except some vegetations existing on the lease area which will be cleared when required. Total lease area is private land.

1.3 Creation of new land uses? Yes At the end of life of mine excavated area about 0.82 ha. which will converted into water reservoir and rest area about 0.18 ha will be used in Green belt on periphery of the lease boundary.

1.4 Pre-construction

investigations e.g. bore houses, soil testing?

No No pre-construction investigation is required since the existence of mineral has been assessed on the basis of mineral outcrops.

1.5 Construction works? Yes Construction of temporary store room will be done in lease area

(8)

1.7 Temporary sites used for construction works or housing of construction workers?

No No need for construction of housing of workers. The labors will come from the nearby villages.

1.8 Above ground buildings, structures or earthworks including linear structures, cut and fill or excavations

Yes Only excavations related to mining operations will be carried out.

1.9 Underground works including mining or tunneling?

No No underground work will be done.

1.10 Reclamation works? Yes At the end of life of mine excavated area about 0.82 ha. which will converted into water reservoir and rest area about 0.18 ha will be used in Green belt on periphery of the lease boundary.

1.11 Dredging? No No Dredging work is proposed. 1.12 Offshore structures? No No offshore structures.

1.13 Production and manufacturing processes?

Yes The mining will be done by semi-mechanized opencast method. The masonry stone will be excavated by blasting of small dia holes of 32 mm. and 1500 mm. depth. The masonry stone will be loaded by tyre mounted excavator. 1.14 Facilities for storage of goods

or materials?

Yes A temporary storeroom is proposed for keeping the tools within pit of lease area.

1.15 Facilities for treatment or disposal of solid waste or liquid effluents?

Yes Waste will be used as a second grade mineral and sold out by the lessee as well as used for construction and maintenance of roads.

No liquid effluent will be generated from the mining activities.

1.16 Facilities for long term housing of operational workers?

No Skilled and unskilled labours will be engaged in mining operation and will come from nearby villages.

(9)

1.17 New road, rail or sea traffic during construction or operation?

No No new road, rail or sea traffic during construction or operation.

1.18 New road, rail, air waterborne or other transport infrastructure including new or altered routes and stations, ports, airports etc?

No No New road, rail, air waterborne or other transport infrastructure including new or altered routes and stations, ports, airports etc are proposed.

1.19 Closure or diversion of existing transport routes or infrastructure leading to changes in traffic movements?

No There is no proposal for closure or diversion of existing transport route etc.

1.20 New or diverted transmission lines or pipelines?

No No new or diverted transmission lines or pipelines are proposed.

1.21 Impoundment, damming, culverting, realignment or other changes to the hydrology of watercourses or aquifers?

No There are no impoundment, damming, culverting, realignment or other changes to the hydrology of watercourses or aquifers.

1.22 Stream crossings? No No stream is crossing through applied lease area. 1.23 Abstraction or transfers of

water form ground or surface waters?

No Total Water requirement estimated is about 2 KLD for domestic uses and plantation will be sourced from nearby villages

1.24 Changes in water bodies or the land surface affecting drainage or run-off?

No No change in the drainage pattern is proposed due to the mining project.

1.25 Transport of personnel or materials for construction,

No No changes in water bodies or the land surface affecting drainage or run-off

(10)

Shri Surendra Singh Tomar S/o Shri Mohan Singh Tomar operation or decommissioning? 1.26 Long-term dismantling or decommissioning or restoration works?

No There will not be any long-term dismantling or decommissioning or restoration works in the area.

1.27 Ongoing activity during de-commissioning which could have an impact on the environment?

No Not applicable, as no such activities are involved.

1.28 Influx of people to an area in either temporarily or permanently?

No Manpower required will be engaged from nearby areas, thus influx of people is not anticipated in the area. Preference will be given to local villagers.

1.29 Introduction of alien species? No The local/ indigenous species will be planted within the lease area.

1.30 Loss of native species or genetic diversity?

No Not envisaged, except small bushes, no major vegetation cover/valuable flora is found within the mining lease area. 1.31 Any other actions? No Nil

2. Use of Natural resources for construction or operation of the Project (such as land, water, materials or energy, especially any resources which are non-renewable or in short supply): S. No. Information/checklist confirmation Yes/ No

Details thereof (with approximate quantities /rates, wherever possible) with source of information data

2.1 Land especially undeveloped or agricultural land (ha)

Yes The mining lease area is 1.0 ha which govt. waste land . At the end of life of mine excavated area about 0.82 ha. which will converted into water reservoir and rest area about 0.18 ha will be used in Green belt on periphery of the lease boundary.

2.2 Water (expected source & competing users) unit: KLD

Yes 2 KLD water is required which will be procured from nearby villages.

(11)

2.3 Minerals (MT) No No mineral is required. 2.4 Construction material –

stone, aggregates, sand / soil (expected source – MT)

No Not required

2.5 Forests and timber (source – MT)

No Not required

2.6 Energy including electricity and fuels (source, competing users) Unit: fuel (MT), energy (MW)

Yes Fuel: Mainly diesel will be used to operate mine machinery and equipment.

Energy: No electrical energy will be required since mine will be operated in one shift only

2.7 Any other natural resources (Use appropriate standard units)

No No use of any other natural resource except that mentioned above.

3. Use, storage, transport, handling or production of substances or materials, which could be harmful to human health or the environment or raise concerns about actual or perceived risks to human health.

S. No. Information/Checklist confirmation Yes/ No

Details thereof (with approximate quantities/ rates, wherever possible) with source of information data

3.1 Use of substances or materials, which are hazardous (as per MSIHC rules) to human health or the environment (flora, fauna, and

water supplies)

Yes No hazardous substance will be used.

Controlled Blasting done by adopting all safety measures as per mines act and the permission of DGMS.

3.2 Changes in occurrence of disease or affect disease vectors (e.g. insect or water borne diseases)

No No disease has been noticed & there is no affect on disease vectors in the area.

(12)

3.3 Affect the welfare of people e.g. by changing living conditions?

Yes The project will improve living conditions due to increased employment opportunities, both direct and indirect, communication, and transport facilities. 3.4 Vulnerable groups of people

who could be affected by the project e.g. hospital patients, children, the elderly etc.,

No No effect envisaged.

3.5 Any other causes No No any other causes except that mentioned above.

4. Production of solid wastes during construction or operation or decommissioning

(MT/month) S.

No.

Information/Checklist confirmation

Yes/ No Details thereof (with approximate quantities/

rates, wherever possible) with source of

information data

4.1 Spoil, overburden or mine wastes

No The lessee dispatches Masonry Stone as ROM. No sorting will take place at site. Thus, waste will not be generated separately.

4.2 Municipal waste (domestic and or commercial wastes)

No Domestic wastewater will be generated from the rest shelter, which will be disposed in soak pit via septic tank.

4.3 Hazardous wastes (as per Hazardous Waste Management Rules)

No Not Applicable.

4.4 Other industrial process wastes No No industrial process waste will be generated.

4.5 Surplus product No There will be no surplus product generated during mining operations.

4.6 Sewage sludge or other sludge

from effluent treatment

No None. There will not be any effluent generation, thus Sewage sludge or other sludge generation from the project is nil.

(13)

wastes

4.8 Redundant machinery or equipment

No There will be no redundant machinery or equipment.

4.9 Contaminated soils or other materials

No There will not be any contamination of soils or other materials.

4.10 Agricultural wastes No Not applicable as this is a mining project 4.11 Other solid wastes No None.

5. Release of pollutants or any hazardous, toxic or noxious substances to air (Kg/hr)

S. No.

Information/ Checklist confirmation

Yes/ No Details thereof (with approximate quantities/

rates, wherever possible) with source of

information data

5.1 Emissions from combustion of fossil fuels from stationary or mobile sources

Yes Emission of SO2 & NO2 will be there due to use of diesel

operated machinery and drilling; blasting, Vehicular emission will be kept under control by proper maintenance. Every effort will be made to minimize these emissions.

5.2 Emissions from production processes

Yes Dust will be generated from mining activities and will be suppressed by adequate measures, such as wet drilling and low charge blasting.

5.3 Emissions from materials handling including storage or transport

Yes From the handling & transport of the mineral, fugitive dust will be generated , which will be controlled by water sprinkling on haul roads, and dusty areas

5.4 Emissions from construction activities including plant and equipment

No There will be no construction activities.

5.5 Dust or odor from handling of materials including construction materials, sewage and waste.

Yes Dust will be generated in insignificant quantity during mining operations. This will be minimized by taking precautionary measures like low charge blasting and water sprinkling on haul.

(14)

5.6 Emissions from incineration of waste.

No Not applicable, as no incineration will be involved.

5.7 Emissions from burning of waste in open air (e.g. slash materials, construction debris)

No Not applicable, as there will be no burning of waste in open air.

5.8 Emissions from any other sources

No There will be no other source of emission except the mentioned above.

6. Generation of Noise and Vibration, and Emissions of Light and Heat:

S. No. Information/Checklist confirmation Yes/ No

6.1 From operation of equipment e.g. engines, ventilation plant, crushers

Yes Noise will be generated due to mining activities during excavation, drilling, blasting, loading, unloading and transportation activity. Proper selection of machines and their maintenance leads to less noise generation. 6.2 From industrial or similar

processes

No Not applicable, as no other industrial process like crushing etc. is involved in this mining project.

6.3 From construction or demolition

No Not applicable, as no construction or demolition is proposed.

6.4 From blasting or piling Yes Generation of Noise and Vibration will be there due to drilling & blasting. This will be minimized by taking precautionary measures wet drilling and low charge blasting.

6.5 From construction or operational traffic

No No construction activities will be involved

6.6 From lighting or cooling systems

No Not applicable. No lighting or cooling system will be involved in mining. The mining operation will be carried out during day time only.

(15)

7. Risks of contamination of land or water from releases of pollutants into the

ground or into sewers, surface waters, groundwater, coastal waters or the sea: S. No. Information/Checklist confirmation Yes/ No

7.1 From handling, storage, use or spillage of hazardous materials

No Not applicable

7.2 From discharge of sewage or other effluents to water or the land (expected mode and place of discharge)

No There will be no discharge of sewage or other effluents from the mining lease. Only waste water generated from office toilets will be disposed in soak pit via. Septic tank.

7.3 By deposition of pollutants emitted to air into the land or into water

No No deposition of pollutants emitted to air, into the land or into water as the emissions will be kept limited below the prescribed standard.

7.4 From any other sources No Not applicable, as no other sources are involved except the mentioned above.

7.5 Is there a risk of long term build up of pollutants in the environment from these sources?

No There is no risk of long term build up of pollutants in the environment from these sources as proper mitigation measures will be taken regularly.

8. Risk of accidents during construction or operation of the Project, which could

affect human health or the environment S. No. Information/ Checklist confirmation Yes/ No

8.1 From explosions, spillages, fires etc from storage, handling, use or production of hazardous substances

No Explosives will be stored in licensed portable magzine and diesel will be stored in closed containers.

No hazardous substance will be produced during mining operations, thus there is no question of any explosion etc.

8.2 From any other causes No Not applicable, as no any other causes are involved. 8.3 Could the project be affected by No No likely hood.

(16)

natural disasters causing environmental damage (e.g. Floods, earthquakes, landslides, cloudburst etc)?

9. Factors which should be considered (such as consequential development) which could lead

to environmental effects or the potential for cumulative impacts with other existing or planned activities in the locality

S. No. Information/ Checklist confirmation Yes/ No

9.1 Lead to development of supporting, facilities, ancillary development or development stimulated by the project which could have impact on the environment e.g.:

No It is not anticipated to develop the supporting facilities or ancillary development of such extent to impart any adverse effect/ impact on the environment. As it is a very small mining project only 1.0 ha land

Supporting infrastructure (roads, power supply, waste or waste water treatment, etc.) Housing development Extractive industries Supply industries Other NA NA NA NA NA 9.2 Lead to after-use of the site,

which could have an impact on the environment

Yes The after use of mine site planned would be helpful to the society by development of water reservoir supporting the surrounding localities as well as recharge of ground water table.

9.3 Set a precedent for later developments

(17)

9.4 Have cumulative effects due to proximity to other existing or planned projects with similar effects

No Not Any Effect

(III) Environmental Sensitivity:

S. No.

Areas Name/Identity Aerial distance (within 15 km.) Proposed project

location boundary 1. Areas protected under

international conventions, national or local legislation for their ecological, landscape, cultural or other related value.

None No such area is located within the 15 km radius of the mining lease area.

2. Areas which are important or sensitive for ecological reasons - Wetlands, watercourses or other water bodies, coastal zone, biospheres, mountains, forests.

Yes

• Banita PF ~ 1.5 km In S direction from Mine site • Mina Ka Nangal PF~2.5 km from mine site • Kharjo PF~7.5 km From Mine site

• Balupur PF ~ 5.0 km from mine site • Bhopiya PF ~ 4.5 km from mine site

3. Areas used by protected, important or sensitive species of flora or fauna for breeding, nesting, foraging, resting, over wintering, migration

4. Inland, coastal, marine or underground waters

5. State, National boundaries Rajasthan-Haryana interstate

Rajasthan-Haryana interstate boundary ~2.0 km in North direction from the mine site .

(18)

boundary

6. Routes or facilities used by the public for access to recreation or other tourist, pilgrim areas

None No such routes or facilities is located within the 15 km radius of the mining lease area that is used by the public for access to recreation or other tourist, pilgrim areas

7. Defence installations None None

8. Densely populated or built-up area

None None within 15 km

9. Areas occupied by sensitive man-made land uses (hospitals, schools, places of worship, community facilities)

Yes Within 15 km Primary Schools, Dispensaries, Small Hospitals, etc. are there.

10. Areas containing important, high quality or scarce resources (ground water resources, surface resources, forestry, agriculture, fisheries, tourism, minerals)

None Total mining area is Govt. waste land.

11. Areas already subjected to pollution or environmental damage. (those where existing legal environmental standards are exceeded)

None The area is not subjected to the pollution or environmental damage.

12. Areas susceptible to natural hazard which could cause the project to present environmental problems (earthquakes, subsidence, landslides, erosion, flooding or

(19)

extreme or adverse climatic conditions)

(IV) Proposed terms of Reference:

As per EIA Notification, 2006 and as amended from time to time, General Condition

applicable {as Haryana – Rajasthan Inter State Boundary is located at a distance of 2.00

km from the mine site.} on our project as the sum total of the mining lease area of our Project / activity and other existing operating mines and mining Projects are located within 500 meters from the periphery of the our Project or activity is more than 5 ha.), hence it is treated as Category ‘A’ Project and to be dealt at the level of MoEF & CC, New Delhi, thus environmental clearance for the project is to be grant by the ministry of environment and climate change (MOEF & CC); as per EIA Notification dated 14.09.2006 & as amended from time to time.

The Mining lease area is only 1.0 ha and there will be negligible impact on surrounding environment due to this project. Therefore, we are not proposing terms of reference and request you to kindly consider our case and grant Environmental clearance for our project.

(20)

"I hereby give undertaking that the data and information given in the application and enclosures are true to the best of my knowledge and belief and I am aware that if any part of the data and information submitted is found to be false or misleading at any stage, the project will be rejected and clearance give, if any to the project will be revoked at our risk and cost.

Date:

Place: Signature of the applicant

(Authorized Signatory)

NOTE:

1. The projects involving clearance under Coastal Regulation Zone Notification, 1991 shall submit with the application a C.R.Z map duly demarcated by one of the authorized agencies, showing the project activities, w.r.t. C.R.Z (at the stage of TOR) and the recommendations of the State Coastal Zone Management Authority (at the stage of EC). Simultaneous action shall also be taken to obtain the requisite clearance under the provisions of the C.R.Z Notification, 1991 for the activities to be located in the CRZ.

2. The projects to be located within 10 km of the National Parks, Sanctuaries, Biosphere Reserves, Migratory Corridors of Wild Animals, the project proponent shall submit the map duly authenticated by Chief Wildlife Warden showing these features vis-a-vis the project location and the recommendations or comments of the Chief Wildlife Warden "there on (at the stage of EC)." 3. All correspondence with the Ministry of Environment & Forests including submission "of

application for TOR/Environmental Clearance, subsequent clarifications, as may be required from time to time, participation in the EAC Meeting on behalf of the project proponent shall be made by the authorized signatory only. The authorized signatory should also submit a document in support of his claim of being an authorized signatory for the specifics project".
