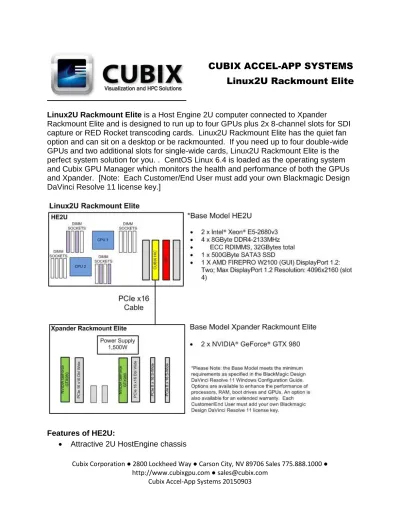

CUBIX ACCEL-APP SYSTEMS Linux2U Rackmount Elite

(1)

Cubix Corporation ● 2800 Lockheed Way ● Carson City, NV 89706 Sales 775.888.1000 ● http://www.cubixgpu.com ● [email protected]

Cubix Accel-App Systems 20150903

Linux2U Rackmount Elite is a Host Engine 2U computer connected to Xpander

Rackmount Elite and is designed to run up to four GPUs plus 2x 8-channel slots for SDI capture or RED Rocket transcoding cards. Linux2U Rackmount Elite has the quiet fan option and can sit on a desktop or be rackmounted. If you need up to four double-wide GPUs and two additional slots for single-wide cards, Linux2U Rackmount Elite is the perfect system solution for you. . CentOS Linux 6.4 is loaded as the operating system and Cubix GPU Manager which monitors the health and performance of both the GPUs and Xpander. [Note: Each Customer/End User must add your own Blackmagic Design DaVinci Resolve 11 license key.]

Features of HE2U:

 Attractive 2U HostEngine chassis

CUBIX ACCEL-APP SYSTEMS

Linux2U Rackmount Elite

(2)

Cubix Accel-App Systems 20150903  2 Intel® Xeon® E5-2600v3 Series (Haswell) processors

 Intel® C612 chipset

 Up to 1TByte memory

 4 x PCIe Gen 3.0 x16 slots for half-height host interface controllers (HICs)

 2 x Intel Gb/s Ethernet ports and 1 x Gb/s management only port with IPMI 2.0 support

 1 or 2 x SATA 3.0 SSD boot drives

 Graphics controller provides 2 x DisplayPort 1.2 outlets

Benefits of HE2U:

 Enables connection to Xpander Rackmount Elite

 Supports any PCIe-compliant controller or adapter

 Supports 2 x Intel PCIe flash cards for a total of up to 4.8TBytes fast-read/write cache

 Supports popular multiple-GPU applications such as Adobe After Effects or Premiere Pro; Autodesk Maya or 3ds Max with NVIDIA iray or Chaos Group V-ray; Bunkspeed Shot; Cinnafilm Tachyon; Otoy Octane Render and others

 Supports 2 x digital displays with resolution of 4096 x 2160

Features of Rackmount Elite

 Install blazing fast hardware acceleration within minutes

 Four PCIe Gen3 x16 expansion slots (x16 electrical) PLUS two PCIe Gen3 x8 (physical and electrical) expansion slots in each Xpander Elite Rackmount system

 Front panel LCD status indicator

 GPU management software for asset management, health monitoring and technical support

 Up to four single or dual-slot GPU cards such as, but not limited to NVIDIA® GeForce GTX 980/GTX 980Ti/TITAN X

 Add up to 2x NVIDIA DVP cards, RED Rocket cards, Blackmagic Design Decklink, ATTO HBA, and other 3rd party 4-ch / 8-ch PCIe cards

 A 1500W power supply to meet any expansion requirement

 4x variable speed, temperature-controlled exhaust fans

 Simple, quick installation with minimal impact per rack cabinet; just install a host adapter and a graphics driver

 Each x16 cable and connector provide a 250 mating duty cycle

Benefits of Rackmount Elite

 Hardware acceleration without purchasing a customized PC workstation

(3)

 Add powerful GPUs including, but not limited to, NVIDIA Quadro® K4200 / K5200 / M6000, Tesla® K80 or GeForce®GTX 980 / TITAN X graphics cards, while

minimizing the ambient noise impact on production sets and broadcast studios

 Add 3rd party I/O cards such as RED / Rocket / Rocket-X, Blackmagic Design Decklink 4k/ 3D Extreme and others

 LCD status indicator monitors in real time the health of the system, i.e. power supply, temperature, fan speed and PCIe slot link speed

 128Gb/sec theoretical transfer rate

 Continuous monitoring of GPU link status, number of lanes, link speed of enclosure, temperature, fan speed and GPU load characteristics warns of weaknesses and prevents unnecessary down time

 Whisper quiet operation minimizes sound baffling requirements on production sets [Quiet Fan (QF)] option only

 Less impact on mobile 19" cabinets than a customized tower workstation

 Multiple accelerators can access flash cards and other accelerators without accessing the root complex (the host computer’scentral processing unit)

HE2U Technical Specifications

Central Processing Unit (CPU) Intel® Xeon E5-2680v3

Number CPUs 2 x R3 with identical revision, voltage and bus speed

Socket 2011-pin LGA R3

Speeds / Cores / Threads Up to 2.5GHz / up to 12 cores / up to 24 threads

Intel Smart Cache Up to 30MByte 64-bit computing Yes

QuickPath Interconnect (QPI) Up to 9.6 GigaTransfer/second (GT/s) across 2 QPI links

Chipset Intel C612 Front Side Bus Speed 2133MHz

System Memory Sizes RDIMM: 32GByte, 16GByte, 8GByte or 4GByte

LRDIMM: 64GByte or 32GByte Type Standard ECC, registered DIMMs

(RDIMMs)

Optional load-reduced DIMMs (LRDIMMs)

Configuration DDR4-2133MHz

Maximum Size Up to 512GBytes using 16 x RDIMMs Up to 1TByte using 16 x LRDIMMs PCI Express expansion slots 4 x PCIe Gen 3.0 x16

2 x PCIe Gen 3.0 x8 (1 in x16) 1 x PCIe Gen 2.0 x4 (in x8) Ethernet ports (standard) 2 x Intel RJ-45 ports

(4)

Controller Dual Intel i350 network controllers Support 10BASE-T, 100BASE-TX, and

1000BASE-T

Ethernet port (management) RJ-45 port for management only

Controller Aspeed 2400 (dedicated IPMI_LAN 2.0 Support 10BASE-T, 100BASE-TX, and

1000BASE-T Solid State Drive (SSD) 500GByte

Serial ATA (SATA) 2 x SATA 3.0 connectors Drive Format 2.5-inch (63.5mm)

Transfer Rate 6.0GByte / second (theoretical) Number of drives / Capacity 1 standard or 2 optional / 500GByte

standard

Graphics Controller AMD FirePro W2100 (GUI) DisplayPort 1.2: Two; Max DisplayPort 1.2

Resolution: 4096x2160 System Bus QPI up to 9.6 GT/s

AC Power Supply One single-phase, auto-ranging, 90-240VAC, 10-5Amps, 50/60Hz; total output power is not to exceed 750Watts

Operating Environment 0° to 30° Celsius (32° to 86° Fahrenheit) temperature

5% to 80% non-condensing humidity Dimensions 3.50” H x 19.00” W x 25.50” D (6.35

cm x 48.26 cm x 64.77 cm) Weight 29.40 lbs. (13.34kg)

Warranty / Period Parts & labor return to manufacturer / 2 year

Ext. Warranty Period Optional 3rd year warranty

Xpander Rackmount Elite Technical Specifications

Expansion slots PCI Express Gen 3.0

Number of slots 8 slots with electrical power and 6 with PCIe data support

PCIe Gen 3.0 x16 slots

4 x16 mechanical / electrical slots PCIe Gen 3.0 x8

slots

2 x16 mechanical / x8 electrical slots

PCIe x4 slots 2 x4 slots with electrical power but no PCIe data support

Form factor support 8 full-length, full-height controllers Double-wide 4 PCIe x16 GPUs powered

(5)

Single-wide 2 PCIe x8 cards powered

Single-wide 2 PCIe x4 cards electrical power but no PCIe data support

Connecting cable External PCIe x16, 136-pin cable Length, standard 2.00meters (78.74inches or 6.56feet) Connector duty cycle 250 mating cycles maximum per connector PCIe x16 HIC Host interface controller, install in a PCIe x16 slot

PCIe Gen 3.0 slot Provides a theoretical 128Gbps data transfer rate PCIe Gen 2.0 slot Provides a theoretical 80Gbps data transfer rate PCIe Gen 1.0 slot Provides a theoretical 40Gbps data transfer rate Front panel LCD Main menu = left button

Sub-menu = right button

Cubix Corporation MIB assembly and revision; management firmware revision

Power supply status Standard main power; optional redundant power Temperature status 3 sensor readouts in degrees Centigrade (C) Fan status Fan status, voltage percent (%) speed

PCIe link status x16 cable connected; 8.0, 5.0 or 2.5Gbps x16 link speed

x16 cable Connected or not connected status Slot 3 - 6 x16 transfer

rate, theoretical

PCIe Gen 3, 8.0Gbps x16 = 128.0Gbps PCIe Gen 2, 5.0Gbps x16 = 80.0Gbps PCIe Gen 1, 2.5Gpbs x16 = 40.0Gbps Slot 1 - 2 x8 transfer

rate, theoretical

PCIe Gen 3, 8.0Gbps x8 = 64.0Gbps PCIe Gen 2, 5.0Gbps x8 = 40.0Gbps PCIe Gen 1, 2.5Gbps x8 = 20.0Gbps LCD panel backlight Toggle on / off using right button

Rear panel Power input receptacle and PCIe cables

Cooling fans 3 fans each run at 112cfm (cubic feet per minute) maximum

HE fan panel (standard)

Standard fans run at 60-70dBA to cool 4 x double-wide GPUs

LE fan panel (option) Quiet fans run at 60dBA to cool single-wide GPUs or other PCIe cards

Initial power up Fans are full on for 10s (seconds) Fan speed, minimum 25C degrees

Fan speed, maximum 50C degrees

Fan speed, in range 25C degrees to 50C degrees in progression with sensed temperature

AC power supply Single-phase, auto-ranging, 100-240VAC, 10-5Amps, 50/60Hz; total output power is not to exceed 1,500Watts

(6)

Operating environment 0° to 30° Celsius (32° to 86° Fahrenheit) temperature

5% to 80% non-condensing humidity

Dimensions (4U) 7.00" H x 19.00" W x 21.50" D (17.78 cm x 48.26 cm x 54.61 cm)

Weight 18.60lbs (8.44kg) with x16 cable, power cable and no GPUs

Warranty / period Parts & labor return to manufacturer / 2 year Ext. warranty period Optional 3rd year warranty

Summary

If you want to have a system that has maximum monitoring and color-grading in realtime of uncompressed 4K material, is guaranteed for stability and performance, reasonably priced and will slice through your workload, order your Linux2U Rackmount Elite, today. Experience the ultimate in graphics-acceleration. Get your GPU acceleration on!

Contact Cubix for details on ordering options, or place your order for an Accel-App base model system directly from our website. And, let us know what we can do to better serve you.

Cubix Corporation: 1-800-829-0550 [email protected]
