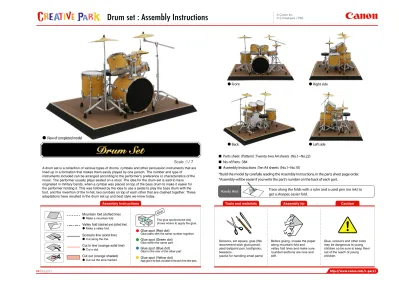

View of completed model
Front
Right side
Left side
Back
Drum set : Assembly Instructions
Parts sheet (Pattern) : Twenty-two A4 sheets (No.1~No.22)
No. of Parts : 384
Assembly Instructions : Ten A4 sheets (No.1~No.10)
*Build the model by carefully reading the Assembly Instructions, in the parts sheet page order.
*Assembly will be easier if you write the part's number on the back of each part.
A drum set is a collection of various types of drums, cymbals and other percussion instruments that are
lined up in a formation that makes them easily played by one person. The number and type of
instruments included can be arranged according to the performer's preference or characteristics of the
music. The performer usually plays seated on a stool. The idea for the drum set is said to have
originated in military bands, when a cymbal was placed on top of the bass drum to make it easier for
the performer holding it. This was followed by the idea to use a pedal to play the bass drum with the
foot, and the invention of the hi-hat, two cymbals on top of each other that are clashed together. These
adaptations have resulted in the drum set up and beat style we know today.
Trace along the folds with a ruler and a used pen (no ink) to
get a sharper, easier fold.
Handy Hint
Mountain fold (dotted line)
Make a mountain fold.
Glue, scissors and other tools
may be dangerous to young
children so be sure to keep them
out of the reach of young
children.
Scissors, set square, glue (We
recommend stick glue),pencil,
used ballpoint pen, toothpicks,
tweezers,
(useful for handling small parts)
Assembly tip
Caution
Assembly Instructions
Tools and materials
Valley fold (dashed and dotted line)
Make a valley fold.
Scissors line (solid line)
Cut along the line.
Cut In line (orange solid line)
Cut a slot.
Cut out (orange shaded)
Cut out the area marked.
The glue spot(colored dot)
shows where to apply the glue.
Glue spot (Red dot)
Glue parts with the same number together.
Glue spot (Green dot)
Glue within the same part.
Glue spot (Blue dot)
Glue to the rear of the other part.
Glue spot (Yellow dot)
Apply glue to the back, and attach to the back of the other parts.
Before gluing, crease the paper
along mountain fold and
valley fold lines and make sure
rounded sections are nice and
stiff.
Drum set : Assembly Instructions
Wrapping the piece around a can or other cylindrical object will result in a neater finish.
Handy Hint:
PAGE02
PAGE03
Bass drum
Front side
Front side Back side
*NB: Begin from the opposite side to the seam.
Upper part Front side
Back side
Back side
Align the marker lines on 3A and 3B with the glue spots on 3C ~ 3H, and attach.
*Align the reverse sides and attach.
*NB: Align the thick marker line with the upper part, and insert it through to the front side. Do not apply glue.
Before starting.
Each page of the "Parts sheet" has a sheet number in the top left-hand corner (Sheet
No.1~No.22). Work in order of these sheet numbers. (The parts for assembly are on pages 2 ~ 22.)
There are 384 parts in total, and each part is numbered according to its page.
Also, the glue spots on each part are marked with the number of the part to attach to them.
The numbers ~ in the Assembly Instructions indicate the order to attach parts. Follow
this order when attaching.
When one part has multiple spots to attach, or glue spots for attaching other pieces, colors
( ) and numbers are used to show the precise location and method for attaching.
Check the diagrams in the "Assembly Instructions" carefully for each part as you work.
Diagonal line
Seam
Bass drum
Lower part
Upper part
Upper part *Take note of where the thick marker line is.
Drum set : Assembly Instructions
*Take note of where the thick marker line is.
Upper part
Lower part
*Align the reverse sides and attach. *Be sure to align the thick black marker lines on the top and bottom (circled here in blue) when attaching.
Inside
*Attach the back. Wrapping the piece around a thin cylindrical object will result in a neater finish. Align the seam lines and
insert the pieces inside each other, and attach to the specified position.
Assemble both the left and right parts so that their seams face outwards. Face the seam line
inwards and insert the piece to the position specified.
PAGE04
PAGE05
PAGE06
*Roll up and attach.
*Roll up and attach. *Do not attach the
area marked with the diagonal lines.
*After attaching, swivel the pieces around as shown, so that the seams face inwards.
*Attach the parts circled in blue around the tom holder pipes so that the pipes are held up vertically.
Seam line
Tom holder pipe
Tom-tom 13" x 10"
Bass drum
Bass drum
Align the marker lines on 6A and 6B with the glue spots on 6C ~ 6H, and attach.
Drum set : Assembly Instructions
PAGE06
*Before attaching parts 6O and 6P, bend them into shape as shown in the diagram.
*Begin from the opposite side to the seam. *Begin from the opposite side to the seam.
PAGE07
*NB: Align the thick marker line with the specified position on the upper part, and insert it through. Do not apply glue.
*NB: There are 12 6Q parts altogether. One of them, marked 6Q-1, has a specific location for attaching.
Take note of the markings
*Before attaching parts 7P and 7Q, bend them into shape as shown in the diagram. *Take note of where the thick marker line is. *Align the reverse sides and attach.
*NB: Align the thick marker line with the specified position on the upper part, and insert it through. Do not apply glue.
Tom-tom 13" x 10"
Upper part
Lower part Seam
Lower part
Tom-tom 12" x 9"
Upper part
Lower part
Align the marker lines on 7A and 7B with the glue spots on 7C ~ 7H, and attach.
*Be sure to align the thick black marker lines on the top and bottom (circled here in blue) when attaching.
Seam
Upper part
Lower part
Lower part
Upper part *Do not apply glue to .
Take note of
the markings *NB:
Specified position
Drum set : Assembly Instructions
PAGE02 03 04 05 06 07
Bass drum / Tom-tom 13" x 10" / Tom-tom 12" x 9"
PAGE08
Floor tom
PAGE09
*NB: There are 16 8H parts altogether.
Head
Bass drum front head Shell
Bass drum bar
Tom holder
Bass drum hook Lug
Bass drum
Tom-tom 13" x 10"
Tom-tom 12" x 9"
Lug
*Begin from the opposite side to the seam.
Lower part
*Align the reverse sides and attach.
*Take note of where the thick marker line is.
*Take note of where the thick marker line is. *Before attaching parts 8F and 8G, bend them into shape as shown in the diagram.
Floor tom
Upper part
Lower part Seam
Upper part
Lower part
*Do not apply glue to . *NB:
Align the thick marker line with the specified position on the upper part, and insert it through. Do not apply glue. Align the marker lines on 9A
and 9B with the glue spots on 9C ~ 9H, and attach.
*Be sure to align the thick black marker lines on the top and bottom (circled here in blue) when attaching.
Drum set : Assembly Instructions
PAGE09
Floor tom
PAGE10
Snare drum
PAGE11
Leg
Rubber foot
Upper part
Lower part
Lower part Upper part
Align the snare wire position and fit the head on. Do not apply glue.
*Align the reverse sides and attach.
*Align the reverse sides and attach.
*After completing the stand, place the snare drum on the arm. Do not apply glue.
*Begin from the opposite side to the seam.
Snare wire picture
*Roll up and attach.
*Roll up and attach.
Rubber arm
Stand
Rubber foot
Snare wire position Head
Shell Lug
Lug Head Shell
Upper part
Lower part
Seam
Align the marker lines on 10A and 10B with the glue spots on 10C ~ 10H, and attach.
*Be sure to align the thick black marker lines on the top and bottom (circled here in blue) when attaching.
*Take note of where the thick marker line is.
*Do not apply glue to .
Snare drum
*Align the snare wire position here.
Drum set : Assembly Instructions
PAGE12
*Align the reverse sides and attach.
*Align the reverse sides and attach.
*Align the reverse sides and attach. *Align the seams
and attach.
*Align the seams and attach.
*Align the seams and attach.
Ride cymbal
PAGE13
Crash cymbal
*Align the seams and attach.
*Roll up and attach.
*Roll up and attach. Rubber foot
Rubber foot Stand
Stand Cymbal stand nut
Die-cast joint
Die-cast joint Angle adjustment tilter
Die-cast joint Die-cast joint
Cymbal
Cymbal *Align the reverse
sides and attach.
Felt for clutch
*Align the seams and attach.
*Align the seams and attach. *Align the
reverse sides and attach.
Drum set : Assembly Instructions
PAGE14
Hi-hat cymbal
Rubber foot Stand Extension rod
Hi-hat clutch
Hi-hat cymbal
Die-cast joint
*Put the pieces back to back and attach together. *Back side of 14C
Curl.
Foot pedal
Foot pedal *Roll up and attach.
*Roll up and attach.
Hi-hat cymbal
*Align the seams and attach.
*Align the seams and attach.
*Align the seams and attach.
*Align the seams and attach.
*Align the reverse sides and attach.
*Do not apply glue to .
Drum set : Assembly Instructions
PAGE15
*Bend the pieces left and right to open a gap.
*Back side of 16B
Drum pedal
PAGE16
Drum stool
Seat
Leg
Rubber foot
*The felt beater moves when you press the foot pedal.
Foot pedal Felt beater
Frame
*Align the reverse sides and attach.
Do not apply glue.
*Roll up and attach.
*Align the reverse sides and attach.
Ride cymbal Crash cymbal
Tom-tom 13" x 10" Tom-tom 12" x 9"
Hi-hat cymbal
Snare drum Floor tom Drum stool
Bass drum
Drum pedal
Drum set : Assembly Instructions
Display stand
*Fold inside and attach.
