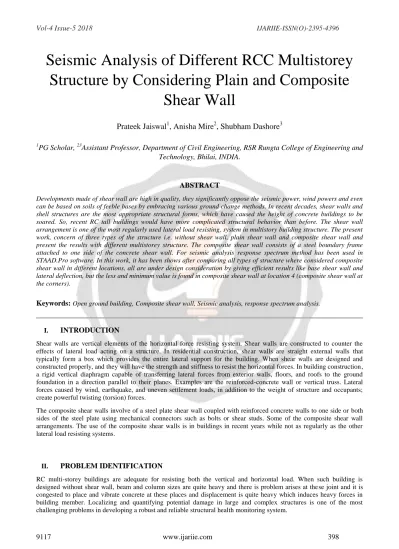

Seismic Analysis of Different RCC Multistorey Structure by Considering Plain and Composite Shear Wall

Seismic Analysis of Different RCC Multistorey Structure by Considering Plain and Composite

Shear Wall

Prateek Jaiswal

, Anisha Mire

, Shubham Dashore

1PG Scholar, ²³Assistant Professor, Department of Civil Engineering, RSR Rungta College of Engineering and Technology, Bhilai, INDIA.

ABSTRACT

Developments made of shear wall are high in quality, they significantly oppose the seismic power, wind powers and even can be based on soils of feeble bases by embracing various ground change methods. In recent decades, shear walls and shell structures are the most appropriate structural forms, which have caused the height of concrete buildings to be soared. So, recent RC tall buildings would have more complicated structural behavior than before. The shear wall arrangement is one of the most regularly used lateral load resisting, system in multistory building structure. The present work, concern of three types of the structure i.e. without shear wall, plain shear wall and composite shear wall and present the results with different multistorey structure. The composite shear wall consists of a steel boundary frame attached to one side of the concrete shear wall. For seismic analysis response spectrum method has been used in STAAD.Pro software. In this work, it has been shows after comparing all types of structure where considered composite shear wall in different locations, all are under design consideration by giving efficient results like base shear wall and lateral deflection, but the less and minimum value is found in composite shear wall at location 4 (composite shear wall at the corners).

Keywords:

I.

INTRODUCTION

Shear walls are vertical elements of the horizontal force resisting system. Shear walls are constructed to counter the effects of lateral load acting on a structure. In residential construction, shear walls are straight external walls that typically form a box which provides the entire lateral support for the building. When shear walls are designed and constructed properly, and they will have the strength and stiffness to resist the horizontal forces. In building construction, a rigid vertical diaphragm capable of transferring lateral forces from exterior walls, floors, and roofs to the ground foundation in a direction parallel to their planes. Examples are the reinforced-concrete wall or vertical truss. Lateral forces caused by wind, earthquake, and uneven settlement loads, in addition to the weight of structure and occupants;

create powerful twisting (torsion) forces.

The composite shear walls involve of a steel plate shear wall coupled with reinforced concrete walls to one side or both sides of the steel plate using mechanical connectors such as bolts or shear studs. Some of the composite shear wall arrangements. The use of the composite shear walls is in buildings in recent years while not as regularly as the other lateral load resisting systems.

II.

PROBLEM IDENTIFICATION

Vol-4 Issue-5 2018

III.

METHODOLOGY

The structure details taken from literature with different cases i.e. case I, II and case III. The case I, II and III represents the mulltistorey types of building structure. Case I represents for G+10, case II for G+15 and case III is G+20 structure for without, plain and composite shear wall frame structure.

Parameters Value

Young’s modulus of M20 concrete, E 2.8 × 10

kN/m

Grade of concrete M25

Grade of steel Fe 415

Density of Reinforced Concrete and Steel 25 kN/m

, 78 kN/m

Modulus of elasticity of brick masonry 2100 × 10

kN/m

Density of brick masonry 20 kN/m

No. of storey G+10, G+15, G+20

Beam size 0.3m x 0.5 m

Column size 0.5 m x 0.5m

Shear wall thickness 0.2 m

Height of all storeys 32 m

Height of each floor 3m

Earthquake Zone IV

Damping Ratio 5%

Importance factor 1.0

Type of Soil Medium

Type of structure Special Moment Resisting Frame

Figure 1. Side plan view of G+10 multistorey structure

Figure 2. Structure of G+10 considering without shear wall and considering shear (plain and composite wall)

IV.

RESULT AND DISCUSSIONS

The present work has been considered the G+10, G+15 and G+20 RCC structure with without shear wall, shear wall and composite shear wall with different locations. The work is compared all structural results such as base shear and

deflection found in building structure.

Figure 3. Graph represents the base shear in X-direction in multistorey structure by considering

without shear wall and with plain shear wall in different locations

Vol-4 Issue-5 2018

Figure 4. Graph represents the base shear in Z-direction in multistorey structure by considering without shear wall and with plain shear wall in different locations

Figure 5. Graph represents the base shear in X-direction in multistorey structure by considering

without shear wall and with composite shear wall in different locations

Figure 6. Graph represents the base shear in Z-direction in multistorey structure by considering

without shear wall and with composite shear wall in different locations

Vol-4 Issue-5 2018

Figure 8. Graph represents the maximum lateral displacement in Z-direction in multistorey structure by considering without shear wall and with plain shear wall in different locations

Figure 9. Graph represents the maximum lateral displacement in X-direction in multistorey structure

by considering without shear wall and with composite shear wall in different locations

Figure 10. Graph represents the maximum lateral displacement in Z-direction in multistorey structure by considering without shear wall and with composite shear wall in different locations

Figure 11. Graph represents the resultant base shear (left) and lateral displacement (right) in without

shear wall, plain shear wall and composite shear wall with respect to different multistorey structure

Vol-4 Issue-5 2018

V.

CONCLUSIONS

 In this present work has been considered the three high rises building structure such as G+10, G+15 and G+20 without and with composite including composite shear wall. To perform the seismic analysis, the Response spectrum has been used in STAAD.Pro structure analysis software by considering boundary conditions such as dead load, live load, wind load etc.

 In this work, it has been concluded that the consideration of plain or composite shear wall in different locations, all are under design consideration by giving efficient results like base shear wall and lateral deflection, but the less and minimum value is found in composite shear wall at location 4 (composite shear wall at the corners).

 Also, it has been concluded that the composite shear wall provides us the best strength and quality as compared to others. Due to composite shear walls have construct pre-casted or in place provides the stability and stiffness in erection.

 The application of composite shear wall provides lesser footmark; hence it is very beneficial from architectural argument by providing more useable floor space mainly in high rise structures. The slighter weight of composite shear wall will result in minor foundations as well as lesser seismic forces.

REFERENCES

[1] Kulkarni J.G., Kore P. N.S. B. Tanawade, “Analysis of Multi-storey Building Frames Subjected to Gravity and Seismic Loads with Varying Inertia” ISSN: 2277-3754, International Journal of Engineering and Innovative Technology (IJEIT) Volume 2, Issue 10, April 2013 Page 132.

[2] D.K. Duggala, Raju, Chandan “Comparitive Study of Response of Multi Storey Buildings Subjected to Earthquake Forces with and Without Dampers”, International Journal of Research in Engineering and Technology, ISSN: 2321-7308, Volume: 04 Special Issue: 01, NCRTCE-2014, Page 91.

[3] E. Pavan Kumar1, A. Naresh2, M. Nagajyothi3, M. Rajasekhar4, “Earofquake Analysis of Multi Storied Residential Building”, Journal of Engineering Research and Applications, ISSN: 2248-9622, Vol. 4, Issue 11(Version 1), November 2014, page 59-64.

[4] Mohit Sharma1, Dr. Savita Maru forDynamic Analysis of Multistoried Regular Building”, IOSR Journal of Mechanical and Civil Engineering (IOSR-JMCE) e-ISSN: 2278-1684, p-ISSN: 2320-334X, Volume 11, Issue 1 Ver. II (Jan. 2014), PP 37-42.

[5] Pralobh S. Gaikwad and Kanhaiya K. Tolani and view Paper on Dynamic Analysis of Building”, International Journal of Current Engineering and Technology’’ E-ISSN 2277 – 4106, Vol.5, No.1, 31 March 2015.

[6] Jawad Ahmed, H. S. Vidyadhar,” Wind Analysis and Design of Multi Bay Multi Store 3D RC Frame”, IOSR Journal of Mechanical and Civil Engineering (IOSR-JMCE), Volume 10, Issue 4 (Nov. - Dec. 2013), PP 01-07.

[7] Prakash Sangamnerkar, Dr. S. K Dubey, “Static and Dynamic Behavior of Reinforced Concrete Framed Building”, International Journal of Engineering Research & Technology (IJERT), Vol. 2 Issue 9, September – 2013 ISSN: 2278-0181

[8] O. Esmaili, S. Epackachi, M. Samadzad and S.R. Mirghaderi, “Study of Structural RC Shear Wall System in a 56 - Story RC Tall Building” 14th World Conference on Earthquake Engineering, Beijing, China, pp 12-17, 2008.

[9] IS 1893(Part 1):2002 “Criteria for Earthquake Resistant Design of Structures” BIS, New Delhi.

[10] Pankaj Agarwal and Manish Shrikande “Earthquake Resistant Design of Structures” PHI Learning Private Limited New Delhi 2010.

[11] S.K. Duggal “Earthquake Resistant Design of Structures” Oxford University Press, New Delhi 2010.

[12] Anuj Chandiwala, "Earthquake analysis of building configuration with different position of shear wall" ISSN 2250-2459, ISO 9001:2008 certified journal, volume 2, issue 12, December 2012.

[13] Ashish S. Agrawal and S.D. Charkha, “Study of Optimizing Configuration of Multi-Storey Building Subjected to Lateral Loads by Changing Shear Wall Location" proceedings of international conference on advances in architecture and civil engineering (aarcv 2012), 21st – 23rd june 2012 287 paper id sam137, vol. 1.

[14] Romy Mohan, “Dynamic Analysis of RCC Buildings with Shear Wall” International Journal of Earth Sciences and Engineering ISSN 0974-5904, Volume 04, No 06 SPL, October 2011, pp 659-662.

[15] Himalee Rahangdale, S.R. Satone, " Design And Analysis Of Multistoried Building With Effect Of Shear Wall"

International Journal of Engineering Research and Applications (IJERA) ISSN: 2248-9622, Vol. 3, Issue 3, May- Jun 2013, pp.223-232.

[16] YUN, hyun-do, CHOI, Changsik and LEE, li-hyung, “Earthquake performance of high strength concrete

[18] Priya Chandurkar, Dr. P. S. Pajgade, “Seismic analysis of RCC building with and without shear wall”

International Journal of Modern Engineering Research, Vol. 3, Issue. 3, May - June 2013 pp-1805-1810.

[19] Varsha R. Harne, “Comparative study of strength of RC Shear wall at different location on multistoried residential building” International Journal of Civil Engineering Research, Volume 5, Number 4, pp. 391-400, 2014.

[20] Reslan N, Masri A and Machaka M, “Composite Shear Walls an Efficient Seismic Resistant System for Multi- Story Buildings”, Journal of Steel Structures & Construction, Volume 4 Issue 1, pp 1-7, 2018.
